Sungil Flexible shaft coupling for large shaft displacements, SFC

The SFC series is a highly flexible shaft coupling that is ideal when large radial and/or axial displacements occur.

Its innovative structure makes it very simple to apply.

The SFC series is available for shaft sizes from 6mm up to 12mm as standard.



Read more
  • Absorbs large shaft displacements
  • Excellent with high shocks and vibrations
  • Low inertia
  • For 4mm to 16mm diameter shafts
  • Supplied machined to shaft requirements

Selected variant

Available in several variants
SIM Logotype

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Angle deviation 10 °
Axial displacement 2 mm
Connection size 1 6 mm
Connection size 2 6 mm
Parallel displacement 2,5 mm
Torque max 1,35 Nm

Measurements and connections

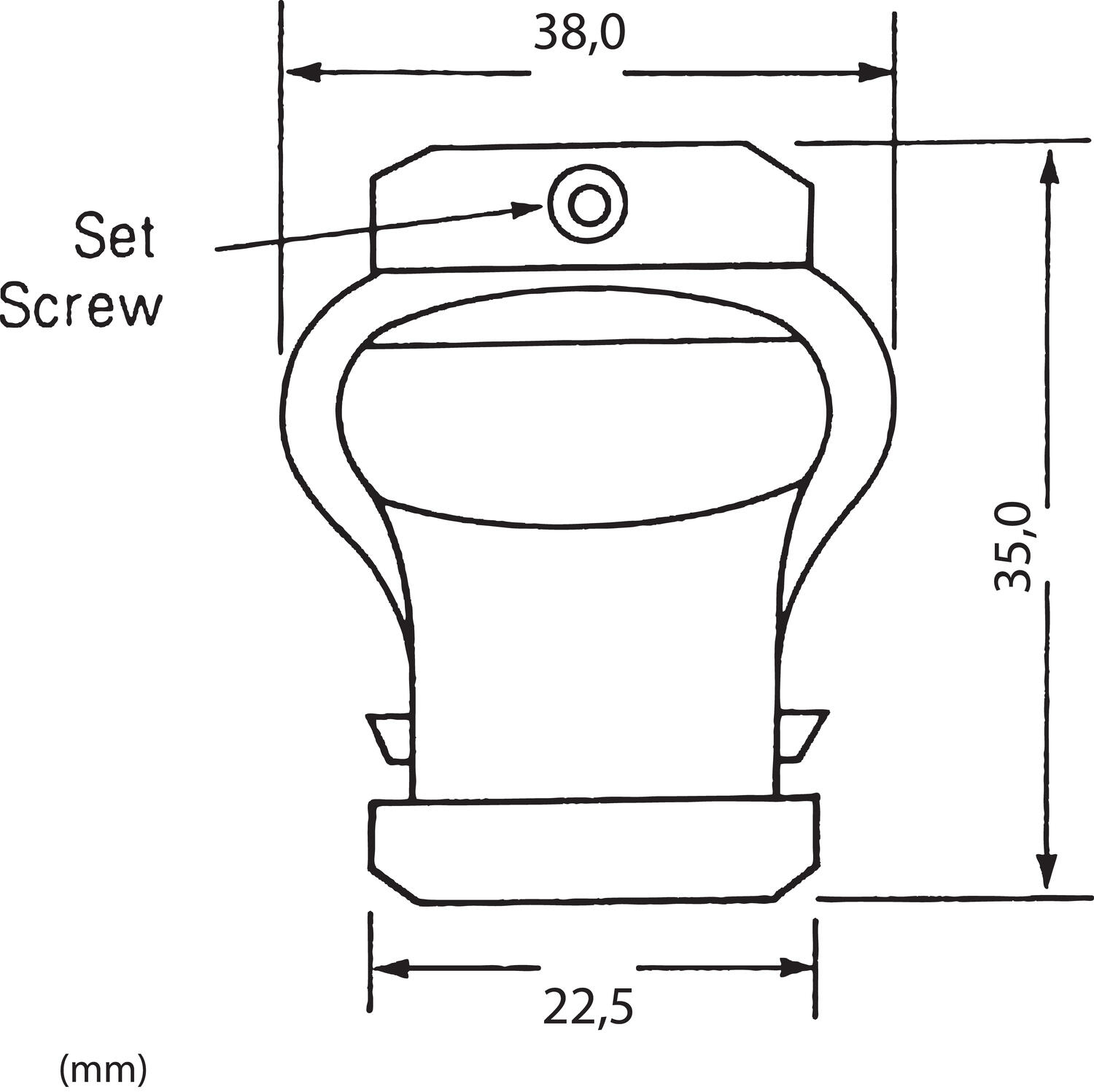

Dimensions

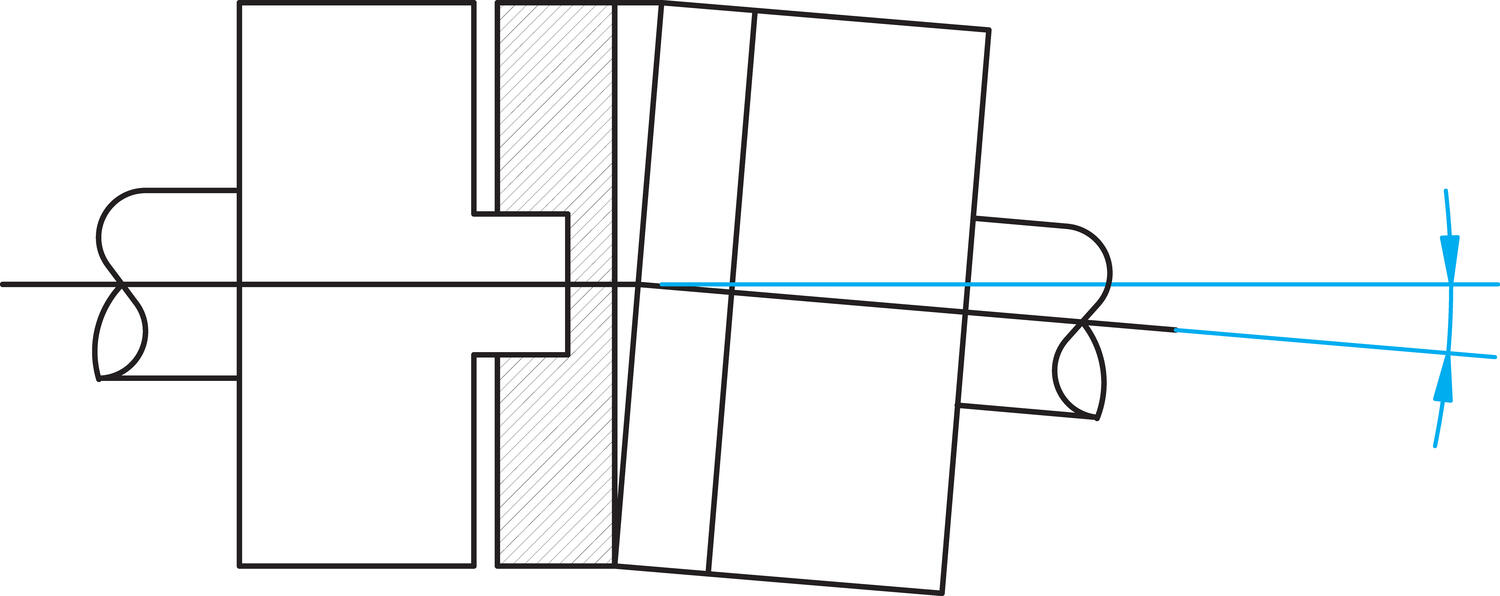

Offset 2

Angle deviation

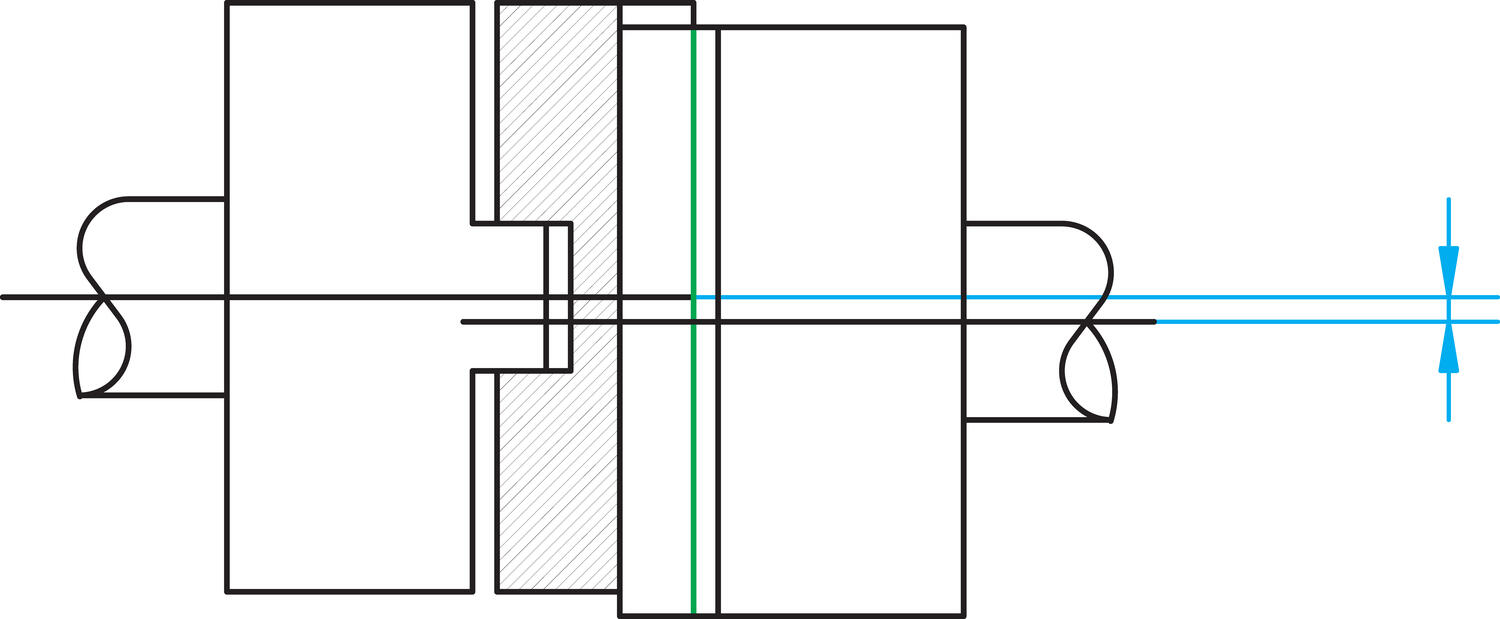

Offset 1

Parallel displacement

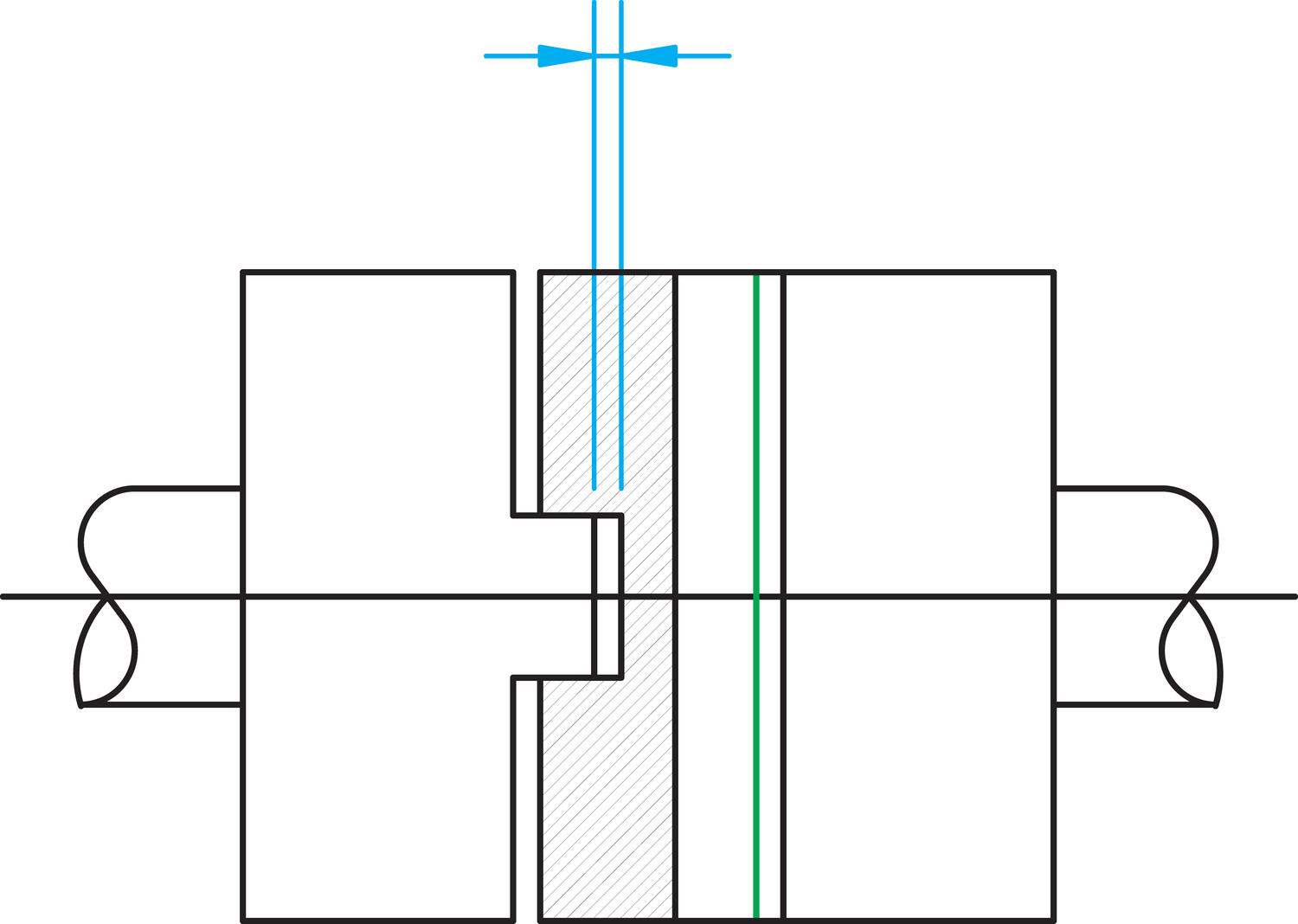

Offset 3

Axial displacement

Product description

The SFC series is a highly flexible shaft coupling that is ideal when large radial and/or axial displacements occur.

Its innovative structure makes it very simple to apply.

The SFC series is available for shaft sizes from 6mm up to 12mm as standard.



Accessories

Parts Connection size 1 Connection size 2 Price
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-6X6
Art:
SFC-38-6X6 Copied
6 mm
6 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-6X8
Art:
SFC-38-6X8 Copied
6 mm
8 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-6X10
Art:
SFC-38-6X10 Copied
6 mm
10 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-6X12
Art:
SFC-38-6X12 Copied
6 mm
12 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-8X8
Art:
SFC-38-8X8 Copied
8 mm
8 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-8X10
Art:
SFC-38-8X10 Copied
8 mm
10 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-8X12
Art:
SFC-38-8X12 Copied
8 mm
12 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-10X10
Art:
SFC-38-10X10 Copied
10 mm
10 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-10X12
Art:
SFC-38-10X12 Copied
10 mm
12 mm
Sungil Flexible shaft coupling for large shaft displacements, SFC
SFC-38-12X12
Art:
SFC-38-12X12 Copied
12 mm
12 mm
