Cable Lugs & Crimps

The cable lugs provided are meticulously engineered for fine-stranded round conductors, adhering to DIN EN 60228 Cl. 5 standards. Crafted from annealed copper (EN13600), these lugs offer optimal material and crimping properties, ensuring reliable and secure connections. Featuring a tin-plated surface, they are fortified against corrosion, extending their lifespan and reliability even in harsh environments. The inclusion of an inspection hole facilitates easy monitoring of conductor insertion, simplifying the installation process.

With a keen eye on versatility and compatibility, these cable lugs are approved for use with high-temperature cables up to 180°C, meeting the rigorous standards of IEC 61238-1-1. They are suitable for class 5 tin-plated conductors, accommodating a wide range of fine-stranded round conductors from 0.75-4 mm². Furthermore, they are adaptable to multi-stranded round conductors up to 400 mm², as well as pre-rounded multi-stranded sector-shaped conductors, offering flexibility in various applications. The precise internal chamfer ensures effortless cable entry, enhancing the efficiency of installation processes.

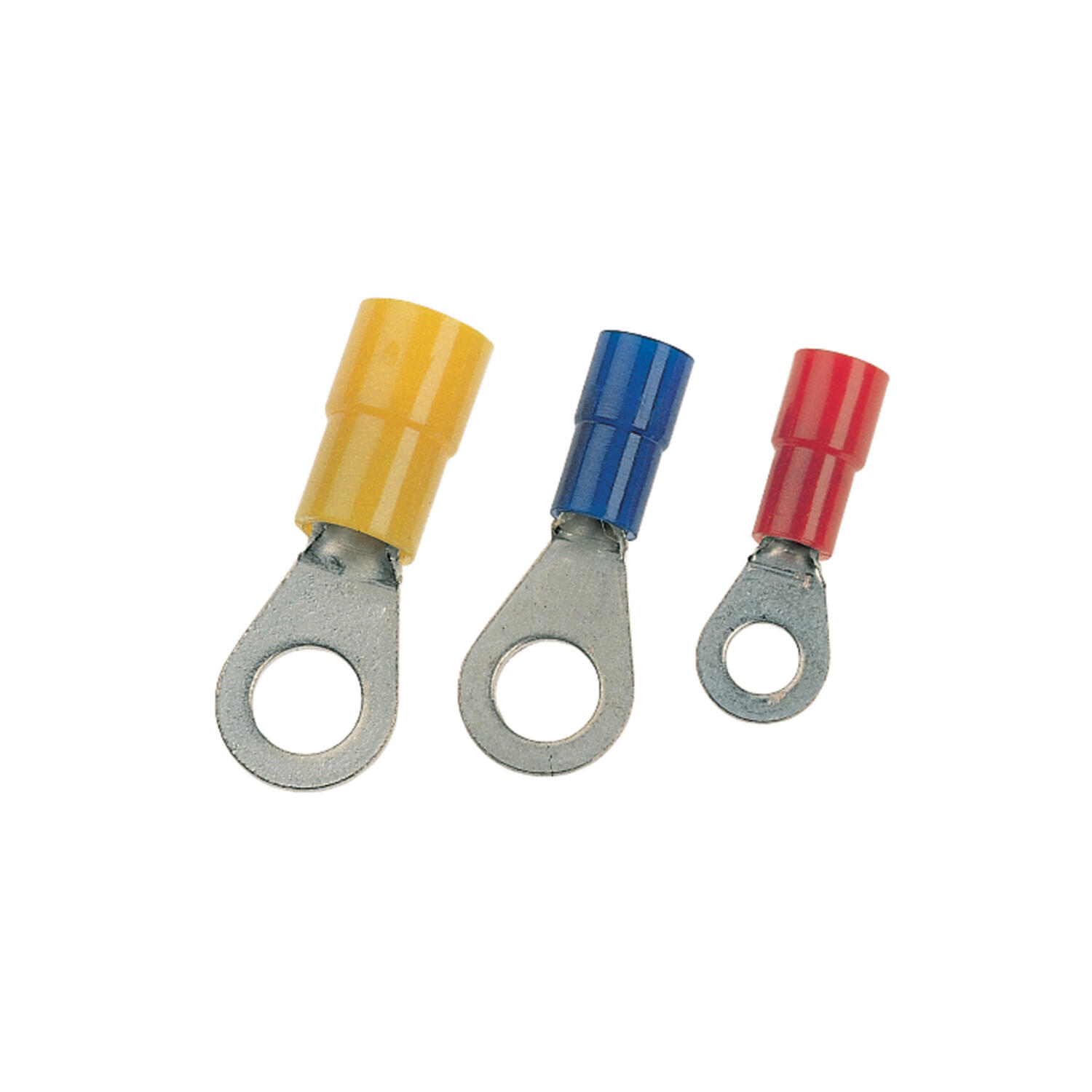

Alongside ferrules, Z+F offer UL Certified terminals (E333905 or E477752) which boast a UL94-V0 inflammableness classification and are RoHS compliant. Featuring polyvinyl chloride insulation, some are reinforced with a copper sleeve for added strength. Withstanding temperatures from -20°C to +75°C, they comply with ROHS directive 2011/65/EU, REACH regulation (EG) no. 1907/2006, and conflict minerals according to Sec. 1502 DFA, ensuring both safety and regulatory compliance.
