Transformer Terminals
Available in traditional Screw or Push-In technology.
They can also be mounted on aluminium 10x2 DIN rails.
They are used for converting coil ends to screw-/spade connections, for connecting to the device being powered or to parts of the facility.
The TKS range is unique, as the cover can be clipped back to the top of the terminal, so helps prevent accidental melting of the cover when soldering the wire to the hook.
All TKS transformer terminals feature the proven clamping yoke system which guarantees a vibration-resistant connection.
Touch safety in compliance with VBG 4 is ensured because of the closed housing design (material is polyamide PA 6.6 UL 94-V0).
The range includes 1-, 2 & 3 pole variants suitable for 4mm & 10mm cables. The standard colours are orange and grey,
The PTKS range has push-in technology and are cross connectable, they have been designed so they can be used on an automated production line., speeding up manufacturing and reducing costs.
There are also a range of matching 4mm fuse terminals that can be selected.
The PMC SB 7,5 quick marking system is used for labelling the transformer terminals. A large range of pre-marked makers are held in stock.
The previous TK range is still available and can be clipped together using the dove tail moulding, allowing a custom number of poles in one strip.
PTKS Push In Transformer Terminals
PTKS
- Push-In technology
- Protective covers
- Cross Connectable
- Clip together
TKS transformer terminals
TKS
- Compact 4,10 and 16mm connections
- Screw and Faston Versions (2.8/6.3mm)
- Touch safe VBG 4 compliant
- Polyamide 6.6 UL 94-V0

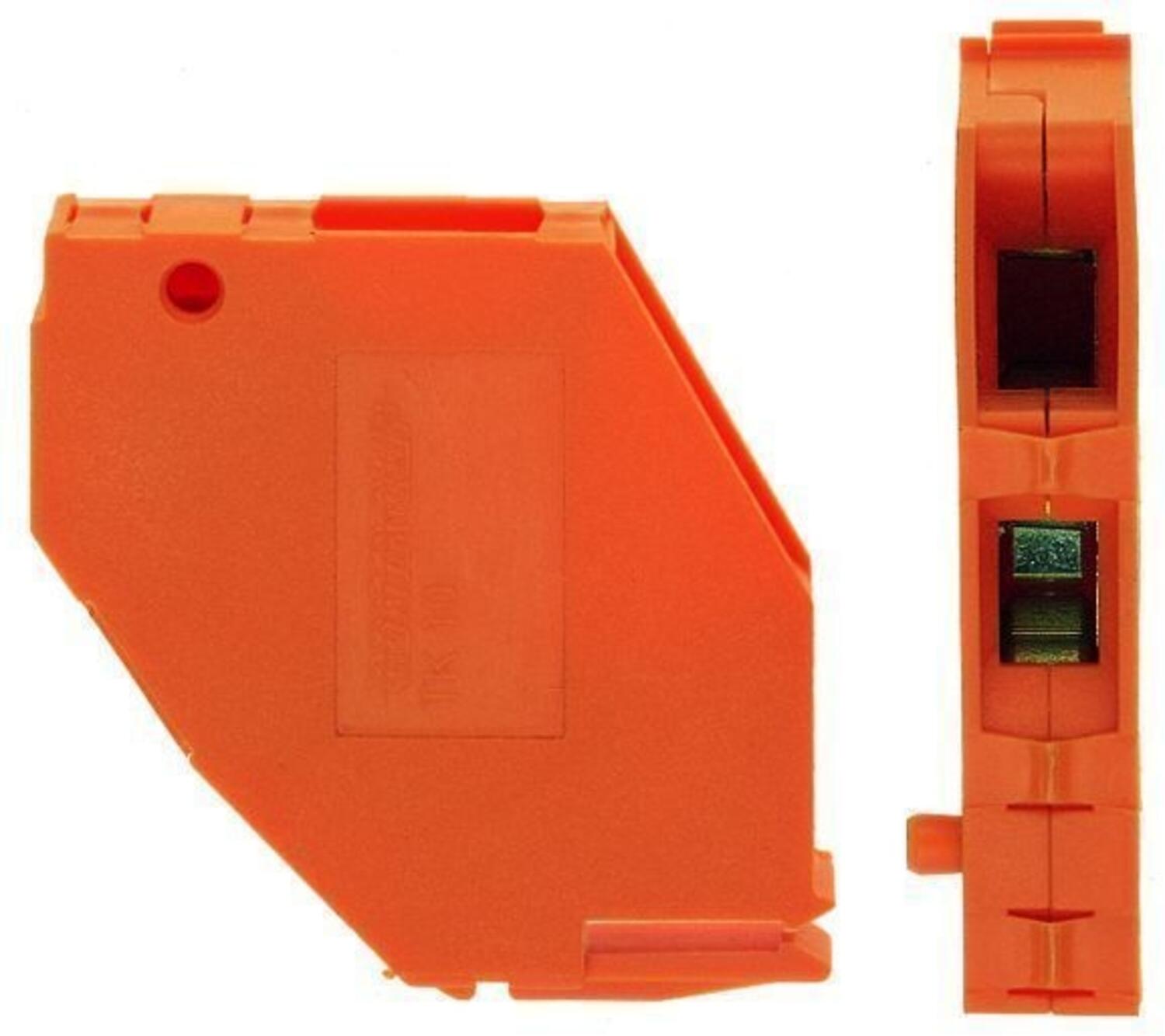

TK Transformer terminals
TK
- Modular system
- Screw & Faston versions (2.8/6.3mm)
- Touch safe VBG 4 compliant
- Polyamide 6.6 UL 94-V0
