Actuonix P8 miniature stepper linear actuator
The P8 actuators are complete, self-contained compact linear motion devices.
Â
Using either brushed DC or brushless stepper motors, the P8 range offers the greates force to size ratio of any Actuonix actuator.
Â

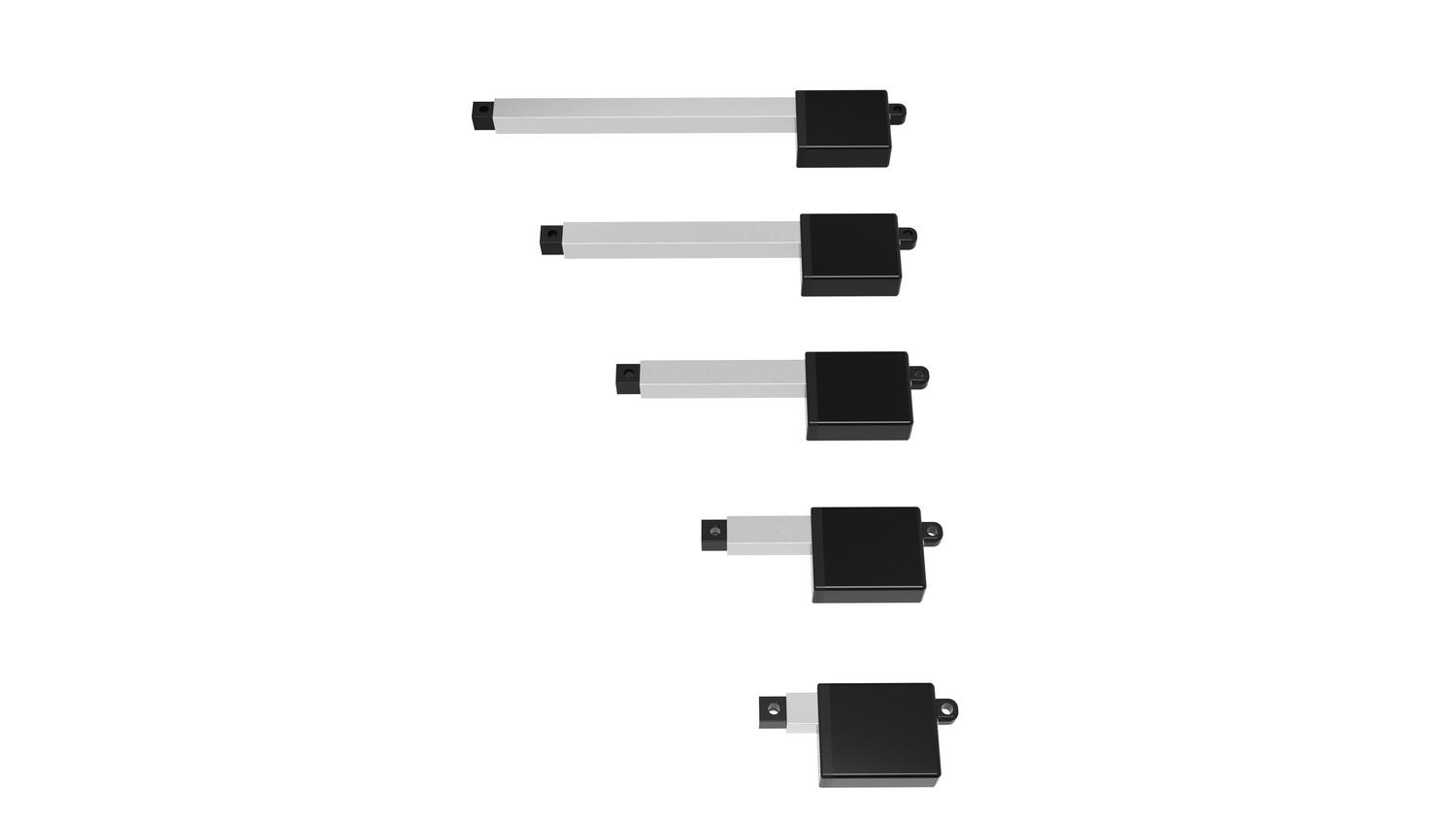

Several stroke length options allow these to fit a wide variety of applications.
Â
Brushed DC versions available with end of travel limit switches or potentiometer for positional feedback.
Â
The brushless stepper design makes the P8 one of the highest precision and longest life actuator available from Actuonix.
Â
Using a bi-polar stepper motor, control can be precise, accurate and continuos through a standard stepper motor drive
- Up to 50N force
- Up to 70mm/s speed

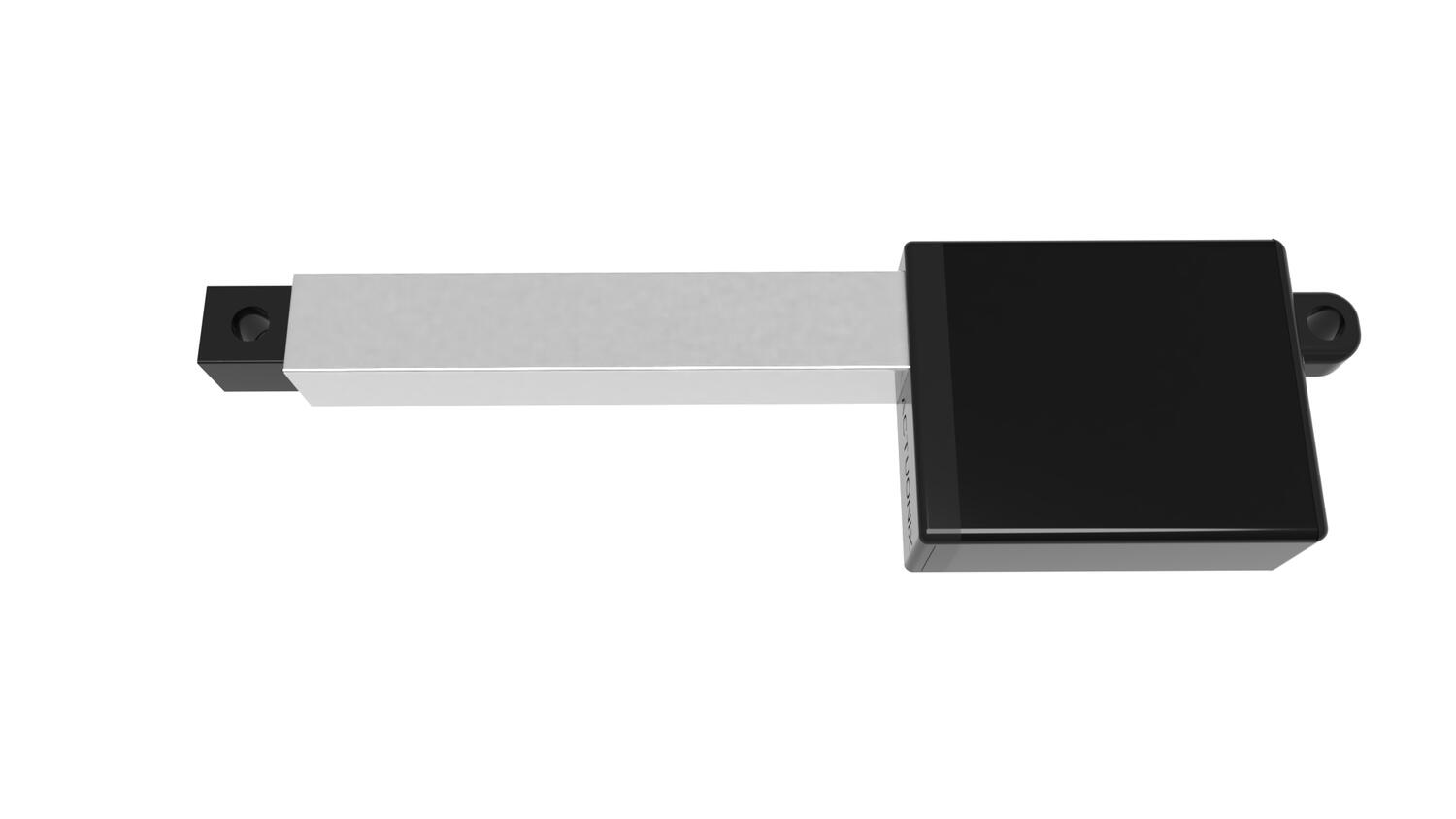

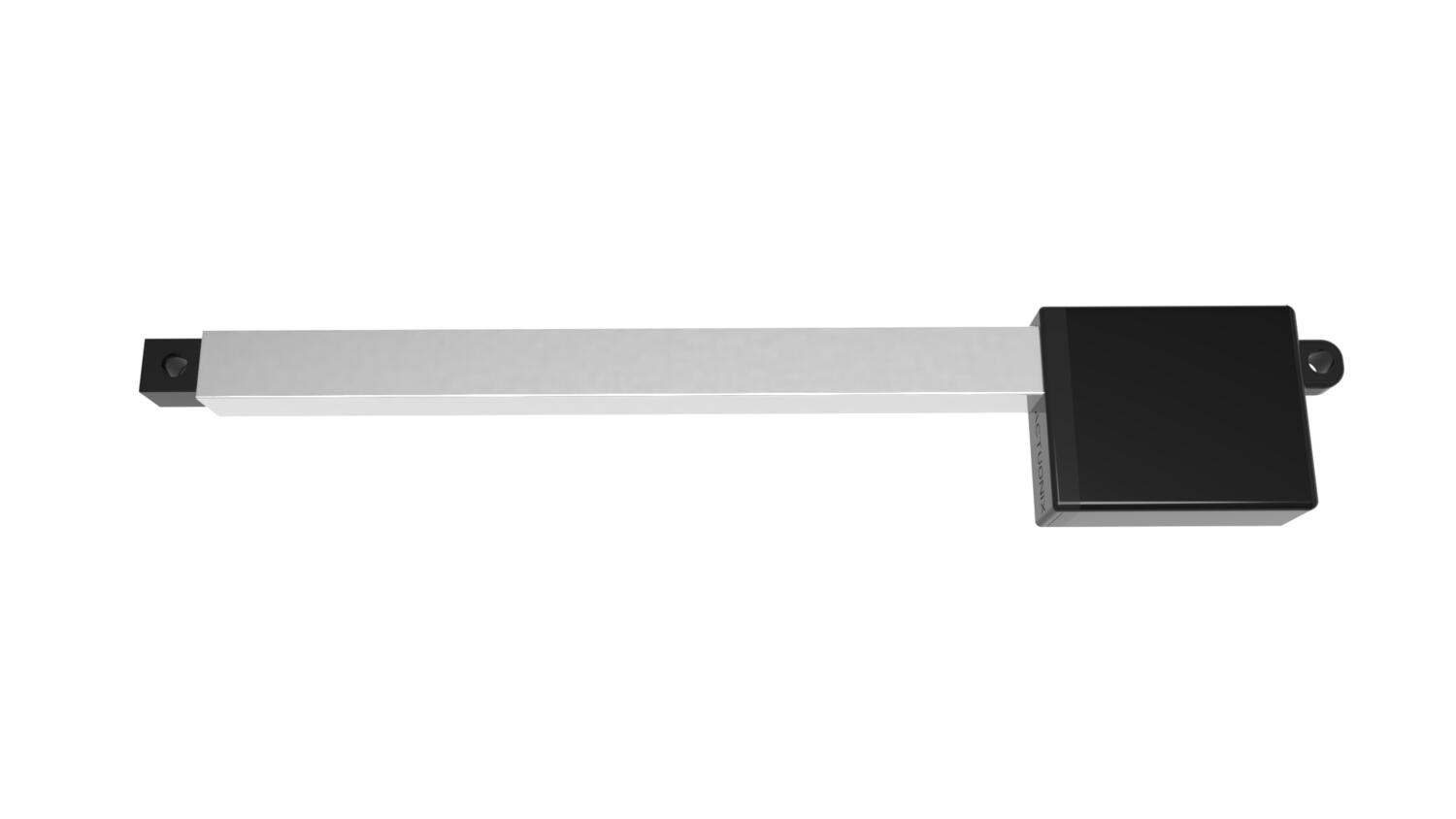

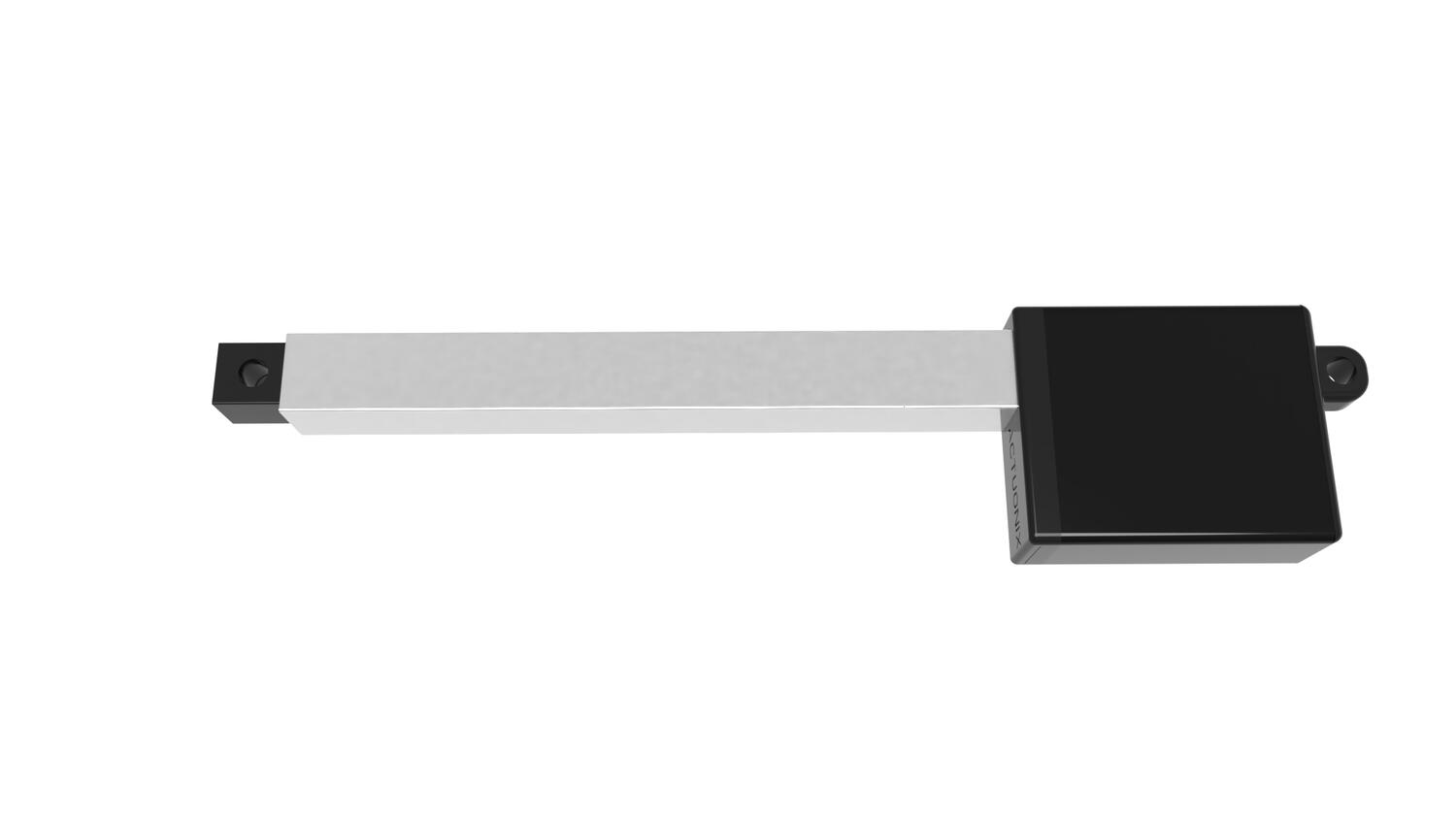

- From 10mm to 100mm stroke
- Up to 100% duty cycle
- Used for accurate position control
Selected variant
Technical data
| Back drive force | 30 N |
|---|---|
| Closed length (hole to hole) | 45 mm |
| Duty cycle | 100 % |
| Force max | 18 N |
| IP class | IP54 |
| Ratio | 49:1 |
| Static load max | 18 N |

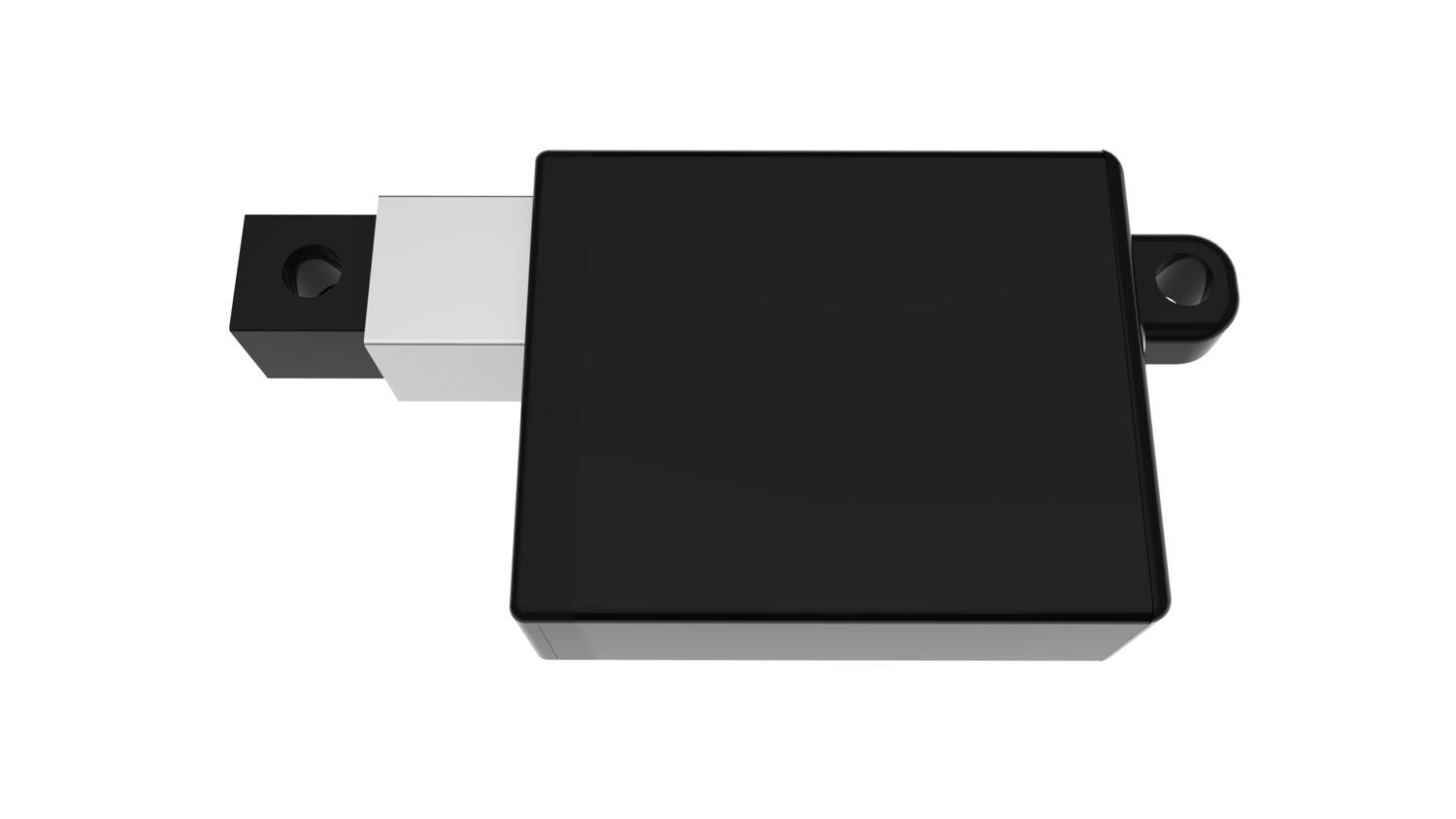

| Stroke | 10 mm |
|---|---|
| Temperature operational max | 40 °C |
| Temperature operational min | -10 °C |
| Weight | 18 g |
| Voltage dc | 4.2 V |
Product description
The P8 actuators are complete, self-contained compact linear motion devices.
Â
Using either brushed DC or brushless stepper motors, the P8 range offers the greates force to size ratio of any Actuonix actuator.
Â
Several stroke length options allow these to fit a wide variety of applications.
Â
Brushed DC versions available with end of travel limit switches or potentiometer for positional feedback.
Â
The brushless stepper design makes the P8 one of the highest precision and longest life actuator available from Actuonix.
Â
Using a bi-polar stepper motor, control can be precise, accurate and continuos through a standard stepper motor drive
