MOONS'
| Communication | CANopen |
|---|---|
| Dimension (mm) | 150 |
| Nominal current | 12 A |
| Nominal speed | 2000 rpm |
| Nominal torque | 1.9 |
| Outer diameter | 150 mm |
| Power | 400 W |
|---|---|
| Ratio | 10:1 |
| Speed | 1.6-2.4m/s |
| Supply voltage | 24-60 V DC |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Dimension (mm) | Nominal current | Nominal torque | Outer diameter | Power | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|

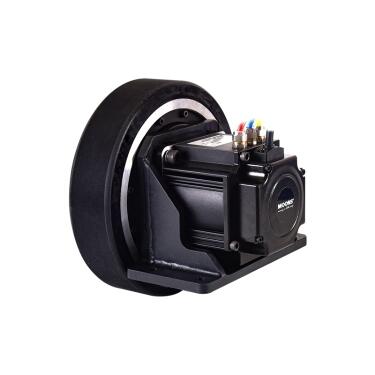

150mm MSD driving wheel with brake
Art:
MSD150-10-040-20GSL-B
Copied
|
150
|
12 A
|
1.9
|
150 mm
|
400 W
|
1.6-2.4m/s
|
| ||
|
150mm MSD driving wheel without brake
Art:
MSD150-10-040-20GSL-N
Copied
|
150
|
12 A
|
1.9
|
150 mm
|
400 W
|
1.6-2.4m/s
|
| ||
|
160mm MSD driving wheel with brake
Art:
MSD160-10-075-20GSL-B
Copied
|
160
|
19 A
|
3.6
|
160 mm
|
750 W
|
1.7-2.1m/s
|
| ||
|
160mm MSD driving wheel without brake
Art:
MSD160-10-075-20GSL-N
Copied
|
160
|
19 A
|
3.6
|
160 mm
|
750 W
|
1.7-2.1m/s
|
| ||
|
180mm MSD driving wheel with brake
Art:
MSD180-10-075-20GSL-B
Copied
|
180
|
19 A
|
3.6
|
180 mm
|
750 W
|
1.9-2.4m/s
|
| ||
|
180mm MSD driving wheel without brake
Art:
MSD180-10-075-20GSL-N
Copied
|
180
|
19 A
|
3.6
|
180 mm
|
750 W
|
1.9-2.4m/s
|
| ||
|
180mm MSD driving wheel w/brake (high output version)
Art:
MSD180-10-100-20GSL-B
Copied
|
180
|
25 A
|
4.8
|
180 mm
|
1000 W
|
1.9-2.4m/s
|
| ||
|
180mm MSD driving wheel w/o brake (high output version)
Art:
MSD180-10-100-20GSL-N
Copied
|
200
|
25 A
|
4.8
|
180 mm
|
1000 W
|
1.9-2.4m/s
|
| ||
|
200mm MSD driving wheel with brake
Art:
MSD200-10-100-20GSL-B
Copied
|
200
|
25 A
|
4.8
|
200 mm
|
1000 W
|
2.1-2.6m/s
|
| ||
|
200mm MSD driving wheel without brake
Art:
MSD200-10-100-20GSL-N
Copied
|
180
|
25 A
|
4.8
|
200 mm
|
1000 W
|
2.1-2.6m/s
|
|
Select a variant in the list
