INDUSTRILÅS

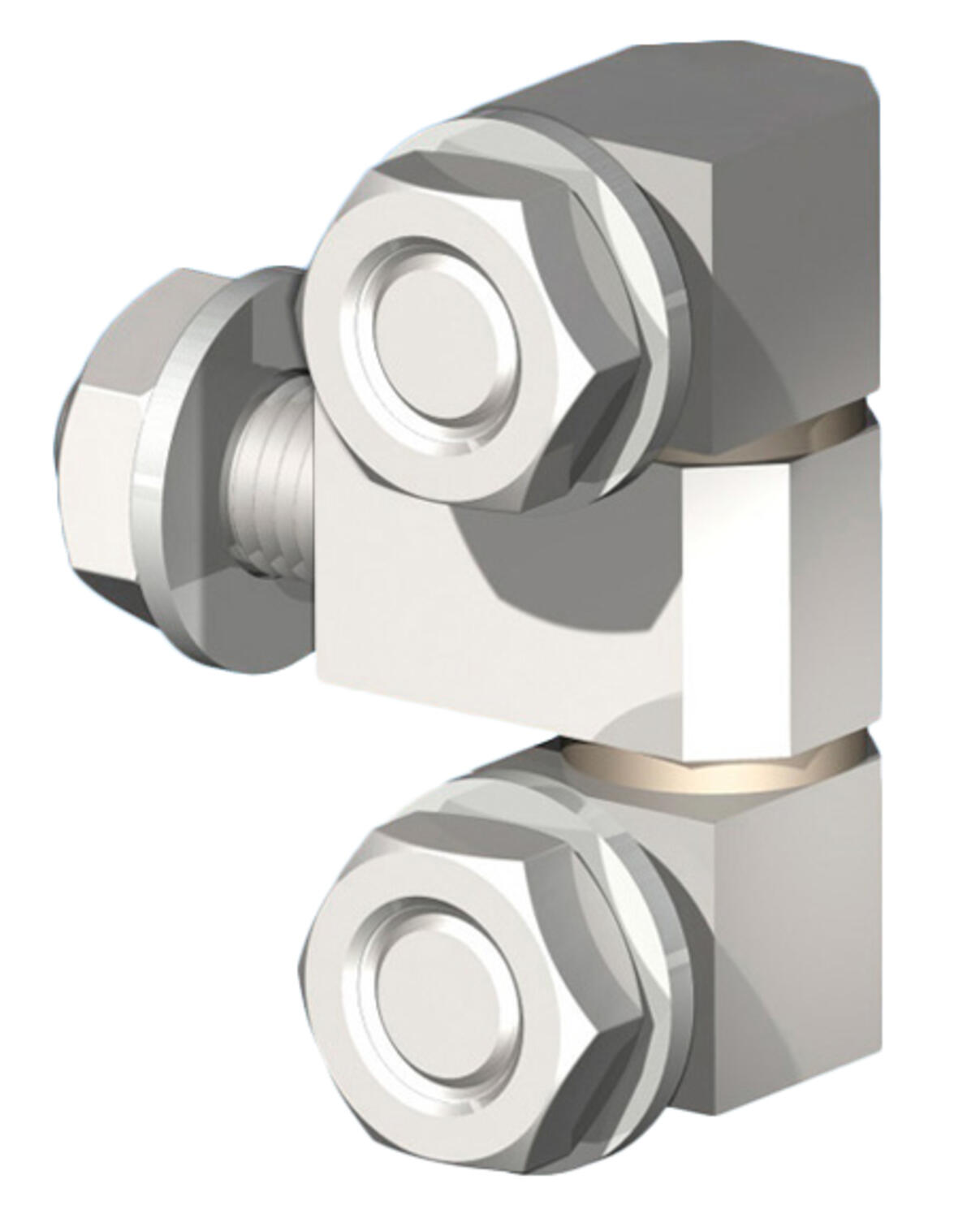

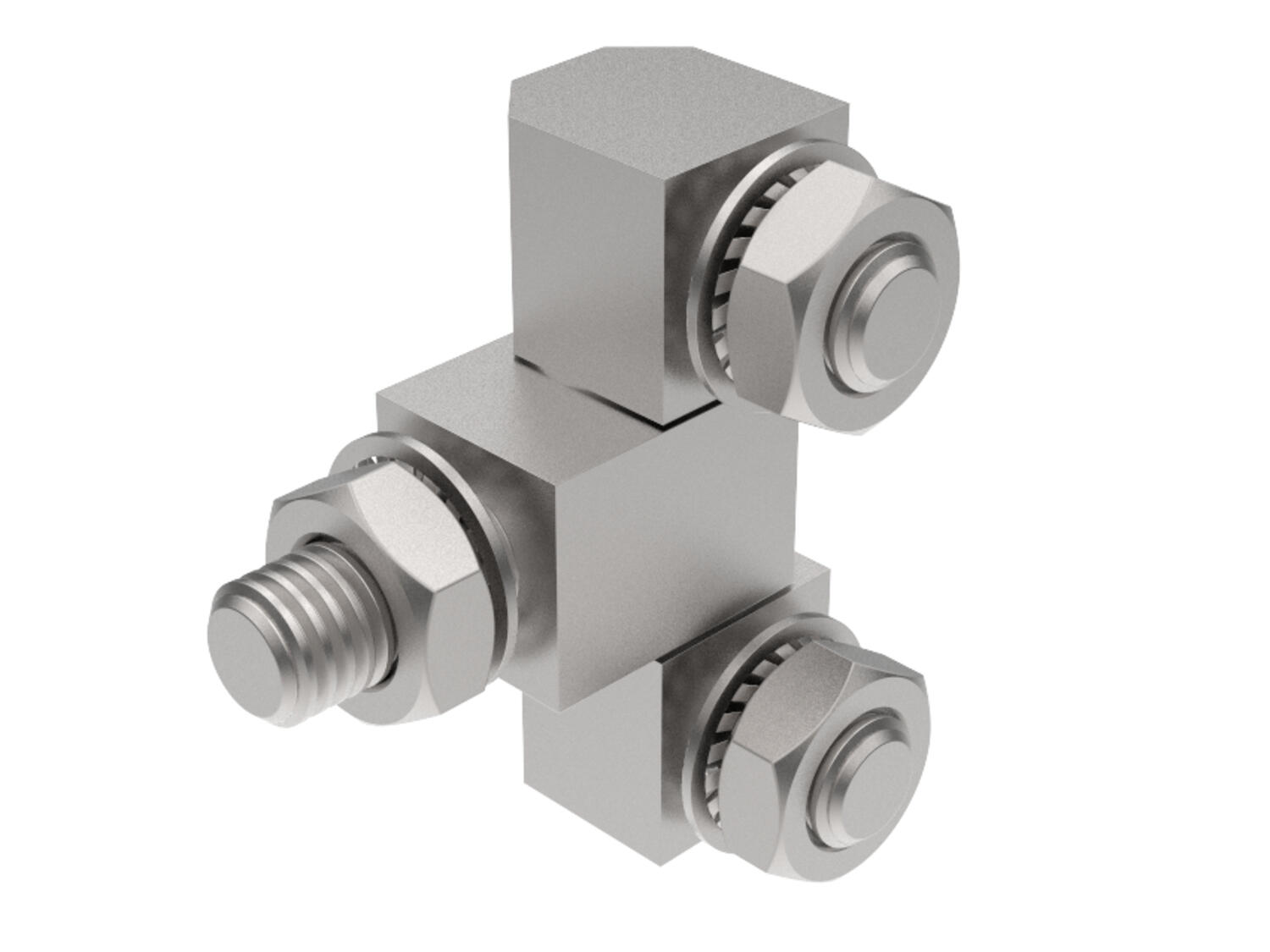

External bolt-on hinge 180°

Block hinge with fzb surface treatment.

The block hinge has a longer block in the middle than other models from Industrilås.

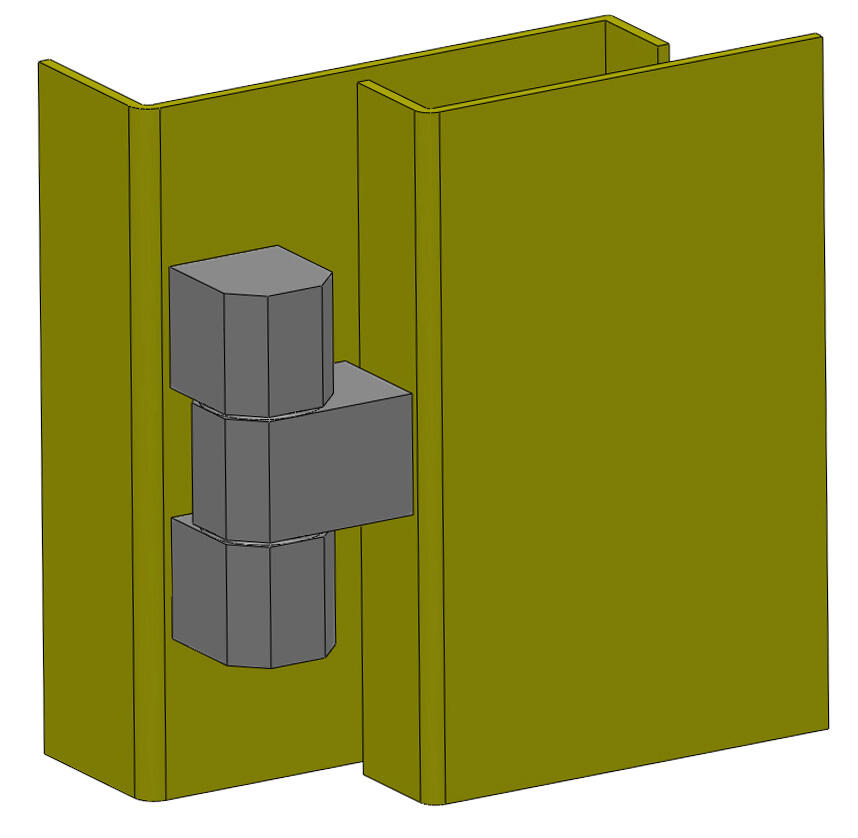

The block hinge is mounted externally using nuts on cast-in studs.

Universal hinge that works both as right or left mounting.

The opening angle is 180°.

The hinge & nuts are made of steel and have fzb as a surface coating.

Shaft & washer consists of brass and fzb as surface treatment.

Read more
  • External installation
  • Steel, brass, zinc, nickel
  • Cast bolts
  • Longer block in the center

Selected variant


External bolt-on hinge, 180°, steel zinc plated, 43x48mm

Art:

Selected variant

Technical data

Material hinge Zinc-plated steel
Material nut Zinc-plated steel
Material of shaft Brass
Material washer Brass
Opening angle 180 °

Measurements and connections

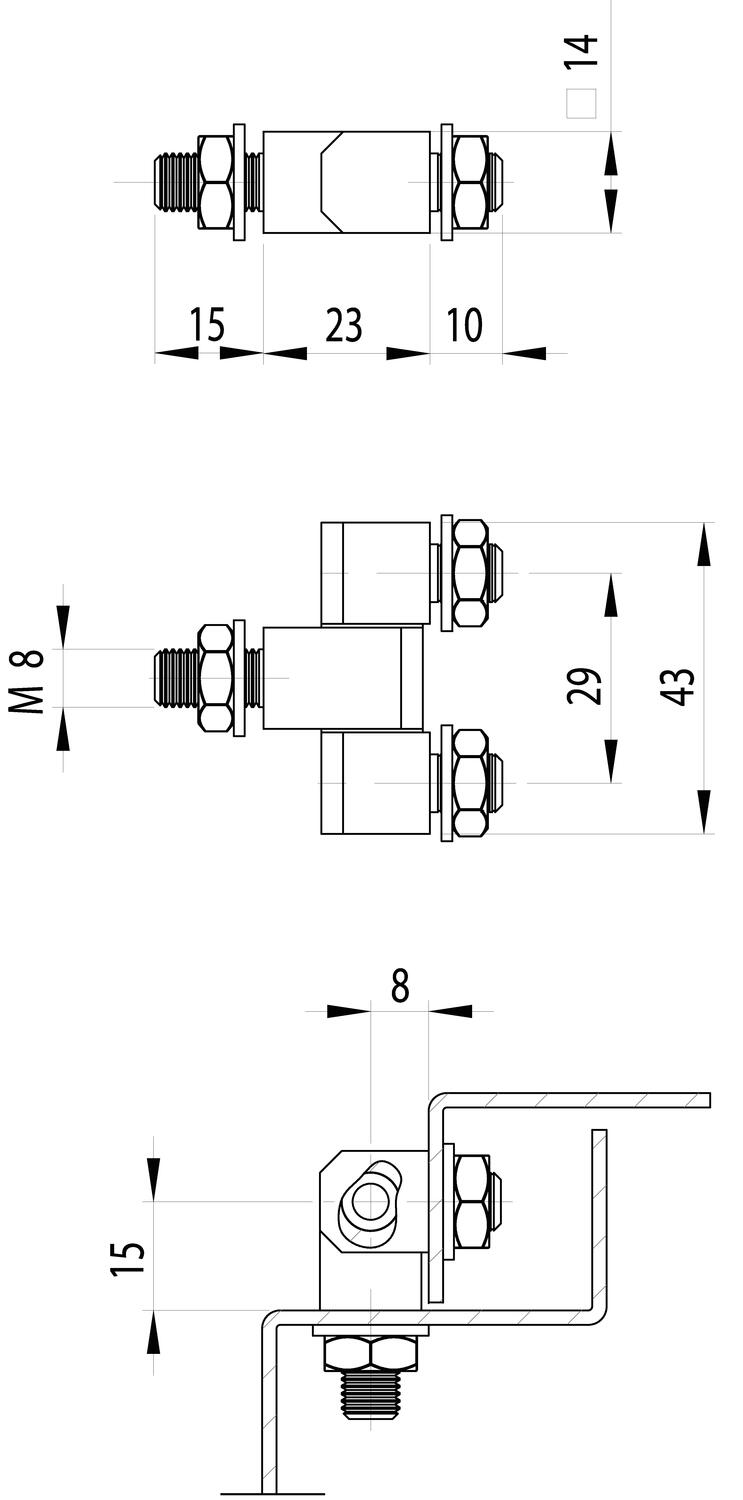

Technical illustrations

Product description

Block hinge with fzb surface treatment.

The block hinge has a longer block in the middle than other models from Industrilås.

The block hinge is mounted externally using nuts on cast-in studs.

Universal hinge that works both as right or left mounting.

The opening angle is 180°.

The hinge & nuts are made of steel and have fzb as a surface coating.

Shaft & washer consists of brass and fzb as surface treatment.
