INDUSTRILÅS

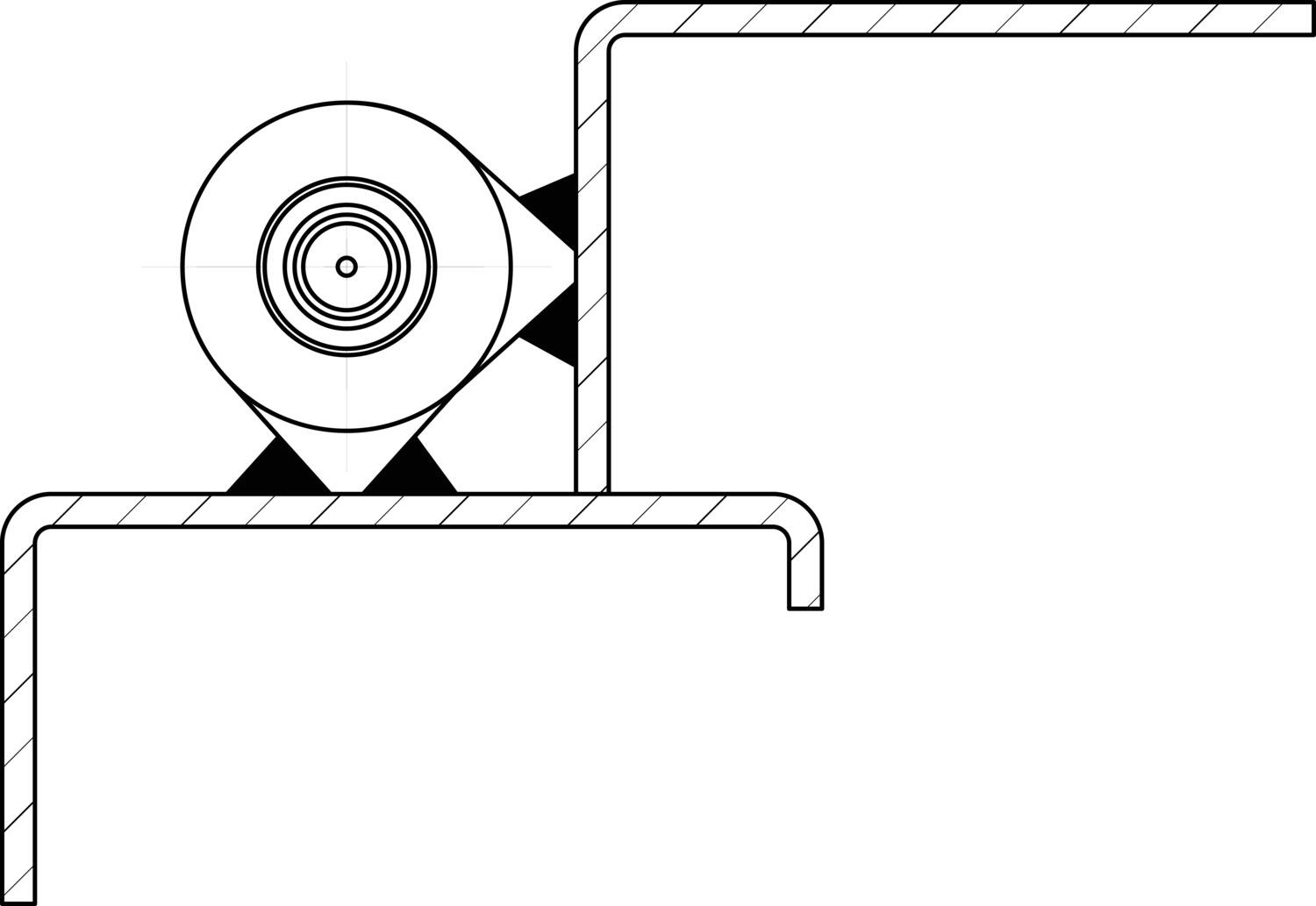

Welding hinge with grease nipple. Universal right or left mounting.

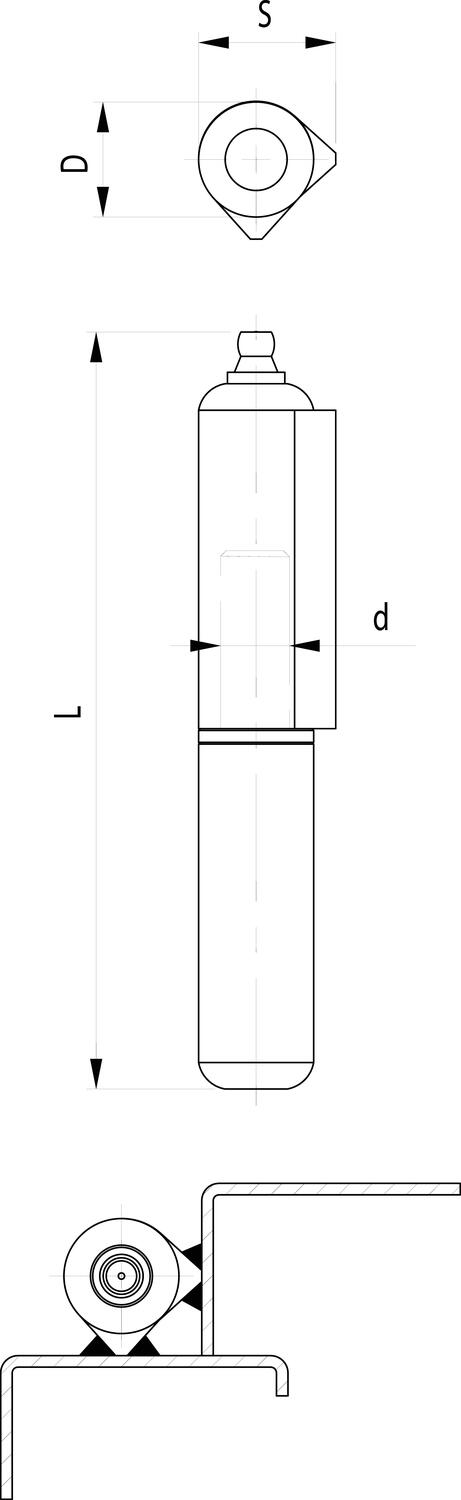

| Dimension D | 8 mm |
|---|---|
| Dimension L | 80 mm |
| Dimension S | 16 mm |
| Material | Extruded steel profile |
| Material of shaft | Brass |
| Material washer | Brass |
Welding hinge with grease nipple. Universal right or left mounting.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Dimension D | Dimension L | Dimension S | Price | ||
|---|---|---|---|---|---|---|
Weld on hinge with grease nipple, dia 13mm, length 80mm
Art:
338005-A080
Copied
|
8 mm
|
80 mm
|
16 mm
|
| ||
|
Weld on hinge with grease nipple, dia 16mm, length 100mm
Art:
338005-A100
Copied
|
10 mm
|
100 mm
|
20 mm
|
| ||
|
Weld on hinge with grease nipple, dia 16mm, length 120mm
Art:
338005-A120
Copied
|
10 mm
|
120 mm
|
20 mm
|
| ||
|
Weld on hinge with grease nipple, dia 18mm, length 135mm
Art:
338005-A135
Copied
|
12 mm
|
135 mm
|
22 mm
|
| ||
|
Weld-on hinge with grease nipple, 20mm dia, 150mm length
Art:
338005-A150
Copied
|
13 mm
|
150 mm
|
25 mm
|
| ||
|
Weld-on hinge with grease nipple, 20mm dia, 180mm length
Art:
338005-A180
Copied
|
14 mm
|
180 mm
|
25 mm
|
| ||
|
Weld-on hinge with grease nipple, 23mm dia, 200mm length
Art:
338005-A200
Copied
|
16 mm
|
200 mm
|
29 mm
|
|
Select a variant in the list
