INDUSTRILÅS

Anti-rotation bracket

To enable the installation of 90° locks with hole punching "Combi" also in round holes. Suitable for mounting such locks in e.g. doors made of wood, fiberglass, etc. The washer is attached by drilling 2 Ø 4 mm holes in the door on each side of the mounting hole (Ø 23 mm), whereby the washer is pressed in from the inside of the door. Finally, the lock is mounted in the "Combi" hole punch.

Read more
  • For 90° lock
  • Hole pattern Ø23 mm
  • For mounting in wood or fiberglass
  • Fastens in 2x Ø4mm holes

Selected variant

Available in several variants

Selected variant

Technical data

Material Zinc

Downloads

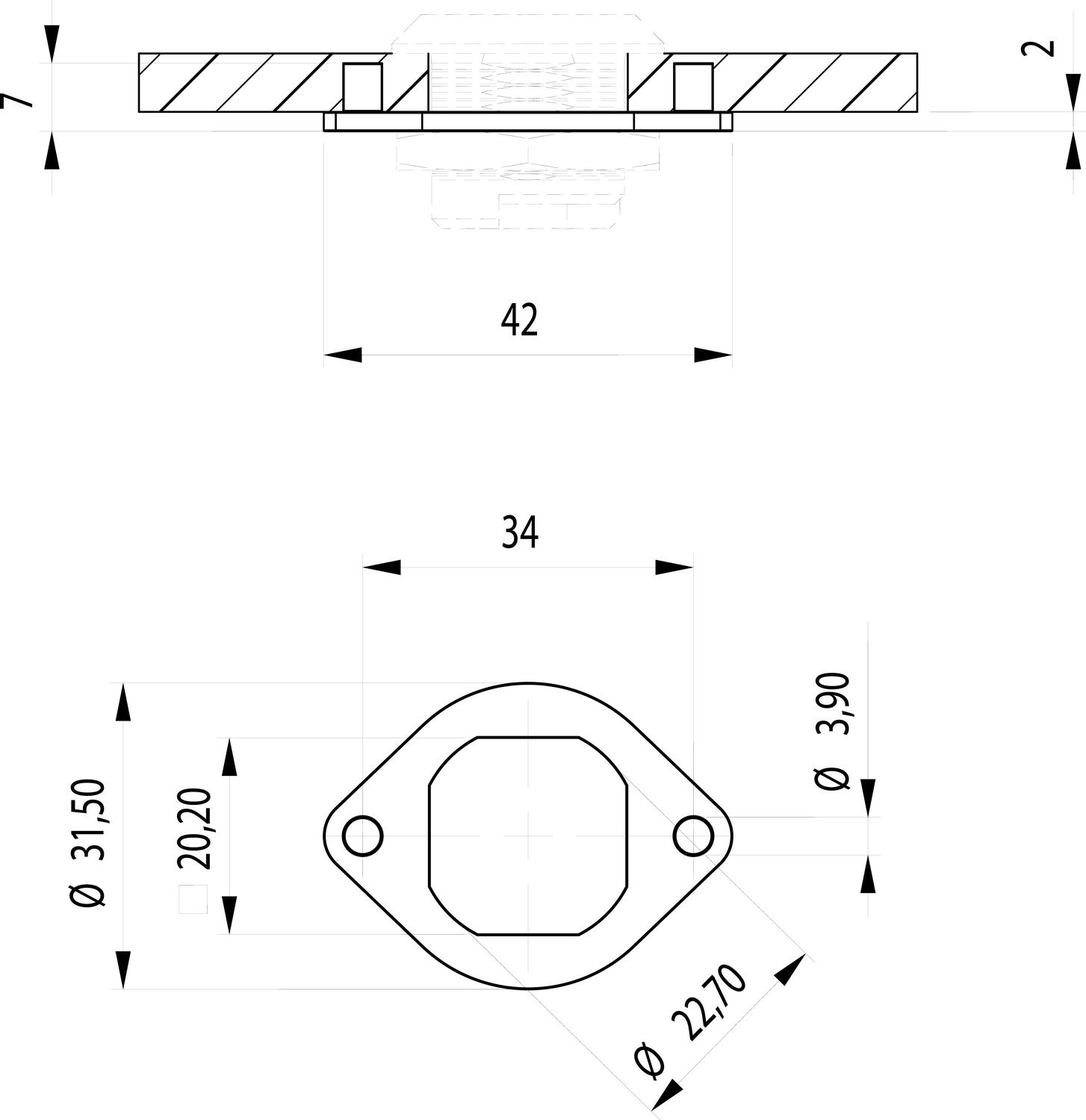

Measurements and connections

Product description

To enable the installation of 90° locks with hole punching "Combi" also in round holes. Suitable for mounting such locks in e.g. doors made of wood, fiberglass, etc. The washer is attached by drilling 2 Ø 4 mm holes in the door on each side of the mounting hole (Ø 23 mm), whereby the washer is pressed in from the inside of the door. Finally, the lock is mounted in the "Combi" hole punch.

Accessories

Related

Parts Material Price

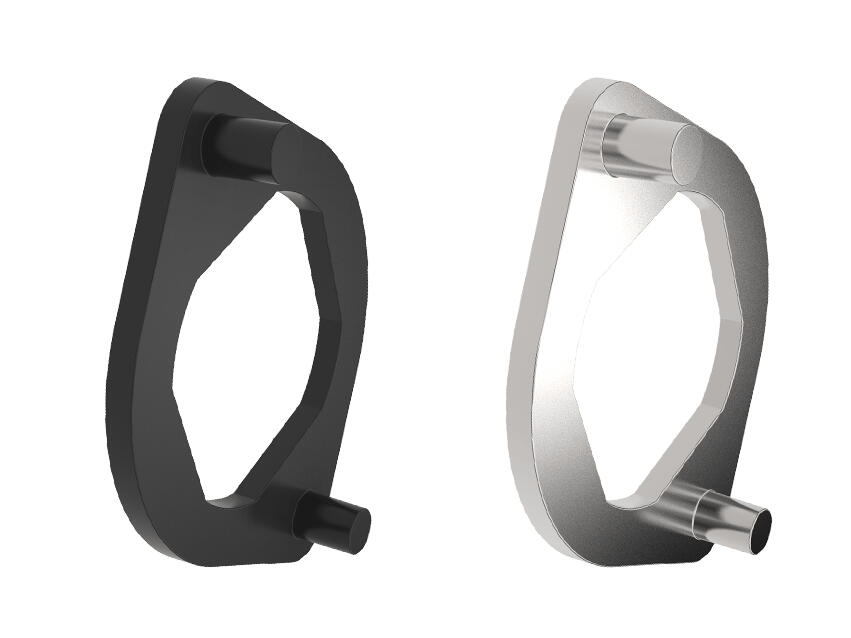

Zinc
Zinc, black powder coated

Selected variant

Select a variant in the list
