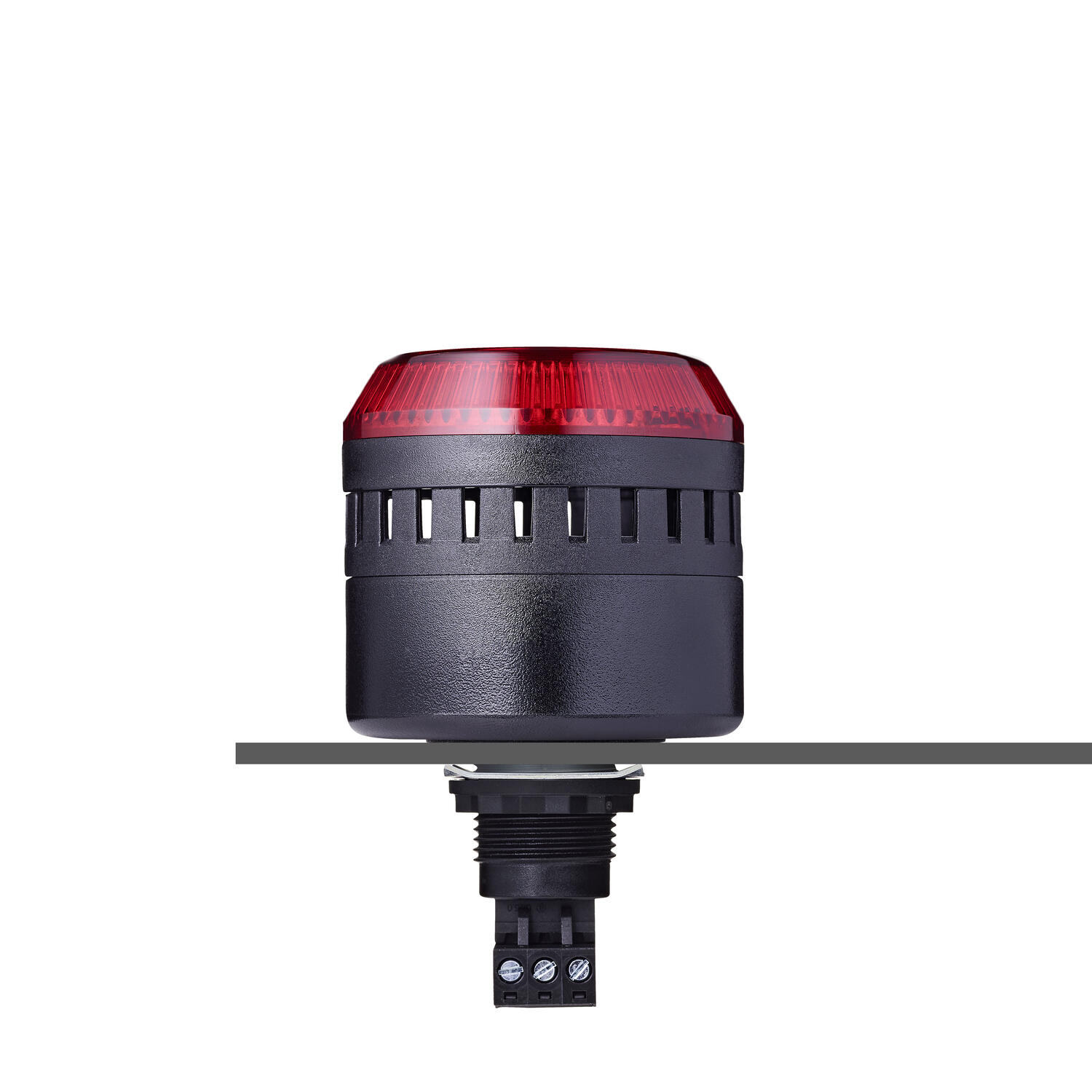

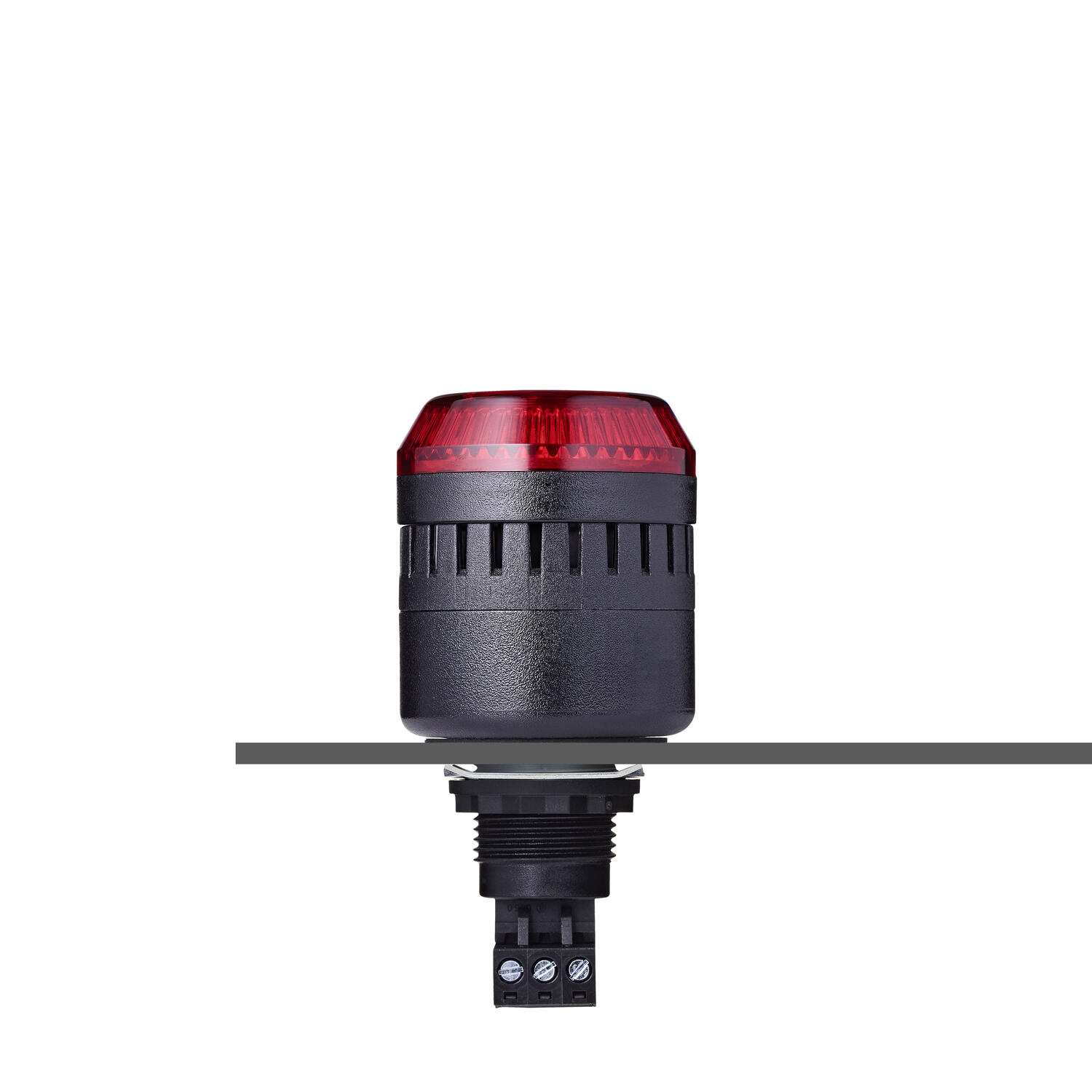

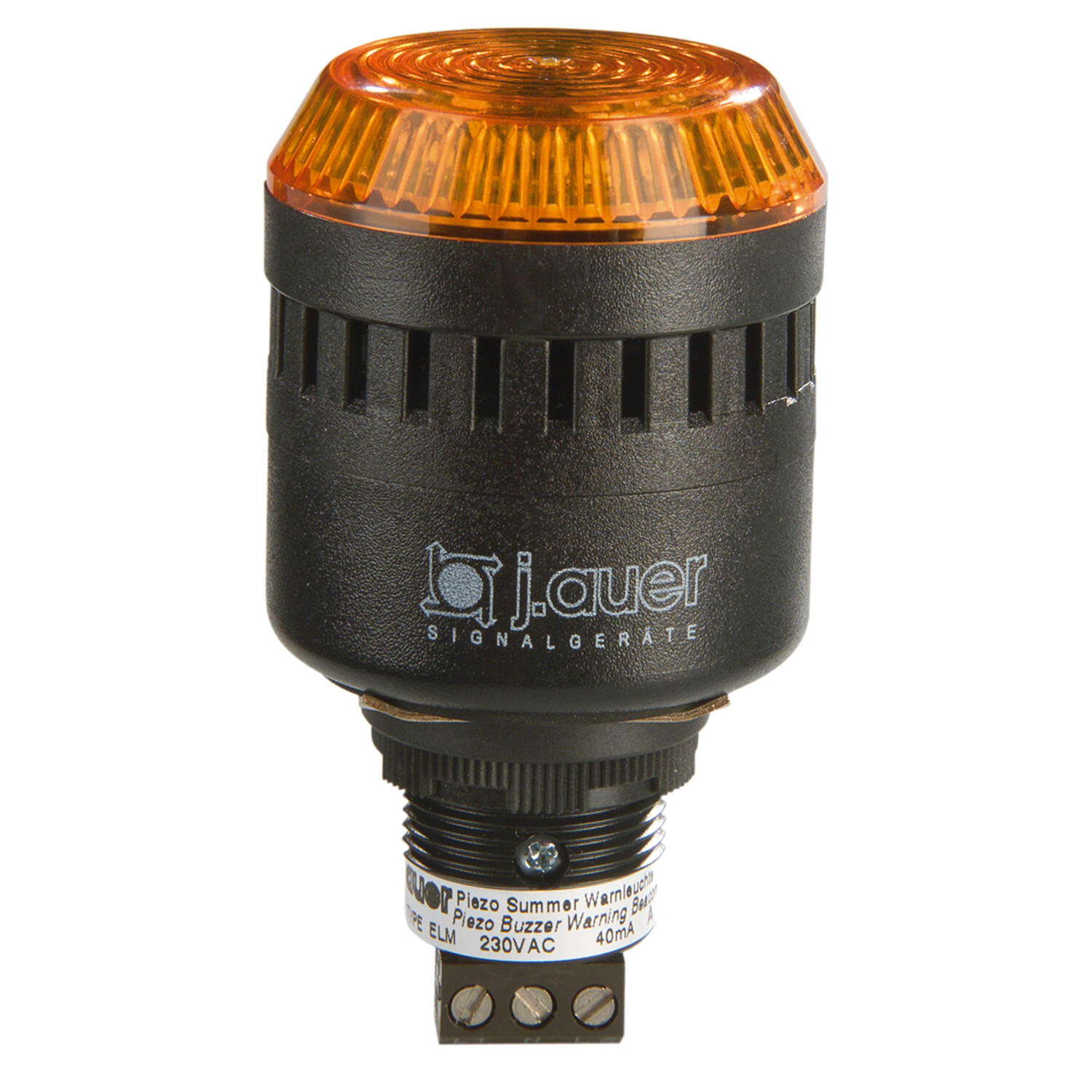

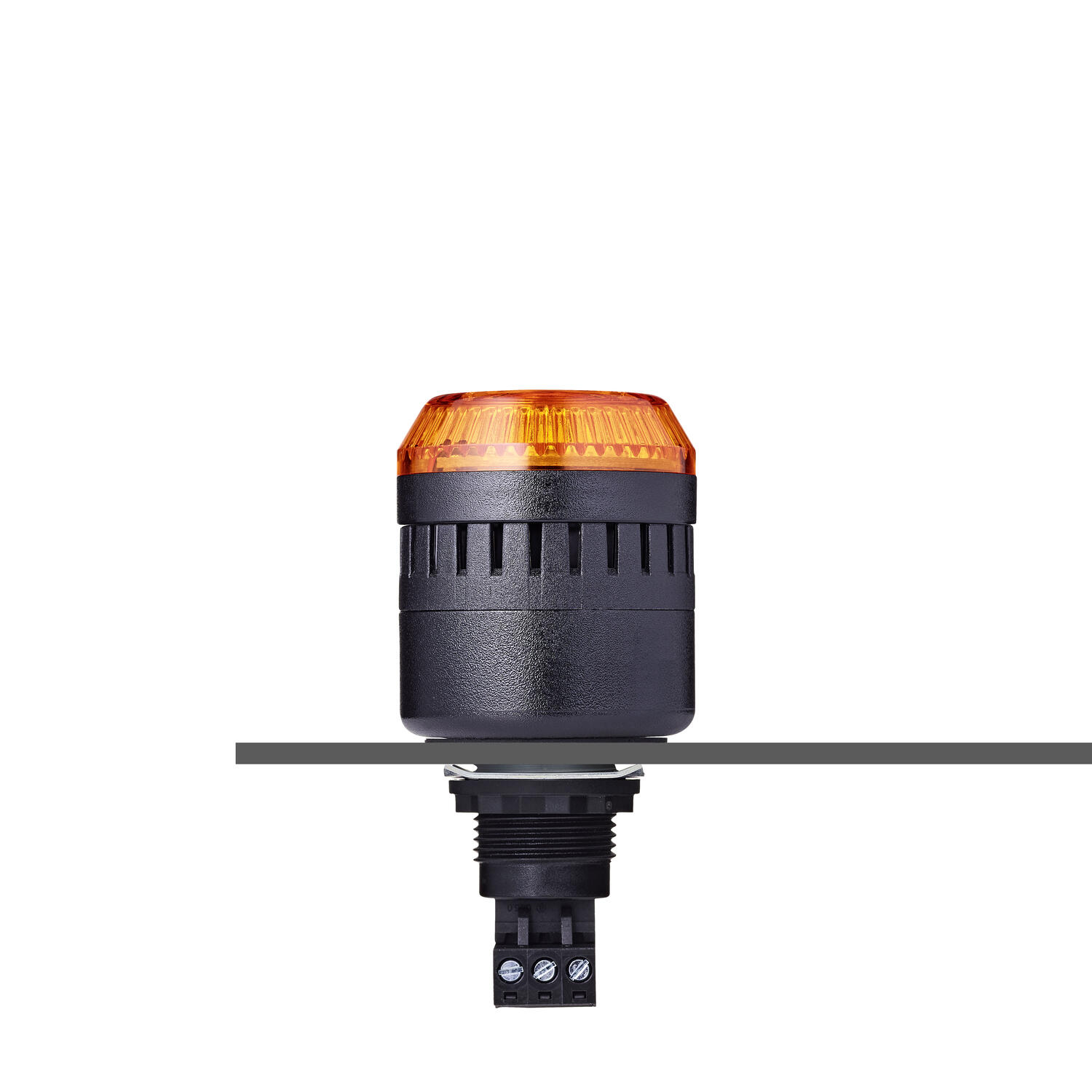

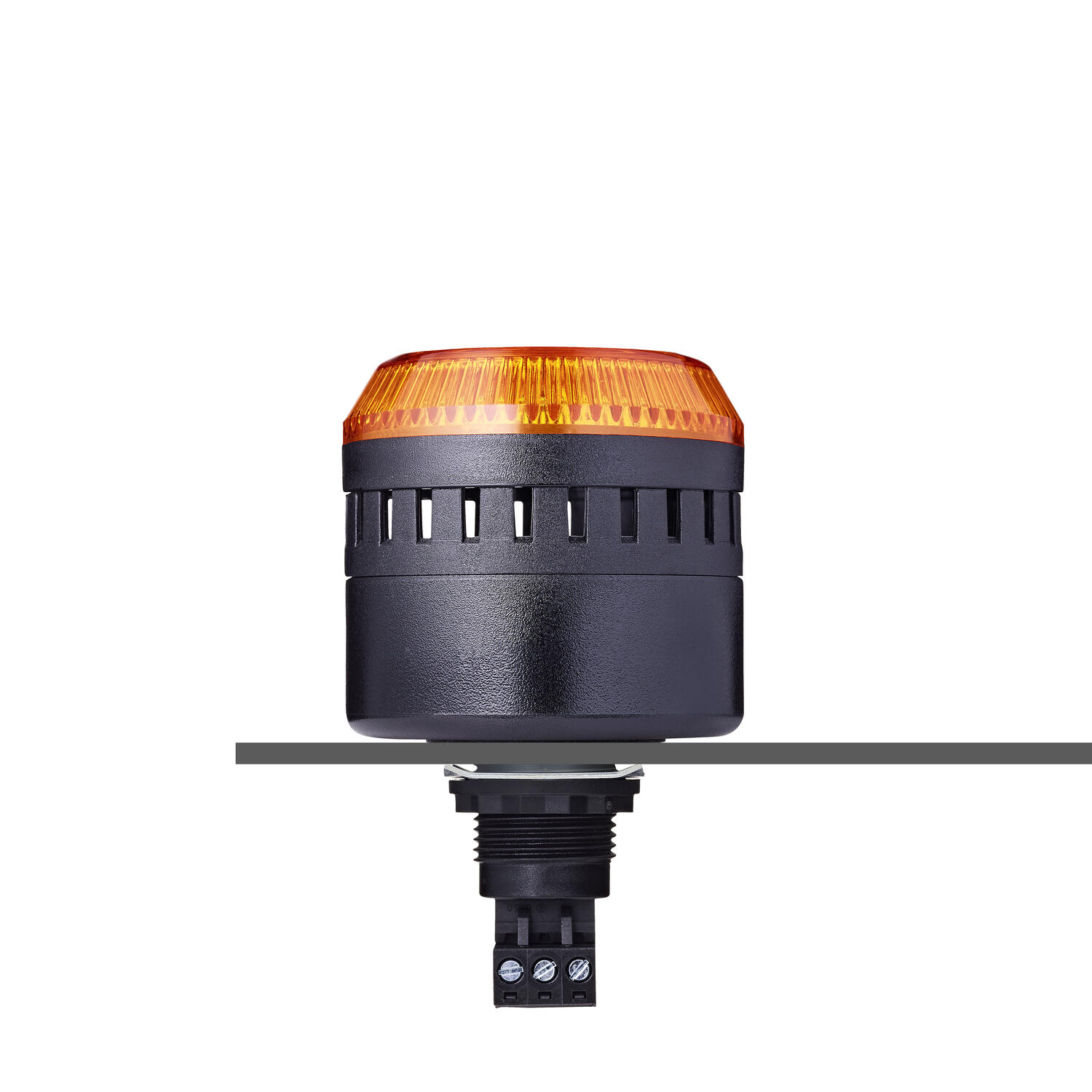

AUER SIGNAL

Panel Mount Beacon with Sounder, E Series

The E series of panel mounted LED buzzers offers a high quality and flexible signalling solution.

universally useable panel mount buzzer with LED control light
sizes Ø 65 mm – Ø 45 mm
models:

ELG-ELM panel mount buzzer – LED control light sound and light synchronized continuous tone – steady light pulsing tone – flashing light in pulse frequency wobble tone – flashing light in pulse frequency

EDG-EDM panel mount buzzer – LED control light continuous tone and steady light separately switchable

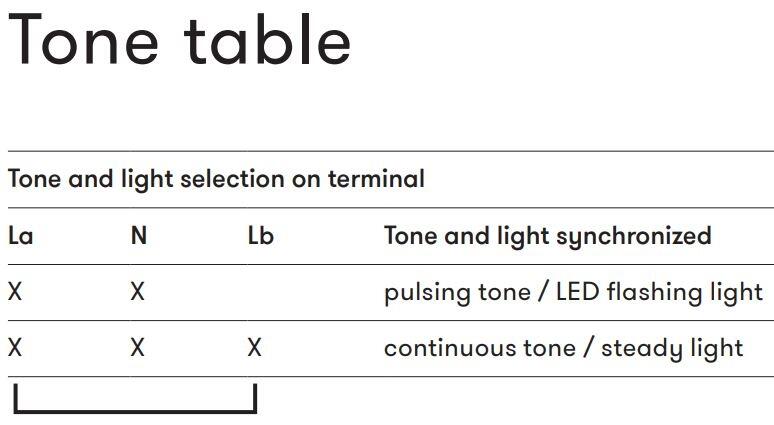

well distinguishable tone types via terminal selectable (ELG)

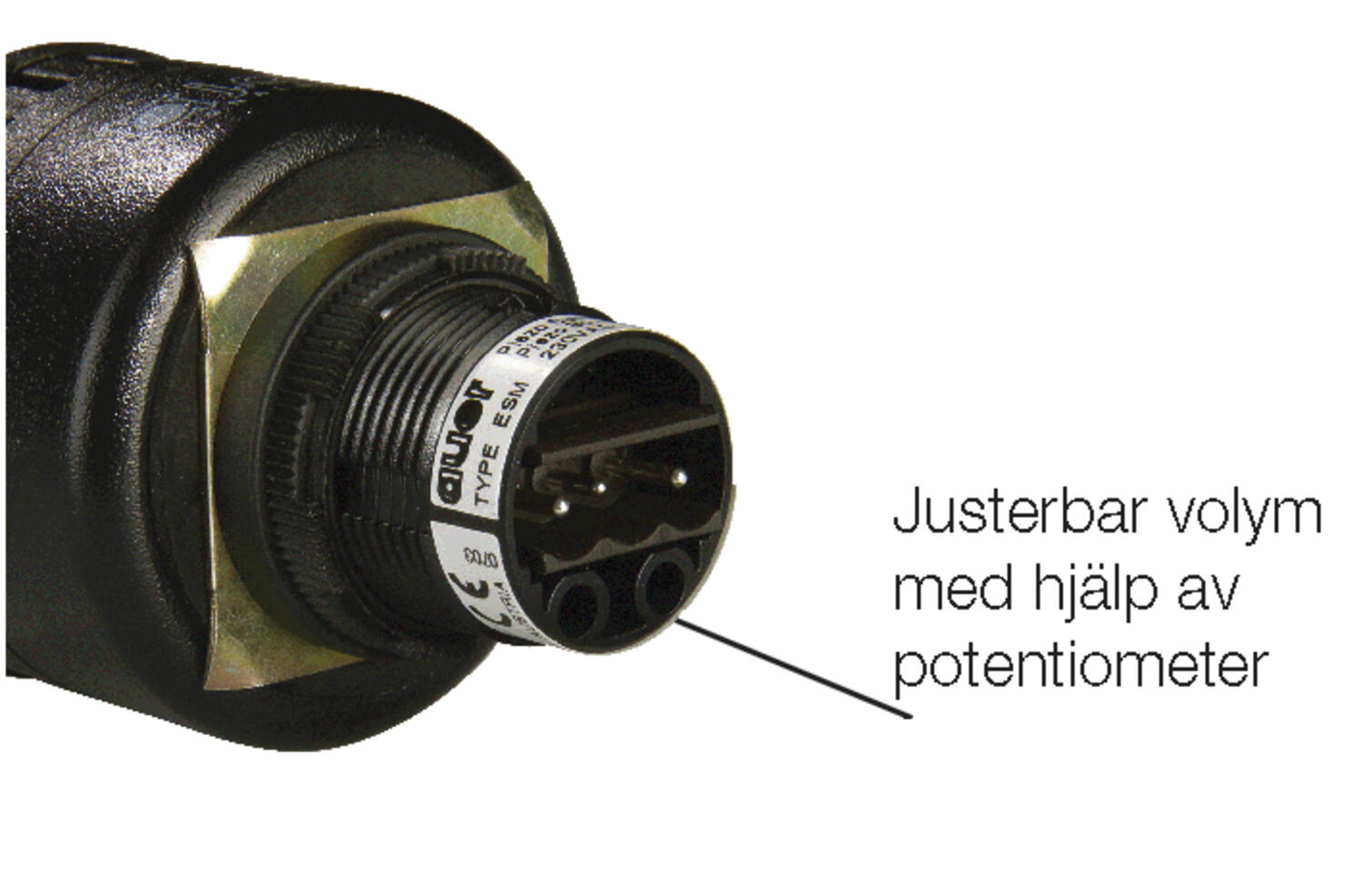

volume also in mounted condition infinitely adjustable
LED control light – high brightness, maintenance free
PLC fit (leakage/inrush current)
for mounting in Ø 22 mm and 30,5 mm bore holes (with adapter)

Ø 22.5mm Hole mounted panel mount buzzer with LED beacon
85-103 dB Range
Continuous, Pulsing or wobble tones

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Diameter	45 mm
Flash frequency	2 Hz
Housing Colour	Black
IP class	IP65
Lens colour	Orange
Light source	LED
Light type	Orange LED
Mounting	Panel mount
Nominal current max	0,04 A
Nominal current min	0,04 A
Number of tones	3
Sound control	Yes

Sound level max	98 dB
Sound level min	85 dB
Supply voltage	230 V
Supply voltage ac max	253 V AC
Supply voltage ac min	207 V AC
Temperature operational max	60 °C
Temperature operational min	-25 °C

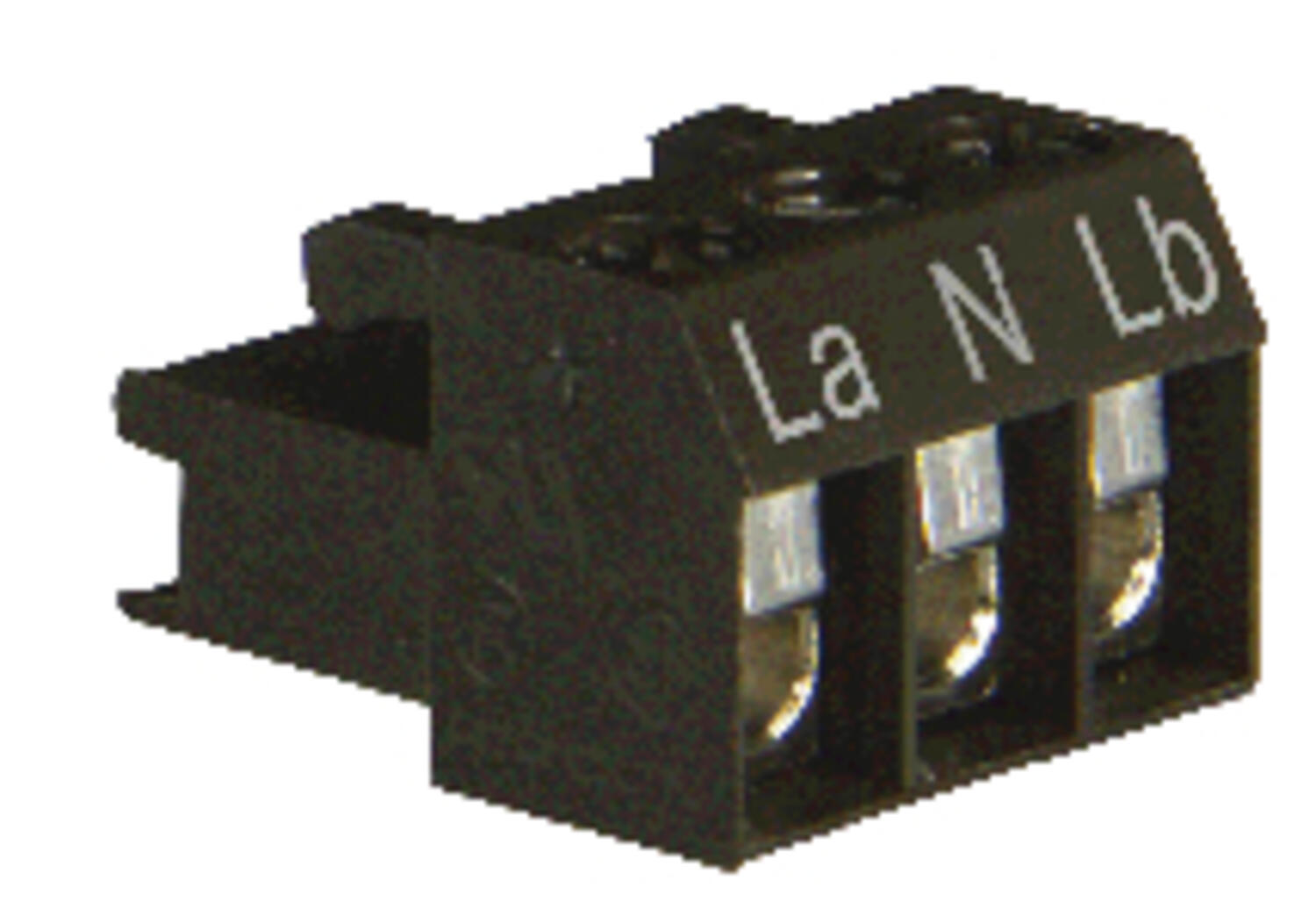

Terminal connection	2,5 mm²
Tone frequency max	3500 Hz
Tone frequency min	3500 Hz
Weight	65 g

Downloads

ELM datablad.pdf

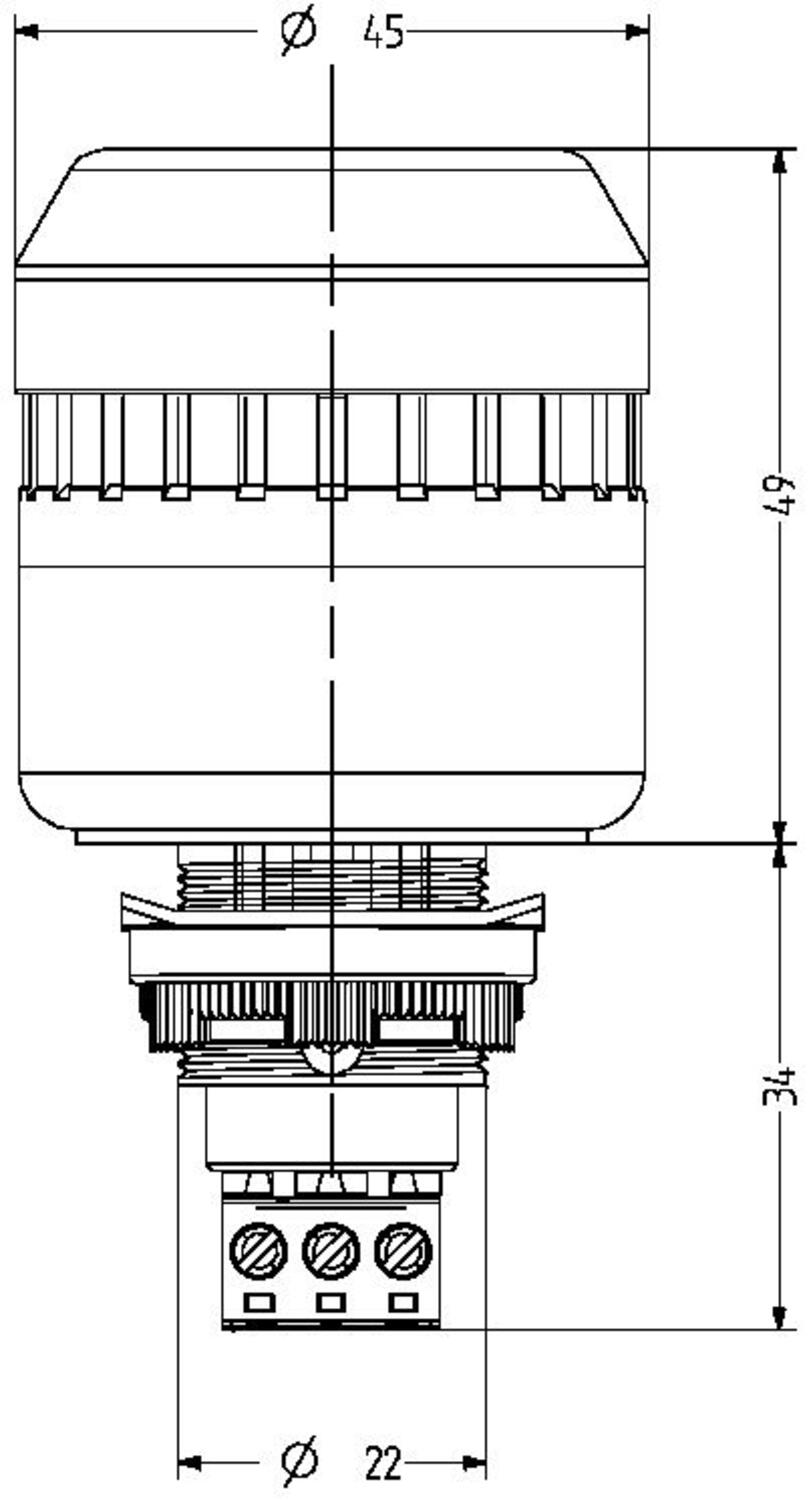

Measurements and connections

Product description

The E series of panel mounted LED buzzers offers a high quality and flexible signalling solution.

universally useable panel mount buzzer with LED control light
sizes Ø 65 mm – Ø 45 mm
models:

EDG-EDM panel mount buzzer – LED control light continuous tone and steady light separately switchable

well distinguishable tone types via terminal selectable (ELG)
volume also in mounted condition infinitely adjustable
LED control light – high brightness, maintenance free
PLC fit (leakage/inrush current)
for mounting in Ø 22 mm and 30,5 mm bore holes (with adapter)

Accessories

Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount

Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic

Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes

Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers

Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts	Diameter	Flash frequency	Housing Colour	IP class	Lens colour	Light source	Light type	Mounting	Nominal current max	Nominal current min	Number of tones	Sound control	Sound level max	Sound level min	Supply voltage	Supply voltage ac max	Supply voltage ac min	Supply voltage ac/dc max	Supply voltage ac/dc min	Temperature operational max	Temperature operational min	Terminal connection	Tone frequency max	Tone frequency min	Weight
LED Panel mount buzzer, Ø45mm, Amber, 230-240 V ac, ELM Art: 813511313 Copied	45 mm	2 Hz	Black	IP65	Orange	LED	Orange LED	Panel mount	0,04 A	0,04 A	3	Yes	98 dB	85 dB	230 V	253 V AC	207 V AC			60 °C	-25 °C	2,5 mm²	3500 Hz	3500 Hz	65 g
LED Panel mount buzzer, Ø45mm, Amber, 24 V ac/dc, ELM Art: 813511405 Copied	45 mm	2 Hz	Black	IP65	Orange	LED	Orange LED	Panel mount	0,058 A	0,058 A	3	Yes	98 dB	85 dB	24 V			26,4 V	21,6 V	60 °C	-25 °C	2,5 mm²	3500 Hz	3500 Hz	65 g
LED Panel mount buzzer, Ø45mm, Red, 230-240 V ac, ELM Art: 813512313 Copied	45 mm	2 Hz	Black	IP65	Red	LED	Red LED	Panel mount	0,04 A	0,04 A	3	Yes	98 dB	85 dB	230 V	253 V AC	207 V AC			60 °C	-25 °C	2,5 mm²	3500 Hz	3500 Hz	65 g
LED Panel mount buzzer, Ø45mm, Red, 24 V ac/dc, ELM Art: 813512405 Copied	45 mm	2 Hz	Black	IP65	Red	LED	Red LED	Panel mount	0,058 A	0,058 A	3	Yes	98 dB	85 dB	24 V			26,4 V	21,6 V	60 °C	-25 °C	2,5 mm²	3500 Hz	3500 Hz	65 g
LED Panel mount buzzer, Ø45mm, Red, 24 V ac/dc, ELM Art: 813112405 Copied
LED Panel mount buzzer, Ø65mm, Amber, 230-240 V ac, ELG Art: 814511313 Copied	65 mm	2 Hz	Black	IP65	Orange	LED	Orange LED	Panel mount	0,063 A	0,063 A	3	Yes	103 dB	85 dB	230 V	253 V AC	207 V AC			60 °C	-25 °C	2,5 mm²	2800 Hz	2800 Hz	110 g
LED Panel mount buzzer, Ø65mm, Amber, 24 V ac/dc, ELG Art: 814511405 Copied	65 mm	2 Hz	Black	IP65	Orange	LED	Orange LED	Panel mount	0,047 A	0,047 A	3	Yes	103 dB	85 dB	24 V			26,4 V	21,6 V	60 °C	-25 °C	2,5 mm²	2800 Hz	2800 Hz	110 g
LED Panel mount buzzer, Ø65mm, Red, 230-240 V ac, ELG Art: 814512313 Copied	65 mm	2 Hz	Black	IP65	Red	LED	Red LED	Panel mount	0,063 A	0,063 A	3	Yes	103 dB	85 dB	230 V	253 V AC	207 V AC			60 °C	-25 °C	2,5 mm²	2800 Hz	2800 Hz	110 g
LED Panel mount buzzer, Ø65mm, Red, 24 V ac/dc, ELG Art: 814512405 Copied	65 mm	2 Hz	Black	IP65	Red	LED	Red LED	Panel mount	0,047 A	0,047 A	3	Yes	103 dB	85 dB	24 V			26,4 V	21,6 V	60 °C	-25 °C	2,5 mm²	2800 Hz	2800 Hz	110 g
