AUER SIGNAL

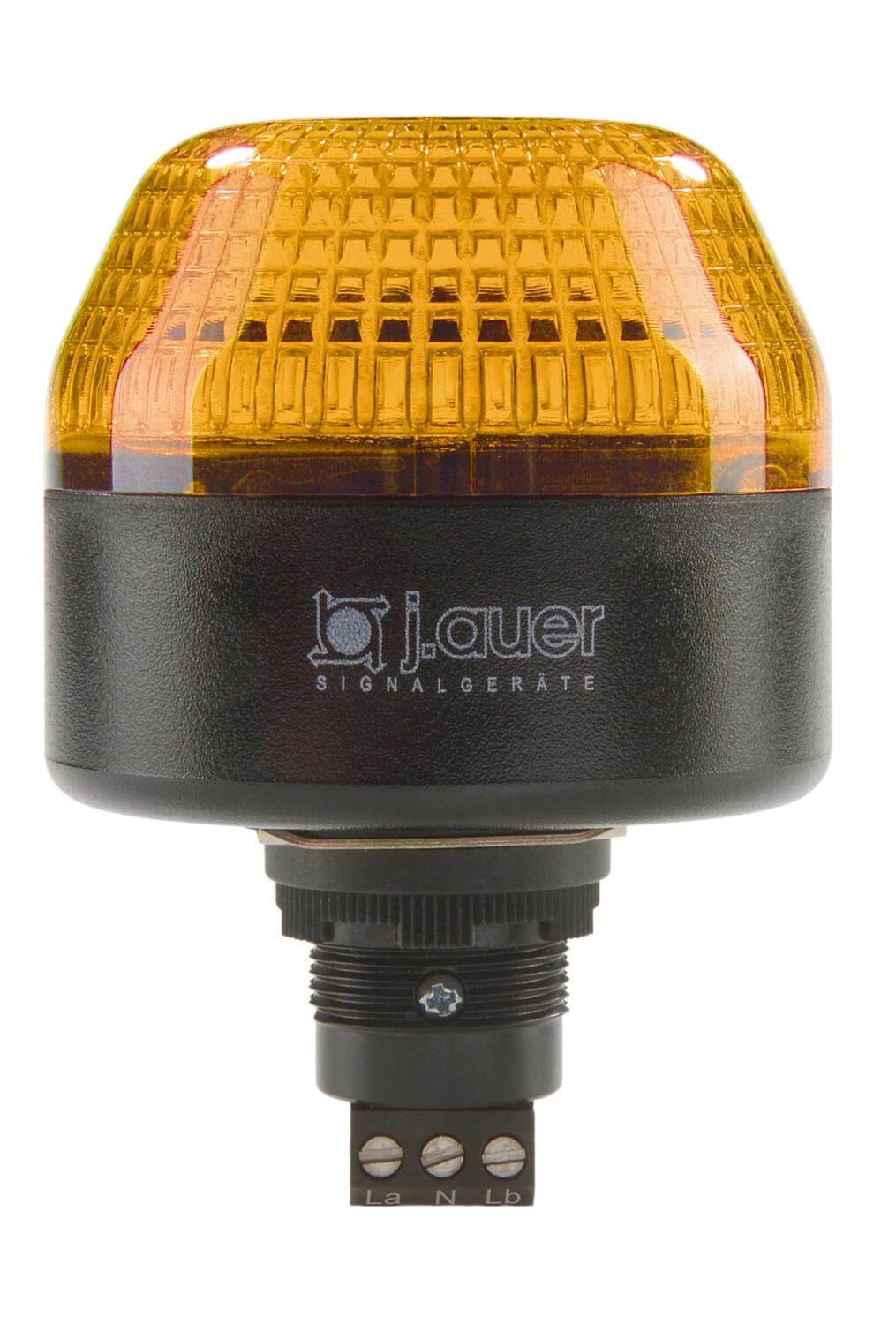

The I series offers a high quality, bright, panel mounted beacon. The units can be single or dual colour, have multiple colour and voltage options and in the case of IMM/IMM can be pre-cable with IP67 Protection.
Â
The comprehensive M22 built-in signal device series is available in three sizes Ø 30 mm, Ø 45 mm und Ø 65 mm. The high luminosity and signal effect is seen all around due to the calotte. The beacon is extremely durable and vibration-resistant, with a high degree of protection of IP65 and IP67 for prewired models. The I Series range can come with a demountable plug in terminal or individually prewired.
Â
A complete range of LED steady/flashing/strobe and multi colour models for versatile applications in the industry, enclosures, etc. It is maintenance free, offers a low current consumption, long life time, shock and vibration-proof. Multi colour models are also available in 6 LED colours individually selectable.
Housing and lenses made of impact resistant polycarbonate, housing colour black or grey.
Â
General data |
|
|---|---|
| Mounting | Panel mount |
| Lens colour | Orange |
| Light source | LED |
| Light type | Flashing, Steady |
| Housing Colour | Black |
Rated operating conditions |
|
| Operational temperature | -25°C ... 60°C |
| Nominal current | 19 mA |
*Invisible Heading* |
|
|---|---|
| Terminal connection | 2,5 mm² |
| Flash frequency | 2 Hz |
| Nominal Supply Voltage | 230-240 V AC |

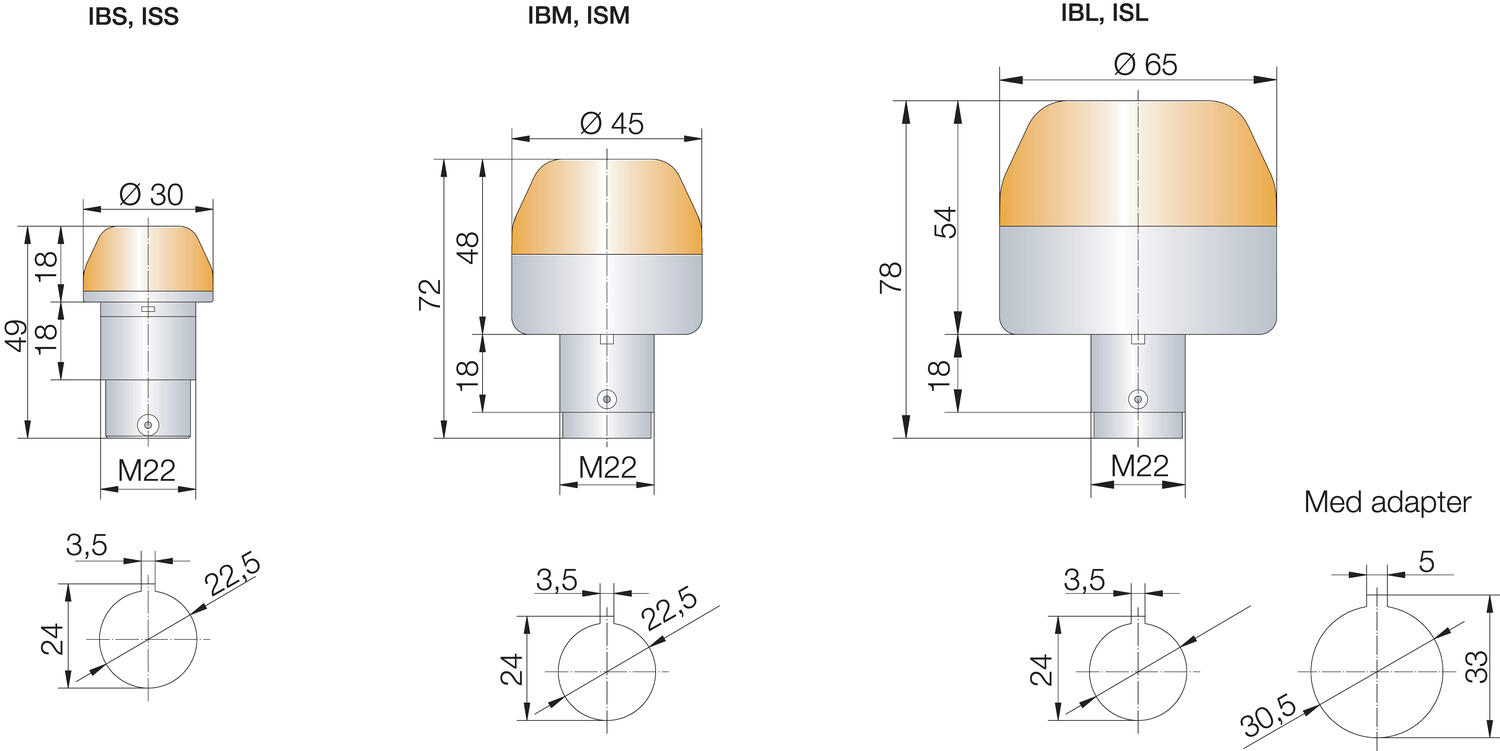

Dimensions |
|
| Diameter | 30 mm |
| Height | 60 mm |
Additional data |
|
| IP class | IP65 |
The I series offers a high quality, bright, panel mounted beacon. The units can be single or dual colour, have multiple colour and voltage options and in the case of IMM/IMM can be pre-cable with IP67 Protection.
Â
The comprehensive M22 built-in signal device series is available in three sizes Ø 30 mm, Ø 45 mm und Ø 65 mm. The high luminosity and signal effect is seen all around due to the calotte. The beacon is extremely durable and vibration-resistant, with a high degree of protection of IP65 and IP67 for prewired models. The I Series range can come with a demountable plug in terminal or individually prewired.
Â
A complete range of LED steady/flashing/strobe and multi colour models for versatile applications in the industry, enclosures, etc. It is maintenance free, offers a low current consumption, long life time, shock and vibration-proof. Multi colour models are also available in 6 LED colours individually selectable.
Housing and lenses made of impact resistant polycarbonate, housing colour black or grey.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Lens colour | Light source | Light type | Flash energy | Nominal current | Flash frequency | Nominal Supply Voltage | Weight | Diameter | Height | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel mount LED beacon, Ø30mm, Amber, 220-230 V ac, IBS
Art:
800501313
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||
Panel mount LED beacon, Ø30mm, Red, 220-230 V ac, IBS
Art:
800502313
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||
Panel mount LED beacon, Ø30mm, Clear, 220-230 V ac, IBS
Art:
800504313
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||
Panel mount LED beacon, Ø30mm, Blue, 220-230 V ac, IBS
Art:
800505313
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||

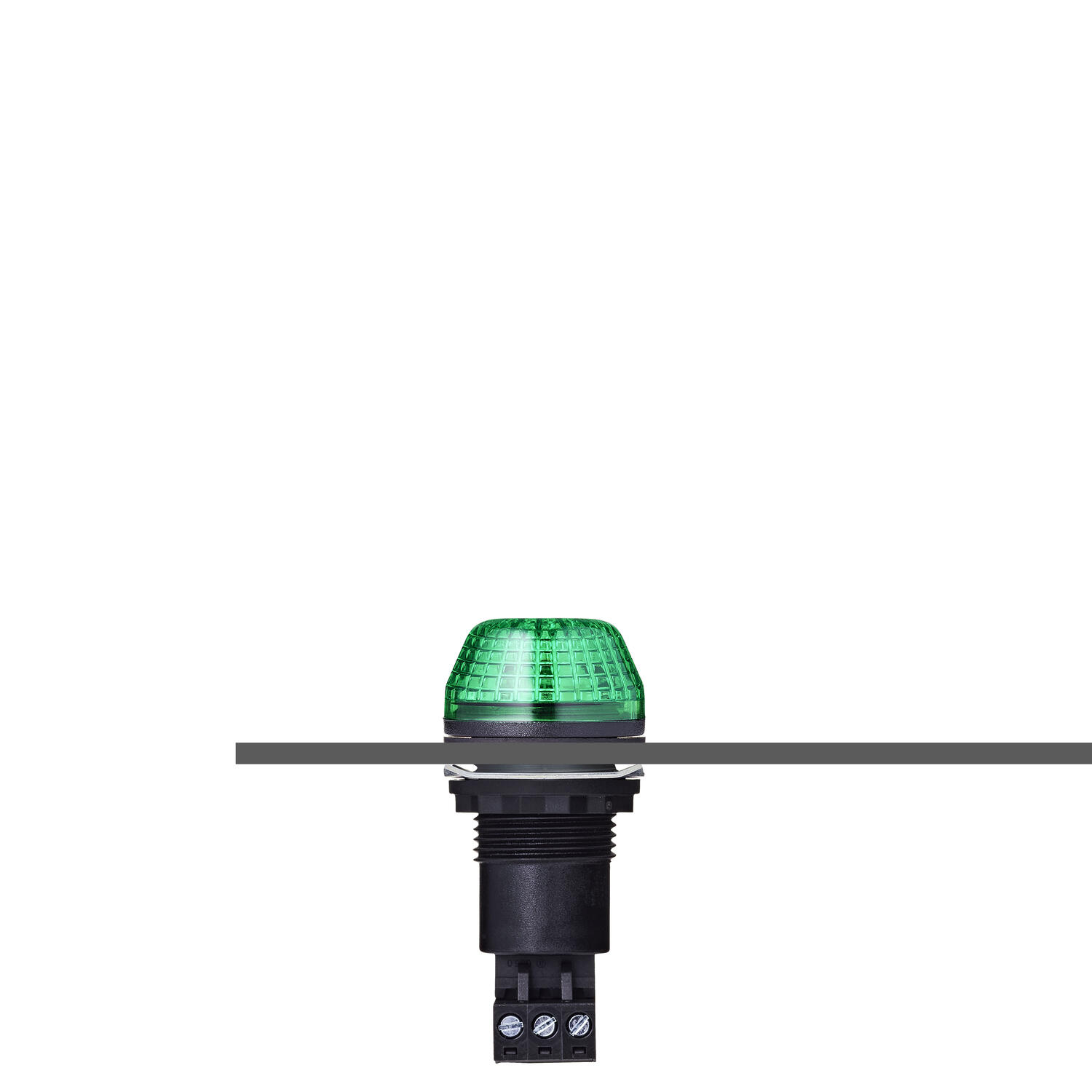

Panel mount LED beacon, Ø30mm, Green, 220-230 V ac, IBS
Art:
800506313
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||

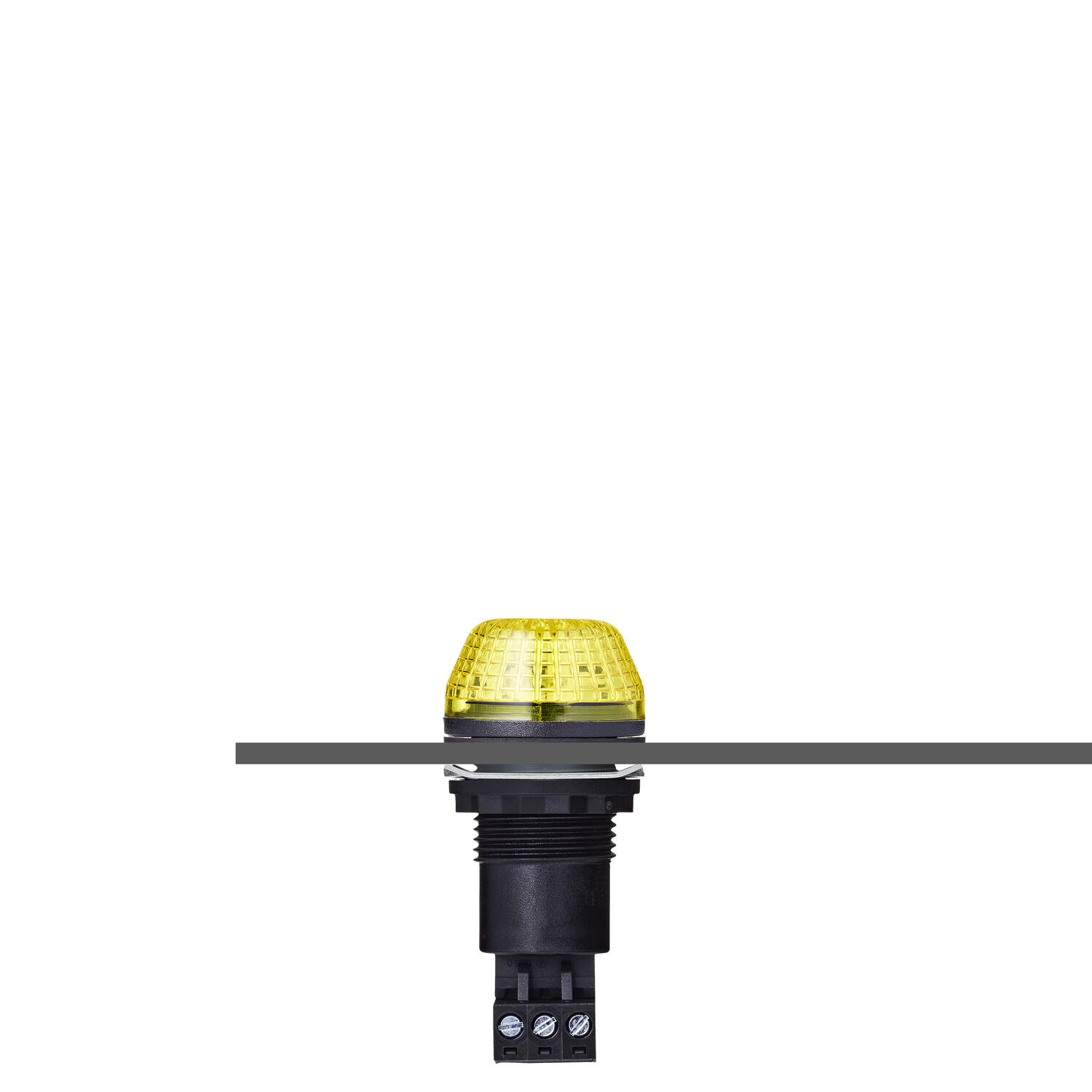

Panel mount LED beacon, Ø30mm, Yellow, 220-230 V ac, IBS
Art:
800507313
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
19 mA
|
2 Hz
|
230-240 V AC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED beacon, Ø30mm, Amber, 24 V ac/dc, IBS
Art:
800501405
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED beacon, Ø30mm, Red, 24 V ac/dc, IBS
Art:
800502405
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED beacon, Ø30mm, Clear, 24 V ac/dc, IBS
Art:
800504405
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|

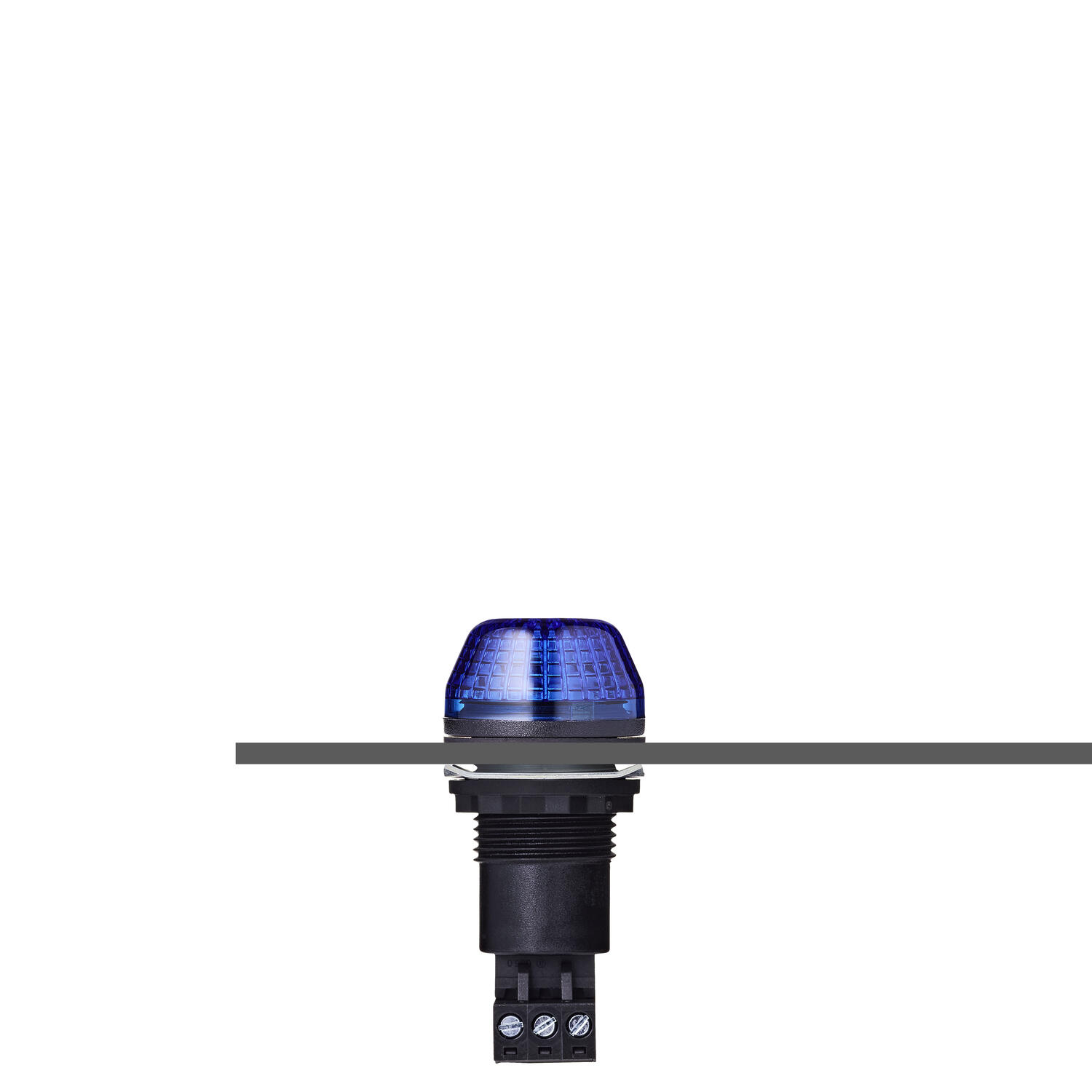

Panel mount LED beacon, Ø30mm, Blue, 24 V ac/dc, IBS
Art:
800505405
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED beacon, Ø30mm, Green, 24 V ac/dc, IBS
Art:
800506405
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED beacon, Ø30mm, Yellow, 24 V ac/dc, IBS
Art:
800507405
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
26 mA
|
2 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED Strobe, Ø30mm, Red, 230-240 V ac, ISS
Art:
800512313
Copied
|
Red
|
LED
|
Strobe
|
|
21 mA
|
1,4 Hz
|
230-240 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED Strobe, Ø30mm, Amber, 230-240 V ac, ISS
Art:
800511313
Copied
|
Orange
|
LED
|
Strobe
|
|
21 mA
|
1,4 Hz
|
230-240 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED Strobe, Ø30mm, Red, 24 V ac/dc, ISS
Art:
800512405
Copied
|
Red
|
LED
|
Strobe
|
|
46 mA
|
1,4 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
|
Panel mount LED Strobe, Ø30mm, Amber, 24 V ac/dc, ISS
Art:
800511405
Copied
|
Orange
|
LED
|
Strobe
|
|
46 mA
|
1,4 Hz
|
24 V AC/DC
|
|
30 mm
|
60 mm
|
| ||
Panel mount LED Beacon, Ø45mm, Amber, 230-240 V ac, IBM
Art:
801501313
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
30 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
Panel mount LED Beacon, Ø45mm, Red, 230-240 V ac, IBM
Art:
801502313
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
3 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
Panel mount LED Beacon, Ø45mm, Clear, 230-240 V ac, IBM
Art:
801504313
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
30 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
Panel mount LED Beacon, Ø45mm, Blue, 230-240 V ac, IBM
Art:
801505313
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
30 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||

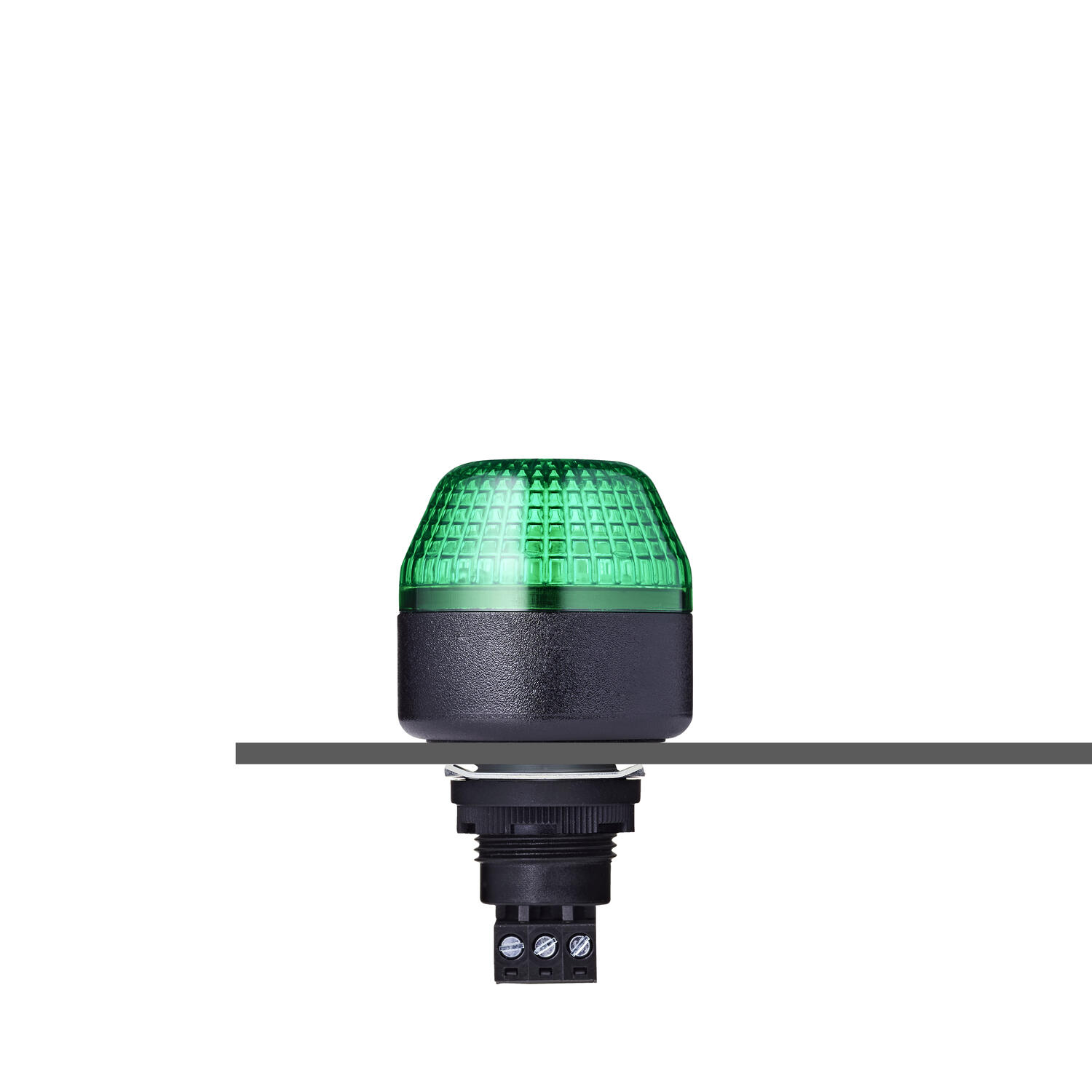

Panel mount LED Beacon, Ø45mm, Green, 230-240 V ac, IBM
Art:
801506313
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
30 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||

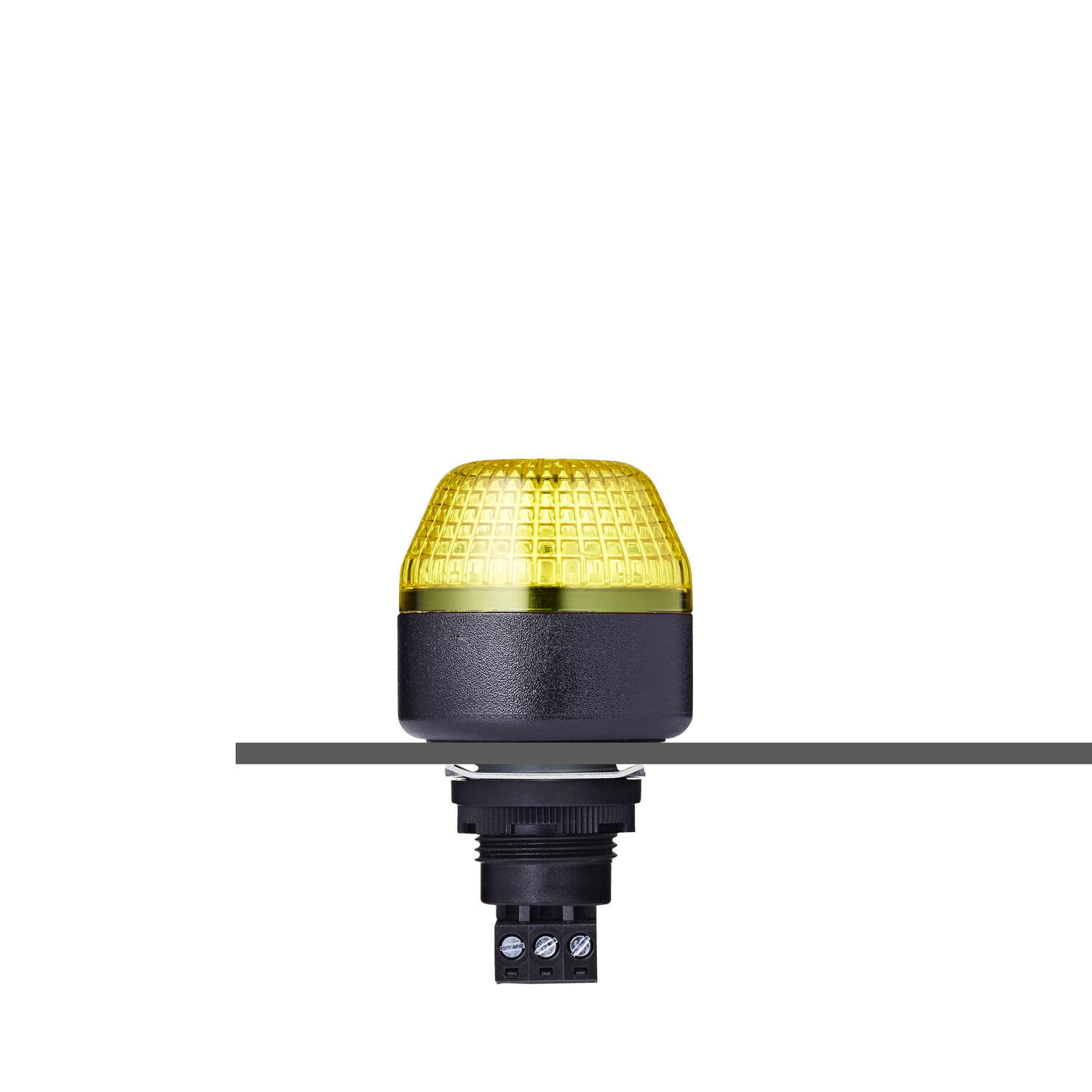

Panel mount LED Beacon, Ø45mm, Yellow, 230-240 V ac, IBM
Art:
801507313
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
30 mA
|
2 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount LED Beacon, Ø45mm, Amber, 24 V ac/dc, IBM
Art:
801501405
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|

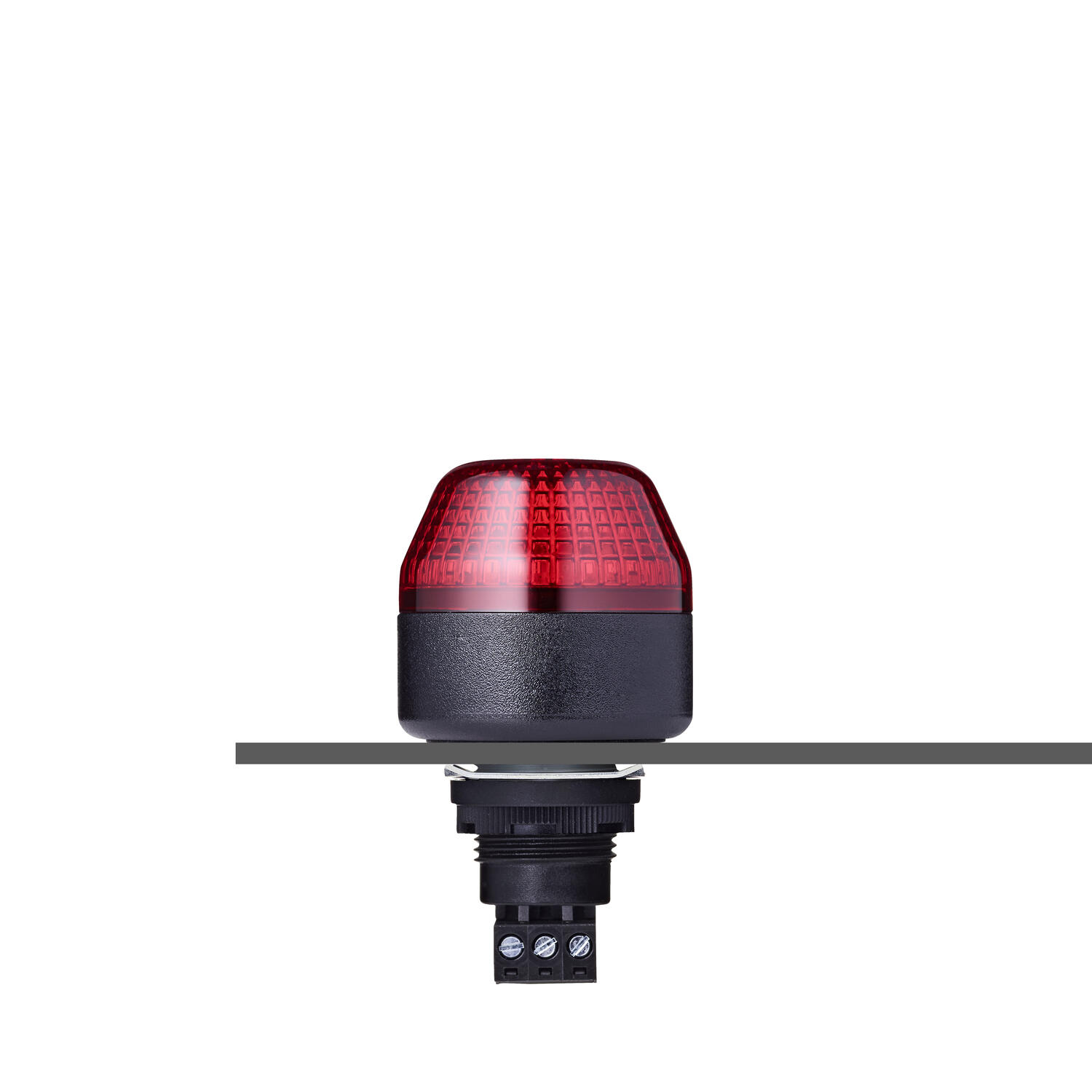

Panel mount LED Beacon, Ø45mm, Red, 24 V ac/dc, IBM
Art:
801502405
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|

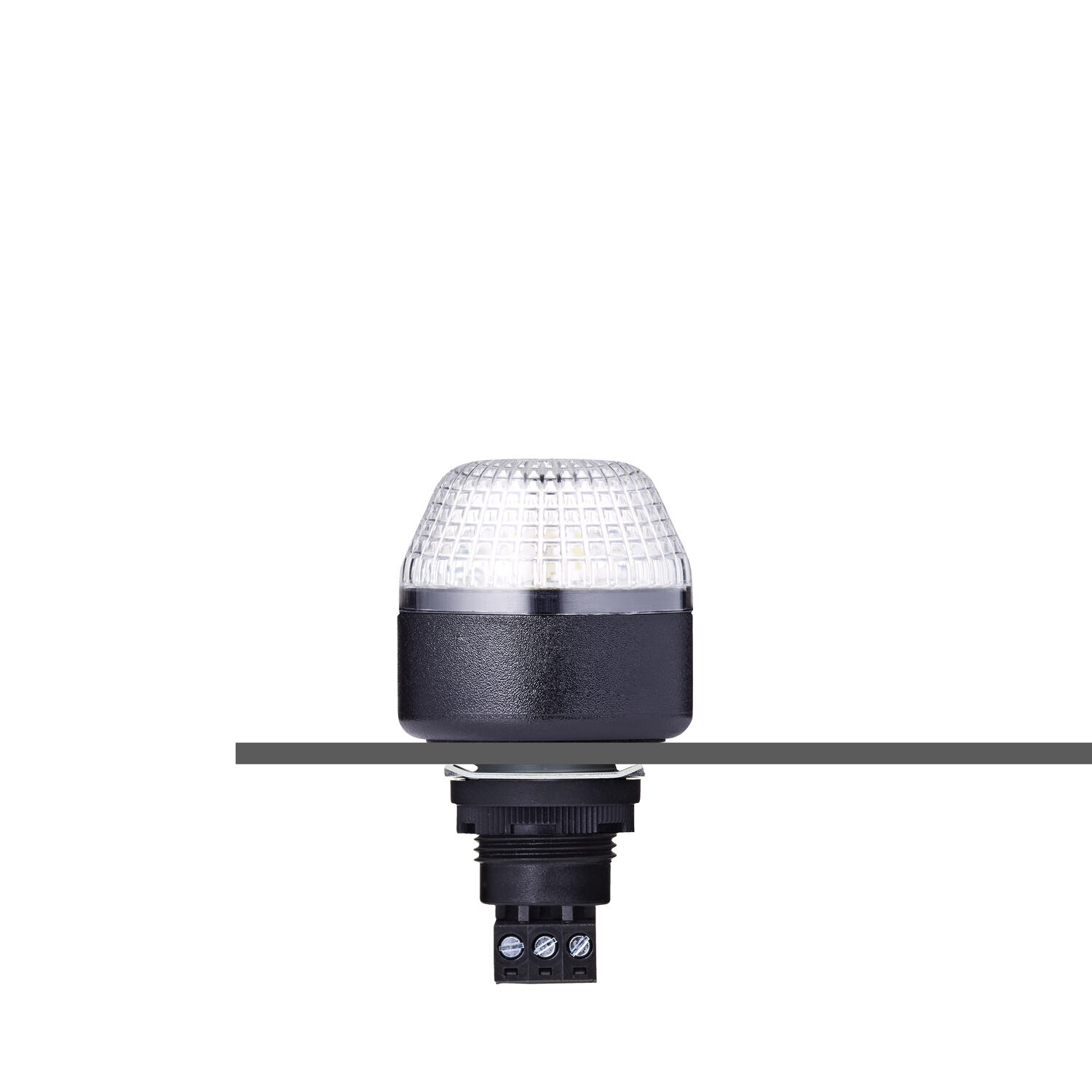

Panel mount LED Beacon, Ø45mm, Clear, 24 V ac/dc, IBM
Art:
801504405
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|

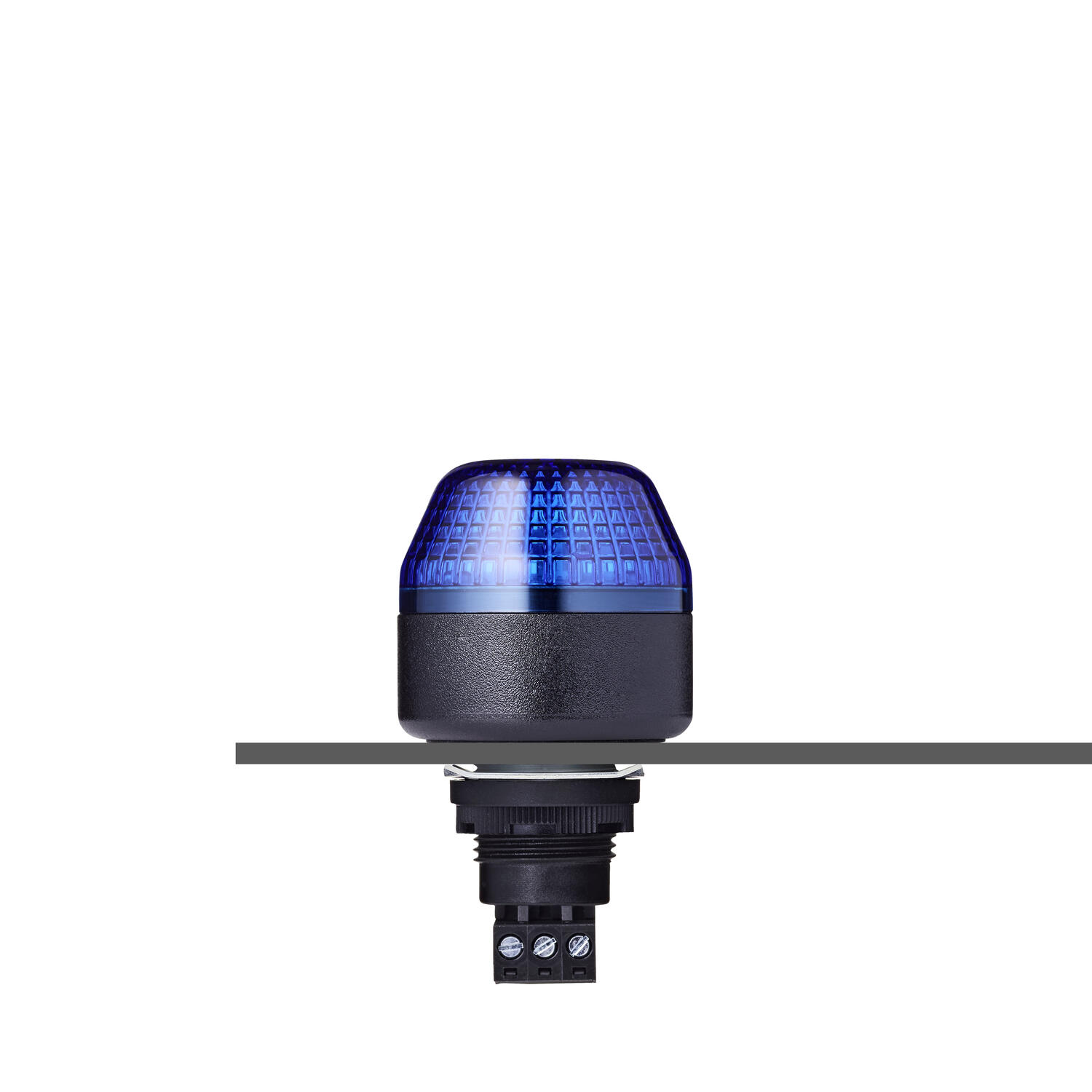

Panel mount LED Beacon, Ø45mm, Blue, 24 V ac/dc, IBM
Art:
801505405
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount LED Beacon, Ø45mm, Green, 24 V ac/dc, IBM
Art:
801506405
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount LED Beacon, Ø45mm, Yellow, 24 V ac/dc, IBM
Art:
801507405
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
37 mA
|
2 Hz
|
24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
LAMPA KSENONOWA 45 MM
Art:
801511313
Copied
|
Orange
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Red, 230-240 V ac, ISM
Art:
801512313
Copied
|
Red
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Clear, 230-240 V ac, ISM
Art:
801514313
Copied
|
Clear
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Blue, 230-240 V ac, ISM
Art:
801515313
Copied
|
Blue
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Green, 230-240 V ac, ISM
Art:
801516313
Copied
|
Green
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Yellow, 230-240 V ac, ISM
Art:
801517313
Copied
|
Yellow
|
Xenon
|
Strobe
|
0,5 J
|
12 mA
|
1,4 Hz
|
230-240 V AC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Amber, 24 V ac/dc, ISM
Art:
801511405
Copied
|
Orange
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Red, 24 V ac/dc, ISM
Art:
801512405
Copied
|
Red
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Clear, 24 V ac/dc, ISM
Art:
801514405
Copied
|
Clear
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Blue, 24 V ac/dc, ISM
Art:
801515405
Copied
|
Blue
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Green, 24 V ac/dc, ISM
Art:
801516405
Copied
|
Green
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||
|
Panel mount xenon strobe, Ø45mm, Yellow, 24 V ac/dc, ISM
Art:
801517405
Copied
|
Yellow
|
Xenon
|
Strobe
|
0,5 J
|
110 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
45 mm
|
76 mm
|
| ||

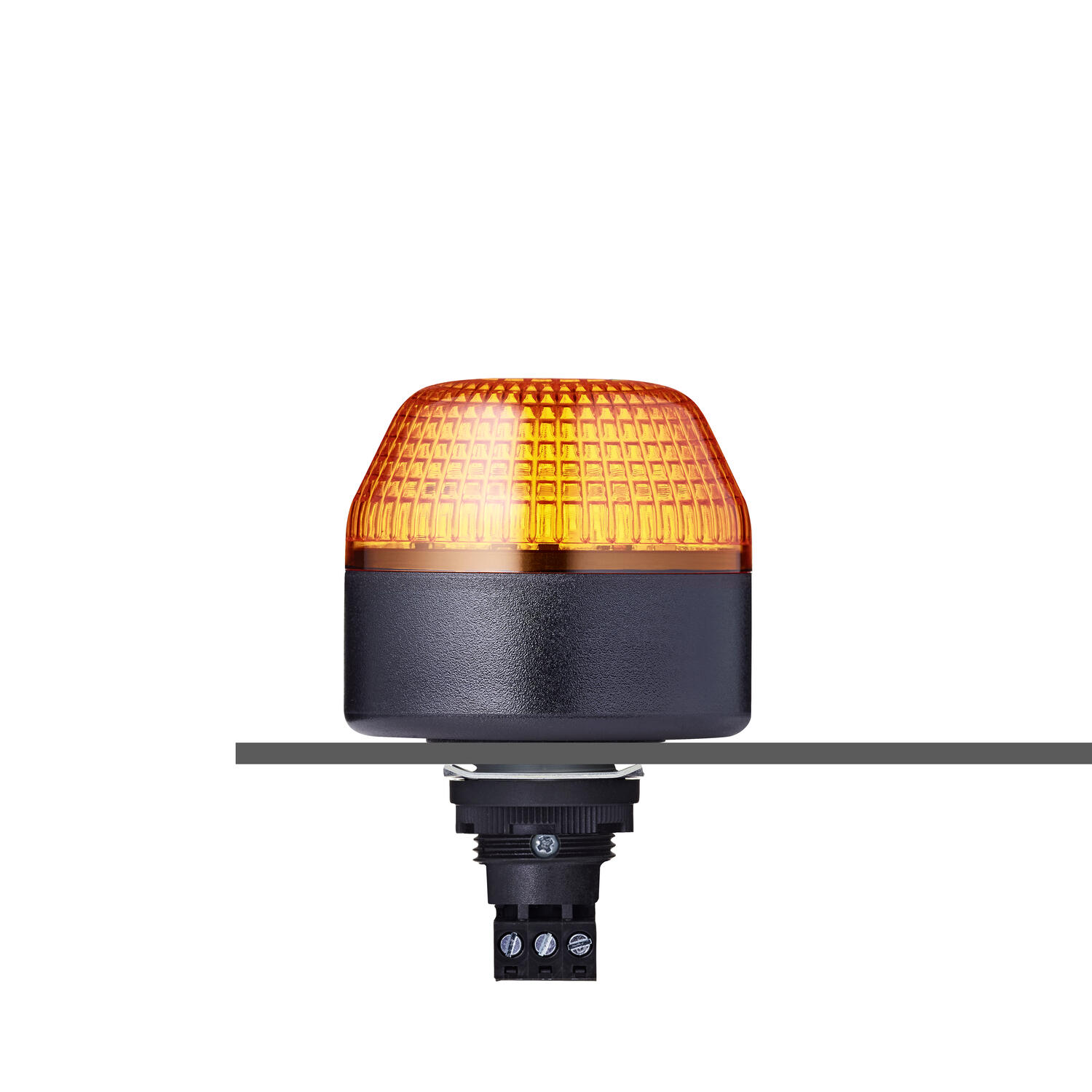

Panel mount LED Beacon, Ø65mm, Amber, 230-240 V ac, IBL
Art:
802501313
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||
Panel mount LED Beacon, Ø65mm, Red, 230-240 V ac, IBL
Art:
802502313
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||

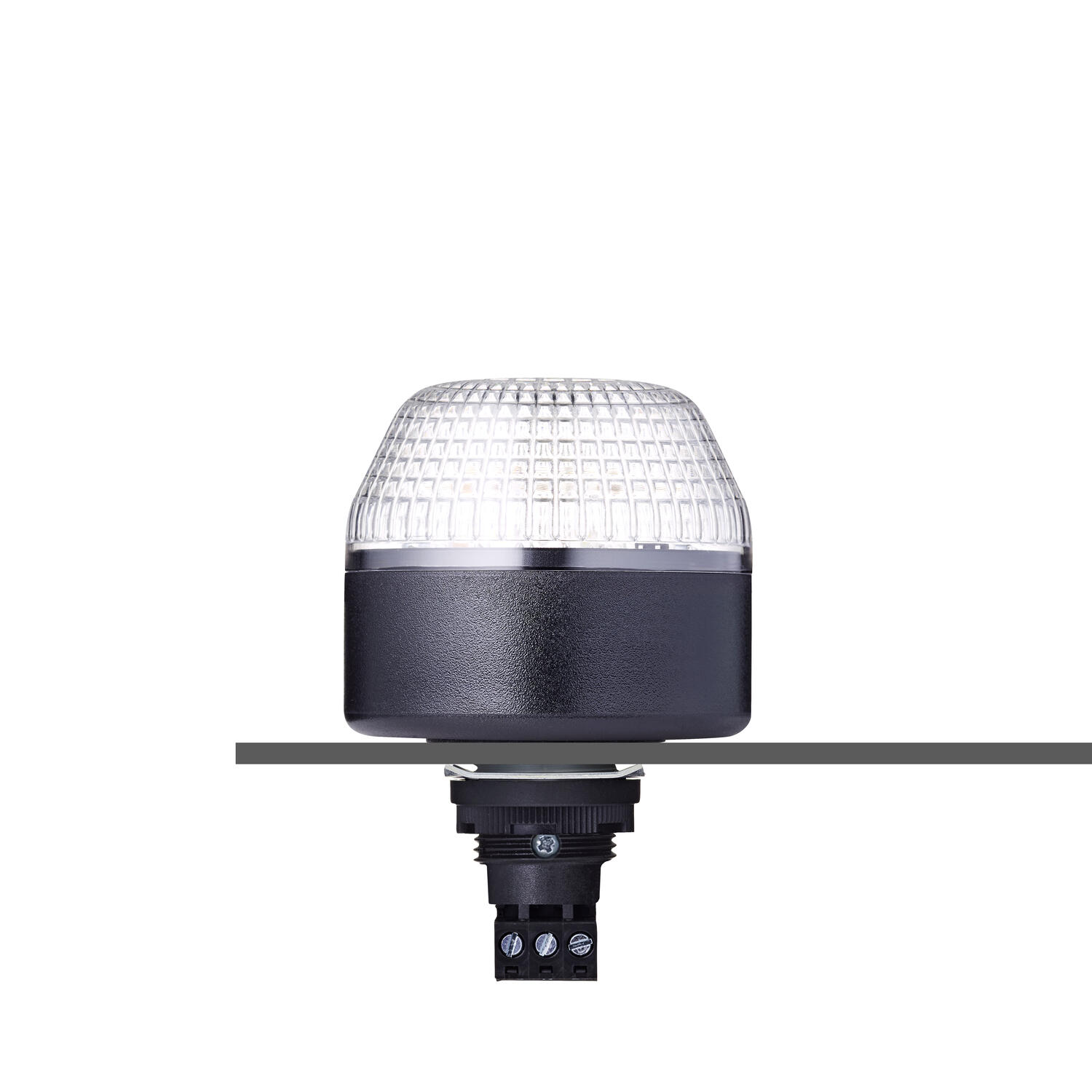

Panel mount LED Beacon, Ø65mm, Clear, 230-240 V ac, IBL
Art:
802504313
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||
Panel mount LED Beacon, Ø65mm, Blue, 230-240 V ac, IBL
Art:
802505313
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||
Panel mount LED Beacon, Ø65mm, Green, 230-240 V ac, IBL
Art:
802506313
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||

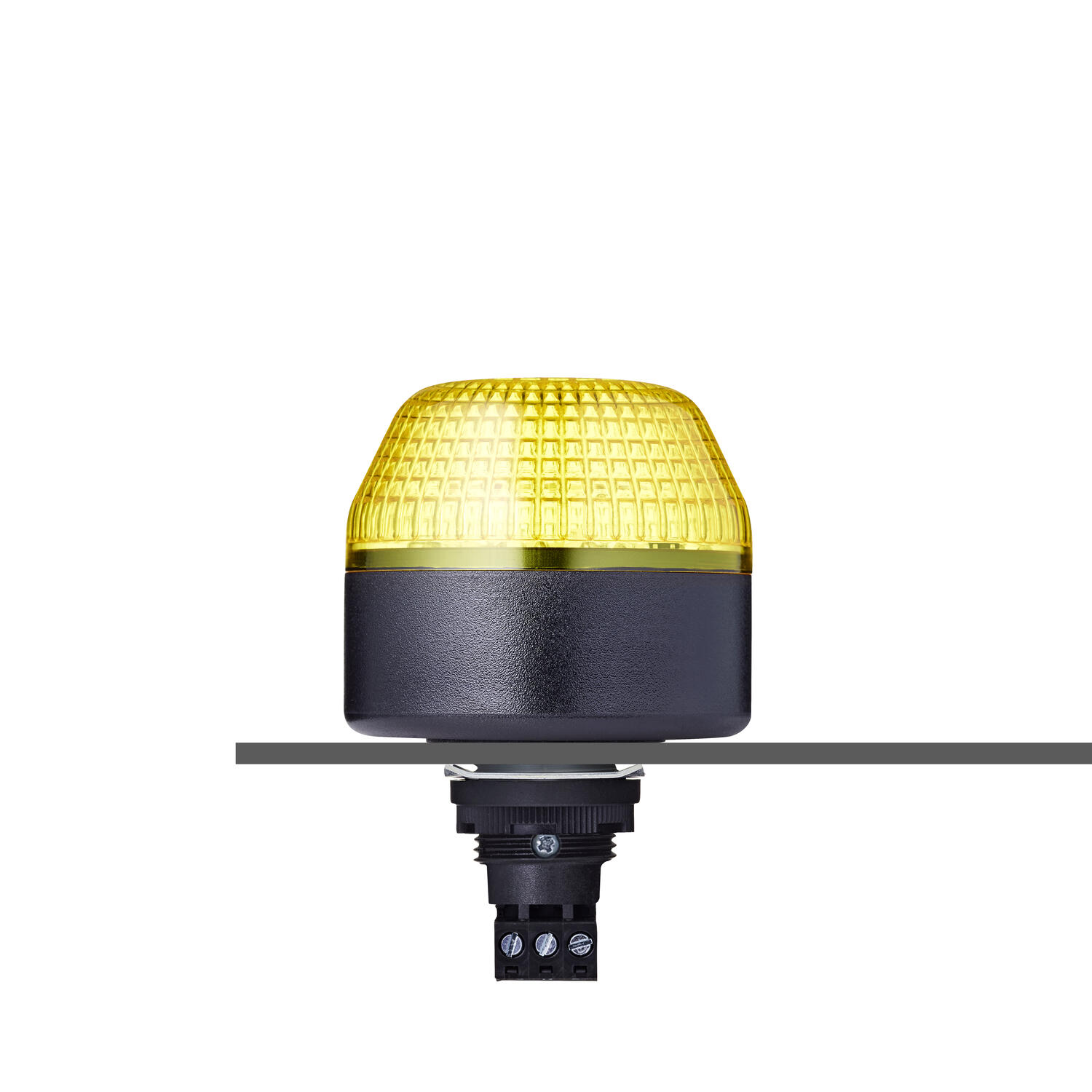

Panel mount LED Beacon, Ø65mm, Yellow, 230-240 V ac, IBL
Art:
802507313
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
31 mA
|
2 Hz
|
230-240 V AC
|
75 g
|
65 mm
|
90 mm
|
| ||
|
Panel mount LED Beacon, Ø65mm, Amber, 24 V ac/dc, IBL
Art:
802501405
Copied
|
Orange
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|

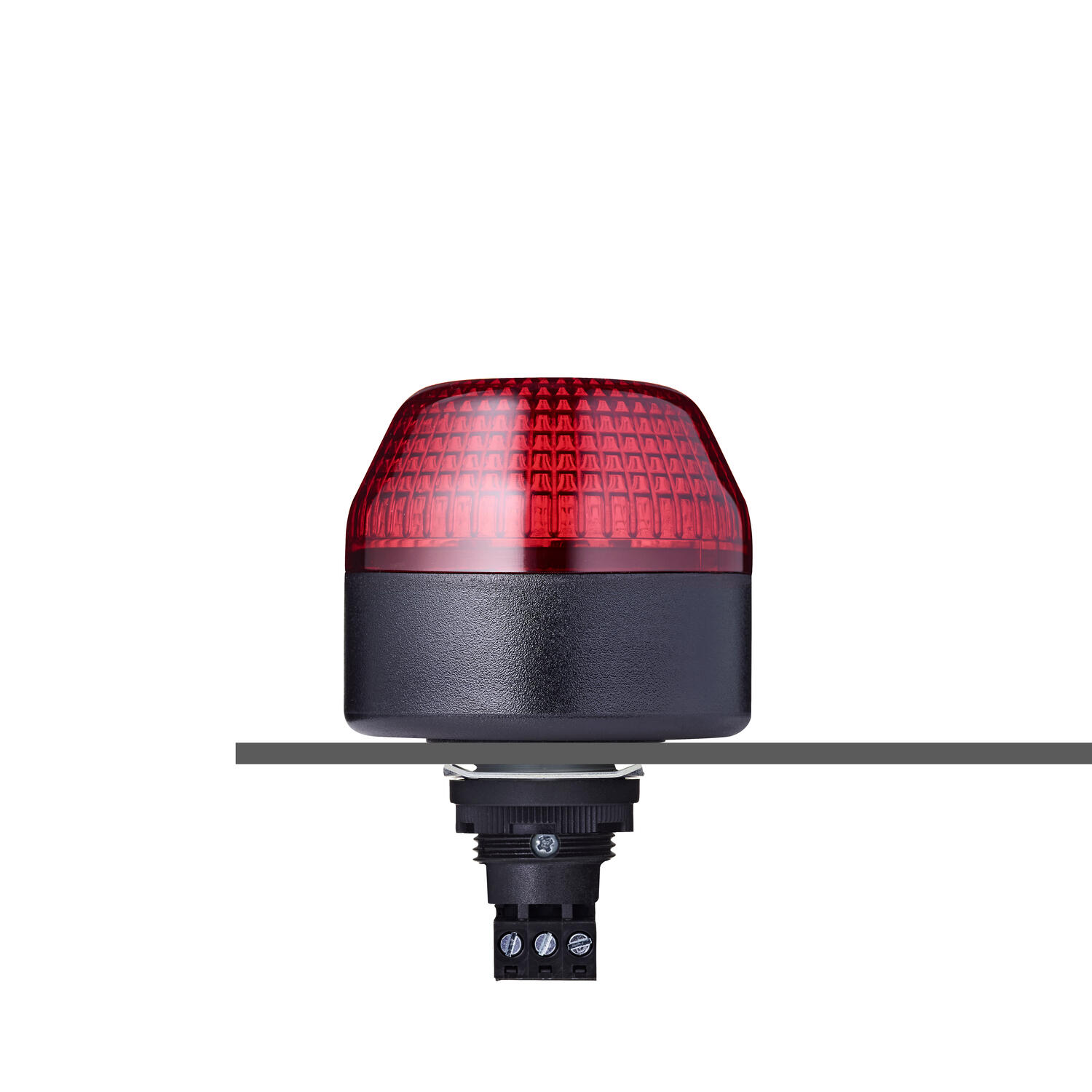

Panel mount LED Beacon, Ø65mm, Red, 24 V ac/dc, IBL
Art:
802502405
Copied
|
Red
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|
Panel mount LED Beacon, Ø65mm, Clear, 24 V ac/dc, IBL
Art:
802504405
Copied
|
Clear
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|
Panel mount LED Beacon, Ø65mm, Blue, 24 V ac/dc, IBL
Art:
802505405
Copied
|
Blue
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|

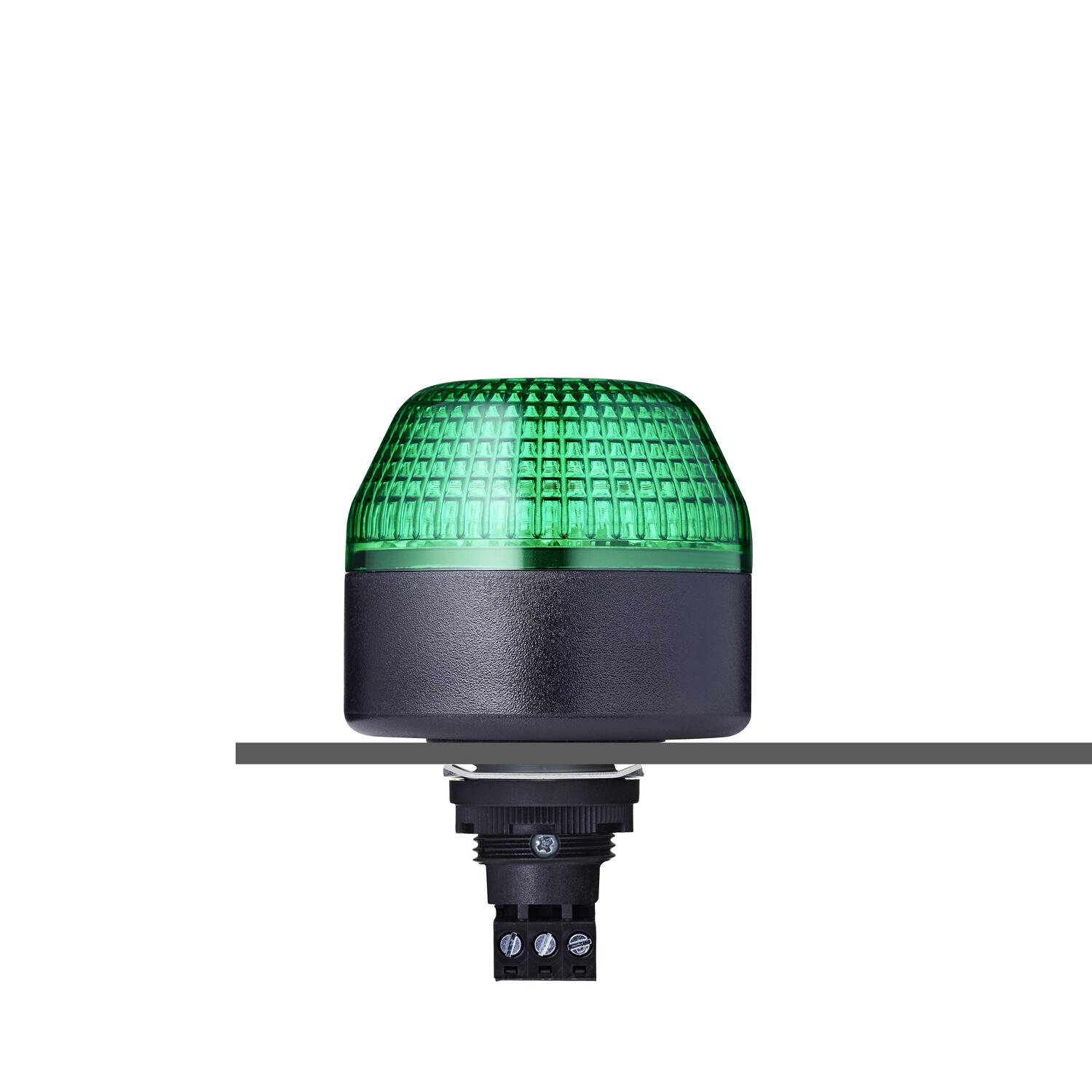

Panel mount LED Beacon, Ø65mm, Green, 24 V ac/dc, IBL
Art:
802506405
Copied
|
Green
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|
Panel mount LED Beacon, Ø65mm, Yellow, 24 V ac/dc, IBL
Art:
802507405
Copied
|
Yellow
|
LED
|
Flashing, Steady
|
|
60 mA
|
2 Hz
|
24 V AC/DC
|
75 g
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Amber, 230-240 V ac, ISL
Art:
802511313
Copied
|
Orange
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Red, 230-240 V ac, ISL
Art:
802512313
Copied
|
Red
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Clear, 230-240 V ac, ISL
Art:
802514313
Copied
|
Clear
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Blue, 230-240 V ac, ISL
Art:
802515313
Copied
|
Blue
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Green, 230-240 V ac, ISL
Art:
802516313
Copied
|
Green
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Yellow, 230-240 V ac, ISL
Art:
802517313
Copied
|
Yellow
|
Xenon
|
Strobe
|
1 J
|
20 mA
|
1,4 Hz
|
230-240 V AC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Amber, 24 V ac/dc, ISL
Art:
802511405
Copied
|
Orange
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Red, 24 V ac/dc, ISL
Art:
802512405
Copied
|
Red
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Clear, 24 V ac/dc, ISL
Art:
802514405
Copied
|
Clear
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Blue, 24 V ac/dc, ISL
Art:
802515405
Copied
|
Blue
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Green, 24 V ac/dc, ISL
Art:
802516405
Copied
|
Green
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
| ||
|
Panel mount xenon strobe, Ø65mm, Yellow, 24 V ac/dc, ISL
Art:
802517405
Copied
|
Yellow
|
Xenon
|
Strobe
|
1 J
|
150 mA
|
1,4 Hz
|
12-24 V AC/DC
|
|
65 mm
|
90 mm
|
|
Select a variant in the list
