AUER SIGNAL
High quality Ø90mm beacons with a robust construction for demanding applications. All models feature IP65 protection and bayonet fittings for simple installation. Models for pole mounting available on request.
Â
The N series comprises the most comprehensive range of high-quality LED technology. It is available as an LED multi-colour lamp and LED continuous / flashing / flashing lamp and multi-flash lamp. With high-power LEDs, it is also suitable for use in extreme lighting conditions. Specially developed for outdoor use, the signal effect is also particularly effective in sunlight. The luminaires are available in the Ø 90 mm size.
Â
Modern LED beacons in a compact design (Ø 90 mm) including high performance models for high signalling requirements, for example, in sunlight, or bright indoors. Excellent light dispersion and signalling effort due to distinct lens optics.
NFS-HP 3 LED strobe patterns externally switchable via terminal (LED double-/6-times/multistrobe). With a wide voltage range due to switched mode power supply (NES, NFS-HP, NMS-HP).
N Series beacons are shock and vibration resistant, maintenance free, long lifetime (> 50.000 h)
Features include inrush current limitation, emc-safe, leakage up to 0,003 A.
Â
General data |
|
|---|---|
| Mounting | None |
| Lens colour | Orange |
| Light source | LED |
| Light type | Flashing, Steady |
| Housing Colour | Black |
Rated operating conditions |
|
| Operational temperature | -30°C ... 60°C |
| Nominal current | 270 mA |
| Terminal connection | 2,5 mm² |
*Invisible Heading* |
|
|---|---|
| Flash frequency | 2 Hz |
| Nominal Supply Voltage | 24-48 V AC/DC |

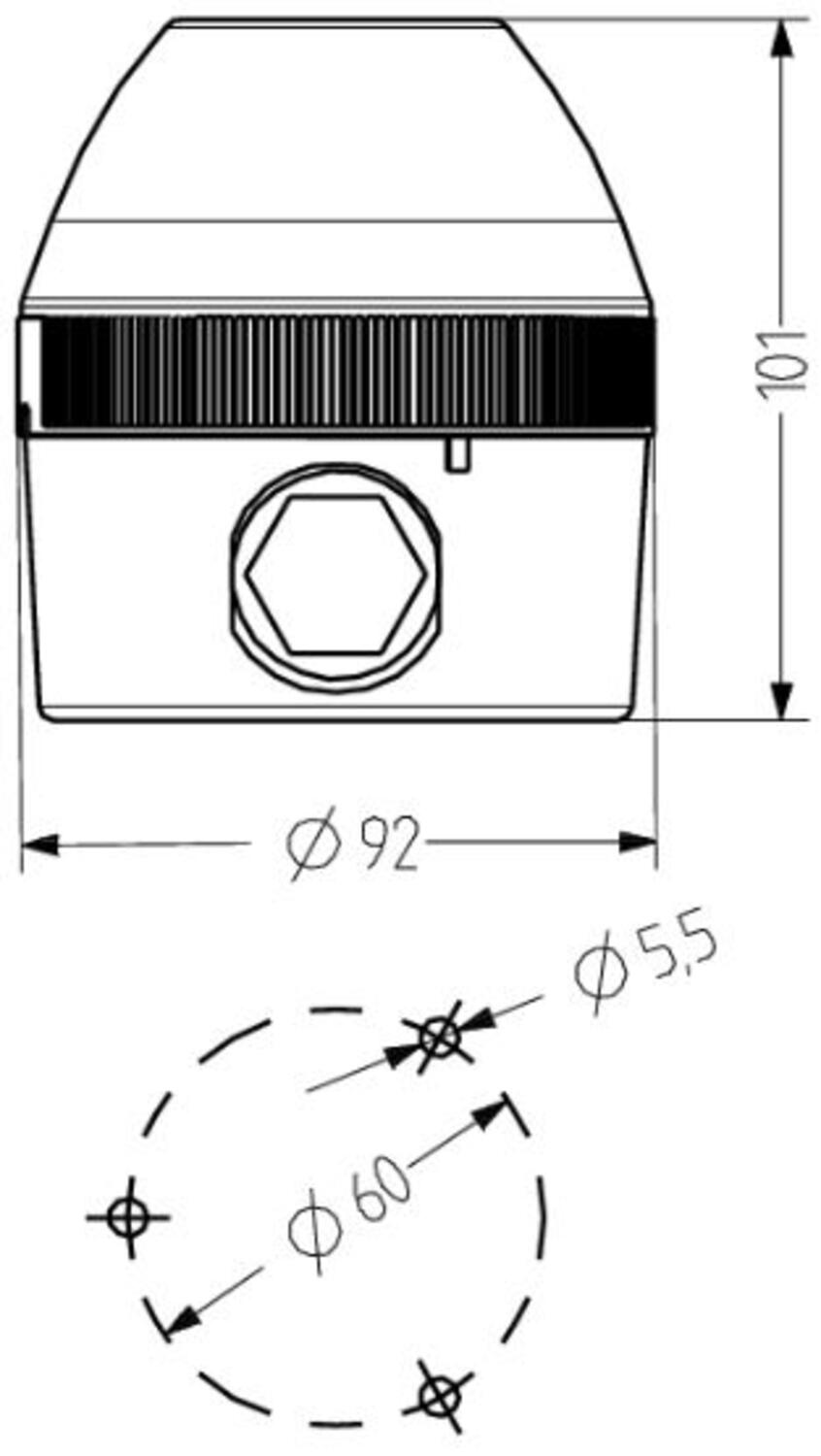

Dimensions |
|
| Weight | 250 g |
| Diameter | 90 mm |
| Height | 101 mm |
Additional data |
|
| IP class | IP65, IP67 |
High quality Ø90mm beacons with a robust construction for demanding applications. All models feature IP65 protection and bayonet fittings for simple installation. Models for pole mounting available on request.
Â
The N series comprises the most comprehensive range of high-quality LED technology. It is available as an LED multi-colour lamp and LED continuous / flashing / flashing lamp and multi-flash lamp. With high-power LEDs, it is also suitable for use in extreme lighting conditions. Specially developed for outdoor use, the signal effect is also particularly effective in sunlight. The luminaires are available in the Ø 90 mm size.
Â
Modern LED beacons in a compact design (Ø 90 mm) including high performance models for high signalling requirements, for example, in sunlight, or bright indoors. Excellent light dispersion and signalling effort due to distinct lens optics.
NFS-HP 3 LED strobe patterns externally switchable via terminal (LED double-/6-times/multistrobe). With a wide voltage range due to switched mode power supply (NES, NFS-HP, NMS-HP).
N Series beacons are shock and vibration resistant, maintenance free, long lifetime (> 50.000 h)
Features include inrush current limitation, emc-safe, leakage up to 0,003 A.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Mounting | Lens colour | Light source | Light type | Housing Colour | Operational temperature | Nominal current | Terminal connection | Flash frequency | Nominal Supply Voltage | Weight | Diameter | Height | IP class | Tone frequency min | Tone frequency max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

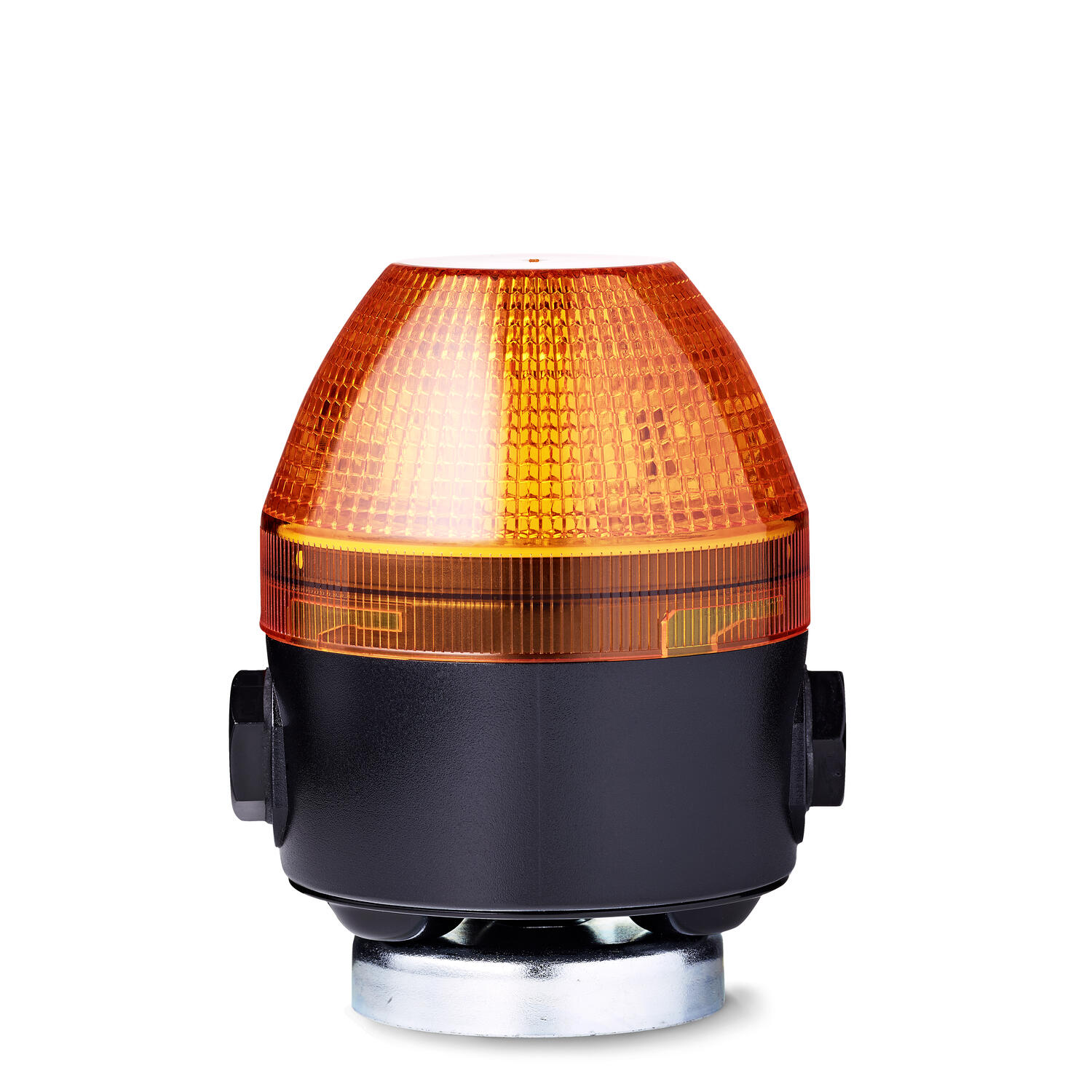

LED beacon, Amber, 24-48 V ac/dc, NES
Art:
440101408
Copied
|
None
|
Orange
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||

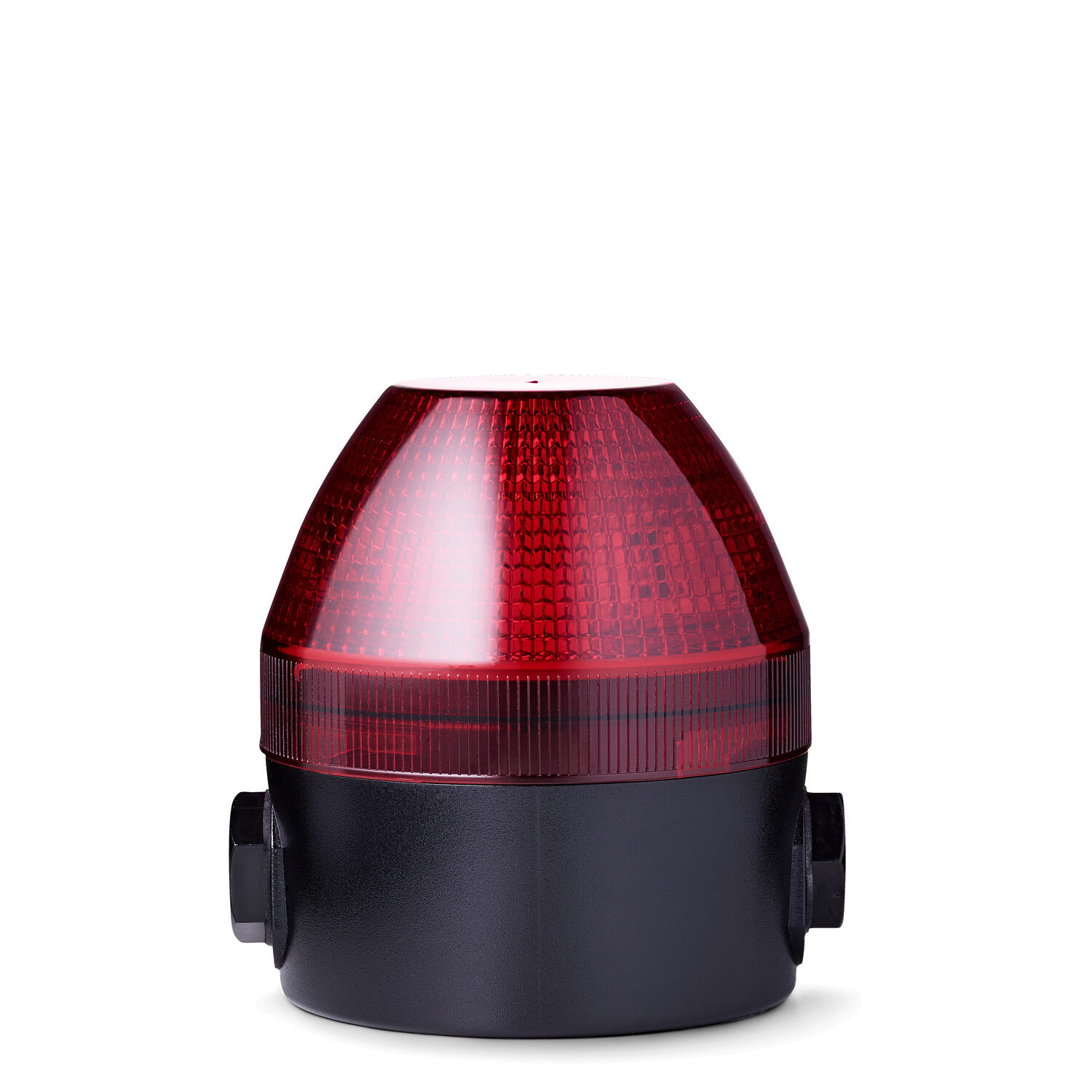

LED beacon, Red, 24-48 V ac/dc, NES
Art:
440102408
Copied
|
None
|
Red
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||

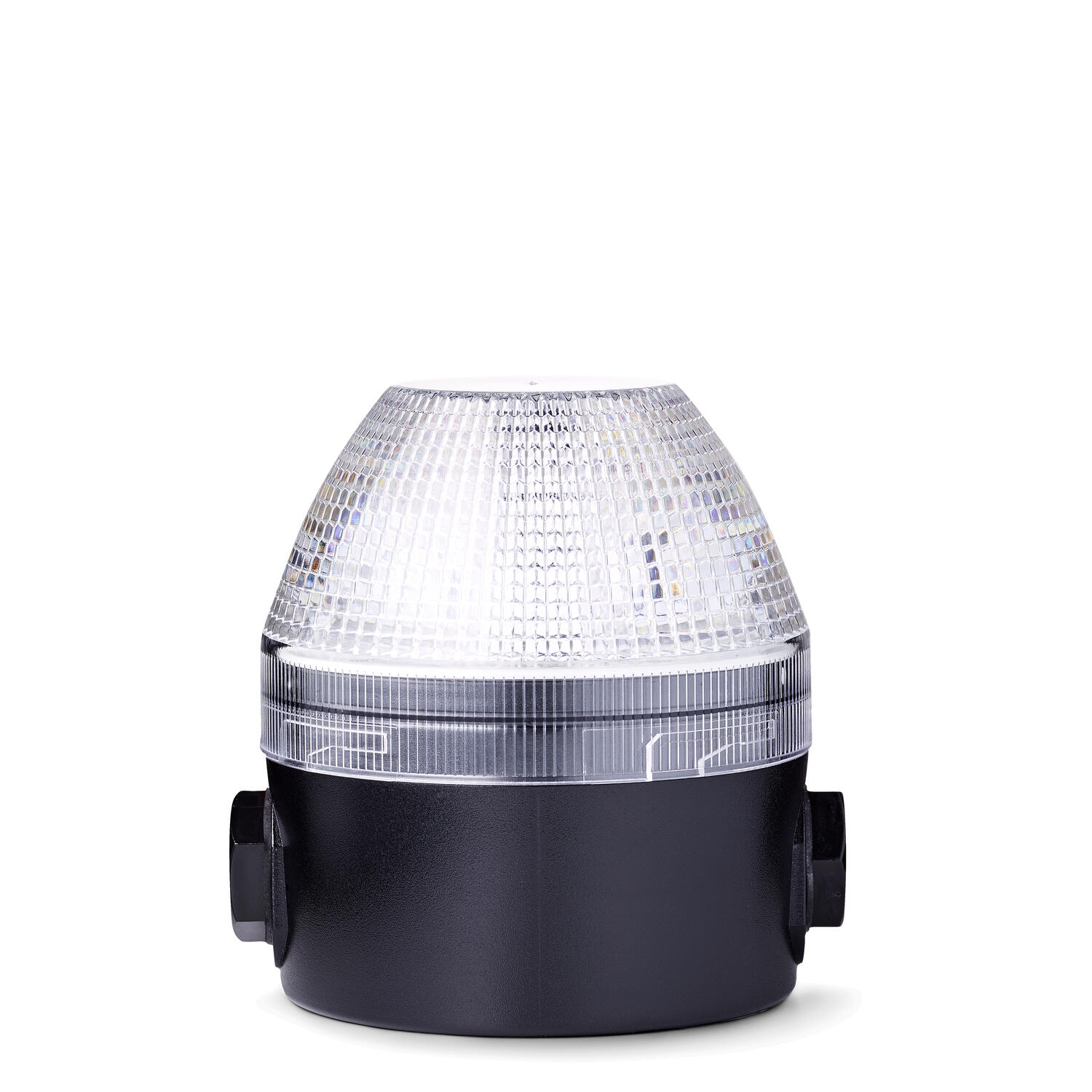

LED beacon, Clear, 24-48 V ac/dc, NES
Art:
440104408
Copied
|
None
|
Clear
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||

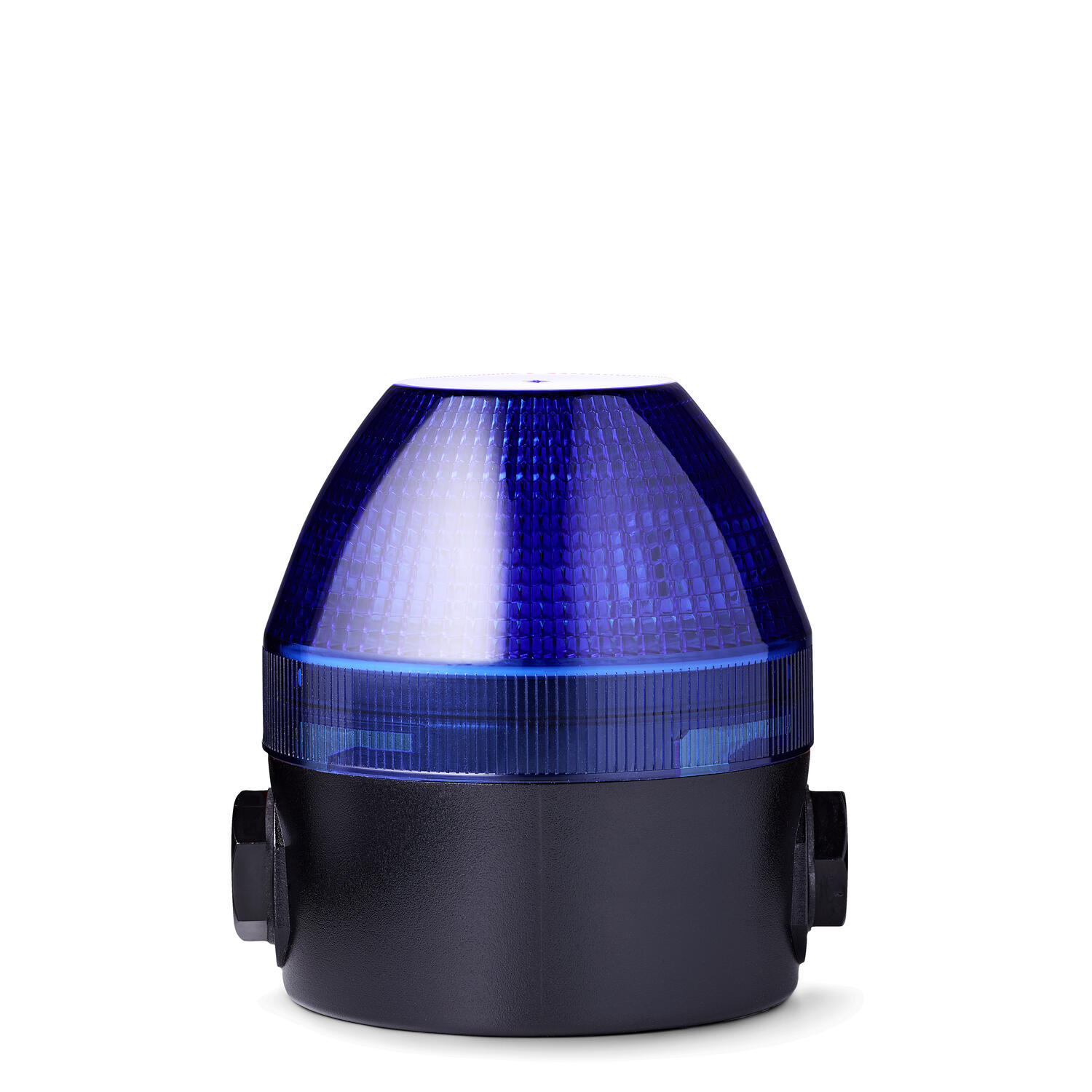

LED beacon, Blue, 24-48 V ac/dc, NES
Art:
440105408
Copied
|
None
|
Blue
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||

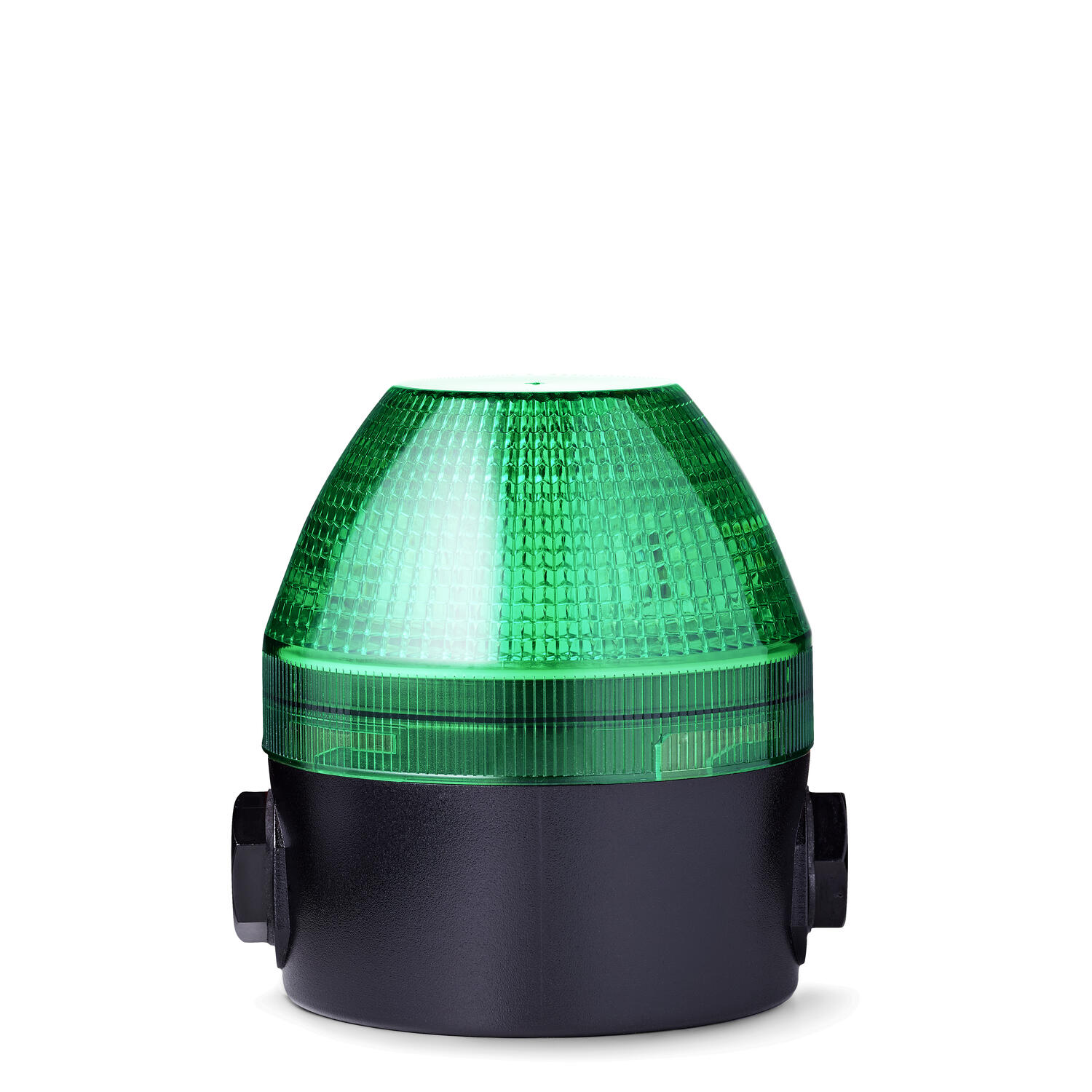

LED beacon, Green, 24-48 V ac/dc, NES
Art:
440106408
Copied
|
None
|
Green
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||

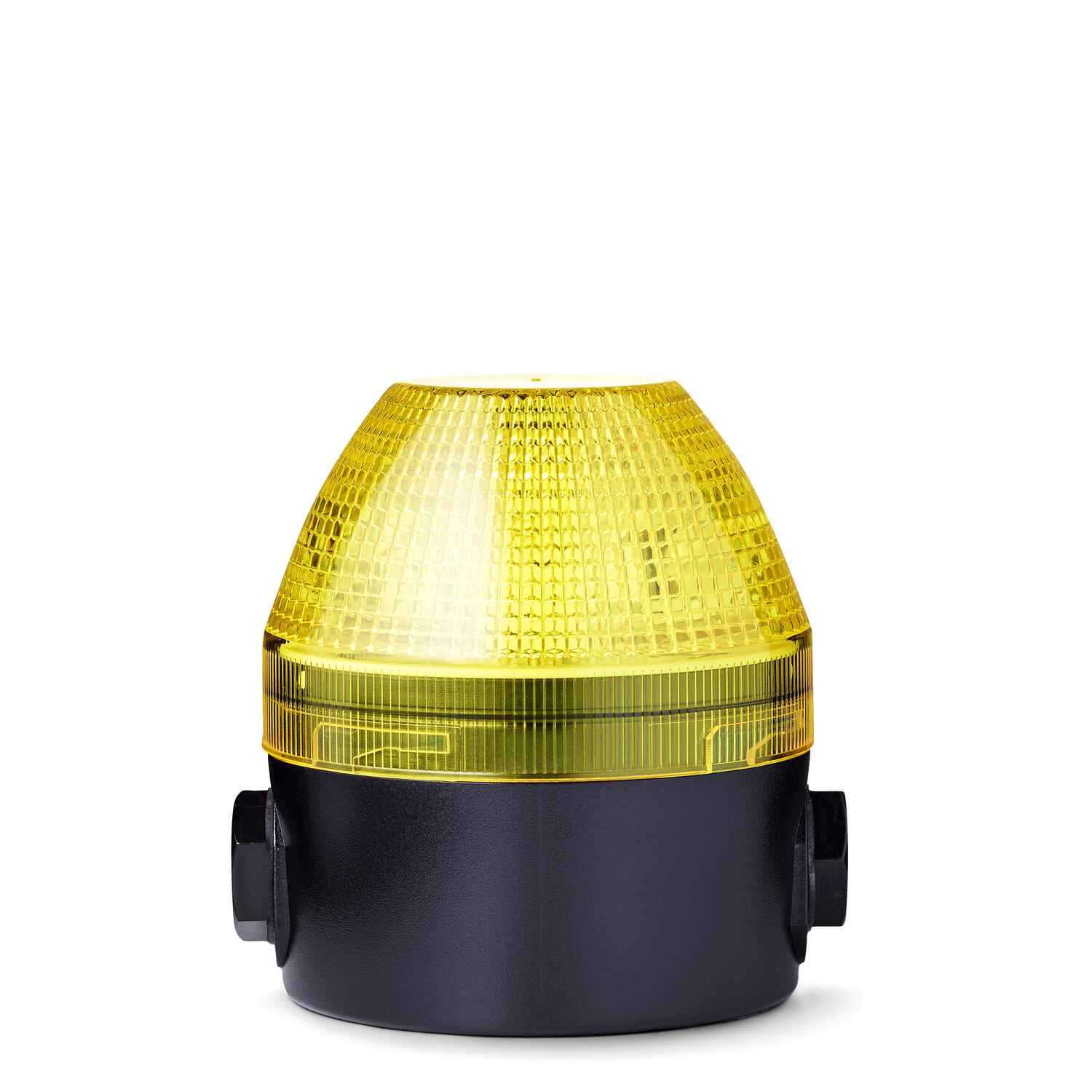

LED beacon, Yellow, 24-48 V ac/dc, NES
Art:
440107408
Copied
|
None
|
Yellow
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
270 mA
|
2,5 mm²
|
2 Hz
|
24-48 V AC/DC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Amber, 110-240 V ac, NES
Art:
440101413
Copied
|
None
|
Orange
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Red, 110-240 V ac, NES
Art:
440102413
Copied
|
None
|
Red
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Clear, 110-240 V ac, NES
Art:
440104413
Copied
|
None
|
Clear
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Blue, 110-240 V ac, NES
Art:
440105413
Copied
|
None
|
Blue
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Green, 110-240 V ac, NES
Art:
440106413
Copied
|
None
|
Green
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, Yellow, 110-240 V ac, NES
Art:
440107413
Copied
|
None
|
Yellow
|
LED
|
Flashing, Steady
|
Black
|
-30°C ... 60°C
|
40 mA
|
2,5 mm²
|
2 Hz
|
110-240 V AC
|
250 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Amber, 24-48 V ac/dc, NFS
Art:
442101408
Copied
|
None
|
Orange
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Red, 24-48 V ac/dc, NFS
Art:
442102408
Copied
|
None
|
Red
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Clear, 24-48 V ac/dc, NFS
Art:
442104408
Copied
|
None
|
Clear
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Blue, 24-48 V ac/dc, NFS
Art:
442105408
Copied
|
None
|
Blue
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Green, 24-48 V ac/dc, NFS
Art:
442106408
Copied
|
None
|
Green
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Yellow, 24-48 V ac/dc, NFS
Art:
442107408
Copied
|
None
|
Yellow
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
271 mA
|
2,5 mm²
|
1,4 Hz
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Amber, 230-240 V ac, NFS
Art:
442101313
Copied
|
None
|
Orange
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Red, 230-240 V ac, NFS
Art:
442102313
Copied
|
None
|
Red
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Clear, 230-240 V ac, NFS
Art:
442104313
Copied
|
None
|
Clear
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Blue, 230-240 V ac, NFS
Art:
442105313
Copied
|
None
|
Blue
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Green, 230-240 V ac, NFS
Art:
442106313
Copied
|
None
|
Green
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED strobe beacon, Yellow, 230-240 V ac, NFS
Art:
442107313
Copied
|
None
|
Yellow
|
LED
|
Strobe, Double strobe
|
Black
|
-30°C ... 60°C
|
74 mA
|
2,5 mm²
|
1,4 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
Multi-strobe beacon, Amber, 24-48 V ac/dc, NFS-HP
Art:
442151408
Copied
|
None
|
Orange
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Red, 24-48 V ac/dc, NFS-HP
Art:
442152408
Copied
|
None
|
Red
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Clear, 24-48 V ac/dc, NFS-HP
Art:
442154408
Copied
|
None
|
Clear
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Blue, 24-48 V ac/dc, NFS-HP
Art:
442155408
Copied
|
None
|
Blue
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Green, 24-48 V ac/dc, NFS-HP
Art:
442156408
Copied
|
None
|
Green
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Yellow, 24-48 V ac/dc, NFS-HP
Art:
442157408
Copied
|
None
|
Yellow
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
770 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Amber, 110-240 V ac/dc, NFS-HP
Art:
442151413
Copied
|
None
|
Orange
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Red, 110-240 V ac/dc, NFS-HP
Art:
442152413
Copied
|
None
|
Red
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Clear, 110-240 V ac/dc, NFS-HP
Art:
442154413
Copied
|
None
|
Clear
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Blue, 110-240 V ac/dc, NFS-HP
Art:
442155413
Copied
|
None
|
Blue
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Green, 110-240 V ac/dc, NFS-HP
Art:
442156413
Copied
|
None
|
Green
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||
|
Multi-strobe beacon, Yellow, 110-240 V ac/dc, NFS-HP
Art:
442157413
Copied
|
None
|
Yellow
|
High performance LED
|
Multi strobe
|
Black
|
-30°C ... 60°C
|
170 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
1 Hz
|
1,4 Hz
|
| ||

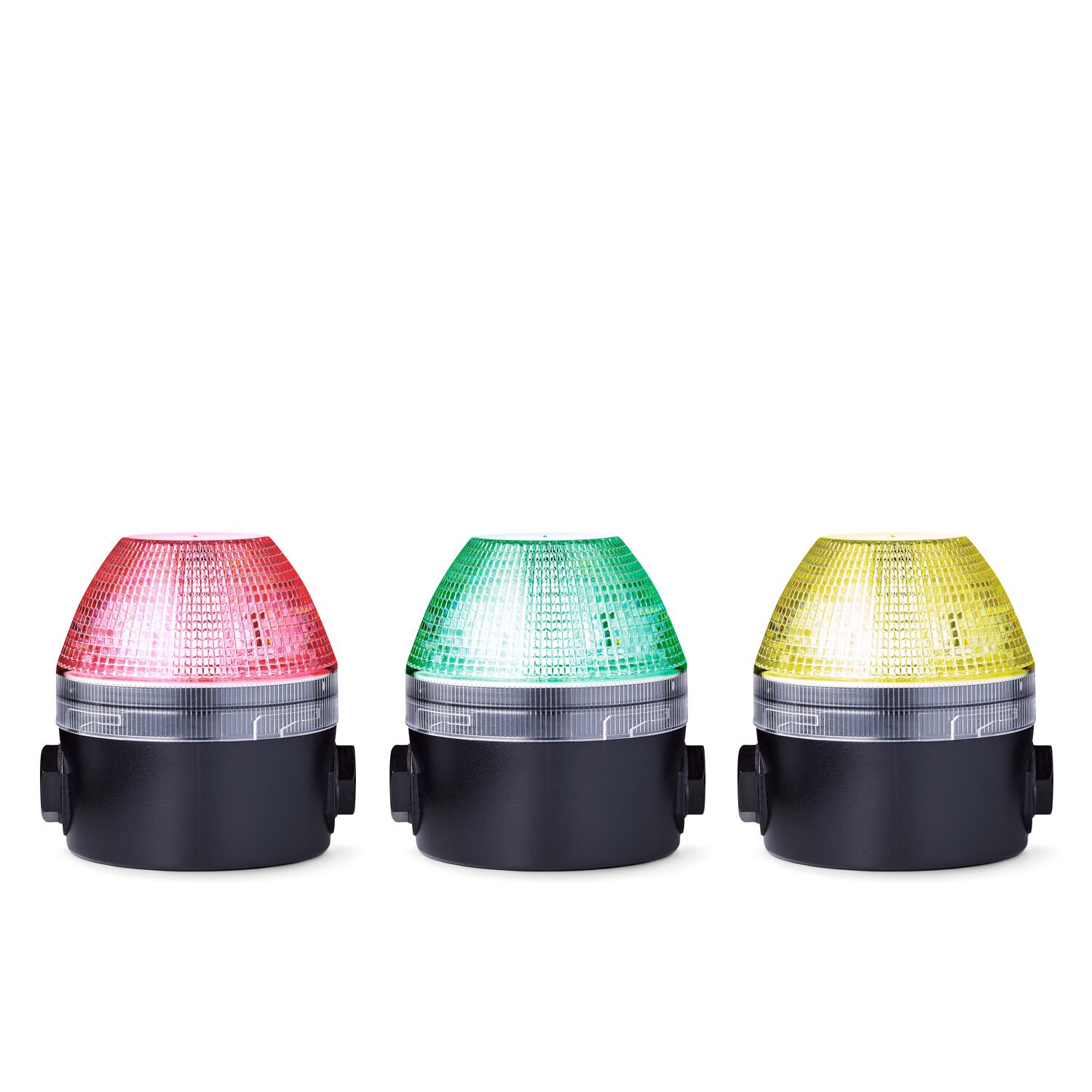

LED beacon, 3 colour, 230-240 V ac, NMS
Art:
441100313
Copied
|
None
|
Clear
|
LED
|
Multi Colour
|
Black
|
-30°C ... 60°C
|
100 mA
|
2,5 mm²
|
1 Hz
|
230-240 V AC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, 3 colour, 110-120 V ac, NMS
Art:
441100310
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
LED beacon, 3 colour, 48 V ac/dc, NMS
Art:
441100408
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|

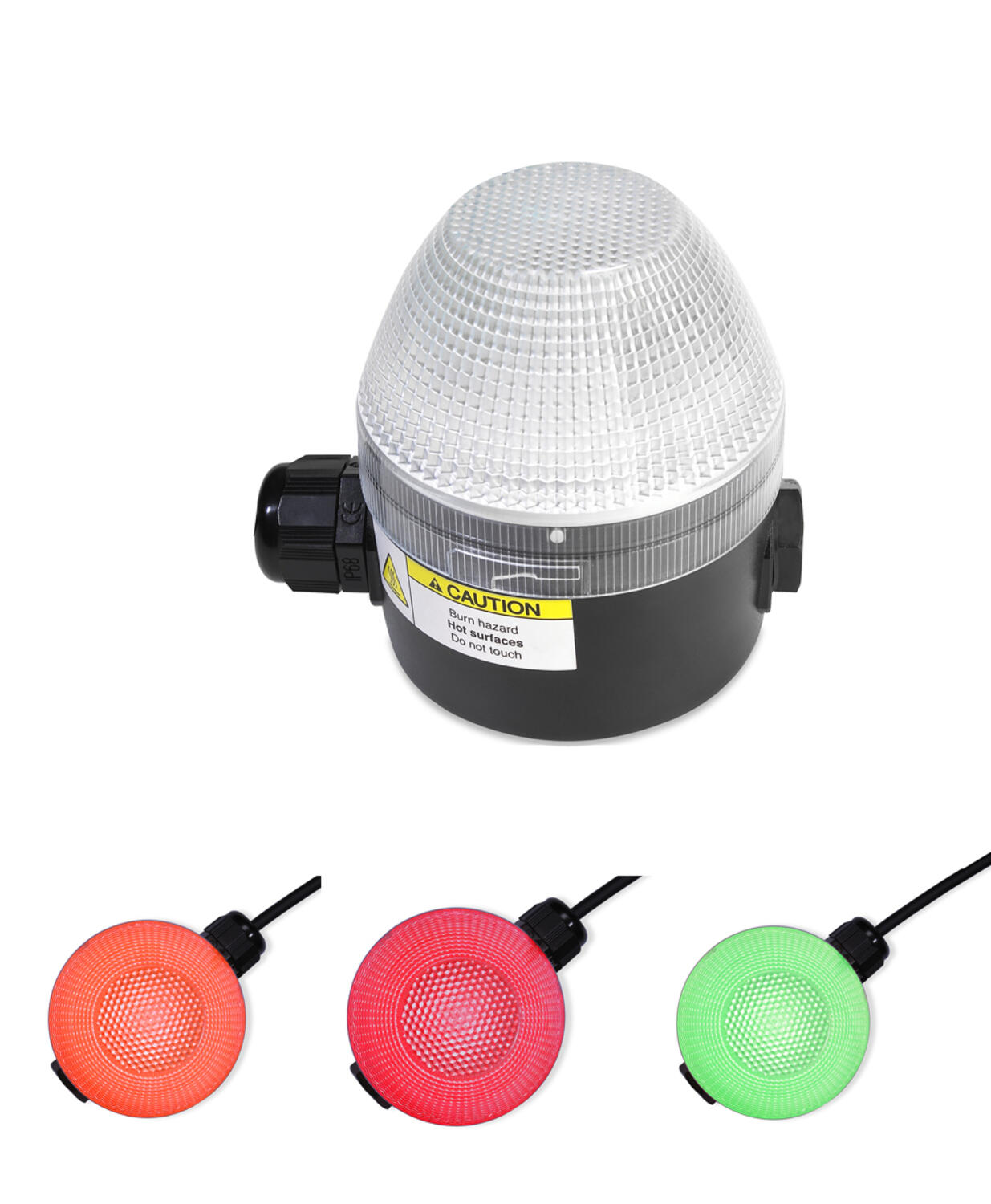

LED beacon, 3 colour, 24 V ac/dc, NMS
Art:
441100405
Copied
|
None
|
Clear
|
LED
|
Multi Colour
|
Black
|
-30°C ... 60°C
|
142 mA
|
2,5 mm²
|
1 Hz
|
24 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, 3 colour, 24-48 V ac/dc, NMS-HP
Art:
441150408
Copied
|
None
|
Clear
|
High performance LED
|
Multi Colour
|
Black
|
-30°C ... 60°C
|
180 mA
|
2,5 mm²
|
|
24-48 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
| ||
|
LED beacon, 3 colour, 110-240 V ac/dc, NMS-HP
Art:
441150413
Copied
|
None
|
Clear
|
High performance LED
|
Multi Colour
|
Black
|
-30°C ... 60°C
|
50 mA
|
2,5 mm²
|
|
110-240 V AC/DC
|
280 g
|
90 mm
|
101 mm
|
IP65, IP67
|
|
|
|
Select a variant in the list
