AUER SIGNAL

R-Series, Multifunction, Ultra Performance, Ø110 MM

With the introduction of the RDM Ultra Performance Auer complete the success of the R Series beacons with its most radical representative. 2x - 4x brighter than any other beacon on the signaling market, the RDMUP steps up to compete with the sun.
  • The brightest LED Signal Beacon on the market
  • Up to 450 Cd luminous intensity (colour-dependent)
  • Ultra bright outdoor signaling for wide area coverage
  • Focused Light emission below and above the beacon to prevent blinding in nearby area
  • Best in class: excellent homogenous circular light distribution – no blind spots

Selected variant

Available in several variants
AuerSignal Logo_RGB.tif

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General data
Lens colour Amber
Light source LED
Light type Multi-function
Housing Colour Black

Rated operating conditions
Operational temperature -30°C … 60°C
Nominal current 4180 mA
Voltage range +/-10%
Nominal Supply Voltage 12 V DC

Dimensions
Weight 224 g
Width 110 mm
Diameter 110 mm
Height 124 mm

Additional data
IP class IP66
IK class 8

Downloads

Technical illustrations

Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Lens colour Nominal current Nominal Supply Voltage Price

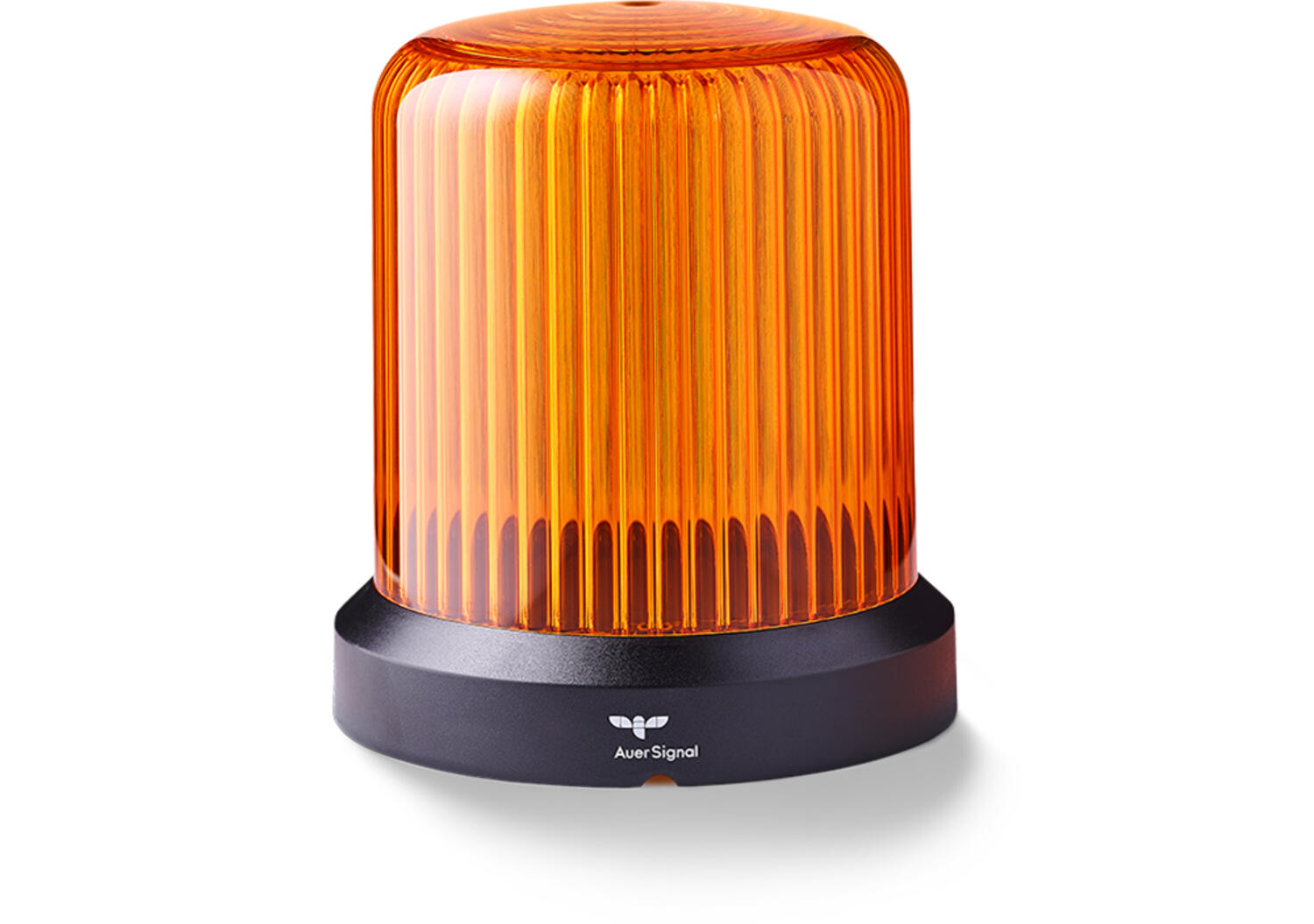

RDMUP Orange.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Amber
Art:
850541004 Copied
Amber
4180 mA
12 V DC
RDMUP Red.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Red
Art:
850542004 Copied
Red
2600 mA
12 V DC

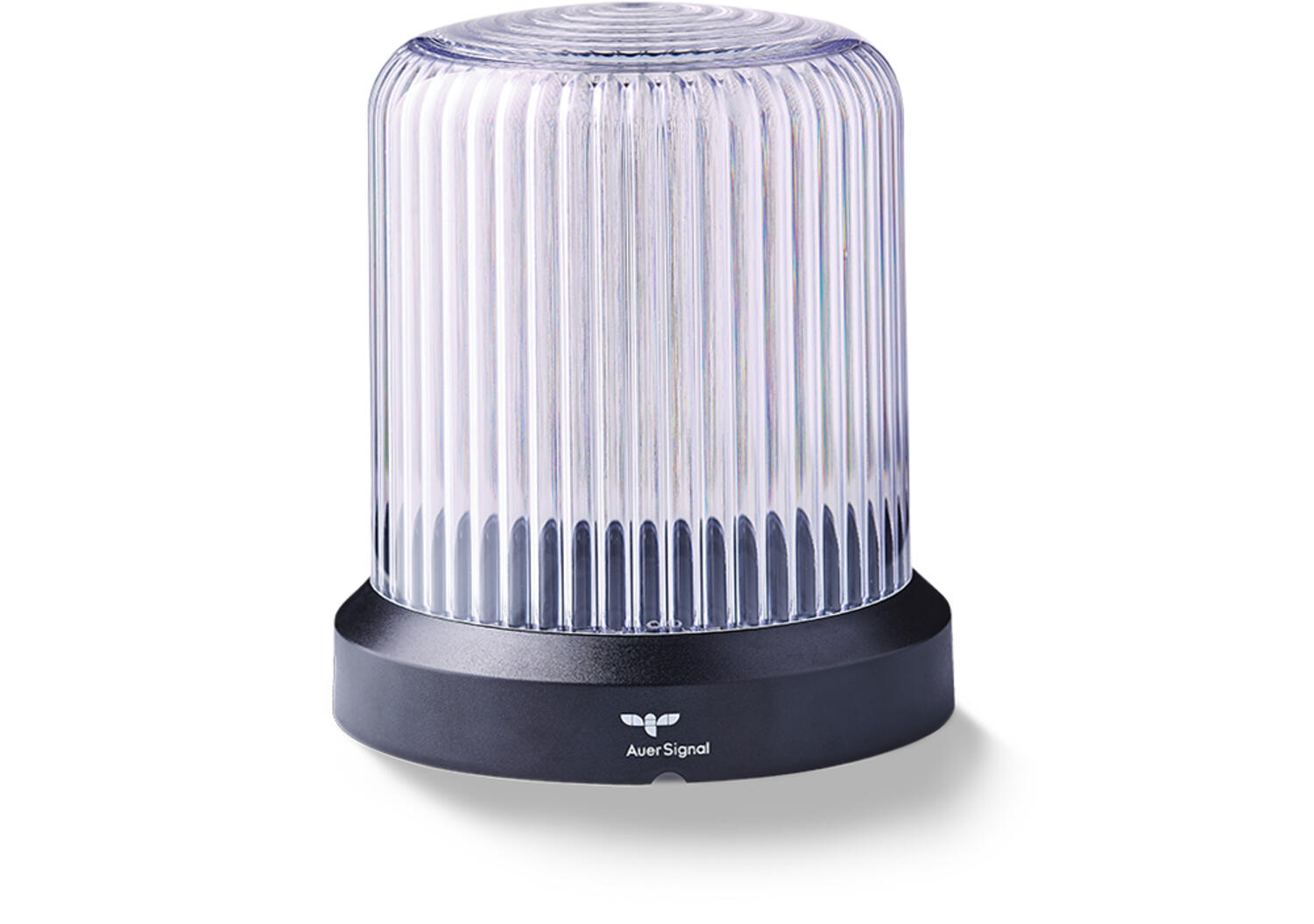

RDMUP Clear.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Clear
Art:
850544004 Copied
Clear
4180 mA
12 V DC

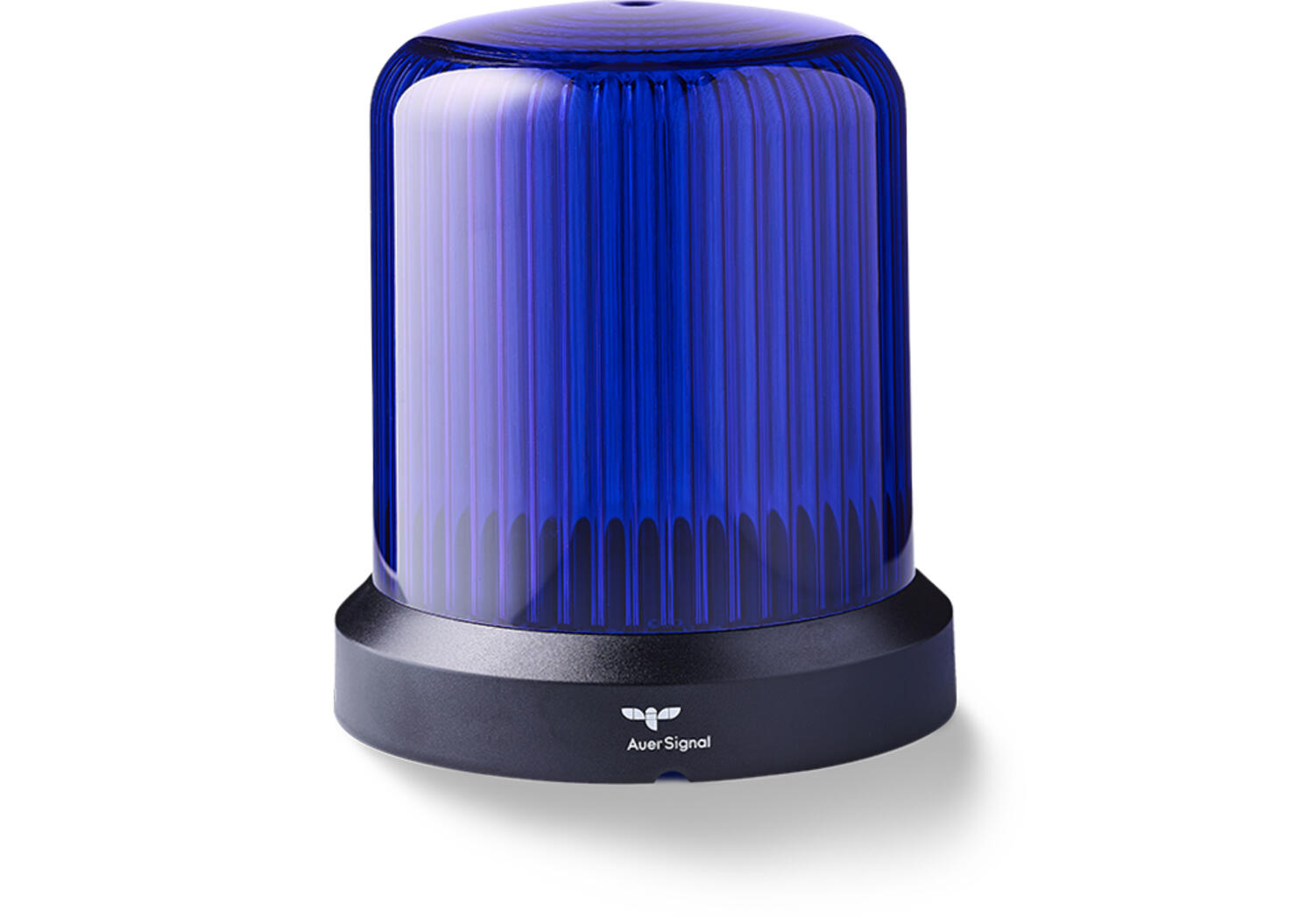

RDMUP Blue.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Blue
Art:
850545004 Copied
Blue
4180 mA
12 V DC

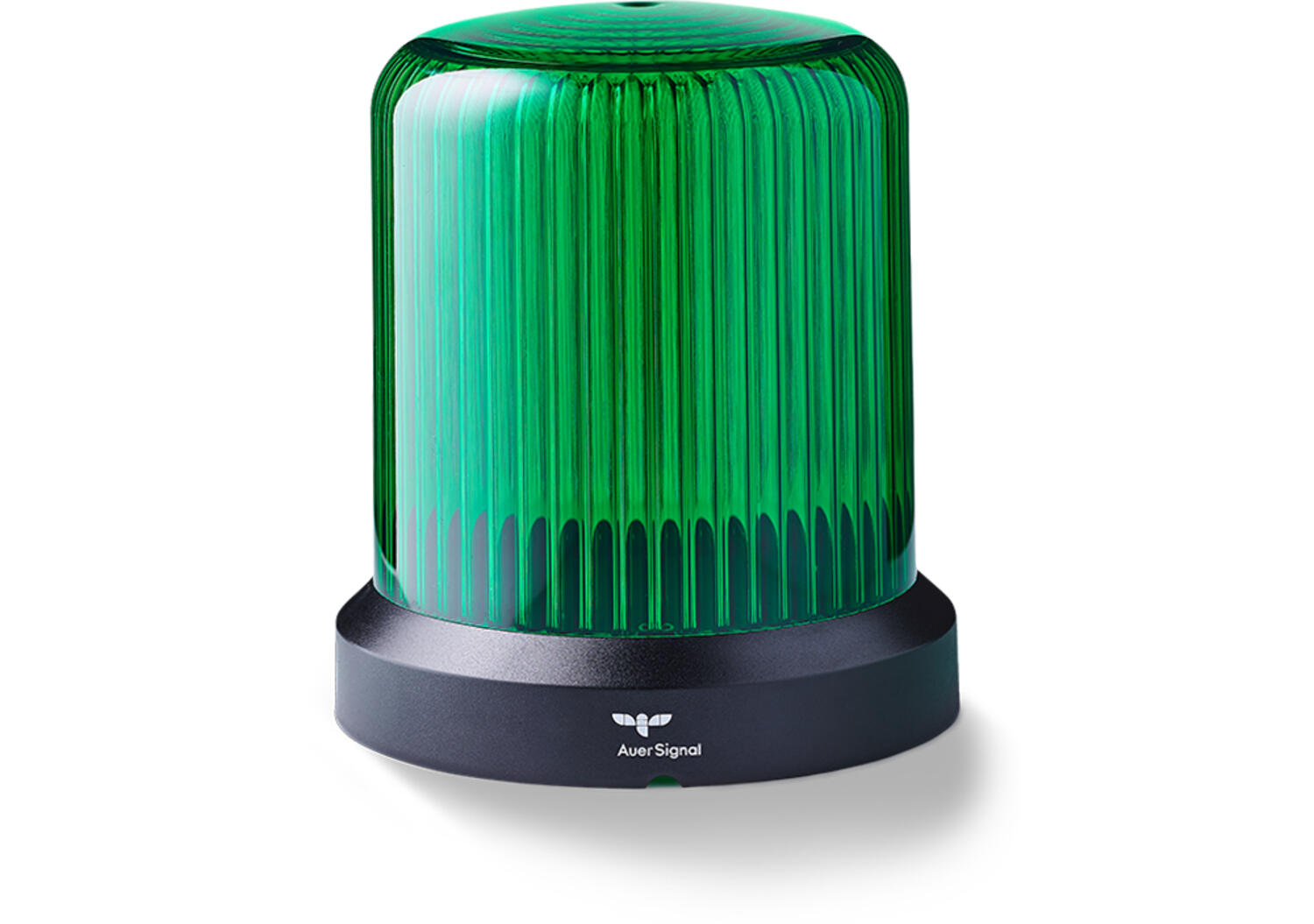

RDMUP Green.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Green
Art:
850546004 Copied
Green
4180 mA
12 V DC

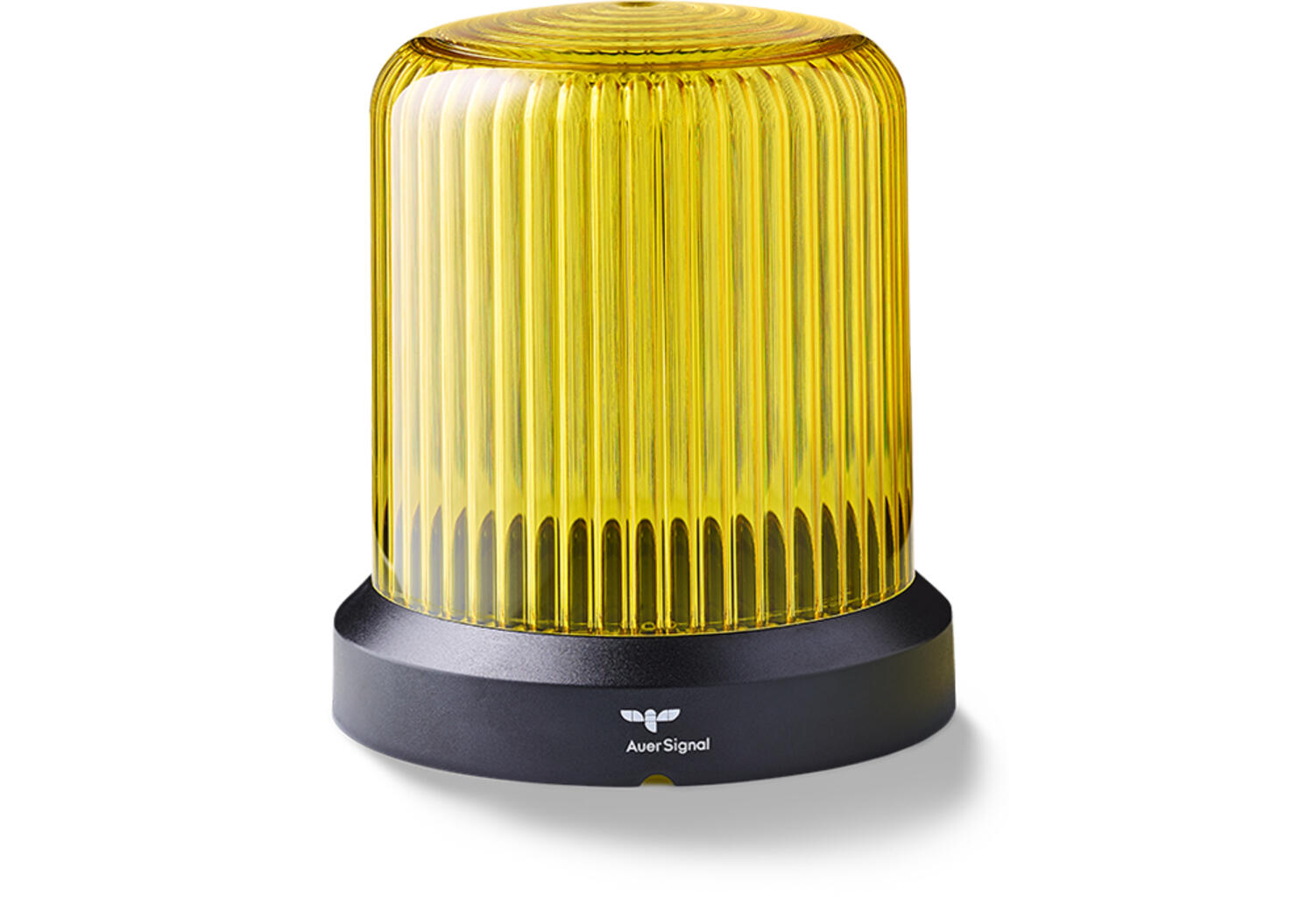

RDMUP Yellow.png
RDMUP LED multifunction beacon Ultra Performance 12V DC Yellow
Art:
850547004 Copied
Yellow
4180 mA
12 V DC
RDMUP Orange.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Amber
Art:
850541405 Copied
Amber
1800 mA
24 V AC/DC
RDMUP Red.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Red
Art:
850542405 Copied
Red
1700 mA
24 V AC/DC
RDMUP Clear.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Clear
Art:
850544405 Copied
Clear
1800 mA
24 V AC/DC
RDMUP Blue.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Blue
Art:
850545405 Copied
Blue
1800 mA
24 V AC/DC
RDMUP Green.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Green
Art:
850546405 Copied
Green
1800 mA
24 V AC/DC
RDMUP Yellow.png
RDMUP LED multifunction beacon Ultra Performance 24V AC/DC Yellow
Art:
850547405 Copied
Yellow
1800 mA
24 V AC/DC
RDMUP Orange.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Amber
Art:
850541408 Copied
Amber
520 mA
48 V AC/DC
RDMUP Red.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Red
Art:
850542408 Copied
Red
1370 mA
48 V AC/DC
RDMUP Clear.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Clear
Art:
850544408 Copied
Clear
830 mA
48 V AC/DC
RDMUP Blue.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Blue
Art:
850545408 Copied
Blue
1370 mA
48 V AC/DC
RDMUP Green.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Green
Art:
850546408 Copied
Green
1370 mA
48 V AC/DC
RDMUP Yellow.png
RDMUP LED multifunction beacon Ultra Performance 48V AC/DC Yellow
Art:
850547408 Copied
Yellow
1370 mA
48 V AC/DC
RDMUP Orange.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Amber
Art:
850541313 Copied
Amber
520 mA
110-240 V AC/DC
RDMUP Red.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Red
Art:
850542313 Copied
Red
430 mA
110-240 V AC/DC
RDMUP Clear.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Clear
Art:
850544313 Copied
Clear
520 mA
110-240 V AC/DC
RDMUP Blue.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Blue
Art:
850545313 Copied
Blue
520 mA
110-240 V AC/DC
RDMUP Green.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Green
Art:
850546313 Copied
Green
520 mA
110-240 V AC/DC
RDMUP Yellow.png
RDMUP LED multifunction beacon Ultra Performance 110-240V AC/DC Yellow
Art:
850547313 Copied
Yellow
520 mA
110-240 V AC/DC

Selected variant

Select a variant in the list
