THREADED COPPER BARS

BRF

Teknomega have created a free to download software for calculating and selecting the most suitable busbar for your application. Find out more here.

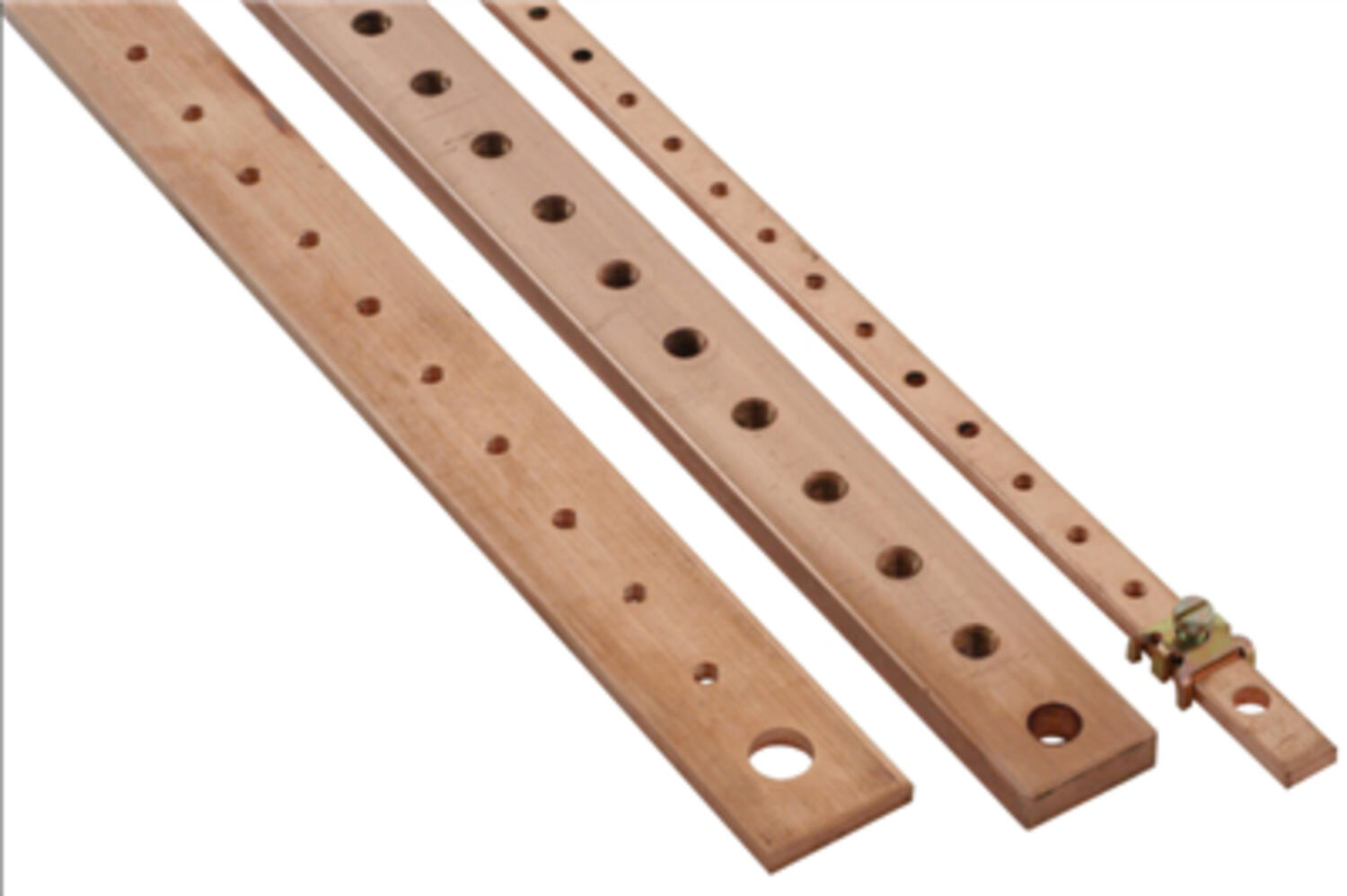

Threaded copper busbars which are mounted on busbars supports, insulators and spacers to conduct electrical current inside panel boards and Electrical Low Voltage boxes. This range includes thickness options between 2 and 10mm, and lengths of 1000mm and 2000mm. Thread sizes between M6 – M8 are also selectable.



Current at ΔT 30° C from 208 to 573A, and at ΔT 50° C from 143 to 756A.



Read more
  • Thickness 2 - 3 - 4 - 5 - 10 mm
  • Length 1000 and 2000 mm.
  • M5 - M8 available
Teknomega THREADED COPPER BARS BRF

Eplan Logo, data portal for 3D drawings

To view Teknomega Products via ePlan see the link under 'downloadable resources' further down the page

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Cross section 36 mm²
Current at ΔT 50°C 160 A

Dimensions

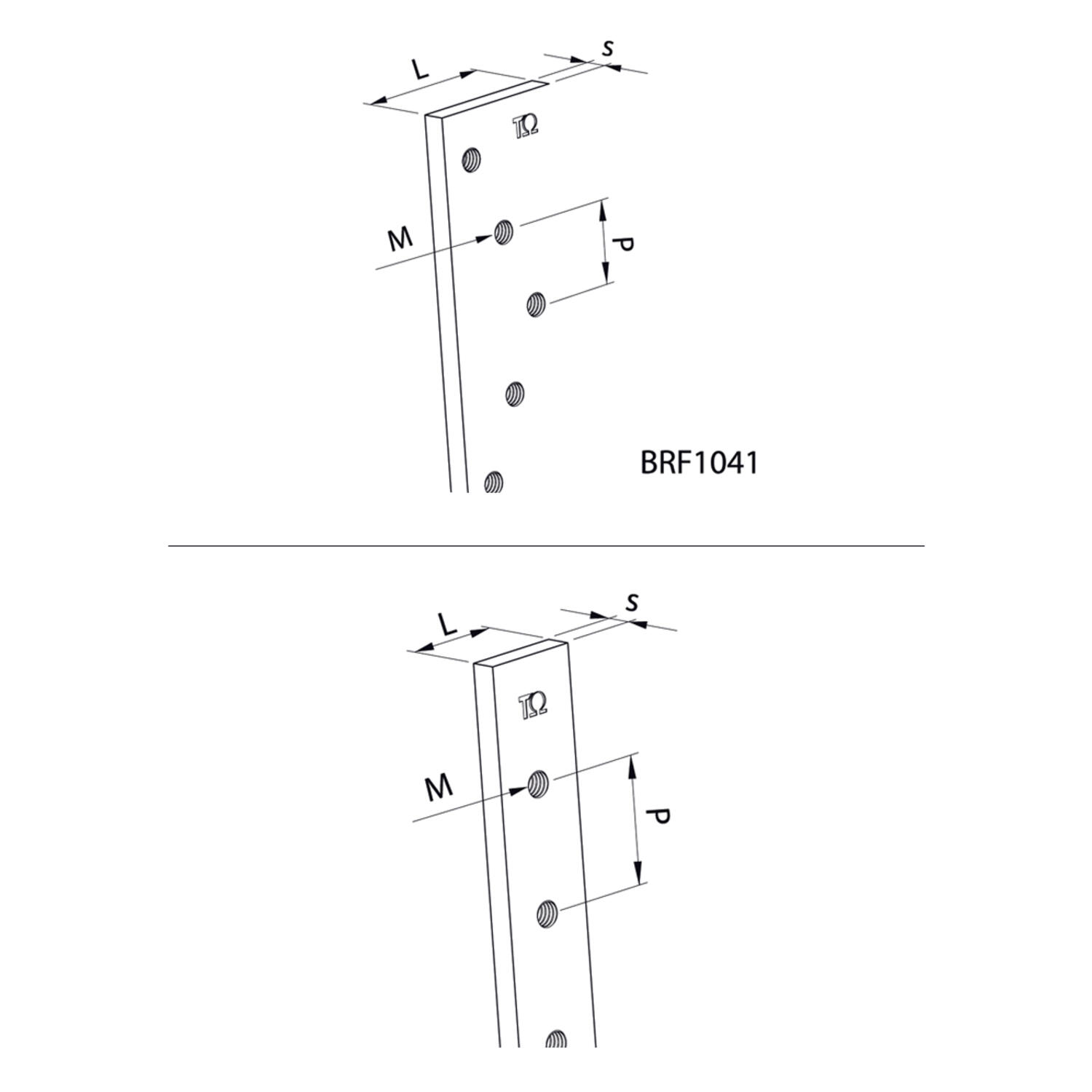

Length between hole centres 18 mm
Thickness 3 mm
Length 1000 mm
Width 12 mm

*Invisible Heading*

Thread size M5

Ampacity

Current at ΔT 30°C 108 A

Additional Data

Pack size 10
Weight 0,32 kg

Product description

Teknomega have created a free to download software for calculating and selecting the most suitable busbar for your application. Find out more here.



Threaded copper busbars which are mounted on busbars supports, insulators and spacers to conduct electrical current inside panel boards and Electrical Low Voltage boxes. This range includes thickness options between 2 and 10mm, and lengths of 1000mm and 2000mm. Thread sizes between M6 – M8 are also selectable.



Current at ΔT 30° C from 208 to 573A, and at ΔT 50° C from 143 to 756A.
