CONTA-CLIP
General data |
|
---|---|
Installed height | 10,5 mm |
IP class | IP66 |
Colour | Black |
Length | 165 mm |
Mounting | Screw |
Width | 123 mm |
Height | 17,5 mm |
NEMA class | 4x |
Mounting details |
|
Fixing screws | M5 |
Torque of the fixing screws | 3 Nm |
Diameter of the screw holes | 5,5 mm |
Number of screw holes | 6 |
Materials |
|
Flammability class | V-0 |
*Invisible Heading* |
|
---|---|
Sealing material | Polyurethane |
Glass-fibre reinforced | Yes |
Operating temperature from | -40 °C |
Halogen-free | Yes |
Material | Polyamide |
Operating temperature to | 120 °C |
Silicone-free | Yes |
Additional data |
|
Pack size | 1 |
Country of origin | DE |
Tariff code | 39259020 |
Weight | 146 g |
KDS-FP
Flange plates
New versatility for managing cables
The new KDS-FP flange plate provides manufacturers of machines and panels with a very cost-effective, convenient cable entry system solution.
It can be used to adapt housings and switchgear cabinets to fit your multiple cables and has the flexibility to accommadate any updated wiring requirements at any time, and can also considerably simplify your warehousing.
You no longer have to stock switchgear cabinets or enclosures with different cut-out configurations of assembled cable and cable outlets. Instead, you can uniformly prepare your products with the flange plate and then adapt them at any time to your specific cabling or tubing requirements.
In the future, CONTA-CLIP will also offer the flange plates of the KDS-FP series in other shapes and sizes.
Your advantage is that you save money by requiring fewer variants.

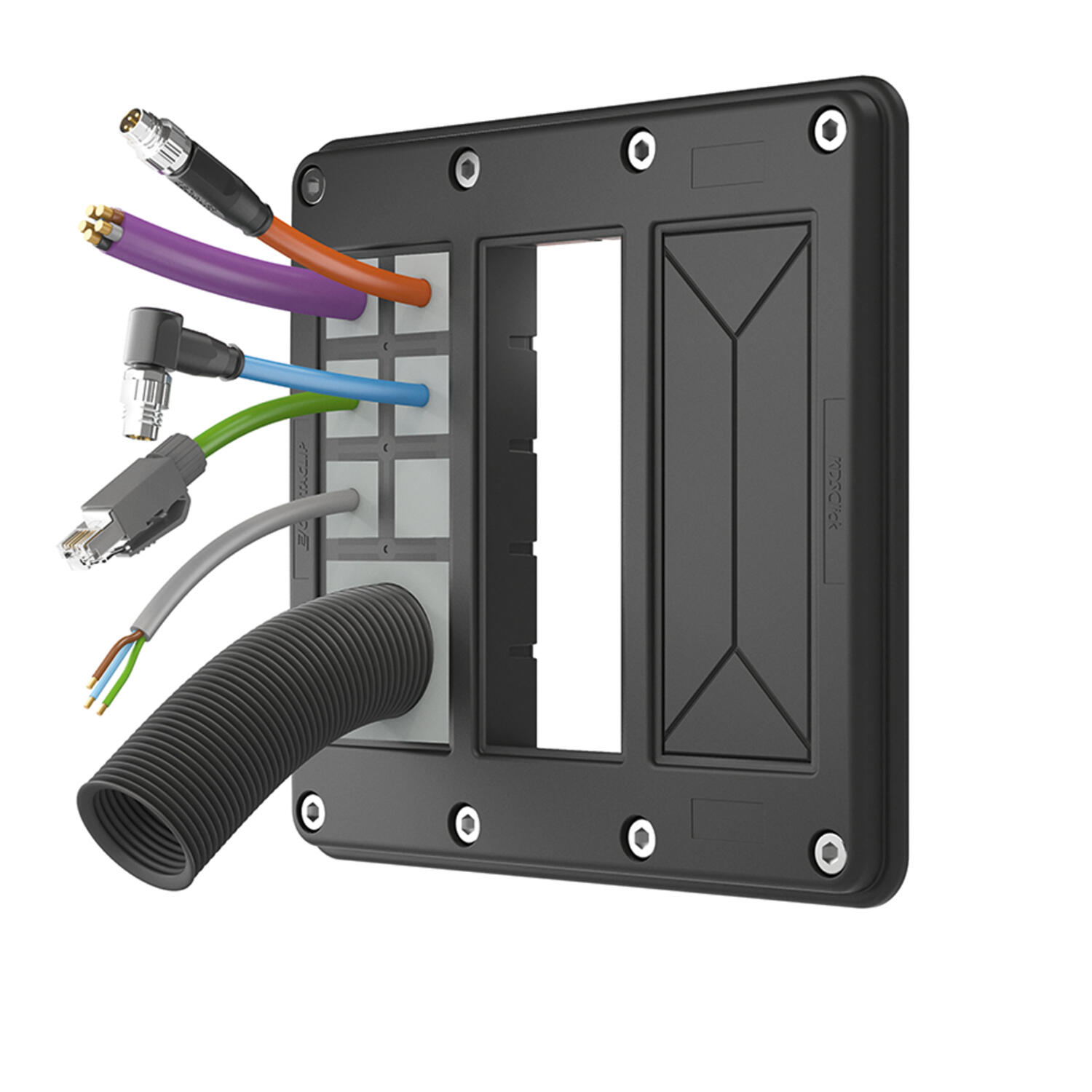

The modular design – 3 basic components – provides more flexibility
1. Flange plate
The flange plate is available in the 2 variants;
KDS-FP-2x10/24 (up to 20 feed-through openings)
KDS-FP-3x10/24 (up to 30 feed-through openings)

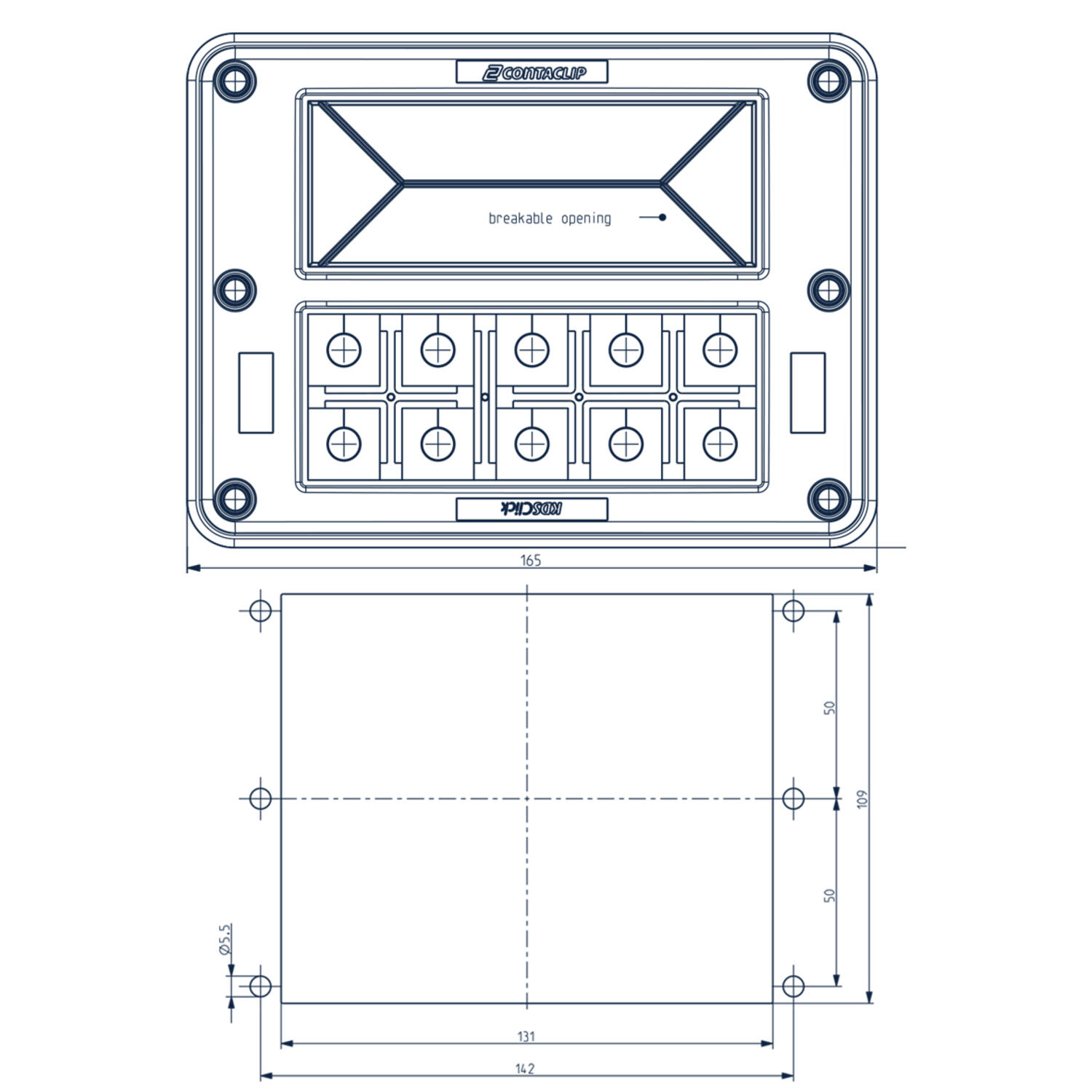

Uniform housing break-outs of 131 x 110 mm or 131 x 161 mm are used for installation.
By screwing the flange plate on the outside of the cabinet,the break-out is completely sealed according to IP66.

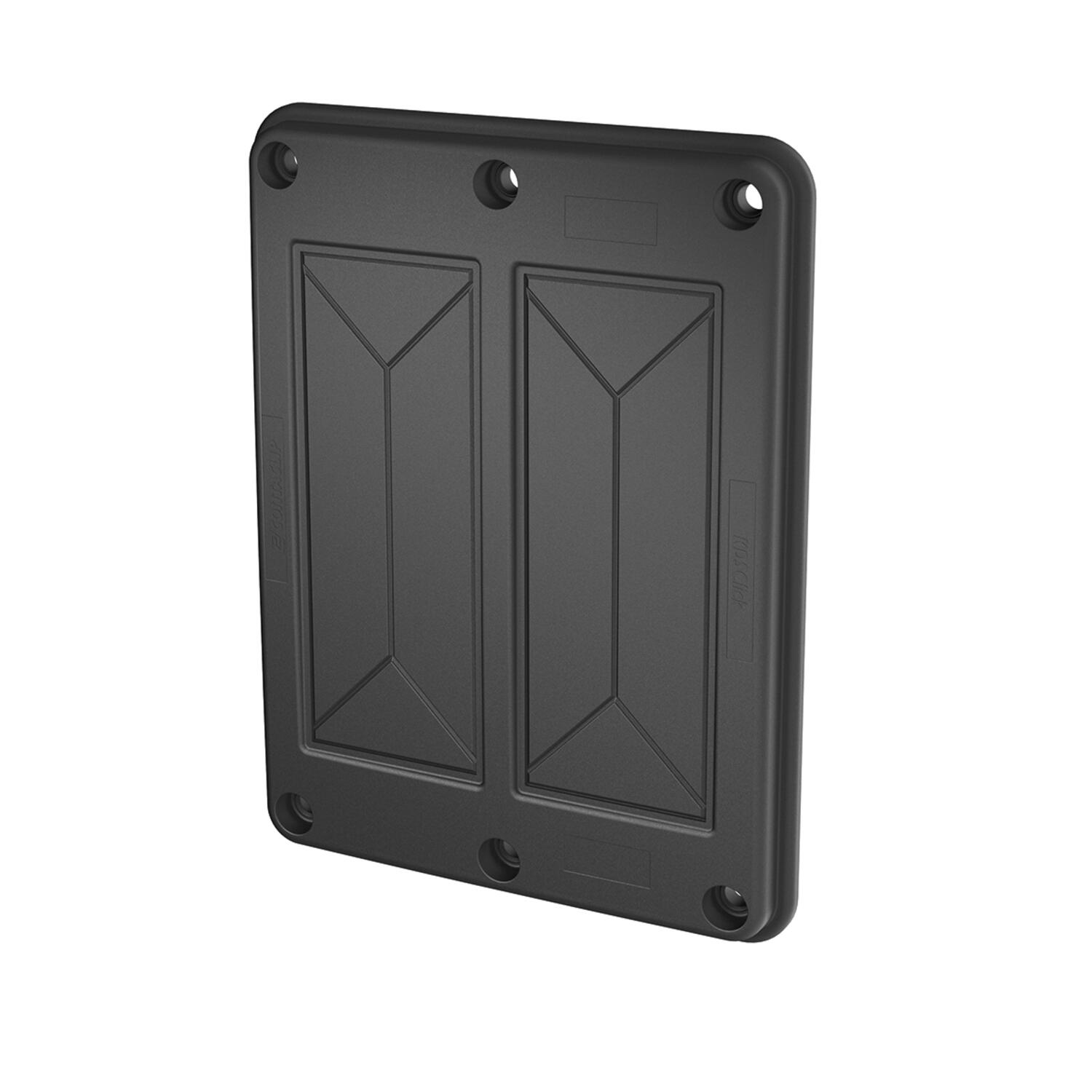

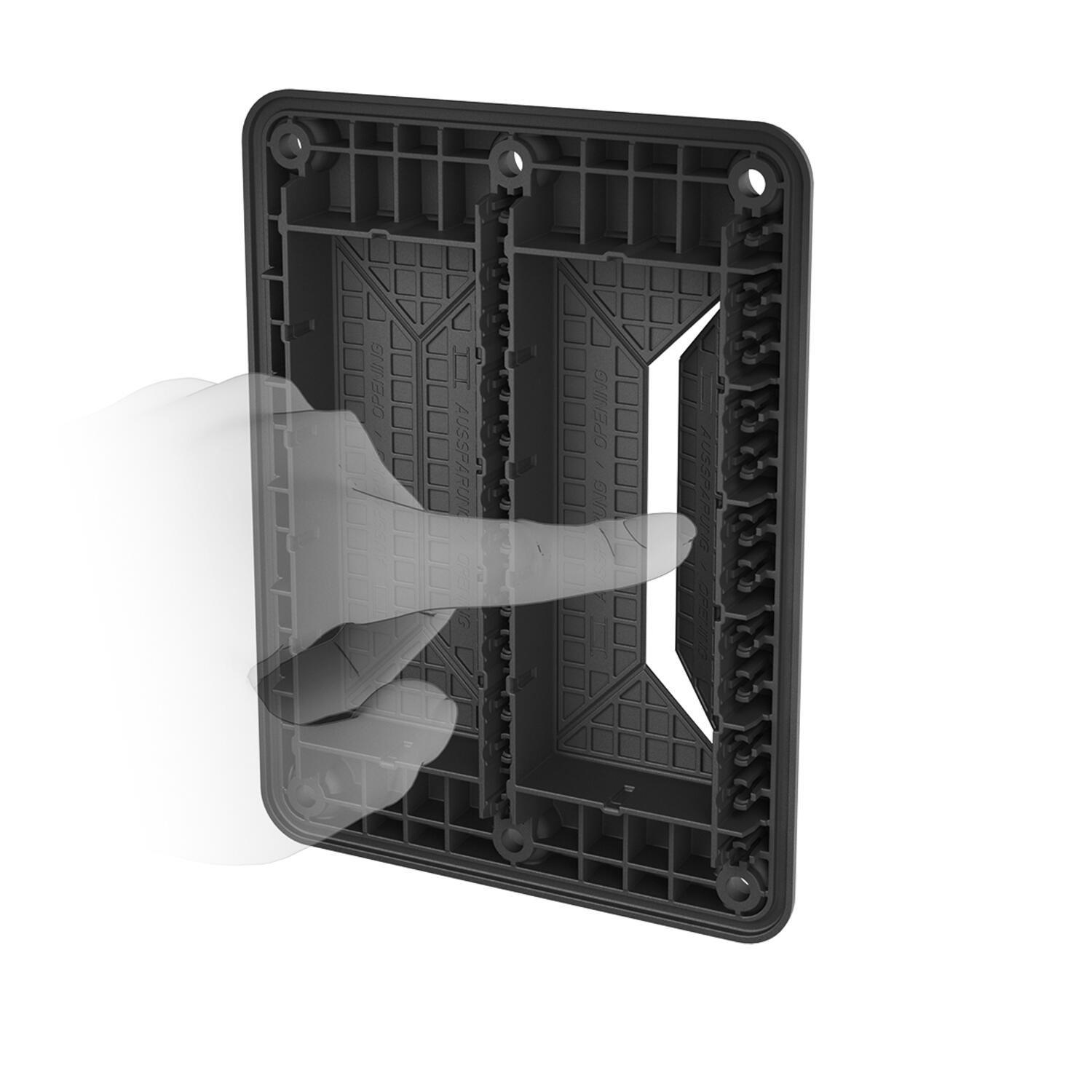

On the closed flange plates, there are two or three cover segments with pre-determined breaking points; these can
be pushed out (without tools) which then opens up a 40 x 110 mm feed-through opening.
The click-in KDSClickframe inlays can be used to subdivide this opening in up to ten appropriately sized frame openings.

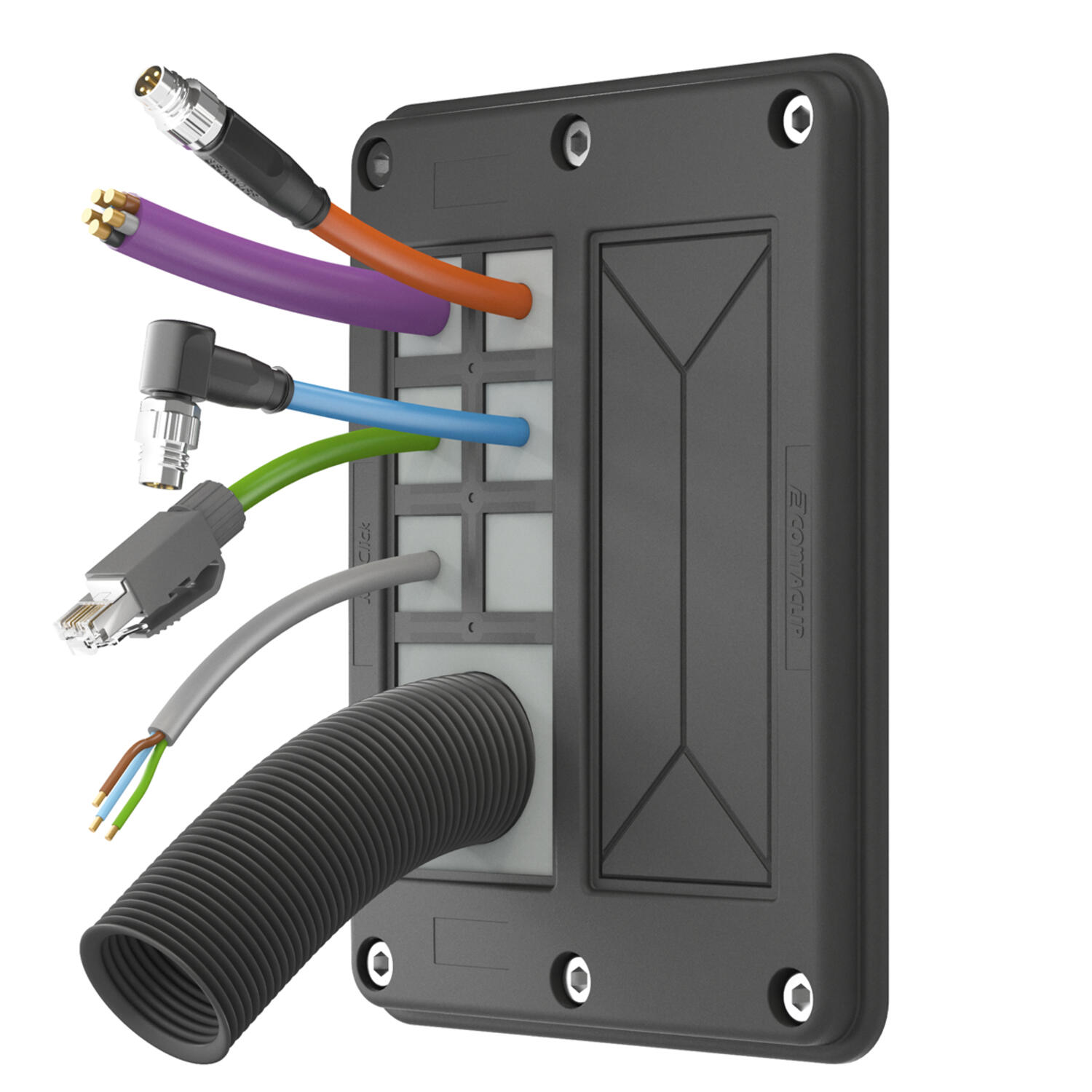

2. Inlays
The click-in inlays enable needs-based dimensioning of the frame opening, corresponding to the seal being used.
An audible "click" confirms a correct installation. So you can configure the cable entries to match various requirements
(for cables, lines, tubing, pneumatic and hydraulic lines).
3. Seals
The conical shape of the seal makes it easy to press in. Thisalso reliably seals the gaps and ensures strain relief in accordance
with DIN EN 62444. The seals are installed by pressing them from the inside outwards into the openings of the previously installed inlays.
Their wave-cut profile makes them easy to install and ensures a perfect fit around the cables.
There are currently over 90 different seals that can be used for sealing cables of various diameters and sizes.
4. Locking Pins
For additional security there are locking clamps available to prevent seals being pushed into the enclosure from the outside and an additional cover to conform to UL when an opening is not currently being used.
