CONTA-CLIP
The KES-E range from Contaclip offers a cost-effective solution for multiple cable, hose, pipe or tube entries in a confined space.
Â
This system is ideal for applications where a high IP and strain relief is not required.
Â
Designed for cables, tubes and pipes without connectors, the range offers between 12 and 50 entries with diameters of 1mm to 16.1mm.
Â
The choice of two TPE frames can be quickly and easily mounted without the use of any tools into enclosures of 1.5mm to 2.5mm or 2.5mm to 4mm wall thickness enclosures.
Â
In order to insert cables/tubes, the membrane (with marked centring point) must be pierced, now the cables can be easily guided through.
Â
The TPE material ensures IP54 seal in a smooth hygienic design.
Â
Â
General data |
|
|---|---|
| Installed height | 5 mm |
| IP class | IP54 |
| Colour | Grey |
| Number of cables | 12 Â |
| Length | 142 mm |
| Mounting | Push in |
| Number of cables x cable diameter | 12 x 1.0mm-15.0mm |
| Width | 44 mm |
| Type | KES-E |
| Approvals | cUL, UL |
| NEMA class | 12 |
Mounting details |
|
| Width of cutout | 36 mm |
| Wall thickness | 1.5mm-2.5mm |
| Length of cutout | 112 mm |
Materials |
|
| Flammability class | V-0 |
*Invisible Heading* |
|
|---|---|
| Sealing material | TPE |
| Operating temperature from | -40 °C |
| Halogen-free | Yes |
| Material | TPE |
| Operating temperature to | 90 °C |
| Silicone-free | Yes |
Approvals |
|
| UL test standard | UL 508A |
| Approvals | cUL, UL |
| cUL test standard | CSA C22.2 No. 14-18 |
Additional data |
|
| Pack size | 10 Â |
| Country of origin | DE |
| Tariff code | 39259020 |
| Weight | 40,28 g |
The KES-E range from Contaclip offers a cost-effective solution for multiple cable, hose, pipe or tube entries in a confined space.
Â
This system is ideal for applications where a high IP and strain relief is not required.
Â
Designed for cables, tubes and pipes without connectors, the range offers between 12 and 50 entries with diameters of 1mm to 16.1mm.
Â
The choice of two TPE frames can be quickly and easily mounted without the use of any tools into enclosures of 1.5mm to 2.5mm or 2.5mm to 4mm wall thickness enclosures.
Â
In order to insert cables/tubes, the membrane (with marked centring point) must be pierced, now the cables can be easily guided through.
Â
The TPE material ensures IP54 seal in a smooth hygienic design.
Â
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of cables | Number of cables x cable diameter | Wall thickness | Weight | Price | ||
|---|---|---|---|---|---|---|---|
KES-E 12/24, Push fit cable entry, 12 cable, 1.5 - 2.5mm wall thickness
Art:
28810.6
Copied
|
12
|
12 x 1.0mm-15.0mm
|
1.5mm-2.5mm
|
40,28 g
|
| ||
|
KES-E 12/24, Push fit cable entry, 12 cable, 2.5 - 4.0mm wall thickness
Art:
28840.6
Copied
|
12
|
12 x 1.0mm-15.0mm
|
2.5mm-4.0mm
|
39,08 g
|
| ||

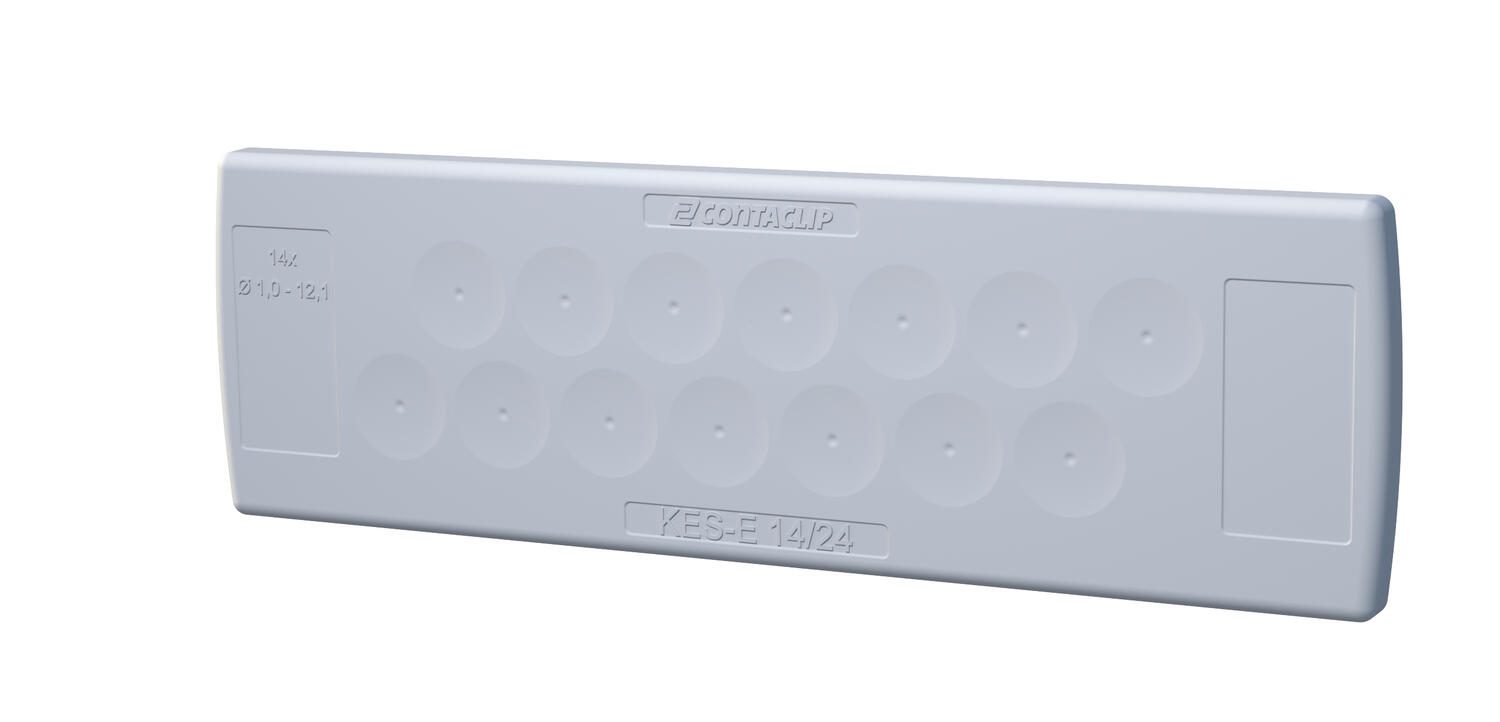

KES-E 14/24, Push fit cable entry, 14 cable, 1.5 - 2.5mm wall thickness
Art:
28811.6
Copied
|
14
|
14 x 1.0mm-12.1mm
|
1.5mm-2.5mm
|
46,18 g
|
| ||
|
KES-E 14/24, Push fit cable entry, 14 cable, 2.5 - 4.0mm wall thickness
Art:
28841.6
Copied
|
14
|
14 x 1.0mm-12.1mm
|
2.5mm-4.0mm
|
44,98 g
|
| ||
KES-E 17/24, Push fit cable entry, 17 cable, 1.5 - 2.5mm wall thickness
Art:
28812.6
Copied
|
17
|
5 x 1.0mm-10.5mm, 12 x 1.0mm-12.6mm
|
1.5mm-2.5mm
|
43,38 g
|
| ||
|
KES-E 17/24, Push fit cable entry, 17 cable, 2.5 - 4.0mm wall thickness
Art:
28842.6
Copied
|
17
|
5 x 1.0mm-10.5mm, 12 x 1.0mm-12.6mm
|
2.5mm-4.0mm
|
42,18 g
|
| ||
KES-E 18/24, Push fit cable entry, 18 cable, 1.5 - 2.5mm wall thickness
Art:
28813.6
Copied
|
18
|
5 x 1.0mm-10.5mm, 4 x 1.0mm-6.5mm, 5 x 1.0mm-12.5mm, 4 x 1.0mm-16.1mm
|
1.5mm-2.5mm
|
42,43 g
|
| ||
|
KES-E 18/24, Push fit cable entry, 18 cable, 2.5 - 4.0mm wall thickness
Art:
28843.6
Copied
|
18
|
5 x 1.0mm-10.5mm, 4 x 1.0mm-6.5mm, 5 x 1.0mm-12.5mm, 4 x 1.0mm-16.1mm
|
2.5mm-4.0mm
|
41,18 g
|
| ||
KES-E 19/24, Push fit cable entry, 19 cable, 1.5 - 2.5mm wall thickness
Art:
28814.6
Copied
|
19
|
12 x 1.0mm-6.5mm, 7 x 1.0mm-12.1mm
|
1.5mm-2.5mm
|
51,28 g
|
| ||
|
KES-E 19/24, Push fit cable entry, 19 cable, 2.5 - 4.0mm wall thickness
Art:
28844.6
Copied
|
19
|
12 x 1.0mm-6.5mm, 7 x 1.0mm-12.1mm
|
2.5mm-4.0mm
|
50,08 g
|
| ||

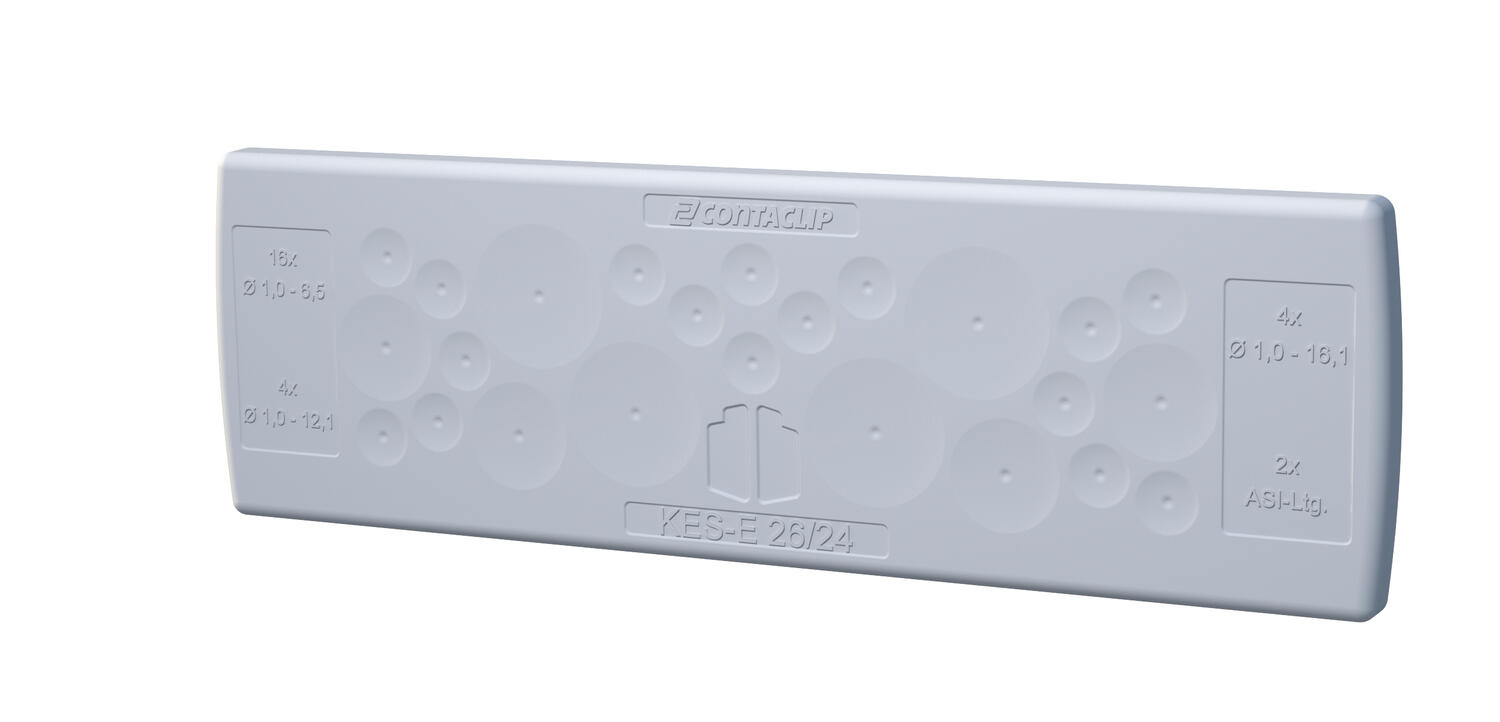

KES-E 26/24, Push fit cable entry, 26 cable, 1.5 - 2.5mm wall thickness
Art:
28815.6
Copied
|
26
|
4 x 1.0mm-16.1mm, 16 x 1.0mm-6.5mm, 4 x 1.0mm-12.1mm, 2 x ASI
|
1.5mm-2.5mm
|
43,28 g
|
| ||
|
KES-E 26/24, Push fit cable entry, 26 cable, 2.5 - 4.0mm wall thickness
Art:
28845.6
Copied
|
26
|
4 x 1.0mm-16.1mm, 16 x 1.0mm-6.5mm, 4 x 1.0mm-12.1mm, 2 x ASI
|
2.5mm-4.0mm
|
41,98 g
|
| ||
KES-E 42/24, Push fit cable entry, 42 cable, 1.5 - 2.5mm wall thickness
Art:
28816.6
Copied
|
42
|
12 x 1.0mm-7.2mm, 17 x 1.0mm-6.4mm, 12 x 1.0mm-5.0mm, 1 x 1.0mm-4.7mm
|
1.5mm-2.5mm
|
49,88 g
|
| ||
|
KES-E 42/24, Push fit cable entry, 42 cable, 2.5 - 4.0mm wall thickness
Art:
28846.6
Copied
|
42
|
12 x 1.0mm-7.2mm, 17 x 1.0mm-6.4mm, 12 x 1.0mm-5.0mm, 1 x 1.0mm-4.7mm
|
2.5mm-4.0mm
|
48,58 g
|
| ||
KES-E 48/24, Push fit cable entry, 48 cable, 1.5 - 2.5mm wall thickness
Art:
28817.6
Copied
|
48
|
48 x 1.0mm-6.5mm
|
1.5mm-2.5mm
|
45,38 g
|
| ||
|
KES-E 48/24, Push fit cable entry, 48 cable, 2.5 - 4.0mm wall thickness
Art:
28847.6
Copied
|
48
|
48 x 1.0mm-6.5mm
|
2.5mm-4.0mm
|
44,58 g
|
| ||
KES-E 50/24, Push fit cable entry, 50 cable, 1.5 - 2.5mm wall thickness
Art:
28818.6
Copied
|
50
|
33 x 1.0mm-5.3mm, 9 x 1.0mm-6.4mm, 8 x 1.0mm-8.3mm
|
1.5mm-2.5mm
|
46,98 g
|
| ||
|
KES-E 50/24, Push fit cable entry, 50 cable, 2.5 - 4.0mm wall thickness
Art:
28848.6
Copied
|
50
|
33 x 1.0mm-5.3mm, 9 x 1.0mm-6.4mm, 8 x 1.0mm-8.3mm
|
2.5mm-4.0mm
|
45,78 g
|
|
