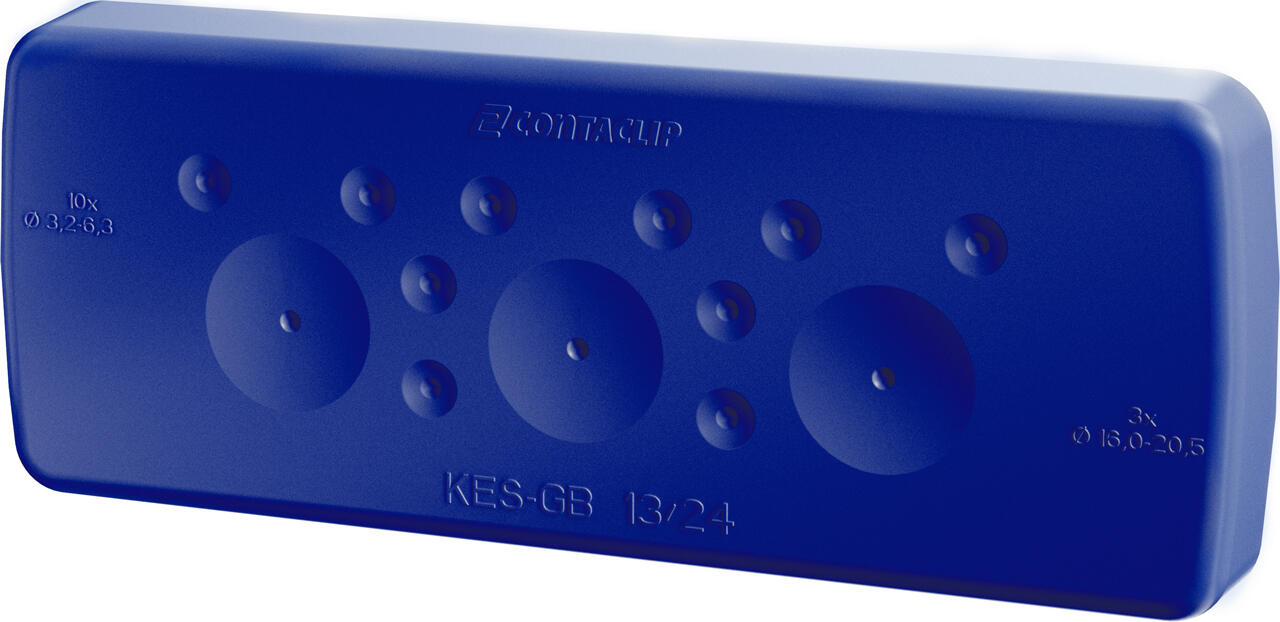

KES-GB-FDA IP66 FDA Approved Cable Entry with strain relief

KES-GB-FDA

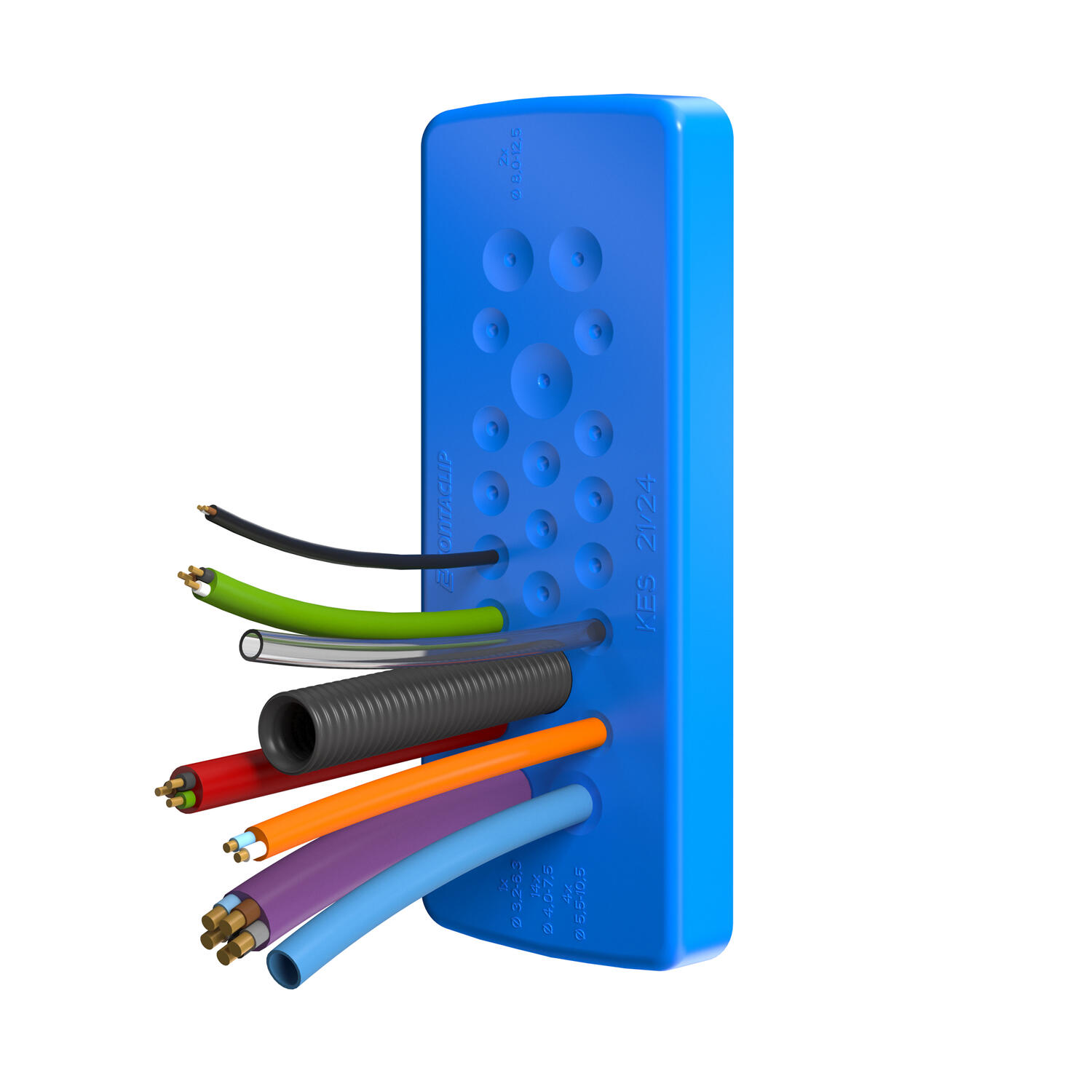

Designed for the food industry, the KES-GB-FDA is a cable, hose, pipe or tube entry system that allows unassembled cables, pneumatic hoses or pipes to be quickly inserted into switchgear cabinets or machine housings without the use of tools.

The KES entry plates feature a dimensionally stable & ridged, elastomer-encapsulated glass fibre reinforced polyamide frame.



There are no external trapping points and the ergonomic smooth edged design makes washing down safe and trouble free. Mounting is quick and easy from the inside, with pre-thread bushes in the back of the frame, so no external screws are visible

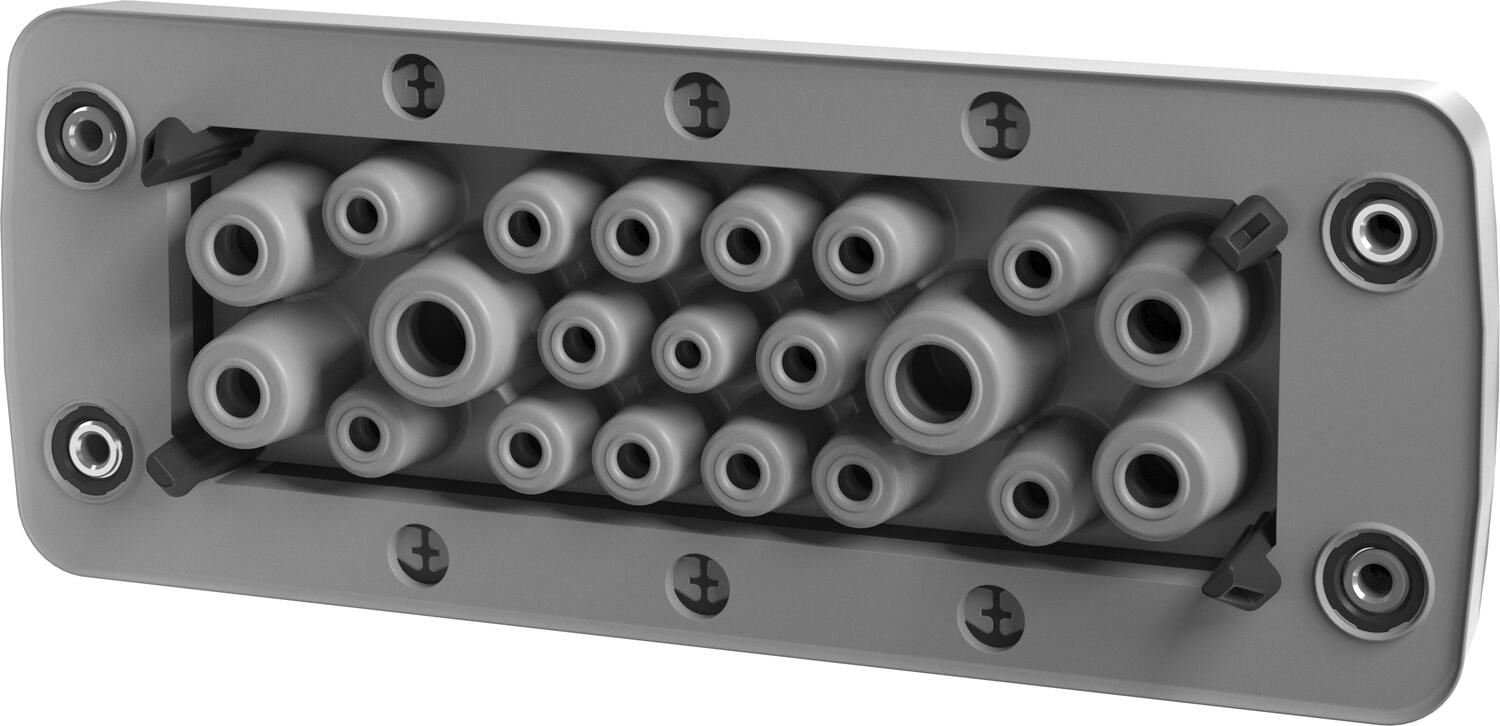

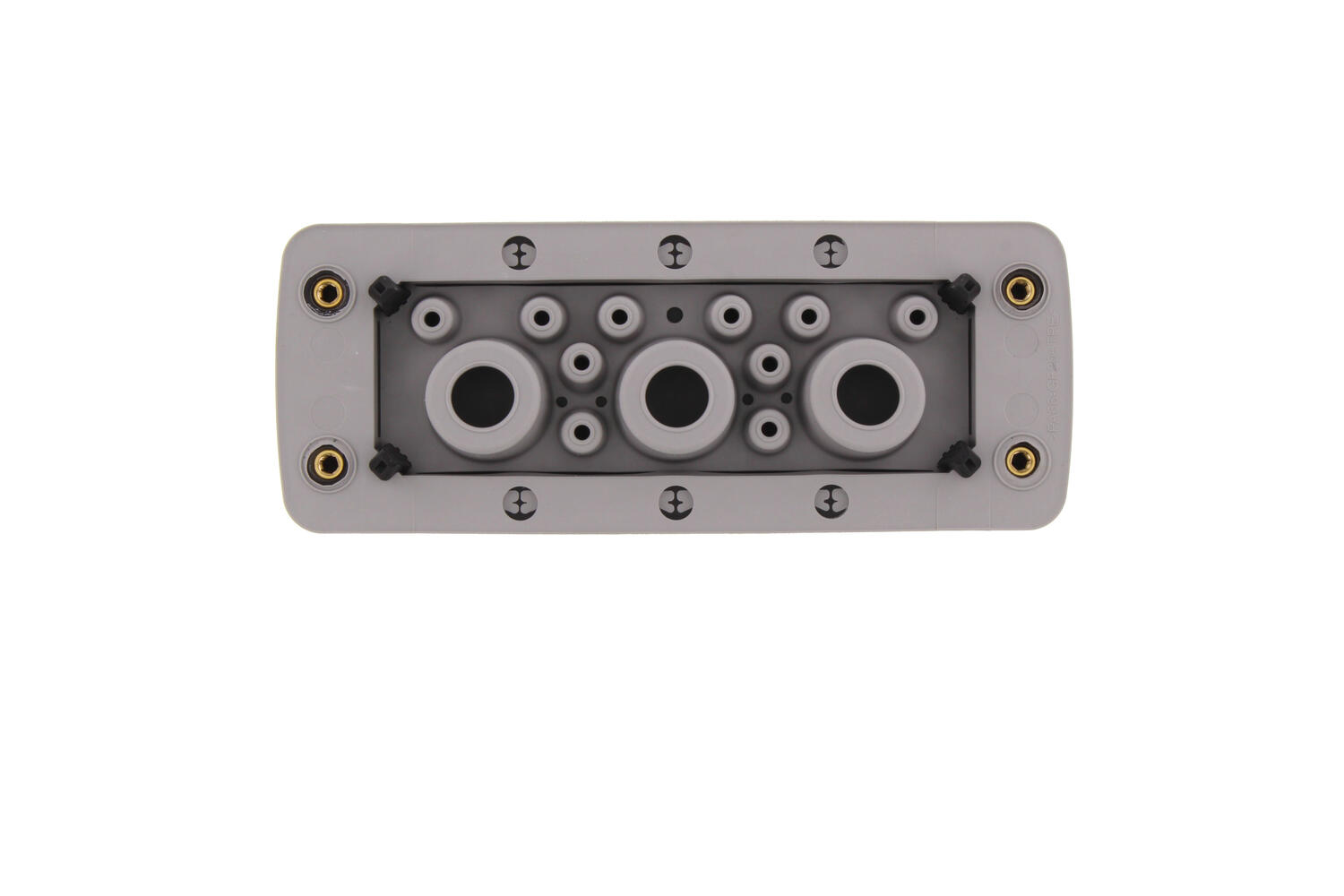

To insert the required number of cables, the surface membrane is first pierced with a small screwdriver. Then the unassembled cables, hoses or pipes can be easily pushed through the plate.  The special construction of the double sealed conical grommets on the back of the plate provides IP66 sealing and reliable strain relief in accordance to DIN EN 62444.



With up to 32 cables per plate (with various diameters from 3.2 to 20.5 mm), the KES is ideal for confined spaces and achieves a significantly higher packaging density than conventional entry systems such as skin top glands.



The KES is designed to use the same mounting cut-outs as the standard 24-pin industrial connectors, such as Harting & Walther, so can be easily retro-fitted.

All variants are manufatcured with FDA approved material and are Ecolab approved.





Read more
  • For cable, pipe & hose diameters 3.2mm to 20.5mm
  • Double Sealing to IP66
  • FDA approved material, Ecolab approved - Hygienic design for wash down
  • Polymide 6.6 Glass fibre reinforced core
  • Integrated strain relief to EN62444

Selected variant

Available in several variants

Selected variant

Technical data

General data

Type KES-GB
Mounting Screw on with threaded bush, Clip on
Colour Blue
IP class IP66
NEMA class 4x
Number of cables 13
Number of cables x cable diameter 10 x 3.2mm-6.3mm, 3 x 16.0mm-20.5mm
Length 149,6 mm
Width 58 mm
Installed height 14,5 mm

Mounting details

Wall thickness 1.5mm-2.0mm
Length of cutout 112 mm
Width of cutout 36 mm
Number of screw holes 4
Fixing screws M4

*Invisible Heading*

Torque of the fixing screws 3

Materials

Material Polyamide 6.6
Glass-fibre reinforced Yes
Flammability class HB
Sealing material TPE
Silicone-free Yes
Halogen-free Yes
Operating temperature from -40 °C
Operating temperature to 80 °C

Additional data

Tariff code 39259020
Country of origin DE
Weight 115,34 g
Pack size 10
Additional information FDA-compliant elastomer according to food approval 1935/2004/EG and (EU) 10/2011

Product description

Designed for the food industry, the KES-GB-FDA is a cable, hose, pipe or tube entry system that allows unassembled cables, pneumatic hoses or pipes to be quickly inserted into switchgear cabinets or machine housings without the use of tools.

The KES entry plates feature a dimensionally stable & ridged, elastomer-encapsulated glass fibre reinforced polyamide frame.



There are no external trapping points and the ergonomic smooth edged design makes washing down safe and trouble free. Mounting is quick and easy from the inside, with pre-thread bushes in the back of the frame, so no external screws are visible



To insert the required number of cables, the surface membrane is first pierced with a small screwdriver. Then the unassembled cables, hoses or pipes can be easily pushed through the plate.  The special construction of the double sealed conical grommets on the back of the plate provides IP66 sealing and reliable strain relief in accordance to DIN EN 62444.



With up to 32 cables per plate (with various diameters from 3.2 to 20.5 mm), the KES is ideal for confined spaces and achieves a significantly higher packaging density than conventional entry systems such as skin top glands.



The KES is designed to use the same mounting cut-outs as the standard 24-pin industrial connectors, such as Harting & Walther, so can be easily retro-fitted.

All variants are manufatcured with FDA approved material and are Ecolab approved.





Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Mounting Number of cables Number of cables x cable diameter Weight Price
Screw on with threaded bush, Clip on
13
10 x 3.2mm-6.3mm, 3 x 16.0mm-20.5mm
115,34 g

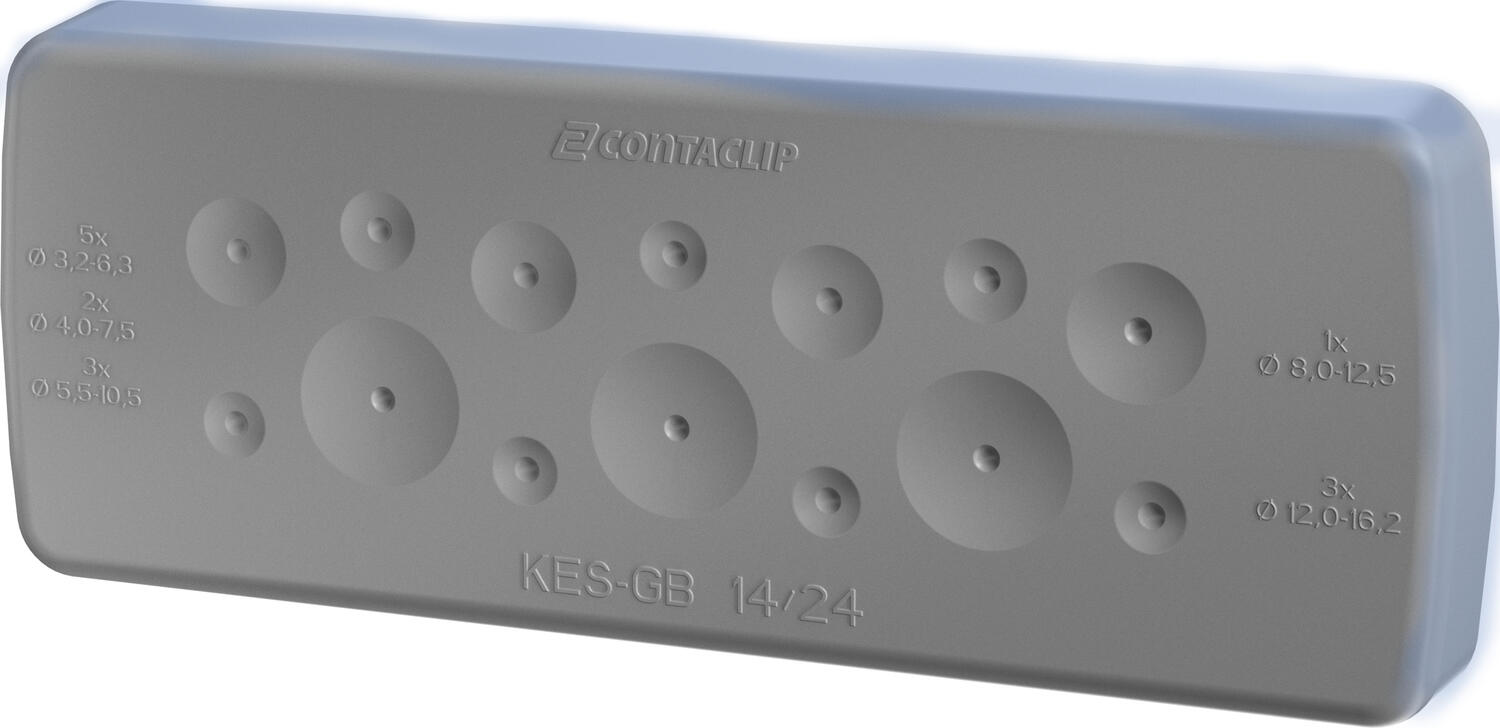

Screw on with threaded bush, Clip on

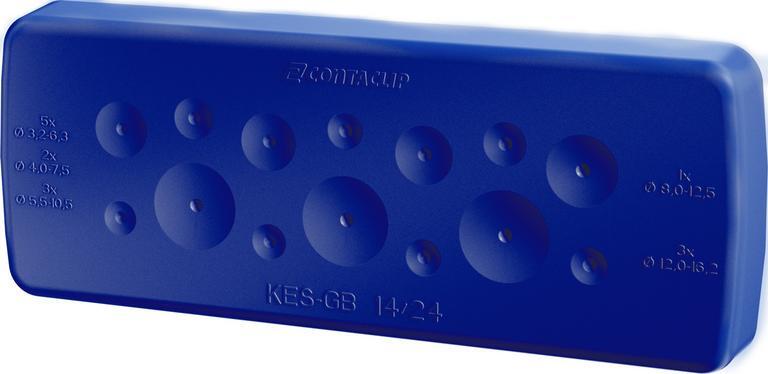

14
5 x 3.2mm-6.3mm, 1 x 8.0mm-12.5mm, 3 x 12.0mm-16.2mm, 2 x 4.0mm-7.5mm, 3 x 5.5mm-10.5mm
116,34 g

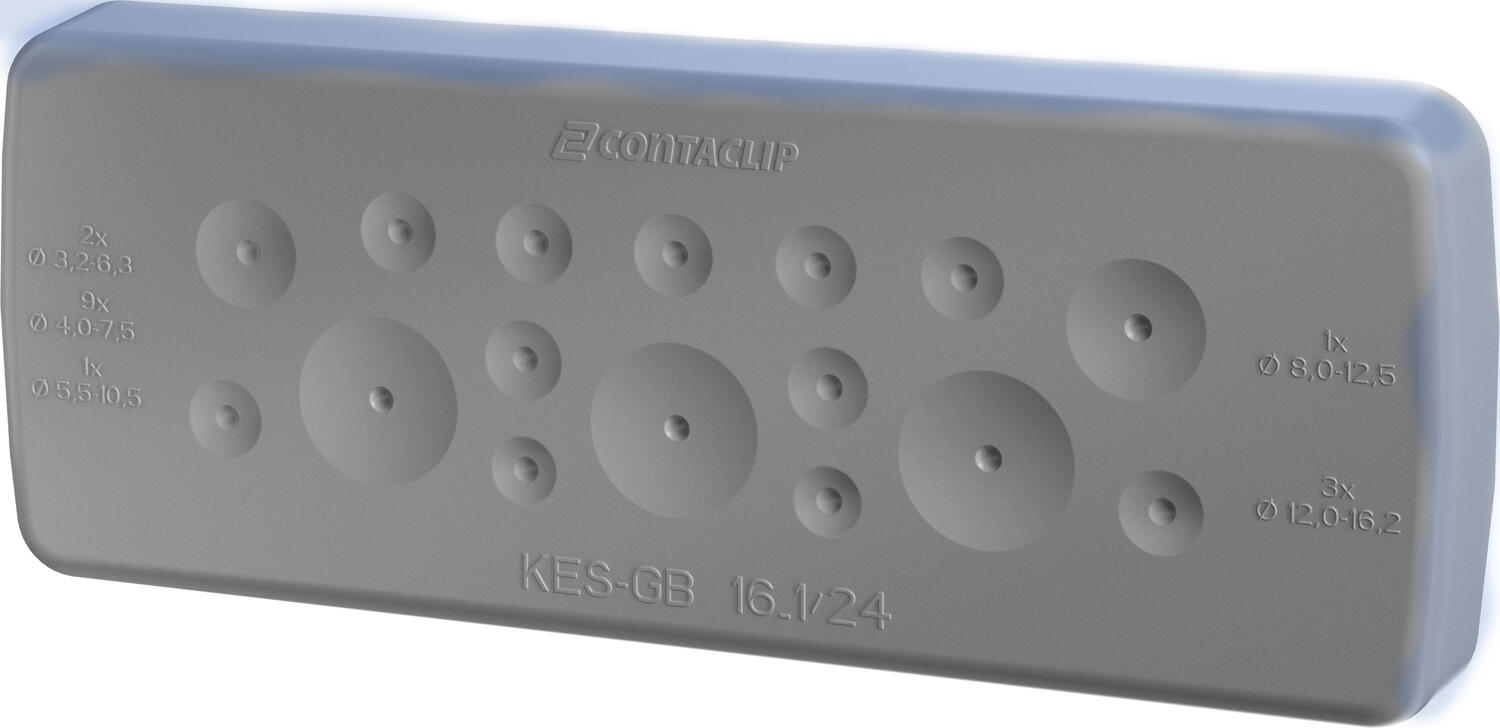

Screw on with threaded bush, Clip on

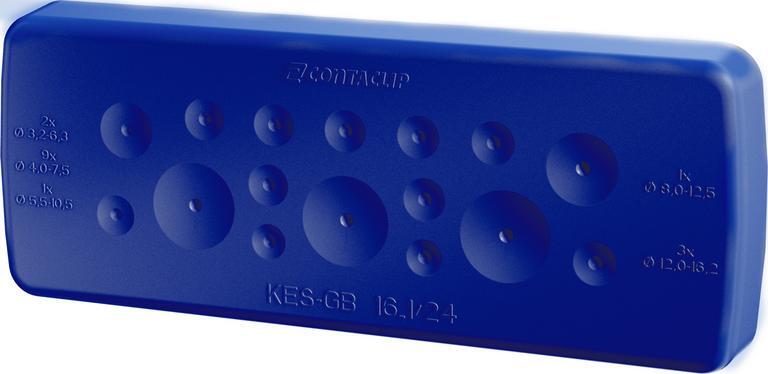

16
2 x 3.2mm-6.3mm, 1 x 8.0mm-12.5mm, 3 x 12.0mm-16.2mm, 9 x 4.0mm-7.5mm, 1 x 5.5mm-10.5mm
120,24 g

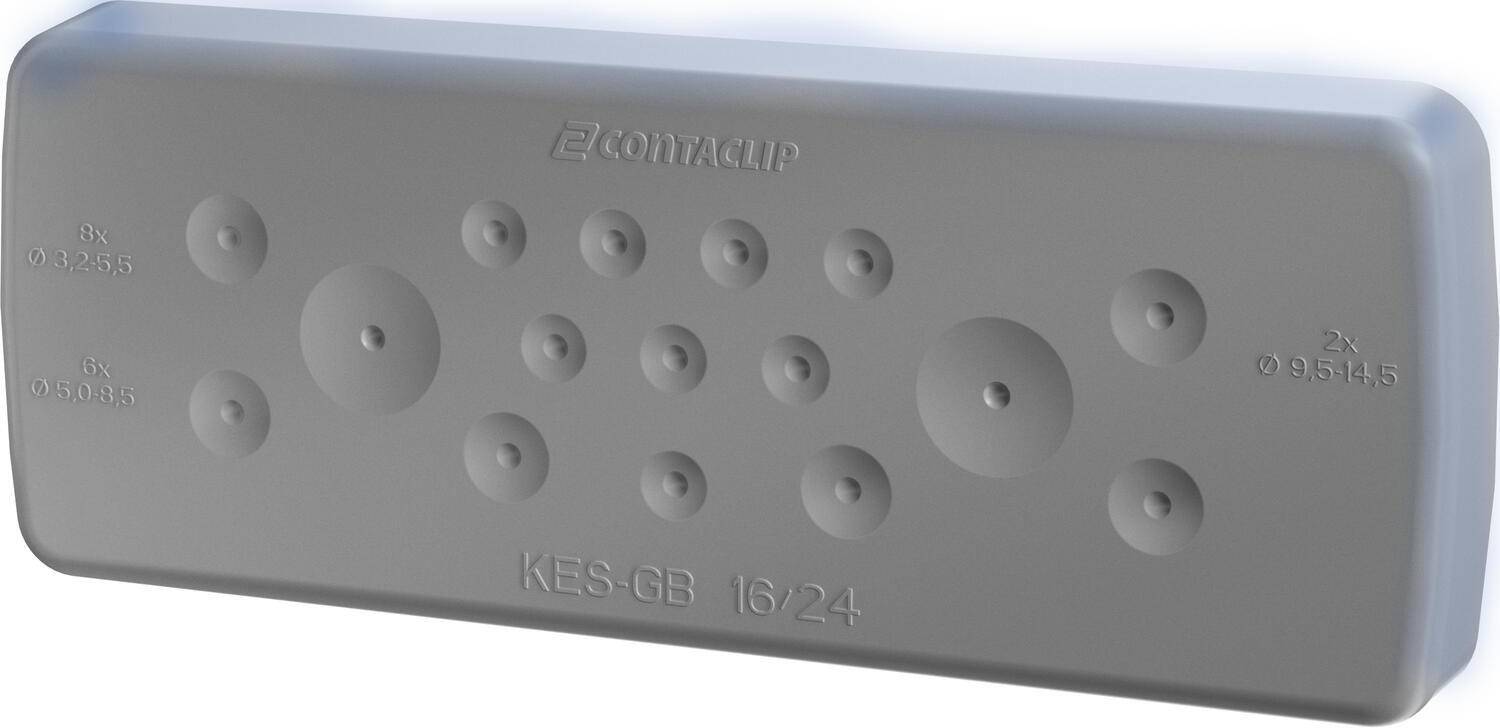

Screw on with threaded bush, Clip on

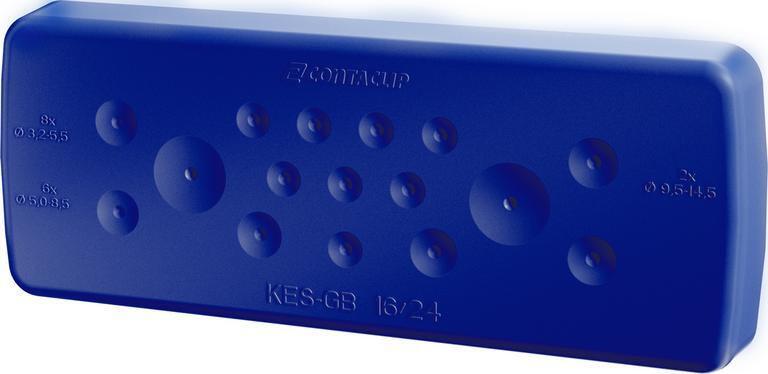

16
6 x 5.0mm-8.5mm, 8 x 3.2mm-5.5mm, 2 x 9.5mm-14.5mm
117,24 g

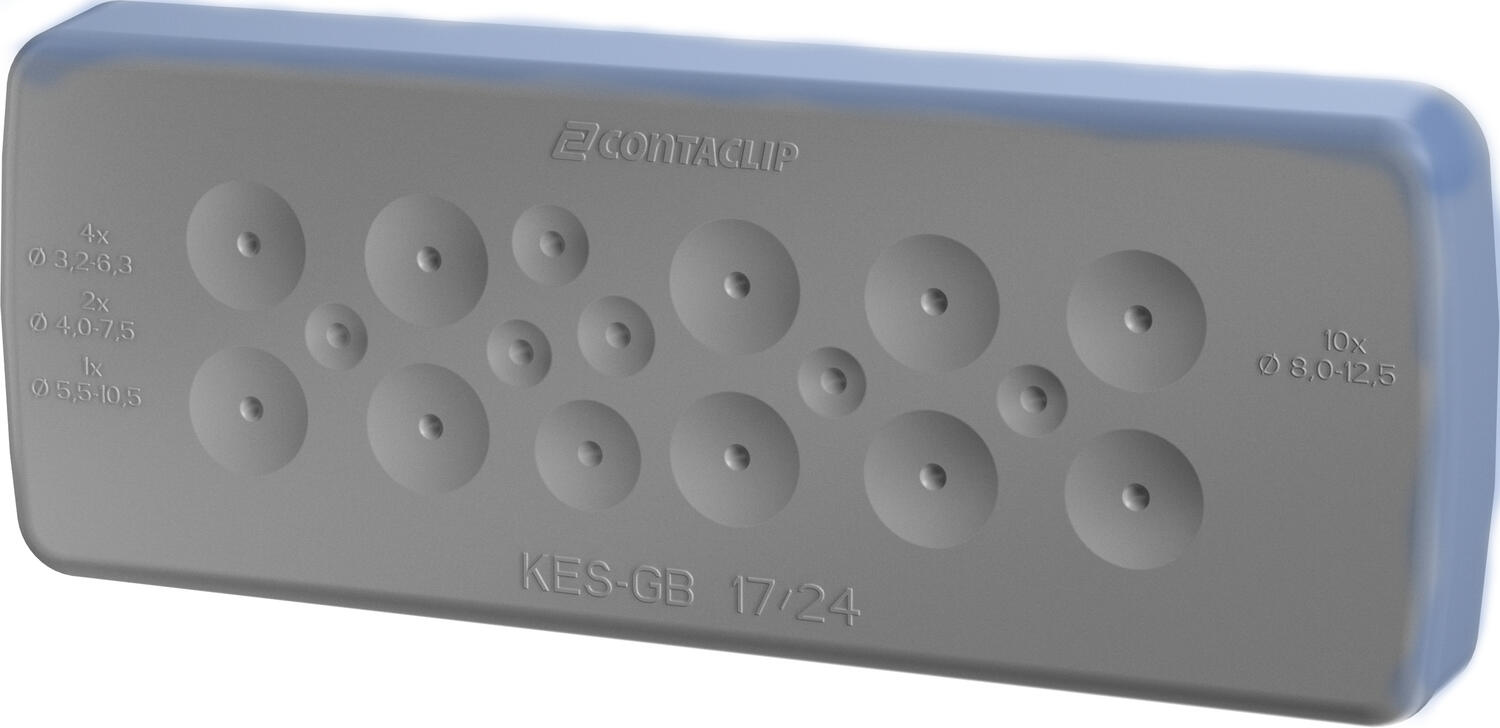

Screw on with threaded bush, Clip on
17
4 x 3.2mm-6.3mm, 10 x 8.0mm-12.5mm, 2 x 4.0mm-7.5mm, 1 x 5.5mm-10.5mm
121,24 g

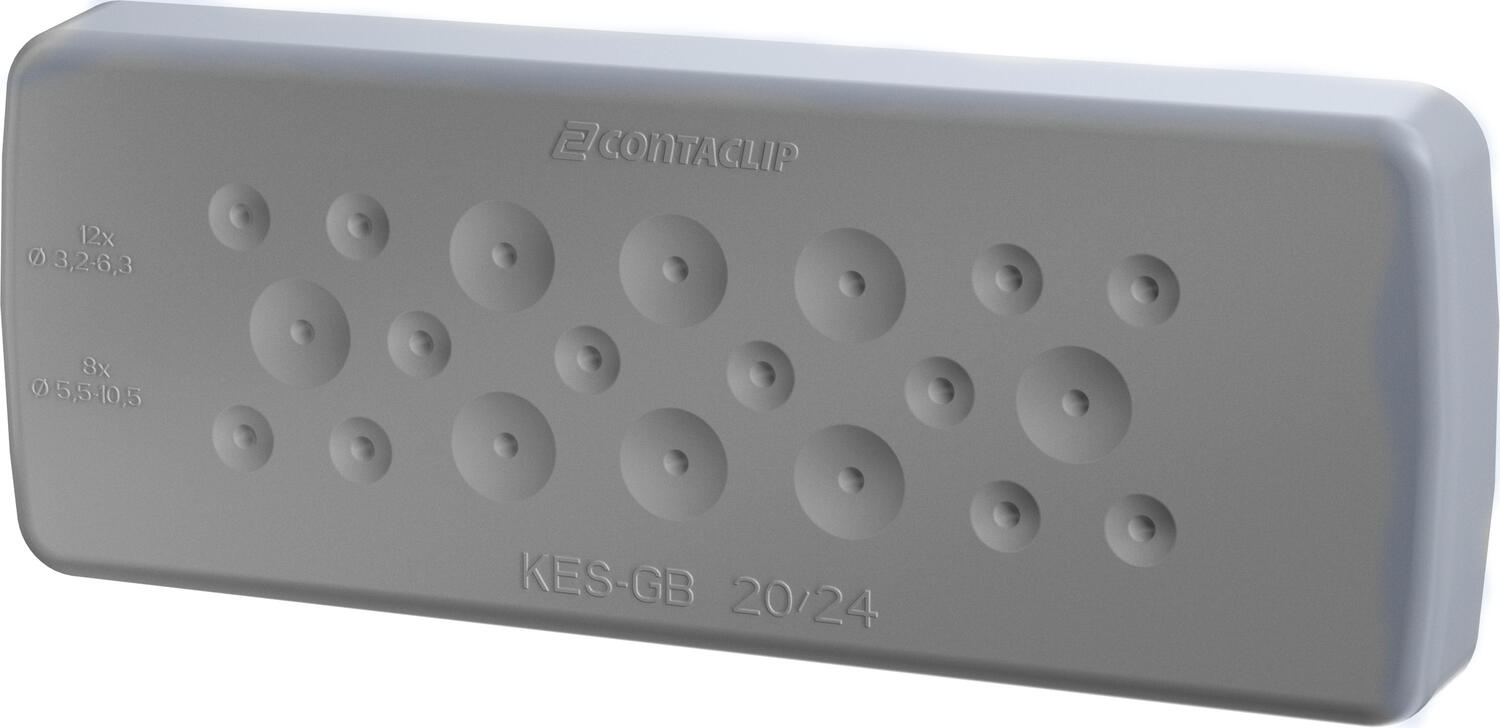

Screw on with threaded bush, Clip on

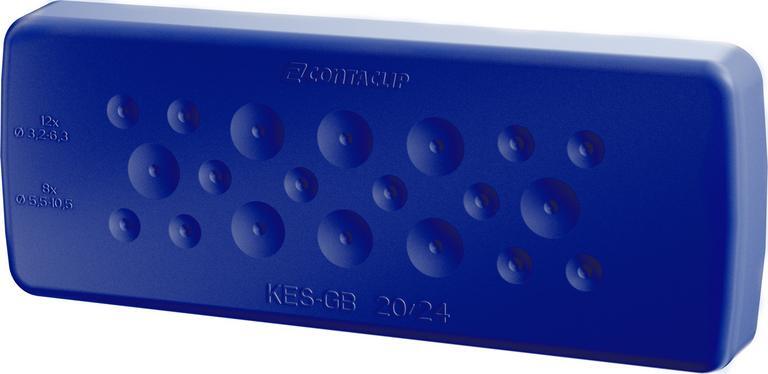

20
12 x 3.2mm-6.3mm, 8 x 5.5mm-10.5mm
121,44 g
Screw on with threaded bush, Clip on
21
1 x 3.2mm-6.3mm, 2 x 8.0mm-12.5mm, 14 x 4.0mm-7.5mm, 4 x 5.5mm-10.5mm
122,2 g
Clip on, Screw on with threaded bush

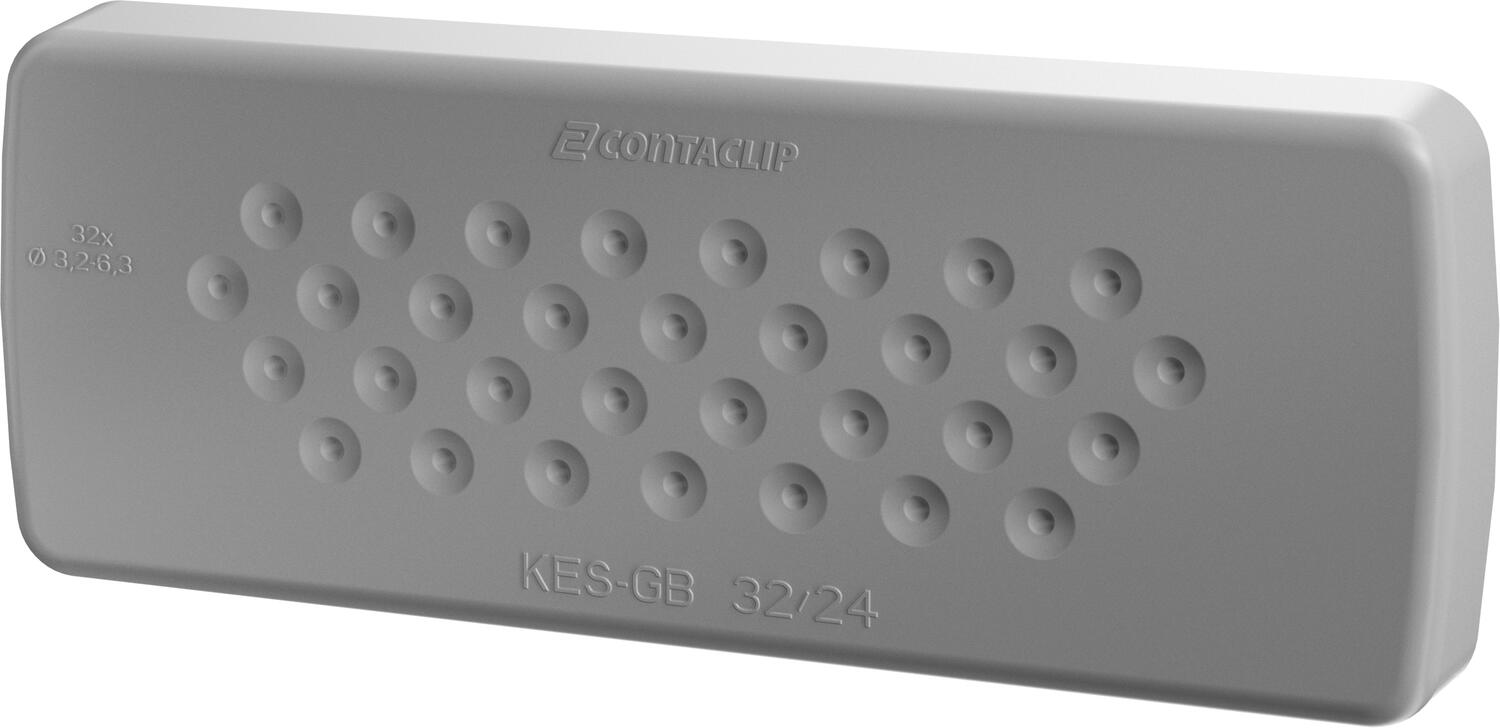

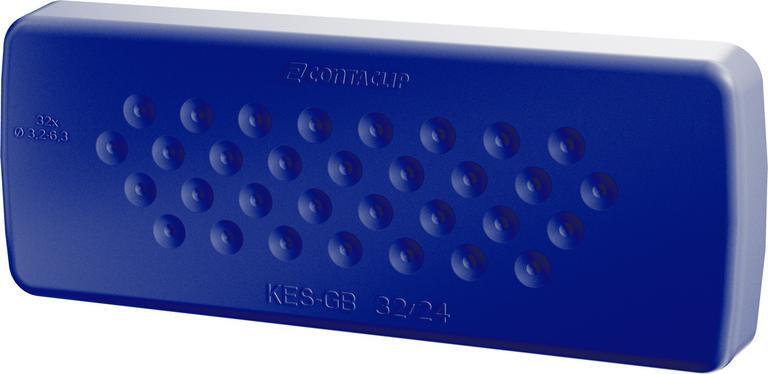

32
32 x 3.2mm-6.3mm
121,24 g
