CONTA-CLIP

KDS-KV Split cable glands

KDS-KV

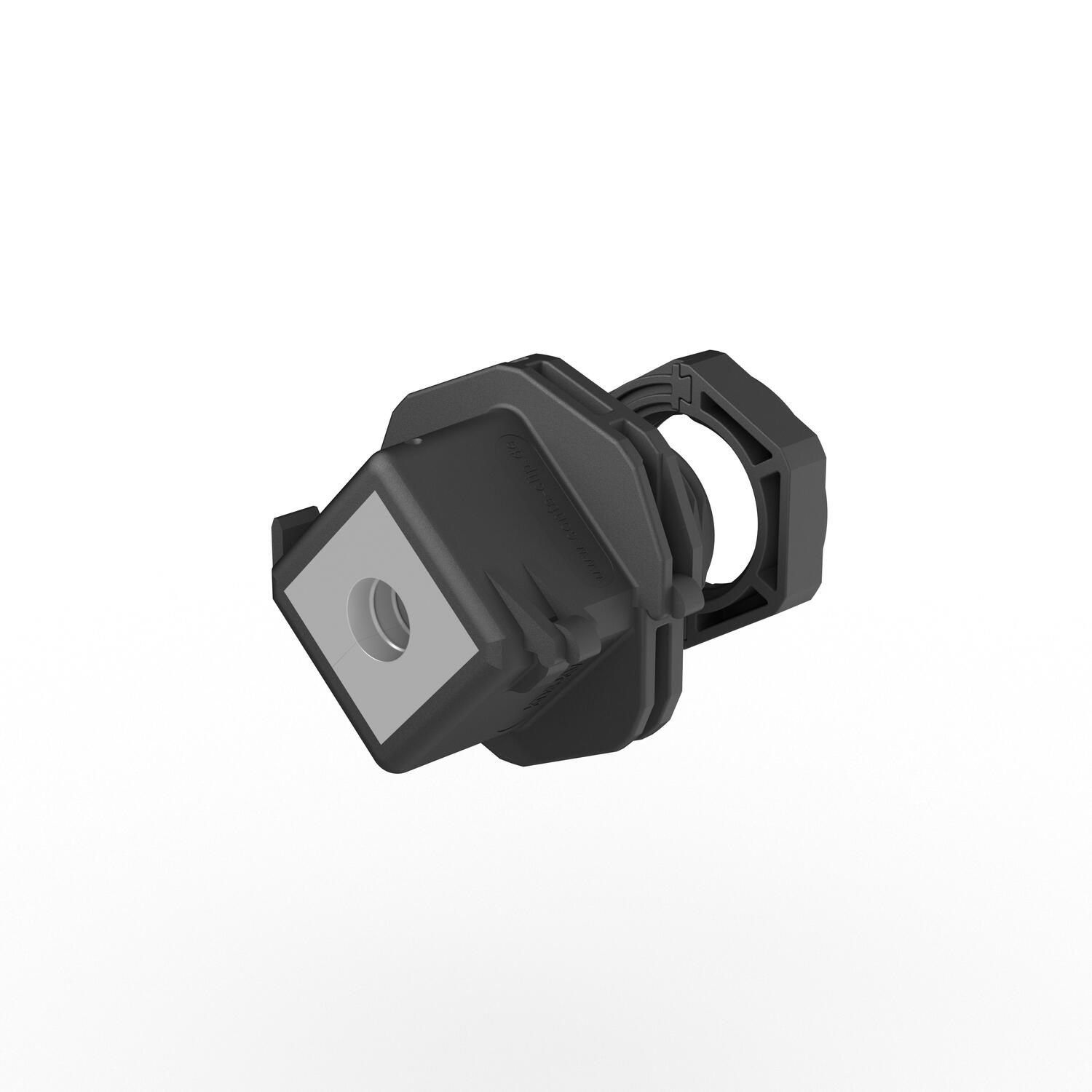

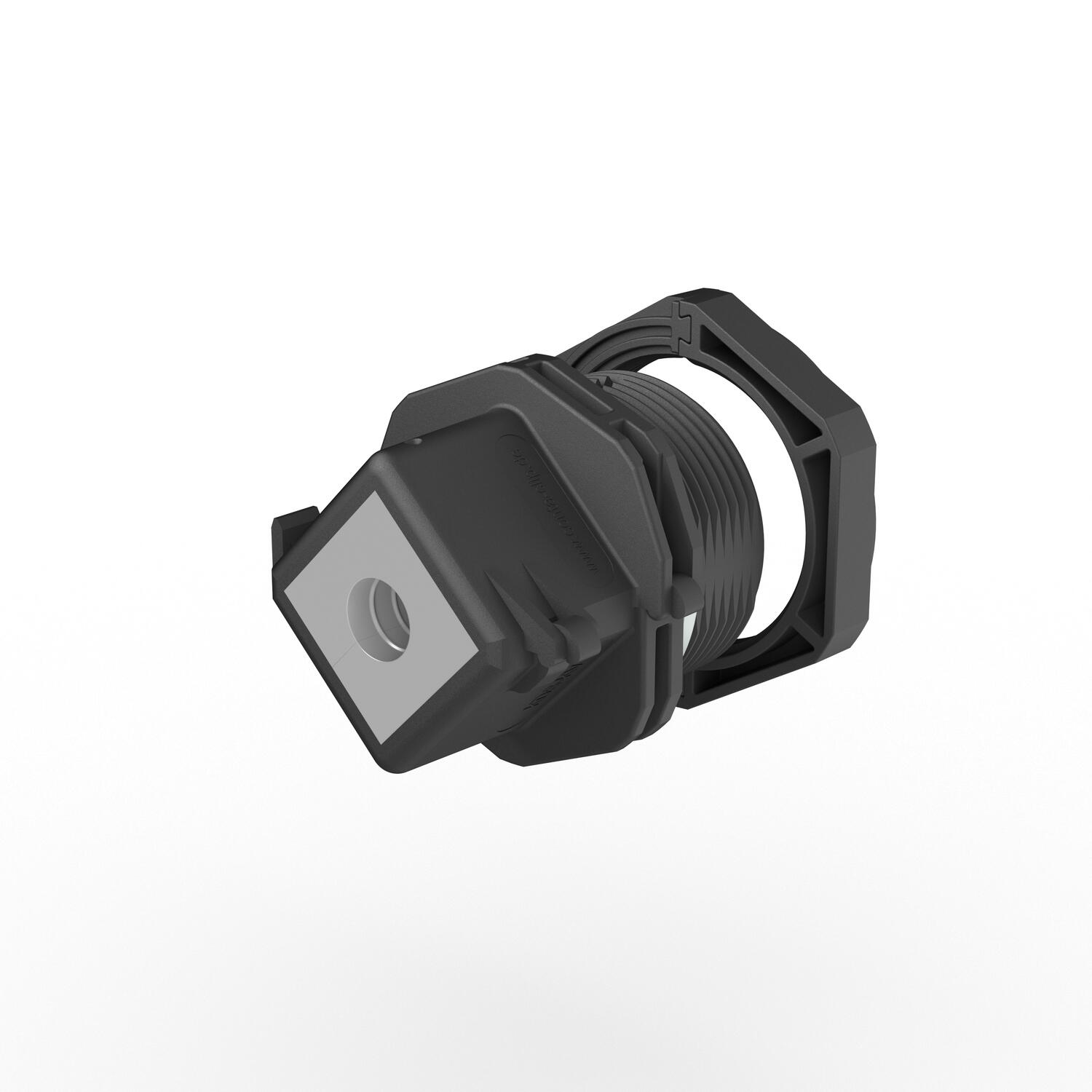

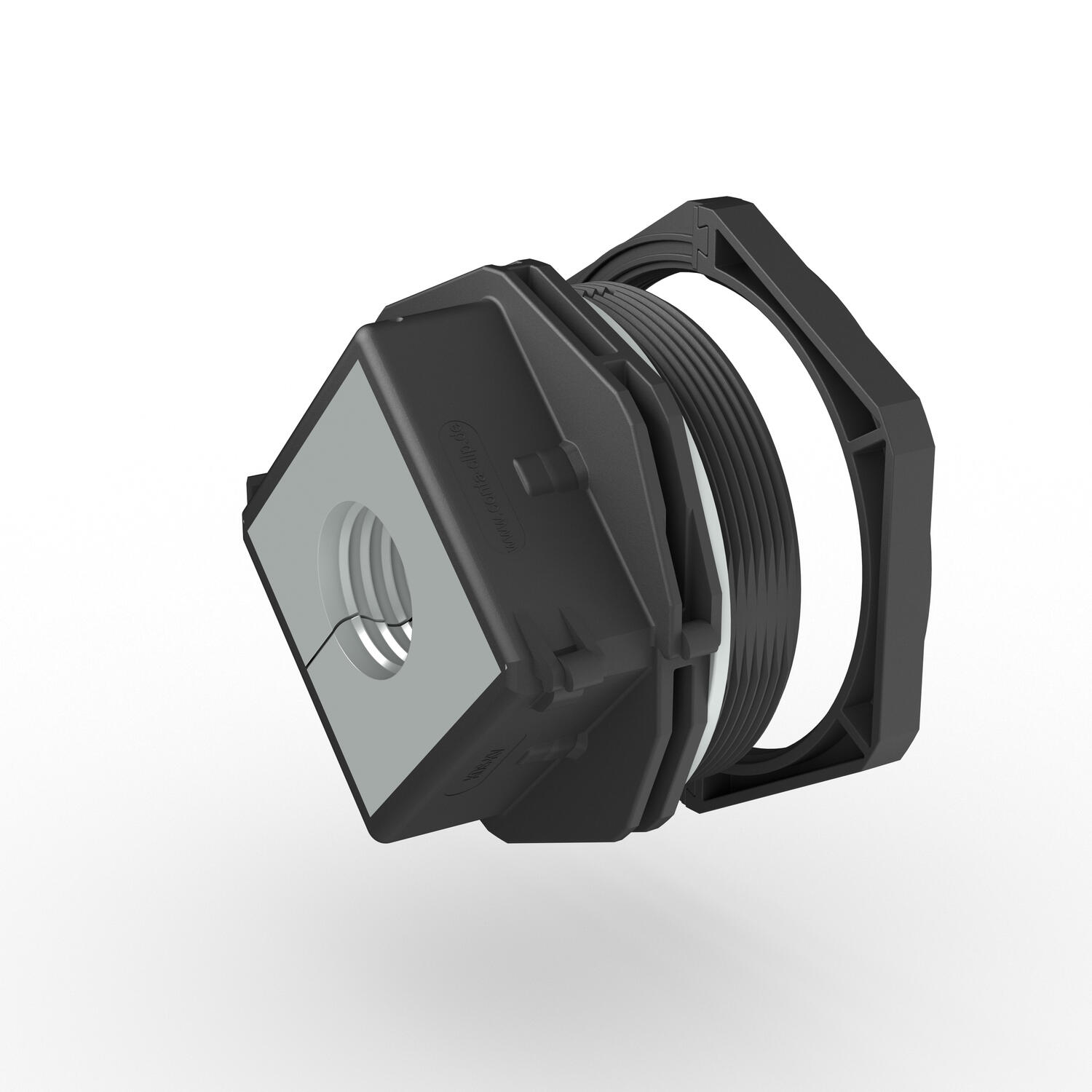

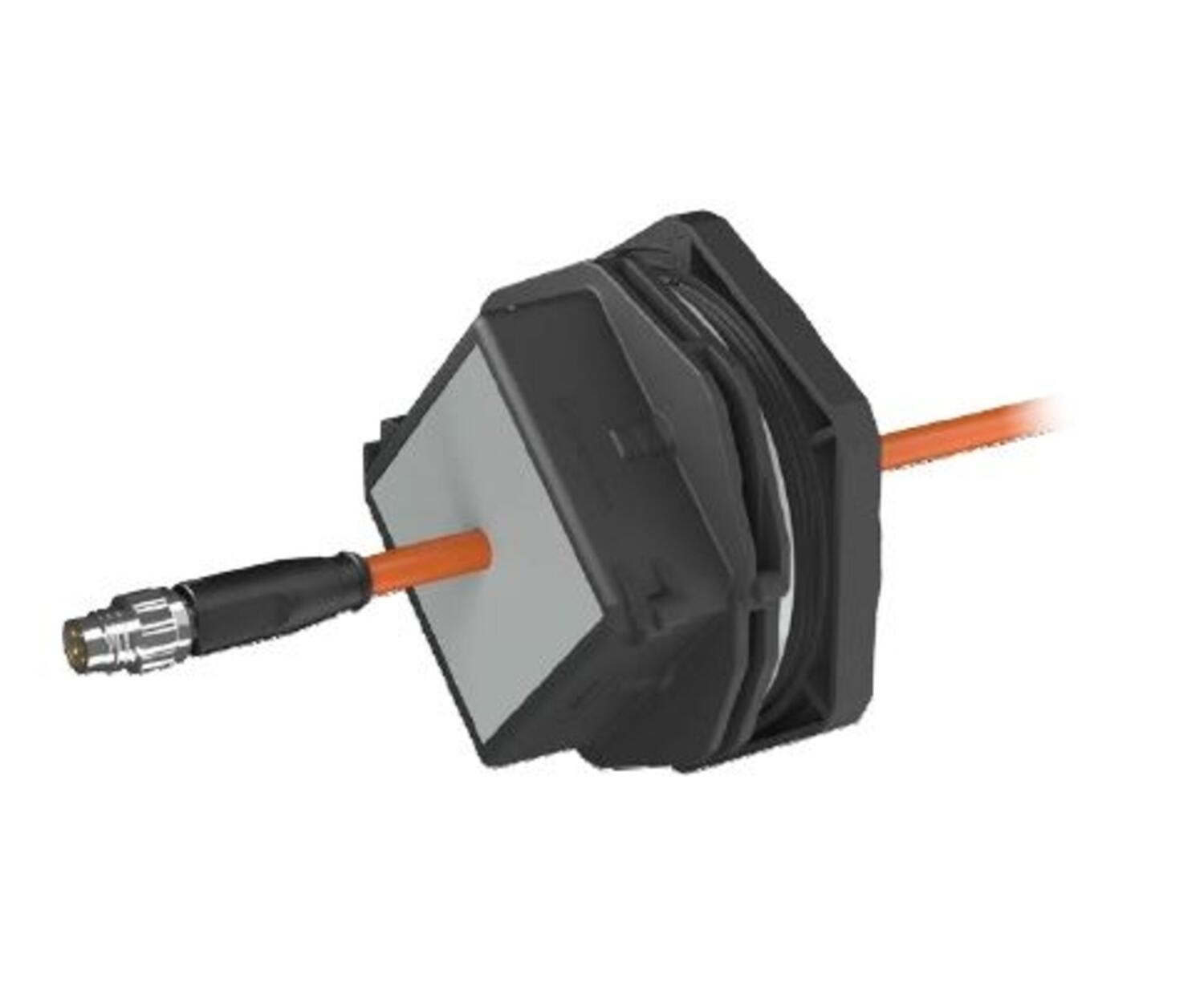

CONTA-CLIP can now offer the KDS-KV split cable glands from M20 to M63 for cables with or without connectors. During servicing or retrofitting with pre-assembled cable harnesses, cables with diameters from 2 to 35 mm can quickly and safely be guided into the switchgear cabinet or housing, and then sealed to IP66.



The split system ensures quick and simple assembly. The slotted seal has a wave-cut profile prevents lateral movement of the cable and ensures a reliable seal.

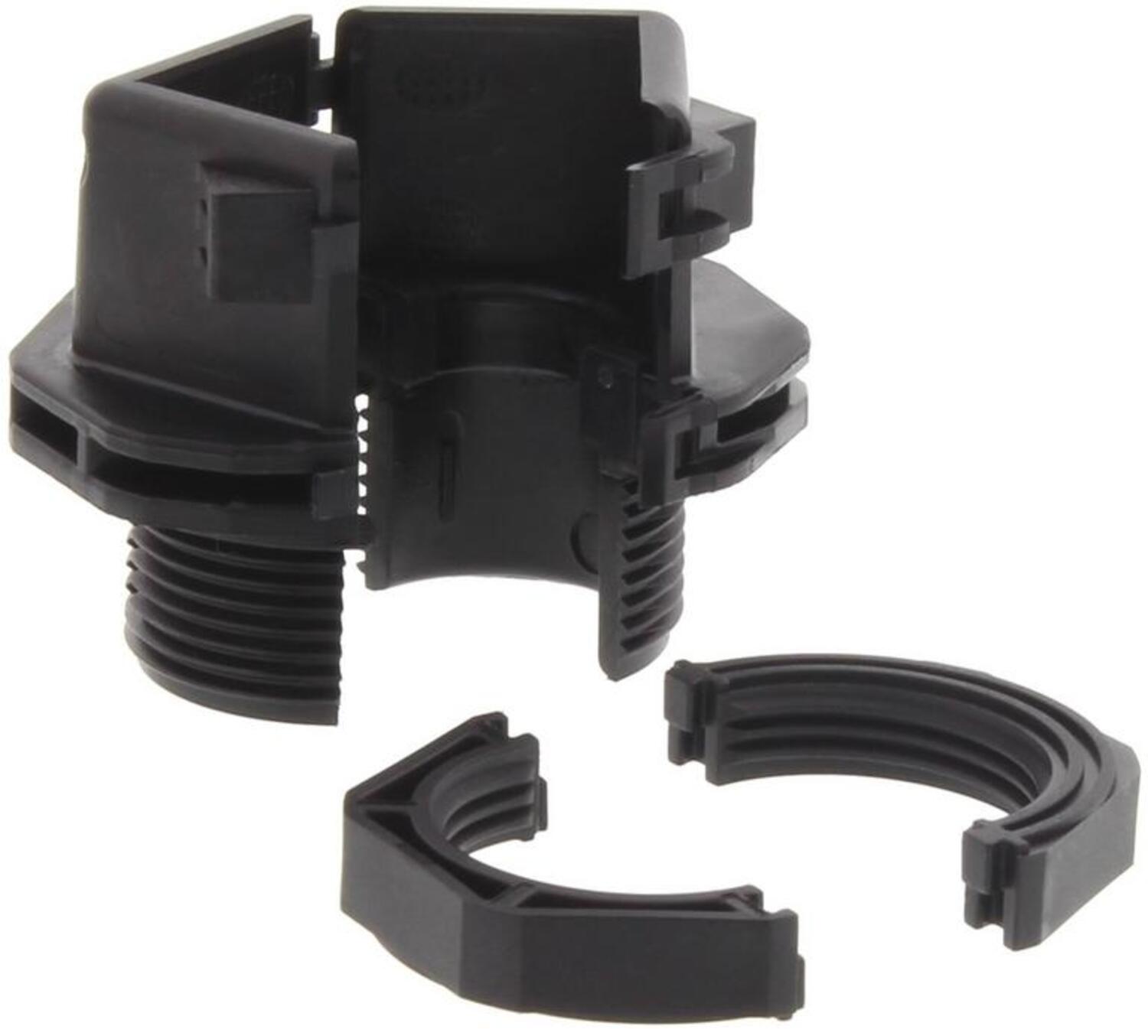

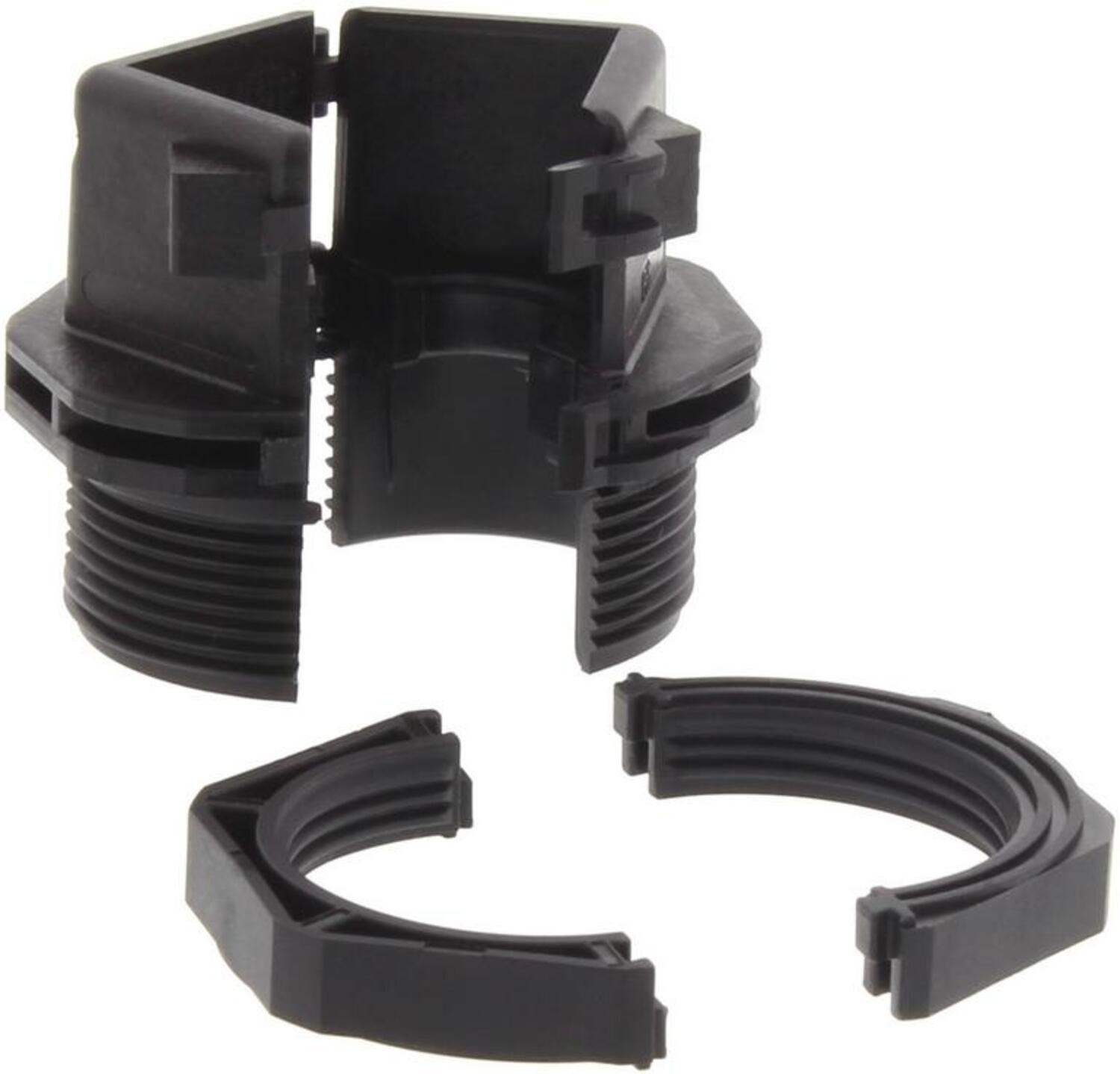

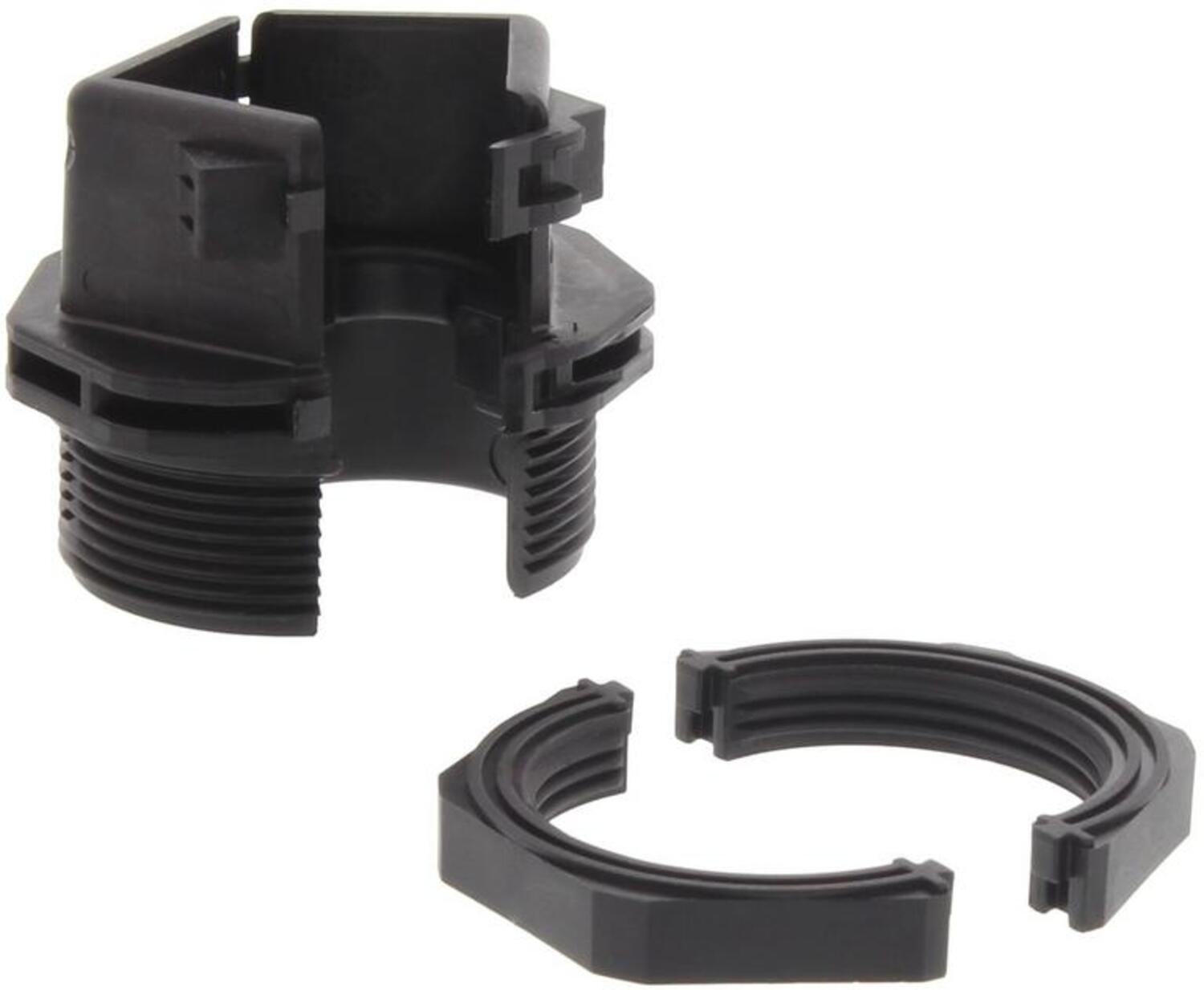

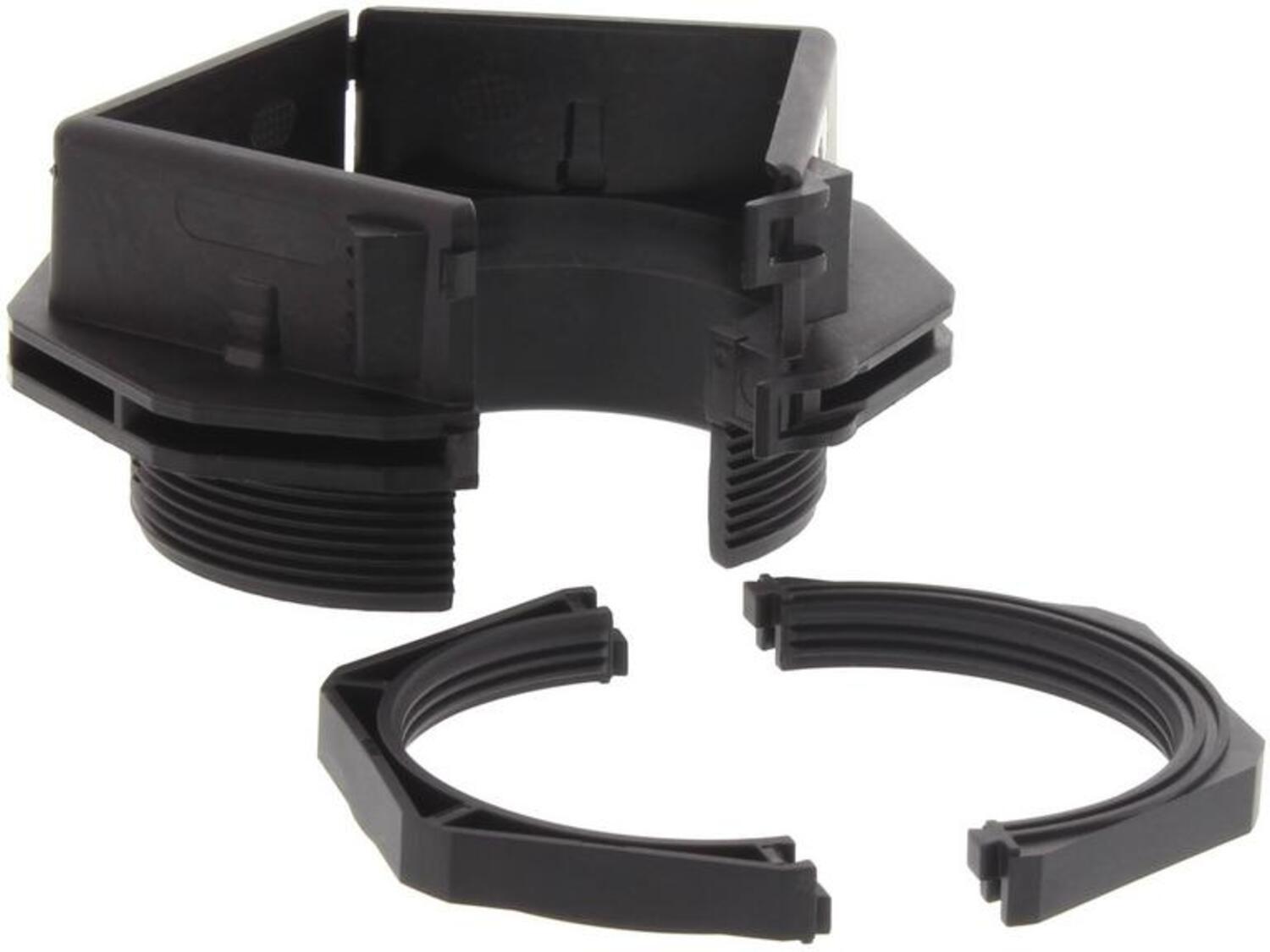

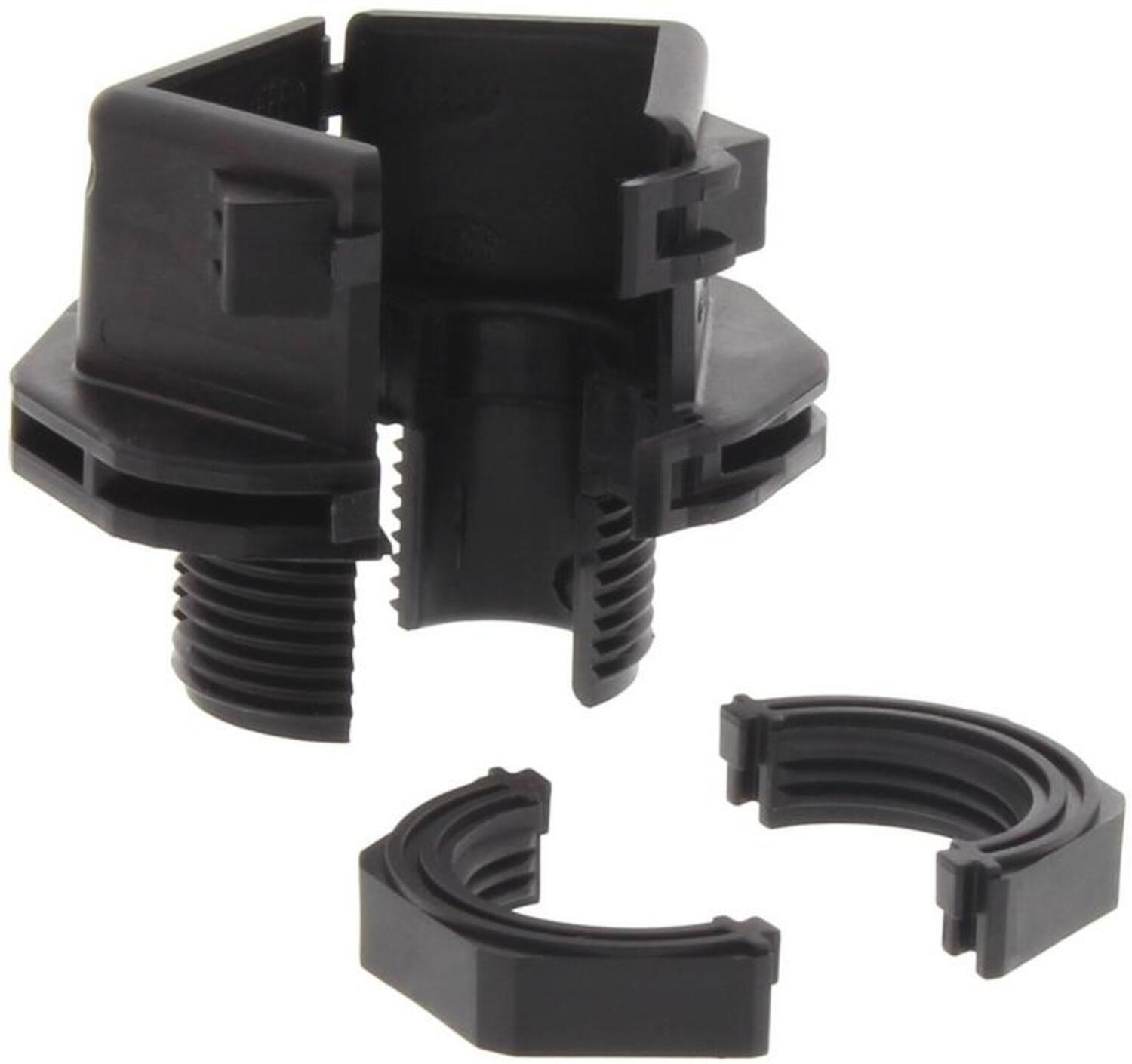

The seal is first placed around the cable and then inserted in one of the two halves.

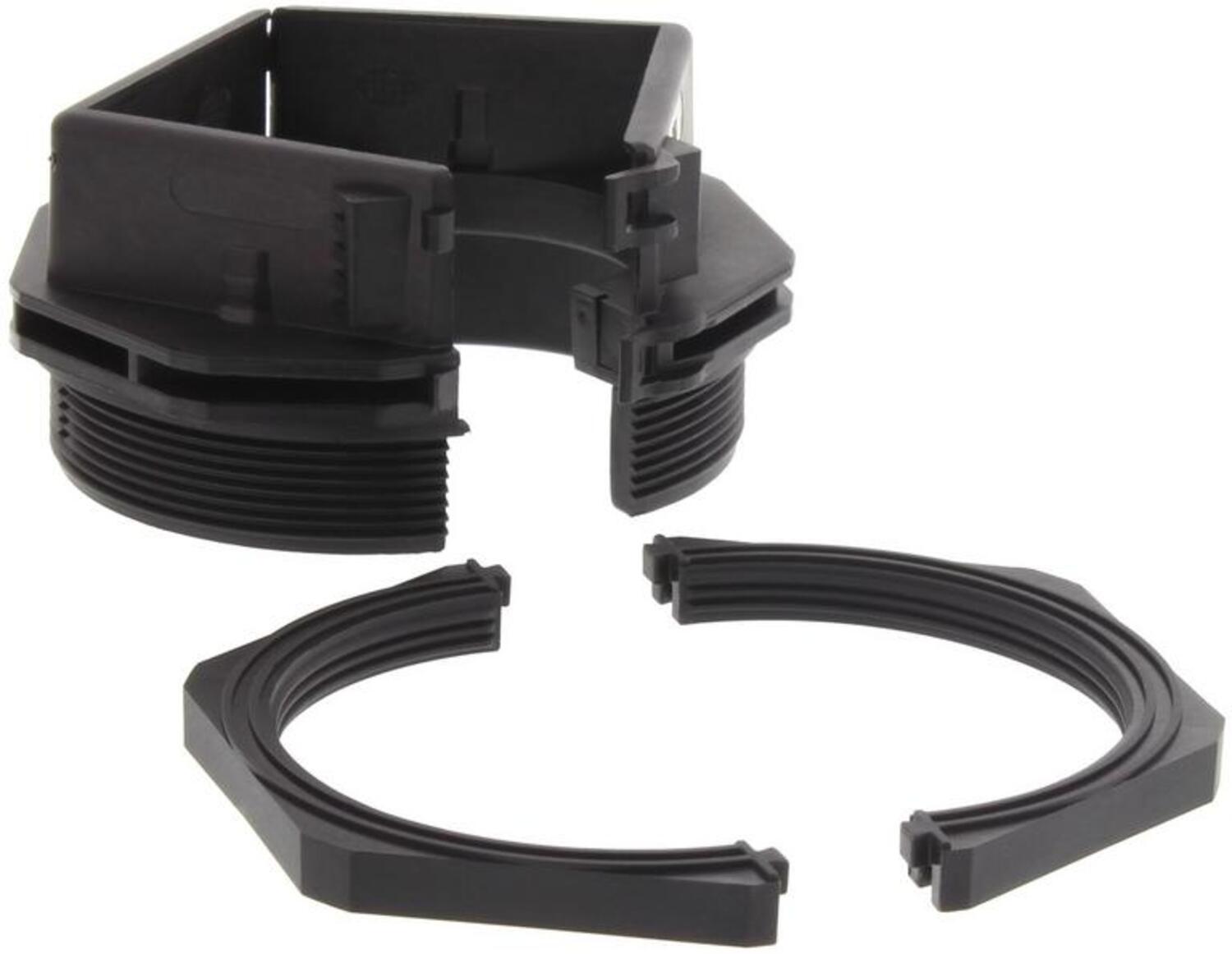

Depending on the size of the cable gland, up to four seals can be inserted. After that, the two halves of the cable gland are easily snapped together without the use of any tools. A locknut (which can also be separated) on the inside of the cabinet ensures a safe and secure attachment.



The advantages



  • Assembled cables can be guided through
  • Guarantee retained for assembled cables
  • Retrofitting and service work is quick and causes no problems
  • High-density assemblies
  • Can be installed on standard metric break-outs
  • Includes a separable hexagon nut





Read more
  • Retrofitting work is quick and easy
  • Ideal for pre-assembled cables
  • Can be installed in standard metric break-outs
  • Includes a separable hexagon nut
  • IP66

Selected variant

Available in several variants

Selected variant

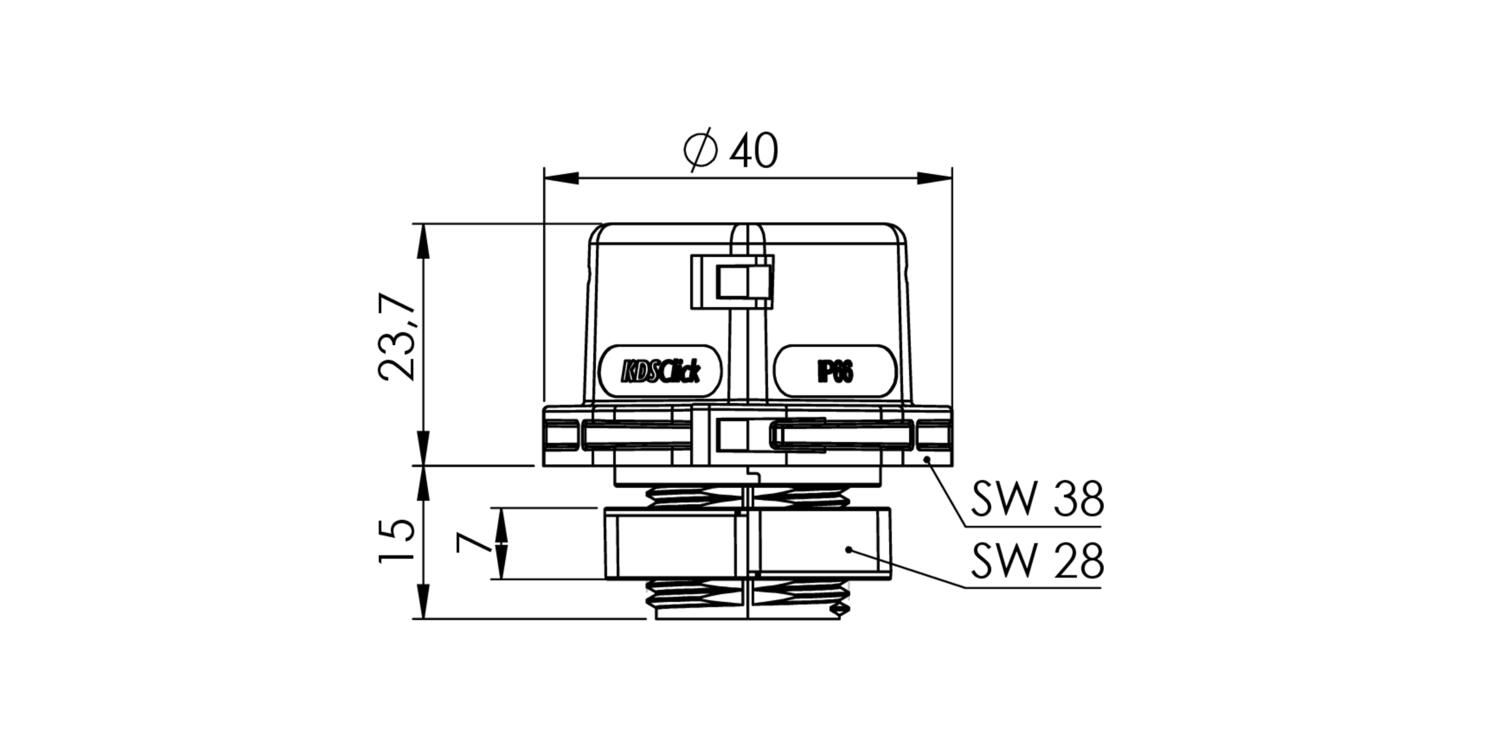

Technical data

General data

Installed height 23,7 mm
IP class IP66
Colour Black
Length 40 mm
Mounting Screw
Width 40 mm
Height 38,7 mm

Mounting details

Thread pitch 1,5 mm
Including nut Yes
Spanner width (AF) 38 mm
Thread size M20
Diameter of screw head 40 mm
Thread length 15 mm

Materials

Flammability class V-0
Sealing material TPE
Glass-fibre reinforced Yes
Operating temperature from -40 °C
Halogen-free Yes
Material Polyamide
Operating temperature to 120 °C
Silicone-free Yes

Additional data

Pack size 10
Country of origin DE
Tariff code 39269097
Weight 11,05 g

Product description

CONTA-CLIP can now offer the KDS-KV split cable glands from M20 to M63 for cables with or without connectors. During servicing or retrofitting with pre-assembled cable harnesses, cables with diameters from 2 to 35 mm can quickly and safely be guided into the switchgear cabinet or housing, and then sealed to IP66.



The split system ensures quick and simple assembly. The slotted seal has a wave-cut profile prevents lateral movement of the cable and ensures a reliable seal.

The seal is first placed around the cable and then inserted in one of the two halves.

Depending on the size of the cable gland, up to four seals can be inserted. After that, the two halves of the cable gland are easily snapped together without the use of any tools. A locknut (which can also be separated) on the inside of the cabinet ensures a safe and secure attachment.



The advantages



  • Assembled cables can be guided through
  • Guarantee retained for assembled cables
  • Retrofitting and service work is quick and causes no problems
  • High-density assemblies
  • Can be installed on standard metric break-outs
  • Includes a separable hexagon nut





Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Installed height Length Width Height Spanner width (AF) Thread size Diameter of screw head Pack size Weight Price
23,7 mm
40 mm
40 mm
38,7 mm
38 mm
M20
40 mm
10
11,05 g
23,7 mm
40 mm
40 mm
38,7 mm
38 mm

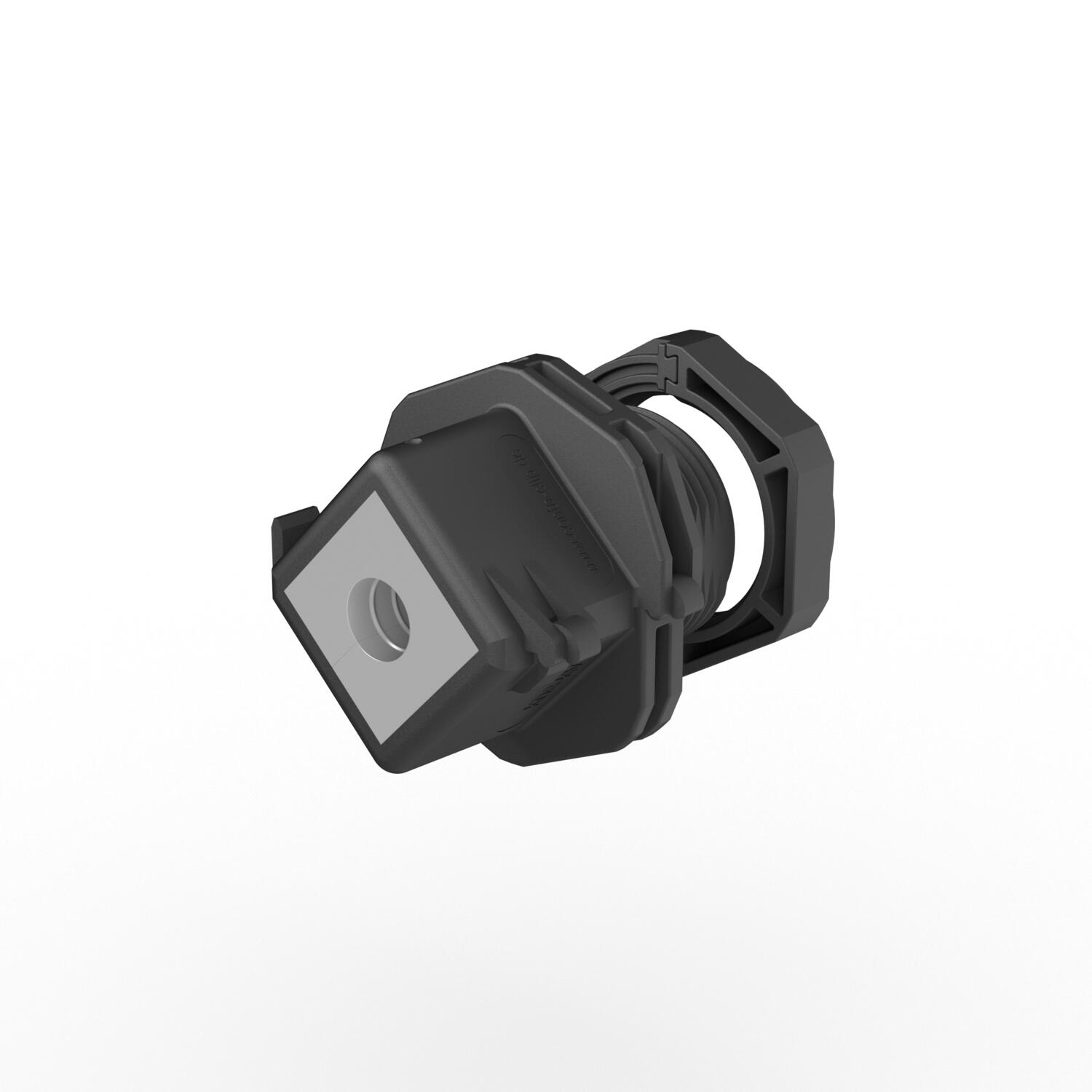

M25
40 mm
10
16,3 g
23,7 mm
40 mm
40 mm
38,7 mm
38 mm
M32
40 mm
10
17,6 g
24,7 mm
72 mm
72 mm
39,7 mm
68 mm

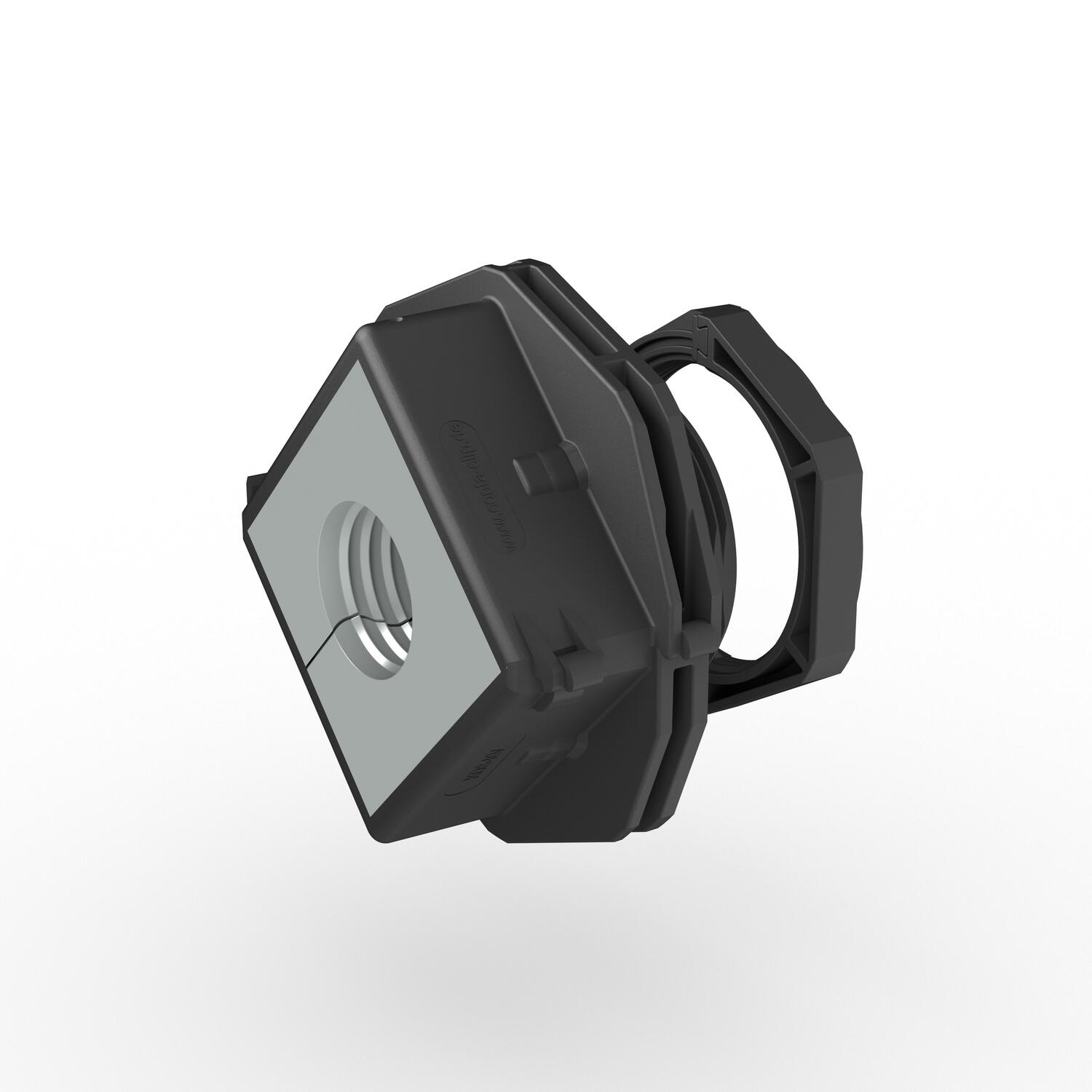

M40
72 mm
5
37,2 g
24,7 mm
72 mm
72 mm
39,7 mm
68 mm

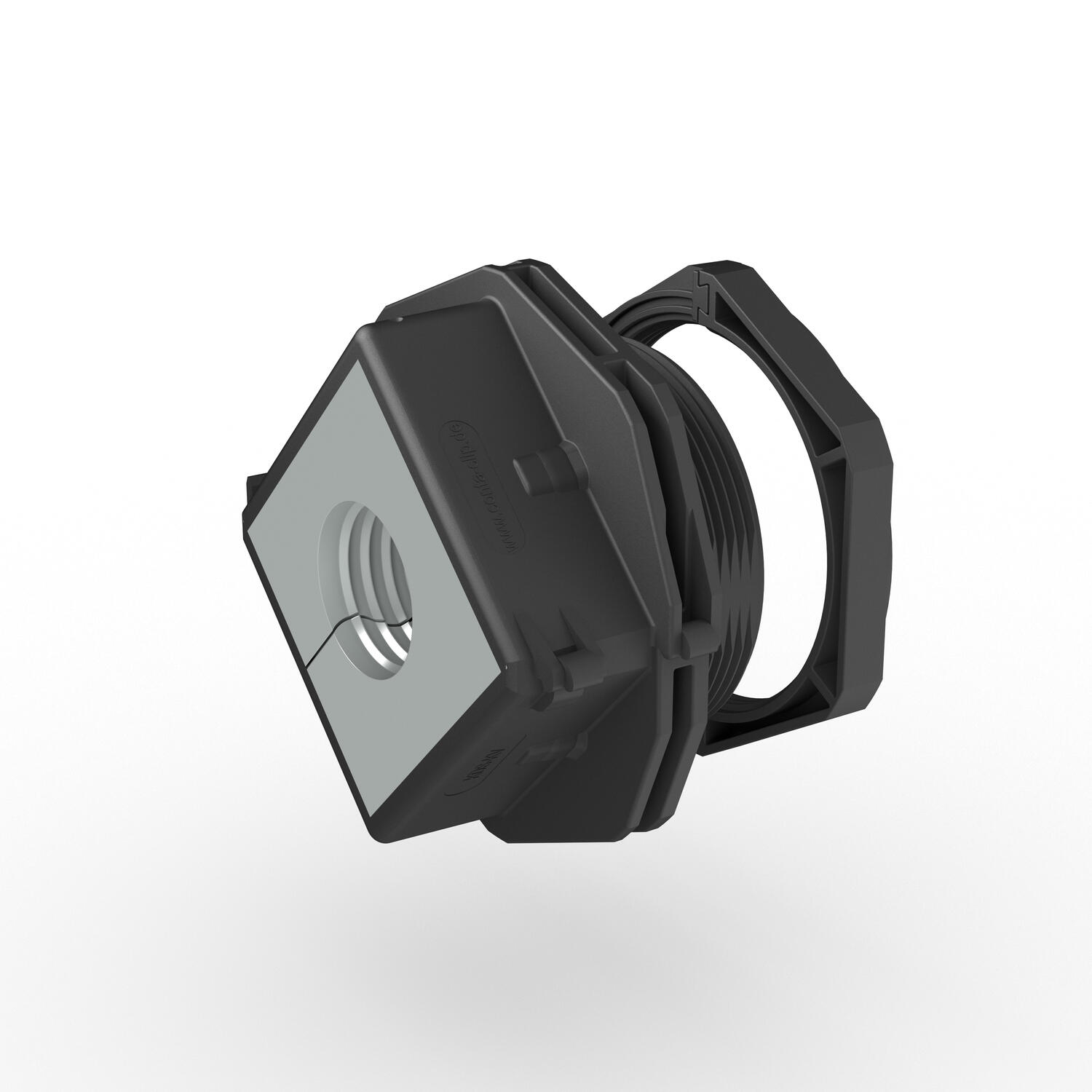

M50
72 mm
5
36,9 g
24,7 mm
72 mm
72 mm
39,7 mm
68 mm
M63
72 mm
5
43,9 g

Selected variant

Select a variant in the list
