AGRO

EMC easyCONNECT

Progress® EMC easyCONNECT

The cable glands Progress® EMC easyCONNECT guarantees full control during installation and compensates for tolerances in shielding thicknesses to make a secure and reliable connection to the cable screen.







The spring system provides quick and easy contact of partially stripped shield cables as well as for the contact of completely exposed cable shields which can be carried through the gland further.

Solutions that use a sleeve of multiple flexible fingers, can be time consuming to assemble, have sharp edges and are difficult to achieve a stray braid free connection.



Optimal shield contact

The powerful, protective clamping of the cable shield guarantees excellent shield contact and provides for the smallest possible transfer impedance. The shape of the contact spring not only allows fora large clamping range to the shield but also for easy disassembly without damaging the EMC braid.



The Progress® easyCONNECT Multi is the first cable gland that allows for the entry of several shielded cables into a housing – at any moment granting a strong and safe shield connection.



For shielded cables in limited space conditions, Progress® EMV easy-

Connect Multi is the perfect solution. Whether for cables of the same or different diameters, or for preassembled, non-preassembled or hybrid cables: The innovative contact spring facilitates problem-free earthing.



Read more
  • Optimal spring clip shield contact
  • Quick and easy assembly
  • Stainless versions on request
  • -60°…+100°C
  • IP68 up to 10 bar, IP69
1083_20.tif


To view Agro cable glands via ePlan see the link under 'downloadable resources' further down the page.

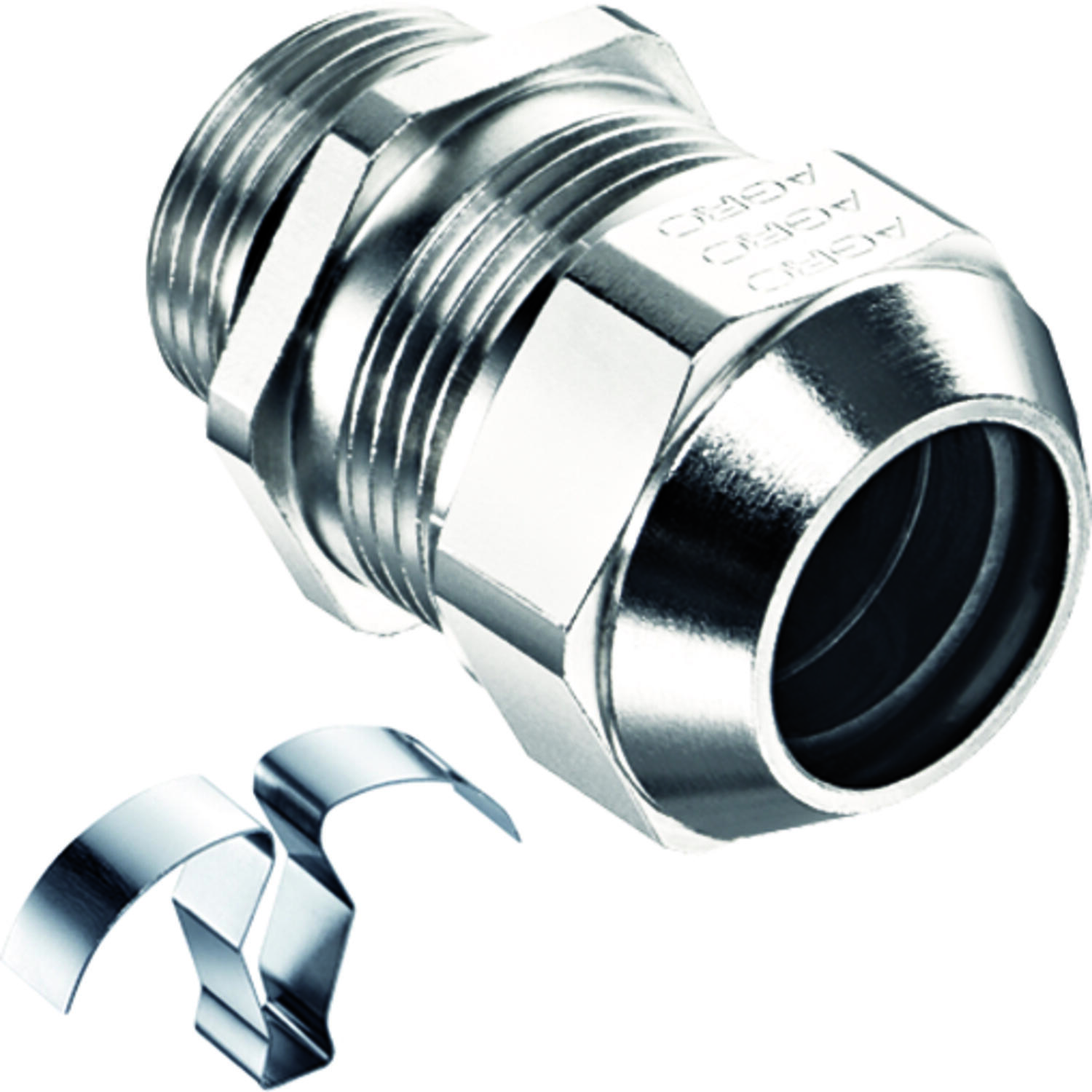

EMC cable gland easyconnect from AGRO

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Cable diameter min 3,5 mm
Thread Size (G) M12
Cable diameter max 5 mm
IP class IP 68 (up to 10 bar), IP 69 further protection
Insert Type One-Piece

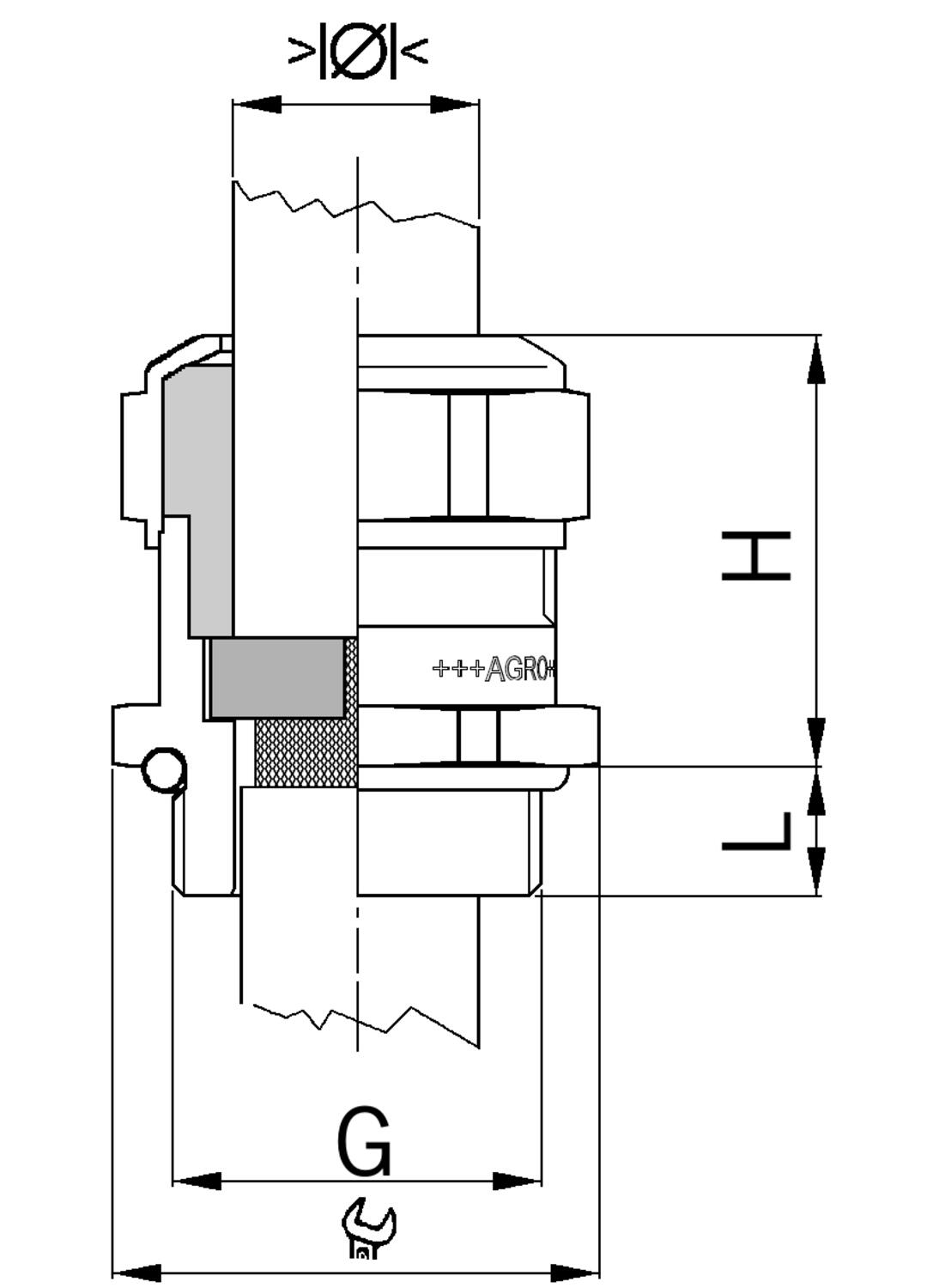

Dimensions

Thread pitch 1,5
Height (H) 22 mm
Spanner width (AF) 15 mm
Thread length 5 mm

Materials

Material Nickel-plated brass
Materials O-ring NBR

*Invisible Heading*

Material of seals TPE
Temperature range -60°C ... +100°C
Contact spring Spring steel 1.4310

Approvals

Strain relief Version A acc. to EN 62444
Approvals CE, cRUus, DNV, EAC, IEC, VDE

Additional Data

Pack size 50
Country of origin CH
Tariff code 74199949
Weight 15,36 g

Product description

The cable glands Progress® EMC easyCONNECT guarantees full control during installation and compensates for tolerances in shielding thicknesses to make a secure and reliable connection to the cable screen.







The spring system provides quick and easy contact of partially stripped shield cables as well as for the contact of completely exposed cable shields which can be carried through the gland further.

Solutions that use a sleeve of multiple flexible fingers, can be time consuming to assemble, have sharp edges and are difficult to achieve a stray braid free connection.



Optimal shield contact

The powerful, protective clamping of the cable shield guarantees excellent shield contact and provides for the smallest possible transfer impedance. The shape of the contact spring not only allows fora large clamping range to the shield but also for easy disassembly without damaging the EMC braid.



The Progress® easyCONNECT Multi is the first cable gland that allows for the entry of several shielded cables into a housing – at any moment granting a strong and safe shield connection.



For shielded cables in limited space conditions, Progress® EMV easy-

Connect Multi is the perfect solution. Whether for cables of the same or different diameters, or for preassembled, non-preassembled or hybrid cables: The innovative contact spring facilitates problem-free earthing.



Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Cable diameter inner max Cable diameter min Cable diameter inner min Thread Size (G) Cable diameter max Insert Type Height (H) Spanner width (AF) Thread length Pack size Additional features Weight Price
3,5 mm
M12
5 mm
One-Piece
22 mm
15 mm
5 mm
50
15,36 g
5 mm
M12
6,5 mm
One-Piece
22 mm
15 mm
5 mm
50
15,36 g
8 mm
8 mm
6 mm
M16
10,5 mm
Two-Piece
25 mm
18 mm
5 mm
50
23,58 g
11 mm
11 mm
8 mm
M20
15 mm
Two-Piece
27 mm
24 mm
6 mm
50
38,78 g
16 mm
16 mm
12,5 mm
M25
20,5 mm
Two-Piece
33 mm
30 mm
7 mm
25
67,6 g
21 mm
21 mm
17 mm
M32
25,5 mm
Two-Piece
33 mm
36 mm
8 mm
25
114,6 g
28,5 mm
28,5 mm
24 mm
M40
33 mm
Two-Piece
28 mm
46 mm
8 mm
10
Approvals in preparation
89,3 g
37 mm
37 mm
33 mm
M50
42 mm
Two-Piece
42 mm
55 mm
9 mm
10
Approvals in preparation
261,8 g
46 mm
46 mm
40 mm
M63
52 mm
Two-Piece
42 mm
70 mm
10 mm
5
Approvals in preparation
457,6 g
3,5 mm
M12
5 mm
One-Piece
22 mm
15 mm
10 mm
50
15,84 g
5 mm
M12
6,5 mm
One-Piece
22 mm
15 mm
10 mm
50
15,54 g
8 mm
8 mm
6 mm
M16
10,5 mm
Two-Piece
25 mm
18 mm
10 mm
50
23,12 g
11 mm
11 mm
8 mm
M20
15 mm
Two-Piece
27 mm
24 mm
10 mm
50
42,78 g
16 mm
16 mm
12,5 mm
M25
20,5 mm
Two-Piece
33 mm
30 mm
11 mm
25
68,8 g
21 mm
21 mm
17 mm
M32
25,5 mm
Two-Piece
33 mm
36 mm
13 mm
25
112,6 g
28,5 mm
28,5 mm
24 mm
M40
33 mm
Two-Piece
28 mm
46 mm
13 mm
10
Approvals in preparation
198 g
37 mm
37 mm
33 mm
M50
42 mm
Two-Piece
42 mm
55 mm
14 mm
10
Approvals in preparation
282,9 g
37 mm
37 mm
33 mm
M50
42 mm
Two-Piece
42 mm
55 mm
14 mm
10
Approvals in preparation
486,4 g

Selected variant

Select a variant in the list
