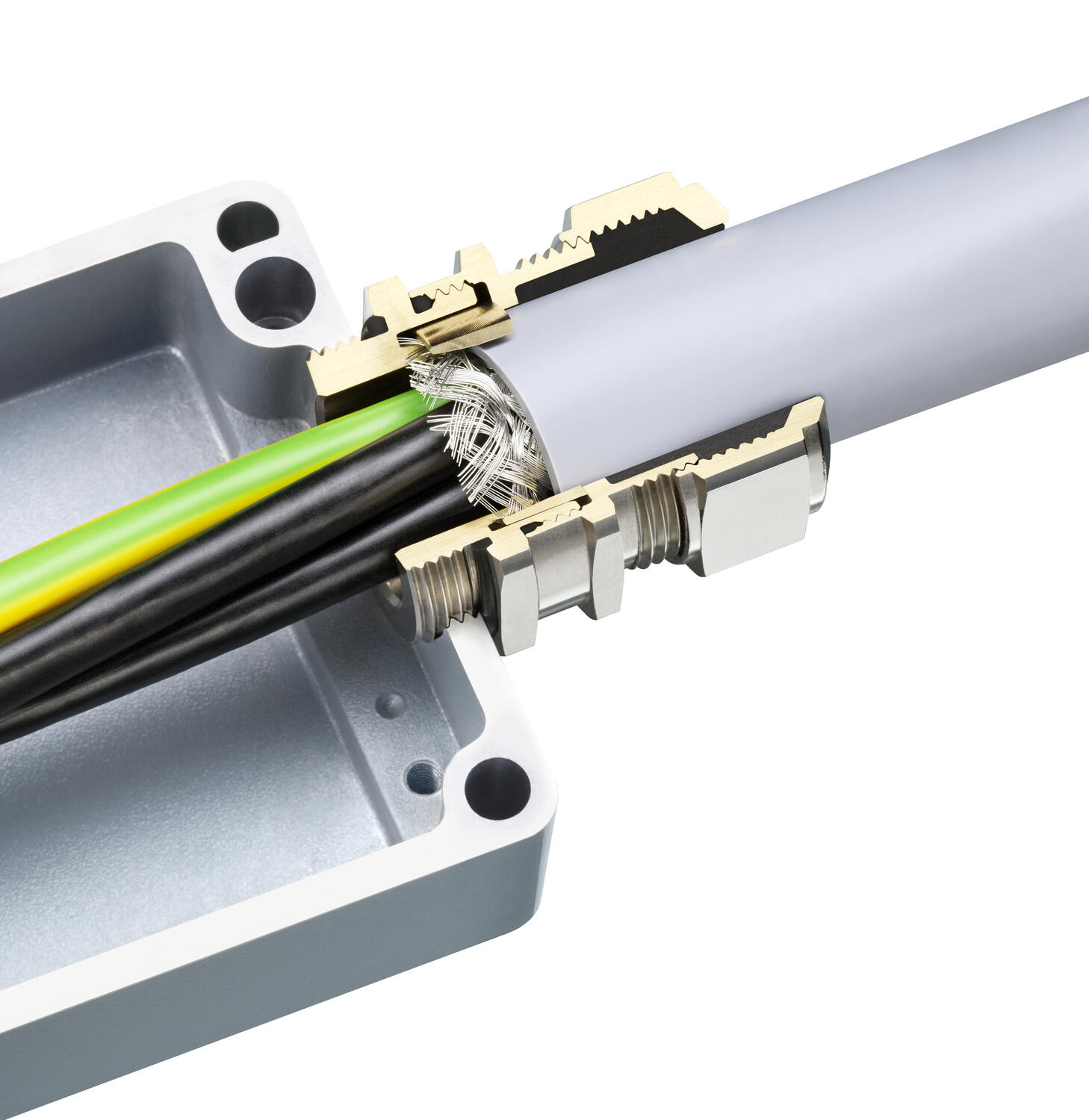

Progress® EMC powerCONNECT, with its new, advanced compression sleeve, ensures reliable 360° shield contact in a very compact unit. The direct transfer from the shielding to the cable gland’s lower part ensures extremely low transfer resistance.
Low transfer resistance
As a result of the direct contact between the cable’s shielding and the cable gland’s cone, transfer resistance is very low giving the optimum shield connection required for high leakage current applications.
High leakage currents
The lasting high contact pressure achieved from the fixed compression sleeve and the complete tightening of the middle piece, maximises grounding of leakage currents, the extent of which is limited only by the shield’s cross-sectional area.
High flexibility
Excellent sealing performance with high flexibility. The two-part sealing inserts facilitate a large spectrum in the clamping range at a protection class of IP 68 / IP 69.
General Data |
|
|---|---|
| Thread Size (G) | M16 |
| Insert Type | Two-Piece |
| Cable diameter inner min | 6 mm |
| Cable diameter inner max | 8 mm |
| Cable diameter min | 8 mm |
| Cable diameter max | 10,5 mm |
| IP class | IP 68 (up to 10 bar), IP 69 further protection |

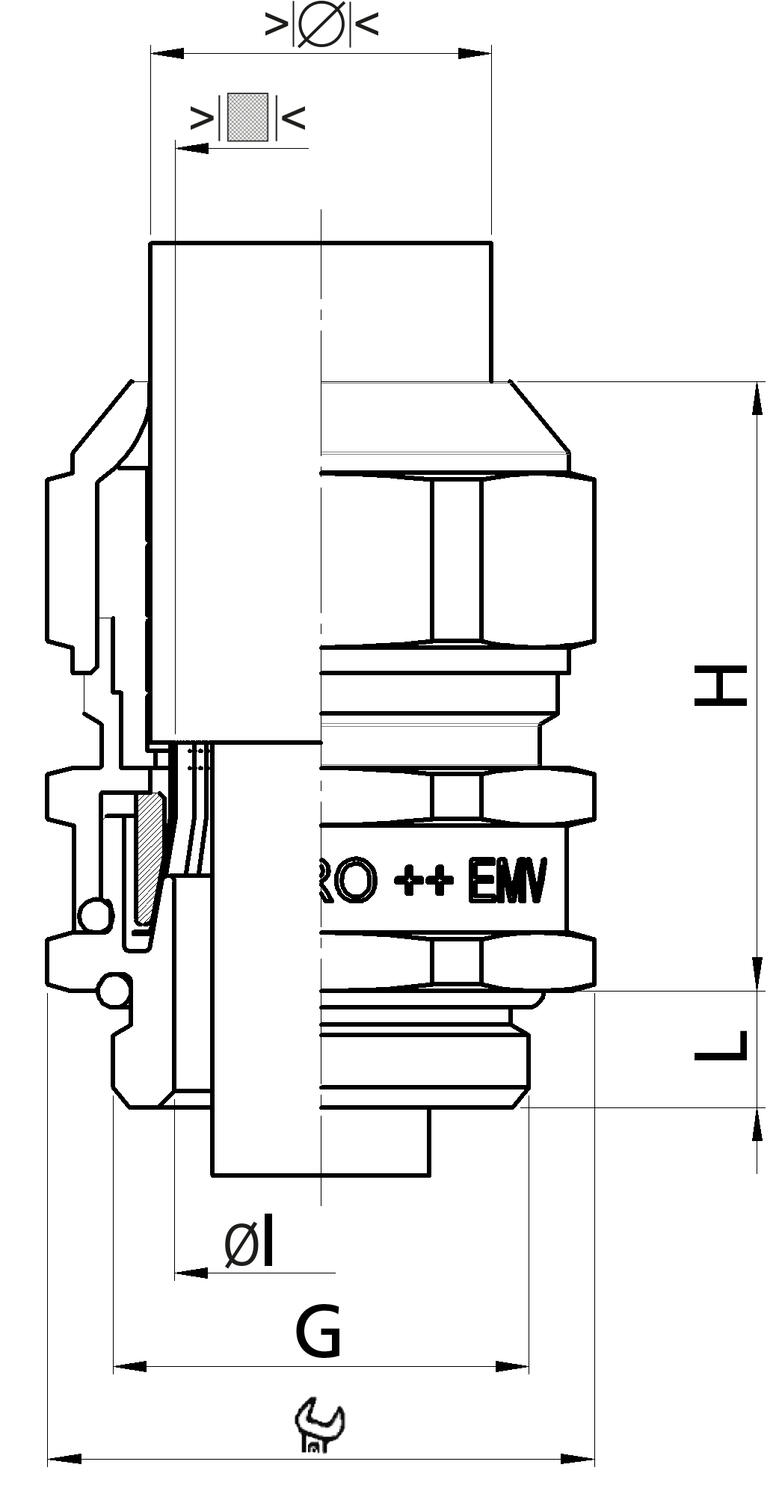

Dimensions |
|
| Thread pitch | 1,5 |
| Thread length | 5 mm |
| Height (H) | 28 mm |
| Spanner width (AF) | 18 mm |
| Shield diameter max | 9,3 mm |
| Internal cable size | 8,2 mm |
Materials |
|
|---|---|
| Material | Nickel-plated brass |
| Materials O-ring | NBR |
| Material of seals | TPE |
| Temperature range | -60°C ... +100°C |
Approvals |
|
| Approvals | CE, cRUus, DNV, EAC, IEC, VDE |
| Strain relief | Version A acc. to EN 62444 |
Additional Data |
|
| Pack size | 25 |
| Country of origin | CH |
| Tariff code | 74199949 |
| Weight | 31,08 g |
| Additional features | Approvals in preparation |
Progress® EMC powerCONNECT, with its new, advanced compression sleeve, ensures reliable 360° shield contact in a very compact unit. The direct transfer from the shielding to the cable gland’s lower part ensures extremely low transfer resistance.
Low transfer resistance
As a result of the direct contact between the cable’s shielding and the cable gland’s cone, transfer resistance is very low giving the optimum shield connection required for high leakage current applications.
High leakage currents
The lasting high contact pressure achieved from the fixed compression sleeve and the complete tightening of the middle piece, maximises grounding of leakage currents, the extent of which is limited only by the shield’s cross-sectional area.
High flexibility
Excellent sealing performance with high flexibility. The two-part sealing inserts facilitate a large spectrum in the clamping range at a protection class of IP 68 / IP 69.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | Insert Type | Cable diameter inner min | Cable diameter inner max | Cable diameter min | Cable diameter max | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Shield diameter max | Internal cable size | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

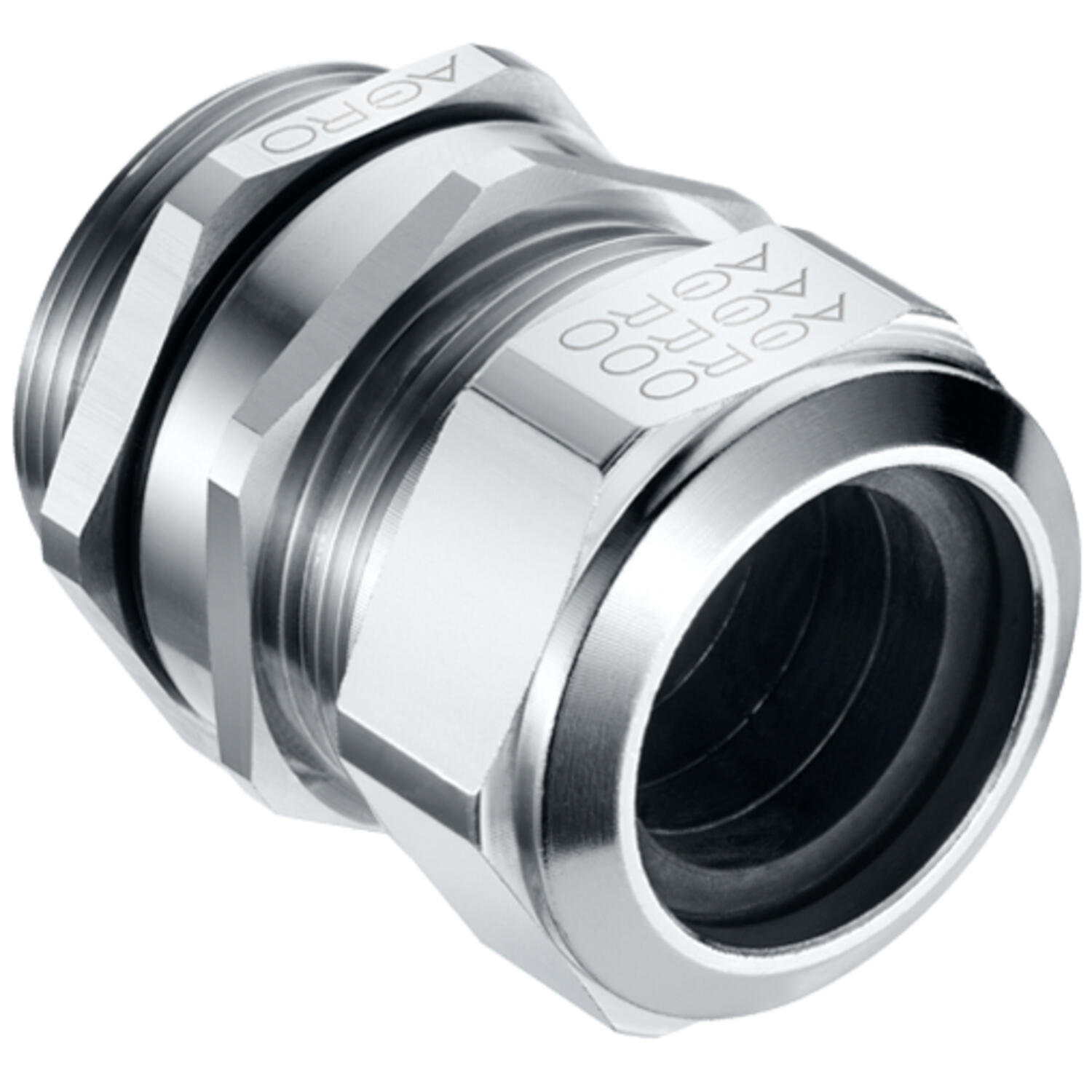

Gland EMC powerCONNECT, M16, ø6…10.5mm
