General Data |
|
|---|---|
| Thread Size (G) | M16 |
| Insert Type | One-Piece |
| Cable diameter min | 3 mm |
| Cable diameter max | 7 mm |
| IP class | IP 68 (30 bar) |

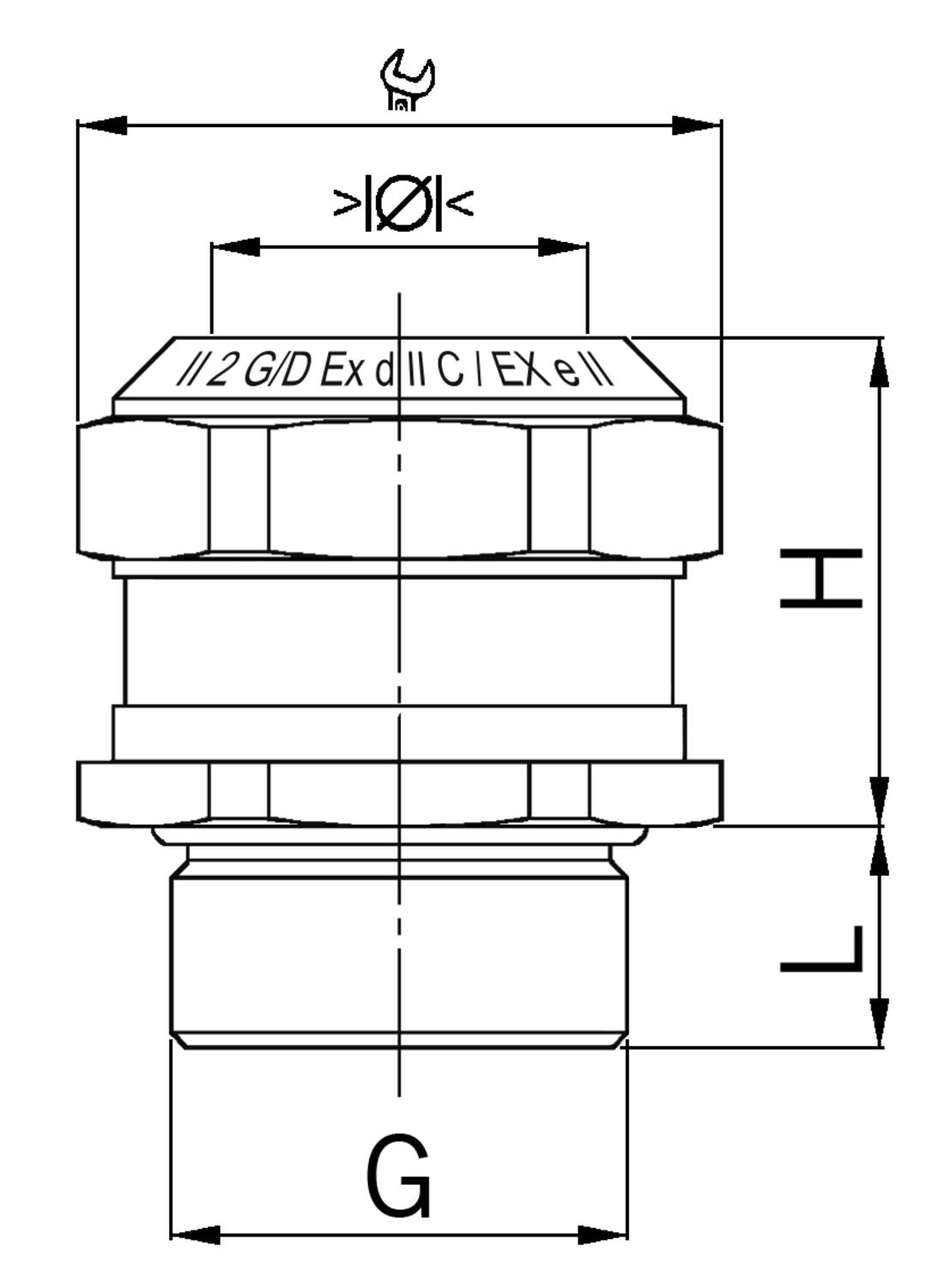

Dimensions |
|
| Thread pitch | 1,5 |
| Thread length | 12 mm |
| Height (H) | 26 mm |
| Spanner width (AF) | 21 mm |
Materials |
|
| Material | Nickel-plated brass |
| Materials O-ring | FPM |
| Material of seals | NBR |
| Temperature range | -60°C ... +105°C |
Approvals |
|
|---|---|
| Approvals | CE, DNV, EX, IECEx |
| Test standard | IEC EN 60079-0 / IEC EN 60079-1 / IEC EN 60079-7 / IEC EN 60079-31 |
| Ex zones | Gas 1 and 2 / dust 21 and 22 |
| Ex-Zone gas | II 2G Ex db eb IIC |
| EX-zone dust | II 2D Ex ta IIC |
| IECEx certificate | IECEx PTB 12.0055X |
| Certificate | PTB 10 ATEX 1034X |
Additional Data |
|
| Pack size | 25 |
| Country of origin | CH |
| Tariff code | 74199949 |
| Weight | 57,96 g |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | Cable diameter min | Cable diameter max | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Materials O-ring | Approvals | Ex-Zone gas | EX-zone dust | IECEx certificate | Certificate | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M16, ø3…7mm
Art:
EX1126.17.070
Copied
|
M16
|
3 mm
|
7 mm
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
57,96 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M16, ø5…10mm
Art:
EX1126.17.100
Copied
|
M16
|
5 mm
|
10 mm
|
1,5
|
12 mm
|
26 mm
|
24 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
63,36 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M20, ø5…11mm
Art:
EX1126.20.110
Copied
|
M20
|
5 mm
|
11 mm
|
1,5
|
12 mm
|
26 mm
|
24 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
70,36 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M20, ø9…14mm
Art:
EX1126.20.140
Copied
|
M20
|
9 mm
|
14 mm
|
1,5
|
12 mm
|
26 mm
|
30 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
92,5 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M25, ø7.5…15mm
Art:
EX1126.25.150
Copied
|
M25
|
7,5 mm
|
15 mm
|
1,5
|
12 mm
|
28 mm
|
32 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
20
|
110,2 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M25, ø12.5…18mm
Art:
EX1126.25.180
Copied
|
M25
|
12,5 mm
|
18 mm
|
1,5
|
12 mm
|
28 mm
|
32 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
20
|
101,2 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M32, ø17…23mm
Art:
EX1126.32.230
Copied
|
M32
|
17 mm
|
23 mm
|
1,5
|
12 mm
|
33 mm
|
41 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
183,4 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M32, ø21…26mm
Art:
EX1126.32.260
Copied
|
M32
|
21 mm
|
26 mm
|
1,5
|
12 mm
|
33 mm
|
41 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
173,5 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M40, ø21…26mm
Art:
EX1126.40.260
Copied
|
M40
|
21 mm
|
26 mm
|
1,5
|
14 mm
|
33 mm
|
41 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
185,7 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M40, ø24…32mm
Art:
EX1126.40.320
Copied
|
M40
|
24 mm
|
32 mm
|
1,5
|
14 mm
|
34 mm
|
50 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
273 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M50, ø28…36mm
Art:
EX1126.50.360
Copied
|
M50
|
28 mm
|
36 mm
|
1,5
|
14 mm
|
34 mm
|
55 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
5
|
317,2 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M50, ø35…42mm
Art:
EX1126.50.420
Copied
|
M50
|
35 mm
|
42 mm
|
1,5
|
14 mm
|
35 mm
|
60 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
5
|
366,8 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M63, ø36…44mm
Art:
EX1126.63.440
Copied
|
M63
|
36 mm
|
44 mm
|
1,5
|
14 mm
|
35 mm
|
65 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
1
|
460 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, M63, ø43…50mm
Art:
EX1126.63.500
Copied
|
M63
|
43 mm
|
50 mm
|
1,5
|
14 mm
|
35 mm
|
70 mm
|
FPM
|
CE, DNV, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
1
|
470 g
|
| ||

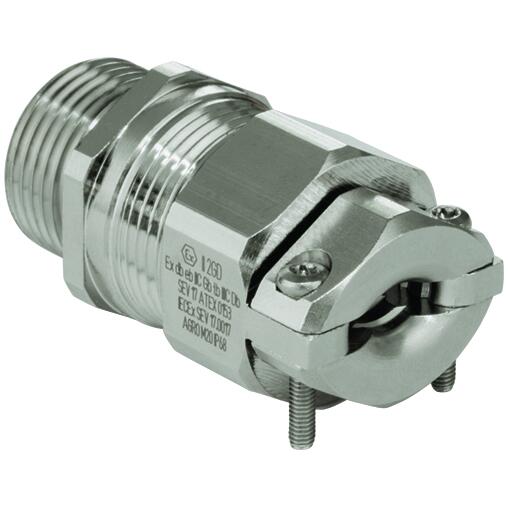

Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M16, ø3…7mm
Art:
EX1826.17.070
Copied
|
M16
|
3 mm
|
7 mm
|
1,5
|
12 mm
|
34 mm
|
21 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
25
|
74,86 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M20, ø5…11.5mm
Art:
EX1826.20.110
Copied
|
M20
|
5 mm
|
11 mm
|
1,5
|
12 mm
|
35 mm
|
24 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
25
|
90,08 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M20, ø9…14mm
Art:
EX1826.20.140
Copied
|
M20
|
9 mm
|
14 mm
|
1,5
|
12 mm
|
35 mm
|
30 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
25
|
124,8 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M25, ø7.5…15mm
Art:
EX1826.25.150
Copied
|
M25
|
7,5 mm
|
15 mm
|
1,5
|
12 mm
|
37 mm
|
32 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
20
|
155,05 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M25, ø15.5…18mm
Art:
EX1826.25.180
Copied
|
M25
|
12,5 mm
|
18 mm
|
1,5
|
12 mm
|
37 mm
|
32 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
20
|
142,3 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M32, ø17…23mm
Art:
EX1826.32.230
Copied
|
M32
|
17 mm
|
23 mm
|
1,5
|
12 mm
|
42 mm
|
41 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
10
|
246,1 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M32, ø21…26mm
Art:
EX1826.32.260
Copied
|
M32
|
21 mm
|
26 mm
|
1,5
|
12 mm
|
42 mm
|
41 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
10
|
235,4 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M40, ø24…32mm
Art:
EX1826.40.320
Copied
|
M40
|
24 mm
|
32 mm
|
1,5
|
14 mm
|
47 mm
|
50 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
10
|
386,9 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M40, ø21…26mm
Art:
EX1826.40.260
Copied
|
M40
|
21 mm
|
26 mm
|
1,5
|
14 mm
|
42 mm
|
41 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
10
|
250,4 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M50, ø28…36mm
Art:
EX1826.50.360
Copied
|
M50
|
28 mm
|
36 mm
|
1,5
|
14 mm
|
48 mm
|
55 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
5
|
471,4 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M50, ø35…42mm
Art:
EX1826.50.420
Copied
|
M50
|
35 mm
|
42 mm
|
1,5
|
14 mm
|
50 mm
|
60 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
5
|
526,4 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M63, ø43…50mm
Art:
EX1826.63.500
Copied
|
M63
|
43 mm
|
50 mm
|
1,5
|
14 mm
|
51 mm
|
70 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
1
|
725 g
|
| ||
|
Gland Ex Compact NPB, clamped, Ex d IIC, Ex e II, M63, ø36…44mm
Art:
EX1826.63.440
Copied
|
M63
|
36 mm
|
44 mm
|
1,5
|
14 mm
|
51 mm
|
65 mm
|
FPM
|
CE, EX, IECEx
|
II 2G Ex db eb IIC Gb
|
II 2D Ex tb IIC Db
|
IECEx SEV 17.0017
|
SEV 17 ATEX 0153
|
1
|
719 g
|
| ||

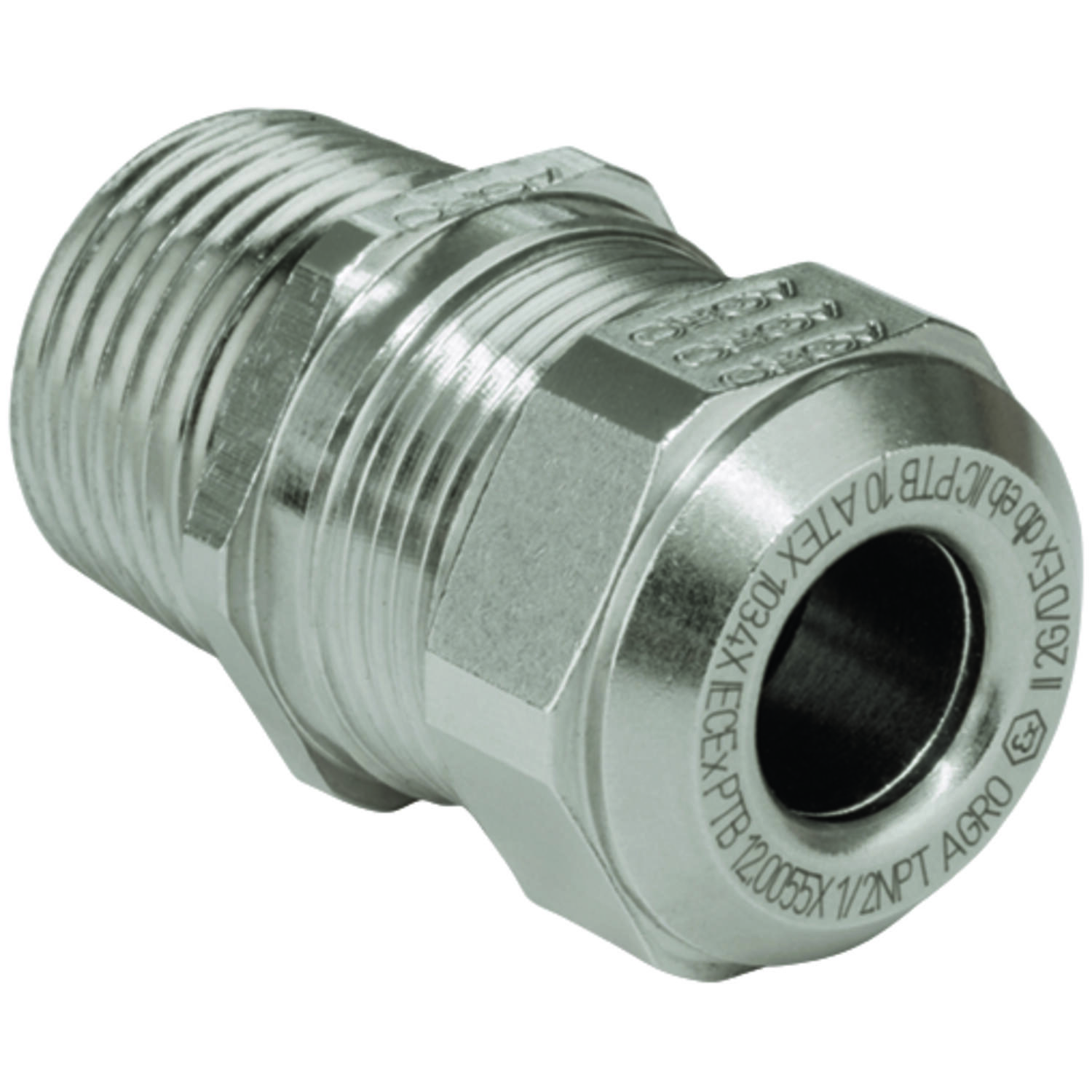

Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 3/8, ø3…7mm
Art:
EX1126.3/8NPT.070
Copied
|
NPT 3/8"
|
3 mm
|
7 mm
|
|
15 mm
|
26 mm
|
21 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
63,96 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 3/8, ø5…10mm
Art:
EX1126.3/8NPT.100
Copied
|
NPT 3/8"
|
5 mm
|
10 mm
|
|
15 mm
|
26 mm
|
24 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
68,12 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1/2, ø5…11mm
Art:
EX1126.1/2NPT.110
Copied
|
NPT 1/2"
|
5 mm
|
11 mm
|
|
15 mm
|
26 mm
|
24 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
78,84 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1/2, ø9…14mm
Art:
EX1126.1/2NPT.140
Copied
|
NPT 1/2"
|
9 mm
|
14 mm
|
|
15 mm
|
26 mm
|
30 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
25
|
100,24 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 3/4, ø12.5…18mm
Art:
EX1126.3/4NPT.180
Copied
|
NPT 3/4"
|
12,5 mm
|
18 mm
|
|
15 mm
|
28 mm
|
32 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
20
|
117,2 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 3/4, ø7.5…15mm
Art:
EX1126.3/4NPT.150
Copied
|
NPT 3/4"
|
7,5 mm
|
15 mm
|
|
15 mm
|
28 mm
|
32 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
20
|
118,75 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1, ø21…26mm
Art:
EX1126.1NPT.260
Copied
|
NPT 1"
|
21 mm
|
26 mm
|
|
20 mm
|
33 mm
|
41 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
187,8 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1, ø17…23mm
Art:
EX1126.1NPT.230
Copied
|
NPT 1"
|
17 mm
|
23 mm
|
|
20 mm
|
33 mm
|
41 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
226,3 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1 1/4, ø21…26mm
Art:
EX1126.11/4NPT.320
Copied
|
NPT 1 1/4"
|
24 mm
|
32 mm
|
|
20 mm
|
34 mm
|
50 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
10
|
305,4 g
|
| ||
|
Gland Ex Compact NPB, Ex d IIC, Ex e II, NPT 1 1/2, ø28…36mm
Art:
EX1126.11/2NPT.360
Copied
|
NPT 1 1/2"
|
28 mm
|
36 mm
|
|
20 mm
|
34 mm
|
55 mm
|
|
CE, EX, IECEx
|
II 2G Ex db eb IIC
|
II 2D Ex ta IIC
|
IECEx PTB 12.0055X
|
PTB 10 ATEX 1034X
|
5
|
401,4 g
|
|
Select a variant in the list
