General Data |
|
|---|---|
| Thread Size (G) | M16 |
| Insert Type | One-Piece |
| Cable diameter min | 4,5 mm |
| Cable diameter max | 6 mm |
| IP class | IP 66 / IP 68 (up to 10 bar) |
| Colour | Black / light blue |
Dimensions |
|
| Thread pitch | 1,5 |
| Thread length | 12 mm |
| Height (H) | 26 mm |
| Spanner width (AF) | 21 mm |
Materials |
|
| Material | Fiberglass reinforced polyamide |
| Material of seals | NBR, TPE |
| Temperature range | -20°C ... +85°C |
Approvals |
|
| Approvals | CE, DNV, EX, IECEx |
*Invisible Heading* |
|
|---|---|
| Test standard | IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31 |
| Ex zones | Gas 0, 1 and 2 / dust 20, 21 and 22 |
| Ex-Zone gas | II 2G Ex eb IIC Gb |
| EX-zone dust | II 2D Ex tb IIIC Db |
| Intrinsic safety gas | II 2G Ex ia IIC Ga |
| Intrinsic safety dust | II 2D Ex ia IIIC Da |
| IECEx certificate | IECEx SEV 15.0019X |
| Certificate | SEV 15 ATEX 0152X |
Additional Data |
|
| Pack size | 50 |
| Country of origin | CH |
| Tariff code | 39269000 |
| Weight | 11,88 g |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | Insert Type | Cable diameter min | Cable diameter max | IP class | Colour | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Material | Material of seals | Temperature range | Approvals | Test standard | Ex zones | Ex-Zone gas | EX-zone dust | Intrinsic safety gas | Intrinsic safety dust | IECEx certificate | Certificate | Pack size | Country of origin | Tariff code | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gland Ex synthetic, Ex e II, Ex i II, blue, M16, ø4.5…6mm
Art:
EX1530.17.060
Copied
|
M16
|
One-Piece
|
4,5 mm
|
6 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
11,88 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M16, ø6…8mm
Art:
EX1530.17.080
Copied
|
M16
|
One-Piece
|
6 mm
|
8 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
11,72 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M20, ø6…8mm
Art:
EX1530.20.080
Copied
|
M20
|
One-Piece
|
6 mm
|
8 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
19,56 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M20, ø8…11mm
Art:
EX1530.20.110
Copied
|
M20
|
One-Piece
|
8 mm
|
11 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
19,12 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M25, ø9.5…12.5mm
Art:
EX1530.25.125
Copied
|
M25
|
One-Piece
|
9,5 mm
|
12,5 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
32,9 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M25, ø12.5…16mm
Art:
EX1530.25.160
Copied
|
M25
|
One-Piece
|
12,5 mm
|
16 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
30,5 g
|
| ||
|

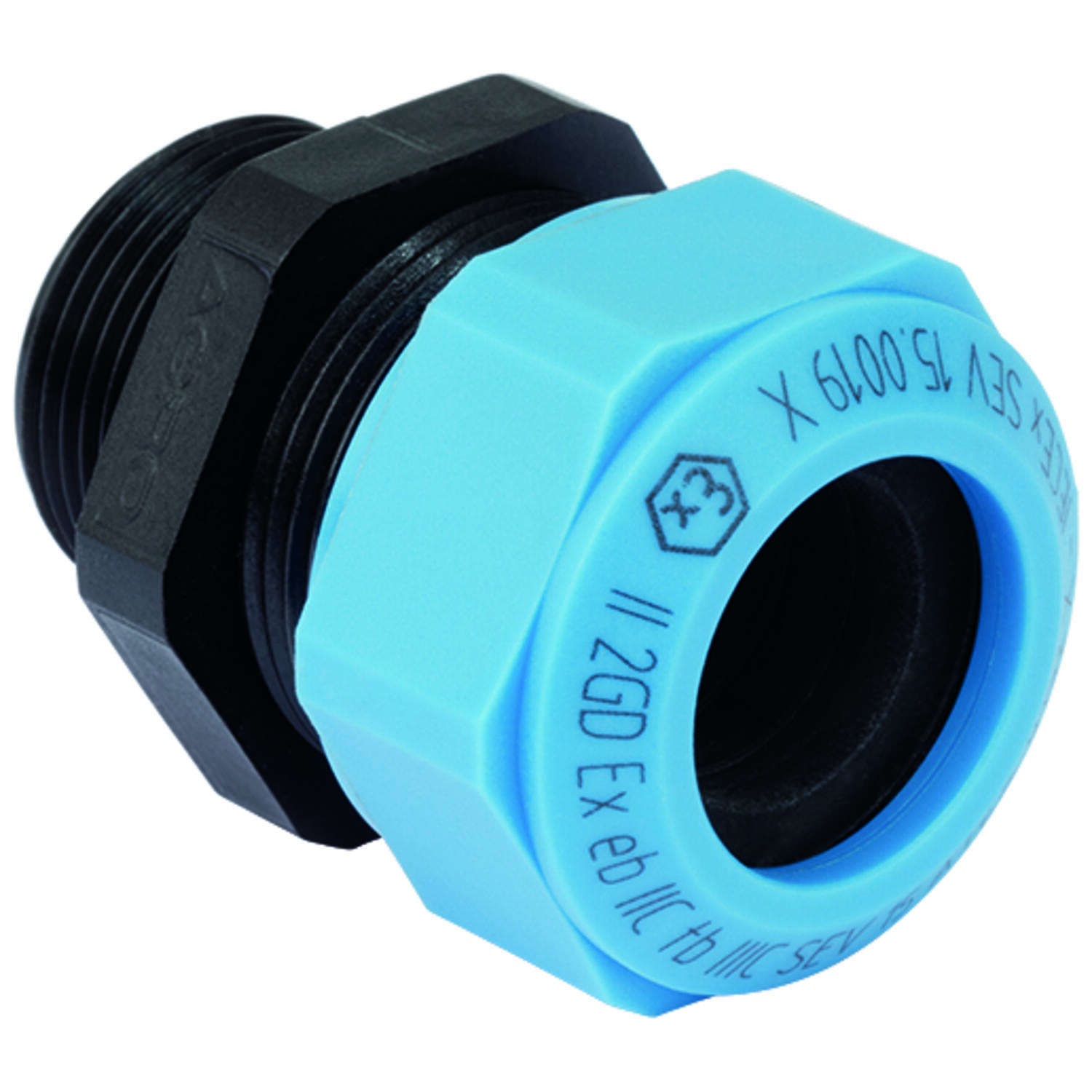

Gland Ex synthetic, Ex e II, Ex i II, blue, M25, ø16…19mm
Art:
EX1530.25.190
Copied
|
M25
|
One-Piece
|
16 mm
|
19 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
27,28 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M25, ø19…20.5mm
Art:
EX1530.25.205
Copied
|
M25
|
One-Piece
|
19 mm
|
20,5 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
26 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M32, ø20…21mm
Art:
EX1530.32.210
Copied
|
M32
|
One-Piece
|
20 mm
|
21 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
43,32 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M32, ø21…22mm
Art:
EX1530.32.220
Copied
|
M32
|
One-Piece
|
21 mm
|
22 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
43,32 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M32, ø22…23mm
Art:
EX1530.32.230
Copied
|
M32
|
One-Piece
|
22 mm
|
23 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
42,04 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M32, ø23…25.5mm
Art:
EX1530.32.255
Copied
|
M32
|
One-Piece
|
23 mm
|
25,5 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
39,6 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M40, ø25.5…27mm
Art:
EX1530.40.270
Copied
|
M40
|
One-Piece
|
25,5 mm
|
27 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
40 mm
|
50 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
72,6 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M40, ø27…28.5mm
Art:
EX1530.40.285
Copied
|
M40
|
One-Piece
|
27 mm
|
28,5 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
40 mm
|
50 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
73,32 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M40, ø28.5…30mm
Art:
EX1530.40.300
Copied
|
M40
|
One-Piece
|
28,5 mm
|
30 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
40 mm
|
50 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
71,2 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M40, ø30…33mm
Art:
EX1530.40.330
Copied
|
M40
|
One-Piece
|
30 mm
|
33 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
15 mm
|
40 mm
|
50 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
71,2 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M40, multi, 2 x Asi
Art:
EX1530.40.7.090
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M50, ø33…35mm
Art:
EX1530.50.350
Copied
|
M50
|
One-Piece
|
33 mm
|
35 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
103,4 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M50, ø35…37mm
Art:
EX1530.50.370
Copied
|
M50
|
One-Piece
|
35 mm
|
37 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
101,5 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M50, ø37…39mm
Art:
EX1530.50.390
Copied
|
M50
|
One-Piece
|
37 mm
|
39 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
99 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M50, ø39…42mm
Art:
EX1530.50.420
Copied
|
M50
|
One-Piece
|
39 mm
|
42 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
93 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M63, ø42…44mm
Art:
EX1530.63.440
Copied
|
M63
|
One-Piece
|
42 mm
|
44 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
48 mm
|
75 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
207,6 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M63, ø44…46mm
Art:
EX1530.63.460
Copied
|
M63
|
One-Piece
|
44 mm
|
46 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
48 mm
|
75 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
192 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M63, ø46…48mm
Art:
EX1530.63.480
Copied
|
M63
|
One-Piece
|
46 mm
|
48 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
48 mm
|
75 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
180,6 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, M63, ø48…52mm
Art:
EX1530.63.520
Copied
|
M63
|
One-Piece
|
48 mm
|
52 mm
|
IP 66 / IP 68 (up to 10 bar)
|
Black / light blue
|
1,5
|
16 mm
|
48 mm
|
75 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
185,8 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 9, ø4.5…6mm
Art:
EX1530.09.060
Copied
|
PG 9
|
One-Piece
|
4,5 mm
|
6 mm
|
IP 68
|
Black / light blue
|
|
12 mm
|
26 mm
|
21 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
11,2 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 9, ø6…8mm
Art:
EX1530.09.080
Copied
|
PG 9
|
One-Piece
|
6 mm
|
8 mm
|
IP 68
|
Black / light blue
|
|
12 mm
|
26 mm
|
21 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
10,9 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 11, ø4…5.5mm
Art:
EX1530.11.055
Copied
|
PG 11
|
One-Piece
|
4 mm
|
5,5 mm
|
IP 68
|
Black / light blue
|
|
12 mm
|
28 mm
|
24 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
14,88 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 11, ø5.5…8.5mm
Art:
EX1530.11.085
Copied
|
PG 11
|
One-Piece
|
5,5 mm
|
8,5 mm
|
IP 68
|
Black / light blue
|
|
12 mm
|
28 mm
|
24 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
14,34 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 13, ø6…8mm
Art:
EX1530.13.080
Copied
|
PG 13
|
One-Piece
|
6 mm
|
8 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
19 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 13, ø8…11mm
Art:
EX1530.13.110
Copied
|
PG 13
|
One-Piece
|
8 mm
|
11 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
17,94 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 16, ø6…8mm
Art:
EX1530.16.080
Copied
|
PG 16
|
One-Piece
|
6 mm
|
8 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
19,06 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 16, ø8…11mm
Art:
EX1530.16.110
Copied
|
PG 16
|
One-Piece
|
8 mm
|
11 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
28 mm
|
27 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
50
|
CH
|
39269000
|
18,18 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 21, ø9.5…12.5mm
Art:
EX1530.21.125
Copied
|
PG 21
|
One-Piece
|
9,5 mm
|
12,5 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
32 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 21, ø12.5…16mm
Art:
EX1530.21.160
Copied
|
PG 21
|
One-Piece
|
12,5 mm
|
16 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
31,7 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 21, ø16…19mm
Art:
EX1530.21.190
Copied
|
PG 21
|
One-Piece
|
16 mm
|
19 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
31,17 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 21, ø19…20.5mm
Art:
EX1530.21.205
Copied
|
PG 21
|
One-Piece
|
19 mm
|
20,5 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
33 mm
|
34 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
29,6 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 29, ø16…19mm
Art:
EX1530.29.210
Copied
|
PG 29
|
One-Piece
|
19,5 mm
|
21 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
36 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
44 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 29, ø19…23mm
Art:
EX1530.29.230
Copied
|
PG 29
|
One-Piece
|
21 mm
|
23 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
36 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
44 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 29, ø23…25mm
Art:
EX1530.29.250
Copied
|
PG 29
|
One-Piece
|
23 mm
|
25 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
36 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
44 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 29, ø25…27.5mm
Art:
EX1530.29.275
Copied
|
PG 29
|
One-Piece
|
25 mm
|
27,5 mm
|
IP 68
|
Black / light blue
|
|
13 mm
|
36 mm
|
41 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
25
|
CH
|
39269000
|
43 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 36, ø27…28.5mm
Art:
EX1530.36.285
Copied
|
PG 36
|
One-Piece
|
27 mm
|
28,5 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
55 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
67 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 36, ø28.5…30.5mm
Art:
EX1530.36.305
Copied
|
PG 36
|
One-Piece
|
28,5 mm
|
30,5 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
55 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
67 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 36, ø30.5…32.5mm
Art:
EX1530.36.325
Copied
|
PG 36
|
One-Piece
|
30,5 mm
|
32,5 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
55 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
66 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 36, ø32.5…35mm
Art:
EX1530.36.350
Copied
|
PG 36
|
One-Piece
|
32,5 mm
|
35 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
55 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
66 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 42, ø33…35mm
Art:
EX1530.42.350
Copied
|
PG 42
|
One-Piece
|
33 mm
|
35 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
102 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 42, ø35…37mm
Art:
EX1530.42.370
Copied
|
PG 42
|
One-Piece
|
35 mm
|
37 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
102 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 42, ø37…39mm
Art:
EX1530.42.390
Copied
|
PG 42
|
One-Piece
|
37 mm
|
39 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
102 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 42, ø39…42mm
Art:
EX1530.42.420
Copied
|
PG 42
|
One-Piece
|
39 mm
|
42 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
42 mm
|
60 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
10
|
CH
|
39269000
|
102 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 48, ø41…43mm
Art:
EX1530.48.430
Copied
|
PG 48
|
One-Piece
|
41 mm
|
43 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
46 mm
|
70 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
152 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 48, ø43…45mm
Art:
EX1530.48.450
Copied
|
PG 48
|
One-Piece
|
43 mm
|
45 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
46 mm
|
70 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
152 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 48, ø45…47mm
Art:
EX1530.48.470
Copied
|
PG 48
|
One-Piece
|
45 mm
|
47 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
46 mm
|
70 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
152 g
|
| ||
|
Gland Ex synthetic, Ex e II, Ex i II, blue, Pg 48, ø47…49mm
Art:
EX1530.48.490
Copied
|
PG 48
|
One-Piece
|
47 mm
|
49 mm
|
IP 68
|
Black / light blue
|
|
16 mm
|
46 mm
|
70 mm
|
Fiberglass reinforced polyamide
|
NBR, TPE
|
-20°C ... +85°C
|
CE, DNV, EX, IECEx
|
IEC EN 60079-0 / IEC EN 60079-7 / IEC EN 60079-31
|
Gas 0, 1 and 2 / dust 20, 21 and 22
|
II 2G Ex eb IIC Gb
|
II 2D Ex tb IIIC Db
|
II 2G Ex ia IIC Ga
|
II 2D Ex ia IIIC Da
|
IECEx SEV 15.0019X
|
SEV 15 ATEX 0152X
|
5
|
CH
|
39269000
|
150 g
|
|
Select a variant in the list
