General Data |
|
|---|---|
| Colour | Grey RAL 7035 |
| Thread Size (G) | M12 |

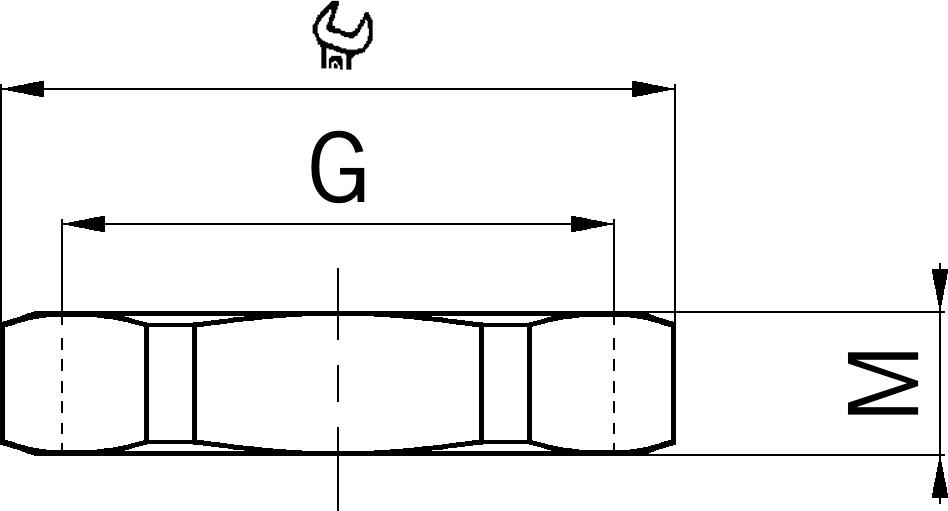

Dimensions |
|
| Thread pitch | 1,5 |
| Spanner width (AF) | 17 mm |
| Thickness | 5,5 mm |
Materials |
|
| Material | Fiberglass reinforced polyamide |
| Temperature range | -40°C ... +100°C |
Additional Data |
|
| Pack size | 100 Â |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Colour | Thread Size (G) | Thread pitch | Spanner width (AF) | Thickness | Material | Temperature range | Pack size | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Lock nut polyamide, M12
Art:
8212
Copied
|
Grey RAL 7035
|
M12
|
1,5
|
17 mm
|
5,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, M16
Art:
8217
Copied
|
Grey RAL 7035
|
M16
|
1,5
|
22 mm
|
5,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, M20x1.5
Art:
8220
Copied
|
Grey RAL 7035
|
M20
|
1,5
|
26 mm
|
6,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|

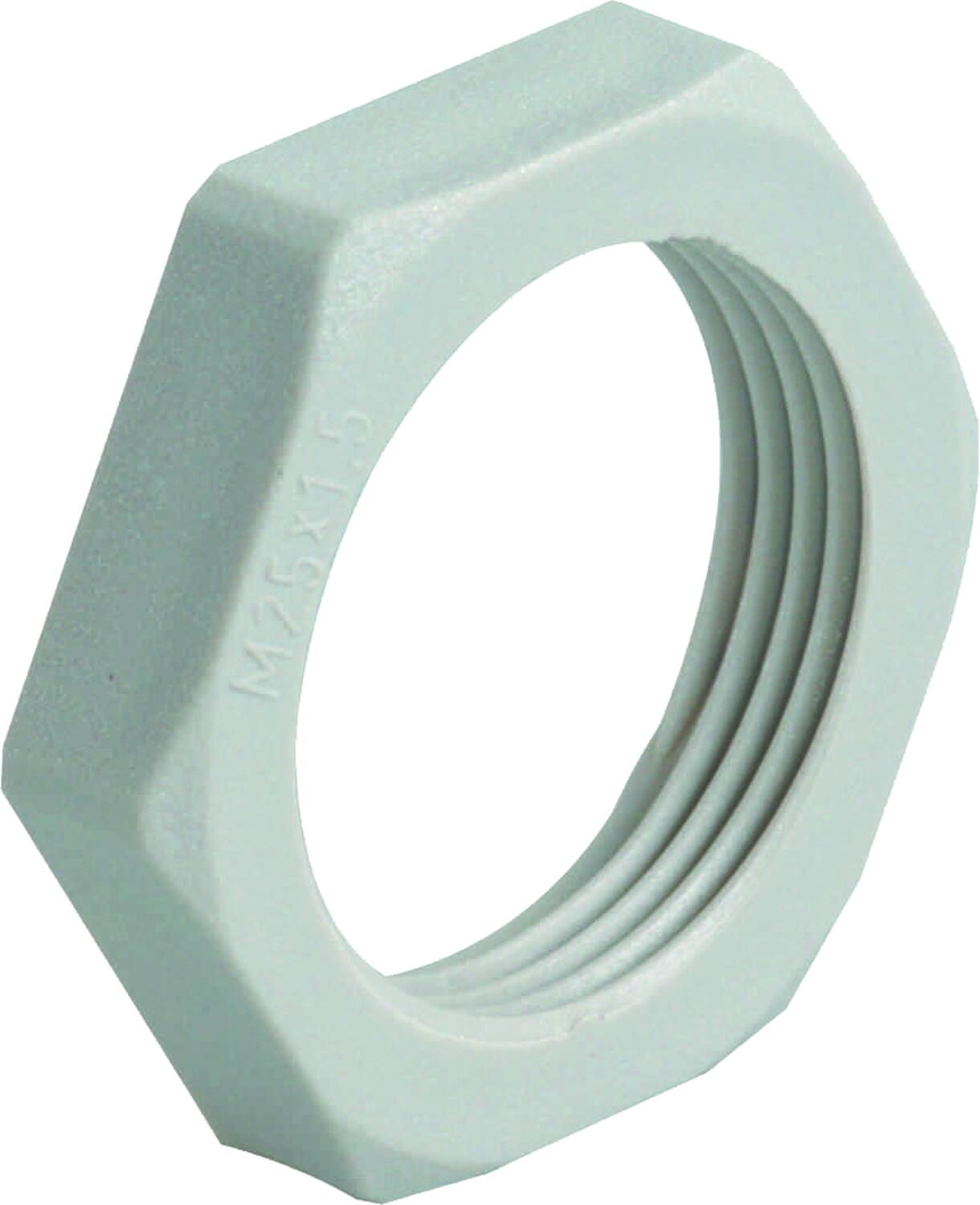

Lock nut polyamide, M25
Art:
8225
Copied
|
Grey RAL 7035
|
M25
|
1,5
|
32 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, M32
Art:
8232
Copied
|
Grey RAL 7035
|
M32
|
1,5
|
41 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, M40
Art:
8240
Copied
|
Grey RAL 7035
|
M40
|
1,5
|
50 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, M50
Art:
8250
Copied
|
Grey RAL 7035
|
M50
|
1,5
|
60 mm
|
8,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
10
|
| ||
Lock nut polyamide, black (RAL9005), M12
Art:
8212.40
Copied
|
Black RAL 9005
|
M12
|
1,5
|
17 mm
|
5,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), M16
Art:
8217.40
Copied
|
Black RAL 9005
|
M16
|
1,5
|
22 mm
|
5,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), M20
Art:
8220.40
Copied
|
Black RAL 9005
|
M20
|
1,5
|
26 mm
|
6,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), M25
Art:
8225.40
Copied
|
Black RAL 9005
|
M25
|
1,5
|
32 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), M32
Art:
8232.40
Copied
|
Black RAL 9005
|
M32
|
1,5
|
41 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), M40
Art:
8240.40
Copied
|
Black RAL 9005
|
M40
|
1,5
|
50 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), M50
Art:
8250.40
Copied
|
Black RAL 9005
|
M50
|
1,5
|
60 mm
|
8,5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
10
|
| ||
Lock nut polyamide, with flange, M12
Art:
8255.12
Copied
|
Grey RAL 7035
|
M12
|
1,5
|
17 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, M16
Art:
8255.17
Copied
|
Grey RAL 7035
|
M16
|
1,5
|
22 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, M20
Art:
8255.20
Copied
|
Grey RAL 7035
|
M20
|
1,5
|
27 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, M25
Art:
8255.25
Copied
|
Grey RAL 7035
|
M25
|
1,5
|
33 mm
|
6,7 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, M32
Art:
8255.32
Copied
|
Grey RAL 7035
|
M32
|
1,5
|
42 mm
|
7,9 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, with flange, M40
Art:
8255.40
Copied
|
Grey RAL 7035
|
M40
|
1,5
|
48 mm
|
8,4 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, with flange, M50
Art:
8255.50
Copied
|
Grey RAL 7035
|
M50
|
1,5
|
59 mm
|
9,9 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, with flange, M63
Art:
8255.63
Copied
|
Grey RAL 7035
|
M63
|
1,5
|
73 mm
|
11 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
Lock nut polyamide, black (RAL9005), with flange, M12
Art:
8245.12
Copied
|
Black RAL 9005
|
M12
|
1,5
|
17 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M16
Art:
8245.17
Copied
|
Black RAL 9005
|
M16
|
1,5
|
22 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M20
Art:
8245.20
Copied
|
Black RAL 9005
|
M20
|
1,5
|
27 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M25
Art:
8245.25
Copied
|
Black RAL 9005
|
M25
|
1,5
|
33 mm
|
6,7 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M32
Art:
8245.32
Copied
|
Black RAL 9005
|
M32
|
1,5
|
42 mm
|
7,9 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M40
Art:
8245.40
Copied
|
Black RAL 9005
|
M40
|
1,5
|
48 mm
|
8,4 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M50
Art:
8245.50
Copied
|
Black RAL 9005
|
M50
|
1,5
|
59 mm
|
9,9 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, M63
Art:
8245.63
Copied
|
Black RAL 9005
|
M63
|
1,5
|
73 mm
|
11 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, Pg 7
Art:
8207
Copied
|
Grey RAL 7035
|
PG 7
|
|
19 mm
|
5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 9
Art:
8209
Copied
|
Grey RAL 7035
|
PG 9
|
|
22 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 11
Art:
8211
Copied
|
Grey RAL 7035
|
PG 11
|
|
24 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 13
Art:
8213
Copied
|
Grey RAL 7035
|
PG 13
|
|
27 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 16
Art:
8216
Copied
|
Grey RAL 7035
|
PG 16
|
|
30 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 21
Art:
8221
Copied
|
Grey RAL 7035
|
PG 21
|
|
36 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, Pg 29
Art:
8229
Copied
|
Grey RAL 7035
|
PG 29
|
|
46 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, Pg 36
Art:
8236
Copied
|
Grey RAL 7035
|
PG 36
|
|
60 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, Pg 42
Art:
8242
Copied
|
Grey RAL 7035
|
PG 42
|
|
65 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, Pg 48
Art:
8248.48
Copied
|
Grey RAL 7035
|
PG 48
|
|
70 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 7
Art:
8207.40
Copied
|
Black RAL 9005
|
PG 7
|
|
19 mm
|
5 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 9
Art:
8209.40
Copied
|
Black RAL 9005
|
PG 9
|
|
22 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 11
Art:
8211.40
Copied
|
Black RAL 9005
|
PG 11
|
|
24 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 13
Art:
8213.40
Copied
|
Black RAL 9005
|
PG 13
|
|
27 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 16
Art:
8216.40
Copied
|
Black RAL 9005
|
PG 16
|
|
30 mm
|
6 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 21
Art:
8221.40
Copied
|
Black RAL 9005
|
PG 21
|
|
36 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 29
Art:
8229.40
Copied
|
Black RAL 9005
|
PG 29
|
|
46 mm
|
7 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 36
Art:
8236.40
Copied
|
Black RAL 9005
|
PG 36
|
|
60 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 42
Art:
8242.40
Copied
|
Black RAL 9005
|
PG 42
|
|
65 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, black (RAL9005), Pg 48
Art:
8248.48.40
Copied
|
Black RAL 9005
|
PG 48
|
|
70 mm
|
8 mm
|
Fiberglass reinforced polyamide
|
-40°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, with flange, Pg 7
Art:
8255.07
Copied
|
Grey RAL 7035
|
PG 7
|
|
19 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, Pg 9
Art:
8255.09
Copied
|
Grey RAL 7035
|
PG 9
|
|
21 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, Pg 11
Art:
8255.11
Copied
|
Grey RAL 7035
|
PG 11
|
|
24 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, Pg 13
Art:
8255.13
Copied
|
Grey RAL 7035
|
PG 13
|
|
27 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, Pg 16
Art:
8255.16
Copied
|
Grey RAL 7035
|
PG 16
|
|
30 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, with flange, Pg 21
Art:
8255.21
Copied
|
Grey RAL 7035
|
PG 21
|
|
36 mm
|
7 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, with flange, Pg 29
Art:
8255.29
Copied
|
Grey RAL 7035
|
PG 29
|
|
46 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, with flange, Pg 36
Art:
8255.36
Copied
|
Grey RAL 7035
|
PG 36
|
|
59 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, with flange, Pg 42
Art:
8255.42
Copied
|
Grey RAL 7035
|
PG 42
|
|
65 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, with flange, Pg 48
Art:
8255.48
Copied
|
Grey RAL 7035
|
PG 48
|
|
69 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 7
Art:
8245.07
Copied
|
Black RAL 9005
|
PG 7
|
|
19 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 9
Art:
8245.09
Copied
|
Black RAL 9005
|
PG 9
|
|
21 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 11
Art:
8245.11
Copied
|
Black RAL 9005
|
PG 11
|
|
24 mm
|
5 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 13
Art:
8245.13
Copied
|
Black RAL 9005
|
PG 13
|
|
27 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 16
Art:
8245.16
Copied
|
Black RAL 9005
|
PG 16
|
|
30 mm
|
6 mm
|
Polyamide
|
-30°C ... +100°C
|
100
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 21
Art:
8245.21
Copied
|
Black RAL 9005
|
PG 21
|
|
36 mm
|
7 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 29
Art:
8245.29
Copied
|
Black RAL 9005
|
PG 29
|
|
46 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
50
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 36
Art:
8245.36
Copied
|
Black RAL 9005
|
PG 36
|
|
59 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
25
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 42
Art:
8245.42
Copied
|
Black RAL 9005
|
PG 42
|
|
65 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
| ||
|
Lock nut polyamide, black (RAL9005), with flange, Pg 48
Art:
8245.48
Copied
|
Black RAL 9005
|
PG 48
|
|
69 mm
|
8 mm
|
Polyamide
|
-30°C ... +100°C
|
10
|
|
Select a variant in the list
