General Data |
|
|---|---|

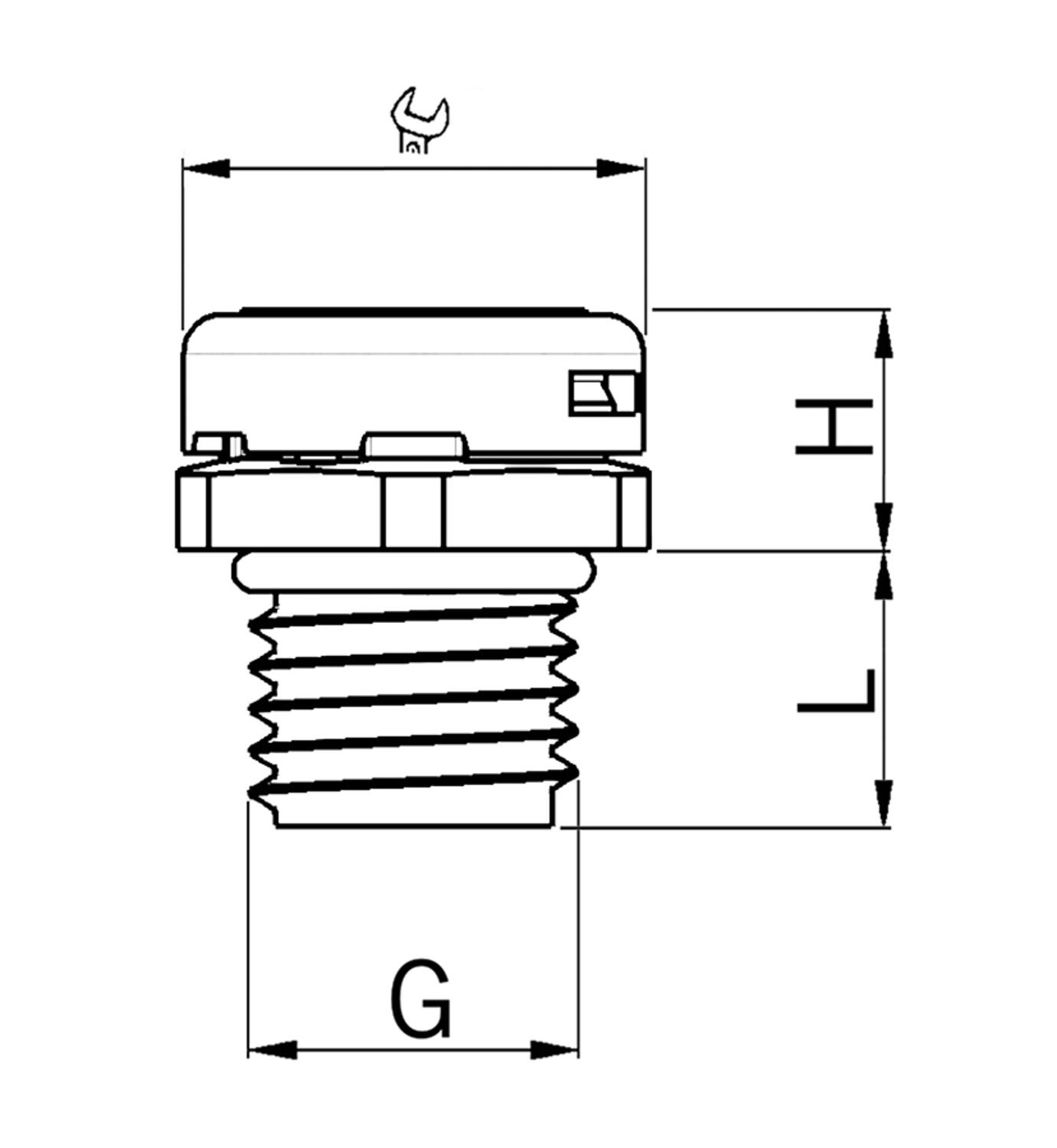

| Thread Size (G) | M12 |
| IP class | IP 66 / IP 68 / IP 69 |
| Colour | Black |
| Water intrusion pressure | > 12.0 psi / 0.83 bar |
| Air flow | > 90ml/min/cm² at 10mbar |
Dimensions |
|
| Thread pitch | 1,5 |
| Thread length | 10 mm |
| Height (H) | 9 mm |
*Invisible Heading* |
|
|---|---|
| Spanner width (AF) | 17 mm |
Materials |
|
| Material | Polyamide |
| Materials O-ring | NBR |
| Material membrane | Polyethersulfone (PES) |
| Temperature range | -40°C ... +100°C |
Additional Data |
|
| Pack size | 25 Â |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | IP class | Colour | Water intrusion pressure | Air flow | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Diameter | Material | Materials O-ring | Material membrane | Temperature range | Pack size | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

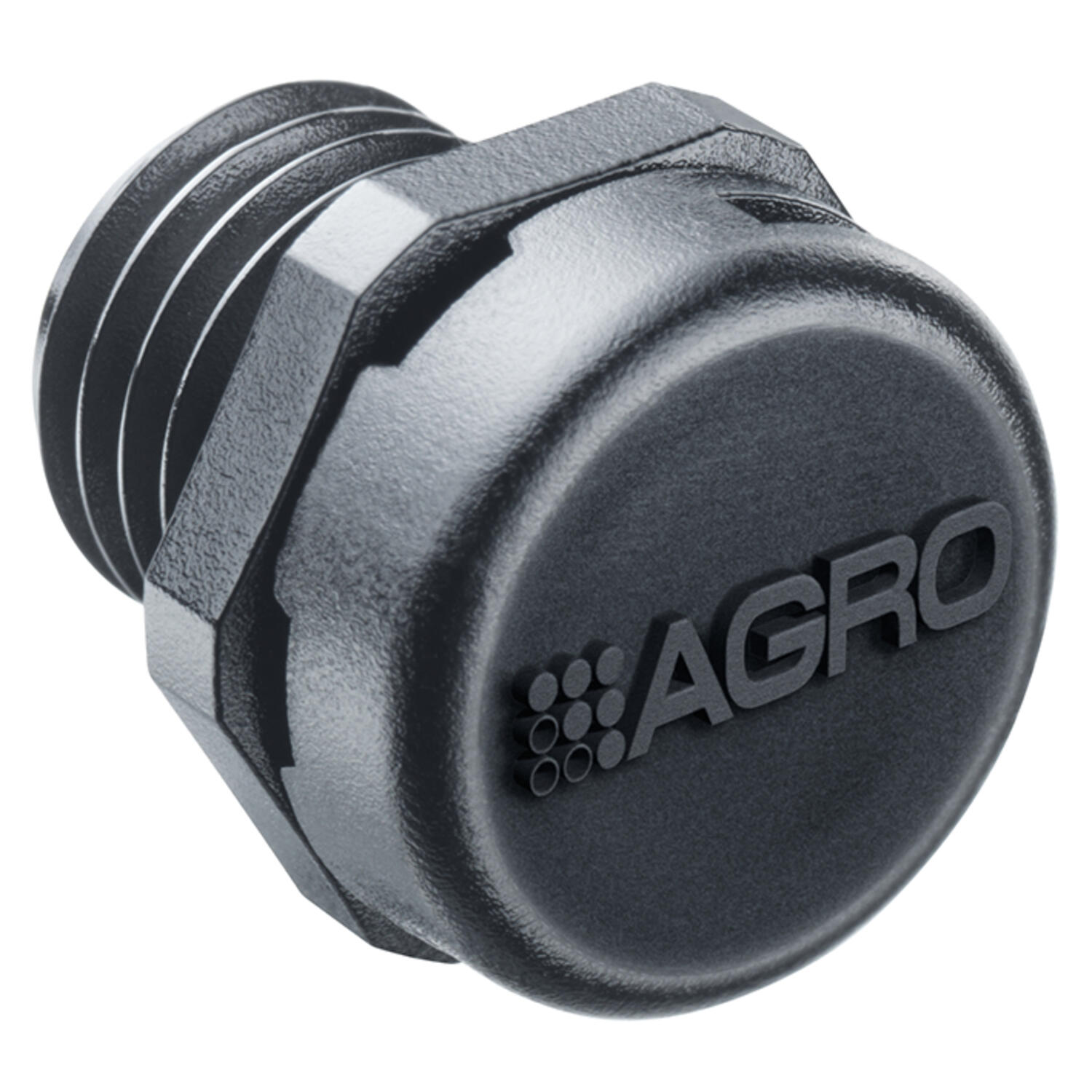

Pressure balance with membrane, black (RAL 9005), M12
Art:
2445.12
Copied
|
M12
|
IP 66 / IP 68 / IP 69
|
Black
|
> 12.0 psi / 0.83 bar
|
> 90ml/min/cm² at 10mbar
|
1,5
|
10 mm
|
9 mm
|
17 mm
|
|
Polyamide
|
NBR
|
Polyethersulfone (PES)
|
-40°C ... +100°C
|
25
|
| ||

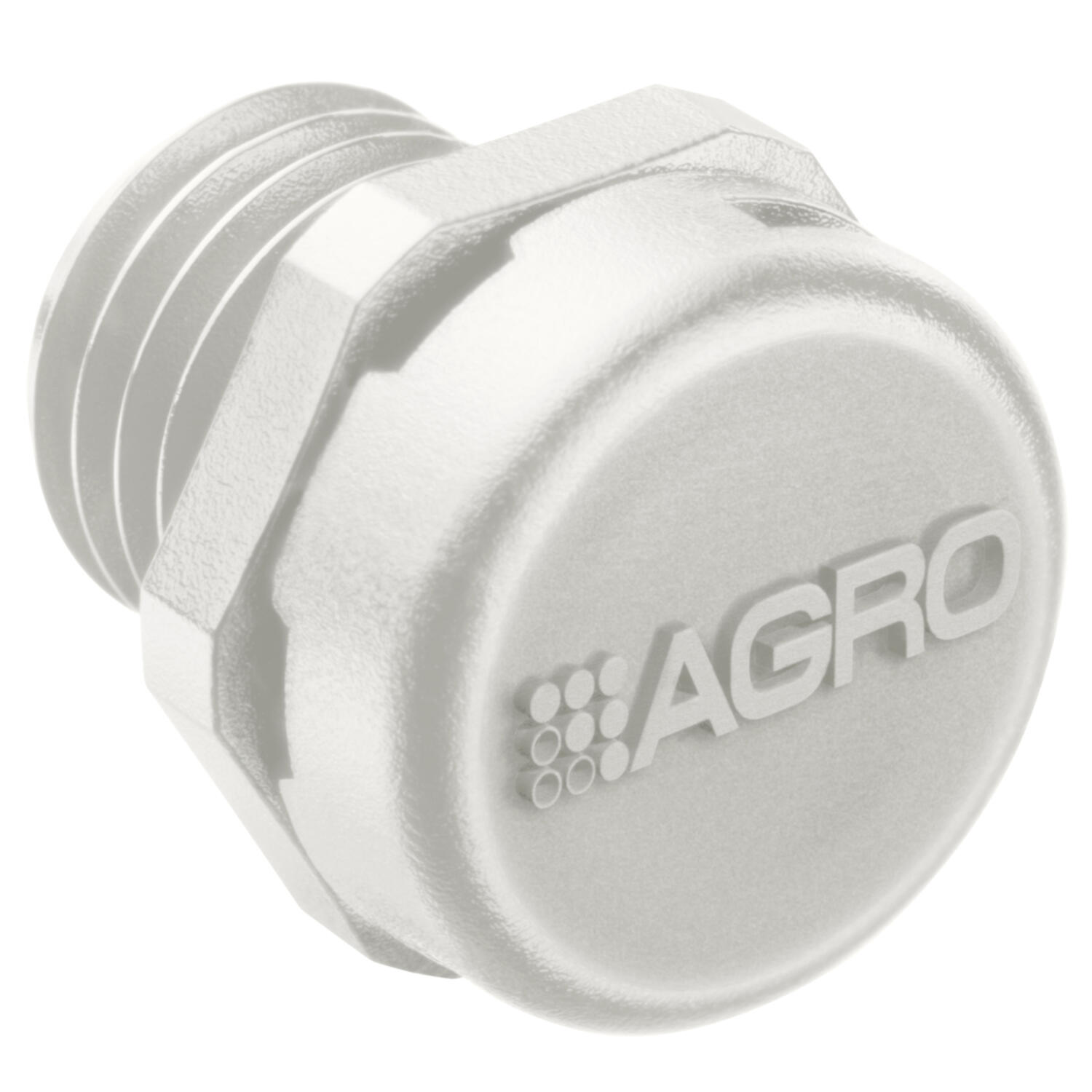

Pressure balance with membrane, M12
Art:
2455.12
Copied
|
M12
|
IP 66 / IP 68 / IP 69
|
Grey RAL 7035
|
> 12.0 psi / 0.83 bar
|
> 90ml/min/cm² at 10mbar
|
1,5
|
10 mm
|
9 mm
|
17 mm
|
|
Polyamide
|
NBR
|
Polyethersulfone (PES)
|
-40°C ... +100°C
|
25
|
| ||
Locking screw synthetic, no O-ring, M12
Art:
8855.12
Copied
|
M12
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
15 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, M16
Art:
8855.17
Copied
|
M16
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
20 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, M20
Art:
8855.20
Copied
|
M20
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
24 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, M25
Art:
8855.25
Copied
|
M25
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
8 mm
|
5 mm
|
|
30 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, M32
Art:
8855.32
Copied
|
M32
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
8 mm
|
5,5 mm
|
|
37 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
50
|
| ||
|
Locking screw synthetic, no O-ring, M40
Art:
8855.40
Copied
|
M40
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
8 mm
|
6 mm
|
|
46 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
50
|
| ||
|
Locking screw synthetic, no O-ring, M50
Art:
8855.50
Copied
|
M50
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
10 mm
|
6 mm
|
|
56 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
10
|
| ||
|
Locking screw synthetic, no O-ring, M63
Art:
8855.63
Copied
|
M63
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
1,5
|
12 mm
|
6 mm
|
|
70 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
10
|
| ||
Locking screw synthetic, black (RAL9005), no O-ring, M12
Art:
8845.12
Copied
|
M12
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
15 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M16
Art:
8845.17
Copied
|
M16
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
20 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M20
Art:
8845.20
Copied
|
M20
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
6 mm
|
4,5 mm
|
|
24 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M25
Art:
8845.25
Copied
|
M25
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
8 mm
|
5 mm
|
|
30 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
100
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M32
Art:
8845.32
Copied
|
M32
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
8 mm
|
5,5 mm
|
|
37 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
50
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M40
Art:
8845.40
Copied
|
M40
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
8 mm
|
6 mm
|
|
46 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
50
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M50
Art:
8845.50
Copied
|
M50
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
10 mm
|
6 mm
|
|
56 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
10
|
| ||
|
Locking screw synthetic, black (RAL9005), no O-ring, M63
Art:
8845.63
Copied
|
M63
|
IP 54, IP 68 further protection if entry thread is sealed
|
Black RAL 9005
|
|
|
1,5
|
12 mm
|
6 mm
|
|
70 mm
|
Polyamide
|
|
|
-30°C ... +100°C
|
10
|
| ||

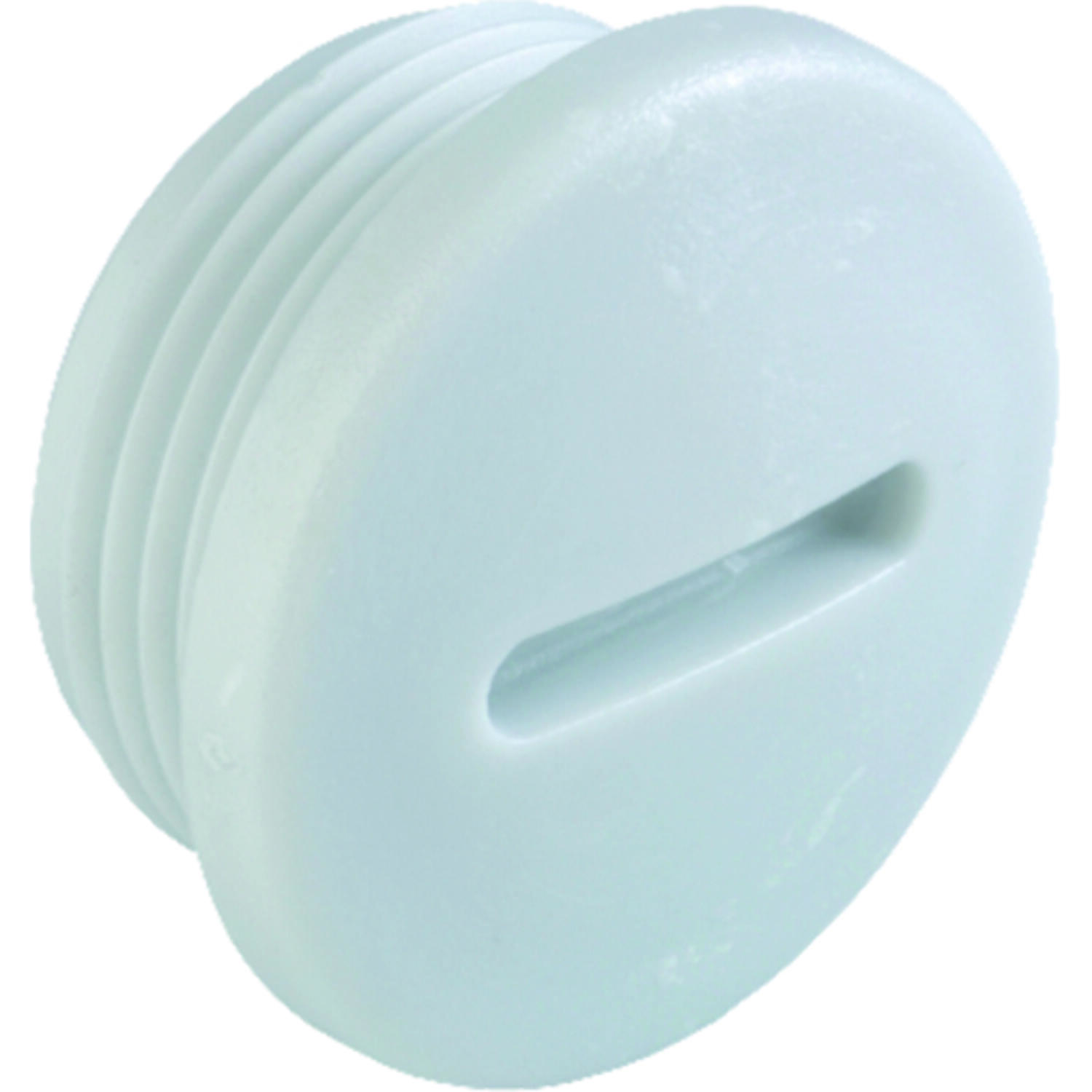

Locking screw synthetic, no O-ring, Pg 7
Art:
8807
Copied
|
PG 7
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
6 mm
|
2 mm
|
|
15 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, Pg 9
Art:
8809
Copied
|
PG 9
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
6,5 mm
|
3 mm
|
|
19 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, Pg 16
Art:
8816
Copied
|
PG 16
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
6,5 mm
|
3,5 mm
|
|
27 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, Pg 21
Art:
8821
Copied
|
PG 21
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
8 mm
|
4 mm
|
|
33 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
100
|
| ||
|
Locking screw synthetic, no O-ring, Pg 29
Art:
8829
Copied
|
PG 29
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
8 mm
|
4 mm
|
|
44 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
50
|
| ||
|
Locking screw synthetic, no O-ring, Pg 42
Art:
8842
Copied
|
PG 42
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
10 mm
|
6 mm
|
|
62 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
10
|
| ||
|
Locking screw synthetic, no O-ring, Pg 48
Art:
8848.48
Copied
|
PG 48
|
IP 54, IP 68 further protection if entry thread is sealed
|
Grey RAL 7035
|
|
|
|
12 mm
|
5 mm
|
|
69 mm
|
Polystyrene
|
|
|
-20°C ... +80°C
|
25
|
|
