General Data |
|
|---|---|
| Thread Size (G) | PG 9 |
| Insert Type | One-Piece |
| Cable diameter min | 2 mm |
| Cable diameter max | 3 mm |
| Number of cables | 2 |
| IP class | IP 68 |
| Colour | Grey RAL 7035 |
Dimensions |
|
| Thread length | 12 mm |
| Height (H) | 26 mm |
| Spanner width (AF) | 21 mm |
Materials |
|
|---|---|
| Material | Fiberglass reinforced polyamide |
| Material of seals | TPE |
| Temperature range | -20°C ... +100°C |
Approvals |
|
| Approvals | EAC |
Additional Data |
|
| Pack size | 50 |
| Country of origin | CH |
| Tariff code | 39269000 |
| Weight | 10,2 g |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | Cable diameter min | Cable diameter max | Number of cables | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Approvals | Strain relief | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

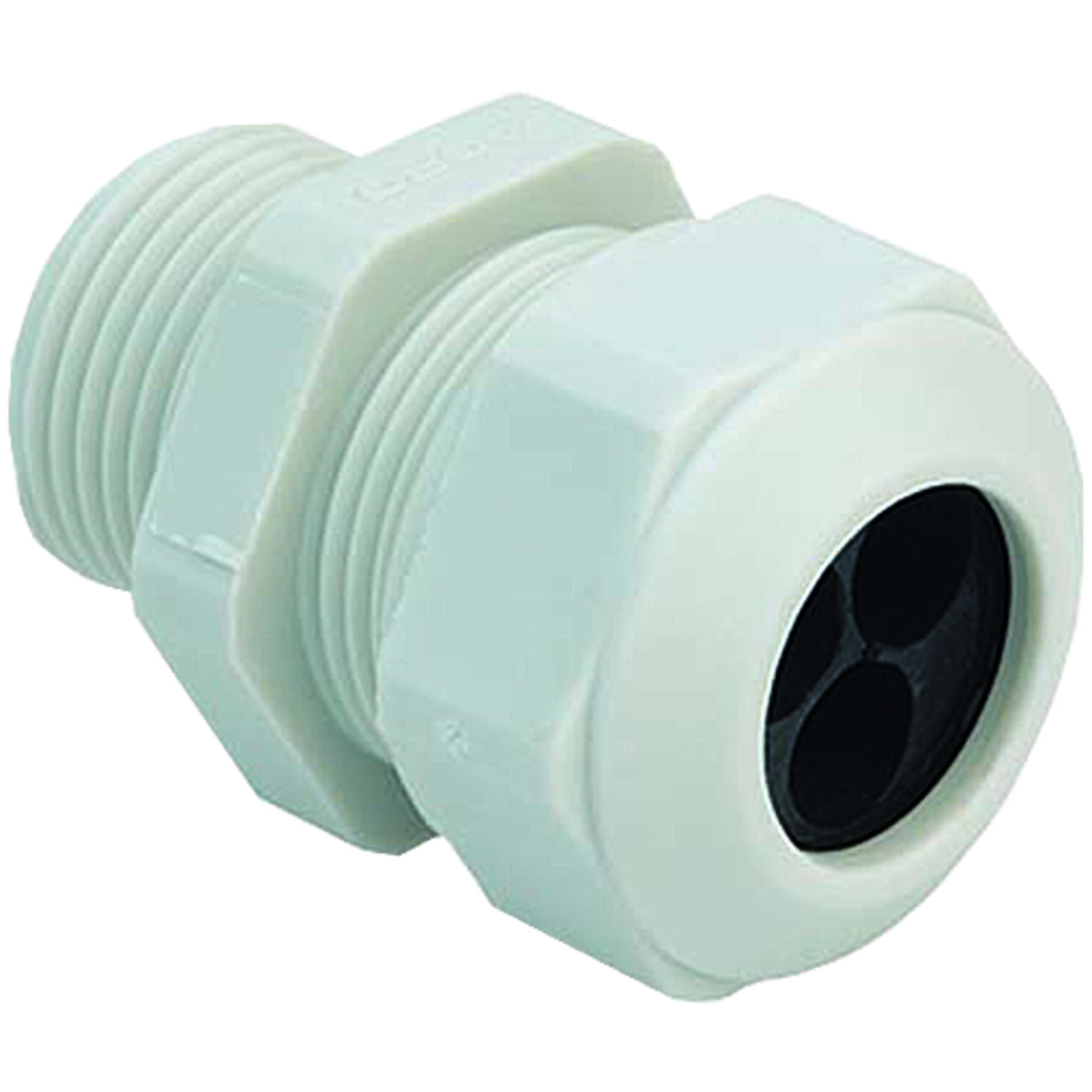

Gland synthetic, GSK, Pg 9, multi, 2 x ø2.5…3mm
Art:
1571.09.2.030
Copied
|
PG 9
|
2 mm
|
3 mm
|
2
|
|
12 mm
|
26 mm
|
21 mm
|
EAC
|
|
50
|
10,2 g
|
| ||
|
Gland synthetic, GSK, Pg 9, multi, 2 x ø2.5…4mm
Art:
1571.09.2.040
Copied
|
PG 9
|
2,5 mm
|
4 mm
|
2
|
|
12 mm
|
26 mm
|
21 mm
|
EAC
|
|
50
|
10 g
|
| ||
|
Gland synthetic, Pg 9, multi, 2 x ø3.5…5mm
Art:
1571.09.2.050
Copied
|
PG 9
|
3,5 mm
|
5 mm
|
2
|
|
12 mm
|
26 mm
|
21 mm
|
EAC
|
|
50
|
10,32 g
|
| ||
|
Gland synthetic, Pg 11, multi, 2 x ø3.5…5mm
Art:
1571.11.2.050
Copied
|
PG 11
|
3,5 mm
|
5 mm
|
2
|
|
12 mm
|
28 mm
|
24 mm
|
EAC
|
|
50
|
14,46 g
|
| ||
|
Gland synthetic, Pg 11, multi, 2 x ø4.5…6mm
Art:
1571.11.2.060
Copied
|
PG 11
|
4,5 mm
|
6 mm
|
2
|
|
12 mm
|
28 mm
|
24 mm
|
EAC
|
|
50
|
14,18 g
|
| ||
|
Gland synthetic, Pg 11, multi, 3 x ø3.5…5mm
Art:
1571.11.3.050
Copied
|
PG 11
|
3,5 mm
|
5 mm
|
3
|
|
12 mm
|
28 mm
|
24 mm
|
EAC
|
|
50
|
13,58 g
|
| ||
|
Gland synthetic, Pg 13, multi, 2 x ø3.5…5mm
Art:
1571.13.2.050
Copied
|
PG 13
|
3,5 mm
|
5 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
17,3 g
|
| ||
|
Gland synthetic, Pg 13, multi, 2 x ø4.5…6mm
Art:
1571.13.2.060
Copied
|
PG 13
|
4,5 mm
|
6 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
17,28 g
|
| ||
|
Gland synthetic, Pg 13, multi, 2 x ø5.5…7.5mm
Art:
1571.13.2.075
Copied
|
PG 13
|
5,5 mm
|
7,5 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
16,74 g
|
| ||
|
Gland synthetic, Pg 13, multi, 3 x ø3.5…5mm
Art:
1571.13.3.050
Copied
|
PG 13
|
3,5 mm
|
5 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18 g
|
| ||
|
Gland synthetic, Pg 13, multi, 3 x ø4.5…6mm
Art:
1571.13.3.060
Copied
|
PG 13
|
4,5 mm
|
6 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18 g
|
| ||
|
Gland synthetic, Pg 13, multi, 3 x ø5.2…6.5mm
Art:
1571.13.3.065
Copied
|
PG 13
|
5,2 mm
|
6,5 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18 g
|
| ||
|
Gland synthetic, Pg 13, multi, 4 x ø3.5…5mm
Art:
1571.13.4.050
Copied
|
PG 13
|
3,5 mm
|
5 mm
|
4
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18 g
|
| ||
|
Gland synthetic, Pg 13, multi, 4 x ø4.5…6mm
Art:
1571.13.4.060
Copied
|
PG 13
|
4,5 mm
|
6 mm
|
4
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
16,3 g
|
| ||
|
Gland synthetic, Pg 16, multi, 2 x ø4.5…6mm
Art:
1571.16.2.060
Copied
|
PG 16
|
4,5 mm
|
6 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
17,8 g
|
| ||
|
Gland synthetic, Pg 16, multi, 2 x ø5.5…7.5mm
Art:
1571.16.2.075
Copied
|
PG 16
|
5,5 mm
|
7,5 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
17,12 g
|
| ||
|
Gland synthetic, Pg 16, multi, 3 x ø3.5…5mm
Art:
1571.16.3.050
Copied
|
PG 16
|
3,5 mm
|
5 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18 g
|
| ||
|
Gland synthetic, Pg 16, multi, 3 x ø4.5…6mm
Art:
1571.16.3.060
Copied
|
PG 16
|
4,5 mm
|
6 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
17,1 g
|
| ||
|
Gland synthetic, Pg 16, multi, 3 x ø5.2…6.5mm
Art:
1571.16.3.065
Copied
|
PG 16
|
5,2 mm
|
6,5 mm
|
3
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
16,76 g
|
| ||
|
Gland synthetic, Pg 16, multi, 4 x ø3.5…5mm
Art:
1571.16.4.050
Copied
|
PG 16
|
3,5 mm
|
5 mm
|
4
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
16,7 g
|
| ||
|
Gland synthetic, Pg 16, multi, 4 x ø4.5…6mm
Art:
1571.16.4.060
Copied
|
PG 16
|
4,5 mm
|
6 mm
|
4
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
16,84 g
|
| ||
|
Gland synthetic, GSK, M16, multi, 2 x ø2.5…3mm
Art:
1571.17.2.030
Copied
|
M16
|
2 mm
|
3 mm
|
2
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
10,94 g
|
| ||
|
Gland synthetic, GSK, M16, multi, 2 x ø2.5…4mm
Art:
1571.17.2.040
Copied
|
M16
|
2,5 mm
|
4 mm
|
2
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
10,76 g
|
| ||
|
Gland synthetic, M16, multi, 2 x ø3.5…5mm
Art:
1571.17.2.050
Copied
|
M16
|
3,5 mm
|
5 mm
|
2
|
1,5
|
12 mm
|
26 mm
|
21 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
10,54 g
|
| ||
|
Gland synthetic, M20, multi, 2 x ø3.5…5mm
Art:
1571.20.2.050
Copied
|
M20
|
3,5 mm
|
5 mm
|
2
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
17,3 g
|
| ||
|
Gland synthetic, M20, multi, 2 x ø4.5…6mm
Art:
1571.20.2.060
Copied
|
M20
|
4,5 mm
|
6 mm
|
2
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
16,96 g
|
| ||
|
Gland synthetic, M20, multi, 2 x ø5.5…7.5mm
Art:
1571.20.2.075
Copied
|
M20
|
5,5 mm
|
7,5 mm
|
2
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
16,4 g
|
| ||
|
Gland synthetic, M20, multi, 3 x ø3.5…5mm
Art:
1571.20.3.050
Copied
|
M20
|
3,5 mm
|
5 mm
|
3
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
16,88 g
|
| ||
|
Gland synthetic, M20, multi, 3 x ø4.5…6mm
Art:
1571.20.3.060
Copied
|
M20
|
4,5 mm
|
6 mm
|
3
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
16,44 g
|
| ||
|
Gland synthetic, M20, multi, 3 x ø5.2…6.5mm
Art:
1571.20.3.065
Copied
|
M20
|
5,2 mm
|
6,5 mm
|
3
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
15,98 g
|
| ||
|
Gland synthetic, M20, multi, 4 x ø4.5…6mm
Art:
1571.20.4.050
Copied
|
M20
|
3,5 mm
|
5 mm
|
4
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
16,5 g
|
| ||
|
Gland synthetic, M20, multi, 4 x ø4.5…6mm
Art:
1571.20.4.060
Copied
|
M20
|
4,5 mm
|
6 mm
|
4
|
1,5
|
13 mm
|
28 mm
|
27 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
50
|
15,96 g
|
| ||
|
Gland synthetic, Pg 21, multi, 2 x ø5…7mm
Art:
1571.21.2.070
Copied
|
PG 21
|
5 mm
|
7 mm
|
2
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
32,5 g
|
| ||
|
Gland synthetic, Pg 21, multi, 2 x ø6.7…9mm
Art:
1571.21.2.090
Copied
|
PG 21
|
6,7 mm
|
9 mm
|
2
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
33,6 g
|
| ||
|
Gland synthetic, Pg 21, multi, 2 x ø7.7…10mm
Art:
1571.21.2.100
Copied
|
PG 21
|
7,7 mm
|
10 mm
|
2
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
33 g
|
| ||
|
Gland synthetic, Pg 21, multi, 3 x ø5.5…7mm
Art:
1571.21.3.070
Copied
|
PG 21
|
5,5 mm
|
7 mm
|
3
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
33 g
|
| ||
|
Gland synthetic, Pg 21, multi, 3 x ø6.7…9mm
Art:
1571.21.3.090
Copied
|
PG 21
|
6,8 mm
|
9 mm
|
3
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
31,2 g
|
| ||
|
Gland synthetic, Pg 21, multi, 4 x ø5.5…7mm
Art:
1571.21.4.070
Copied
|
PG 21
|
5,5 mm
|
7 mm
|
4
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
31,76 g
|
| ||
|
Gland synthetic, Pg 21, multi, 6 x ø4.8…6mm
Art:
1571.21.6.060
Copied
|
PG 21
|
4,8 mm
|
6 mm
|
6
|
|
13 mm
|
33 mm
|
34 mm
|
EAC
|
|
25
|
32 g
|
| ||
|
Gland synthetic, M25, multi, 2 x ø5…7mm
Art:
1571.25.2.070
Copied
|
M25
|
5 mm
|
7 mm
|
2
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
31,88 g
|
| ||
|
Gland synthetic, M25, multi, 2 x ø6.7…9mm
Art:
1571.25.2.090
Copied
|
M25
|
6,7 mm
|
9 mm
|
2
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
31,08 g
|
| ||
|
Gland synthetic, M25, multi, 2 x ø7.7…10mm
Art:
1571.25.2.100
Copied
|
M25
|
7,7 mm
|
10 mm
|
2
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
30,24 g
|
| ||
|
Gland synthetic, M25, multi, 3 x ø5…7mm
Art:
1571.25.3.070
Copied
|
M25
|
5,5 mm
|
7 mm
|
3
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
30,92 g
|
| ||
|
Gland synthetic, M25, multi, 3 x ø6.8…9mm
Art:
1571.25.3.090
Copied
|
M25
|
6,8 mm
|
9 mm
|
3
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
29,44 g
|
| ||
|
Gland synthetic, M25, multi, 4 x ø5.5…7mm
Art:
1571.25.4.070
Copied
|
M25
|
5,5 mm
|
7 mm
|
4
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
30,2 g
|
| ||
|
Gland synthetic, M25, multi, 6 x ø4.8…6mm
Art:
1571.25.6.060
Copied
|
M25
|
4,8 mm
|
6 mm
|
6
|
1,5
|
13 mm
|
33 mm
|
34 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
29,96 g
|
| ||
|
Gland synthetic, Pg 29, multi, 3 x ø7.5…9mm
Art:
1571.29.3.090
Copied
|
PG 29
|
7,5 mm
|
9 mm
|
3
|
|
13 mm
|
36 mm
|
41 mm
|
EAC
|
|
25
|
44 g
|
| ||
|
Gland synthetic, M32, multi, 2 x ø9…11.5mm
Art:
1571.32.2.115
Copied
|
M32
|
9 mm
|
11,5 mm
|
2
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
46,12 g
|
| ||
|
Gland synthetic, M32, multi, 3 x ø7…9mm
Art:
1571.32.3.090
Copied
|
M32
|
7 mm
|
9 mm
|
3
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
46,8 g
|
| ||
|
Gland synthetic, M32, multi, 3 x ø8.5…10.5mm
Art:
1571.32.3.105
Copied
|
M32
|
8,5 mm
|
10,5 mm
|
3
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
45 g
|
| ||
|
Gland synthetic, M32, multi, 4 x ø7…9mm
Art:
1571.32.4.090
Copied
|
M32
|
7 mm
|
9 mm
|
4
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
29,44 g
|
| ||
|
Gland synthetic, M32, multi, 6 x ø5.8…7mm
Art:
1571.32.6.070
Copied
|
M32
|
5,8 mm
|
7 mm
|
6
|
1,5
|
15 mm
|
35 mm
|
41 mm
|
SEV, CE, DNV, EAC, VDE
|
Version A acc. to EN 62444
|
25
|
45,84 g
|
| ||
|
Gland synthetic, Pg 16, multi, 2 x ø3.5…5mm
Art:
1571.16.2.050
Copied
|
PG 16
|
3,5 mm
|
5 mm
|
2
|
|
13 mm
|
28 mm
|
27 mm
|
EAC
|
|
50
|
18,6 g
|
|
