AGRO
The Progress® range is also available with a combined cable clamp adding extra security and to comply with Version B of EN 672444 strain relief.
This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.
The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
The Progress® glands are available with a short or long entry thread metric, Pg, imperial or NPT and can be used with existing threaded holes or with a lock nut.
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.
General Data |
|
|---|---|
| Cable diameter min | 3 mm |
| Thread Size (G) | M10 |
| Cable diameter max | 4 mm |
| IP class | IP 68 (up to 10 bar), IP 69 further protection |
| Insert Type | One-Piece |

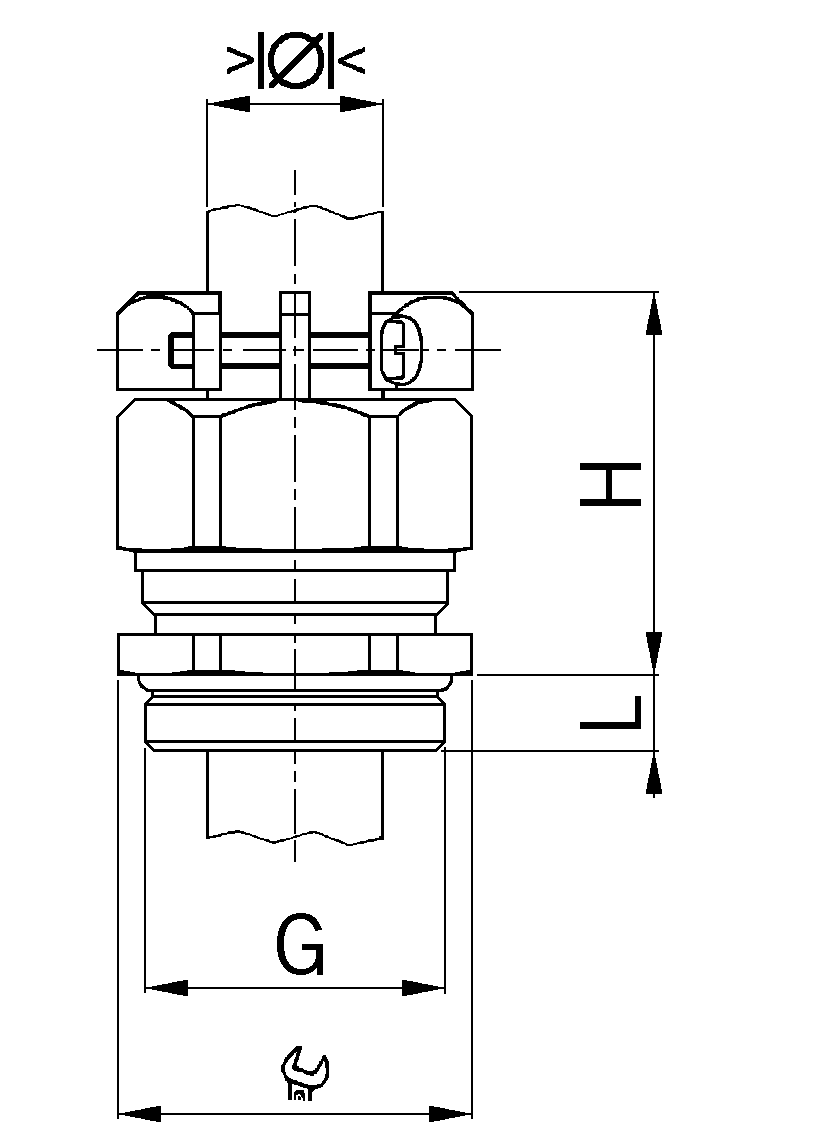

Dimensions |
|
| Thread pitch | 1,5 |
| Height (H) | 24 mm |
| Spanner width (AF) | 16 mm |
| Thread length | 5 mm |
Materials |
|
| Material screw | Stainless steel A2 |
| Material | Nickel-plated brass |
*Invisible Heading* |
|
|---|---|
| Materials O-ring | NBR |
| Material of seals | TPE |
| Temperature range | -40°C … +100°C |
Approvals |
|
| Strain relief | Version B acc. to EN 62444 |
| Approvals | CE, SEV, VDE, EAC, DNV |
Additional Data |
|
| Pack size | 50 |
| Country of origin | CH |
| Tariff code | 74199949 |
| Additional features | Metric coarse-pitch thread (with VDE test report) |
| Weight | 24,92 g |
The Progress® range is also available with a combined cable clamp adding extra security and to comply with Version B of EN 672444 strain relief.
This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.
The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
The Progress® glands are available with a short or long entry thread metric, Pg, imperial or NPT and can be used with existing threaded holes or with a lock nut.
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Cable diameter inner max | Cable diameter min | Cable diameter inner min | Thread Size (G) | Cable diameter max | Insert Type | Thread pitch | Height (H) | Spanner width (AF) | Thread length | Strain relief | Approvals | Pack size | Additional features | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

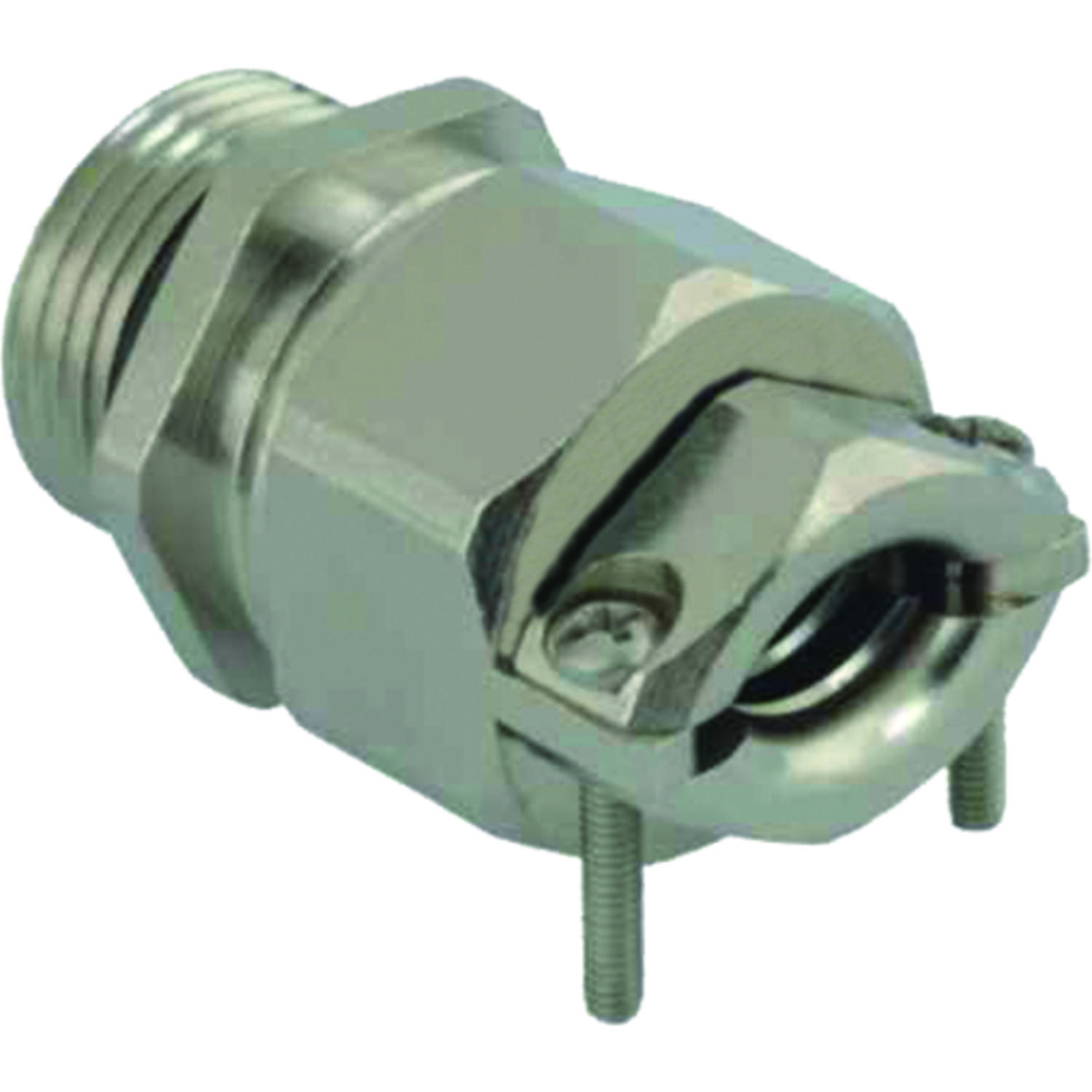

Gland NPB, clamped, M10, ø3…4mm
Art:
1800.10.03.040
Copied
|
|
3 mm
|
|
M10
|
4 mm
|
One-Piece
|
1,5
|
24 mm
|
16 mm
|
5 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
Metric coarse-pitch thread (with VDE test report)
|
24,92 g
|
| ||
|
Gland NPB, clamped, M10, ø4…6mm
Art:
1800.10.03.060
Copied
|
|
4 mm
|
|
M10
|
6 mm
|
One-Piece
|
1,5
|
24 mm
|
16 mm
|
5 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
Metric coarse-pitch thread (with VDE test report)
|
25,68 g
|
| ||
|
Gland NPB, clamped, M12, ø5…6.5mm
Art:
1800.12.03.065
Copied
|
|
5 mm
|
|
M12
|
6,5 mm
|
One-Piece
|
1,5
|
26 mm
|
16 mm
|
5 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
24,58 g
|
| ||
|
Gland NPB, clamped, M12, ø6.5…8mm
Art:
1800.12.03.080
Copied
|
|
6,5 mm
|
|
M12
|
8 mm
|
One-Piece
|
1,5
|
26 mm
|
16 mm
|
5 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
24,38 g
|
| ||
|
Gland NPB, clamped, M16, ø6…10.5mm
Art:
1800.17.03.105
Copied
|
8 mm
|
8 mm
|
6 mm
|
M16
|
10,5 mm
|
Two-Piece
|
1,5
|
30 mm
|
19 mm
|
5 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
36 g
|
| ||
|
Gland NPB, clamped, M20, ø8…15mm
Art:
1800.20.03.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
M20
|
15 mm
|
Two-Piece
|
1,5
|
31 mm
|
24 mm
|
6 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
53,3 g
|
| ||
|
Gland NPB, clamped, M25, ø12.5…20.5mm
Art:
1800.25.03.205
Copied
|
16 mm
|
16 mm
|
12,5 mm
|
M25
|
20,5 mm
|
Two-Piece
|
1,5
|
35 mm
|
30 mm
|
7 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
|
85,2 g
|
| ||
|
Gland NPB, clamped, M32, ø17…25.5mm
Art:
1800.32.03.255
Copied
|
21 mm
|
21 mm
|
17 mm
|
M32
|
25,5 mm
|
Two-Piece
|
1,5
|
40 mm
|
36 mm
|
8 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
|
136,12 g
|
| ||
|
Gland NPB, clamped, M40, ø24…33mm
Art:
1800.40.03.330
Copied
|
28,5 mm
|
28,5 mm
|
24 mm
|
M40
|
33 mm
|
Two-Piece
|
1,5
|
44 mm
|
46 mm
|
8 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
|
212,3 g
|
| ||
|
Gland NPB, clamped, M50, ø33…42mm
Art:
1800.50.03.410
Copied
|
37 mm
|
37 mm
|
33 mm
|
M50
|
42 mm
|
Two-Piece
|
1,5
|
49 mm
|
55 mm
|
9 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
|
311,3 g
|
| ||
|
Gland NPB, clamped, M63, ø40…52mm
Art:
1800.63.03.520
Copied
|
46 mm
|
46 mm
|
40 mm
|
M63
|
52 mm
|
Two-Piece
|
1,5
|
55 mm
|
70 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
|
635 g
|
| ||
|
Gland NPB, clamped, M75, ø50…63mm
Art:
1800.75.03.630
Copied
|
56 mm
|
56 mm
|
50 mm
|
M75
|
63 mm
|
Two-Piece
|
1,5
|
56 mm
|
80 mm
|
11 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
1
|
|
829 g
|
| ||
|
Gland NPB, clamped, M10, long, ø3…4mm
Art:
1800.10.13.040
Copied
|
|
3 mm
|
|
M10
|
4 mm
|
One-Piece
|
1,5
|
24 mm
|
16 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
Metric coarse-pitch thread (with VDE test report)
|
19,42 g
|
| ||
|
Gland NPB, clamped, M10, long, ø4…6mm
Art:
1800.10.13.060
Copied
|
|
4 mm
|
|
M10
|
6 mm
|
One-Piece
|
1,5
|
24 mm
|
16 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
Metric coarse-pitch thread (with VDE test report)
|
25,56 g
|
| ||
|
Gland NPB, clamped, M12, long, ø5…6.5mm
Art:
1800.12.13.065
Copied
|
|
5 mm
|
|
M12
|
6,5 mm
|
One-Piece
|
1,5
|
26 mm
|
16 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
25,58 g
|
| ||
|
Gland NPB, clamped, M12, long, ø6.5…8mm
Art:
1800.12.13.080
Copied
|
|
6,5 mm
|
|
M12
|
8 mm
|
One-Piece
|
1,5
|
26 mm
|
16 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
24,58 g
|
| ||
|
Gland NPB, clamped, M16, long, ø6…10.5mm
Art:
1800.17.13.105
Copied
|
8 mm
|
8 mm
|
6 mm
|
M16
|
10,5 mm
|
Two-Piece
|
1,5
|
30 mm
|
19 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
37,8 g
|
| ||
|
Gland NPB, clamped, M20, long, ø8…15mm
Art:
1800.20.13.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
M20
|
15 mm
|
Two-Piece
|
1,5
|
31 mm
|
24 mm
|
10 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
|
52,26 g
|
| ||
|
Gland NPB, clamped, M25, long, ø12.5…20.5mm
Art:
1800.25.13.205
Copied
|
16 mm
|
16 mm
|
12,5 mm
|
M25
|
20,5 mm
|
Two-Piece
|
1,5
|
35 mm
|
30 mm
|
11 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
|
89,46 g
|
| ||
|
Gland NPB, clamped, M32, long, ø17…25.5mm
Art:
1800.32.13.255
Copied
|
21 mm
|
21 mm
|
17 mm
|
M32
|
25,5 mm
|
Two-Piece
|
1,5
|
40 mm
|
36 mm
|
13 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
|
141,4 g
|
| ||
|
Gland NPB, clamped, M40, long, ø24…33mm
Art:
1800.40.13.330
Copied
|
28,5 mm
|
28,5 mm
|
24 mm
|
M40
|
33 mm
|
Two-Piece
|
1,5
|
44 mm
|
46 mm
|
13 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
|
245,7 g
|
| ||
|
Gland NPB, clamped, M50, long, ø33…42mm
Art:
1800.50.13.410
Copied
|
37 mm
|
37 mm
|
33 mm
|
M50
|
42 mm
|
Two-Piece
|
1,5
|
49 mm
|
55 mm
|
14 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
|
329 g
|
| ||
|
Gland NPB, clamped, M63, long, ø40…52mm
Art:
1800.63.13.520
Copied
|
46 mm
|
46 mm
|
40 mm
|
M63
|
52 mm
|
Two-Piece
|
1,5
|
55 mm
|
70 mm
|
14 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
|
678 g
|
| ||
|
Gland NPB, clamped, M75, long, ø50…63mm
Art:
1800.75.13.630
Copied
|
56 mm
|
56 mm
|
50 mm
|
M75
|
63 mm
|
Two-Piece
|
1,5
|
56 mm
|
80 mm
|
15 mm
|
Version B acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
1
|
|
779 g
|
| ||
|
Gland NPB, clamped, Pg 7, ø5…6.5mm
Art:
1800.07.03.065
Copied
|
|
5 mm
|
|
PG 7
|
6,5 mm
|
One-Piece
|
|
26 mm
|
16 mm
|
6 mm
|
|
EAC
|
50
|
|
25,3 g
|
| ||
|
Gland NPB, clamped, Pg 7, ø5.5…8mm
Art:
1800.07.03.080
Copied
|
|
6,5 mm
|
|
PG 7
|
8 mm
|
One-Piece
|
|
26 mm
|
16 mm
|
6 mm
|
|
EAC
|
50
|
|
24,58 g
|
| ||
|
Gland NPB, clamped, Pg 9, ø6…10.5mm
Art:
1800.09.03.105
Copied
|
8 mm
|
8 mm
|
6 mm
|
PG 9
|
10,5 mm
|
Two-Piece
|
|
30 mm
|
19 mm
|
6 mm
|
|
EAC
|
50
|
|
36,1 g
|
| ||
|
Gland NPB, clamped, Pg 11, ø5.5…12mm
Art:
1800.11.03.120
Copied
|
8,5 mm
|
8,5 mm
|
5,5 mm
|
PG 11
|
12 mm
|
Two-Piece
|
|
31 mm
|
21 mm
|
6 mm
|
|
EAC
|
50
|
|
45,3 g
|
| ||
|
Gland NPB, clamped, Pg 11, long, ø5.5…12mm
Art:
1800.11.13.120
Copied
|
8,5 mm
|
8,5 mm
|
5,5 mm
|
PG 11
|
12 mm
|
Two-Piece
|
|
31 mm
|
21 mm
|
10 mm
|
|
EAC
|
50
|
|
47,42 g
|
| ||
|
Gland NPB, clamped, Pg 13, ø8…15mm
Art:
1800.13.03.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
PG 13
|
15 mm
|
Two-Piece
|
|
31 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
|
53,24 g
|
| ||
|
Gland NPB, clamped, Pg 16, ø8…15mm
Art:
1800.16.03.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
PG 16
|
15 mm
|
Two-Piece
|
|
31 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
|
52,98 g
|
| ||
|
Gland NPB, clamped, Pg 21, ø12.5…20.5mm
Art:
1800.21.03.205
Copied
|
16 mm
|
16 mm
|
12,5 mm
|
PG 21
|
20,5 mm
|
Two-Piece
|
|
35 mm
|
30 mm
|
7 mm
|
|
EAC
|
25
|
|
94,18 g
|
| ||
|
Gland NPB, clamped, Pg 29, ø19…27.5mm
Art:
1800.29.03.275
Copied
|
23 mm
|
23 mm
|
19 mm
|
PG 29
|
27,5 mm
|
Two-Piece
|
|
40 mm
|
38 mm
|
8 mm
|
|
EAC
|
25
|
|
159,92 g
|
| ||
|
Gland NPB, clamped, Pg 36, ø26…35mm
Art:
1800.36.03.350
Copied
|
30,5 mm
|
30,5 mm
|
26 mm
|
PG 36
|
35 mm
|
Two-Piece
|
|
47 mm
|
50 mm
|
8 mm
|
|
EAC
|
10
|
|
306,4 g
|
| ||
|
Gland NPB, clamped, Pg 42, ø33…42mm
Art:
1800.42.03.410
Copied
|
37 mm
|
37 mm
|
33 mm
|
PG 42
|
42 mm
|
Two-Piece
|
|
49 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
|
461,5 g
|
| ||
|
Gland NPB, clamped, Pg 48, ø37…49mm
Art:
1800.48.03.490
Copied
|
43 mm
|
43 mm
|
37 mm
|
PG 48
|
49 mm
|
Two-Piece
|
|
51 mm
|
65 mm
|
11 mm
|
|
EAC
|
5
|
|
506,8 g
|
| ||
|
Gland NPB, clamped, Pg 7, long, ø5…6.5mm
Art:
1800.07.13.065
Copied
|
|
5 mm
|
|
PG 7
|
6,5 mm
|
One-Piece
|
|
26 mm
|
16 mm
|
10 mm
|
|
EAC
|
50
|
|
26,1 g
|
| ||
|
Gland NPB, clamped, Pg 7, long, ø5.5…8mm
Art:
1800.07.13.080
Copied
|
|
6,5 mm
|
|
PG 7
|
8 mm
|
One-Piece
|
|
26 mm
|
16 mm
|
10 mm
|
|
EAC
|
50
|
|
22 g
|
| ||
|
Gland NPB, clamped, Pg 9, long, ø6…10.5mm
Art:
1800.09.13.105
Copied
|
8 mm
|
8 mm
|
6 mm
|
PG 9
|
10,5 mm
|
Two-Piece
|
|
30 mm
|
19 mm
|
10 mm
|
|
EAC
|
50
|
|
37,14 g
|
| ||
|
Gland NPB, clamped, Pg 13, long, ø8…15mm
Art:
1800.13.13.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
PG 13
|
15 mm
|
Two-Piece
|
|
31 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
|
56,56 g
|
| ||
|
Gland NPB, clamped, Pg 16, long, ø8…15mm
Art:
1800.16.13.150
Copied
|
11 mm
|
11 mm
|
8 mm
|
PG 16
|
15 mm
|
Two-Piece
|
|
31 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
|
61,38 g
|
| ||
|
Gland NPB, clamped, Pg 21, long, ø12.5…20.5mm
Art:
1800.21.13.205
Copied
|
16 mm
|
16 mm
|
12,5 mm
|
PG 21
|
20,5 mm
|
Two-Piece
|
|
35 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
|
101,4 g
|
| ||
|
Gland NPB, clamped, Pg 29, long, ø19…27.5mm
Art:
1800.29.13.275
Copied
|
23 mm
|
23 mm
|
19 mm
|
PG 29
|
27,5 mm
|
Two-Piece
|
|
40 mm
|
38 mm
|
12 mm
|
|
EAC
|
25
|
|
170,2 g
|
| ||
|
Gland NPB, clamped, Pg 36, long, ø26…35mm
Art:
1800.36.13.350
Copied
|
30,5 mm
|
30,5 mm
|
26 mm
|
PG 36
|
35 mm
|
Two-Piece
|
|
47 mm
|
50 mm
|
15 mm
|
|
EAC
|
10
|
|
341,4 g
|
| ||
|
Gland NPB, clamped, Pg 42, long, ø33…42mm
Art:
1800.42.13.410
Copied
|
37 mm
|
37 mm
|
33 mm
|
PG 42
|
42 mm
|
Two-Piece
|
|
49 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
|
451,5 g
|
| ||
|
Gland NPB, clamped, Pg 48, long, ø37…49mm
Art:
1800.48.13.490
Copied
|
43 mm
|
43 mm
|
37 mm
|
PG 48
|
49 mm
|
Two-Piece
|
|
51 mm
|
65 mm
|
15 mm
|
|
EAC
|
5
|
|
1098 g
|
|
Select a variant in the list
