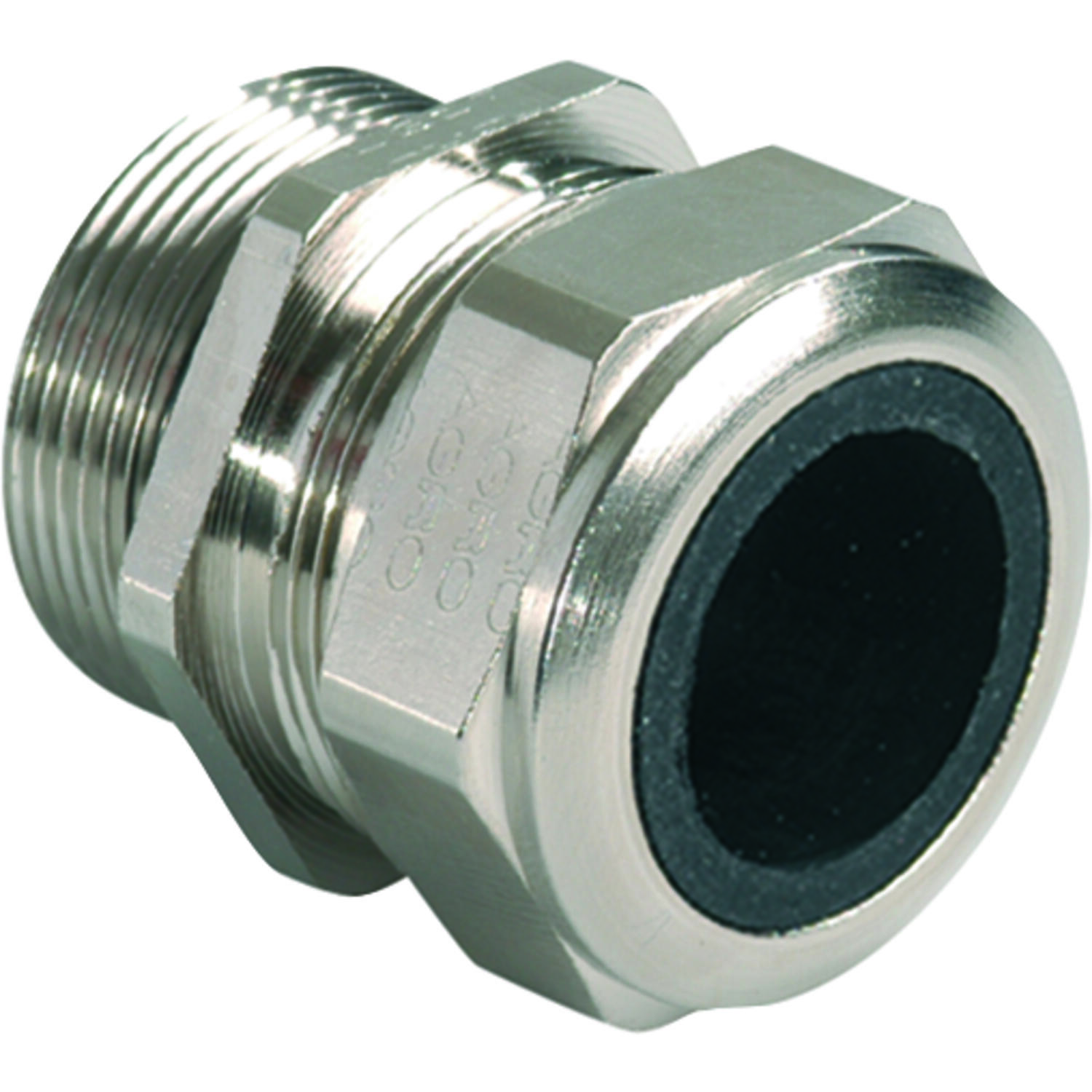

General Purpose Progress® MS 1000.17

General Data
Cable diameter inner max	8 mm
Cable diameter min	8 mm
Cable diameter inner min	6 mm
Thread Size (G)	M16
Cable diameter max	10,5 mm
IP class	IP 68 (up to 10 bar), IP 69 further protection
Insert Type	Two-Piece
Dimensions
Thread pitch	1,5
Height (H)	22 mm
Spanner width (AF)	18 mm
Thread length	5 mm

Materials
Material	Nickel-plated brass
Materials O-ring	NBR
Material of seals	TPE
Temperature range	-40°C ... +100°C
Approvals
Strain relief	Version A acc. to EN 62444
Approvals	SEV, CE, cRUus, cULus, DNV, EAC, VDE
Additional Data
Pack size	50
Country of origin	CH
Tariff code	74199949
Weight	18,78 g

Parts	Cable diameter inner max	Cable diameter min	Cable diameter inner min	Thread Size (G)	Cable diameter max	Insert Type	Thread pitch	Height (H)	Spanner width (AF)	Thread length	Material of seals	Strain relief	Approvals	Pack size	Additional features	Weight
Gland NPB, M16 ø6…10.5mm Art: 1000.17 Copied	8 mm	8 mm	6 mm	M16	10,5 mm	Two-Piece	1,5	22 mm	18 mm	5 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	50		18,78 g
Gland NPB, M20 ø8…15mm Art: 1000.20 Copied	11 mm	11 mm	8 mm	M20	15 mm	Two-Piece	1,5	23 mm	24 mm	6 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	50		32,68 g
Gland NPB, M25, ø12.5…20.5mm Art: 1000.25 Copied	16 mm	16 mm	12,5 mm	M25	20,5 mm	Two-Piece	1,5	28 mm	30 mm	7 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	25		59,76 g
Gland NPB, M32, ø21…25.5mm Art: 1000.32 Copied	21 mm	21 mm	17 mm	M32	25,5 mm	Two-Piece	1,5	28 mm	36 mm	8 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	25		96,1 g
Gland NPB, M40, ø28.5…33mm Art: 1000.40 Copied	28,5 mm	28,5 mm	24 mm	M40	33 mm	Two-Piece	1,5	31 mm	46 mm	8 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	10		156 g
Gland NPB, M50, ø37…42mm Art: 1000.50 Copied	37 mm	37 mm	33 mm	M50	42 mm	Two-Piece	1,5	34 mm	55 mm	9 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	10		208,2 g
Gland NPB, M63, ø46…52mm Art: 1000.63 Copied	46 mm	46 mm	40 mm	M63	52 mm	Two-Piece	1,5	37 mm	70 mm	10 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	5		388 g
Gland NPB, M75, ø56…63mm Art: 1000.75 Copied	56 mm	56 mm	50 mm	M75	63 mm	Two-Piece	1,5	38 mm	80 mm	11 mm	TPE	Version A acc. to EN 62444	SEV, CE, cRUus, cULus, DNV, EAC, VDE	1		504 g
Gland NPB, M6, ø2.5…3.5mm Art: 1000.06.035 Copied		3 mm		M6	3,5 mm	One-Piece	1	12 mm	8 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	3,26 g
Gland NPB, M8, ø2.5…3.5mm Art: 1000.08.035 Copied		2,5 mm		M8	3,5 mm	One-Piece	1,25	14 mm	11 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	6,64 g
Gland NPB, M8, ø3.5…5mm Art: 1000.08.050 Copied		3,5 mm		M8	5 mm	One-Piece	1,25	14 mm	11 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	6,46 g
Gland NPB, M10, ø3…4mm Art: 1000.10.040 Copied		3 mm		M10	4 mm	One-Piece	1,5	15 mm	13 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	9,66 g
Gland NPB, M10, ø4…6mm Art: 1000.10.060 Copied		4 mm		M10	6 mm	One-Piece	1,5	15 mm	13 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	9,44 g
Gland NPB, M12 ø3.5…5mm Art: 1000.12.050 Copied		3,5 mm		M12	5 mm	One-Piece	1,5	17 mm	15 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		12,04 g
Gland NPB, M12, ø5…6.5mm Art: 1000.12.065 Copied		5 mm		M12	6,5 mm	One-Piece	1,5	17 mm	15 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		11,82 g
Gland NPB, M12, ø6…8mm Art: 1000.12.080 Copied		6,5 mm		M12	8 mm	One-Piece	1,5	17 mm	15 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		11,46 g
Gland NPB, M16, ø3.5…4.5mm Art: 1000.17.045 Copied		3,5 mm		M16	4,5 mm	One-Piece	1,5	20 mm	18 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		18,4 g
Gland NPB, M16, ø4.5…6mm Art: 1000.17.060 Copied		4,5 mm		M16	6 mm	One-Piece	1,5	20 mm	18 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		17,68 g
Gland NPB, M16, ø6…8mm Art: 1000.17.080 Copied		6 mm		M16	8 mm	One-Piece	1,5	20 mm	18 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		17,88 g
Gland NPB, M16, ø8…10.5mm Art: 1000.17.105 Copied		8 mm		M16	10,5 mm	One-Piece	1,5	20 mm	18 mm	5 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		18,08 g
Gland NPB, M20, ø6…8mm Art: 1000.20.080 Copied		6 mm		M20	8 mm	One-Piece	1,5	22 mm	24 mm	6 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		32,72 g
Gland NPB, M20, ø8…11mm Art: 1000.20.110 Copied		8 mm		M20	11 mm	One-Piece	1,5	22 mm	24 mm	6 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		31,88 g
Gland NPB, M20, ø11…15mm Art: 1000.20.150 Copied		11 mm		M20	15 mm	One-Piece	1,5	22 mm	24 mm	6 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		31,28 g
Gland NPB, M25, ø9.5…12.5mm Art: 1000.25.125 Copied		9,5 mm		M25	12,5 mm	One-Piece	1,5	23 mm	30 mm	7 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		58,36 g
Gland NPB, M25, ø12.5…16mm Art: 1000.25.160 Copied		12,5 mm		M25	16 mm	One-Piece	1,5	23 mm	30 mm	7 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		56,28 g
Gland NPB, M25, ø16…20.5mm Art: 1000.25.205 Copied		16 mm		M25	20,5 mm	One-Piece	1,5	23 mm	30 mm	7 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		56,36 g
Gland NPB, M32, ø14…17mm Art: 1000.32.170 Copied		14 mm		M32	17 mm	One-Piece	1,5	28 mm	36 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		98,16 g
Gland NPB, M32, ø17…21mm Art: 1000.32.210 Copied		17 mm		M32	21 mm	One-Piece	1,5	28 mm	36 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		95,44 g
Gland NPB, M32, ø21…25.5mm Art: 1000.32.255 Copied		21 mm		M32	25,5 mm	One-Piece	1,5	28 mm	36 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		91,48 g
Gland NPB, M40, ø20…24mm Art: 1000.40.240 Copied		20 mm		M40	24 mm	One-Piece	1,5	31 mm	46 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		159,7 g
Gland NPB, M40, ø24…28.5mm Art: 1000.40.285 Copied		24 mm		M40	28,5 mm	One-Piece	1,5	31 mm	46 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		157 g
Gland NPB, M40, ø28.5…33mm Art: 1000.40.330 Copied		28,5 mm		M40	33 mm	One-Piece	1,5	31 mm	46 mm	8 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		147,5 g
Gland NPB, M50, ø29…33mm Art: 1000.50.330 Copied		29 mm		M50	33 mm	One-Piece	1,5	34 mm	55 mm	9 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		210,3 g
Gland NPB, M50, ø33…37mm Art: 1000.50.370 Copied		33 mm		M50	37 mm	One-Piece	1,5	34 mm	55 mm	9 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		206,1 g
Gland NPB, M50, ø37…42mm Art: 1000.50.420 Copied		37 mm		M50	42 mm	One-Piece	1,5	34 mm	55 mm	9 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		199,6 g
Gland NPB, M63, ø35…40mm Art: 1000.63.400 Copied		35 mm		M63	40 mm	One-Piece	1,5	37 mm	70 mm	10 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		416 g
Gland NPB, M63, ø40…46mm Art: 1000.63.460 Copied		40 mm		M63	46 mm	One-Piece	1,5	37 mm	70 mm	10 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		391,4 g
Gland NPB, M63, ø46…52mm Art: 1000.63.520 Copied		46 mm		M63	52 mm	One-Piece	1,5	37 mm	70 mm	10 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		371 g
Gland NPB, M75, ø45…50mm Art: 1000.75.500 Copied		45 mm		M75	50 mm	One-Piece	1,5	38 mm	80 mm	11 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		516 g
Gland NPB, M75, ø50…56mm Art: 1000.75.560 Copied		50 mm		M75	56 mm	One-Piece	1,5	38 mm	80 mm	11 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		500 g
Gland NPB, M75, ø56…63mm Art: 1000.75.630 Copied		56 mm		M75	63 mm	One-Piece	1,5	38 mm	80 mm	11 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		483 g
Gland NPB, M85x2, ø63…70mm Art: 1000.85.700 Copied		63 mm		M85	70 mm	One-Piece	2	41 mm	95 mm	18 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		947,6 g
Gland NPB, M95x2, ø68…75mm Art: 1000.95.750 Copied		68 mm		M95	75 mm	One-Piece	2	51 mm	110 mm	20 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		1784 g
Gland NPB, M95x2, ø73…80mm Art: 1000.95.800 Copied		73 mm		M95	80 mm	One-Piece	2	51 mm	110 mm	20 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		1553 g
Gland NPB, M100, ø78…85mm Art: 1000.100.850 Copied		78 mm		M100	85 mm	One-Piece	3	51 mm	115 mm	22 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		1619 g
Gland NPB, M105, ø83…90mm Art: 1000.105.900 Copied		83 mm		M105	90 mm	One-Piece	3	52 mm	120 mm	22 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		1763 g
Gland NPB, M115x3, ø88…95mm Art: 1000.115.950 Copied		88 mm		M115	95 mm	One-Piece	3	52 mm	125 mm	22 mm	TPE, NBR	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		2017 g
Gland NPB, M16, long, ø6…10.5mm Art: 1100.17 Copied	8 mm	8 mm	6 mm	M16	10,5 mm	Two-Piece	1,5	22 mm	18 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		20,98 g
Gland NPB, M20, long, ø8…15mm Art: 1100.20 Copied	11 mm	11 mm	8 mm	M20	15 mm	Two-Piece	1,5	23 mm	24 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		34,8 g
Gland NPB, M25, long, ø12.5…20.5mm Art: 1100.25 Copied	16 mm	16 mm	12,5 mm	M25	20,5 mm	Two-Piece	1,5	28 mm	30 mm	11 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		60,18 g
Gland NPB, M32, long, ø17…25.5mm Art: 1100.32 Copied	21 mm	21 mm	17 mm	M32	25,5 mm	Two-Piece	1,5	28 mm	36 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		95,6 g
Gland NPB, M50, long, ø33…42mm Art: 1100.50 Copied	37 mm	37 mm	33 mm	M50	42 mm	Two-Piece	1,5	34 mm	55 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		218,4 g
Gland NPB, M63, long, ø40…52mm Art: 1100.63 Copied	46 mm	46 mm	40 mm	M63	52 mm	Two-Piece	1,5	37 mm	70 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		412,2 g
Gland NPB, M75, long, ø50…63mm Art: 1100.75 Copied	56 mm	56 mm	50 mm	M75	63 mm	Two-Piece	1,5	38 mm	80 mm	15 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		541 g
Gland NPB, M6, long, ø2…2.5mm Art: 1100.06.025 Copied		2 mm		M6	2,5 mm	One-Piece	1	12 mm	8 mm	8 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	3,56 g
Gland NPB, M6, long, ø2.5…3mm Art: 1100.06.030 Copied		2,5 mm		M6	3 mm	One-Piece	1	12 mm	8 mm	8 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	3,46 g
Gland NPB, M6, long, ø3…3.5mm Art: 1100.06.035 Copied		3 mm		M6	3,5 mm	One-Piece	1	12 mm	8 mm	8 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	3,46 g
Gland NPB, M8, long, ø2.5…3.5mm Art: 1100.08.035 Copied		2,5 mm		M8	3,5 mm	One-Piece	1,25	14 mm	11 mm		TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	7,19 g
Gland NPB, M8, long, ø3.5…5mm Art: 1100.08.050 Copied		3,5 mm		M8	5 mm	One-Piece	1,25	14 mm	11 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	7,06 g
Gland NPB, M10, long, ø3…4mm Art: 1100.10.040 Copied		3 mm		M10	4 mm	One-Piece	1,5	15 mm	13 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	11,11 g
Gland NPB, M10, long, ø4…6mm Art: 1100.10.060 Copied		4 mm		M10	6 mm	One-Piece	1,5	15 mm	13 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50	Metric coarse-pitch thread (with VDE test report)	10,64 g
Gland NPB, M12, long, ø3.5…5mm Art: 1100.12.050 Copied		3,5 mm		M12	5 mm	One-Piece	1,5	17 mm	15 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		13,42 g
Gland NPB, M12, long, ø5…6.5mm Art: 1100.12.065 Copied		5 mm		M12	6,5 mm	One-Piece	1,5	17 mm	15 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		13,2 g
Gland NPB, M12, long, ø6.5…8mm Art: 1100.12.080 Copied		6,5 mm		M12	8 mm	One-Piece	1,5	17 mm	15 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		13,02 g
Gland NPB, M16, long, ø3.5…4.5mm Art: 1100.17.045 Copied		3,5 mm		M16	4,5 mm	One-Piece	1,5	20 mm	18 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		20,62 g
Gland NPB, M16, long, ø4.5…6mm Art: 1100.17.060 Copied		4,5 mm		M16	6 mm	One-Piece	1,5	20 mm	18 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		20,2 g
Gland NPB, M16, long, ø6…8mm Art: 1100.17.080 Copied		6 mm		M16	8 mm	One-Piece	1,5	20 mm	18 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		19,94 g
Gland NPB, M16, long, ø8…10.5mm Art: 1100.17.105 Copied		8 mm		M16	10,5 mm	One-Piece	1,5	22 mm	18 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		20,38 g
Gland NPB, M20, long, ø6…8mm Art: 1100.20.080 Copied		6 mm		M20	8 mm	One-Piece	1,5	21 mm	24 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		34,74 g
Gland NPB, M20, long, ø8…11mm Art: 1100.20.110 Copied		8 mm		M20	11 mm	One-Piece	1,5	21 mm	24 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		33,68 g
Gland NPB, M20, long, ø11…15mm Art: 1100.20.150 Copied		11 mm		M20	15 mm	One-Piece	1,5	23 mm	24 mm	10 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	50		33,34 g
Gland NPB, M25, long, ø9.5…12.5mm Art: 1100.25.125 Copied		9,5 mm		M25	12,5 mm	One-Piece	1,5	25 mm	30 mm	11 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		61,16 g
Gland NPB, M25, long, ø12.5…16mm Art: 1100.25.160 Copied		12,5 mm		M25	16 mm	One-Piece	1,5	27 mm	30 mm	11 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		59,24 g
Gland NPB, M25, long, ø16…20.5mm Art: 1100.25.205 Copied		16 mm		M25	20,5 mm	One-Piece	1,5	28 mm	30 mm	11 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		59,44 g
Gland NPB, M32, long, ø14…17mm Art: 1100.32.170 Copied		14 mm		M32	17 mm	One-Piece	1,5	28 mm	36 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		104,44 g
Gland NPB, M32, long, ø17…21mm Art: 1100.32.210 Copied		17 mm		M32	21 mm	One-Piece	1,5	28 mm	36 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		101,46 g
Gland NPB, M32, long, ø21…25.5mm Art: 1100.32.255 Copied		21 mm		M32	25,5 mm	One-Piece	1,5	28 mm	36 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	25		97,8 g
Gland NPB, M40, long, ø20…24mm Art: 1100.40.240 Copied		20 mm		M40	24 mm	One-Piece	1,5	31 mm	46 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		163,5 g
Gland NPB, M40, long, ø24…28.5mm Art: 1100.40.285 Copied		24 mm		M40	28,5 mm	One-Piece	1,5	31 mm	46 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		163,7 g
Gland NPB, M40, long, ø28.5…33mm Art: 1100.40.330 Copied		28,5 mm		M40	33 mm	One-Piece	1,5	31 mm	46 mm	13 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		160,9 g
Gland NPB, M50, long, ø29…33mm Art: 1100.50.330 Copied		29 mm		M50	33 mm	One-Piece	1,5	34 mm	55 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		221,5 g
Gland NPB, M50, long, ø33…37mm Art: 1100.50.370 Copied		33 mm		M50	37 mm	One-Piece	1,5	34 mm	55 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		217,8 g
Gland NPB, M50, long, ø37…42mm Art: 1100.50.420 Copied		37 mm		M50	42 mm	One-Piece	1,5	34 mm	55 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	10		204,2 g
Gland NPB, M63, long, ø35…40mm Art: 1100.63.400 Copied		35 mm		M63	40 mm	One-Piece	1,5	37 mm	70 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		409,6 g
Gland NPB, M63, long, ø40…46mm Art: 1100.63.460 Copied		40 mm		M63	46 mm	One-Piece	1,5	37 mm	70 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		404,2 g
Gland NPB, M63, long, ø46…52mm Art: 1100.63.520 Copied		46 mm		M63	52 mm	One-Piece	1,5	37 mm	70 mm	14 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	5		395,8 g
Gland NPB, M75, long, ø45…50mm Art: 1100.75.500 Copied		45 mm		M75	50 mm	One-Piece	1,5	38 mm	80 mm	15 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		557 g
Gland NPB, M75, long, ø50…56mm Art: 1100.75.560 Copied		50 mm		M75	56 mm	One-Piece	1,5	38 mm	80 mm	15 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		543 g
Gland NPB, M75, long, ø56…63mm Art: 1100.75.630 Copied		56 mm		M75	63 mm	One-Piece	1,5	38 mm	80 mm	15 mm	TPE	Version A acc. to EN 62444	CE, VDE, cULus, cRUus, EAC, DNV, SEV	1		528 g
Gland NPB, Pg 9, ø6…10.5mm Art: 1000.09 Copied	8 mm	8 mm	6 mm	PG 9	10,5 mm	Two-Piece		22 mm	18 mm	6 mm	TPE		cULus, cRUus, EAC	50		18,58 g
Gland NPB, Pg 11, ø5.5…12mm Art: 1000.11 Copied	8,5 mm	8,5 mm	5,5 mm	PG 11	12 mm	Two-Piece		21 mm	21 mm	6 mm	TPE		cULus, cRUus, EAC	50		25,94 g
Gland NPB, Pg 13, ø8…15mm Art: 1000.13 Copied	11 mm	11 mm	8 mm	PG 13	15 mm	Two-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		34,2 g
Gland NPB, Pg 16, ø8…15mm Art: 1000.16 Copied	11 mm	11 mm	8 mm	PG 16	15 mm	Two-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		36,68 g
Gland NPB, Pg 21, ø12.5…20.5mm Art: 1000.21 Copied	16 mm	16 mm	12,5 mm	PG 21	20,5 mm	Two-Piece		28 mm	30 mm	7,5 mm	TPE		cULus, cRUus, EAC	25		68,24 g
Gland NPB, Pg 29, ø19…27.5mm Art: 1000.29 Copied	23 mm	23 mm	19 mm	PG 29	27,5 mm	Two-Piece		28 mm	38 mm	8 mm	TPE		cULus, cRUus, EAC	25		103,63 g
Gland NPB, Pg 36, ø30.5…35mm Art: 1000.36 Copied	30,5 mm	30,5 mm	26 mm	PG 36	35 mm	Two-Piece		32 mm	50 mm	8 mm	TPE		cULus, cRUus, EAC	10		185,6 g
Gland NPB, Pg 42, ø37…42mm Art: 1000.42 Copied	37 mm	37 mm	33 mm	PG 42	42 mm	Two-Piece		34 mm	55 mm	10 mm	TPE		cULus, cRUus, EAC	10		232,4 g
Gland NPB, Pg 48, ø43…49mm Art: 1000.48 Copied	43 mm	43 mm	37 mm	PG 48	49 mm	Two-Piece		37 mm	65 mm	11 mm	TPE		cULus, cRUus, EAC	10		342,3 g
Gland NPB, Pg 7, ø3.5…5mm Art: 1000.07.050 Copied		3,5 mm		PG 7	5 mm	One-Piece		17 mm	15 mm	6 mm	TPE		cULus, cRUus, EAC	50		13,3 g
Gland NPB, Pg 7, ø5…6.5mm Art: 1000.07.065 Copied		5 mm		PG 7	6,5 mm	One-Piece		17 mm	15 mm	6 mm	TPE		cULus, cRUus, EAC	50		13,08 g
Gland NPB, Pg 7, ø6…8mm Art: 1000.07.080 Copied		6,5 mm		PG 7	8 mm	One-Piece		17 mm	15 mm	6 mm	TPE		cULus, cRUus, EAC	50		12,76 g
Gland NPB, Pg 9, ø3.5…4.5mm Art: 1000.09.045 Copied		3,5 mm		PG 9	4,5 mm	One-Piece		20 mm	18 mm	6 mm	TPE		cULus, cRUus, EAC	50		18,34 g
Gland NPB, Pg 9, ø5mm Art: 1000.09.060 Copied		4,5 mm		PG 9	6 mm	One-Piece		20 mm	18 mm	6 mm	TPE		cULus, cRUus, EAC	50		18,1 g
Gland NPB, Pg 9, ø6…8mm Art: 1000.09.080 Copied		6 mm		PG 9	8 mm	One-Piece		20 mm	18 mm	6 mm	TPE		cULus, cRUus, EAC	50		17,78 g
Gland NPB, Pg 9, ø8…10.5mm Art: 1000.09.105 Copied		8 mm		PG 9	10,5 mm	One-Piece		22 mm	18 mm	6 mm	TPE		cULus, cRUus, EAC	50		17,88 g
Gland NPB, Pg 11, ø4…5.5mm Art: 1000.11.055 Copied		4 mm		PG 11	5,5 mm	One-Piece		21 mm		6 mm	TPE		cULus, cRUus, EAC	50		28,9 g
Gland NPB, Pg 11, ø5.5…8.5mm Art: 1000.11.085 Copied		5,5 mm		PG 11	8,5 mm	One-Piece		21 mm	21 mm	6 mm	TPE		cULus, cRUus, EAC	50		28,3 g
Gland NPB, Pg 11, ø8.5…12mm Art: 1000.11.120 Copied		8,5 mm		PG 11	12 mm	One-Piece		21 mm	21 mm	6 mm	TPE		cULus, cRUus, EAC	50		25,14 g
Gland NPB, Pg 13, ø6…8mm Art: 1000.13.080 Copied		6 mm		PG 13	8 mm	One-Piece		24 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		34,08 g
Gland NPB, Pg 13, ø8…11mm Art: 1000.13.110 Copied		8 mm		PG 13	11 mm	One-Piece		21 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		33,56 g
Gland NPB, Pg 13, ø11…15mm Art: 1000.13.150 Copied		11 mm		PG 13	15 mm	One-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		31,38 g
Gland NPB, Pg 16, ø6…8mm Art: 1000.16.080 Copied		6 mm		PG 16	8 mm	One-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		36,23 g
Gland NPB, Pg 16, ø8…11mm Art: 1000.16.110 Copied		8 mm		PG 16	11 mm	One-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		35,7 g
Gland NPB, Pg 16, ø11…15mm Art: 1000.16.150 Copied		11 mm		PG 16	15 mm	One-Piece		23 mm	24 mm	6 mm	TPE		cULus, cRUus, EAC	50		34,54 g
Gland NPB, Pg 21, ø9.5…12.5mm Art: 1000.21.125 Copied		9,5 mm		PG 21	12,5 mm	One-Piece		28 mm	30 mm	7,5 mm	TPE		cULus, cRUus, EAC	25		66,2 g
Gland NPB, Pg 21, ø12.5…16mm Art: 1000.21.160 Copied		12,5 mm		PG 21	16 mm	One-Piece		28 mm	30 mm	7,5 mm	TPE		cULus, cRUus, EAC	25		64,84 g
Gland NPB, Pg 21, ø16…20.5mm Art: 1000.21.205 Copied		16 mm		PG 21	20,5 mm	One-Piece		28 mm	30 mm	7,5 mm	TPE		cULus, cRUus, EAC	25		64,1 g
Gland NPB, Pg 29, ø16…19mm Art: 1000.29.190 Copied		16 mm		PG 29	19 mm	One-Piece		28 mm	38 mm	8 mm	TPE		cULus, cRUus, EAC	25		104,4 g
Gland NPB, Pg 29, ø19…23mm Art: 1000.29.230 Copied		19 mm		PG 29	23 mm	One-Piece		28 mm	38 mm	8 mm	TPE		cULus, cRUus, EAC	25		104,72 g
Gland NPB, Pg 29, ø23…27.5mm Art: 1000.29.275 Copied		23 mm		PG 29	27,5 mm	One-Piece		28 mm	38 mm	8 mm	TPE		cULus, cRUus, EAC	25		102,2 g
Gland NPB, Pg 36, ø21.5…26mm Art: 1000.36.260 Copied		21,5 mm		PG 36	26 mm	One-Piece		32 mm	50 mm	8 mm	TPE		cULus, cRUus, EAC	10		189,5 g
Gland NPB, Pg 36, ø26…30.5mm Art: 1000.36.305 Copied		26 mm		PG 36	30,5 mm	One-Piece		32 mm	50 mm	8 mm	TPE		cULus, cRUus, EAC	10		186,5 g
Gland NPB, Pg 36, ø30.5…35mm Art: 1000.36.350 Copied		30,5 mm		PG 36	35 mm	One-Piece		32 mm	50 mm	8 mm	TPE		cULus, cRUus, EAC	10		181,5 g
Gland NPB, Pg 42, ø29…33mm Art: 1000.42.330 Copied		29 mm		PG 42	33 mm	One-Piece		34 mm	55 mm	10 mm	TPE		cULus, cRUus, EAC	10		234,4 g
Gland NPB, Pg 42, ø33…37mm Art: 1000.42.370 Copied		33 mm		PG 42	37 mm	One-Piece		34 mm	55 mm	10 mm	TPE		cULus, cRUus, EAC	10		231,6 g
Gland NPB, Pg 42, ø37…42mm Art: 1000.42.420 Copied		37 mm		PG 42	42 mm	One-Piece		34 mm	55 mm	10 mm	TPE		cULus, cRUus, EAC	10		224,7 g
Gland NPB, Pg 48, ø32…37mm Art: 1000.48.370 Copied		32 mm		PG 48	37 mm	One-Piece		37 mm	65 mm	11 mm	TPE		cULus, cRUus, EAC	10		346,6 g
Gland NPB, Pg 48, ø37…43mm Art: 1000.48.430 Copied		37 mm		PG 48	43 mm	One-Piece		37 mm	65 mm	11 mm	TPE		cULus, cRUus, EAC	10		339,5 g
Gland NPB, Pg 48, ø43…49mm Art: 1000.48.490 Copied		43 mm		PG 48	49 mm	One-Piece		37 mm	65 mm	11 mm	TPE		cULus, cRUus, EAC	10		333,1 g
Gland NPB, Pg 9, long, ø6…10.5mm Art: 1100.09 Copied	8 mm	8 mm	6 mm	PG 9	10,5 mm	Two-Piece		22 mm	18 mm	10 mm	TPE		cULus, cRUus, EAC	50		20,08 g
Gland NPB, Pg 11, long, ø5.5…12mm Art: 1100.11 Copied	8,5 mm	8,5 mm	5,5 mm	PG 11	12 mm	Two-Piece		21 mm	21 mm	10 mm	TPE		cULus, cRUus, EAC	50		30,2 g
Gland NPB, Pg 13, long, ø8…15mm Art: 1100.13 Copied	11 mm	11 mm	8 mm	PG 13	15 mm	Two-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		37,4 g
Gland NPB, Pg 16, long, ø8…15mm Art: 1100.16 Copied	11 mm	11 mm	8 mm	PG 16	15 mm	Two-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		42,3 g
Gland NPB, Pg 21, long, ø12.5…20.5mm Art: 1100.21 Copied	16 mm	16 mm	12,5 mm	PG 21	20,5 mm	Two-Piece		28 mm	30 mm	12 mm	TPE		cULus, cRUus, EAC	25		76,8 g
Gland NPB, Pg 29, long, ø19…27.5mm Art: 1100.29 Copied	23 mm	23 mm	19 mm	PG 29	27,5 mm	Two-Piece		28 mm	38 mm	12 mm	TPE		cULus, cRUus, EAC	25		116,8 g
Gland NPB, Pg 36, long, ø26…35mm Art: 1100.36 Copied	30,5 mm	30,5 mm	26 mm	PG 36	35 mm	Two-Piece		32 mm	50 mm	15 mm	TPE		cULus, cRUus, EAC	10		220,5 g
Gland NPB, Pg 42, long, ø33…42mm Art: 1100.42 Copied	37 mm	37 mm	33 mm	PG 42	42 mm	Two-Piece		34 mm	55 mm	15 mm	TPE		cULus, cRUus, EAC	10		256,5 g
Gland NPB, Pg 48, long, ø37…49mm Art: 1100.48 Copied	43 mm	43 mm	37 mm	PG 48	49 mm	Two-Piece		37 mm	65 mm	15 mm	TPE		cULus, cRUus, EAC	10		344,1 g
Gland NPB, Pg 7, long, ø3.5…5mm Art: 1100.07.050 Copied		3,5 mm		PG 7	5 mm	One-Piece		17 mm	15 mm	10 mm	TPE		cULus, cRUus, EAC	50		14,96 g
Gland NPB, Pg 7, long, ø5…6.5mm Art: 1100.07.065 Copied		5 mm		PG 7	6,5 mm	One-Piece		17 mm	15 mm	10 mm	TPE		cULus, cRUus, EAC	50		14,76 g
Gland NPB, Pg 7, long, ø6.5…8mm Art: 1100.07.080 Copied		6,5 mm		PG 7	8 mm	One-Piece		17 mm	15 mm	10 mm	TPE		cULus, cRUus, EAC	50		14,32 g
Gland NPB, Pg 9, long, ø3.5…4.5mm Art: 1100.09.045 Copied		3,5 mm		PG 9	4,5 mm	One-Piece		20 mm	18 mm	10 mm	TPE		cULus, cRUus, EAC	50		19,88 g
Gland NPB, Pg 9, long, ø4.5…6mm Art: 1100.09.060 Copied		4,5 mm		PG 9	6 mm	One-Piece		20 mm	18 mm	10 mm	TPE		cULus, cRUus, EAC	50		19,64 g
Gland NPB, Pg 9, long, ø6…8mm Art: 1100.09.080 Copied		6 mm		PG 9	8 mm	One-Piece		20 mm	18 mm	10 mm	TPE		cULus, cRUus, EAC	50		18,34 g
Gland NPB, Pg 9, long, ø8…10.5mm Art: 1100.09.105 Copied		8 mm		PG 9	10,5 mm	One-Piece		22 mm	18 mm	10 mm	TPE		cULus, cRUus, EAC	50		19,58 g
Gland NPB, Pg 11, long, ø4…5.5mm Art: 1100.11.055 Copied		4 mm		PG 11	5,5 mm	One-Piece		21 mm	21 mm	10 mm	TPE		cULus, cRUus, EAC	50		32,1 g
Gland NPB, Pg 11, long, ø5.5…8.5mm Art: 1100.11.085 Copied		5,5 mm		PG 11	8,5 mm	One-Piece		21 mm	21 mm	10 mm	TPE		cULus, cRUus, EAC	50		31,6 g
Gland NPB, Pg 11, long, ø8.5…12mm Art: 1100.11.120 Copied		8,5 mm		PG 11	12 mm	One-Piece		21 mm	21 mm	10 mm	TPE		cULus, cRUus, EAC	50		29,1 g
Gland NPB, Pg 13, long, ø6…8mm Art: 1100.13.080 Copied		6 mm		PG 13	8 mm	One-Piece		21 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		37,5 g
Gland NPB, Pg 13, long, ø8…11mm Art: 1100.13.110 Copied		8 mm		PG 13	11 mm	One-Piece		21 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		37,5 g
Gland NPB, Pg 13, long, ø11…15mm Art: 1100.13.150 Copied		11 mm		PG 13	15 mm	One-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		36 g
Gland NPB, Pg 16, long, ø6…8mm Art: 1100.16.080 Copied		6 mm		PG 16	8 mm	One-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		42,46 g
Gland NPB, Pg 16, long, ø8…11mm Art: 1100.16.110 Copied		8 mm		PG 16	11 mm	One-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		40,94 g
Gland NPB, Pg 16, long, ø11…15mm Art: 1100.16.150 Copied		11 mm		PG 16	15 mm	One-Piece		23 mm	24 mm	10 mm	TPE		cULus, cRUus, EAC	50		40,62 g
Gland NPB, Pg 21, long, ø9.5…12.5mm Art: 1100.21.125 Copied		9,5 mm		PG 21	12,5 mm	One-Piece		28 mm	30 mm	12 mm	TPE		cULus, cRUus, EAC	25		75,76 g
Gland NPB, Pg 21, long, ø12.5…16mm Art: 1100.21.160 Copied		12,5 mm		PG 21	16 mm	One-Piece		28 mm	30 mm	12 mm	TPE		cULus, cRUus, EAC	25		72,98 g
Gland NPB, Pg 21, long, ø16…20.5mm Art: 1100.21.205 Copied		16 mm		PG 21	20,5 mm	One-Piece		28 mm	30 mm	12 mm	TPE		cULus, cRUus, EAC	25		73,4 g
Gland NPB, Pg 29, long, ø16…19mm Art: 1100.29.190 Copied		16 mm		PG 29	19 mm	One-Piece		28 mm	38 mm	12 mm	TPE		cULus, cRUus, EAC	25		118,8 g
Gland NPB, Pg 29, long, ø19…23mm Art: 1100.29.230 Copied		19 mm		PG 29	23 mm	One-Piece		28 mm	38 mm	12 mm	TPE		cULus, cRUus, EAC	25		112,2 g
Gland NPB, Pg 29, long, ø23…27.5mm Art: 1100.29.275 Copied		23 mm		PG 29	27,5 mm	One-Piece		28 mm	38 mm	12 mm	TPE		cULus, cRUus, EAC	25		108,64 g
Gland NPB, Pg 36, long, ø21.5…26mm Art: 1100.36.260 Copied		21,5 mm		PG 36	26 mm	One-Piece		32 mm	50 mm	15 mm	TPE		cULus, cRUus, EAC	10		222,4 g
Gland NPB, Pg 36, long, ø26…30.5mm Art: 1100.36.305 Copied		26 mm		PG 36	30,5 mm	One-Piece		32 mm	50 mm	15 mm	TPE		cULus, cRUus, EAC	10		213,3 g
Gland NPB, Pg 36, long, ø30.5…35mm Art: 1100.36.350 Copied		30,5 mm		PG 36	35 mm	One-Piece		32 mm	50 mm	15 mm	TPE		cULus, cRUus, EAC	10		206,8 g
Gland NPB, Pg 42, long, ø29…33mm Art: 1100.42.330 Copied		29 mm		PG 42	33 mm	One-Piece		34 mm	55 mm	15 mm	TPE		cULus, cRUus, EAC	10		249,3 g
Gland NPB, Pg 42, long, ø37…37mm Art: 1100.42.370 Copied		33 mm		PG 42	37 mm	One-Piece		34 mm	55 mm	15 mm	TPE		cULus, cRUus, EAC	10		256,2 g
Gland NPB, Pg 42, long, ø37…42mm Art: 1100.42.420 Copied		37 mm		PG 42	42 mm	One-Piece		34 mm	55 mm	15 mm	TPE		cULus, cRUus, EAC	10		250 g
Gland NPB, Pg 48, long, ø33…37mm Art: 1100.48.370 Copied		32 mm		PG 48	37 mm	One-Piece		37 mm	65 mm	15 mm	TPE		cULus, cRUus, EAC	10		363,7 g
Gland NPB, Pg 48, long, ø37…43mm Art: 1100.48.430 Copied		37 mm		PG 48	43 mm	One-Piece		37 mm	65 mm	15 mm	TPE		cULus, cRUus, EAC	10		348,1 g
Gland NPB, Pg 48, long, ø43…49mm Art: 1100.48.490 Copied		43 mm		PG 48	49 mm	One-Piece		37 mm	65 mm	15 mm	TPE		cULus, cRUus, EAC	10		348,3 g

Selected variant

Select a variant in the list

General Purpose

Progress® MS

Selected variant

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data

Dimensions

Materials

Approvals

Additional Data

Downloads

Measurements and connections

Technical illustrations

Product description

Accessories

Related products

Related

Every angle covered with 90 degree cable entry system

The smallest logic controller ever on limited time discount

11 questions to get the right signalling device – a whitepaper

Control Box Assembly for Industrial Electricity Metering - A case study

Safeguard systems with DC circuit protection

Recap of IATECH

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data

Dimensions

Materials

Approvals

Additional Data

Downloads

Measurements and connections

Technical illustrations

Product description

Accessories

Related products

Related

Every angle covered with 90 degree cable entry system

The smallest logic controller ever on limited time discount

11 questions to get the right signalling device – a whitepaper

Control Box Assembly for Industrial Electricity Metering - A case study

Safeguard systems with DC circuit protection

Recap of IATECH

Selected variant
