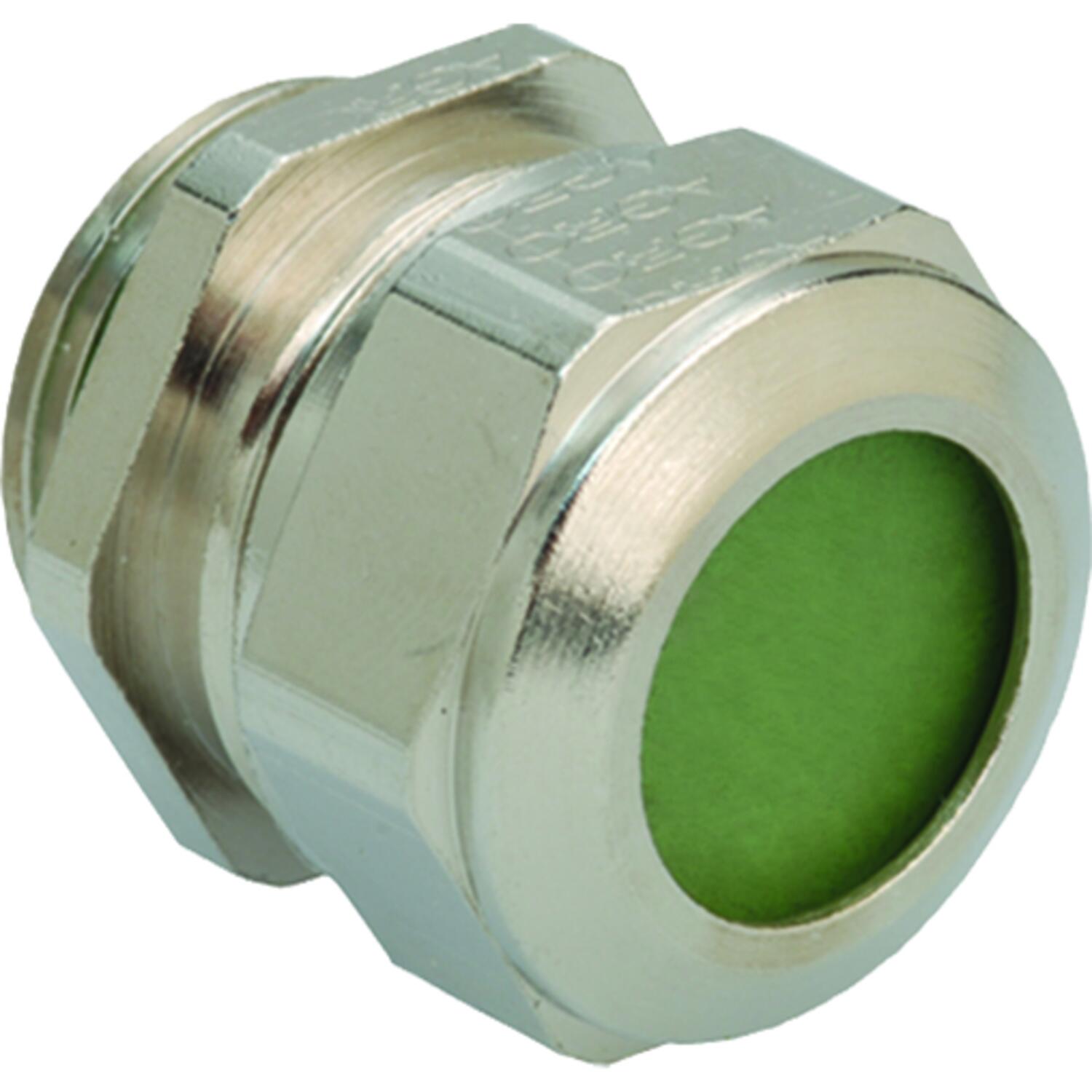

High temperature Progress® HT 1000.17.92

General Data
Cable diameter inner max	8 mm
Cable diameter min	8 mm
Cable diameter inner min	6 mm
Thread Size (G)	M16
Cable diameter max	10,5 mm
IP class	IP 68 (up to 10 bar), IP 69 further protection
Insert Type	Two-Piece
Dimensions
Thread pitch	1,5
Height (H)	22 mm
Spanner width (AF)	18 mm
Thread length	5 mm

Materials
Material	Nickel-plated brass
Materials O-ring	FPM
Material of seals	FPM
Temperature range	-40°C … +200°C
Approvals
Strain relief	Version A acc. to EN 62444
Approvals	CE, SEV, VDE, EAC, DNV
Additional Data
Pack size	50
Country of origin	CH
Tariff code	74199949
Weight	19,88 g

Parts	Cable diameter inner max	Cable diameter min	Cable diameter inner min	Thread Size (G)	Cable diameter max	Insert Type	Thread pitch	Height (H)	Spanner width (AF)	Thread length	Strain relief	Approvals	Pack size	Additional features	Weight
Gland NPB, High temp, M16, ø8…10.5mm Art: 1000.17.92 Copied	8 mm	8 mm	6 mm	M16	10,5 mm	Two-Piece	1,5	22 mm	18 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		19,88 g
Gland NPB, High temp, M20, ø11…15mm Art: 1000.20.92 Copied	11 mm	11 mm	8 mm	M20	15 mm	Two-Piece	1,5	23 mm	24 mm	6 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		36,12 g
Gland NPB, High temp, M25, ø16…20.5mm Art: 1000.25.92 Copied	16 mm	16 mm	12,5 mm	M25	20,5 mm	Two-Piece	1,5	28 mm	30 mm	7 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		62,4 g
Gland NPB, High temp, M32, ø21…25.5mm Art: 1000.32.92 Copied	21 mm	21 mm	17 mm	M32	25,5 mm	Two-Piece	1,5	28 mm	36 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		100,2 g
Gland NPB, High temp, M40, ø28.5…33mm Art: 1000.40.92 Copied	28,5 mm	28,5 mm	24 mm	M40	33 mm	Two-Piece	1,5	31 mm	46 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		169,2 g
Gland NPB, High temp, M50, ø37…42mm Art: 1000.50.92 Copied	37 mm	37 mm	33 mm	M50	42 mm	Two-Piece	1,5	34 mm	55 mm	9 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		213,6 g
Gland NPB, High temp, M63, ø46…52mm Art: 1000.63.92 Copied	46 mm	46 mm	40 mm	M63	52 mm	Two-Piece	1,5	37 mm	70 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	5		414 g
Gland NPB, High temp, M6, ø2…2.5mm Art: 1000.06.91.025 Copied		2 mm		M6	2,5 mm	One-Piece	1	12 mm	8 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,46 g
Gland NPB, High temp, M6, ø2.5…3mm Art: 1000.06.91.030 Copied		2,5 mm		M6	3 mm	One-Piece	1	12 mm	8 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,46 g
Gland NPB, High temp, M6, ø2.5…3.5mm Art: 1000.06.91.035 Copied		3 mm		M6	3,5 mm	One-Piece	1	12 mm	8 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,36 g
Gland NPB, High temp, M8, ø2.5…3.5mm Art: 1000.08.91.035 Copied		2,5 mm		M8	3,5 mm	One-Piece	1,25	14 mm	11 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	6,96 g
Gland NPB, High temp, M8, ø3.5…5mm Art: 1000.08.91.050 Copied		3,5 mm		M8	5 mm	One-Piece	1,25	14 mm	11 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	6,64 g
Gland NPB, High temp, M10, ø3…4mm Art: 1000.10.91.040 Copied		3 mm		M10	4 mm	One-Piece	1,5	15 mm	13 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	10,27 g
Gland NPB, High temp, M10, ø4…6mm Art: 1000.10.91.060 Copied		4 mm		M10	6 mm	One-Piece	1,5	15 mm	13 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	9,78 g
Gland NPB, High temp, M12 ø3.5…5mm Art: 1000.12.91.050 Copied		3,5 mm		M12	5 mm	One-Piece	1,5	17 mm	15 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		13,36 g
Gland NPB, High temp, M12, ø5…6.5mm Art: 1000.12.91.065 Copied		5 mm		M12	6,5 mm	One-Piece	1,5	17 mm	15 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		12,84 g
Gland NPB, High temp, M12, ø6…8mm Art: 1000.12.91.080 Copied		6,5 mm		M12	8 mm	One-Piece	1,5	17 mm	15 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		12,36 g
Gland NPB, High temp, M16, ø8…10.5mm Art: 1000.17.91.105 Copied		8 mm		M16	10,5 mm	One-Piece	1,5	22 mm	18 mm	5 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		19,22 g
Gland NPB, High temp, M20, ø11…15mm Art: 1000.20.91.150 Copied		11 mm		M20	15 mm	One-Piece	1,5	23 mm	24 mm	6 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		32,98 g
Gland NPB, High temp, M25, ø16…20.5mm Art: 1000.25.91.205 Copied		16 mm		M25	20,5 mm	One-Piece	1,5	28 mm	30 mm	7 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		57,6 g
Gland NPB, High temp, M32, ø21…25.5mm Art: 1000.32.91.255 Copied		21 mm		M32	25,5 mm	One-Piece	1,5	28 mm	36 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		91,88 g
Gland NPB, High temp, M40, ø28.5…33mm Art: 1000.40.91.330 Copied		28,5 mm		M40	33 mm	One-Piece	1,5	31 mm	46 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		159 g
Gland NPB, High temp, M50, ø37…42mm Art: 1000.50.91.420 Copied		37 mm		M50	42 mm	One-Piece	1,5	34 mm	55 mm	9 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		193 g
Gland NPB, High temp, M63 ø46…52mm Art: 1000.63.91.520 Copied		46 mm		M63	52 mm	One-Piece	1,5	37 mm	70 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	5		398 g
Gland NPB, High temp, M16, long, ø6…10.5mm Art: 1100.17.92 Copied	8 mm	8 mm	6 mm	M16	10,5 mm	Two-Piece	1,5	22 mm	18 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		22,68 g
Gland NPB, High temp, M20, long, ø8…15mm Art: 1100.20.92 Copied	11 mm	11 mm	8 mm	M20	15 mm	Two-Piece	1,5	23 mm	24 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		37,5 g
Gland NPB, High temp, M25, long, ø16…20.5mm Art: 1100.25.92 Copied	16 mm	16 mm	12,5 mm	M25	20,5 mm	Two-Piece	1,5	28 mm	30 mm	11 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		65,88 g

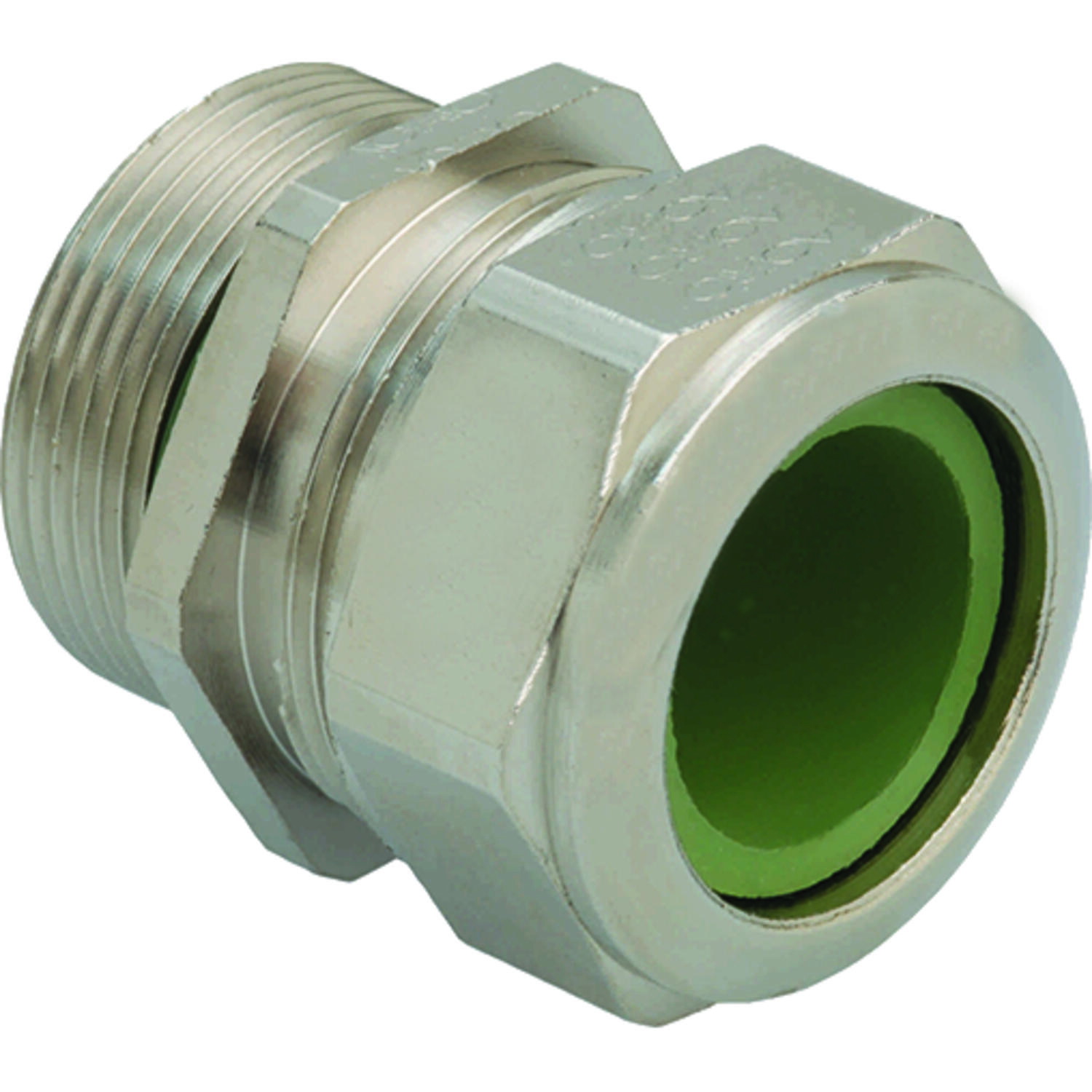

Gland NPB, High temp, M32, long, ø17…25.5mm Art: 1100.32.92 Copied	21 mm	21 mm	17 mm	M32	25,5 mm	Two-Piece	1,5	28 mm	36 mm	13 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		106,4 g
Gland NPB, High temp, M40, long, ø24…33mm Art: 1100.40.92 Copied	28,5 mm	28,5 mm	24 mm	M40	33 mm	Two-Piece	1,5	31 mm	46 mm	13 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		172,3 g
Gland NPB, High temp, M50, long, ø33…42mm Art: 1100.50.92 Copied	37 mm	37 mm	33 mm	M50	42 mm	Two-Piece	1,5	34 mm	55 mm	14 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		233,3 g
Gland NPB, High temp, M63, long, ø40…52mm Art: 1100.63.92 Copied	46 mm	46 mm	40 mm	M63	52 mm	Two-Piece	1,5	37 mm	70 mm	14 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	5		416 g
Gland NPB, High temp, M6, long, ø2…2.5mm Art: 1100.06.91.025 Copied		2 mm		M6	2,5 mm	One-Piece	1	12 mm	8 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,38 g
Gland NPB, High temp, M6, long, ø2.5…3mm Art: 1100.06.91.030 Copied		2,5 mm		M6	3 mm	One-Piece	1	12 mm	8 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,66 g
Gland NPB, High temp, M6, long, ø3…3.5mm Art: 1100.06.91.035 Copied		3 mm		M6	3,5 mm	One-Piece	1	12 mm	8 mm	8 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	3,66 g
Gland NPB, High temp, M8, long, ø2.5…3.5mm Art: 1100.08.91.035 Copied		2,5 mm		M8	3,5 mm	One-Piece	1,25	14 mm	11 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	7,56 g
Gland NPB, High temp, M8, long, ø3.5…5mm Art: 1100.08.91.050 Copied		3,5 mm		M8	5 mm	One-Piece	1,25	14 mm	11 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	7,26 g
Gland NPB, High temp, M10, long, ø3…4mm Art: 1100.10.91.040 Copied		3 mm		M10	4 mm	One-Piece	1,5	15 mm	13 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	11,88 g
Gland NPB, High temp, M10, long, ø4…6mm Art: 1100.10.91.060 Copied		4 mm		M10	6 mm	One-Piece	1,5	15 mm	13 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50	Metric coarse-pitch thread (with VDE test report)	11,04 g
Gland NPB, High temp, M12, long, ø3.5…5mm Art: 1100.12.91.050 Copied		3,5 mm		M12	5 mm	One-Piece	1,5	17 mm	15 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		14,74 g
Gland NPB, High temp, M12, long, ø5…6.5mm Art: 1100.12.91.065 Copied		5 mm		M12	6,5 mm	One-Piece	1,5	17 mm	15 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		14,22 g
Gland NPB, High temp, M12, long, ø6.5…8mm Art: 1100.12.91.080 Copied		6,5 mm		M12	8 mm	One-Piece	1,5	17 mm	15 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		13,64 g
Gland NPB, High temp, M16, long, ø8…10.5mm Art: 1100.17.91.105 Copied		8 mm		M16	10,5 mm	One-Piece	1,5	22 mm	18 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		21,38 g
Gland NPB, High temp, M20, long, ø11…15mm Art: 1100.20.91.150 Copied		11 mm		M20	15 mm	One-Piece	1,5	23 mm	24 mm	10 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	50		35,54 g
Gland NPB, High temp, M25, long, ø16…20.5mm Art: 1100.25.91.205 Copied		16 mm		M25	20,5 mm	One-Piece	1,5	28 mm	30 mm	11 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		60,08 g
Gland NPB, High temp, M32, long, ø21…25.5mm Art: 1100.32.91.255 Copied		21 mm		M32	25,5 mm	One-Piece	1,5	28 mm	36 mm	13 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	25		101,6 g
Gland NPB, High temp, M40, long, ø28.5…33mm Art: 1100.40.91.330 Copied		28,5 mm		M40	33 mm	One-Piece	1,5	31 mm	46 mm	13 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		166,2 g
Gland NPB, High temp, M50, long, ø37…42mm Art: 1100.50.91.420 Copied		37 mm		M50	42 mm	One-Piece	1,5	34 mm	55 mm	14 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	10		217,9 g
Gland NPB, High temp, M63, long, ø46…52mm Art: 1100.63.91.520 Copied		46 mm		M63	52 mm	One-Piece	1,5	37 mm	70 mm	14 mm	Version A acc. to EN 62444	CE, SEV, VDE, EAC, DNV	5		416 g
Gland NPB, High temp, Pg 9, ø8…10.5mm Art: 1000.09.92 Copied	8 mm	8 mm	6 mm	PG 9	10,5 mm	Two-Piece		22 mm	18 mm	6 mm		EAC	50		20,04 g
Gland NPB, High temp, Pg 11, ø8.5…12mm Art: 1000.11.92 Copied	8,5 mm	8,5 mm	5,5 mm	PG 11	12 mm	Two-Piece		21 mm	21 mm	6 mm		EAC	50		28,3 g
Gland NPB, High temp, Pg 13, ø11…15mm Art: 1000.13.92 Copied	11 mm	11 mm	8 mm	PG 13	15 mm	Two-Piece		23 mm	24 mm	6 mm		EAC	50		37,58 g
Gland NPB, High temp, Pg 16, ø11…15mm Art: 1000.16.92 Copied	11 mm	11 mm	8 mm	PG 16	15 mm	Two-Piece		23 mm	24 mm	6 mm		EAC	50		30,8 g
Gland NPB, High temp, Pg 21, ø16…20.5mm Art: 1000.21.92 Copied	16 mm	16 mm	12,5 mm	PG 21	20,5 mm	Two-Piece		28 mm	30 mm	7 mm		EAC	25		63,6 g
Gland NPB, High temp, Pg 29, ø23…27.5mm Art: 1000.29.92 Copied	23 mm	23 mm	19 mm	PG 29	27,5 mm	Two-Piece		28 mm	38 mm	8 mm		EAC	25		113,9 g
Gland NPB, High temp, Pg 36, ø30.5…35mm Art: 1000.36.92 Copied	30,5 mm	30,5 mm	26 mm	PG 36	35 mm	Two-Piece		32 mm	50 mm	8 mm		EAC	10		204,7 g
Gland NPB, High temp, Pg 42, ø37…42mm Art: 1000.42.92 Copied	37 mm	37 mm	33 mm	PG 42	42 mm	Two-Piece		34 mm	55 mm	10 mm		EAC	10		231,5 g
Gland NPB, High temp, Pg 48, ø43…49mm Art: 1000.48.92 Copied	43 mm	43 mm	37 mm	PG 48	49 mm	Two-Piece		37 mm	65 mm	11 mm		EAC	10		339 g
Gland NPB, High temp, Pg 7, ø3.5…5mm Art: 1000.07.91.050 Copied		3,5 mm		PG 7	5 mm	One-Piece		17 mm	15 mm	6 mm		EAC	50		14,33 g
Gland NPB, High temp, Pg 7, ø5…6.5mm Art: 1000.07.91.065 Copied		5 mm		PG 7	6,5 mm	One-Piece		17 mm	15 mm	6 mm		EAC	50		13,99 g
Gland NPB, High temp, Pg 7, ø6…8mm Art: 1000.07.91.080 Copied		6,5 mm		PG 7	8 mm	One-Piece		17 mm	15 mm	6 mm		EAC	50		13,36 g
Gland NPB, High temp, Pg 9, ø8…10.5mm Art: 1000.09.91.105 Copied		8 mm		PG 9	10,5 mm	One-Piece		22 mm	18 mm	6 mm		EAC	50		18,9 g
Gland NPB, High temp, Pg 11, ø8.5…12mm Art: 1000.11.91.120 Copied		8,5 mm		PG 11	12 mm	One-Piece		21 mm	21 mm	6 mm		EAC	50		26,77 g
Gland NPB, High temp, Pg 13, ø11…15mm Art: 1000.13.91.150 Copied		11 mm		PG 13	15 mm	One-Piece		23 mm	24 mm	6 mm		EAC	50		34,73 g
Gland NPB, High temp, Pg 16, ø11…15mm Art: 1000.16.91.150 Copied		11 mm		PG 16	15 mm	One-Piece		23 mm	24 mm	6 mm		EAC	50		30,8 g
Gland NPB, High temp, Pg 21, ø16…20.5mm Art: 1000.21.91.205 Copied		16 mm		PG 21	20,5 mm	One-Piece		28 mm	30 mm	7 mm		EAC	25		67 g
Gland NPB, High temp, Pg 29, ø23…27mm Art: 1000.29.91.275 Copied		23 mm		PG 29	27,5 mm	One-Piece		28 mm	38 mm	8 mm		EAC	25		101,6 g
Gland NPB, High temp, Pg 36, ø30.5…35mm Art: 1000.36.91.350 Copied		30,5 mm		PG 36	35 mm	One-Piece		32 mm	50 mm	8 mm		EAC	10		181,5 g
Gland NPB, High temp, Pg 42, ø37…42mm Art: 1000.42.91.420 Copied		37 mm		PG 42	42 mm	One-Piece		34 mm	55 mm	10 mm		EAC	10		228,5 g
Gland NPB, High temp, Pg 48, ø43…49mm Art: 1000.48.91.490 Copied		43 mm		PG 48	49 mm	One-Piece		37 mm	65 mm	11 mm		EAC	10		330 g
Gland NPB, High temp, Pg 9, long, ø6…10.5mm Art: 1100.09.92 Copied	8 mm	8 mm	6 mm	PG 9	10,5 mm	Two-Piece		22 mm	18 mm	10 mm		EAC	50		21,98 g
Gland NPB, High temp, Pg 11, long, ø5.5…12mm Art: 1100.11.92 Copied	8,5 mm	8,5 mm	5,5 mm	PG 11	12 mm	Two-Piece		21 mm	21 mm	10 mm		EAC	50		31,58 g
Gland NPB, High temp, Pg 13, long, ø8…15mm Art: 1100.13.92 Copied	11 mm	11 mm	8 mm	PG 13	15 mm	Two-Piece		23 mm	24 mm	10 mm		EAC	50		37,5 g
Gland NPB, High temp, Pg 21, long, ø12.5…20.5mm Art: 1100.21.92 Copied	16 mm	16 mm	12,5 mm	PG 21	20,5 mm	Two-Piece		28 mm	30 mm	12 mm		EAC	25		80,24 g
Gland NPB, High temp, Pg 16, long, ø8…15mm Art: 1100.16.92 Copied	11 mm	11 mm	8 mm	PG 16	15 mm	Two-Piece		23 mm	24 mm	10 mm		EAC	50		45,44 g
Gland NPB, High temp, Pg 29, long, ø19…27.5mm Art: 1100.29.92 Copied	23 mm	23 mm	19 mm	PG 29	27,5 mm	Two-Piece		28 mm	38 mm	12 mm		EAC	25		113,9 g
Gland NPB, High temp, Pg 36, long, ø26…35mm Art: 1100.36.92 Copied	30,5 mm	30,5 mm	26 mm	PG 36	35 mm	Two-Piece		32 mm	50 mm	15 mm		EAC	10		227,6 g
Gland NPB, High temp, Pg 42, long, ø33…42mm Art: 1100.42.92 Copied	37 mm	37 mm	33 mm	PG 42	42 mm	Two-Piece		34 mm	55 mm	15 mm		EAC	10		174,3 g
Gland NPB, High temp, Pg 48, long, ø37…49mm Art: 1100.48.92 Copied	43 mm	43 mm	37 mm	PG 48	49 mm	Two-Piece		37 mm	65 mm	15 mm		EAC	10		376,6 g
Gland NPB, High temp, Pg 7, long, ø3.5…5mm Art: 1100.07.91.050 Copied		3,5 mm		PG 7	5 mm	One-Piece		17 mm	15 mm	10 mm		EAC	50		16,52 g
Gland NPB, High temp, Pg 7, long, ø5…6.5mm Art: 1100.07.91.065 Copied		5 mm		PG 7	6,5 mm	One-Piece		17 mm	15 mm	10 mm		EAC	50		13,9 g
Gland NPB, High temp, Pg 7, long, ø6.5…8mm Art: 1100.07.91.080 Copied		6,5 mm		PG 7	8 mm	One-Piece		17 mm	15 mm	10 mm		EAC	50		15,2 g
Gland NPB, High temp, Pg 9, long, ø8…10.5mm Art: 1100.09.91.105 Copied		8 mm		PG 9	10,5 mm	One-Piece		22 mm	18 mm	10 mm		EAC	50		20,48 g
Gland NPB, High temp, Pg 11, long, ø8.5…12mm Art: 1100.11.91.120 Copied		8,5 mm		PG 11	12 mm	One-Piece		21 mm	21 mm	10 mm		EAC	50		30,06 g
Gland NPB, High temp, Pg 13, long, ø11…15mm Art: 1100.13.91.150 Copied		11 mm		PG 13	15 mm	One-Piece		23 mm	24 mm	10 mm		EAC	50		38,4 g
Gland NPB, High temp, Pg 16, ø11…15mm Art: 1100.16.91.150 Copied		11 mm		PG 16	15 mm	One-Piece		23 mm	24 mm	10 mm		EAC	50		37 g
Gland NPB, High temp, Pg 21, long, ø16…20.5mm Art: 1100.21.91.205 Copied		16 mm		PG 21	20,5 mm	One-Piece		28 mm	30 mm	12 mm		EAC	25		73,38 g
Gland NPB, High temp, Pg 29, long, ø23…27.5mm Art: 1100.29.91.275 Copied		23 mm		PG 29	27,5 mm	One-Piece		28 mm	38 mm	12 mm		EAC	25		113,6 g
Gland NPB, High temp, Pg 36, long, ø30.5…35mm Art: 1100.36.91.350 Copied		30,5 mm		PG 36	35 mm	One-Piece		32 mm	50 mm	15 mm		EAC	10		207,5 g
Gland NPB, High temp, Pg 42, ø37…42mm Art: 1100.42.91.420 Copied		37 mm		PG 42	42 mm	One-Piece		34 mm	55 mm	15 mm		EAC	10		249,5 g
Gland NPB, High temp, Pg 48, ø43…49mm Art: 1100.48.91.490 Copied		43 mm		PG 48	49 mm	One-Piece		37 mm	65 mm	15 mm		EAC	10		349 g
