AGRO
The Progress® multi ranges of nickel-plated brass glands are a tried and tested solution for cable entry in industrial applications where more than one cable entry is required.
Â
This range is available with inserts to carry from two to six round cables and various flat cable entry options.
Â
Agro can also offer custom made solutions to give the maximum flexibility for your cable entry requirements.
Â

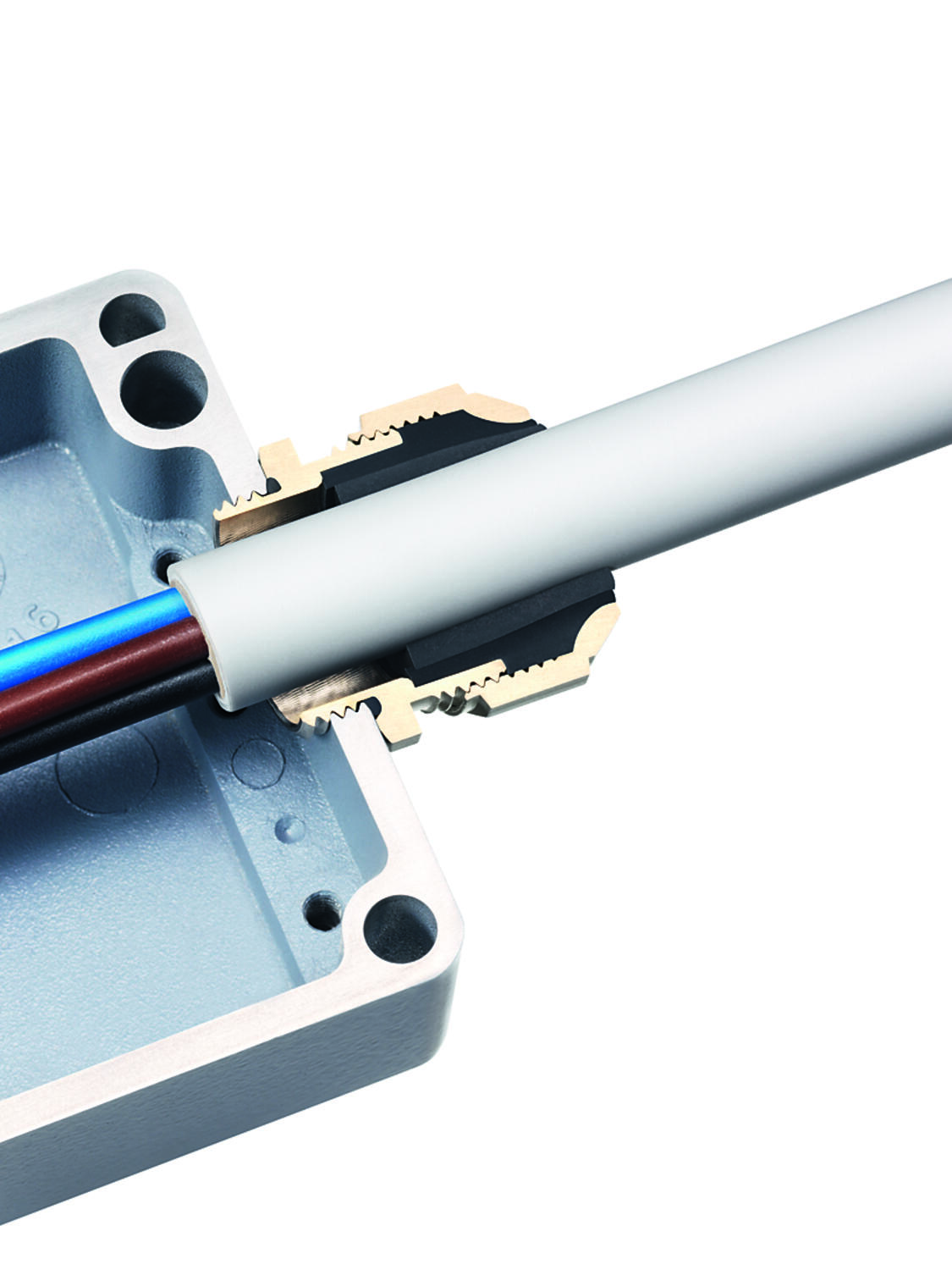

The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
Â
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
  Â
The Progress® glands are available with a short or long entry thread metric, Pg (imperial or NPT on request) and can be used with existing threaded holes or with a lock nut.
Â
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
Â
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.Â
General Data |
|
|---|---|
| Number of cables | 2 Â |
| Cable diameter min | 2 mm |
| Thread Size (G) | M16 |
| Cable diameter max | 3 mm |
| IP class | IP 68 |
| Insert Type | One-Piece |
Dimensions |
|
| Thread pitch | 1,5 |
| Height (H) | 22 mm |
| Spanner width (AF) | 18 mm |
| Thread length | 5 mm |
Materials |
|
| Material | Nickel-plated brass |
*Invisible Heading* |
|
|---|---|
| Materials O-ring | NBR |
| Material of seals | TPE |
| Temperature range | -40°C … +100°C |
Approvals |
|
| Strain relief | Version A acc. to EN 62444 |
| Approvals | CE, SEV, VDE, EAC, DNV |
Additional Data |
|
| Pack size | 50 Â |
| Country of origin | CH |
| Tariff code | 74199949 |
| Weight | 18,88 g |
The Progress® multi ranges of nickel-plated brass glands are a tried and tested solution for cable entry in industrial applications where more than one cable entry is required.
Â
This range is available with inserts to carry from two to six round cables and various flat cable entry options.
Â
Agro can also offer custom made solutions to give the maximum flexibility for your cable entry requirements.
Â
The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
Â
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
  Â
The Progress® glands are available with a short or long entry thread metric, Pg (imperial or NPT on request) and can be used with existing threaded holes or with a lock nut.
Â
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
Â
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of cables | Cable diameter min | Thread Size (G) | Cable diameter max | Maximum slot size | Minimum slot size | Thread pitch | Height (H) | Spanner width (AF) | Thread length | Strain relief | Approvals | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gland NPB, M16, multi, 2 x ø2.5…3mm
Art:
1310.17.2.030
Copied
|
2
|
2 mm
|
M16
|
3 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
5 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
18,88 g
|
| ||
|
Gland NPB, M16, multi, 2 x ø2.5…4mm
Art:
1310.17.2.040
Copied
|
2
|
2,5 mm
|
M16
|
4 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
5 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
18,88 g
|
| ||
|
Gland NPB, M16, multi, 2 x ø3.5…5mm
Art:
1310.17.2.050
Copied
|
2
|
3,5 mm
|
M16
|
5 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
5 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
19,08 g
|
| ||
|
Gland NPB, M20, multi, 2 x ø3.5…5mm
Art:
1310.20.2.050
Copied
|
2
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
33,38 g
|
| ||
|
Gland NPB, M20, multi, 2 x ø4.5…6mm
Art:
1310.20.2.060
Copied
|
2
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
33,4 g
|
| ||
|
Gland NPB, M20, multi, 2 x ø5.5…7.5mm
Art:
1310.20.2.075
Copied
|
2
|
5,5 mm
|
M20
|
7,5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
32,62 g
|
| ||
|
Gland NPB, M20, multi, 3 x ø3.5…5mm
Art:
1310.20.3.050
Copied
|
3
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
32,48 g
|
| ||
|

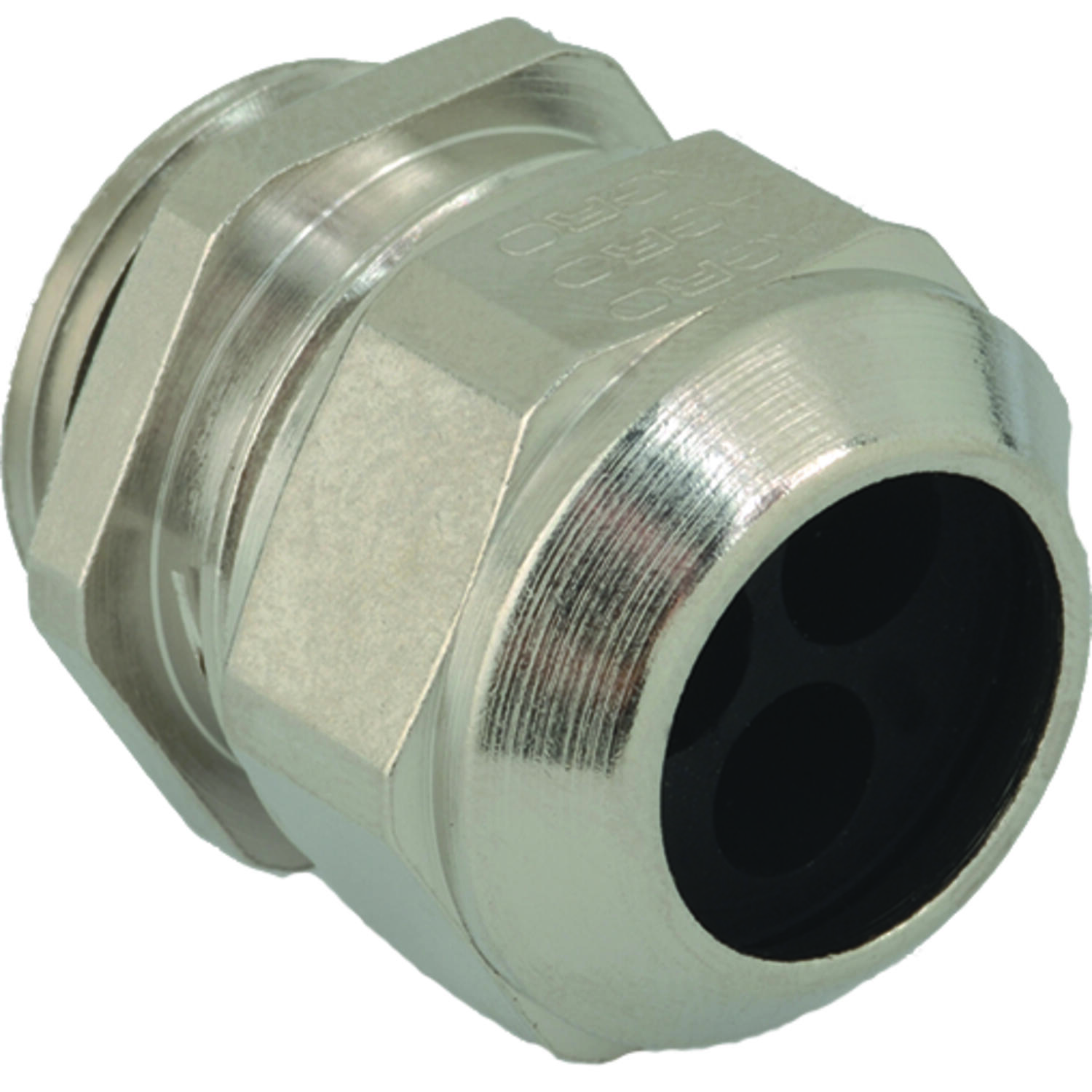

Gland NPB, M20, multi, 3 x ø4.5…6mm
Art:
1310.20.3.060
Copied
|
3
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
31,98 g
|
| ||
|
Gland NPB, M20, multi, 3 x ø5.2…6.5mm
Art:
1310.20.3.065
Copied
|
3
|
5,2 mm
|
M20
|
6,5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
31,98 g
|
| ||
|
Gland NPB, M20, multi, 4 x ø3.5…5mm
Art:
1310.20.4.050
Copied
|
4
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
32,7 g
|
| ||
|
Gland NPB, M20, multi, 4 x ø4.5…6mm
Art:
1310.20.4.060
Copied
|
4
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
31,58 g
|
| ||
|
Gland NPB, M25, multi, 2 x ø5…7mm
Art:
1310.25.2.070
Copied
|
2
|
5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
62,24 g
|
| ||
|
Gland NPB, M25, multi, 2 x ø6.7…9mm
Art:
1310.25.2.090
Copied
|
2
|
6,7 mm
|
M25
|
9 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
61,24 g
|
| ||
|
Gland NPB, M25, multi, 2 x ø7.7…10mm
Art:
1310.25.2.100
Copied
|
2
|
7,7 mm
|
M25
|
10 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
57,8 g
|
| ||
|
Gland NPB, M25, multi, 3 x ø5.5…7mm
Art:
1310.25.3.070
Copied
|
3
|
5,5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
54,8 g
|
| ||
|
Gland NPB, M25, multi, 3 x ø6.8…9mm
Art:
1310.25.3.090
Copied
|
3
|
6,8 mm
|
M25
|
9 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
58,8 g
|
| ||
|
Gland NPB, M25, multi, 4 x ø5.5…7mm
Art:
1310.25.4.070
Copied
|
4
|
5,5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
59,64 g
|
| ||
|
Gland NPB, M25, multi, 6 x ø4.8…6mm
Art:
1310.25.6.060
Copied
|
6
|
4,8 mm
|
M25
|
6 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
59,2 g
|
| ||
|
Gland NPB, M32, multi, 2 x ø9…11.5mm
Art:
1310.32.2.115
Copied
|
2
|
9 mm
|
M32
|
11,5 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
98,88 g
|
| ||
|
Gland NPB, M32, multi, 3 x ø7…9mm
Art:
1310.32.3.090
Copied
|
3
|
7 mm
|
M32
|
9 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
98,92 g
|
| ||
|
Gland NPB, M32, multi, 3 x ø8.5…10.59mm
Art:
1310.32.3.105
Copied
|
3
|
8,5 mm
|
M32
|
10,5 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
98 g
|
| ||
|
Gland NPB, M32, multi, 4 x ø7…9mm
Art:
1310.32.4.090
Copied
|
4
|
7 mm
|
M32
|
9 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
97,76 g
|
| ||
|
Gland NPB, M32, multi, 6 x ø5.8…7mm
Art:
1310.32.6.070
Copied
|
6
|
5,8 mm
|
M32
|
7 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
98,16 g
|
| ||
Gland NPB, M16, multi, long, 2 x ø2.5…3mm
Art:
1311.17.2.030
Copied
|
2
|
2 mm
|
M16
|
3 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
21,28 g
|
| ||
|
Gland NPB, M16, multi, long, 2 x ø2.5…4mm
Art:
1311.17.2.040
Copied
|
2
|
2,5 mm
|
M16
|
4 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
21,08 g
|
| ||
|
Gland NPB, M16, multi, long, 2 x ø3.5…5mm
Art:
1311.17.2.050
Copied
|
2
|
3,5 mm
|
M16
|
5 mm
|
|
|
1,5
|
22 mm
|
18 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
21,08 g
|
| ||
|

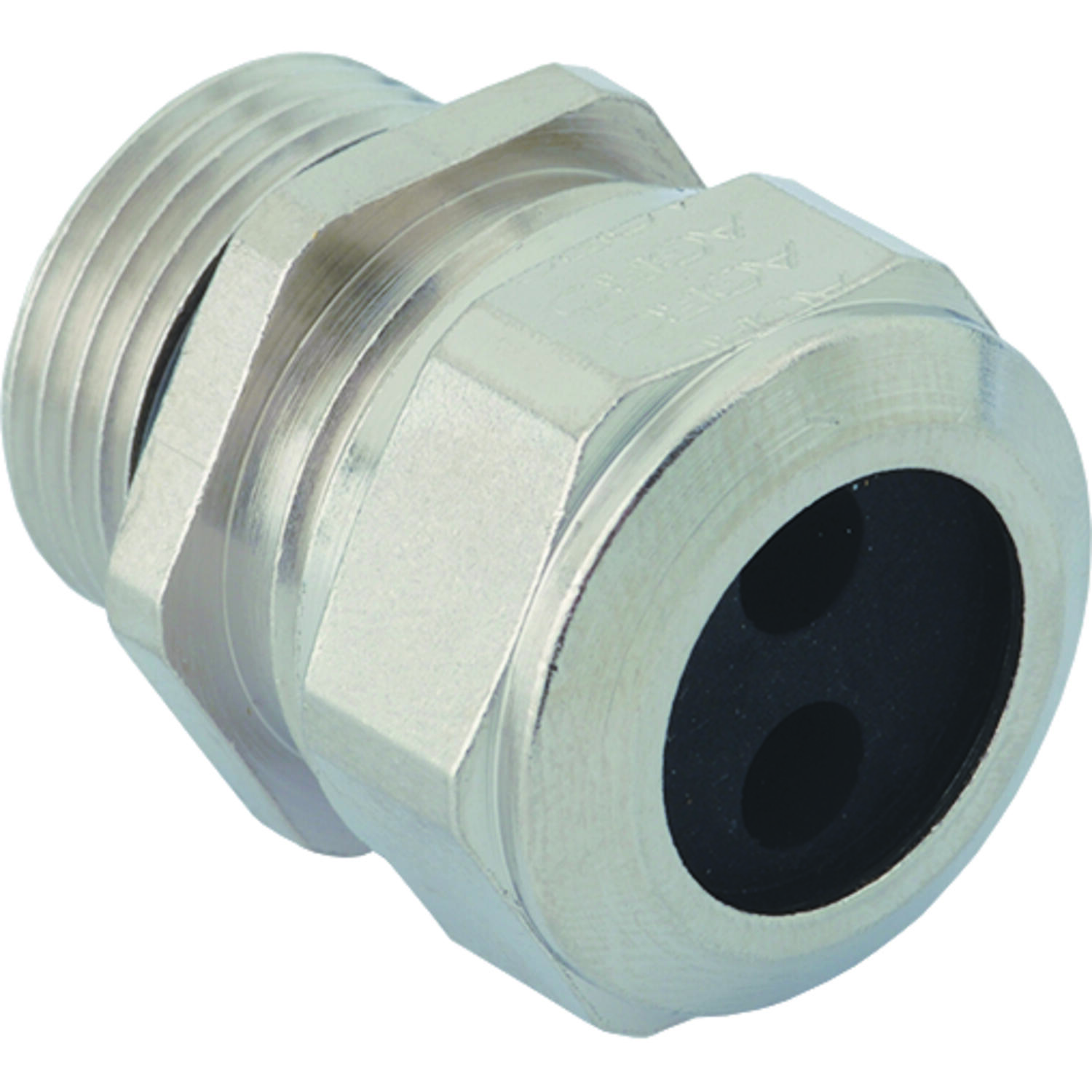

Gland NPB, M20, multi, long, 2 x ø3.5…5mm
Art:
1311.20.2.050
Copied
|
2
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
35,3 g
|
| ||
|
Gland NPB, M20, multi, long, 2 x ø4.5…6mm
Art:
1311.20.2.060
Copied
|
2
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,8 g
|
| ||
|
Gland NPB, M20, multi, long, 2 x ø5.5…7.5mm
Art:
1311.20.2.075
Copied
|
2
|
5,5 mm
|
M20
|
7,5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,3 g
|
| ||
|
Gland NPB, M20, multi, long, 3 x ø3.5…5mm
Art:
1311.20.3.050
Copied
|
3
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,8 g
|
| ||
|
Gland NPB, M20, multi, long, 3 x ø4.5…6mm
Art:
1311.20.3.060
Copied
|
3
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
35 g
|
| ||
|
Gland NPB, M20, multi, long, 3 x ø5.2…6.5mm
Art:
1311.20.3.065
Copied
|
3
|
5,2 mm
|
M20
|
6,5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34 g
|
| ||
|
Gland NPB, M20, multi, long, 4 x ø3.5…5mm
Art:
1311.20.4.050
Copied
|
4
|
3,5 mm
|
M20
|
5 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,5 g
|
| ||
|
Gland NPB, M20, multi, long, 4 x ø4.5…6mm
Art:
1311.20.4.060
Copied
|
4
|
4,5 mm
|
M20
|
6 mm
|
|
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,5 g
|
| ||
|
Gland NPB, M25, multi, long, 2 x ø5…7mm
Art:
1311.25.2.070
Copied
|
2
|
5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
64,4 g
|
| ||
|
Gland NPB, M25, multi, long, 2 x ø6.7…9mm
Art:
1311.25.2.090
Copied
|
2
|
6,7 mm
|
M25
|
9 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
61,88 g
|
| ||
|
Gland NPB, M25, multi, long, 2 x ø7.7…10mm
Art:
1311.25.2.100
Copied
|
2
|
7,7 mm
|
M25
|
10 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
62,92 g
|
| ||
|
Gland NPB, M25, multi, long, 3 x ø5.5…7mm
Art:
1311.25.3.070
Copied
|
3
|
5,5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
63,56 g
|
| ||
|
Gland NPB, M25, multi, long, 3 x ø6.8…9mm
Art:
1311.25.3.090
Copied
|
3
|
6,8 mm
|
M25
|
9 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
61,76 g
|
| ||
|
Gland NPB, M25, multi, long, 4 x ø5.5…7mm
Art:
1311.25.4.070
Copied
|
4
|
5,5 mm
|
M25
|
7 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
60,58 g
|
| ||
|
Gland NPB, M25, multi, long, 6 x ø4.8…6mm
Art:
1311.25.6.060
Copied
|
6
|
4,8 mm
|
M25
|
6 mm
|
|
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
63,2 g
|
| ||
|
Gland NPB, M32, multi, long, 2 x ø9…11.5mm
Art:
1311.32.2.115
Copied
|
2
|
9 mm
|
M32
|
11,5 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
105 g
|
| ||
|
Gland NPB, M32, multi, long, 3 x ø7…9mm
Art:
1311.32.3.090
Copied
|
3
|
7 mm
|
M32
|
9 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
106 g
|
| ||
|
Gland NPB, M32, multi, long, 3 x ø8.5…10.59mm
Art:
1311.32.3.105
Copied
|
3
|
8,5 mm
|
M32
|
10,5 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
103,78 g
|
| ||
|
Gland NPB, M32, multi, long, 4 x ø7…9mm
Art:
1311.32.4.090
Copied
|
4
|
7 mm
|
M32
|
9 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
104,16 g
|
| ||
|
Gland NPB, M32, multi, long, 6 x ø5.8…7mm
Art:
1311.32.6.070
Copied
|
6
|
5,8 mm
|
M32
|
7 mm
|
|
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
105,55 g
|
| ||
Gland NPB, Flat cable, M16, 9x4.2mm max
Art:
1300.17.090.042
Copied
|
|
|
M16
|
|
9.0 x 4.2 mm
|
7.3 x 2.5 mm
|
1,5
|
22 mm
|
18 mm
|
5 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
18,78 g
|
| ||
|

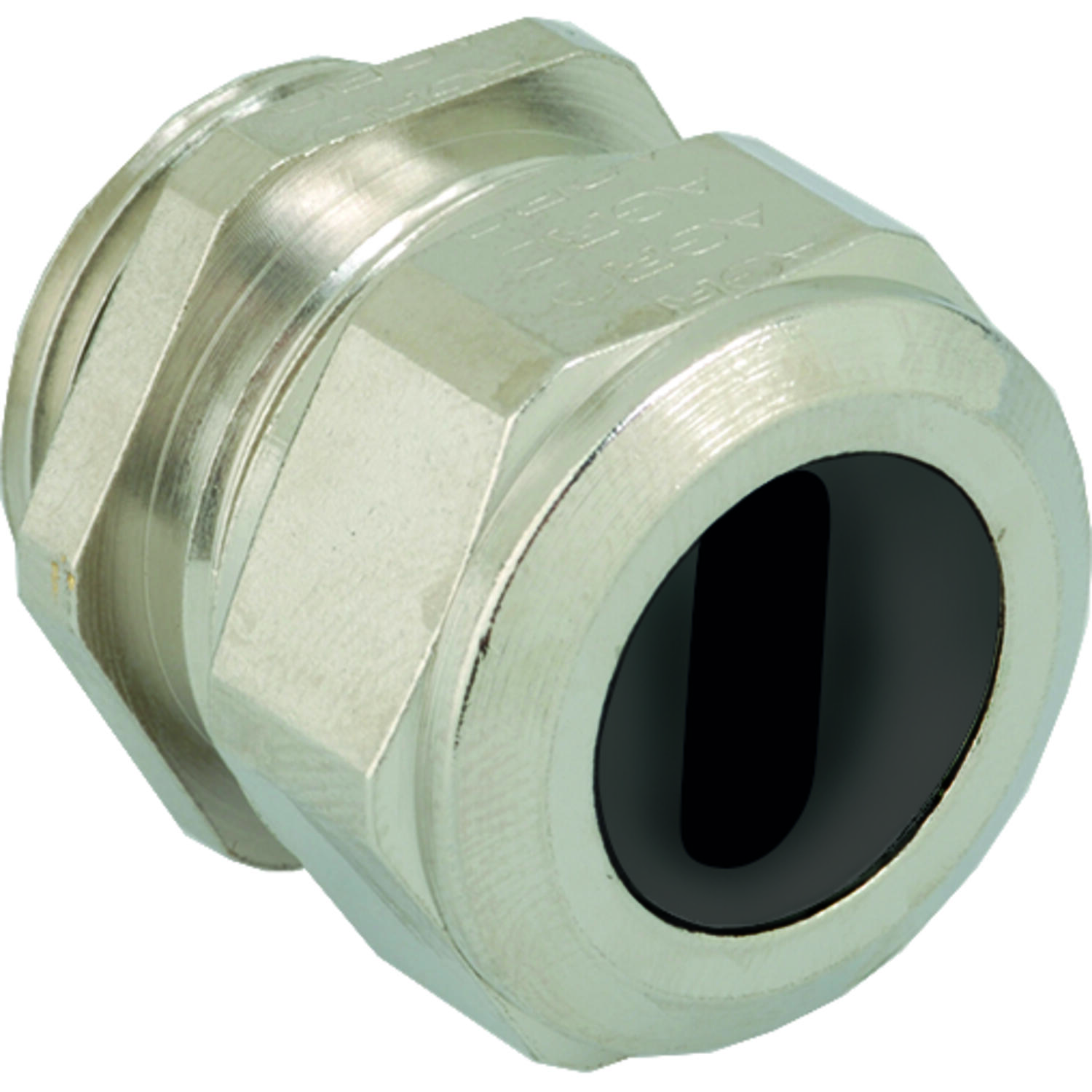

Gland NPB, Flat cable, M20, 13x5mm max
Art:
1300.20.130.050
Copied
|
|
|
M20
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
32,38 g
|
| ||
|
Gland NPB, Flat cable, M20, 15x5mm max
Art:
1300.20.150.050
Copied
|
|
|
M20
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
1,5
|
23 mm
|
24 mm
|
6 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
32,86 g
|
| ||
|
Gland NPB, Flat cable, M25, 19x7mm max
Art:
1300.25.190.070
Copied
|
|
|
M25
|
|
19.0 x 7.0 mm
|
16.0 x 4.0 mm
|
1,5
|
28 mm
|
30 mm
|
7 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
60,88 g
|
| ||
|
Gland NPB, Flat cable, M32, 22x6mm max
Art:
1300.32.220.060
Copied
|
|
|
M32
|
|
22.0 x 6.0 mm
|
19.0 x 3.0 mm
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
100,2 g
|
| ||
|
Gland NPB, Flat cable, M32, 22x8mm max
Art:
1300.32.220.080
Copied
|
|
|
M32
|
|
22.0 x 8.0 mm
|
19.0 x 5.0 mm
|
1,5
|
28 mm
|
36 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
99,95 g
|
| ||
|
Gland NPB, Flat cable, M40, 26x7mm max
Art:
1300.40.260.070
Copied
|
|
|
M40
|
|
26.0 x 7.0 mm
|
23.0 x 4.0 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
168,1 g
|
| ||
|
Gland NPB, Flat cable, M40, 26.5x9mm max
Art:
1300.40.265.090
Copied
|
|
|
M40
|
|
26.5 x 9.0 mm
|
23.5 x 6.0 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
162,7 g
|
| ||
|
Gland NPB, Flat cable, M40, 28x6mm max
Art:
1300.40.280.060
Copied
|
|
|
M40
|
|
28.0 x 6.0 mm
|
25.0 x 3.0 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
166,4 g
|
| ||
|
Gland NPB, Flat cable, M40, 30x10mm max
Art:
1300.40.300.100
Copied
|
|
|
M40
|
|
30.0 x 10.0 mm
|
27.0 x 7.0 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
163,3 g
|
| ||
|
Gland NPB, Flat cable, M40, 32x9mm max
Art:
1300.40.320.090
Copied
|
|
|
M40
|
|
32.0 x 9.0 mm
|
29.0 x 6.0 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
168,4 g
|
| ||
|
Gland NPB, Flat cable, M40, 33x6.5mm max
Art:
1300.40.330.065
Copied
|
|
|
M40
|
|
33.0 x 6.5 mm
|
30.0 x 3.5 mm
|
1,5
|
31 mm
|
46 mm
|
8 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
167,7 g
|
| ||
|
Gland NPB, Flat cable, M50, Pg 42, 34x11.5mm max
Art:
1300.50.340.115
Copied
|
|
|
M50
|
|
34.0 x 11.5 mm
|
31.0 x 8.5 mm
|
1,5
|
34 mm
|
55 mm
|
9 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
219,7 g
|
| ||
|
Gland NPB, Flat cable, M50, Pg 42, 37x7mm max
Art:
1300.50.370.070
Copied
|
|
|
M50
|
|
37.0 x 7.0 mm
|
34.0 x 4.0 mm
|
1,5
|
34 mm
|
55 mm
|
9 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
222,9 g
|
| ||
|
Gland NPB, Flat cable, M50, Pg 42, 40x6mm max
Art:
1300.50.400.060
Copied
|
|
|
M50
|
|
40.0 x 6.0 mm
|
36.5 x 2.5 mm
|
1,5
|
34 mm
|
55 mm
|
9 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
223,2 g
|
| ||
|
Gland NPB, Flat cable, M50, Pg 42, 40x13.5mm max
Art:
1300.50.400.135
Copied
|
|
|
M50
|
|
40.0 x 13.5 mm
|
36.5 x 10.0 mm
|
1,5
|
34 mm
|
55 mm
|
9 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
218,1 g
|
| ||
|
Gland NPB, Flat cable, M50, Pg 42, 42x14mm max
Art:
1300.50.420.140
Copied
|
|
|
M50
|
|
42.0 x 14.0 mm
|
38.5 x 10.5 mm
|
1,5
|
34 mm
|
55 mm
|
9 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
216,9 g
|
| ||
|
Gland NPB, Flat cable, M63, Pg 42, 46x14mm max
Art:
1300.63.460.140
Copied
|
|
|
M63
|
|
46.0 x 14.0 mm
|
42.0 x 10.0 mm
|
1,5
|
37 mm
|
70 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
436 g
|
| ||
|
Gland NPB, Flat cable, M63, Pg 42, 46.5x6mm max
Art:
1300.63.465.060
Copied
|
|
|
M63
|
|
46.5 x 6.0 mm
|
42.5 x 2.0 mm
|
1,5
|
37 mm
|
70 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
416 g
|
| ||
Gland NPB, Flat cable, M16, long, 9x4.2mm max
Art:
1301.17.090.042
Copied
|
|
|
M16
|
|
9.0 x 4.2 mm
|
7.3 x 2.5 mm
|
1,5
|
22 mm
|
18 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
20,1 g
|
| ||
|
Gland NPB, Flat cable, M20, long, 13x5mm max
Art:
1301.20.130.050
Copied
|
|
|
M20
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
35 g
|
| ||
|

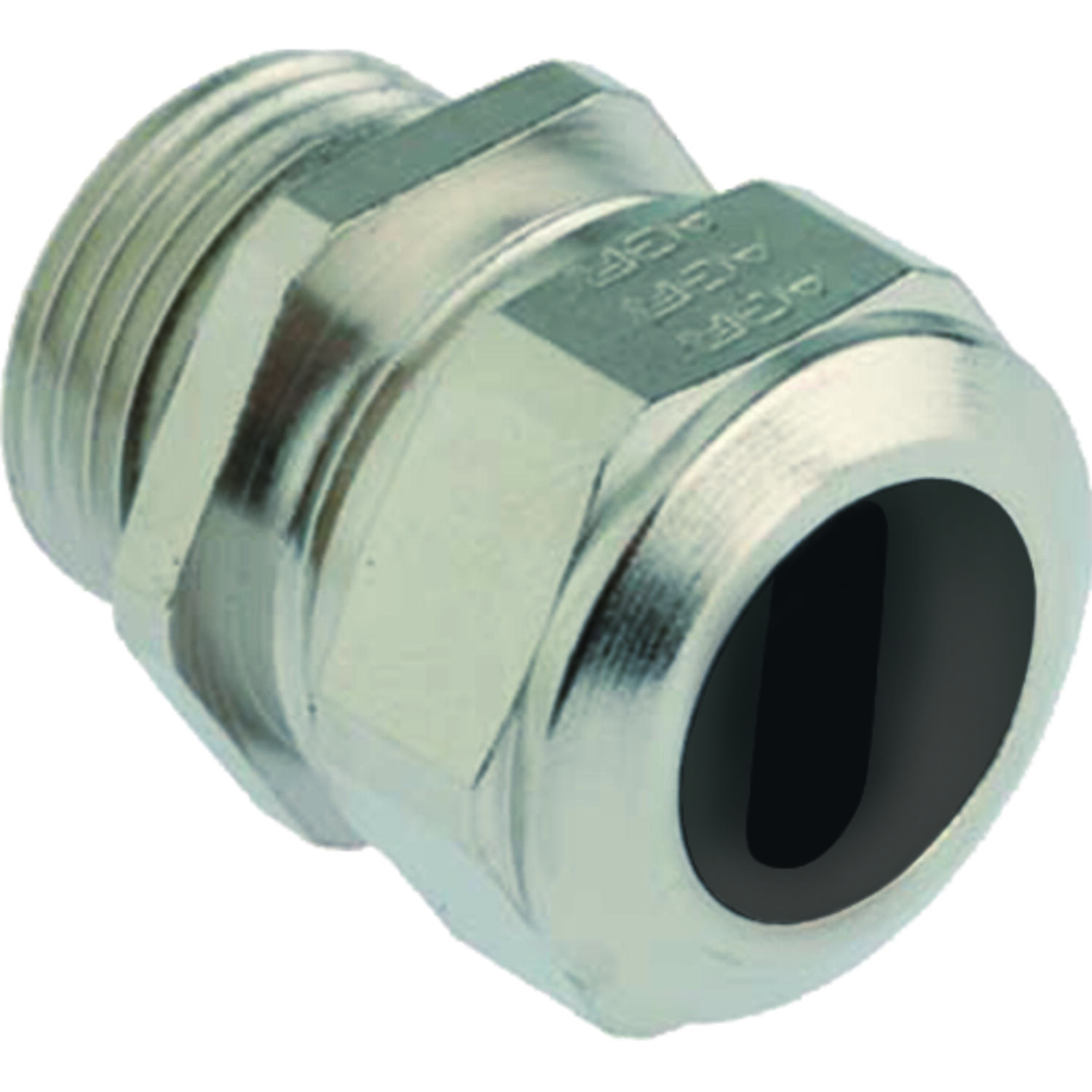

Gland NPB, Flat cable, M20, long, 15x5mm max
Art:
1301.20.150.050
Copied
|
|
|
M20
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
1,5
|
23 mm
|
24 mm
|
10 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
50
|
34,8 g
|
| ||
|
Gland NPB, Flat cable, M25, long, 19x7mm max
Art:
1301.25.190.070
Copied
|
|
|
M25
|
|
19.0 x 7.0 mm
|
16.0 x 4.0 mm
|
1,5
|
28 mm
|
30 mm
|
11 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
63,88 g
|
| ||
|
Gland NPB, Flat cable, M32, long, 22x6mm max
Art:
1301.32.220.060
Copied
|
|
|
M32
|
|
22.0 x 6.0 mm
|
19.0 x 3.0 mm
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
99,6 g
|
| ||
|
Gland NPB, Flat cable, M32, long, 22x8mm max
Art:
1301.32.220.080
Copied
|
|
|
M32
|
|
22.0 x 8.0 mm
|
19.0 x 5.0 mm
|
1,5
|
28 mm
|
36 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
25
|
105,8 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 26x7mm max
Art:
1301.40.260.070
Copied
|
|
|
M40
|
|
26.0 x 7.0 mm
|
23.0 x 4.0 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
170,9 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 26.5x9mm max
Art:
1301.40.265.090
Copied
|
|
|
M40
|
|
26.5 x 9.0 mm
|
23.5 x 6.0 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
171,5 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 28x6mm max
Art:
1301.40.280.060
Copied
|
|
|
M40
|
|
28.0 x 6.0 mm
|
25.0 x 3.0 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
171,5 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 30x10mm max
Art:
1301.40.300.100
Copied
|
|
|
M40
|
|
30.0 x 10.0 mm
|
27.0 x 7.0 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
163,6 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 32x9mm max
Art:
1301.40.320.090
Copied
|
|
|
M40
|
|
32.0 x 9.0 mm
|
29.0 x 6.0 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
171,5 g
|
| ||
|
Gland NPB, Flat cable, M40, long, 33x6.5mm max
Art:
1301.40.330.065
Copied
|
|
|
M40
|
|
33.0 x 6.5 mm
|
30.0 x 3.5 mm
|
1,5
|
31 mm
|
46 mm
|
13 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
171,5 g
|
| ||
|
Gland NPB, Flat cable, M50, long, 34x11.5mm max
Art:
1301.50.340.115
Copied
|
|
|
M50
|
|
34.0 x 11.5 mm
|
31.0 x 8.5 mm
|
1,5
|
34 mm
|
55 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
231,5 g
|
| ||
|
Gland NPB, Flat cable, M50, long, 37x7mm max
Art:
1301.50.370.070
Copied
|
|
|
M50
|
|
37.0 x 7.0 mm
|
34.0 x 4.0 mm
|
1,5
|
34 mm
|
55 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
231,5 g
|
| ||
|
Gland NPB, Flat cable, M50, long, 40x6mm max
Art:
1301.50.400.060
Copied
|
|
|
M50
|
|
40.0 x 6.0 mm
|
36.5 x 2.5 mm
|
1,5
|
34 mm
|
55 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
237,1 g
|
| ||
|
Gland NPB, Flat cable, M50, long, 40x13.5mm max
Art:
1301.50.400.135
Copied
|
|
|
M50
|
|
40.0 x 13.5 mm
|
36.5 x 10.0 mm
|
1,5
|
34 mm
|
55 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
236,5 g
|
| ||
|
Gland NPB, Flat cable, M50, long, 42x14mm max
Art:
1301.50.420.140
Copied
|
|
|
M50
|
|
42.0 x 14.0 mm
|
38.5 x 10.5 mm
|
1,5
|
34 mm
|
55 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
10
|
236,5 g
|
| ||
|
Gland NPB, Flat cable, M63, long, 46x14mm max
Art:
1301.63.460.140
Copied
|
|
|
M63
|
|
46.0 x 14.0 mm
|
42.0 x 10.0 mm
|
1,5
|
37 mm
|
70 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
396 g
|
| ||
|
Gland NPB, Flat cable, M63, long, 46.5x6mm max
Art:
1301.63.465.060
Copied
|
|
|
M50
|
|
46.5 x 6.0 mm
|
42.5 x 2.0 mm
|
1,5
|
37 mm
|
70 mm
|
14 mm
|
Version A acc. to EN 62444
|
CE, SEV, VDE, EAC, DNV
|
5
|
396 g
|
| ||
|
Gland NPB, Pg 9, ø2.5…3mm
Art:
1310.09.2.030
Copied
|
2
|
2 mm
|
PG 9
|
3 mm
|
|
|
|
22 mm
|
18 mm
|
6 mm
|
|
EAC
|
50
|
18,98 g
|
| ||
|
Gland NPB, Pg 9, multi, 2 x ø2.5…4mm
Art:
1310.09.2.040
Copied
|
2
|
2,5 mm
|
PG 9
|
4 mm
|
|
|
|
22 mm
|
18 mm
|
6 mm
|
|
EAC
|
50
|
18,98 g
|
| ||
|
Gland NPB, Pg 9, multi, 2 x ø3.5…5mm
Art:
1310.09.2.050
Copied
|
2
|
3,5 mm
|
PG 9
|
5 mm
|
|
|
|
22 mm
|
18 mm
|
6 mm
|
|
EAC
|
50
|
18,88 g
|
| ||
|
Gland NPB, Pg 11, multi, 2 x ø3.5…5mm
Art:
1310.11.2.050
Copied
|
2
|
3,5 mm
|
PG 11
|
5 mm
|
|
|
|
21 mm
|
21 mm
|
6 mm
|
|
EAC
|
50
|
26,4 g
|
| ||
|
Gland NPB, Pg 11, multi, 2 x ø4.5…6mm
Art:
1310.11.2.060
Copied
|
2
|
4,5 mm
|
PG 11
|
6 mm
|
|
|
|
21 mm
|
21 mm
|
6 mm
|
|
EAC
|
50
|
26,24 g
|
| ||
|
Gland NPB, Pg 11, multi, 2 x ø5.5…7.5mm
Art:
1310.11.2.075
Copied
|
2
|
5,5 mm
|
PG 11
|
7,5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
32,92 g
|
| ||
|
Gland NPB, Pg 11, multi, 3 x ø3.5…5mm
Art:
1310.11.3.050
Copied
|
3
|
3,5 mm
|
PG 11
|
5 mm
|
|
|
|
21 mm
|
21 mm
|
6 mm
|
|
EAC
|
50
|
26,1 g
|
| ||
|
Gland NPB, Pg 13, multi, 2 x ø3.5…5mm
Art:
1310.13.2.050
Copied
|
2
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
34,64 g
|
| ||
|
Gland NPB, Pg 13, multi, 2 x ø4.5…6mm
Art:
1310.13.2.060
Copied
|
2
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
33,48 g
|
| ||
|
Gland NPB, Pg 13, multi, 2 x ø5.5…7.5mm
Art:
1310.13.2.075
Copied
|
2
|
5,5 mm
|
PG 13
|
7,5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
34,02 g
|
| ||
|
Gland NPB, Pg 13, multi, 3 x ø3.5…5mm
Art:
1310.13.3.050
Copied
|
3
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
34,64 g
|
| ||
|
Gland NPB, Pg 13, multi, 3 x ø4.5…6mm
Art:
1310.13.3.060
Copied
|
3
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
34,08 g
|
| ||
|
Gland NPB, Pg 13, multi, 3 x ø5.2…6.5mm
Art:
1310.13.3.065
Copied
|
3
|
5,2 mm
|
PG 13
|
6,5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
32,78 g
|
| ||
|
Gland NPB, Pg 13, multi, 4 x ø3.5…5mm
Art:
1310.13.4.050
Copied
|
4
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
34,34 g
|
| ||
|
Gland NPB, Pg 13, multi, 4 x ø4.5…6mm
Art:
1310.13.4.060
Copied
|
4
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
33,7 g
|
| ||
|
Gland NPB, Pg 16, multi, 2 x ø3.5…5mm
Art:
1310.16.2.050
Copied
|
2
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
39,08 g
|
| ||
|
Gland NPB, Pg 16, multi, 2 x ø4.5…6mm
Art:
1310.16.2.060
Copied
|
2
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
36,98 g
|
| ||
|
Gland NPB, Pg 16, multi, 2 x ø5.5…7.5mm
Art:
1310.16.2.075
Copied
|
2
|
5,5 mm
|
PG 16
|
75 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
36,34 g
|
| ||
|
Gland NPB, Pg 16, multi, 2 x ø6.7…9mm
Art:
1310.16.2.090
Copied
|
2
|
6,7 mm
|
PG 16
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
6 mm
|
|
EAC
|
25
|
63,32 g
|
| ||
|
Gland NPB, Pg 16, multi,3 x ø3.5…5mm
Art:
1310.16.3.050
Copied
|
3
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
32,4 g
|
| ||
|
Gland NPB, Pg 16, multi, 3 x ø4.5…6mm
Art:
1310.16.3.060
Copied
|
3
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
36,38 g
|
| ||
|
Gland NPB, Pg 16, multi, 3 x ø5…7mm
Art:
1310.16.3.070
Copied
|
3
|
5 mm
|
PG 16
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
6 mm
|
|
EAC
|
25
|
63,46 g
|
| ||
|
Gland NPB, Pg 16, multi, 4 x ø3.5…5mm
Art:
1310.16.4.050
Copied
|
4
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
32,7 g
|
| ||
|
Gland NPB, Pg 16, multi, 4 x ø4.5…6mm
Art:
1310.16.4.060
Copied
|
4
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
35,88 g
|
| ||
|
Gland NPB, Pg 16, multi, 4 x ø5.5…7mm
Art:
1310.16.4.070
Copied
|
4
|
5,5 mm
|
PG 16
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
6 mm
|
|
EAC
|
25
|
57,64 g
|
| ||
|
Gland NPB, Pg 21, multi, 2 x ø5…7mm
Art:
1310.21.2.070
Copied
|
2
|
5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
70,32 g
|
| ||
|
Gland NPB, Pg 21, multi, 2 x ø6.7…9mm
Art:
1310.21.2.090
Copied
|
2
|
6,7 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
69,6 g
|
| ||
|
Gland NPB, Pg 21, multi, 2 x ø7.7…10mm
Art:
1310.21.2.100
Copied
|
2
|
7,7 mm
|
PG 21
|
10 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
66,4 g
|
| ||
|
Gland NPB, Pg 21, multi, 2 x ø9…11.5mm
Art:
1310.21.2.115
Copied
|
2
|
9 mm
|
PG 21
|
11,5 mm
|
|
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
106,8 g
|
| ||
|
Gland NPB, Pg 21, multi, 3 x ø5.5…7mm
Art:
1310.21.3.070
Copied
|
3
|
5,5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
69 g
|
| ||
|
Gland NPB, Pg 21, multi, 3 x ø6.8…9mm
Art:
1310.21.3.090
Copied
|
3
|
6,8 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
67,88 g
|
| ||
|
Gland NPB, Pg 21, multi, 3 x ø8.5…10.5mm
Art:
1310.21.3.105
Copied
|
3
|
8,5 mm
|
PG 21
|
10,5 mm
|
|
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
105,6 g
|
| ||
|
Gland NPB, Pg 21, multi, 4 x ø5.5…7mm
Art:
1310.21.4.070
Copied
|
4
|
5,5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
69 g
|
| ||
|
Gland NPB, Pg 21, multi, 4 x ø7…9mm
Art:
1310.21.4.090
Copied
|
4
|
7 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
105,6 g
|
| ||
|
Gland NPB, Pg 21, multi, 6 x ø4.8…6mm
Art:
1310.21.6.060
Copied
|
6
|
4,8 mm
|
PG 21
|
6 mm
|
|
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
65,08 g
|
| ||
|
Gland NPB, Pg 21, multi, 6 x ø5.8…7mm
Art:
1310.21.6.070
Copied
|
6
|
5,8 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
106,2 g
|
| ||
|
Gland NPB, Pg 29, multi, 3 x ø7.5…9mm
Art:
1310.29.3.090
Copied
|
3
|
7,5 mm
|
PG 29
|
9 mm
|
|
|
|
28 mm
|
38 mm
|
8 mm
|
|
EAC
|
25
|
106,36 g
|
| ||
|
Gland NPB, Pg 9, multi, long, 2 x ø2.5…3mm
Art:
1311.09.2.030
Copied
|
2
|
2 mm
|
PG 9
|
3 mm
|
|
|
|
22 mm
|
18 mm
|
10 mm
|
|
EAC
|
50
|
20,58 g
|
| ||
|
Gland NPB, Pg 9, multi, long, 2 x ø2.5…4mm
Art:
1311.09.2.040
Copied
|
2
|
2,5 mm
|
PG 9
|
4 mm
|
|
|
|
22 mm
|
18 mm
|
10 mm
|
|
EAC
|
50
|
20,48 g
|
| ||
|
Gland NPB, Pg 9, multi, long, 2 x ø3.5…5mm
Art:
1311.09.2.050
Copied
|
2
|
3,5 mm
|
PG 9
|
5 mm
|
|
|
|
22 mm
|
18 mm
|
10 mm
|
|
EAC
|
50
|
19,7 g
|
| ||
|
Gland NPB, Pg 11, multi, long, 2 x ø3.5…5mm
Art:
1311.11.2.050
Copied
|
2
|
3,5 mm
|
PG 11
|
5 mm
|
|
|
|
21 mm
|
21 mm
|
10 mm
|
|
EAC
|
50
|
29,7 g
|
| ||
|
Gland NPB, Pg 11, multi, long, 2 x ø4.5…6mm
Art:
1311.11.2.060
Copied
|
2
|
4,5 mm
|
PG 11
|
6 mm
|
|
|
|
21 mm
|
21 mm
|
10 mm
|
|
EAC
|
50
|
29,44 g
|
| ||
|
Gland NPB, Pg 11, multi, long, 2 x ø5.5…7.5mm
Art:
1311.11.2.075
Copied
|
2
|
5,5 mm
|
PG 11
|
7,5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
34,92 g
|
| ||
|
Gland NPB, Pg 11, multi, long, 3 x ø3.5…5mm
Art:
1311.11.3.050
Copied
|
3
|
3,5 mm
|
PG 11
|
5 mm
|
|
|
|
21 mm
|
21 mm
|
10 mm
|
|
EAC
|
50
|
30,1 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 2 x ø3.5…5mm
Art:
1311.13.2.050
Copied
|
2
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
36,78 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 2 x ø4.5…6mm
Art:
1311.13.2.060
Copied
|
2
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,7 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 2 x ø5.5…7.5mm
Art:
1311.13.2.075
Copied
|
2
|
5,5 mm
|
PG 13
|
7,5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
37,96 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 3 x ø3.5…5mm
Art:
1311.13.3.050
Copied
|
3
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,8 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 3 x ø4.5…6mm
Art:
1311.13.3.060
Copied
|
3
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
38,16 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 3 x ø5.2…6.5mm
Art:
1311.13.3.065
Copied
|
3
|
5,2 mm
|
PG 13
|
6,5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,7 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 4 x ø3.5…5mm
Art:
1311.13.4.050
Copied
|
4
|
3,5 mm
|
PG 13
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
37,88 g
|
| ||
|
Gland NPB, Pg 13, multi, long, 4 x ø4.5…6mm
Art:
1311.13.4.060
Copied
|
4
|
4,5 mm
|
PG 13
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
34,9 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 2 x ø3.5…5mm
Art:
1311.16.2.050
Copied
|
2
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
36,8 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 2 x ø4.5…6mm
Art:
1311.16.2.060
Copied
|
2
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
42,68 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 2 x ø5.5…7.5mm
Art:
1311.16.2.075
Copied
|
2
|
5,5 mm
|
PG 16
|
7,5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
41,85 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 2 x ø6.7…9mm
Art:
1311.16.2.090
Copied
|
2
|
6,7 mm
|
PG 16
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
10 mm
|
|
EAC
|
25
|
66,68 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 3 x ø3.5…5mm
Art:
1311.16.3.050
Copied
|
3
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
42,8 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 3 x ø4.5…6mm
Art:
1311.16.3.060
Copied
|
3
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
42,54 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 3 x ø5…7mm
Art:
1311.16.3.070
Copied
|
3
|
5 mm
|
PG 16
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
|
|
EAC
|
25
|
61,3 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 4 x ø3.5…5mm
Art:
1311.16.4.050
Copied
|
4
|
3,5 mm
|
PG 16
|
5 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
42,24 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 4 x ø4.5…6mm
Art:
1311.16.4.060
Copied
|
4
|
4,5 mm
|
PG 16
|
6 mm
|
|
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
61,8 g
|
| ||
|
Gland NPB, Pg 16, multi, long, 4 x ø5.5…7mm
Art:
1311.16.4.070
Copied
|
4
|
5,5 mm
|
PG 16
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
10 mm
|
|
EAC
|
25
|
62 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 2 x ø5…7mm
Art:
1311.21.2.070
Copied
|
2
|
5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
73,76 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 2 x ø6.7…9mm
Art:
1311.21.2.090
Copied
|
2
|
6,7 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
78,42 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 2 x ø7.7…10mm
Art:
1311.21.2.100
Copied
|
2
|
7,7 mm
|
PG 21
|
10 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
74,38 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 2 x ø9…11.5mm
Art:
1311.21.2.115
Copied
|
2
|
9 mm
|
PG 21
|
11,5 mm
|
|
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
115,8 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 3 x ø5.5…7mm
Art:
1311.21.3.070
Copied
|
3
|
5,5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
76,5 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 3 x ø6.8…9mm
Art:
1311.21.3.090
Copied
|
3
|
6,8 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
74,18 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 3 x ø8.5…10.5mm
Art:
1311.21.3.105
Copied
|
3
|
8,5 mm
|
PG 21
|
10,5 mm
|
|
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
101 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 4 x ø5.5…7mm
Art:
1311.21.4.070
Copied
|
4
|
5,5 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
77,38 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 4 x ø7…9mm
Art:
1311.21.4.090
Copied
|
4
|
7 mm
|
PG 21
|
9 mm
|
|
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
108,8 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 6 x ø4.8…6mm
Art:
1311.21.6.060
Copied
|
6
|
4,8 mm
|
PG 21
|
6 mm
|
|
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
73,78 g
|
| ||
|
Gland NPB, Pg 21, multi, long, 6 x ø5.8…7mm
Art:
1311.21.6.070
Copied
|
6
|
5,8 mm
|
PG 21
|
7 mm
|
|
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
77,6 g
|
| ||
|
Gland NPB, Pg 29, multi, long, 3 x ø7.5…9mm
Art:
1311.29.3.090
Copied
|
3
|
7,5 mm
|
PG 29
|
9 mm
|
|
|
|
28 mm
|
38 mm
|
12 mm
|
|
EAC
|
25
|
121,9 g
|
| ||
|
Gland NPB, Flat cable, Pg 9, 9x4.2mm max
Art:
1300.09.090.042
Copied
|
|
|
PG 9
|
|
9.0 x 4.2 mm
|
7.3 x 2.5 mm
|
|
22 mm
|
18 mm
|
6 mm
|
|
EAC
|
50
|
18,78 g
|
| ||
|
Gland NPB, Flat cable, Pg 13, 13x5mm max
Art:
1300.13.130.050
Copied
|
|
|
PG 13
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
26,78 g
|
| ||
|
Gland NPB, Flat cable, Pg 13, 15x5mm max
Art:
1300.13.150.050
Copied
|
|
|
PG 13
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
35,38 g
|
| ||
|
Gland NPB, Flat cable, Pg 16, 13x5mm max
Art:
1300.16.130.050
Copied
|
|
|
PG 16
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
35,8 g
|
| ||
|
Gland NPB, Flat cable, Pg 16, 15x5mm max
Art:
1300.16.150.050
Copied
|
|
|
PG 16
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
6 mm
|
|
EAC
|
50
|
32,3 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, 19x7mm max
Art:
1300.21.190.070
Copied
|
|
|
PG 21
|
|
19.0 x 7.0 mm
|
16.0 x 4.0 mm
|
|
28 mm
|
30 mm
|
7,5 mm
|
|
EAC
|
25
|
97,6 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, 22x6mm max
Art:
1300.21.220.060
Copied
|
|
|
PG 21
|
|
22.0 x 6.0 mm
|
19.0 x 3.0 mm
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
101,92 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 26.5x9mm max
Art:
1300.29.265.090
Copied
|
|
|
PG 29
|
|
26.5 x 9.0 mm
|
23.5 x 6.0 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
156,2 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, 22x8mm max
Art:
1300.21.220.080
Copied
|
|
|
PG 21
|
|
22.0 x 8.0 mm
|
19.0 x 5.0 mm
|
|
28 mm
|
36 mm
|
7,5 mm
|
|
EAC
|
25
|
93,76 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 28x6mm max
Art:
1300.29.280.060
Copied
|
|
|
PG 29
|
|
28.0 x 6.0 mm
|
25.0 x 3.0 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
159 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 26x7mm max
Art:
1300.29.260.070
Copied
|
|
|
PG 29
|
|
26.0 x 7.0 mm
|
23.0 x 4.0 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
157,3 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 30x10mm max
Art:
1300.29.300.100
Copied
|
|
|
PG 29
|
|
30.0 x 10.0 mm
|
27.0 x 7.0 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
156 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 32x9mm max
Art:
1300.29.320.090
Copied
|
|
|
PG 29
|
|
32.0 x 9.0 mm
|
29.0 x 6.0 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
157 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, 33x6.5mm max
Art:
1300.29.330.065
Copied
|
|
|
PG 29
|
|
33.0 x 6.5 mm
|
30.0 x 3.5 mm
|
|
31 mm
|
46 mm
|
8 mm
|
|
EAC
|
25
|
158 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, 34x11.5mm max
Art:
1300.42.340.115
Copied
|
|
|
PG 42
|
|
34.0 x 11.5 mm
|
31.0 x 8.5 mm
|
|
34 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
251,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, 37x7mm max
Art:
1300.42.370.070
Copied
|
|
|
PG 42
|
|
37.0 x 7.0 mm
|
34.0 x 4.0 mm
|
|
34 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
274,2 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, 40x6mm max
Art:
1300.42.400.060
Copied
|
|
|
PG 42
|
|
40.0 x 6.0 mm
|
36.5 x 2.5 mm
|
|
34 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
251,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, Pg 42, 40x13.5mm max
Art:
1300.42.400.135
Copied
|
|
|
PG 42
|
|
40.0 x 13.5 mm
|
36.5 x 10.0 mm
|
|
34 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
243,9 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, Pg 42, 42x14mm max
Art:
1300.42.420.140
Copied
|
|
|
PG 42
|
|
42.0 x 14.0 mm
|
38.5 x 10.5 mm
|
|
34 mm
|
55 mm
|
10 mm
|
|
EAC
|
10
|
244,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 48, Pg 42, 46x14mm max
Art:
1300.48.460.140
Copied
|
|
|
PG 48
|
|
46.0 x 14.0 mm
|
42.0 x 10.0 mm
|
|
37 mm
|
65 mm
|
11 mm
|
|
EAC
|
10
|
364 g
|
| ||
|
Gland NPB, Flat cable, Pg 48, Pg 42, 46.5x6mm max
Art:
1300.48.465.060
Copied
|
|
|
PG 48
|
|
46.5 x 6.0 mm
|
42.5 x 2.0 mm
|
|
37 mm
|
65 mm
|
11 mm
|
|
EAC
|
10
|
355 g
|
| ||
|
Gland NPB, Flat cable, Pg 9, long, 9x4.2mm max
Art:
1301.09.090.042
Copied
|
|
|
PG 9
|
|
9.0 x 4.2 mm
|
7.3 x 2.5 mm
|
|
22 mm
|
18 mm
|
10 mm
|
|
EAC
|
50
|
19,58 g
|
| ||
|
Gland NPB, Flat cable, Pg 13, long, 13x5mm max
Art:
1301.13.130.050
Copied
|
|
|
PG 13
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
36,8 g
|
| ||
|
Gland NPB, Flat cable, Pg 13, long, 15x5mm max
Art:
1301.13.150.050
Copied
|
|
|
PG 13
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,6 g
|
| ||
|
Gland NPB, Flat cable, Pg 16, long, 13x5mm max
Art:
1301.16.130.050
Copied
|
|
|
PG 16
|
|
13.0 x 5.0 mm
|
10.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,8 g
|
| ||
|
Gland NPB, Flat cable, Pg 16, long, 15x5mm max
Art:
1301.16.150.050
Copied
|
|
|
PG 16
|
|
15.0 x 5.0 mm
|
12.5 x 2.5 mm
|
|
23 mm
|
24 mm
|
10 mm
|
|
EAC
|
50
|
35,78 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, long, 19x7mm max
Art:
1301.21.190.070
Copied
|
|
|
PG 21
|
|
19.0 x 7.0 mm
|
16.0 x 4.0 mm
|
|
28 mm
|
30 mm
|
12 mm
|
|
EAC
|
25
|
72,68 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, long, 22x6mm max
Art:
1301.21.220.060
Copied
|
|
|
PG 21
|
|
22.0 x 6.0 mm
|
19.0 x 3.0 mm
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
110,9 g
|
| ||
|
Gland NPB, Flat cable, Pg 21, long, 22x8mm max
Art:
1301.21.220.080
Copied
|
|
|
PG 21
|
|
22.0 x 8.0 mm
|
19.0 x 5.0 mm
|
|
28 mm
|
36 mm
|
12 mm
|
|
EAC
|
25
|
75,6 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 26x7mm max
Art:
1301.29.260.070
Copied
|
|
|
PG 29
|
|
26.0 x 7.0 mm
|
23.0 x 4.0 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
162 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 26.5x9mm max
Art:
1301.29.265.090
Copied
|
|
|
PG 29
|
|
26.5 x 9.0 mm
|
23.5 x 6.0 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
161,4 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 28x6mm max
Art:
1301.29.280.060
Copied
|
|
|
PG 29
|
|
28.0 x 6.0 mm
|
25.0 x 3.0 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
162 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 30x10mm max
Art:
1301.29.300.100
Copied
|
|
|
PG 29
|
|
30.0 x 10.0 mm
|
27.0 x 7.0 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
162 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 32x9mm max
Art:
1301.29.320.090
Copied
|
|
|
PG 29
|
|
32.0 x 9.0 mm
|
29.0 x 6.0 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
162 g
|
| ||
|
Gland NPB, Flat cable, Pg 29, long, 33x6.5mm max
Art:
1301.29.330.065
Copied
|
|
|
PG 29
|
|
33.0 x 6.5 mm
|
30.0 x 3.5 mm
|
|
31 mm
|
46 mm
|
12 mm
|
|
EAC
|
25
|
162 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, long, 34x11.5mm max
Art:
1301.42.340.115
Copied
|
|
|
PG 42
|
|
34.0 x 11.5 mm
|
31.0 x 8.5 mm
|
|
34 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
268,9 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, long, 37x7mm max
Art:
1301.42.370.070
Copied
|
|
|
PG 42
|
|
37.0 x 7.0 mm
|
34.0 x 4.0 mm
|
|
34 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
268,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, long, 40x6mm max
Art:
1301.42.400.060
Copied
|
|
|
PG 42
|
|
40.0 x 6.0 mm
|
36.5 x 2.5 mm
|
|
34 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
268,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, long, 40x13.5mm max
Art:
1301.42.400.135
Copied
|
|
|
PG 42
|
|
42.0 x 14.0 mm
|
36.5 x 10.5 mm
|
|
34 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
268,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 42, long, 42x14mm max
Art:
1301.42.420.140
Copied
|
|
|
PG 42
|
|
42.0 x 14.0 mm
|
38.5 x 10.5 mm
|
|
34 mm
|
55 mm
|
15 mm
|
|
EAC
|
10
|
268,5 g
|
| ||
|
Gland NPB, Flat cable, Pg 48, long, 46x14mm max
Art:
1301.48.460.140
Copied
|
|
|
PG 48
|
|
46.0 x 14.0 mm
|
42.0 x 10.0 mm
|
|
37 mm
|
65 mm
|
15 mm
|
|
EAC
|
10
|
350,3 g
|
| ||
|
Gland NPB, Flat cable, Pg 48, long, 46.5x6mm max
Art:
1301.48.465.060
Copied
|
|
|
PG 48
|
|
46.5 x 6.0 mm
|
42.5 x 2.0 mm
|
|
37 mm
|
65 mm
|
15 mm
|
|
EAC
|
10
|
353 g
|
|
Select a variant in the list
