AGRO
Maximum installation flexibility thanks to maximum clamping range
The production of cable harnesses is increasingly outsourced and external cable assemblers manage the cabling of drive systems and converters.
Since different cables are often used, greater flexibility is required in day-to-day work.
With the new Progress® multiLAYER, only one type of cable gland needs to be managed per entry thread.
The new multiLAYER sealing insert offers an extremely wide clamping range and features integrated dust protection for the cable gland. The slotted version allows quick assembly of pre-assembled cables.
It uses Progress® compression technology and clamps cables gently and without causing necking. Furthermore, this new sealing insert can be easily combined with other components of the outstanding modular Progress® product range.
General Data |
|
|---|---|
| Cable diameter min | 4 mm |
| Thread Size (G) | M20 |
| Cable diameter max | 15 mm |
| IP class | IP 68 / IP 69 |
| Insert Type | Four-Piece |

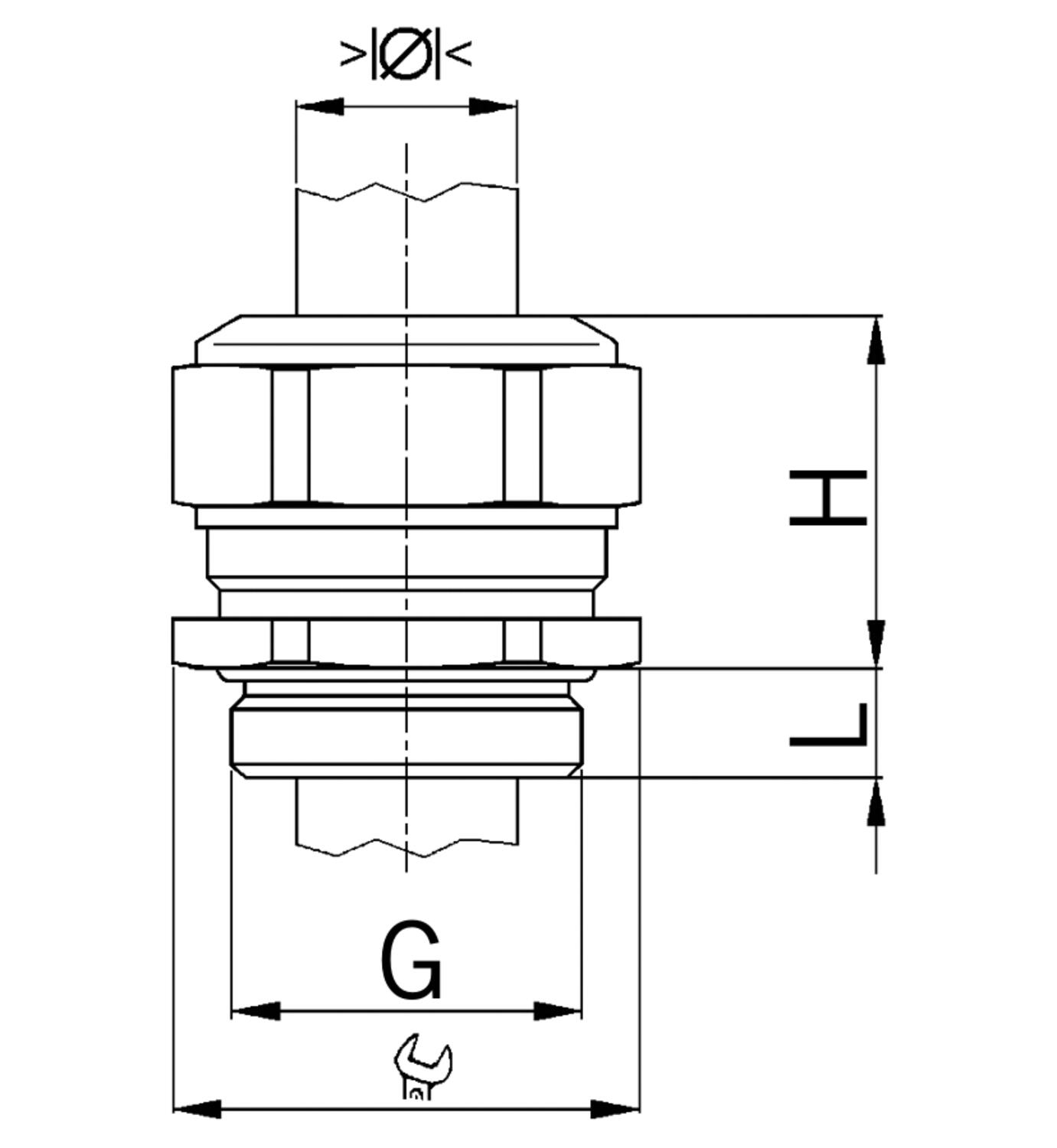

Dimensions |
|
| Thread pitch | 1,5 |
| Height (H) | 23 mm |
| Spanner width (AF) | 24 mm |
| Thread length | 6 mm |
Materials |
|
|---|---|
| Material | Nickel-plated brass |
| Materials O-ring | NBR |
| Material of seals | TPE |
| Temperature range | -50°C .. +105°C |
Approvals |
|
| Strain relief | Version A acc. to EN 62444 |
| Approvals | EN45545-2, EN45545-3 |
Additional Data |
|
| Pack size | 50 |
Maximum installation flexibility thanks to maximum clamping range
The production of cable harnesses is increasingly outsourced and external cable assemblers manage the cabling of drive systems and converters.
Since different cables are often used, greater flexibility is required in day-to-day work.
With the new Progress® multiLAYER, only one type of cable gland needs to be managed per entry thread.
The new multiLAYER sealing insert offers an extremely wide clamping range and features integrated dust protection for the cable gland. The slotted version allows quick assembly of pre-assembled cables.
It uses Progress® compression technology and clamps cables gently and without causing necking. Furthermore, this new sealing insert can be easily combined with other components of the outstanding modular Progress® product range.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Cable diameter min | Thread Size (G) | Cable diameter max | Height (H) | Spanner width (AF) | Thread length | Pack size | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
Gland NPB, multiLAYER, M20, ø4…15mm
Art:
F1000.4.20
Copied
|
4 mm
|
M20
|
15 mm
|
23 mm
|
24 mm
|
6 mm
|
50
|
| ||
|
Gland NPB, multiLAYER, M25, ø6…20.5mm
Art:
F1000.4.25
Copied
|
6 mm
|
M25
|
20,5 mm
|
25 mm
|
30 mm
|
7 mm
|
25
|
| ||
|
Gland NPB, multiLAYER, M32, ø10…25.5mm
Art:
F1000.4.32
Copied
|
10 mm
|
M32
|
25,5 mm
|
28 mm
|
36 mm
|
8 mm
|
25
|
| ||
Gland NPB, multiLAYER, Long thread M20, ø4…15mm
Art:
F1100.4.20
Copied
|
4 mm
|
M20
|
15 mm
|
23 mm
|
24 mm
|
10 mm
|
50
|
| ||
|
Gland NPB, multiLAYER, Long thread M25, ø6…20.5mm
Art:
F1100.4.25
Copied
|
6 mm
|
M25
|
20,5 mm
|
25 mm
|
30 mm
|
11 mm
|
25
|
| ||
|

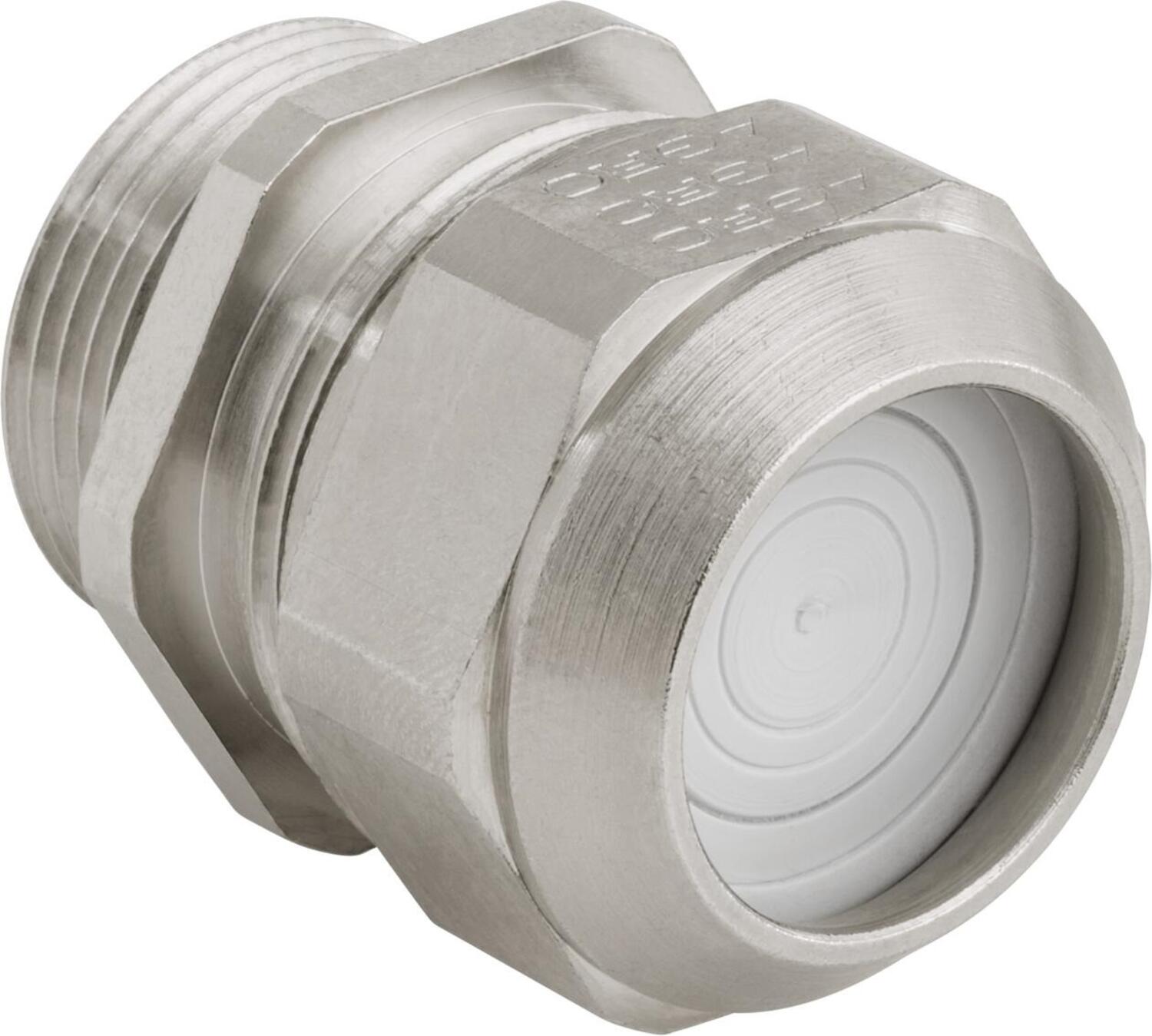

Gland NPB, multiLAYER, Long thread M32, ø10…25.5mm
Art:
F1100.4.32
Copied
|
10 mm
|
M32
|
25,5 mm
|
28 mm
|
36 mm
|
13 mm
|
25
|
|
