AGRO

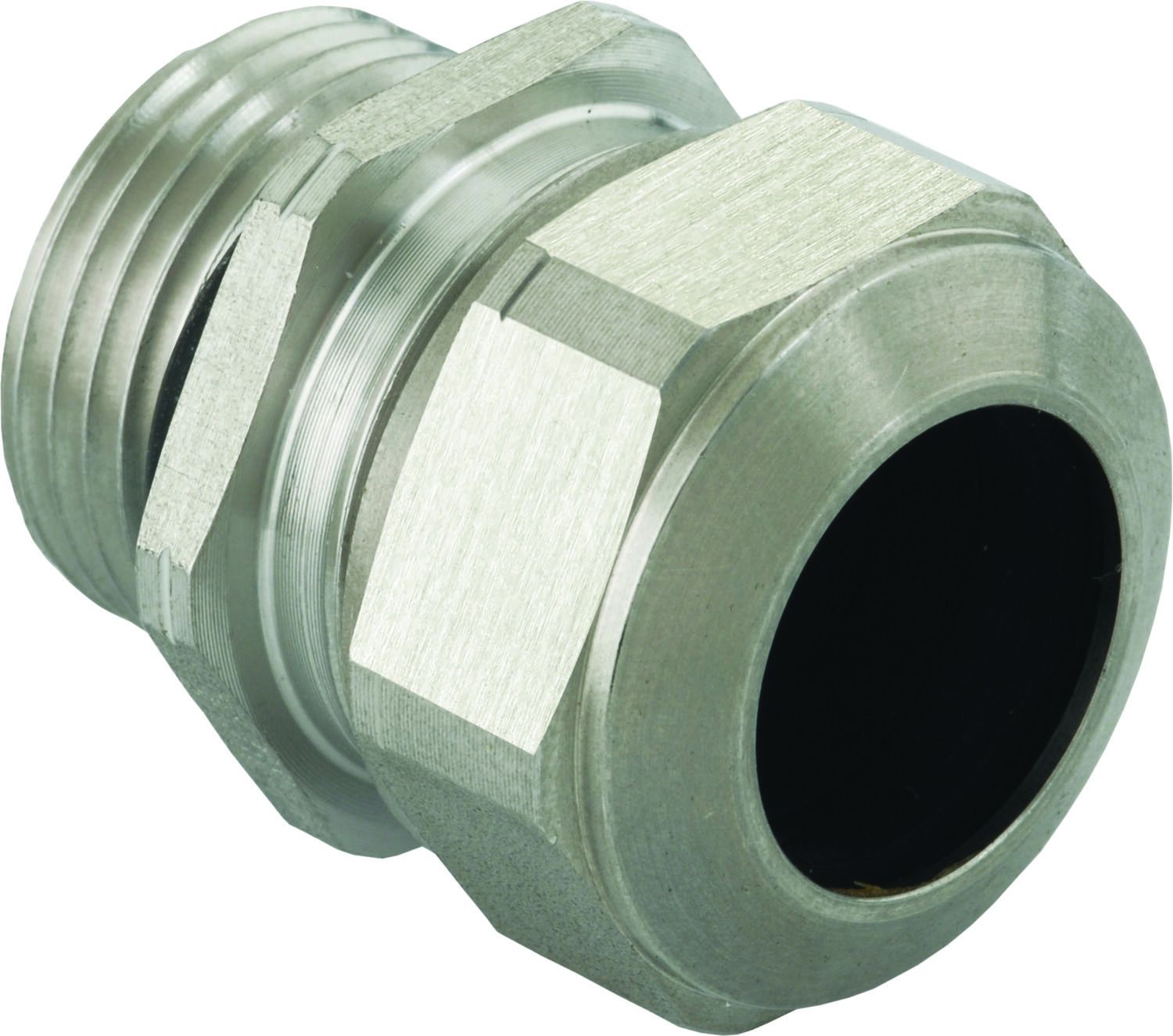

The Progress® range of stainless steel glands are highly corrosion-proof and ideal for use in the food, chemical industry, as well as any environmentally challenging applications, such as tunnels and offshore.
The standard products include A2 (DIN EN 1.4305/AISI303), acid resistant A4 CrNiMo (DIN EN 1.4435/AISI316L) and A2 CrNi (DIN EN 1.4305/AISI303) for drinking water applications.
All AGRO stainless steel glands have a series of grooves in the main gland & cap to easily identify the material. The aqua version is laser etched to further clarify the type of gland.
This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.
The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
The Progress® stainless range is available with a short or long entry thread in metric or Pg and can be used with existing threaded holes or with a lock nut.
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.
General Data |
|
|---|---|
| Thread Size (G) | M16 |
| Insert Type | Two-Piece |
| Cable diameter inner min | 6 mm |
| Cable diameter inner max | 8 mm |
| Cable diameter min | 8 mm |
| Cable diameter max | 10,5 mm |
| IP class | IP 68 (up to 10 bar), IP 69 further protection |
Dimensions |
|
| Thread pitch | 1,5 |
| Thread length | 10 mm |
| Height (H) | 20 mm |
| Spanner width (AF) | 19 mm |
Materials |
|
| Material | Stainless steel A2 |
*Invisible Heading* |
|
|---|---|
| Materials O-ring | NBR |
| Material of seals | TPE |
| Temperature range | -40°C … +100°C |
Approvals |
|
| Approvals | CE, SEV, VDE, EAC, DNV |
| Strain relief | Version A acc. to EN 62444 |
| Identification | 1 groove |
Additional Data |
|
| Pack size | 50 |
| Country of origin | CH |
| Tariff code | 73269023 |
| Weight | 21,36 g |
The Progress® range of stainless steel glands are highly corrosion-proof and ideal for use in the food, chemical industry, as well as any environmentally challenging applications, such as tunnels and offshore.
The standard products include A2 (DIN EN 1.4305/AISI303), acid resistant A4 CrNiMo (DIN EN 1.4435/AISI316L) and A2 CrNi (DIN EN 1.4305/AISI303) for drinking water applications.
All AGRO stainless steel glands have a series of grooves in the main gland & cap to easily identify the material. The aqua version is laser etched to further clarify the type of gland.
This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.
The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.
AGRO Progress® metal cable glands are also available with sealing inserts made of a special TPE which are certified according to EN 45545, NFPA 130 and can be used with confidence for any rolling stock applications. The part numbers will be prefixed with 'F' to identify the products, please contact us for pricing.
The Progress® stainless range is available with a short or long entry thread in metric or Pg and can be used with existing threaded holes or with a lock nut.
When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.
The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Thread Size (G) | Insert Type | Cable diameter inner min | Cable diameter inner max | Cable diameter min | Cable diameter max | IP class | Thread pitch | Thread length | Height (H) | Spanner width (AF) | Materials O-ring | Material of seals | Material testing | Temperature range | Approvals | Strain relief | Certificate | Identification | Pack size | Weight | Additional features | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gland stainless steel A2, M16, long, ø6…10.5mm
Art:
1100.17.94
Copied
|
M16
|
Two-Piece
|
6 mm
|
8 mm
|
8 mm
|
10,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
20 mm
|
19 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
21,36 g
|
|
| ||
|
Gland stainless steel A2, M20, long, ø8…15mm
Art:
1100.20.94
Copied
|
M20
|
Two-Piece
|
8 mm
|
11 mm
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
32,7 g
|
|
| ||
|
Gland stainless steel A2, M25, long, ø12.5…20.5mm
Art:
1100.25.94
Copied
|
M25
|
Two-Piece
|
12,5 mm
|
16 mm
|
16 mm
|
20,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
11 mm
|
25 mm
|
30 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
25
|
54,8 g
|
|
| ||
|
Gland stainless steel A2, M32, long, ø17…25.5mm
Art:
1100.32.94
Copied
|
M32
|
Two-Piece
|
17 mm
|
21 mm
|
21 mm
|
25,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
13 mm
|
28 mm
|
36 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
25
|
89,52 g
|
|
| ||
|
Gland stainless steel A2, M40, long, ø24…33mm
Art:
1100.40.94
Copied
|
M40
|
Two-Piece
|
24 mm
|
28,5 mm
|
28,5 mm
|
33 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
13 mm
|
31 mm
|
46 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
10
|
149,5 g
|
|
| ||
|
Gland stainless steel A2, M50, long, ø33…42mm
Art:
1100.50.94
Copied
|
M50
|
Two-Piece
|
33 mm
|
37 mm
|
37 mm
|
42 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
14 mm
|
34 mm
|
55 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
10
|
190,8 g
|
|
| ||
|
Gland stainless steel A2, M63, long, ø40…52mm
Art:
1100.63.94
Copied
|
M63
|
Two-Piece
|
40 mm
|
46 mm
|
46 mm
|
52 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
14 mm
|
37 mm
|
70 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
5
|
390 g
|
|
| ||
|
Gland stainless steel A2, M8, long, ø2.5…5mm
Art:
1100.08.94.035
Copied
|
M8
|
One-Piece
|
|
|
2,5 mm
|
3,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,25
|
10 mm
|
14 mm
|
11 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
6,66 g
|
Metric coarse-pitch thread (with VDE test report)
|
| ||
|
Gland stainless steel A2, M8, long, ø3.5…5mm
Art:
1100.08.94.050
Copied
|
M8
|
One-Piece
|
|
|
3,5 mm
|
5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,25
|
10 mm
|
14 mm
|
11 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
6,4 g
|
Metric coarse-pitch thread (with VDE test report)
|
| ||
|
Gland stainless steel A2, M10, long, ø3…4mm
Art:
1100.10.94.040
Copied
|
M10
|
One-Piece
|
|
|
3 mm
|
4 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
15 mm
|
13 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
9,36 g
|
Metric coarse-pitch thread (with VDE test report)
|
| ||
|
Gland stainless steel A2, M10, long, ø4…6mm
Art:
1100.10.94.060
Copied
|
M10
|
One-Piece
|
|
|
4 mm
|
6 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
15 mm
|
13 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
9,16 g
|
Metric coarse-pitch thread (with VDE test report)
|
| ||
|
Gland stainless steel A2, M12, long, ø5…6.5mm
Art:
1100.12.94.065
Copied
|
M12
|
One-Piece
|
|
|
5 mm
|
6,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
17,28 g
|
|
| ||
|
Gland stainless steel A2, M12, long, ø3.5…5mm
Art:
1100.12.94.050
Copied
|
M12
|
One-Piece
|
|
|
3,5 mm
|
5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
17,46 g
|
|
| ||
|
Gland stainless steel A2, M12, long, ø6.5…8mm
Art:
1100.12.94.080
Copied
|
M12
|
One-Piece
|
|
|
6,5 mm
|
8 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
16,92 g
|
|
| ||
|
Gland stainless steel A2, M16, long, ø8…10.5mm
Art:
1100.17.94.105
Copied
|
M16
|
One-Piece
|
|
|
8 mm
|
10,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
20 mm
|
19 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
20,68 g
|
|
| ||
|
Gland stainless steel A2, M20, long, ø11…15mm
Art:
1100.20.94.150
Copied
|
M20
|
One-Piece
|
|
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
50
|
30,9 g
|
|
| ||
|
Gland stainless steel A2, M25, long, ø16…20.5mm
Art:
1100.25.94.205
Copied
|
M25
|
One-Piece
|
|
|
16 mm
|
20,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
11 mm
|
25 mm
|
30 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
25
|
49,72 g
|
|
| ||
|
Gland stainless steel A2, M32, long, ø21…25.5mm
Art:
1100.32.94.255
Copied
|
M32
|
One-Piece
|
|
|
21 mm
|
25,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
13 mm
|
28 mm
|
36 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
25
|
86 g
|
|
| ||
|
Gland stainless steel A2, M40, long, ø28.5…33mm
Art:
1100.40.94.330
Copied
|
M40
|
One-Piece
|
|
|
28,5 mm
|
33 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
13 mm
|
31 mm
|
46 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
10
|
144,3 g
|
|
| ||
|
Gland stainless steel A2, M50, long, ø37…42mm
Art:
1100.50.94.420
Copied
|
M50
|
One-Piece
|
|
|
37 mm
|
42 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
14 mm
|
34 mm
|
55 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
10
|
189,1 g
|
|
| ||
|
Gland stainless steel A2, M63, long, ø46…52mm
Art:
1100.63.94.520
Copied
|
M63
|
One-Piece
|
|
|
46 mm
|
52 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
1,5
|
14 mm
|
37 mm
|
70 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
CE, SEV, VDE, EAC, DNV
|
Version A acc. to EN 62444
|
|
1 groove
|
5
|
358 g
|
|
| ||

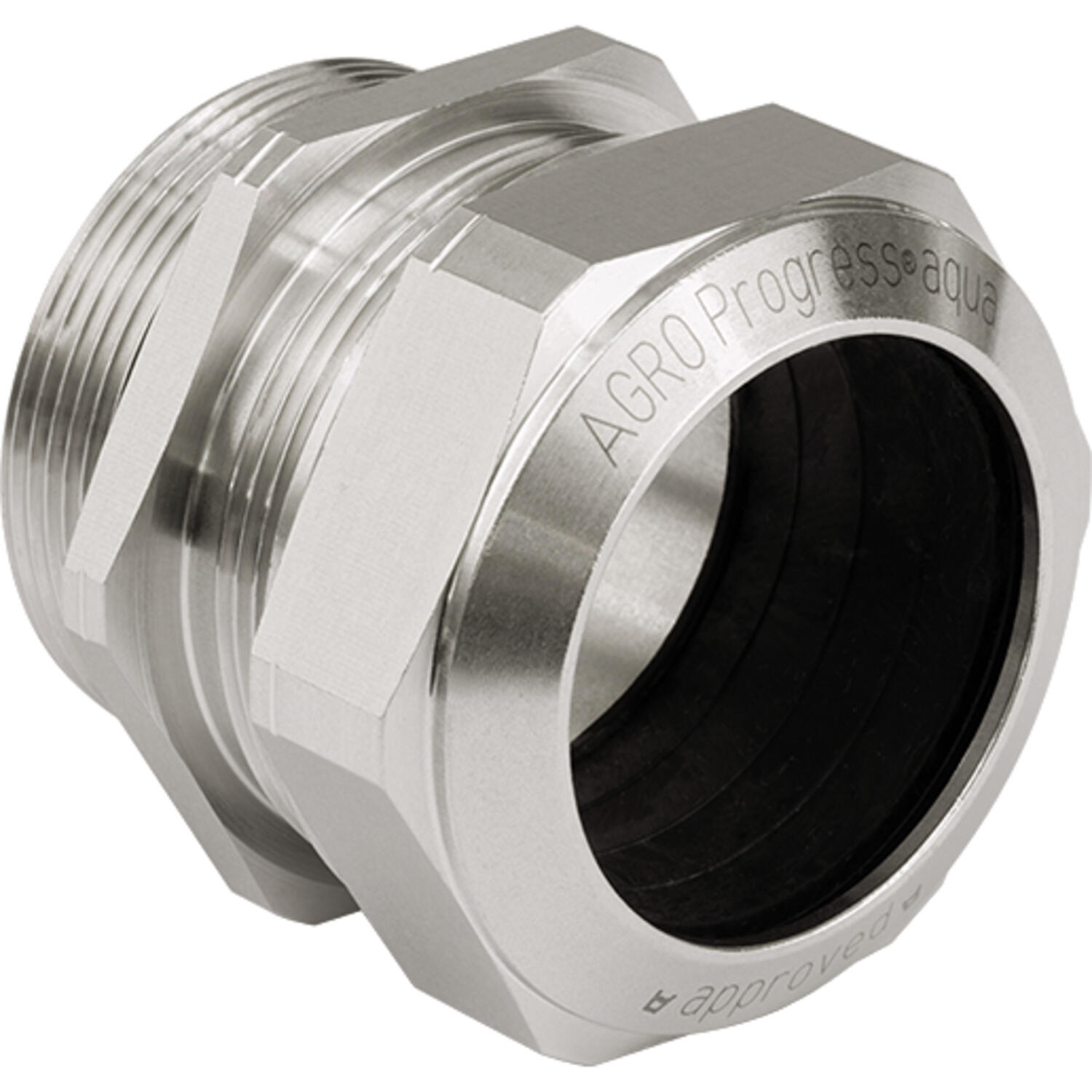

Gland stainless steel A2, drinking water, M12, long, ø2…5mm
Art:
W1100.12.95.050
Copied
|
M12
|
One-Piece
|
|
|
2 mm
|
5 mm
|
IP 68 (up to 5 bar)
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
50
|
17,16 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M12, long, ø3…6.5mm
Art:
W1100.12.95.065
Copied
|
M12
|
One-Piece
|
|
|
3 mm
|
6,5 mm
|
IP 68 (up to 5 bar)
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
50
|
17,02 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M12, long, ø5…8mm
Art:
W1100.12.95.080
Copied
|
M12
|
One-Piece
|
|
|
5 mm
|
8 mm
|
IP 68 (up to 5 bar)
|
1,5
|
10 mm
|
17 mm
|
17 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
50
|
16,72 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M16, long, ø4…6.5mm
Art:
W1100.17.95.105
Copied
|
M16
|
One-Piece
|
|
|
7 mm
|
10,5 mm
|
IP 68 (up to 5 bar)
|
1,5
|
10 mm
|
20 mm
|
19 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
50
|
20,38 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M20, long, ø11…15mm
Art:
W1100.20.95.150
Copied
|
M20
|
One-Piece
|
|
|
11 mm
|
15 mm
|
IP 68 (up to 5 bar)
|
1,5
|
10 mm
|
21 mm
|
24 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
50
|
31,44 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M25, long, ø16…20.5mm
Art:
W1100.25.95.205
Copied
|
M25
|
One-Piece
|
|
|
16 mm
|
20,5 mm
|
IP 68 (up to 5 bar)
|
1,5
|
11 mm
|
25 mm
|
30 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
25
|
48,88 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M32, long, ø21…25.5mm
Art:
W1100.32.95.255
Copied
|
M32
|
One-Piece
|
|
|
21 mm
|
25,5 mm
|
IP 68 (up to 5 bar)
|
1,5
|
13 mm
|
28 mm
|
36 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
25
|
84,96 g
|
|
| ||
|
Gland stainless steel A2, drinking water, M40, long, ø28…33mm
Art:
W1100.40.95.330
Copied
|
M40
|
One-Piece
|
|
|
28 mm
|
33 mm
|
IP 68 (up to 5 bar)
|
1,5
|
13 mm
|
31 mm
|
46 mm
|
EPDM
|
EPDM
|
KTW W270
|
|
SVGW SSIGE
|
|
SVGW (1603-H6481)
|
Progress® aqua
|
10
|
142,5 g
|
|
| ||
|
Gland stainless steel A2, Pg 9, long, ø6…10.5mm
Art:
1100.09.94
Copied
|
PG 9
|
Two-Piece
|
6 mm
|
8 mm
|
8 mm
|
10,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
20 mm
|
19 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
20,52 g
|
|
| ||
|
Gland stainless steel A2, Pg 11, long, ø5.5…12mm
Art:
1100.11.94
Copied
|
PG 11
|
Two-Piece
|
5,5 mm
|
8,5 mm
|
8,5 mm
|
12 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
21 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
30,7 g
|
|
| ||
|
Gland stainless steel A2, Pg 13, long, ø8…15mm
Art:
1100.13.94
Copied
|
PG 13
|
Two-Piece
|
8 mm
|
11 mm
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
33,7 g
|
|
| ||
|
Gland stainless steel A2, Pg 16, long, ø8…15mm
Art:
1100.16.94
Copied
|
PG 16
|
Two-Piece
|
8 mm
|
11 mm
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
34,8 g
|
|
| ||
|
Gland stainless steel A2, Pg 21, long, ø12.5…20.5mm
Art:
1100.21.94
Copied
|
PG 21
|
Two-Piece
|
12,5 mm
|
16 mm
|
16 mm
|
20,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
12 mm
|
25 mm
|
30 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
25
|
65,75 g
|
|
| ||
|
Gland stainless steel A2, Pg 29, long, ø19…27.5mm
Art:
1100.29.94
Copied
|
PG 29
|
Two-Piece
|
19 mm
|
23 mm
|
23 mm
|
27,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
12 mm
|
28 mm
|
41 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
25
|
115,62 g
|
|
| ||
|
Gland stainless steel A2, Pg 36, long, ø26…35mm
Art:
1100.36.94
Copied
|
PG 36
|
Two-Piece
|
26 mm
|
30,5 mm
|
30,5 mm
|
35 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
32 mm
|
50 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
195,8 g
|
|
| ||
|
Gland stainless steel A2, Pg 42, long, ø33…42mm
Art:
1100.42.94
Copied
|
PG 42
|
Two-Piece
|
33 mm
|
37 mm
|
37 mm
|
42 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
34 mm
|
55 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
227 g
|
|
| ||
|
Gland stainless steel A2, Pg 48, long, ø37…49mm
Art:
1100.48.94
Copied
|
PG 48
|
Two-Piece
|
37 mm
|
43 mm
|
43 mm
|
49 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
37 mm
|
65 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
326 g
|
|
| ||
|
Gland stainless steel A2, Pg 7, long, ø5…6.5mm
Art:
1100.07.94.065
Copied
|
PG 7
|
One-Piece
|
|
|
5 mm
|
6,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
18,34 g
|
|
| ||
|
Gland stainless steel A2, Pg 7, long, ø6.5…8mm
Art:
1100.07.94.080
Copied
|
PG 7
|
One-Piece
|
|
|
6,5 mm
|
8 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
18,02 g
|
|
| ||
|
Gland stainless steel A2, Pg 7, long, ø3.5…5mm
Art:
1100.07.94.050
Copied
|
PG 7
|
One-Piece
|
|
|
3,5 mm
|
5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
17 mm
|
17 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
18,34 g
|
|
| ||
|
Gland stainless steel A2, Pg 9, long, ø8…10.5mm
Art:
1100.09.94.105
Copied
|
PG 9
|
One-Piece
|
|
|
8 mm
|
10,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
20 mm
|
19 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
20,02 g
|
|
| ||
|
Gland stainless steel A2, Pg 11, long, ø8.5…12mm
Art:
1100.11.94.120
Copied
|
PG 11
|
One-Piece
|
|
|
8,5 mm
|
12 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
22 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
29,4 g
|
|
| ||
|
Gland stainless steel A2, Pg 13, long, ø11…15mm
Art:
1100.13.94.150
Copied
|
PG 13
|
One-Piece
|
|
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
31,8 g
|
|
| ||
|
Gland stainless steel A2, Pg 16, long, ø11…15mm
Art:
1100.16.94.150
Copied
|
PG 16
|
One-Piece
|
|
|
11 mm
|
15 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
10 mm
|
21 mm
|
24 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
50
|
33,28 g
|
|
| ||
|
Gland stainless steel A2, Pg 21, long, ø16…20.5mm
Art:
1100.21.94.205
Copied
|
PG 21
|
One-Piece
|
|
|
16 mm
|
20,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
12 mm
|
25 mm
|
30 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
25
|
62,71 g
|
|
| ||
|
Gland stainless steel A2, Pg 29, long, ø23…27.5mm
Art:
1100.29.94.275
Copied
|
PG 29
|
One-Piece
|
|
|
23 mm
|
27,5 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
12 mm
|
28 mm
|
41 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
25
|
111,72 g
|
|
| ||
|
Gland stainless steel A2, Pg 36, long, ø30.5…35mm
Art:
1100.36.94.350
Copied
|
PG 36
|
One-Piece
|
|
|
30,5 mm
|
35 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
32 mm
|
50 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
191,3 g
|
|
| ||
|
Gland stainless steel A2, Pg 42, long, ø37…42mm
Art:
1100.42.94.420
Copied
|
PG 42
|
One-Piece
|
|
|
37 mm
|
42 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
34 mm
|
55 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
226,7 g
|
|
| ||
|
Gland stainless steel A2, Pg 48, long, ø43…49mm
Art:
1100.48.94.490
Copied
|
PG 48
|
One-Piece
|
|
|
43 mm
|
49 mm
|
IP 68 (up to 10 bar), IP 69 further protection
|
|
15 mm
|
37 mm
|
65 mm
|
NBR
|
TPE
|
|
-40°C … +100°C
|
EAC
|
|
|
1 groove
|
10
|
325 g
|
|
|
Select a variant in the list
