Stainless Steel High Temperature

Progress®S2 HT, Progress®S4 HT

The Progress® range of stainless steel glands are highly corrosion-proof and ideal for use in the food, chemical industry, as well as any environmentally challenging applications, such as tunnels and offshore.



The high temperature products include A2 (DIN EN 1.4305/AISI303) and acid resistant A4 CrNiMo (DIN EN 1.4435/AISI316L).



The FPM seals can operate in temperatures from -40°C to +200°C.



All AGRO stainless steel glands have a series of grooves in the main gland & cap to easily identify the material.



This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.



The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.



The Progress® stainless range is available with a short or long entry thread in metric or Pg and can be used with existing threaded holes or with a lock nut.



When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.



The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.



Read more
  • A2 -AISI303, A4 - AISI 316L
  • Identification marks
  • -40°C…+200°C
  • IP68 up to 10 bar, IP69
1100.32.96.tif


To view Agro cable glands via ePlan see the link under 'downloadable resources' further down the page.

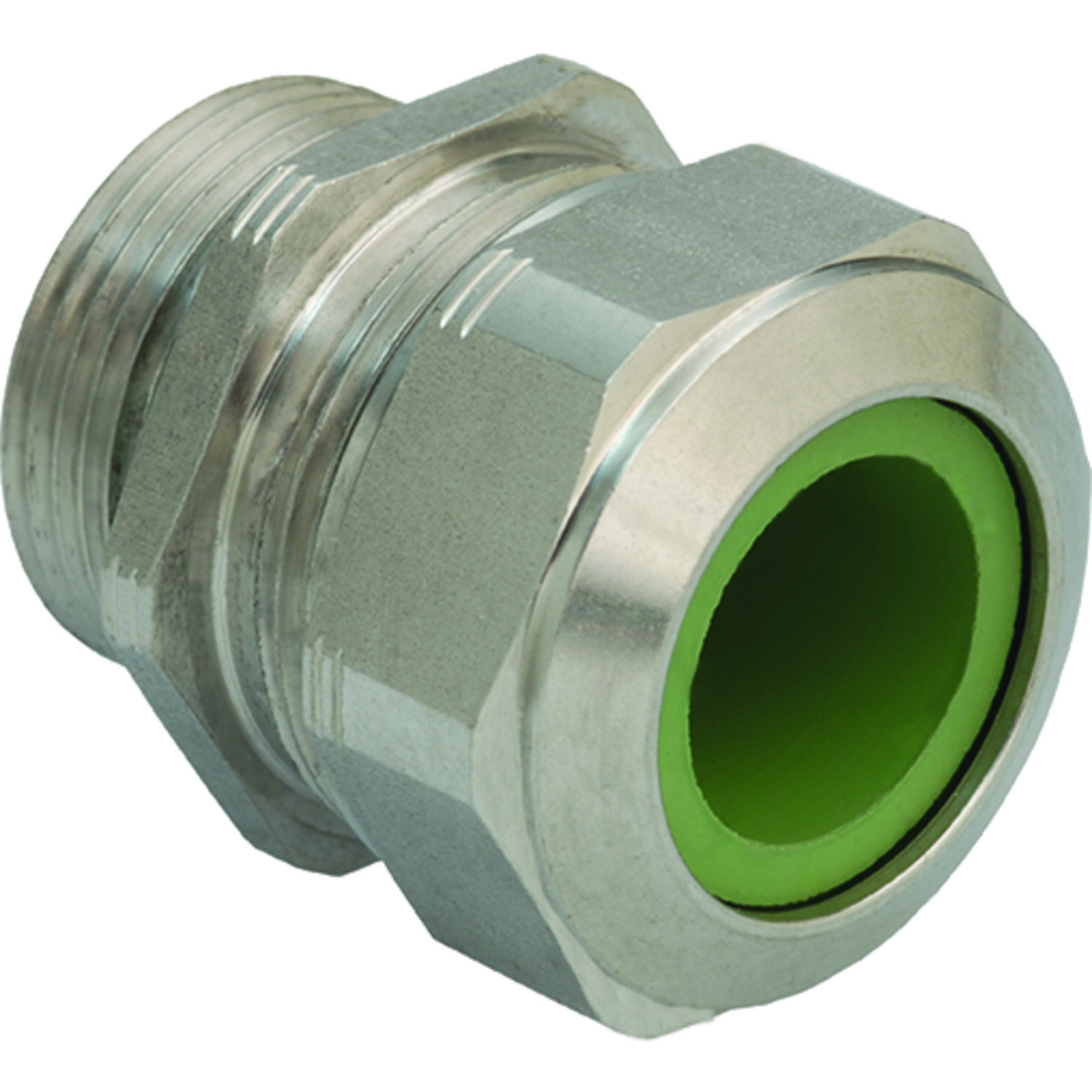

1100.25.98.tif

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Cable diameter inner max 8 mm
Cable diameter min 8 mm
Cable diameter inner min 6 mm
Thread Size (G) M16
Cable diameter max 10,5 mm
IP class IP 68 (up to 10 bar), IP 69 further protection
Insert Type Two-Piece

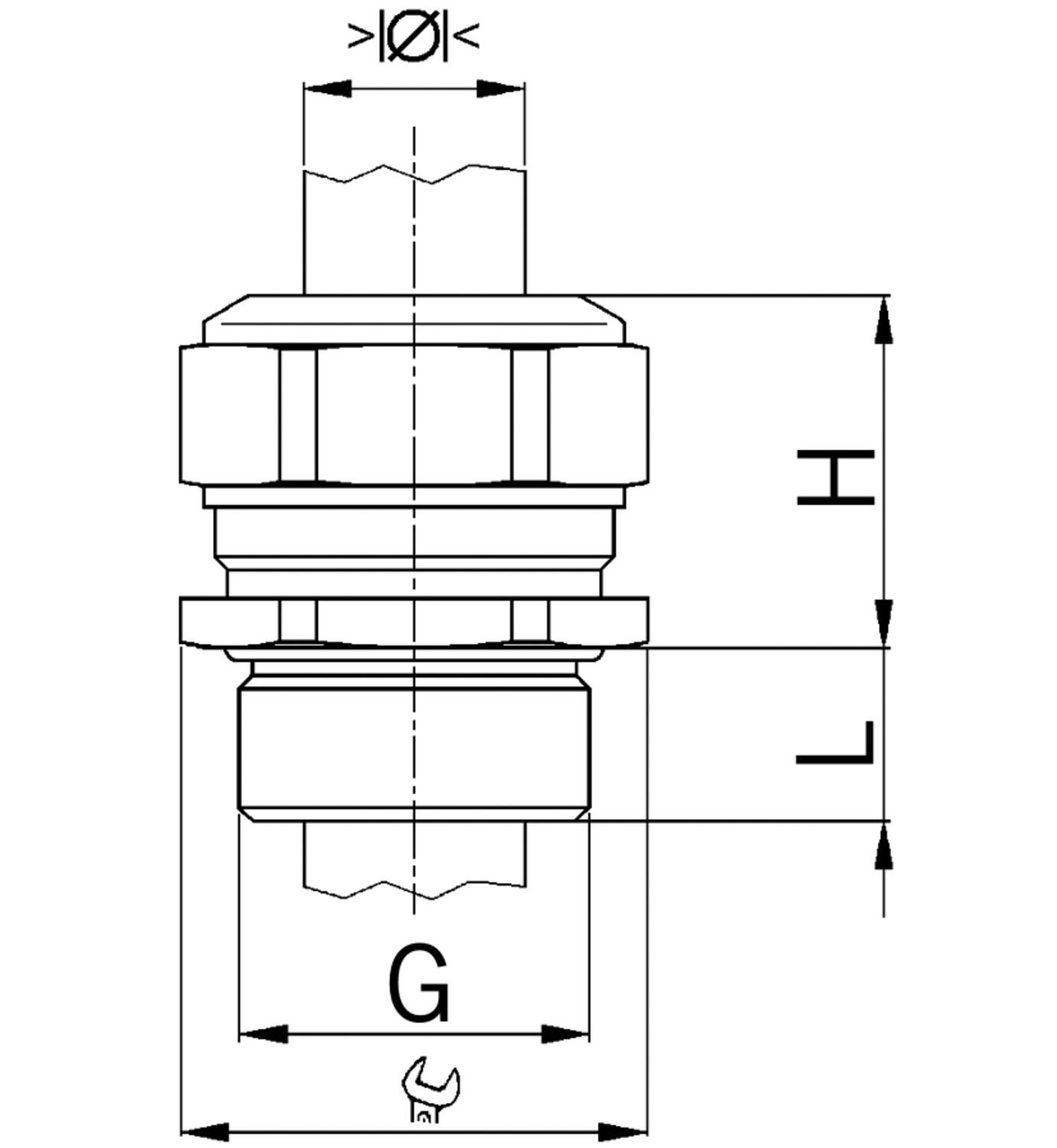

Dimensions

Thread pitch 1,5
Height (H) 20 mm
Thread length 10 mm

Materials

Material Stainless steel A2

*Invisible Heading*

Materials O-ring FPM
Material of seals FPM
Temperature range -40°C … +200°C

Approvals

Strain relief Version A acc. to EN 62444
Identification 1 groove
Approvals CE, SEV, VDE, EAC, DNV

Additional Data

Pack size 50
Country of origin CH
Tariff code 73269023
Weight 23 g

Product description

The Progress® range of stainless steel glands are highly corrosion-proof and ideal for use in the food, chemical industry, as well as any environmentally challenging applications, such as tunnels and offshore.



The high temperature products include A2 (DIN EN 1.4305/AISI303) and acid resistant A4 CrNiMo (DIN EN 1.4435/AISI316L).



The FPM seals can operate in temperatures from -40°C to +200°C.



All AGRO stainless steel glands have a series of grooves in the main gland & cap to easily identify the material.



This range is available with two pieces inserts which offer a wide cable clamping range or for the best fit, one piece inserts that are designed for a smaller overall cable size range.



The outstanding compression technology is designed to be used in a wide range of applications and guarantees an effective seal with excellent cable-protecting strain relief, even where vibration is an issue.



The Progress® stainless range is available with a short or long entry thread in metric or Pg and can be used with existing threaded holes or with a lock nut.



When tightening the gland, a small bulge in the sealing insert confirms the correct tightening torque has been reached, giving positive visible feedback to the installer.



The integrated retaining grooves in the lower part of the gland and in the sealing insert prevent the insert from twisting and becoming deformed.



Accessories

Related products

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Cable diameter inner max Cable diameter min Cable diameter inner min Thread Size (G) Cable diameter max Insert Type Thread pitch Height (H) Thread length Strain relief Identification Approvals Pack size Additional features Weight Price
8 mm
8 mm
6 mm
M16
10,5 mm
Two-Piece
1,5
20 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
23 g
11 mm
11 mm
8 mm
M20
15 mm
Two-Piece
1,5
21 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
34,76 g
16 mm
16 mm
12,5 mm
M25
20,5 mm
Two-Piece
1,5
25 mm
11 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
25
58,8 g
21 mm
21 mm
17 mm
M32
25,5 mm
Two-Piece
1,5
28 mm
13 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
25
91,4 g
28,5 mm
28,5 mm
24 mm
M40
33 mm
Two-Piece
1,5
31 mm
13 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
10
149,5 g
37 mm
37 mm
33 mm
M50
42 mm
Two-Piece
1,5
34 mm
14 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
10
206,2 g
46 mm
46 mm
40 mm
M63
52 mm
Two-Piece
1,5
37 mm
14 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
5
404 g
2,5 mm
M8
3,5 mm
One-Piece
1,25
14 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
6,86 g
3,5 mm
M8
5 mm
One-Piece
1,25
14 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
6,62 g
3 mm
M10
4 mm
One-Piece
1,5
15 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
9,36 g
4 mm
M10
6 mm
One-Piece
1,5
15 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
9,56 g
3,5 mm
M12
5 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
19,32 g
5 mm
M12
6,5 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
18,26 g
6,5 mm
M12
8 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
18,12 g
8 mm
M16
10,5 mm
One-Piece
1,5
20 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
21,72 g
11 mm
M20
15 mm
One-Piece
1,5
21 mm
10 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
50
32,6 g
16 mm
M25
20,5 mm
One-Piece
1,5
25 mm
11 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
25
53,32 g
21 mm
M32
25,5 mm
One-Piece
1,5
28 mm
13 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
25
84,32 g
28,5 mm
M40
33 mm
One-Piece
1,5
31 mm
13 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
10
147,9 g
37 mm
M50
42 mm
One-Piece
1,5
34 mm
14 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
10
191,4 g
46 mm
M63
52 mm
One-Piece
1,5
37 mm
14 mm
Version A acc. to EN 62444
1 groove
CE, SEV, VDE, EAC, DNV
5
371,9 g
8 mm
8 mm
6 mm
M16
10,5 mm
Two-Piece
1,5
20 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
22,86 g
11 mm
11 mm
8 mm
M20
15 mm
Two-Piece
1,5
21 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
36,1 g
16 mm
16 mm
12,5 mm
M25
20,5 mm
Two-Piece
1,5
25 mm
11 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
25
59,08 g
21 mm
21 mm
17 mm
M32
25,5 mm
Two-Piece
1,5
28 mm
13 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
25
94,12 g
28,5 mm
28,5 mm
24 mm
M40
33 mm
Two-Piece
1,5
31 mm
13 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
10
162 g
37 mm
37 mm
33 mm
M50
42 mm
Two-Piece
1,5
34 mm
14 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
10
213,1 g
46 mm
46 mm
40 mm
M63
52 mm
Two-Piece
1,5
37 mm
14 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
5
398,7 g
2,5 mm
M8
3,5 mm
One-Piece
1,25
14 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
6,96 g
3,5 mm
M8
5 mm
One-Piece
1,25
14 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
6,72 g
3 mm
M10
4 mm
One-Piece
1,5
15 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
9,86 g
4 mm
M10
6 mm
One-Piece
1,5
15 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
Metric coarse-pitch thread (with VDE test report)
9,36 g
3,5 mm
M12
5 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
19,42 g
5 mm
M12
6,5 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
18,44 g
6,5 mm
M12
8 mm
One-Piece
1,5
17 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
17,44 g
8 mm
M16
10,5 mm
One-Piece
1,5
20 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
22 g
11 mm
M20
15 mm
One-Piece
1,5
21 mm
10 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
50
33,4 g
16 mm
M25
20,5 mm
One-Piece
1,5
25 mm
11 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
25
53,76 g
21 mm
M32
25,5 mm
One-Piece
1,5
28 mm
13 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
25
85,6 g
28,5 mm
M40
33 mm
One-Piece
1,5
31 mm
13 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
10
174,5 g
37 mm
M50
42 mm
One-Piece
1,5
34 mm
14 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
10
202,4 g
46 mm
M63
52 mm
One-Piece
1,5
37 mm
14 mm
Version A acc. to EN 62444
2 grooves
CE, SEV, VDE, EAC, DNV
5
418 g
8 mm
8 mm
6 mm
PG 9
10,5 mm
Two-Piece
20 mm
10 mm
1 groove
EAC
50
22,38 g
8,5 mm
8,5 mm
5,5 mm
PG 11
12 mm
Two-Piece
21 mm
10 mm
1 groove
EAC
50
32,3 g
11 mm
11 mm
8 mm
PG 13
15 mm
Two-Piece
21 mm
10 mm
1 groove
EAC
50
37,4 g
11 mm
11 mm
8 mm
PG 16
15 mm
Two-Piece
21 mm
10 mm
1 groove
EAC
50
38,4 g
16 mm
16 mm
12,5 mm
PG 21
20,5 mm
Two-Piece
25 mm
12 mm
1 groove
EAC
25
65,7 g
23 mm
23 mm
19 mm
PG 29
27,5 mm
Two-Piece
28 mm
12 mm
1 groove
EAC
25
122,82 g
30,5 mm
30,5 mm
26 mm
PG 36
35 mm
Two-Piece
32 mm
15 mm
1 groove
EAC
10
208,6 g
37 mm
37 mm
33 mm
PG 42
42 mm
Two-Piece
34 mm
15 mm
1 groove
EAC
10
227 g
43 mm
43 mm
37 mm
PG 48
49 mm
Two-Piece
37 mm
15 mm
1 groove
EAC
10
335 g
3,5 mm
PG 7
5 mm
One-Piece
17 mm
10 mm
1 groove
EAC
50
20,42 g
5 mm
PG 7
6,5 mm
One-Piece
17 mm
10 mm
1 groove
EAC
50
19,32 g
6,5 mm
PG 7
8 mm
One-Piece
17 mm
10 mm
1 groove
EAC
50
19,02 g
8 mm
PG 9
10,5 mm
One-Piece
20 mm
10 mm
1 groove
EAC
50
20,9 g
8,5 mm
PG 11
12 mm
One-Piece
21 mm
10 mm
1 groove
EAC
50
31,06 g
11 mm
PG 13
15 mm
One-Piece
21 mm
10 mm
1 groove
EAC
50
33,68 g
11 mm
PG 16
15 mm
One-Piece
21 mm
10 mm
1 groove
EAC
50
35,6 g
16 mm
PG 21
20,5 mm
One-Piece
25 mm
12 mm
1 groove
EAC
25
65,6 g
23 mm
PG 29
27,5 mm
One-Piece
28 mm
12 mm
1 groove
EAC
25
81,6 g
30,5 mm
PG 36
35 mm
One-Piece
32 mm
15 mm
1 groove
EAC
10
200,1 g
37 mm
PG 42
42 mm
One-Piece
34 mm
15 mm
1 groove
EAC
10
227 g
43 mm
PG 48
49 mm
One-Piece
37 mm
15 mm
1 groove
EAC
10
335 g
8 mm
8 mm
6 mm
PG 9
10,5 mm
Two-Piece
20 mm
10 mm
2 grooves
EAC
50
22,36 g
8,5 mm
8,5 mm
5,5 mm
PG 11
12 mm
Two-Piece
21 mm
10 mm
2 grooves
EAC
50
33 g
11 mm
11 mm
8 mm
PG 13
15 mm
Two-Piece
21 mm
10 mm
2 grooves
EAC
50
38,1 g
11 mm
11 mm
8 mm
PG 16
15 mm
Two-Piece
21 mm
10 mm
2 grooves
EAC
50
38,9 g
16 mm
16 mm
12,5 mm
PG 21
20,5 mm
Two-Piece
25 mm
12 mm
2 grooves
EAC
25
66,6 g
23 mm
23 mm
19 mm
PG 29
27,5 mm
Two-Piece
28 mm
12 mm
2 grooves
EAC
25
126,52 g
30,5 mm
30,5 mm
26 mm
PG 36
35 mm
Two-Piece
32 mm
15 mm
2 grooves
EAC
10
217,9 g
37 mm
37 mm
33 mm
PG 42
42 mm
Two-Piece
34 mm
15 mm
2 grooves
EAC
10
245 g
43 mm
43 mm
37 mm
PG 48
49 mm
Two-Piece
37 mm
15 mm
2 grooves
EAC
10
326 g
3,5 mm
PG 7
5 mm
One-Piece
17 mm
10 mm
2 grooves
EAC
50
20,08 g
5 mm
PG 7
6,5 mm
One-Piece
17 mm
10 mm
2 grooves
EAC
50
19,4 g
6,5 mm
PG 7
8 mm
One-Piece
17 mm
10 mm
2 grooves
EAC
50
19,42 g
8 mm
PG 9
10,5 mm
One-Piece
20 mm
10 mm
2 grooves
EAC
50
20,98 g
8,5 mm
PG 11
12 mm
One-Piece
21 mm
10 mm
2 grooves
EAC
50
31,12 g
11 mm
PG 13
15 mm
One-Piece
21 mm
10 mm
2 grooves
EAC
50
34,02 g
11 mm
PG 16
15 mm
One-Piece
21 mm
10 mm
2 grooves
EAC
50
35,4 g
16 mm
PG 21
20,5 mm
One-Piece
25 mm
12 mm
2 grooves
EAC
25
60,2 g
23 mm
PG 29
27,5 mm
One-Piece
28 mm
12 mm
2 grooves
EAC
25
118,82 g
30,5 mm
PG 36
35 mm
One-Piece
32 mm
15 mm
2 grooves
EAC
10
211,7 g
37 mm
PG 42
42 mm
One-Piece
34 mm
15 mm
2 grooves
EAC
10
227 g
43 mm
PG 48
49 mm
One-Piece
37 mm
15 mm
2 grooves
EAC
10
326 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
