AGRO

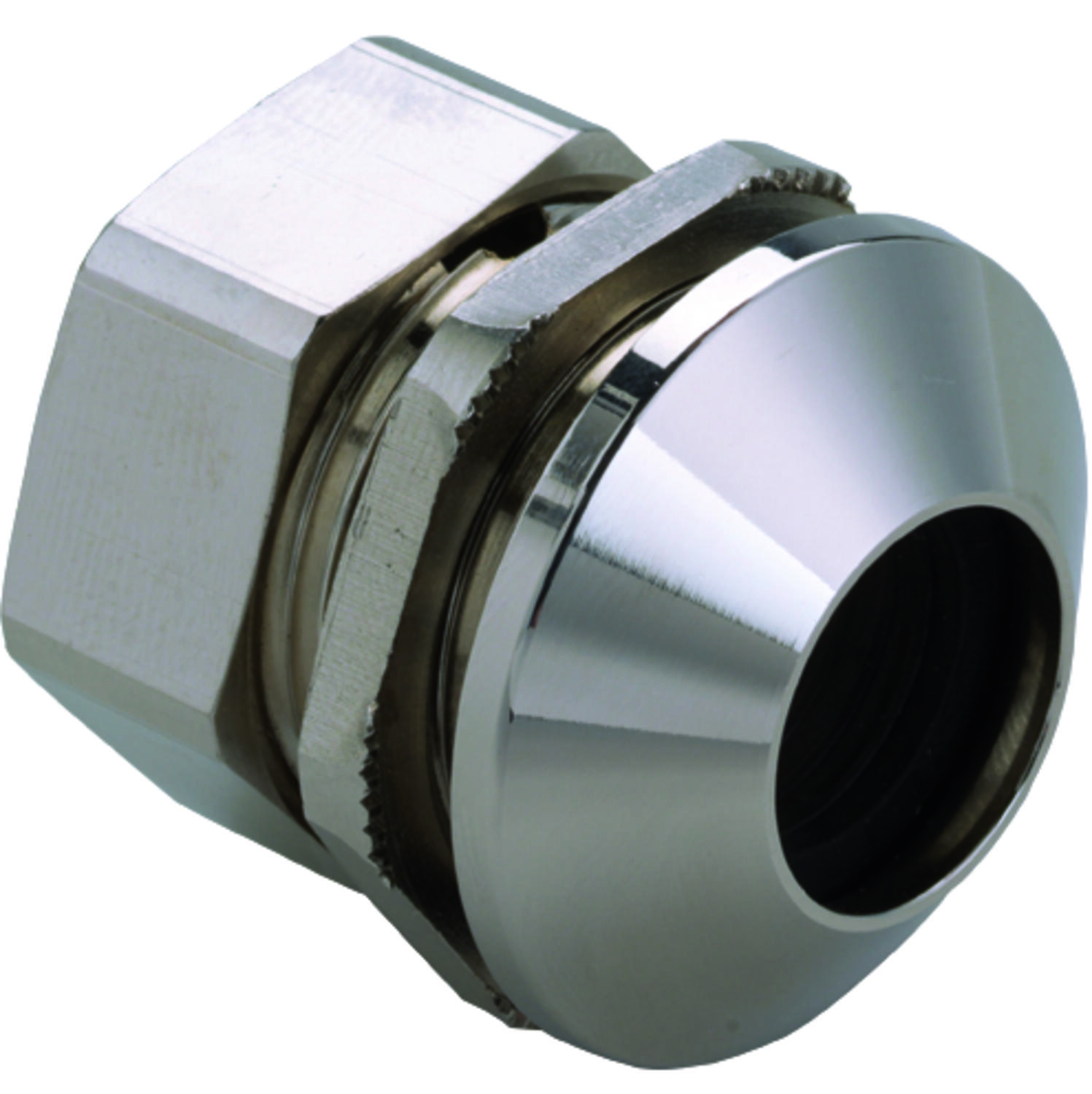

The Progress® ultraFLAT is a flush mount cable gland designed application areas such as:
The ultra-flat construction of the Progress® ultraFLAT cable gland prevents any manipulation from the outside. No external nut is visible on the external side of the gland.
In addition, the cable gland has been designed with an attractive shape, which is less industrial looking and more ‘design’ friendly to the eye.
The Progress® ultraFLAT cable gland offers very little surface trap points for contamination, so is ideally suited for wash down environments, which is crucial for cleanroom and food applications. These food EHEDG certified glands are easily recognised, as they have a blue coloured FKM seal which have been cleared by the FDA.
The range includes nickel plated brass and stainless steel, with high-temperature or FDA cleared sealing inserts.
General Data |
|
|---|---|
| Cable diameter min | 5 mm |
| Thread Size (G) | M16 |
| Cable diameter max | 6,5 mm |
| IP class | IP 68 (up to 10 bar), IP 69 further protection |
| Insert Type | One-Piece |

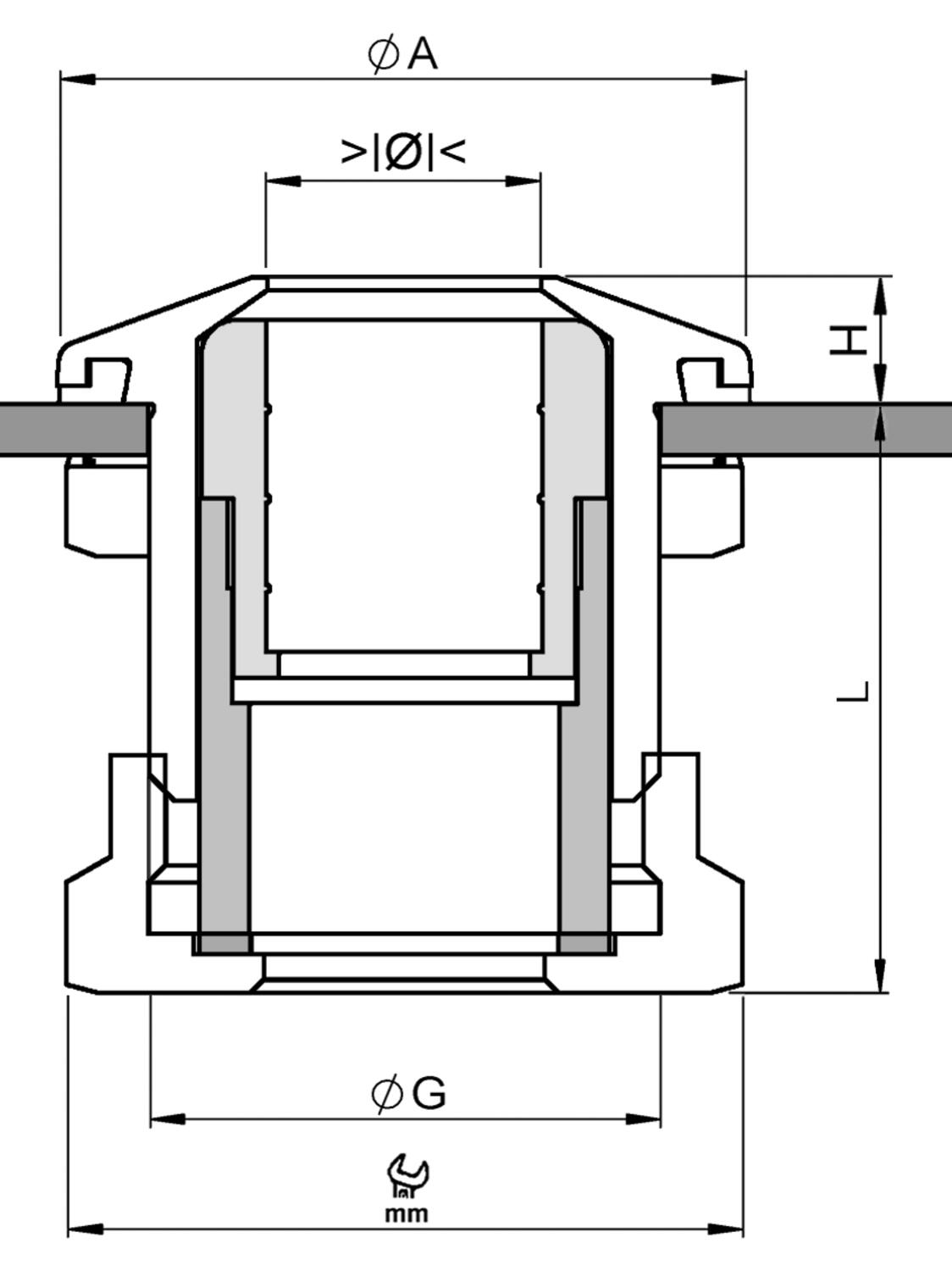

Dimensions |
|
| Thread pitch | 1,5 |
| External diameter (⌀A) | 22 mm |
| Height (H) | 4 mm |
| Wall thickness | 5mm max. |
| Spanner width (AF) | 19 mm |
| Thread length | 21 mm |
Materials |
|
| Material | Semi-bright nickel-plated brass |
*Invisible Heading* |
|
|---|---|
| Inner-nut material | Nickel-plated brass |
| Material of seals | TPE |
| Temperature range | -40°C ... +100°C |
| Sealing washer material | FPM |
Approvals |
|
| Strain relief | Version A acc. to EN 62444 |
| Approvals | CE |
Additional Data |
|
| Pack size | 25 |
| Country of origin | CH |
| Tariff code | 74199949 |
| Weight | 31,76 g |
The Progress® ultraFLAT is a flush mount cable gland designed application areas such as:
The ultra-flat construction of the Progress® ultraFLAT cable gland prevents any manipulation from the outside. No external nut is visible on the external side of the gland.
In addition, the cable gland has been designed with an attractive shape, which is less industrial looking and more ‘design’ friendly to the eye.
The Progress® ultraFLAT cable gland offers very little surface trap points for contamination, so is ideally suited for wash down environments, which is crucial for cleanroom and food applications. These food EHEDG certified glands are easily recognised, as they have a blue coloured FKM seal which have been cleared by the FDA.
The range includes nickel plated brass and stainless steel, with high-temperature or FDA cleared sealing inserts.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Cable diameter min | Thread Size (G) | Cable diameter max | External diameter (⌀A) | Height (H) | Spanner width (AF) | Thread length | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gland ultraFLAT, M16, ø5…6.5mm
Art:
1040.17.40.065
Copied
|
5 mm
|
M16
|
6,5 mm
|
22 mm
|
4 mm
|
19 mm
|
21 mm
|
25
|
31,76 g
|
| ||
|
Gland ultraFLAT, M16, ø6…8mm
Art:
1040.17.40.080
Copied
|
6,5 mm
|
M16
|
8 mm
|
22 mm
|
4 mm
|
19 mm
|
21 mm
|
25
|
32,2 g
|
| ||
|
Gland ultraFLAT, M20, ø6…8mm
Art:
1040.20.40.080
Copied
|
6 mm
|
M20
|
8 mm
|
27 mm
|
4,5 mm
|
24 mm
|
23 mm
|
25
|
52,56 g
|
| ||
|
Gland ultraFLAT, M20, ø8…10.5mm
Art:
1040.20.40.105
Copied
|
8 mm
|
M20
|
10,5 mm
|
27 mm
|
4,5 mm
|
24 mm
|
23 mm
|
25
|
53,86 g
|
| ||
|
Gland ultraFLAT, M25, ø8…11mm
Art:
1040.25.40.110
Copied
|
8 mm
|
M25
|
11 mm
|
32 mm
|
5,5 mm
|
30 mm
|
25 mm
|
20
|
86,15 g
|
| ||
|
Gland ultraFLAT, M25, ø11…15mm
Art:
1040.25.40.150
Copied
|
11 mm
|
M25
|
15 mm
|
32 mm
|
5,5 mm
|
30 mm
|
25 mm
|
20
|
83,2 g
|
| ||
|
Gland ultraFLAT, M32, ø12.5…16mm
Art:
1040.32.40.160
Copied
|
12,5 mm
|
M32
|
16 mm
|
39 mm
|
6 mm
|
36 mm
|
28 mm
|
10
|
130,5 g
|
| ||
|
Gland ultraFLAT, M32, ø16…20.5mm
Art:
1040.32.40.205
Copied
|
16 mm
|
M32
|
20,5 mm
|
39 mm
|
6 mm
|
36 mm
|
28 mm
|
10
|
125,8 g
|
|
Select a variant in the list
