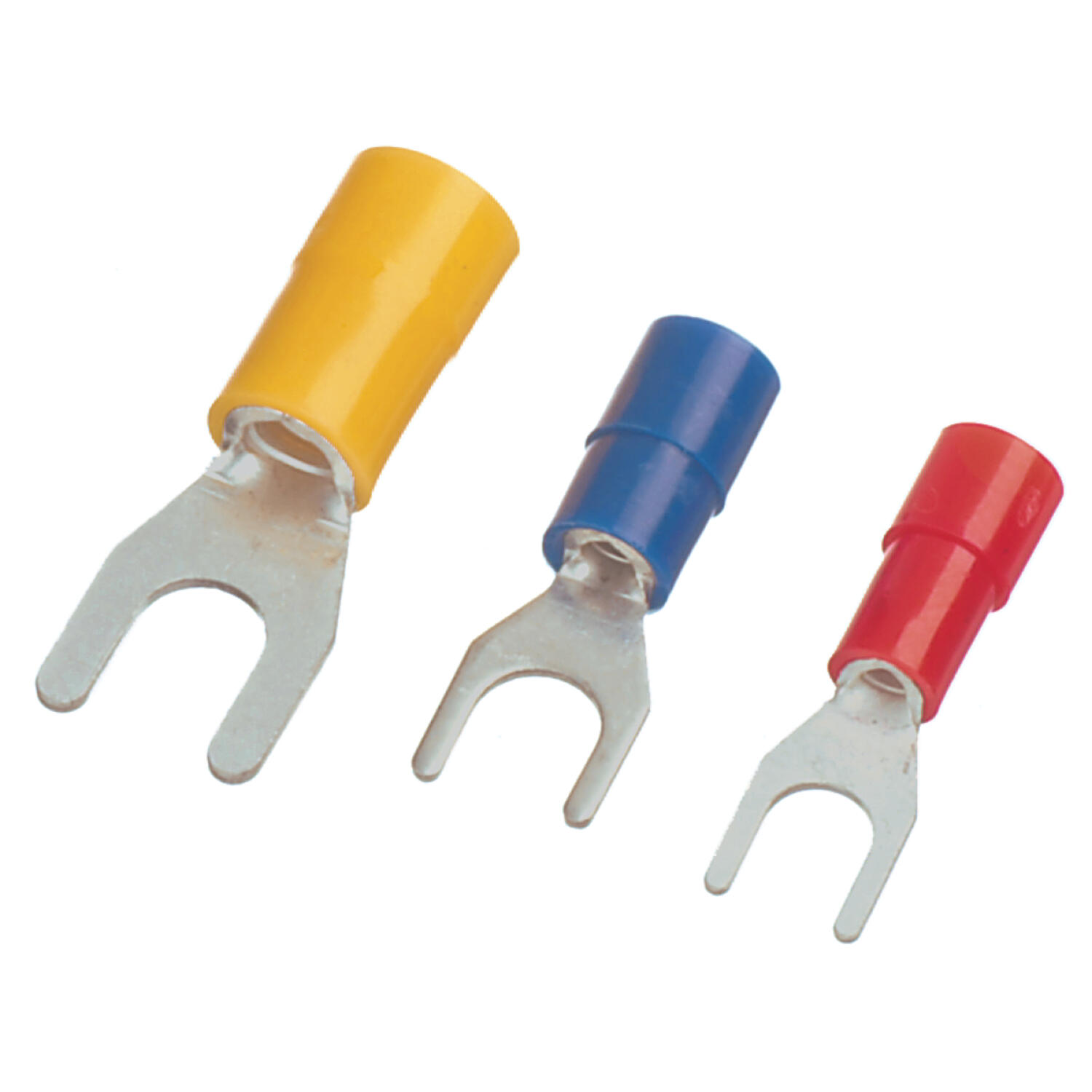

Conta-Clip offer a range of standard automotive type insulated fork crimp terminals to suit many applications.
Â
These terminals are usually identified by the coloured collars for the various cable sizes.
Â
The standard range covers from 0.5mm² to 6mm² cable sizes with M4 to M8 connections.
Â
All types within the range have a widened cable entry, making for an easy installation.
Â
General Data |
|
|---|---|
| Colour | Red |
| Rated wire cross section to (AWG) | 18 |
| Rated wire cross section from (AWG) | 20 |
| Ring hole diameter | 3,3 mm |
| Conductor shape | Ring shape acc.DIN 46237 |
| Cross section max | 1 mm² |
| Cross section min | 0,5 mm² |

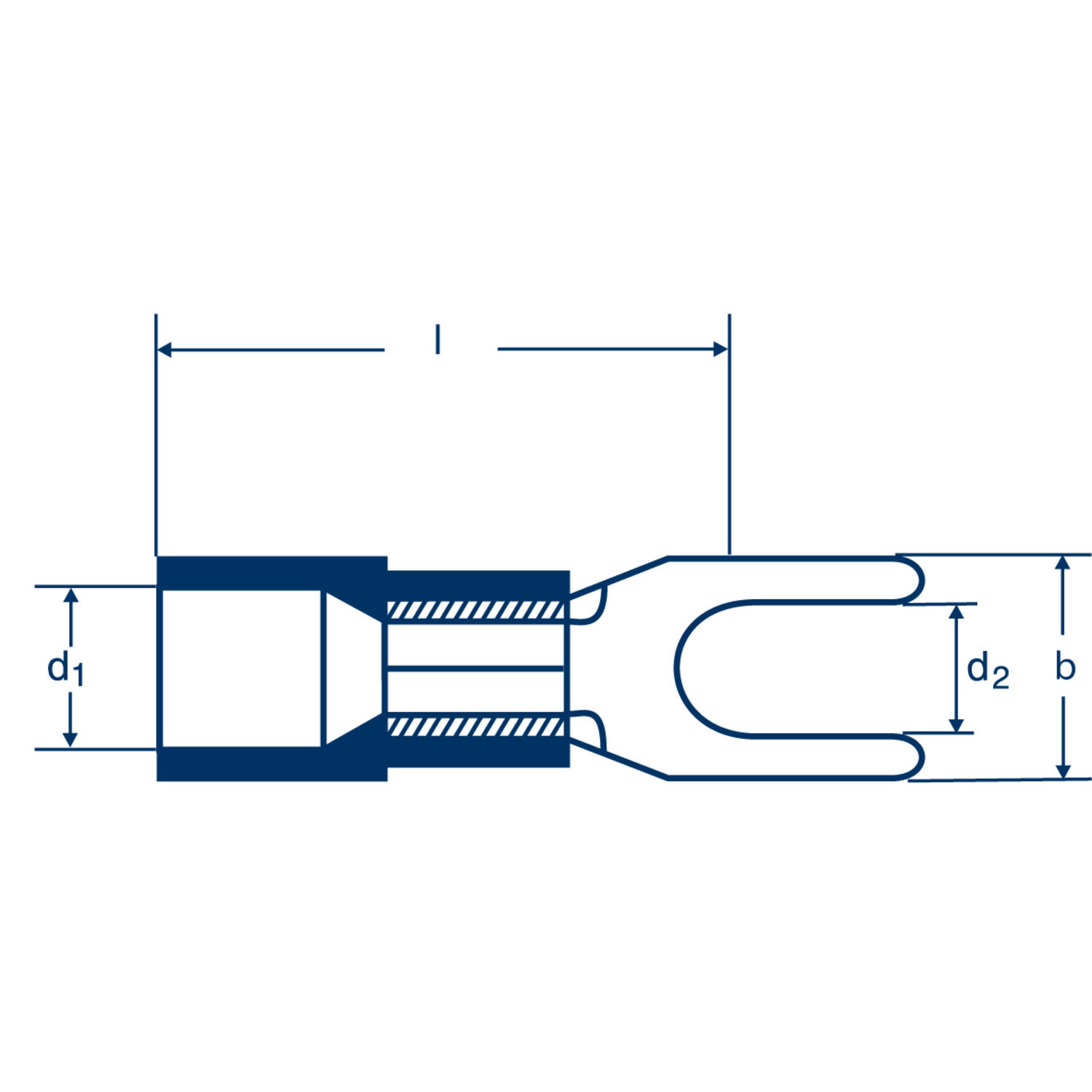

Dimensions |
|
| Width of ring | 8 mm |
| Diameter of feed-in funnel | 4,1 mm |
| Length to middle of ring | 18 mm |
| DIN size | A 3 - 1 |
Materials |
|
| Operating temperature from | -55 °C |
*Invisible Heading* |
|
|---|---|
| Operating temperature to | 105 °C |
| Soldered | Yes |
| Conductor material | Copper |
| Contact surface | Tinned |
Approvals |
|
| DIN approvals | EN 13599 |
Additional Data |
|
| Pack size | 100 Â |
| Country of origin | TW |
| Tariff code | 85369010 |
| Weight | 0,82 g |
| Insulation material | Expanded PA |
