CONTA-CLIP

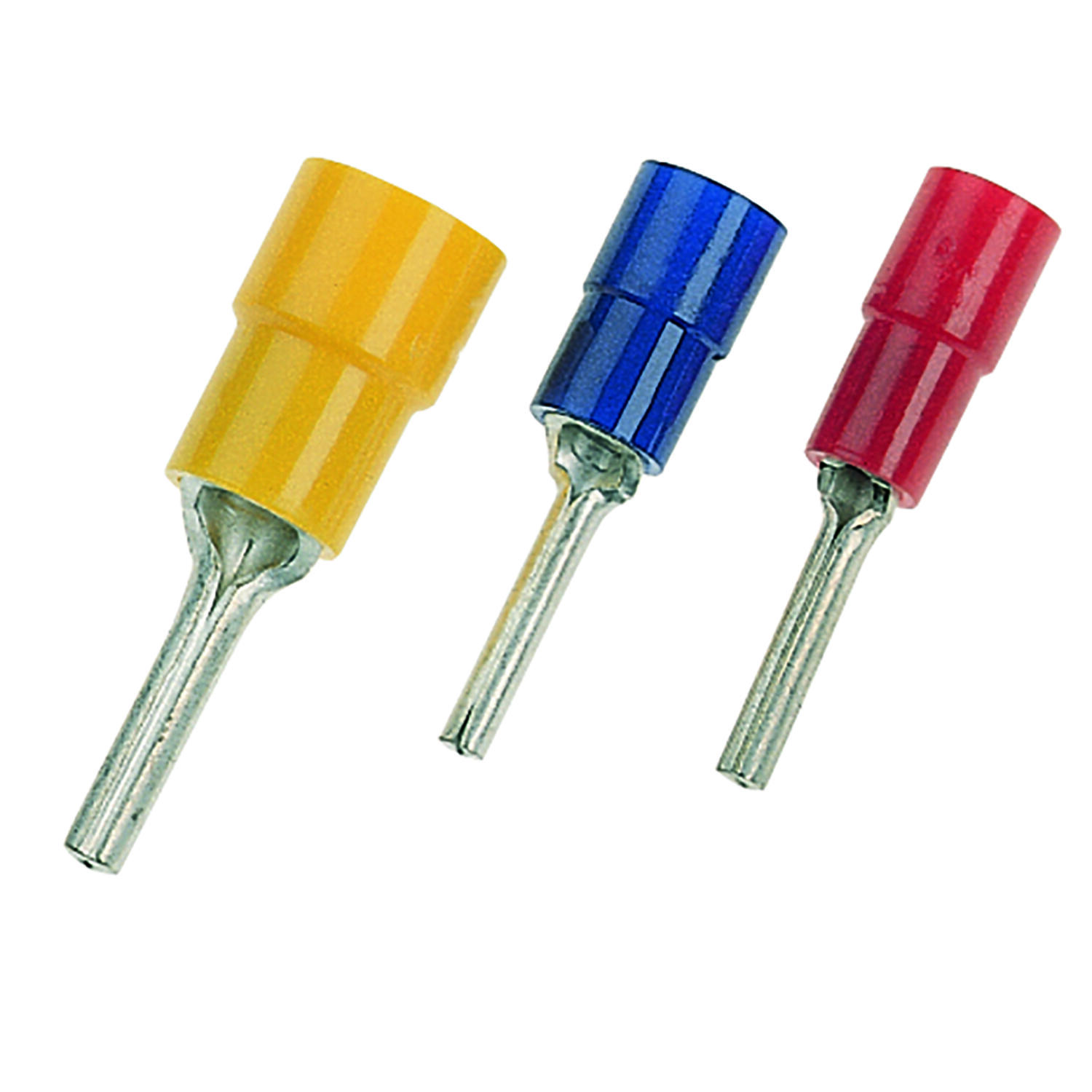

Conta-Clip offer a range of standard automotive type insulated pin crimp terminals to suit many applications.
Â
These terminals are usually identified by the coloured collars for the various cable sizes.
Â
The standard range covers from 0.5mm² to 6mm² cable sizes.
Â
All types within the range have a widened cable entry, making for an easy installation.
Â
General Data |
|
|---|---|
| Colour | Red |
| Rated wire cross section to (AWG) | 18 |
| Rated wire cross section from (AWG) | 20 |
| Conductor shape | Pen shape acc.DIN 46231 |
| Cross section max | 1 mm² |
| Cross section min | 0,5 mm² |
Dimensions |
|
| Diameter of feed-in funnel | 4,1 mm |
| Length | 23,5 mm |
| DIN size | 1 |
Materials |
|
| Operating temperature from | -55 °C |
| Operating temperature to | 105 °C |
*Invisible Heading* |
|
|---|---|
| Soldered | Yes |
| Conductor material | Copper |
| Contact surface | Tinned |
Approvals |
|
| DIN approvals | EN 13599 |
Additional Data |
|
| Pack size | 100 Â |
| Country of origin | TW |
| Tariff code | 85369010 |
| Weight | 0,71 g |
| Insulation material | Expanded PA |
Conta-Clip offer a range of standard automotive type insulated pin crimp terminals to suit many applications.
Â
These terminals are usually identified by the coloured collars for the various cable sizes.
Â
The standard range covers from 0.5mm² to 6mm² cable sizes.
Â
All types within the range have a widened cable entry, making for an easy installation.
Â
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Colour | Rated wire cross section to (AWG) | Rated wire cross section from (AWG) | Cross section max | Cross section min | Diameter of feed-in funnel | Length | DIN size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SKS 1, 1mm² Insulated pin crimp, Red
Art:
2545.0
Copied
|
Red
|
18
|
20
|
1 mm²
|
0,5 mm²
|
4,1 mm
|
23,5 mm
|
1
|
0,71 g
|
| ||
|
SKS 2.5, 2.5mm² Insulated pin crimp, Blue
Art:
2546.0
Copied
|
Blue
|
14
|
16
|
2,5 mm²
|
1,5 mm²
|
4,5 mm
|
24 mm
|
2.5
|
0,83 g
|
| ||
|
SKS 6, 6mm Insulated pin crimp, Yellow
Art:
2547.0
Copied
|
Yellow
|
10
|
12
|
6 mm²
|
4 mm²
|
6,5 mm
|
25,5 mm
|
6
|
1,71 g
|
|
