CONTA-CLIP
Conta-Clip offer a range of standard automotive type insulated ring crimp terminals to suit many applications.
These terminals are usually identified by the coloured collars for the various cable sizes.
The standard range covers from 0.5mm² to 6mm² cable sizes with M4 to M8 connections.
All types within the range have a widened cable entry, making for an easy installation.
General Data |
|
|---|---|
| Colour | Red |
| Rated wire cross section to (AWG) | 18 |
| Rated wire cross section from (AWG) | 20 |
| Ring hole diameter | 4,3 mm |
| Conductor shape | Ring shape acc.DIN 46237 |
| Cross section max | 1 mm² |
| Cross section min | 0,5 mm² |

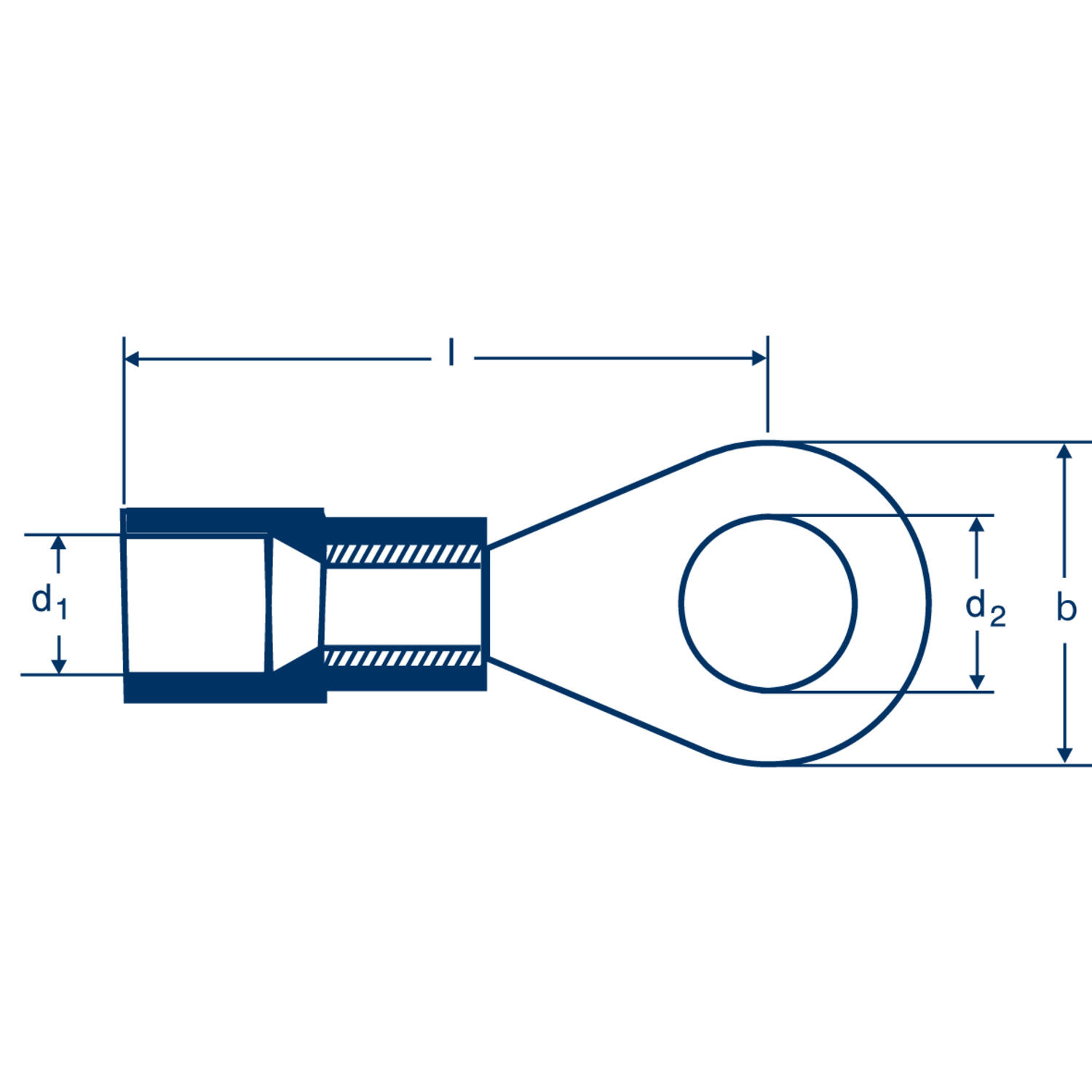

Dimensions |
|
| Width of ring | 8 mm |
| Diameter of feed-in funnel | 4,1 mm |
| Length to middle of ring | 18 mm |
| DIN size | A 4 - 1 |
Materials |
|
| Operating temperature from | -55 °C |
*Invisible Heading* |
|
|---|---|
| Operating temperature to | 105 °C |
| Soldered | Yes |
| Conductor material | Copper |
| Contact surface | Tinned |
Approvals |
|
| DIN approvals | EN 13599 |
Additional Data |
|
| Pack size | 100 |
| Country of origin | TW |
| Tariff code | 85369010 |
| Weight | 0,82 g |
| Insulation material | Expanded PA |
Conta-Clip offer a range of standard automotive type insulated ring crimp terminals to suit many applications.
These terminals are usually identified by the coloured collars for the various cable sizes.
The standard range covers from 0.5mm² to 6mm² cable sizes with M4 to M8 connections.
All types within the range have a widened cable entry, making for an easy installation.
