Conta-Clip offer a range of standard automotive type insulated spade crimp terminals to suit many applications.
Â
These terminals are usually identified by the coloured collars for the various cable sizes.
Â
The standard range covers from 0.5mm² to 6mm² cable sizes with 2.8mm to 6.3mm faston connections.  These are also available as fully insulated or 'piggy back' variants.
Â
All types within the range have a widened cable entry, making for an easy installation.
Â
General Data |
|
---|---|
Colour | Red |
Rated wire cross section to (AWG) | 16 |
Rated wire cross section from (AWG) | 20 |
Conductor shape | Flat plug acc. DIN 46245 Teil 1 – 3 |
Cross section max | 1,5 mm² |
Cross section min | 0,5 mm² |
Dimensions |
|
Diameter of feed-in funnel | 3,5 mm |
Length | 18,8 mm |
Materials |
|
Operating temperature from | -10 °C |
Operating temperature to | 75 °C |
*Invisible Heading* |
|
---|---|
Soldered | No |
Conductor material | Copper |
Contact surface | Tinned |
Additional Data |
|
Pack size | 100 Â |
Country of origin | TW |
Tariff code | 85369010 |
Weight | 0,09 g |
Insulation material | Expanded PVC |
Â
Conta-Clip offer a range of standard automotive type insulated spade crimp terminals to suit many applications.
Â
These terminals are usually identified by the coloured collars for the various cable sizes.
Â
The standard range covers from 0.5mm² to 6mm² cable sizes with 2.8mm to 6.3mm faston connections.  These are also available as fully insulated or 'piggy back' variants.
Â
All types within the range have a widened cable entry, making for an easy installation.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Rated wire cross section to (AWG) | Rated wire cross section from (AWG) | Conductor shape | Cross section max | Cross section min | Diameter of feed-in funnel | Length | DIN size | Pack size | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

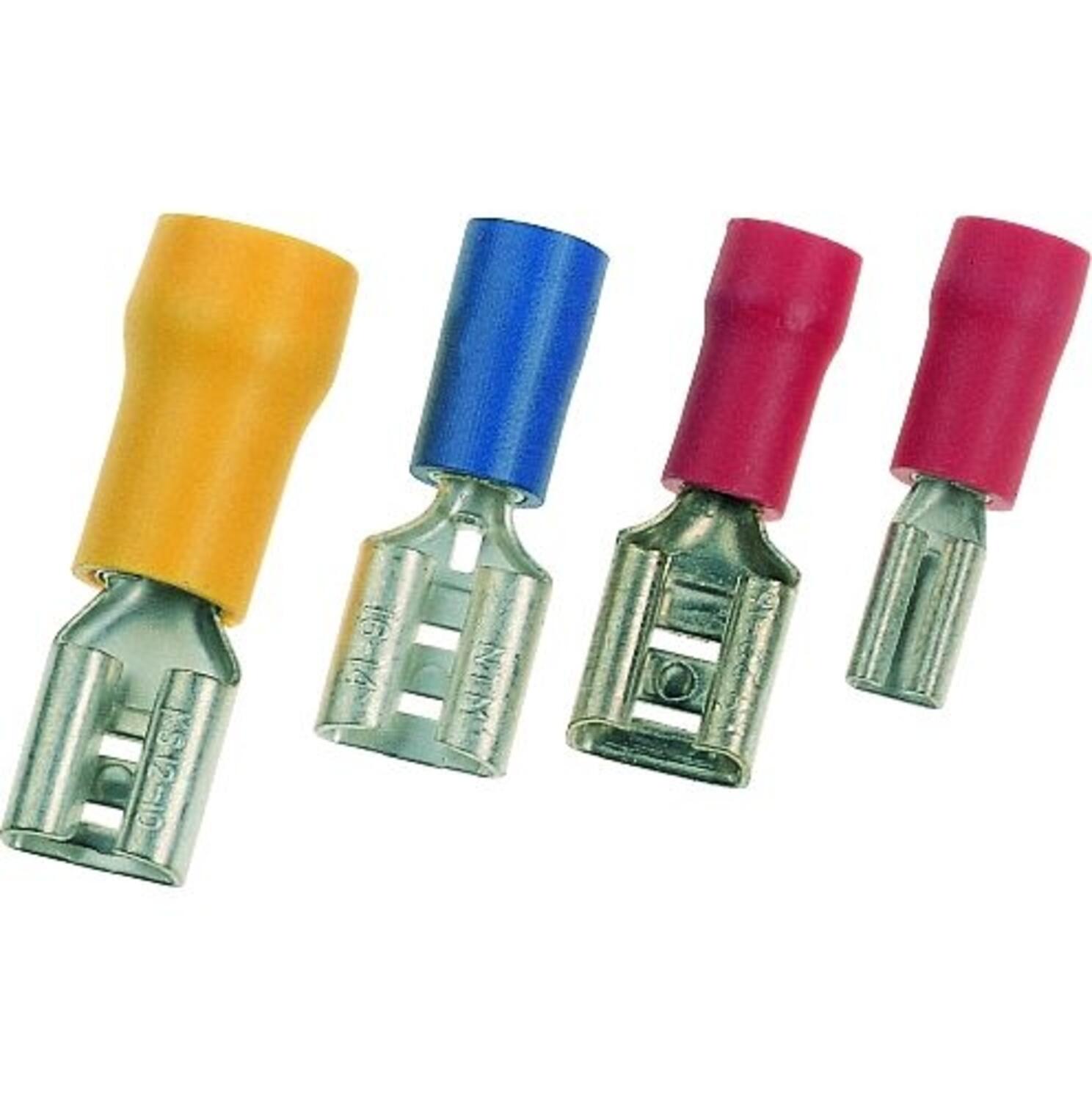

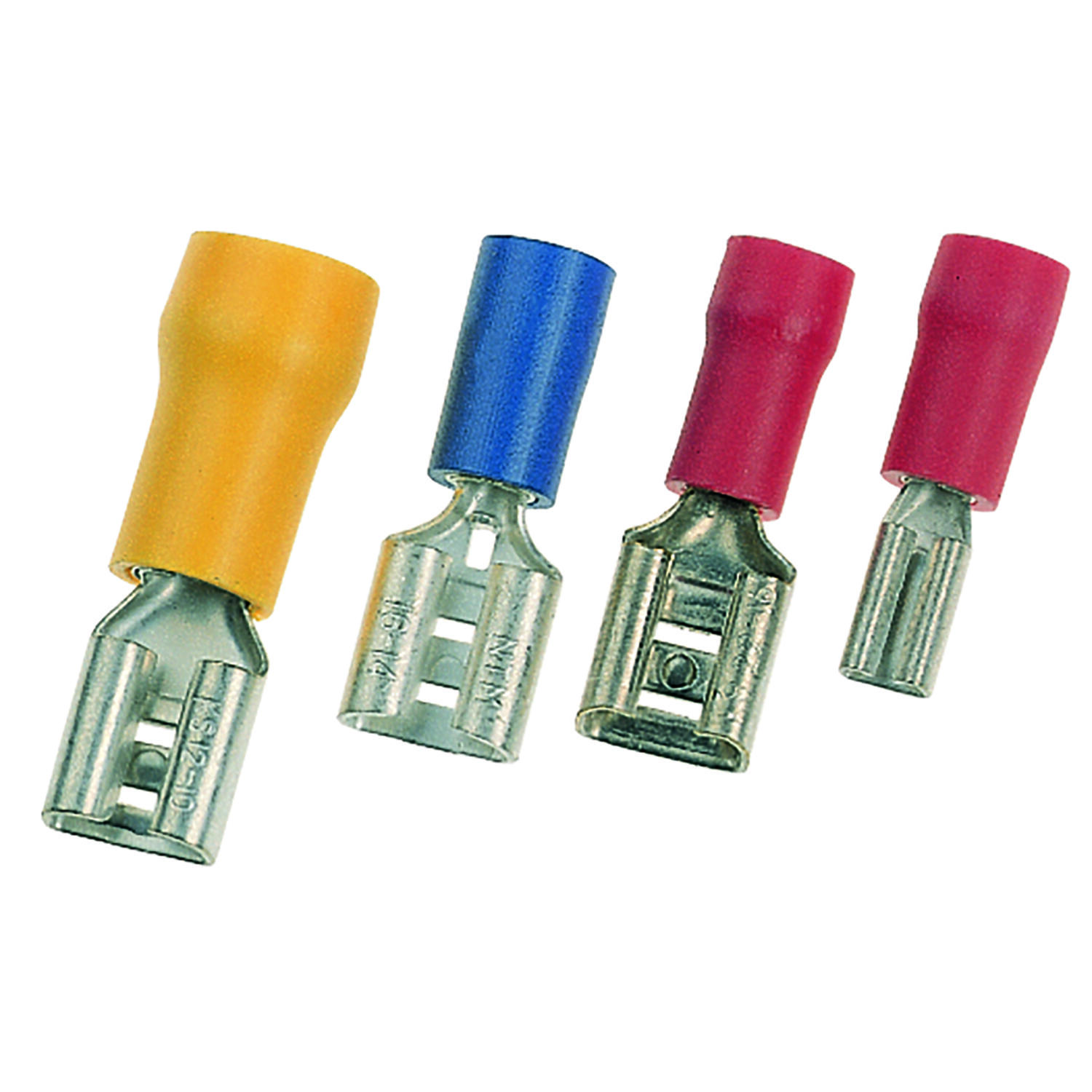

FSH 1/2.8, 1.5mm², 2.8 x 0.5mm insulated female spade crimp, Red
Art:
2548.0
Copied
|
Red
|
16
|
20
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
18,8 mm
|
|
100
|
0,09 g
|
| ||
![]()
FSH 1/2.8, 1.5mm², 2.8 x 0.8mm insulated female spade crimp, Red
Art:
2549.0
Copied
|
Red
|
16
|
20
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
18,8 mm
|
|
100
|
0,78 g
|
| ||
![]()
FSH 1/I, 1.5mm² 4.8 x 0.5mm Insulated female spade crimp, Red
Art:
31201.0
Copied
|
Red
|
16
|
20
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
18,8 mm
|
|
100
|
0,09 g
|
| ||
![]()
FSH 1/I, 1.5mm² 4.8 x 0.8mm Insulated female spade crimp, Red
Art:
31200.0
Copied
|
Red
|
16
|
20
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
18,8 mm
|
|
100
|
0,78 g
|
| ||
![]()
FSH 1/6.3, 1.5mm², 6.3 x 0.8mm insulated female spade crimp, Red
Art:
2550.0
Copied
|
Red
|
16
|
20
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
21 mm
|
6,3 - 1
|
100
|
1,1 g
|
| ||
![]()
FSH 2.5/4.8, 2.5mm², 4.8 x 0.8mm insulated female spade crimp - Blue
Art:
30986.0
Copied
|
Blue
|
14
|
16
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
2,5 mm²
|
1,5 mm²
|
4,3 mm
|
19,5 mm
|
|
100
|
0,83 g
|
| ||
![]()
FSH 2.5/6.3, 2.5mm², 6.3 x 0.8mm insulated female spade crimp, Blue
Art:
2551.0
Copied
|
Blue
|
14
|
16
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
2,5 mm²
|
1,5 mm²
|
4,3 mm
|
21 mm
|
6,3 - 2,5
|
100
|
1,1 g
|
| ||
![]()
FSH 6/6.3, 6mm², 6.3 x 0.8mm insulated female spade crimp, Yellow
Art:
2552.0
Copied
|
Yellow
|
10
|
12
|
Flat plug acc. DIN 46245 Teil 1 – 3
|
6 mm²
|
4 mm²
|
6,2 mm
|
23,8 mm
|
6,3 - 6
|
100
|
1,8 g
|
| ||
![]()

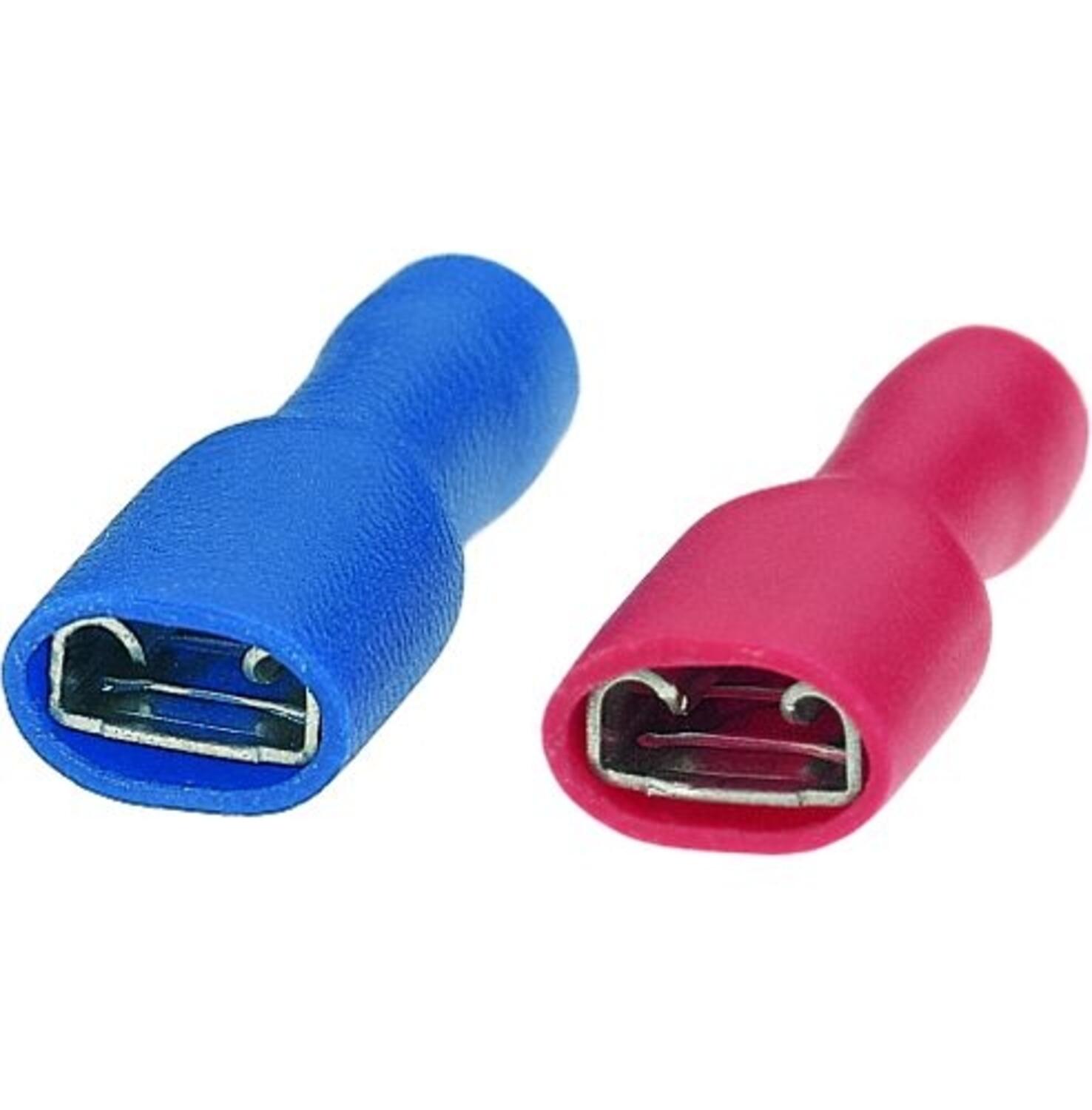

FSH 1, 1.5mm², 6.3 x 0.8mm fully insulated female spade crimp, Red
Art:
2553.0
Copied
|
Red
|
16
|
20
|
|
1,5 mm²
|
0,5 mm²
|
2,7 mm
|
21,5 mm
|
|
100
|
1,31 g
|
| ||
![]()
FSH 2.5, 2.5mm², 6.3 x 0.8mm fully insulated female spade crimp, Blue
Art:
2554.0
Copied
|
Blue
|
14
|
16
|
|
2,5 mm²
|
1,5 mm²
|
3,2 mm
|
21,8 mm
|
|
100
|
1,41 g
|
| ||
![]()

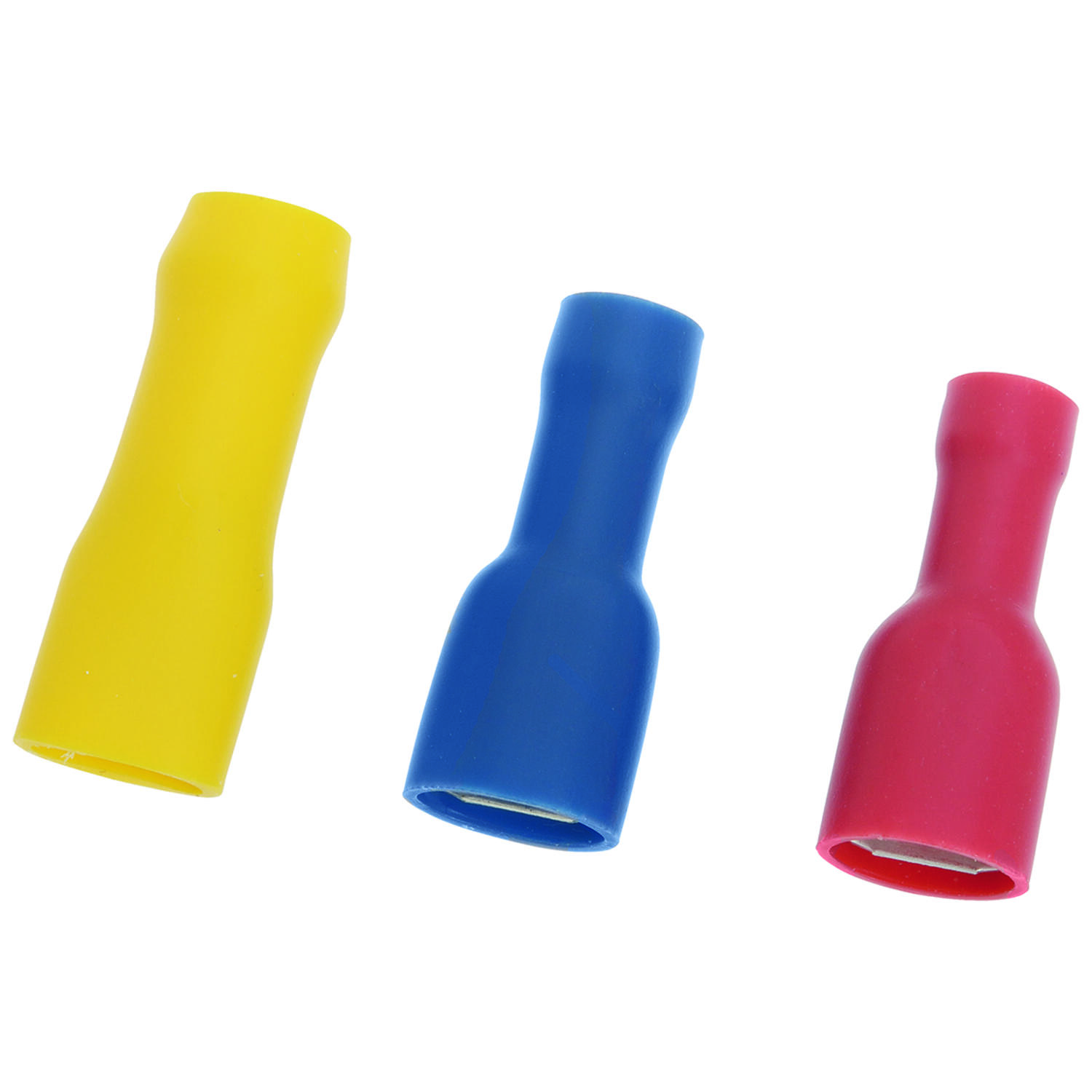

FSH 4-6, 6mm², 6.3 x 0.8mm fully insulated female spade crimp - Yellow
Art:
30987.0
Copied
|
Yellow
|
10
|
12
|
|
6 mm²
|
4 mm²
|
6,2 mm
|
25,4 mm
|
|
50
|
2,03 g
|
| ||
![]()

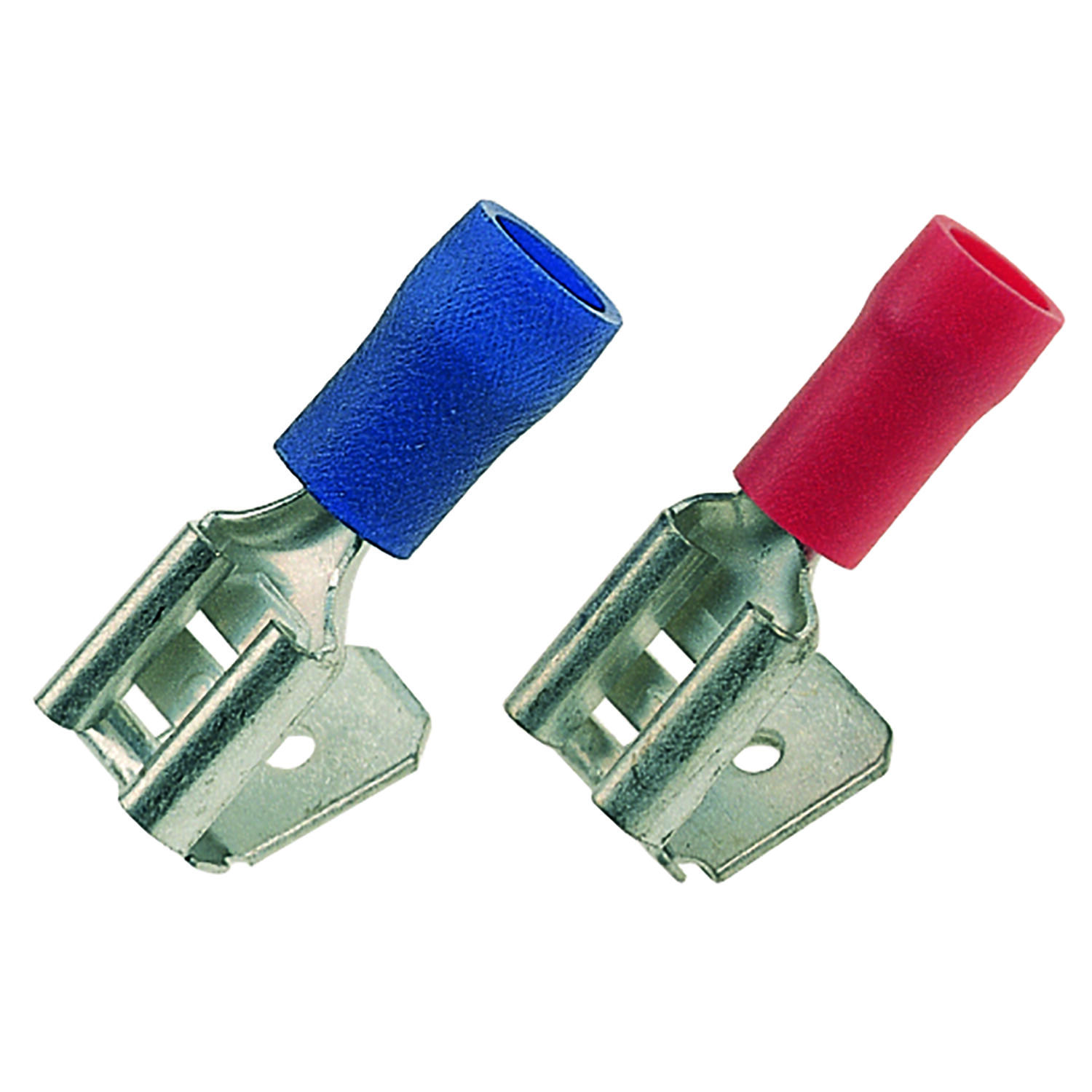

FSH A 1, 1.5mm², 6.3 x 0.8mm insulated 'piggy back' spade crimp - Red
Art:
2555.0X
Copied
|
Red
|
16
|
20
|
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
21,2 mm
|
|
100
|
1,24 g
|
| ||
![]()
FSH A 2.5 2.5mm², 6.3 x 0.8mm insulated 'piggy back' spade crimp, Blue
Art:
2556.0
Copied
|
Blue
|
14
|
16
|
|
2,5 mm²
|
1,5 mm²
|
4,3 mm
|
21,2 mm
|
|
100
|
1,5 g
|
| ||
![]()
FSH A 6, 6mm², 6.3 x 0.8mm insulated 'piggy back' spade crimp - Yellow
Art:
30988.0
Copied
|
Yellow
|
10
|
12
|
|
6 mm²
|
4 mm²
|
5,8 mm
|
25 mm
|
|
100
|
2,03 g
|
| ||
![]()

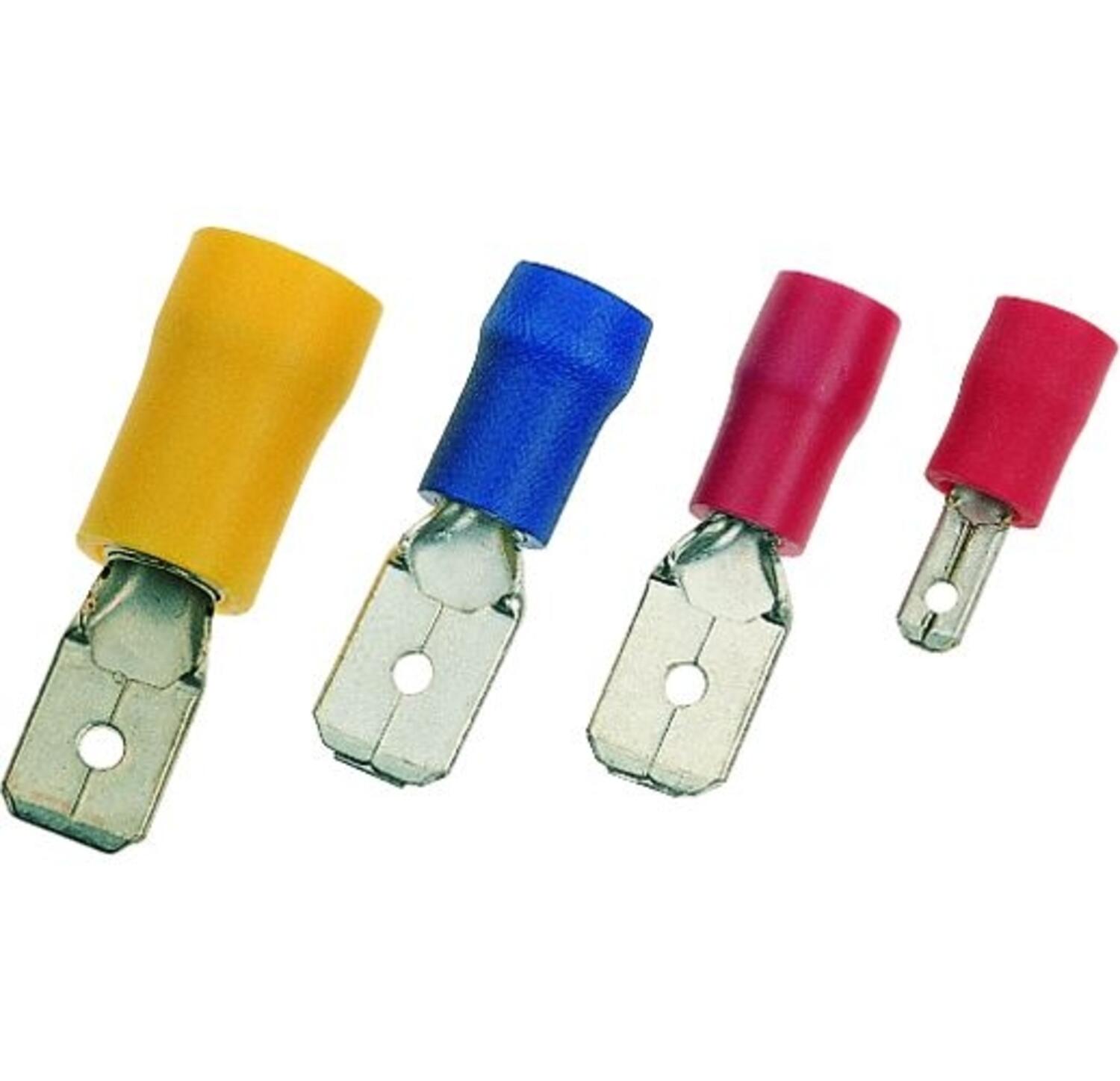

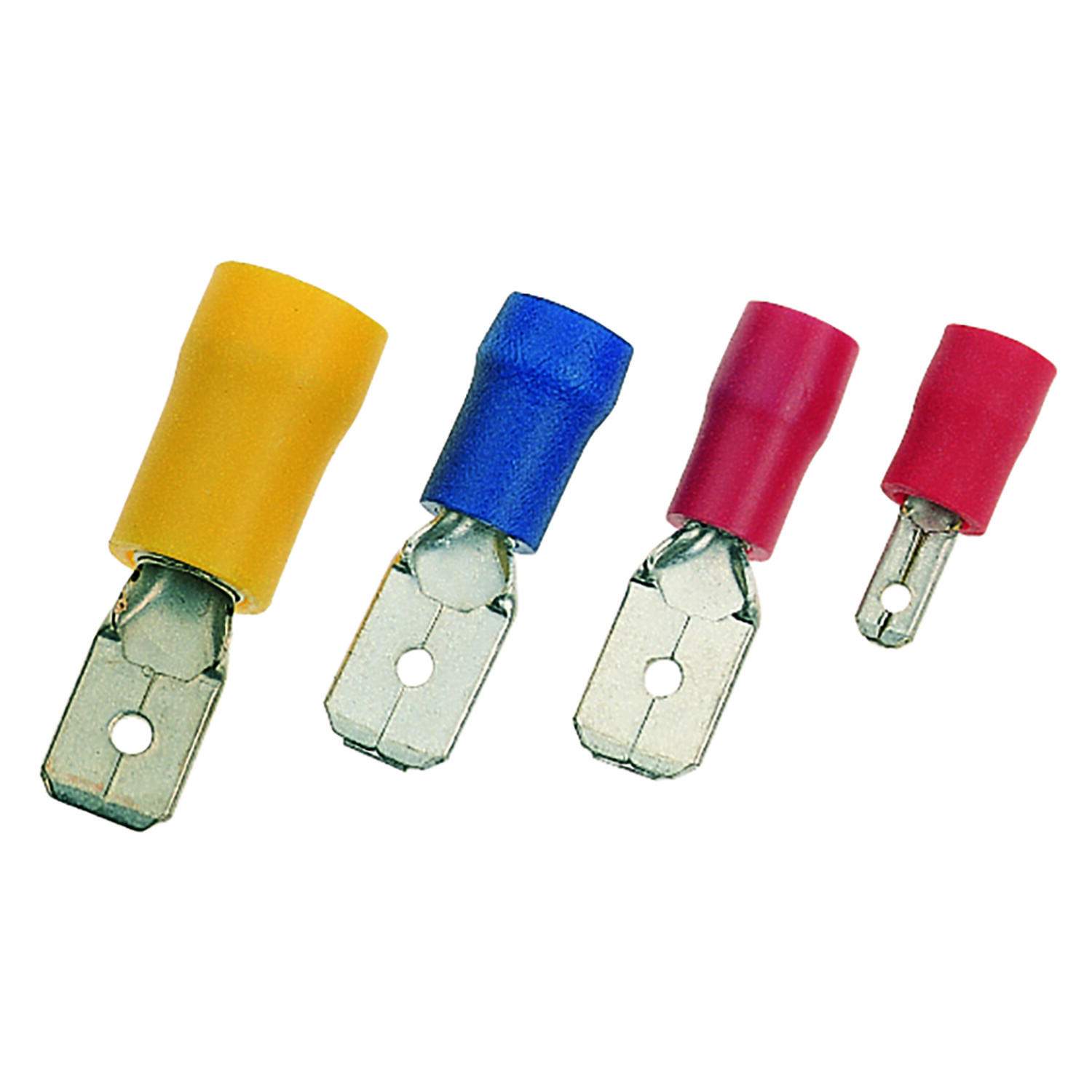

FST 1/2.8, 1.5mm², 2.8 x 0.5mm insulated male spade crimp - Red
Art:
30989.0
Copied
|
Red
|
16
|
20
|
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
22,2 mm
|
|
100
|
0,63 g
|
| ||
![]()
FST 1/2.8, 1.5mm², 2.8 x 0.8mm insulated male spade crimp, Red
Art:
2557.0
Copied
|
Red
|
16
|
20
|
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
22,2 mm
|
|
100
|
0,73 g
|
| ||
![]()
FST 1/6.3 1.5mm², 6.3 x 0.8mm insulated male spade crimp, Red
Art:
2558.0
Copied
|
Red
|
16
|
20
|
|
1,5 mm²
|
0,5 mm²
|
3,5 mm
|
21,5 mm
|
|
100
|
0,93 g
|
| ||
![]()
FST 2.5/6.3, 2.5mmn², 6.3 x 0.8mm insulated male spade crimp, Blue
Art:
2559.0
Copied
|
Blue
|
14
|
16
|
|
2,5 mm²
|
1,5 mm²
|
4,3 mm
|
21,3 mm
|
|
100
|
1 g
|
| ||
![]()
FST 6/6.3 6mm², 6.3 x 0.8mm insulated male spade crimp - Yellow
Art:
2560.0
Copied
|
Yellow
|
10
|
12
|
|
6 mm²
|
4 mm²
|
6,2 mm
|
24 mm
|
|
100
|
1,8 g
|
|
