CONTA-CLIP

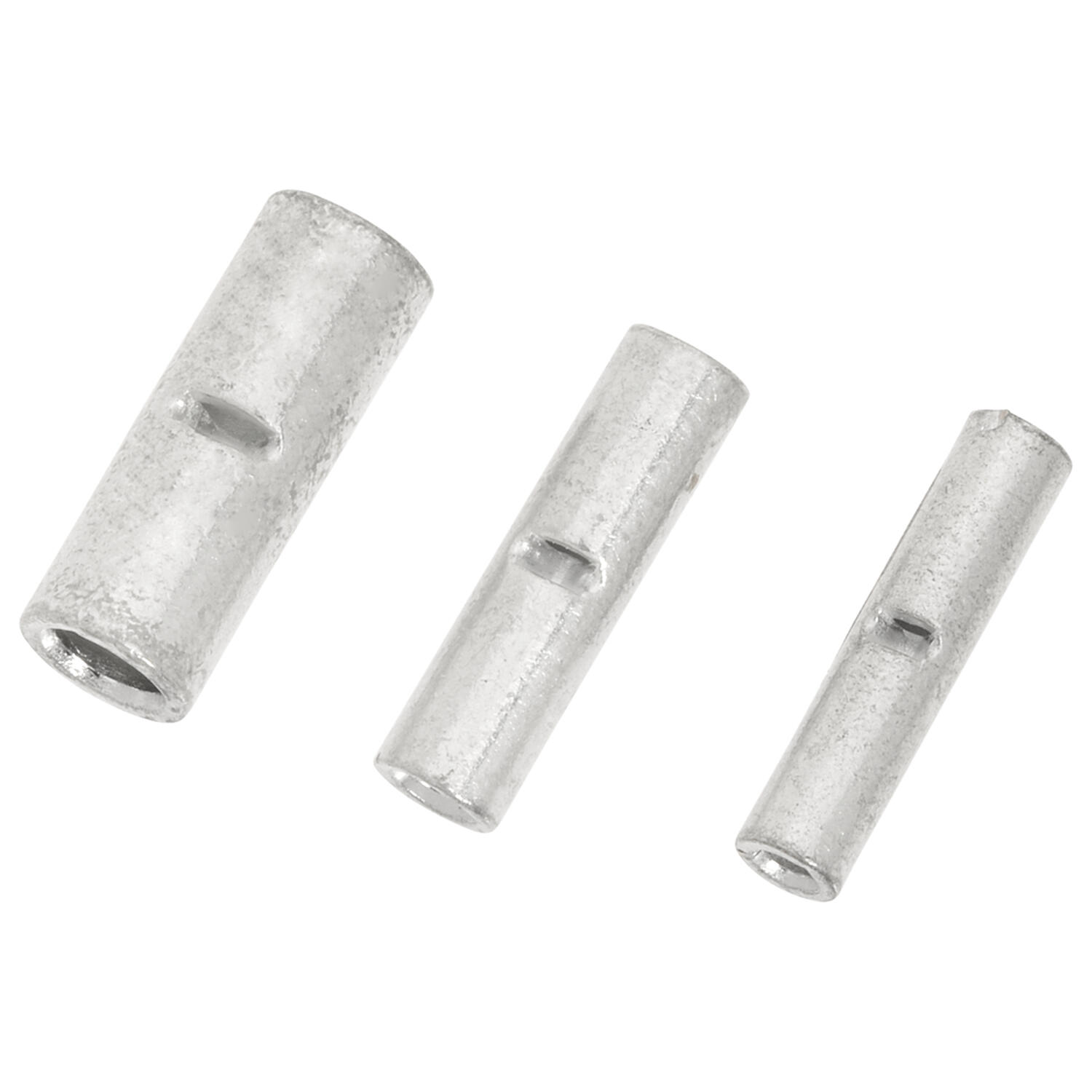

 Conta-Clip offer a wide range of conventional uninsulated tin-plated copper, galvanised cable joining butt connectors.
Â
These conform to EN 136000 with an operating temperature of up to 125°C and are available from 1mm² to 300mm².
Â
General Data |
|
|---|---|
| Colour | Natural |
| Rated wire cross section to (AWG) | 18 |
| Rated wire cross section from (AWG) | 20 |
| Cross section max | 1 mm² |
| Cross section min | 0,5 mm² |

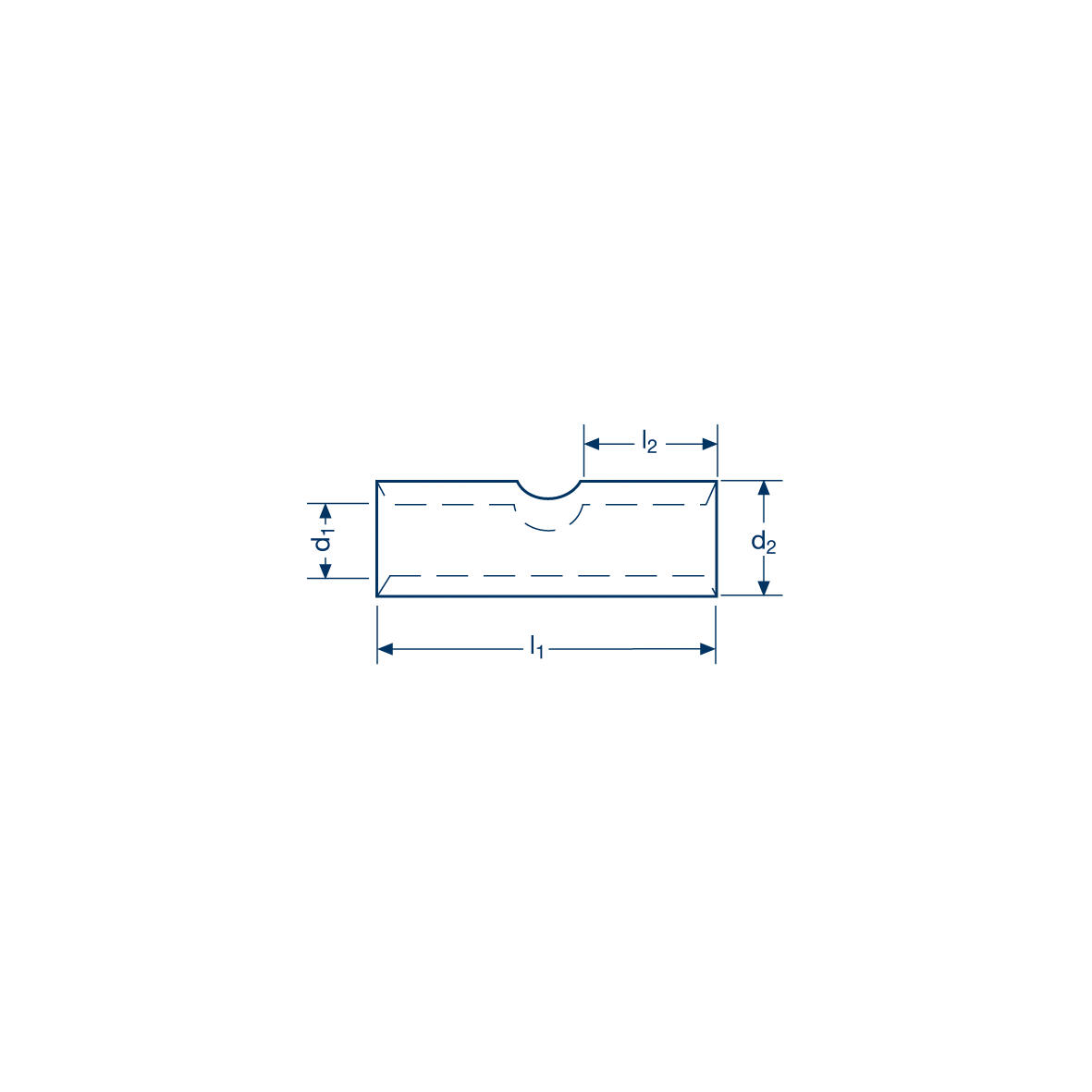

Dimensions |
|
| Length | 14,5 mm |
| Stripping length | 6,5 mm |
Materials |
|
| Operating temperature to | 125 °C |
| Soldered | No |
*Invisible Heading* |
|
|---|---|
| Conductor material | Copper |
| Contact surface | Tinned |
Approvals |
|
| DIN approvals | EN 13600 |
Additional Data |
|
| Pack size | 100 Â |
| Country of origin | TW |
| Tariff code | 85369010 |
| Weight | 0,93 g |
 Conta-Clip offer a wide range of conventional uninsulated tin-plated copper, galvanised cable joining butt connectors.
Â
These conform to EN 136000 with an operating temperature of up to 125°C and are available from 1mm² to 300mm².
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated wire cross section to (AWG) | Rated wire cross section from (AWG) | Cross section max | Cross section min | Length | Stripping length | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
STV 1/U, 1mm² joint connector
Art:
30891.0
Copied
|
18
|
20
|
1 mm²
|
0,5 mm²
|
14,5 mm
|
6,5 mm
|
100
|
0,93 g
|
| ||
|
STV 1/U/L, 1mm² joint connector - long
Art:
30892.0
Copied
|
18
|
20
|
1 mm²
|
0,5 mm²
|
25 mm
|
12 mm
|
100
|
0,93 g
|
| ||
|
STV 2.5/U, 2.5mm² joint connector
Art:
30893.0
Copied
|
14
|
18
|
2,5 mm²
|
1 mm²
|
14,5 mm
|
6,5 mm
|
100
|
1,13 g
|
| ||
|
STV 2.5/U/L, 2.5 joint connector - long
Art:
30894.0
Copied
|
14
|
18
|
2,5 mm²
|
1 mm²
|
25 mm
|
12 mm
|
100
|
1,13 g
|
| ||
|
STV 4/U, 4mm² joint connector
Art:
30895.0
Copied
|
10
|
12
|
6 mm²
|
4 mm²
|
14,5 mm
|
7 mm
|
100
|
2,41 g
|
| ||
|
STV 4/U/L, 4mm² joint connector - long
Art:
30896.0
Copied
|
10
|
12
|
|
|
25 mm
|
12 mm
|
100
|
2,41 g
|
| ||
|
STV 6/U, 6mm² joint connector
Art:
30897.0
Copied
|
10
|
|
6 mm²
|
|
25 mm
|
11,5 mm
|
100
|
2,41 g
|
| ||
|
STV 10/U, 10mm² joint connector
Art:
30898.0
Copied
|
8
|
|
10 mm²
|
|
30 mm
|
12,5 mm
|
100
|
6,03 g
|
| ||
|
STV 16/U, 16mm² joint connector
Art:
30899.0
Copied
|
6
|
|
16 mm²
|
|
30 mm
|
14 mm
|
100
|
10,23 g
|
| ||
|
STV 25/U, 25mm² joint connector
Art:
30900.0
Copied
|
4
|
|
25 mm²
|
|
38,5 mm
|
16 mm
|
100
|
14,33 g
|
| ||
|
STV 35/U, 35mm² joint connector
Art:
30901.0
Copied
|
2
|
|
35 mm²
|
|
42,5 mm
|
18 mm
|
100
|
22,53 g
|
| ||
|
STV 50/U, 50mm² joint connector
Art:
30902.0
Copied
|
1/0
|
|
50 mm²
|
|
48 mm
|
22 mm
|
100
|
33,83 g
|
| ||
|
STV 70/U, 70mm² joint connector
Art:
30903.0
Copied
|
2/0
|
|
70 mm²
|
|
52,5 mm
|
24 mm
|
100
|
49,03 g
|
| ||
|
STV 95/U, 95mm² joint connector
Art:
30904.0
Copied
|
3/0
|
|
95 mm²
|
|
58,5 mm
|
26 mm
|
50
|
60,05 g
|
| ||
|
STV 120/U, 120mm² joint connector
Art:
30905.0
Copied
|
250
|
|
120 mm²
|
|
62,5 mm
|
28 mm
|
50
|
70,05 g
|
| ||
|
STV 150/U, 150mm² joint connector
Art:
30906.0
Copied
|
300
|
|
150 mm²
|
|
68,5 mm
|
30 mm
|
50
|
83,05 g
|
| ||
|
STV 185/U, 185mm² joint connector
Art:
30907.0
Copied
|
350
|
|
185 mm²
|
|
72,5 mm
|
33 mm
|
25
|
120,1 g
|
| ||
|
STV 240/U, 240mm² joint connector
Art:
30908.0
Copied
|
500
|
|
240 mm²
|
|
88 mm
|
36 mm
|
25
|
139,1 g
|
| ||
|
STV 300/U, 300mm² joint connector
Art:
30909.0
Copied
|
600
|
|
300 mm²
|
|
100 mm
|
44 mm
|
10
|
220,25 g
|
|
Select a variant in the list
