CONTA-CLIP

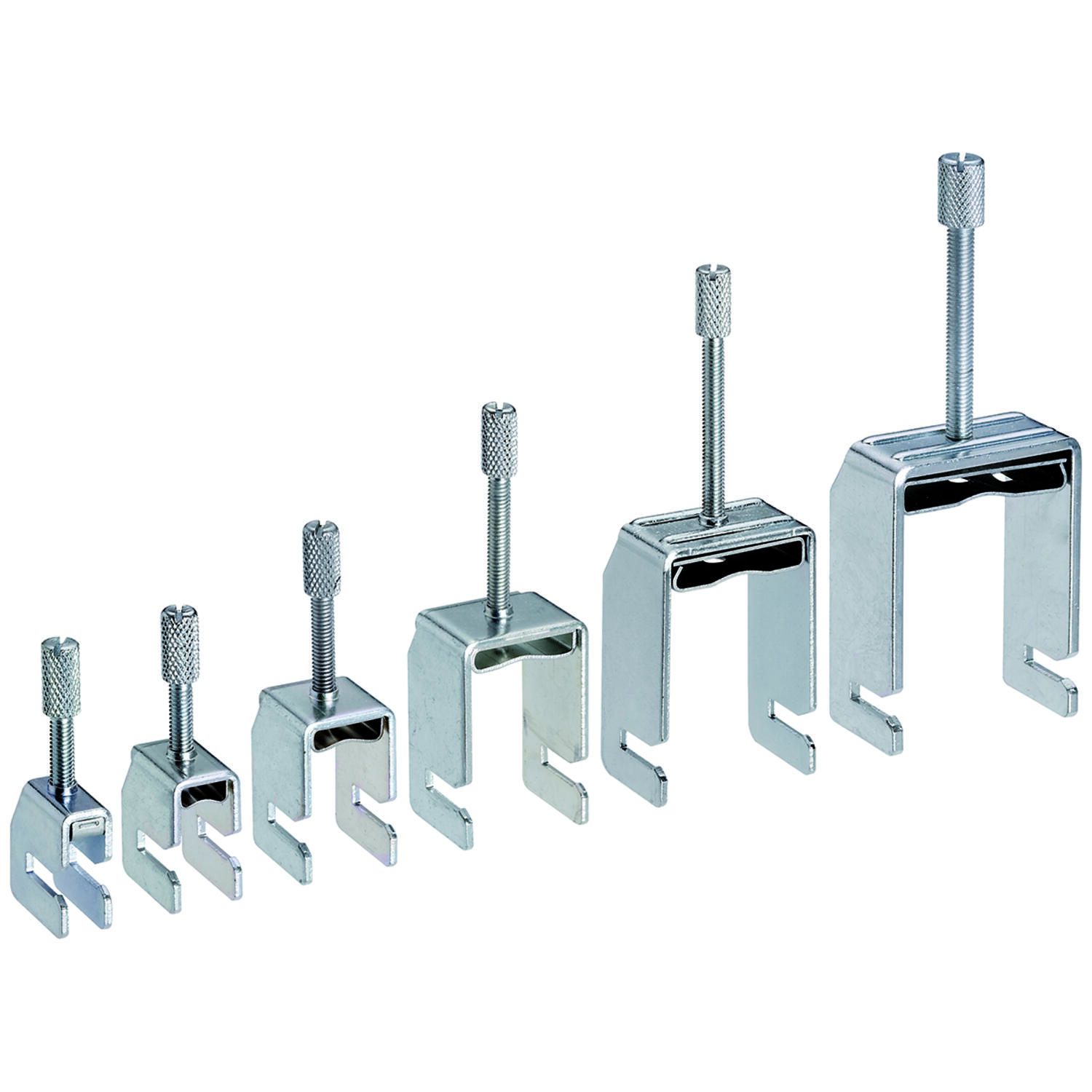

The SSAB can be mounted on a busbar. After wiring the terminal block, the shield-connection clip is mounted by simply swivelling in and tightening the knurled thumb screw.
Â
This makes the SSAB screw-shield-connection clip very convenient and quick  to wire. Depending on the length of the terminal blocks, two or more SH/SAB busbar supports can be used. These mechanically connect the front busbar with the DIN rail (support).
Â
The SH1 busbar supports are used where a shield-connection system requires tot be mounted directly onto a panel rather than a DIN rail.
Â

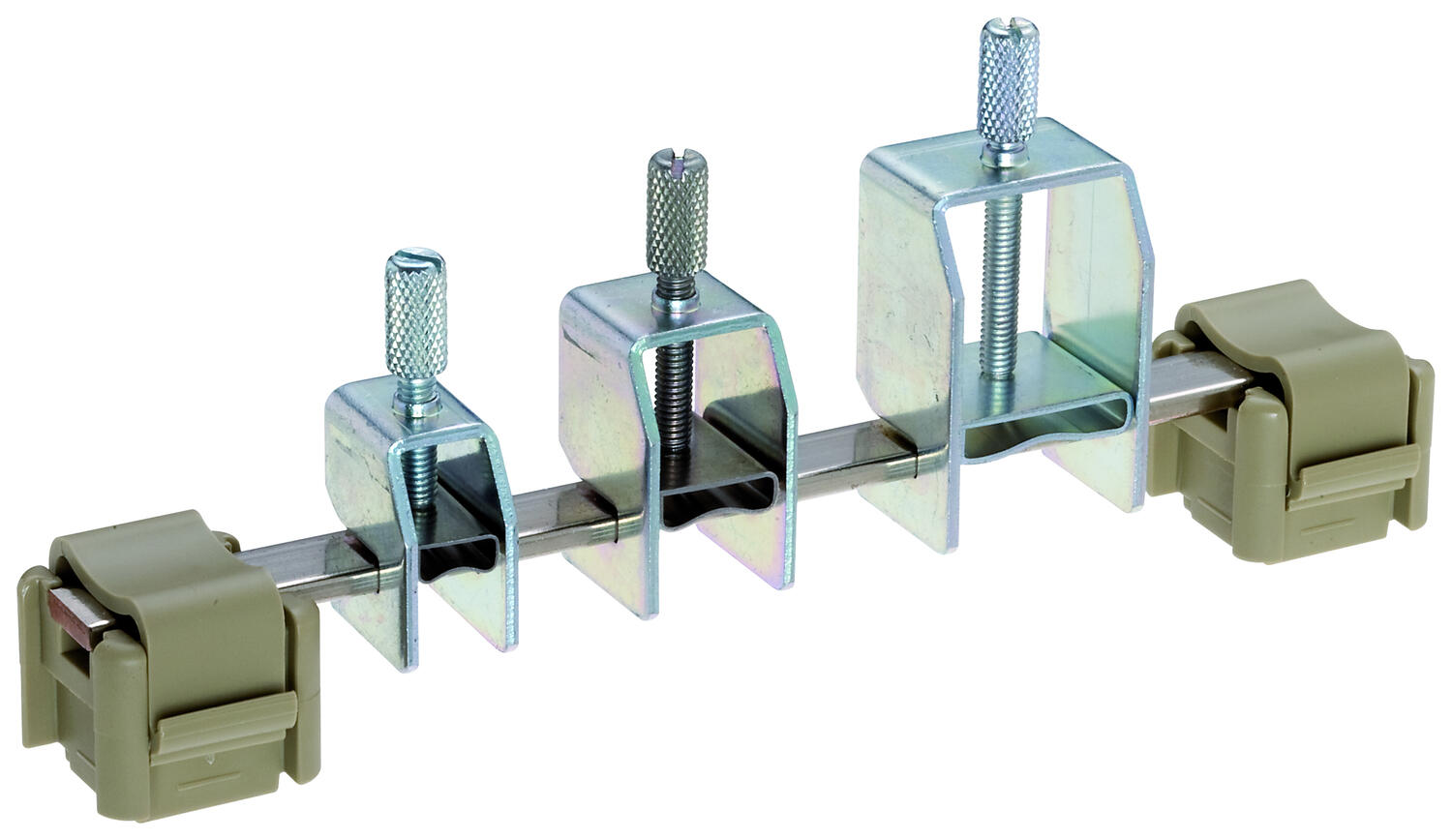

The 10 x 3 busbars can be easily and quickly snapped on to these supports. In both cases, the contact with the earth or ground potential can be established with a ZB clamping yoke.
Â
General data |
|
|---|---|
| Cable diameter min | 2 mm |
| Cable diameter max | 5 mm |
| Mounting | Busbar |
| Colour | Natural |
Dimensions |
|
| Height | 46,8 mm |
| Length | 19,5 mm |
| Width | 9 mm |
Additional data |
|
|---|---|
| Tariff code | 85369010 |
| Country of origin | CN |
| Weight | 13,76 g |
| Pack size | 10 Â |
| Material | Steel |
The SSAB can be mounted on a busbar. After wiring the terminal block, the shield-connection clip is mounted by simply swivelling in and tightening the knurled thumb screw.
Â
This makes the SSAB screw-shield-connection clip very convenient and quick  to wire. Depending on the length of the terminal blocks, two or more SH/SAB busbar supports can be used. These mechanically connect the front busbar with the DIN rail (support).
Â
The SH1 busbar supports are used where a shield-connection system requires tot be mounted directly onto a panel rather than a DIN rail.
Â
The 10 x 3 busbars can be easily and quickly snapped on to these supports. In both cases, the contact with the earth or ground potential can be established with a ZB clamping yoke.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Cable diameter min | Cable diameter max | Height | Length | Width | Country of origin | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|

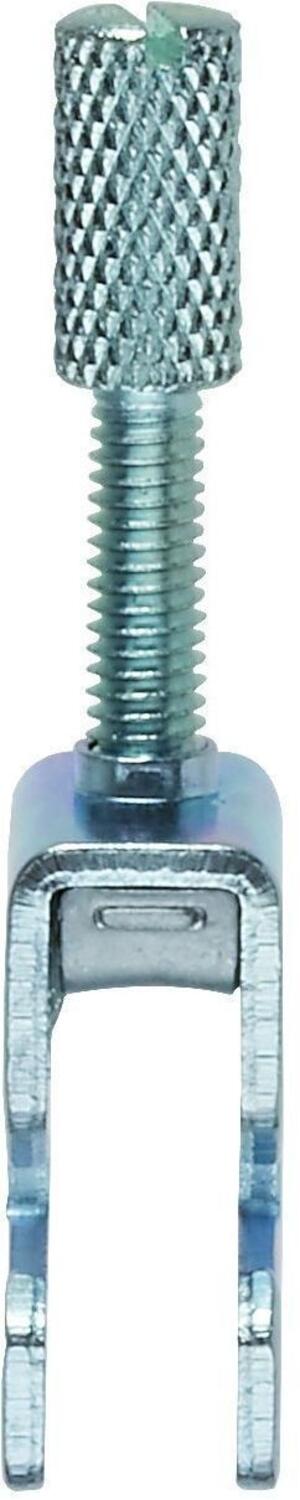

SSAB 5, Screw down shield clip, 2 - 5mmø cables, Busbar mount
Art:
3694.0
Copied
|
2 mm
|
5 mm
|
46,8 mm
|
19,5 mm
|
9 mm
|
CN
|
13,76 g
|
| ||

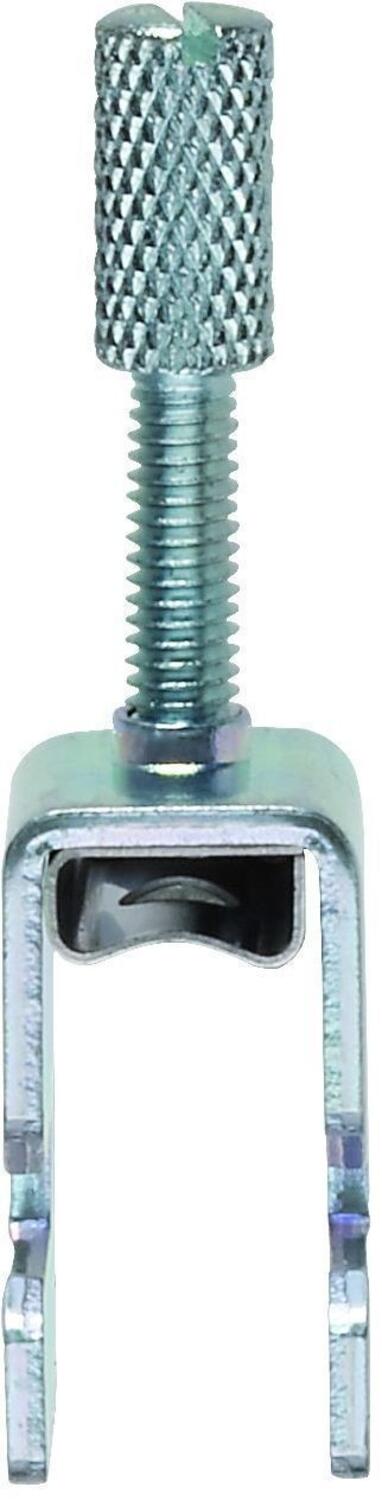

SSAB 8, Screw down shield clip, 3 - 8mmø cables, Busbar mount
Art:
3695.0
Copied
|
3 mm
|
8 mm
|
48,7 mm
|
19,5 mm
|
12 mm
|
DE
|
15,16 g
|
| ||

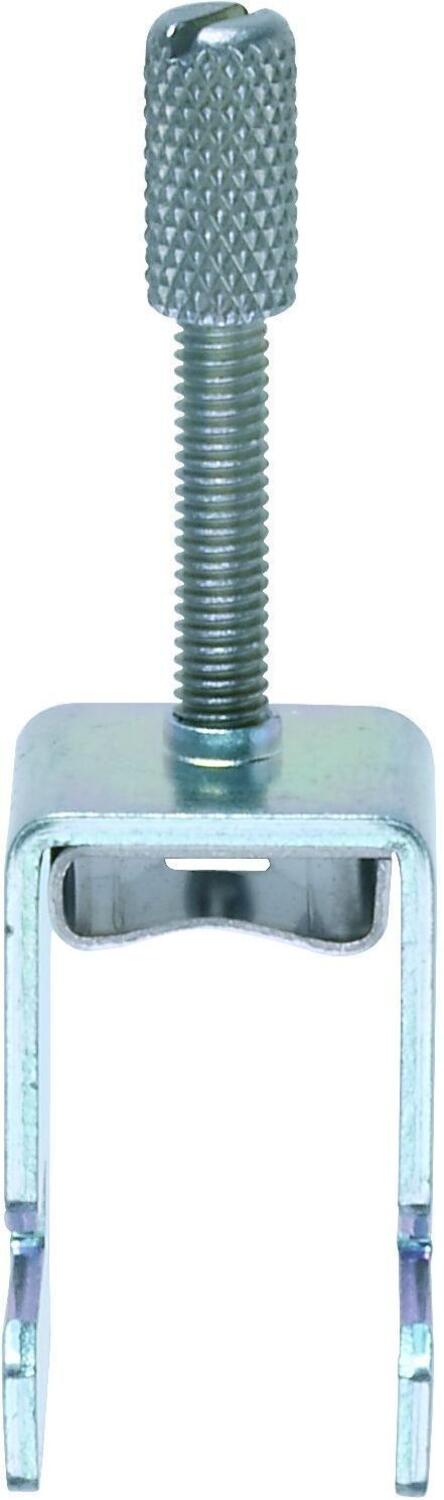

SSAB 14, Screw down shield clip, 3 - 14mmø cables, Busbar mount
Art:
3696.0
Copied
|
3 mm
|
14 mm
|
59,3 mm
|
19,5 mm
|
17 mm
|
DE
|
20,41 g
|
| ||

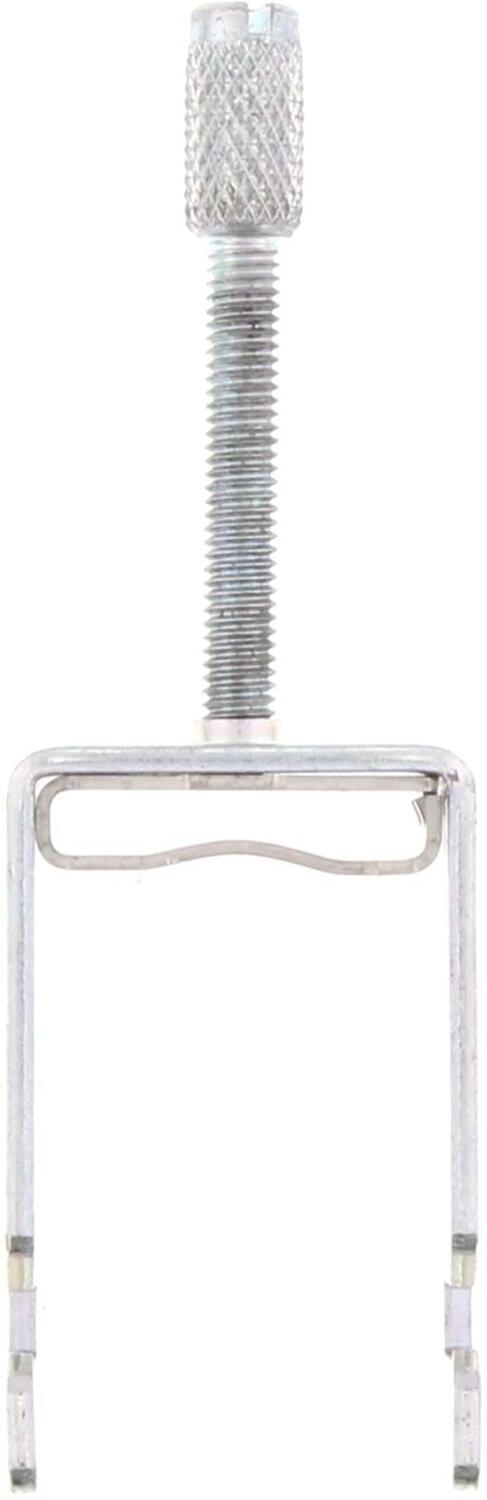

SSAB 20, Screw down shield clip, 3 - 20mmø cables, Busbar mount
Art:
3697.0
Copied
|
3 mm
|
20 mm
|
75 mm
|
19,5 mm
|
24 mm
|
DE
|
28,61 g
|
| ||

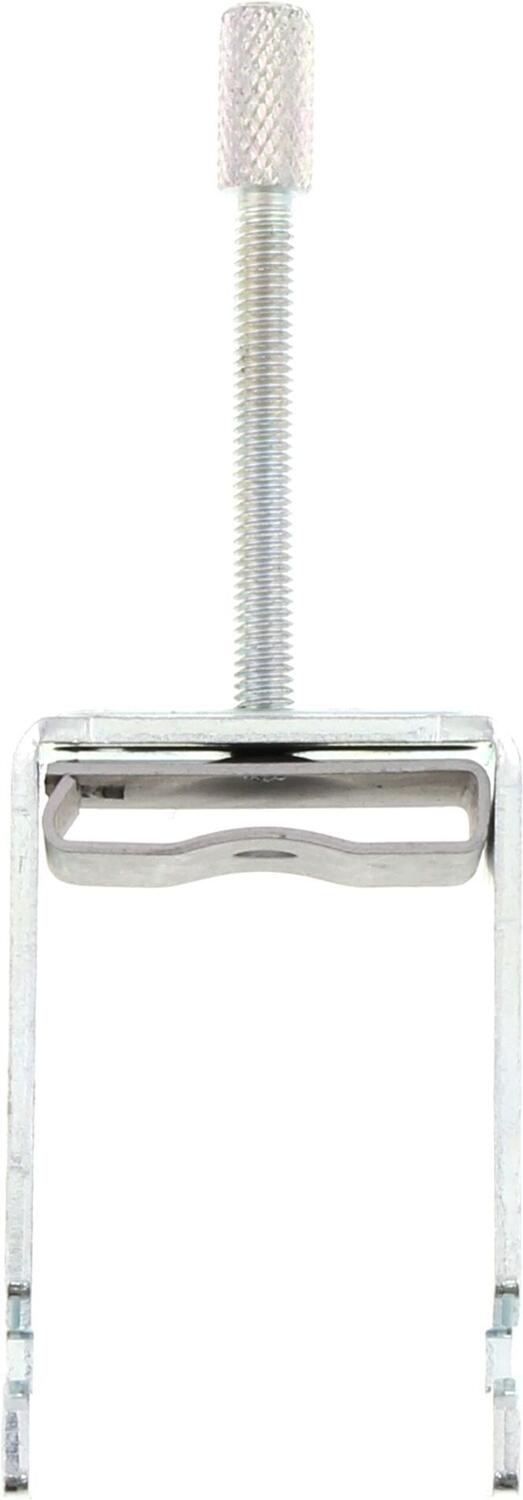

SSAB 28, Screw down shield clip, 5 - 28mmø cables, Busbar mount
Art:
3698.0
Copied
|
5 mm
|
28 mm
|
93,5 mm
|
20 mm
|
31 mm
|
CN
|
36,67 g
|
| ||

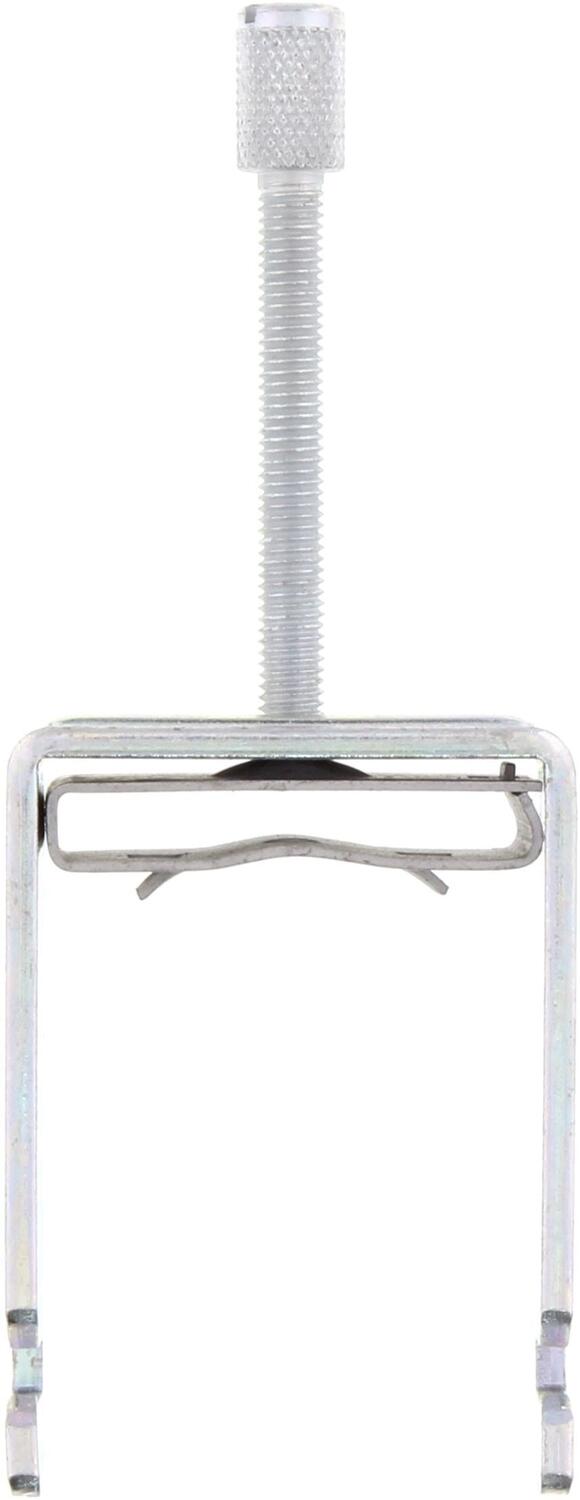

SSAB 35, Screw down shield clip, 20 - 35mmø cables, Busbar mount
