CONTA-CLIP
Halogen-free cabling trunking is often installed in sensitive areas and public buildings such as in airports,
railway stations, office buildings, high-rise buildings and hospitals. The halogen-free plastic
used by CONTA CLIP is compliant with VDE 0472 part 815 and generates no toxic gases
when burned. .

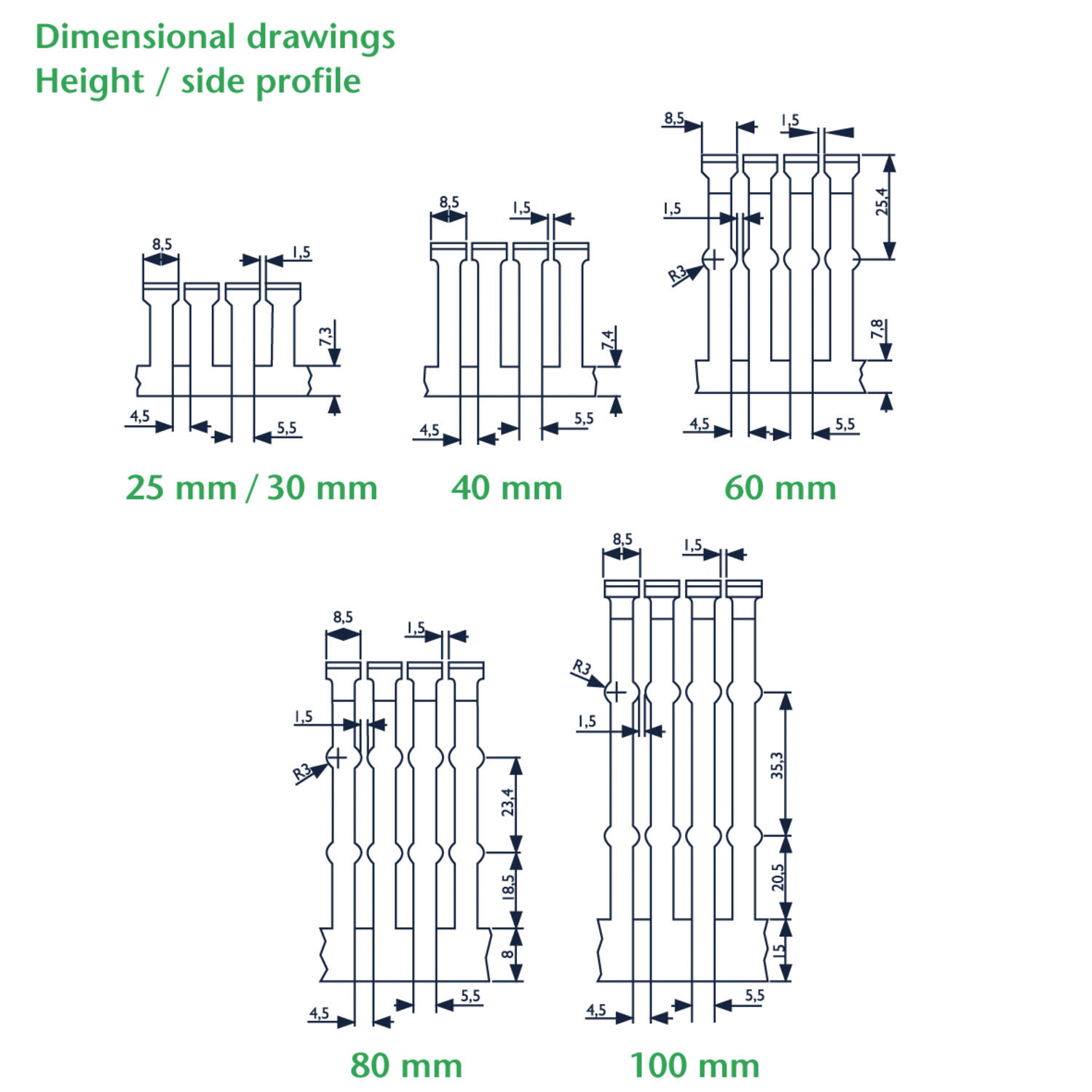

The pegs and the duct base have pre-determined breakage points so that the cabling ducts can
easily be modified for your cabling.
Â
Material: Halogen-free plastic in accordance
with VDE 0472, part 815 No toxic gases in event
of fire Fulfils the requirements in F2 and I3
of the NF F 16-101 Railway Standards.
Â
General Data |
|
|---|---|
| Colour | Light grey |
| Width | 30 mm |
| With lid | Yes |
| RAL code | 7035 |
| Height | 30 mm |
Dimensions |
|
| Width of slot | 4,5 mm |
| Inner width | 27 mm |
| Length | 2000 mm |
| Mounting | Rivet |
| Inner height | 27 mm |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -25 °C |
*Invisible Heading* |
|
|---|---|
| Halogen-free | Yes |
| Cadmium free | Yes |
| Material | PC-ABS |
| Operating temperature to | 90 °C |
| Silicone-free | Yes |
| Lead free | Yes |
Additional Data |
|
| Pack size | 64 Â |
| Country of origin | DE |
| Tariff code | 39259020 |
| Weight | 198,59 g |

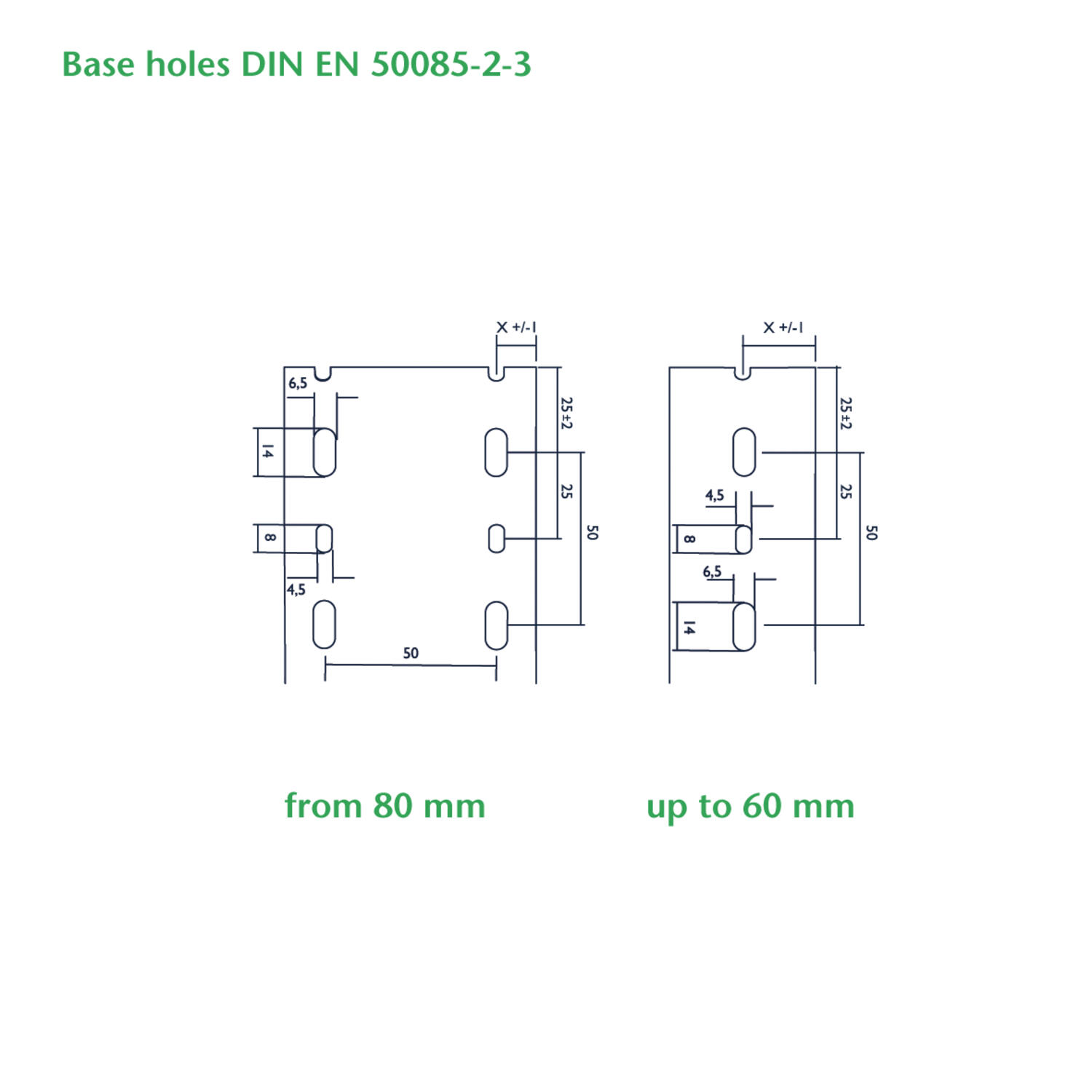

| VDE test standard | Entspricht EN 50085-2-3 |
Halogen-free cabling trunking is often installed in sensitive areas and public buildings such as in airports,
railway stations, office buildings, high-rise buildings and hospitals. The halogen-free plastic
used by CONTA CLIP is compliant with VDE 0472 part 815 and generates no toxic gases
when burned. .
The pegs and the duct base have pre-determined breakage points so that the cabling ducts can
easily be modified for your cabling.
Â
Material: Halogen-free plastic in accordance
with VDE 0472, part 815 No toxic gases in event
of fire Fulfils the requirements in F2 and I3
of the NF F 16-101 Railway Standards.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Width | With lid | Height | Width of slot | Inner width | Mounting | Inner height | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
VK-HF 25x30, Halogen free cable trunking, 64m per pack
Art:
17840.6
Copied
|
30 mm
|
Yes
|
30 mm
|
4,5 mm
|
27 mm
|
Rivet
|
27 mm
|
64
|
198,59 g
|
| ||
|
VK-HF 25x40, Halogen free cable trunking, 68m per pack
Art:
17841.6
Copied
|
25 mm
|
Yes
|
40 mm
|
4,5 mm
|
22 mm
|
Rivet
|
37 mm
|
68
|
224,71 g
|
| ||
|
VK-HF 60x40, Halogen free cable trunking, 40m per pack
Art:
17843.6
Copied
|
60 mm
|
Yes
|
40 mm
|
4,5 mm
|
56 mm
|
Rivet
|
37 mm
|
40
|
371 g
|
| ||
|
VK-HF 25x60, Halogen free cable trunking, 60m per pack
Art:
17844.6
Copied
|
25 mm
|
Yes
|
60 mm
|
4,5 mm
|
22 mm
|
Rivet
|
56 mm
|
60
|
338,67 g
|
| ||
|
VK-HF 40x60, Halogen free cable trunking, 48m per pack
Art:
17845.6
Copied
|
40 mm
|
Yes
|
60 mm
|
4,5 mm
|
36 mm
|
Rivet
|
56 mm
|
48
|
490,83 g
|
| ||
|
VK-HF 60x60, Halogen free cable trunking, 36m per pack
Art:
17846.6
Copied
|
60 mm
|
Yes
|
60 mm
|
4,5 mm
|
56 mm
|
Rivet
|
56 mm
|
36
|
445,83 g
|
| ||
|
VK-HF 80x60, Halogen free cable trunking, 32m per pack
Art:
17847.6
Copied
|
80 mm
|
Yes
|
60 mm
|
4,5 mm
|
76 mm
|
Rivet
|
56 mm
|
32
|
553,13 g
|
| ||
|
VK-HF 25x80, Halogen free cable trunking, 56m per pack
Art:
17850.6
Copied
|
25 mm
|
Yes
|
80 mm
|
4,5 mm
|
22 mm
|
Rivet
|
76 mm
|
56
|
402,86 g
|
| ||
|
VK-HF 40x80, Halogen free cable trunking, 40m per pack
Art:
17851.6
Copied
|
40 mm
|
Yes
|
80 mm
|
4,5 mm
|
36 mm
|
Rivet
|
76 mm
|
40
|
452 g
|
| ||
|
VK-HF 60x80, Halogen free cable trunking, 36m per pack
Art:
17852.6
Copied
|
60 mm
|
Yes
|
80 mm
|
4,5 mm
|
56 mm
|
Rivet
|
76 mm
|
36
|
571,67 g
|
| ||
|
VK-HF 80x80, Halogen free cable trunking, 24m per pack
Art:
17853.6
Copied
|
80 mm
|
Yes
|
80 mm
|
4,5 mm
|
76 mm
|
Rivet
|
76 mm
|
24
|
659,58 g
|
| ||
|
VK-HF 100x80, Halogen free cable trunking, 24m per pack
Art:
17854.6
Copied
|
100 mm
|
Yes
|
80 mm
|
4,5 mm
|
96 mm
|
Rivet
|
76 mm
|
24
|
710,83 g
|
| ||
|
VK-HF 40x100, Halogen free cable trunking, 24m per pack
Art:
17857.6
Copied
|
40 mm
|
Yes
|
100 mm
|
4,5 mm
|
36 mm
|
Rivet
|
96 mm
|
24
|
761,67 g
|
| ||
|
VK-HF 60x100, Halogen free cable trunking, 32m per pack
Art:
17858.6
Copied
|
60 mm
|
Yes
|
100 mm
|
4,5 mm
|
56 mm
|
Rivet
|
96 mm
|
32
|
688,13 g
|
| ||
|
VK-HF 100x100, Halogen free cable trunking, 16m per pack
Art:
17860.6
Copied
|
100 mm
|
Yes
|
100 mm
|
4,5 mm
|
96 mm
|
Rivet
|
96 mm
|
16
|
837,5 g
|
| ||
|
VK-HF-D 25mm, wide Halogen free trunking cover, 10m per pack
Art:
17870.6
Copied
|
25 mm
|
|
|
|
22 mm
|
|
|
10
|
160 g
|
| ||
|
VK-HF-D 30mm, wide Halogen free trunking cover, 10m per pack
Art:
17871.6
Copied
|
30 mm
|
|
|
|
27 mm
|
|
|
10
|
180 g
|
| ||
|
VK-HF-D 40mm, wide Halogen free trunking cover, 10m per pack
Art:
17872.6
Copied
|
40 mm
|
|
|
|
36 mm
|
|
|
10
|
190 g
|
| ||
|
VK-HF-D 60mm, wide Halogen free trunking cover, 10m per pack
Art:
17873.6
Copied
|
60 mm
|
|
|
|
56 mm
|
|
|
10
|
220 g
|
| ||
|
VK-HF-D 80mm, wide Halogen free trunking cover, 10m per pack
Art:
17874.6
Copied
|
80 mm
|
|
|
|
76 mm
|
|
|
10
|
260 g
|
| ||
|
VK-HF-D 100mm, wide Halogen free trunking cover, 10m per pack
Art:
17875.6
Copied
|
100 mm
|
|
|
|
96 mm
|
|
|
10
|
310 g
|
|
