LUMEL

Data Logger With Web Server, SM61IoT

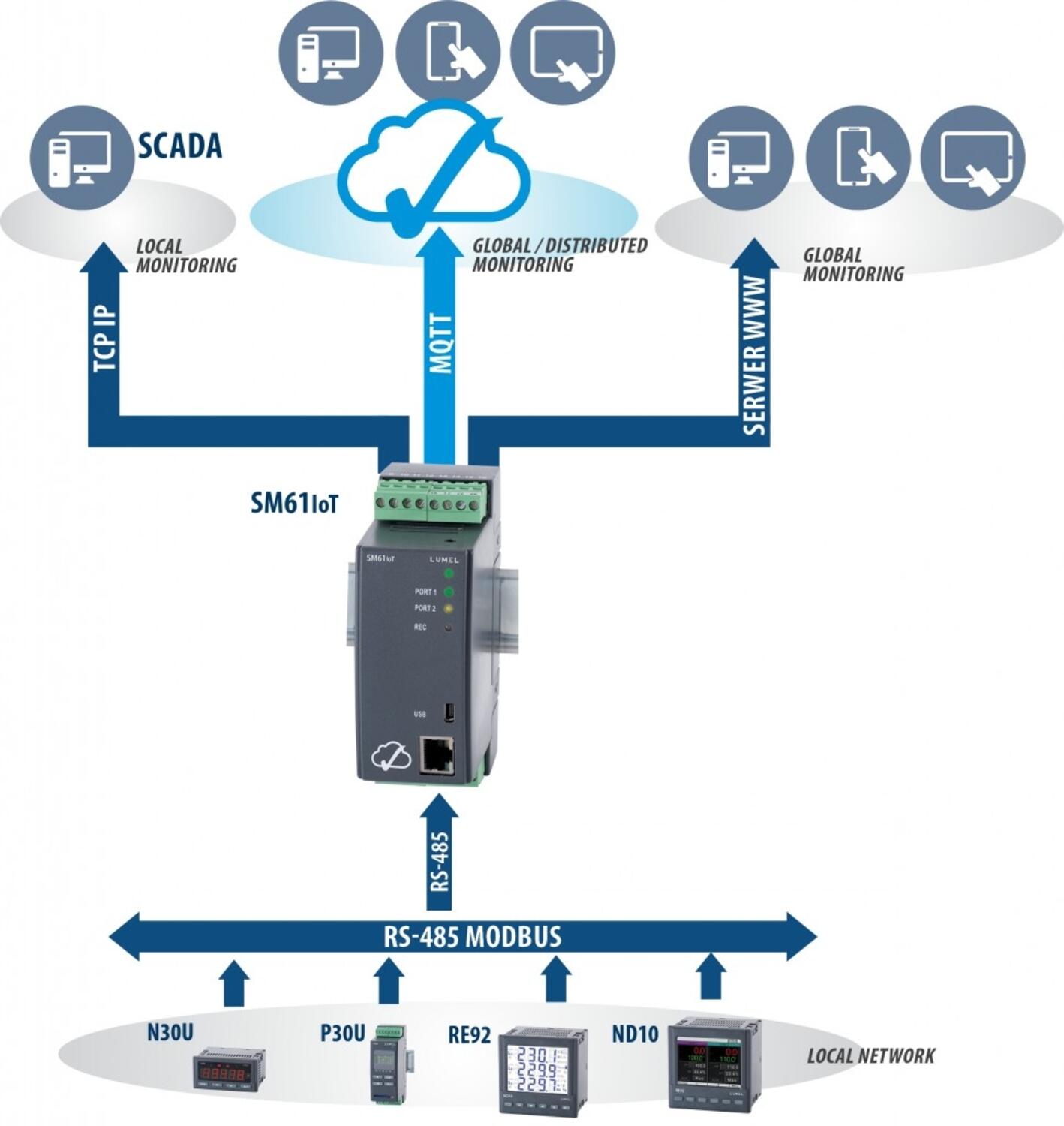

SM61IoT is a Modbus TCP Data logger, which provides you with ontinuous visualization of logged parameters by various means.

- Cloud - thanks to MQTT protocol (global/distributed montotoring)

- web browser (global monitoring)

- SCADA system - protocol TCP/IP (local monitoring)

To easily communicate with the SM61IoT you can use PC, tablet or mobile phone with a web browser

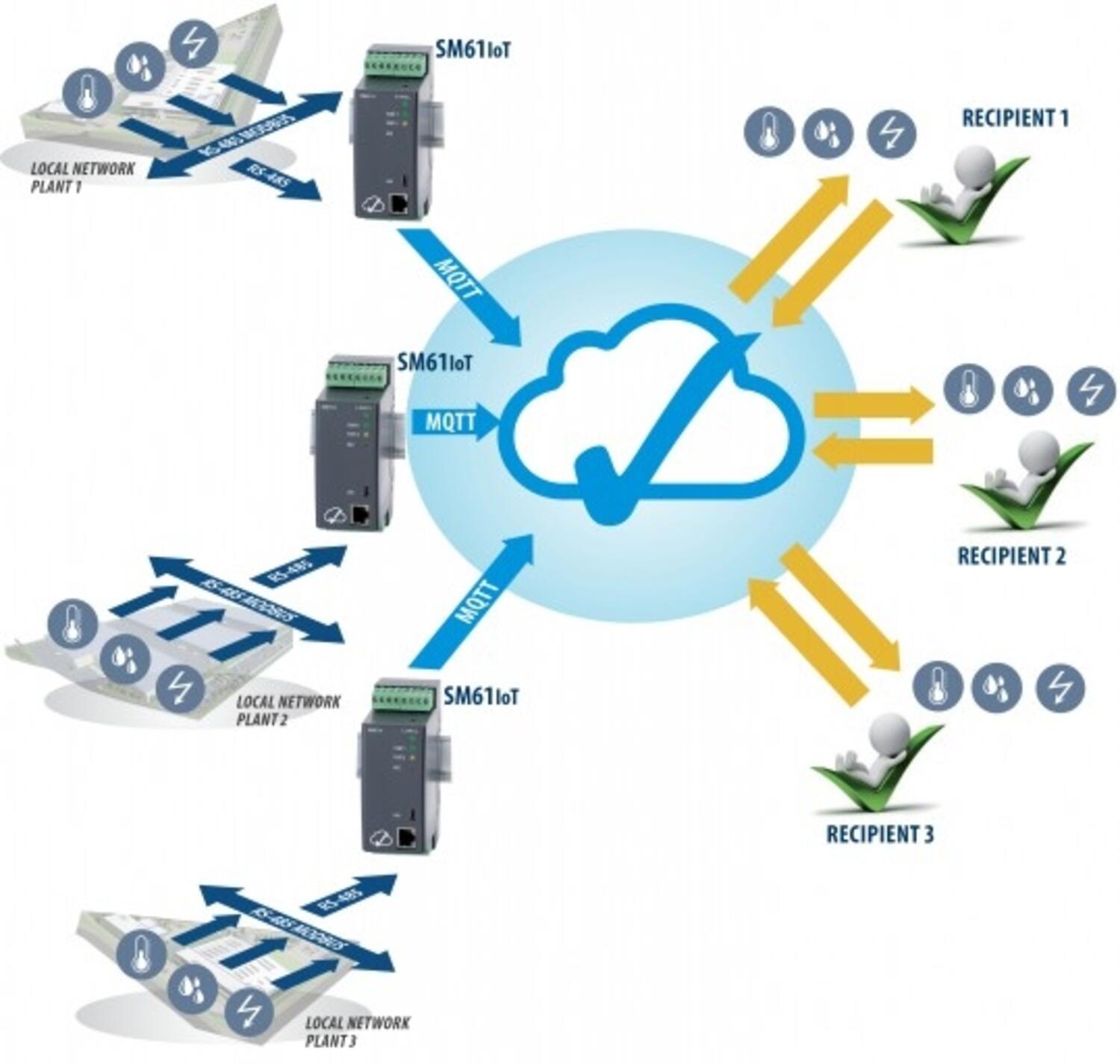

-The MQTT protocol is ideal for communication in distributed acquisition systems data (IoT applications)

- Modbus TCP protocol for communication in ScaDa systems

- Built-in WWW for visualisation of all current live and archived data according to customer configuration (synoptic maps, charts, tables) by any web browser

- Readout up to 2500 values from slave devices (up to 100 devices, each 25 registers)

- User-friendly application for data configuration (SM61iot config)

 - 8 GB flash memory

- Built-in ftp server.

- Alarms or binary inputs for control of archiving.

- RTC (real time clock)

- Multi-User Acccess

 - User’s access control by a password.

Read more
  • Modbus TCP Protocol
  • Read up to 2500 values from slave devices
  • Built-in FTP and WWW servers
  • Alarms or binary inputs for control of archiving
  • MQTT Cloud Ready

Selected variant

Available in several variants

Selected variant

Technical data

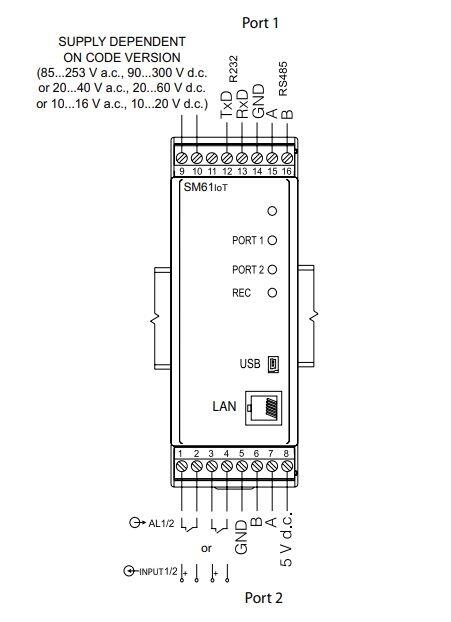

Measurements and connections

Technical illustrations

Product description

SM61IoT is a Modbus TCP Data logger, which provides you with ontinuous visualization of logged parameters by various means.

- Cloud - thanks to MQTT protocol (global/distributed montotoring)

- web browser (global monitoring)

- SCADA system - protocol TCP/IP (local monitoring)

To easily communicate with the SM61IoT you can use PC, tablet or mobile phone with a web browser

-The MQTT protocol is ideal for communication in distributed acquisition systems data (IoT applications)

- Modbus TCP protocol for communication in ScaDa systems

- Built-in WWW for visualisation of all current live and archived data according to customer configuration (synoptic maps, charts, tables) by any web browser

- Readout up to 2500 values from slave devices (up to 100 devices, each 25 registers)

- User-friendly application for data configuration (SM61iot config)

 - 8 GB flash memory

- Built-in ftp server.

- Alarms or binary inputs for control of archiving.

- RTC (real time clock)

- Multi-User Acccess

 - User’s access control by a password.
