Output Data |
|
|---|---|
| Output current max | 40 A |

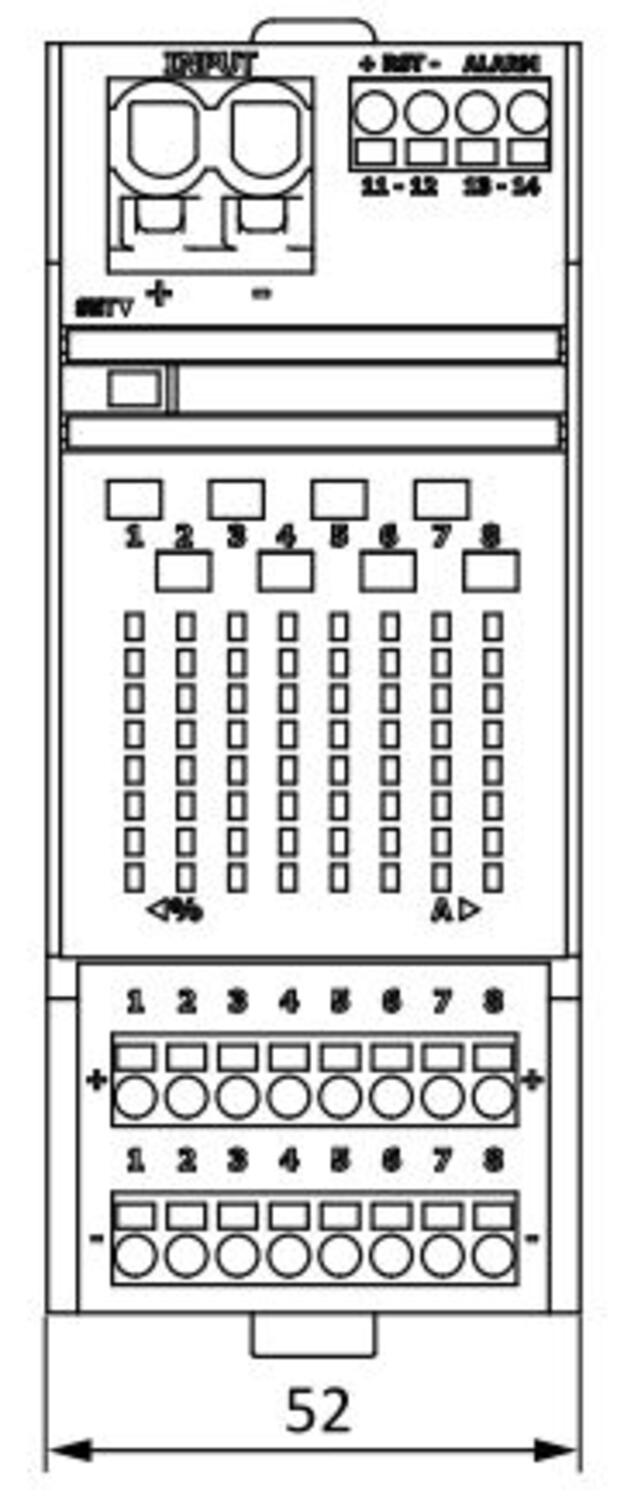

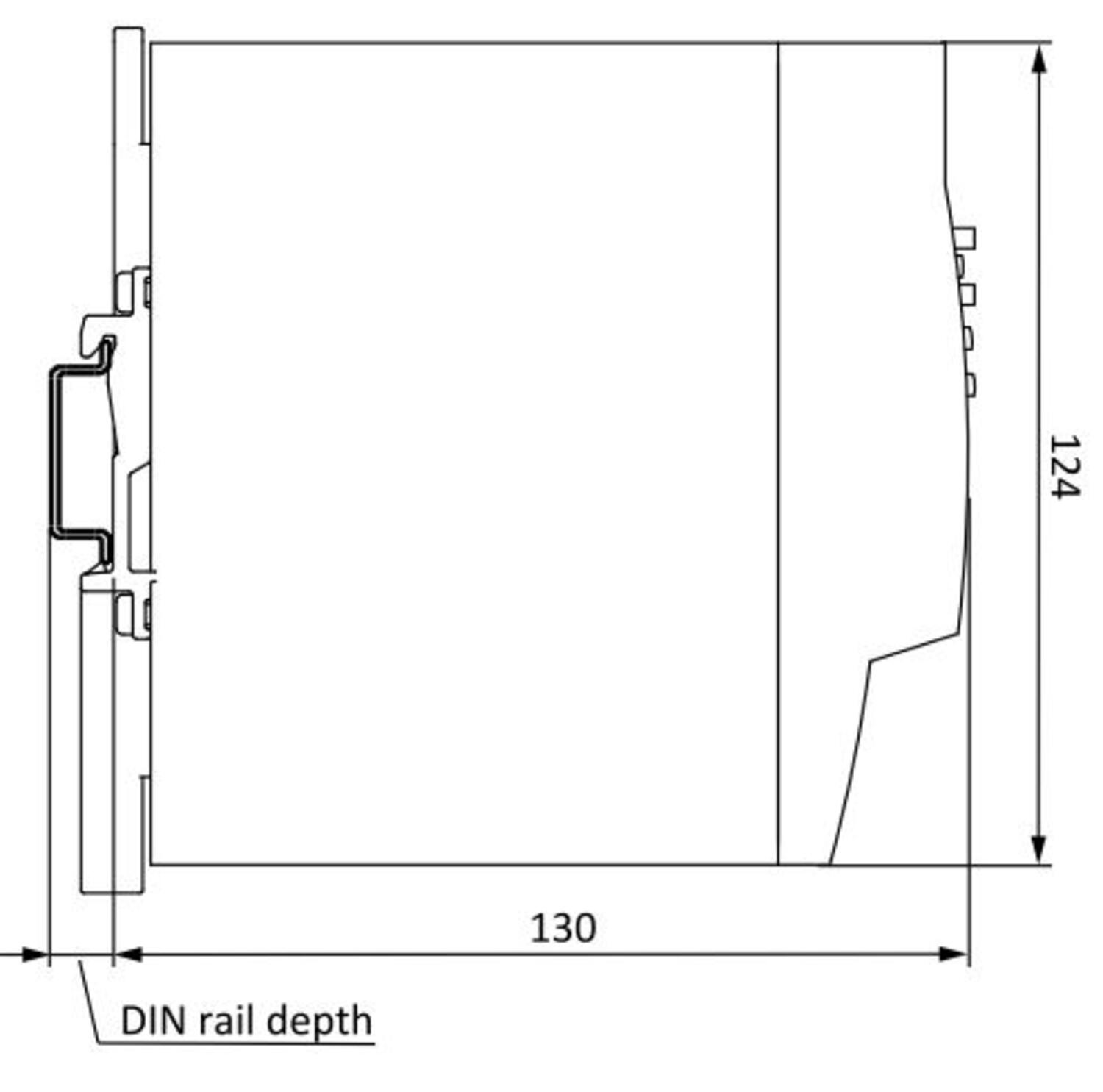

Dimensions |
|
| Depth | 130 mm |
| Width | 52 mm |
| Height | 124 mm |
Connection Data |
|
| IP class | IP20 |
Approvals |
|
| Approvals | CB, CE, cULus |
Additional data |
|
|---|---|
| Weight | 0,37 kg |
| Output voltage | 24 V DC |
| Output current per channel | Channel 1-2, 1-12A, Channel 3-8, 1-10A |
| Clamp type | Push in |
| Input voltage dc max | 30 V DC |
| Input voltage dc min | 19,2 V DC |
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Output current max | Depth | Width | Height | IP class | Approvals | Weight | Output voltage | Output current per channel | Clamp type | Input voltage dc max | Input voltage dc min | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

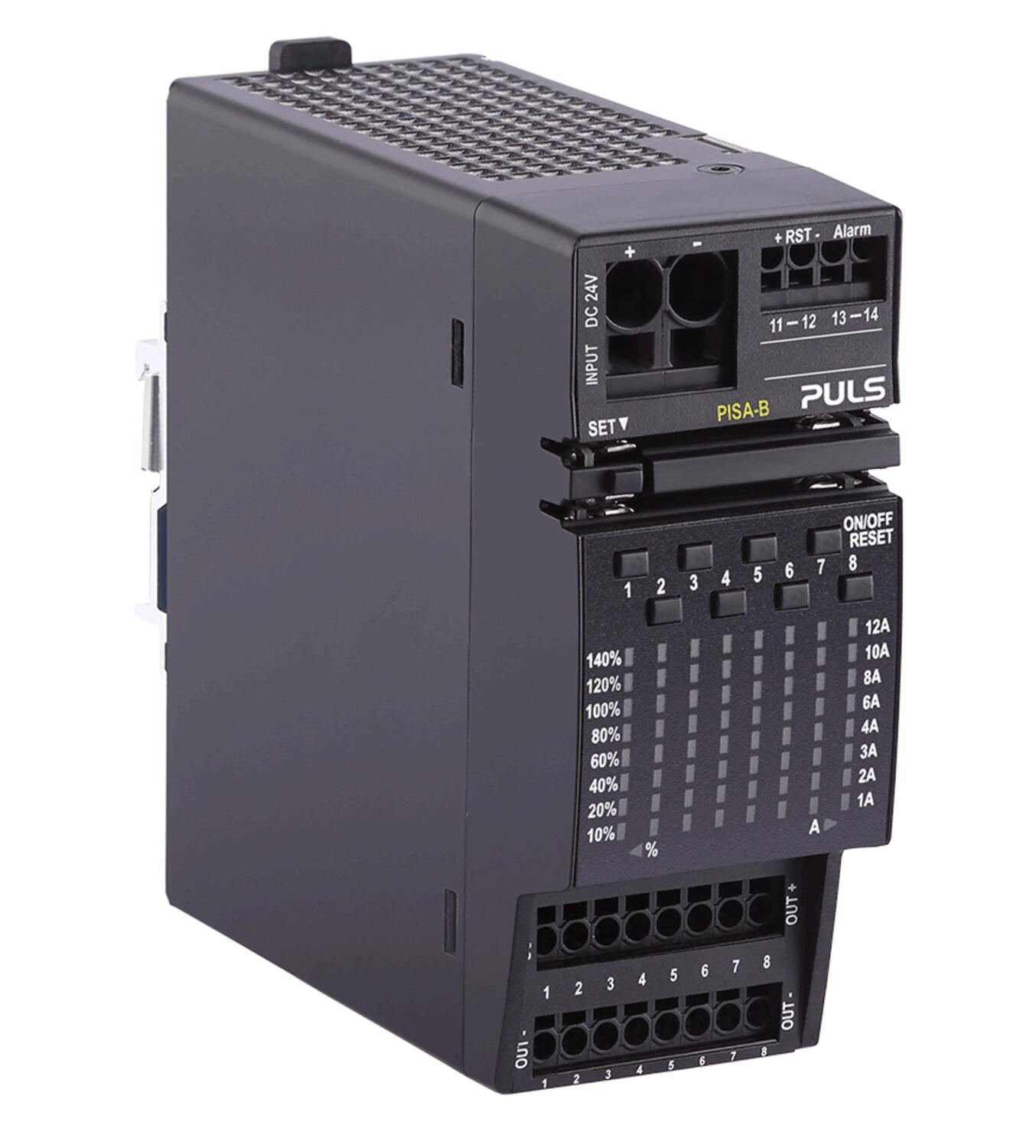

ECB 8ch 2x1-12A, 6x1-10A Common Alarm
Art:
PISA-B-812-B1
Copied
|
40 A
|
130 mm
|
52 mm
|
124 mm
|
IP20
|
CB, CE, cULus
|
0,37 kg
|
24 V DC
|
Channel 1-2, 1-12A, Channel 3-8, 1-10A
|
Push in
|
30 V DC
|
19,2 V DC
|
| ||
8 channels, 2x1-12A, 6x1-10A indiv.alarm
Art:
PISA-B-812-B4
Copied
|
40 A
|
130 mm
|
52 mm
|
124 mm
|
IP20
|
CB, CE, cULus
|
0,37 kg
|
24 V DC
|
Channel 1-2, 1-12A, Channel 3-8, 1-10A
|
Push in
|
30 V DC
|
19,2 V DC
|
| ||

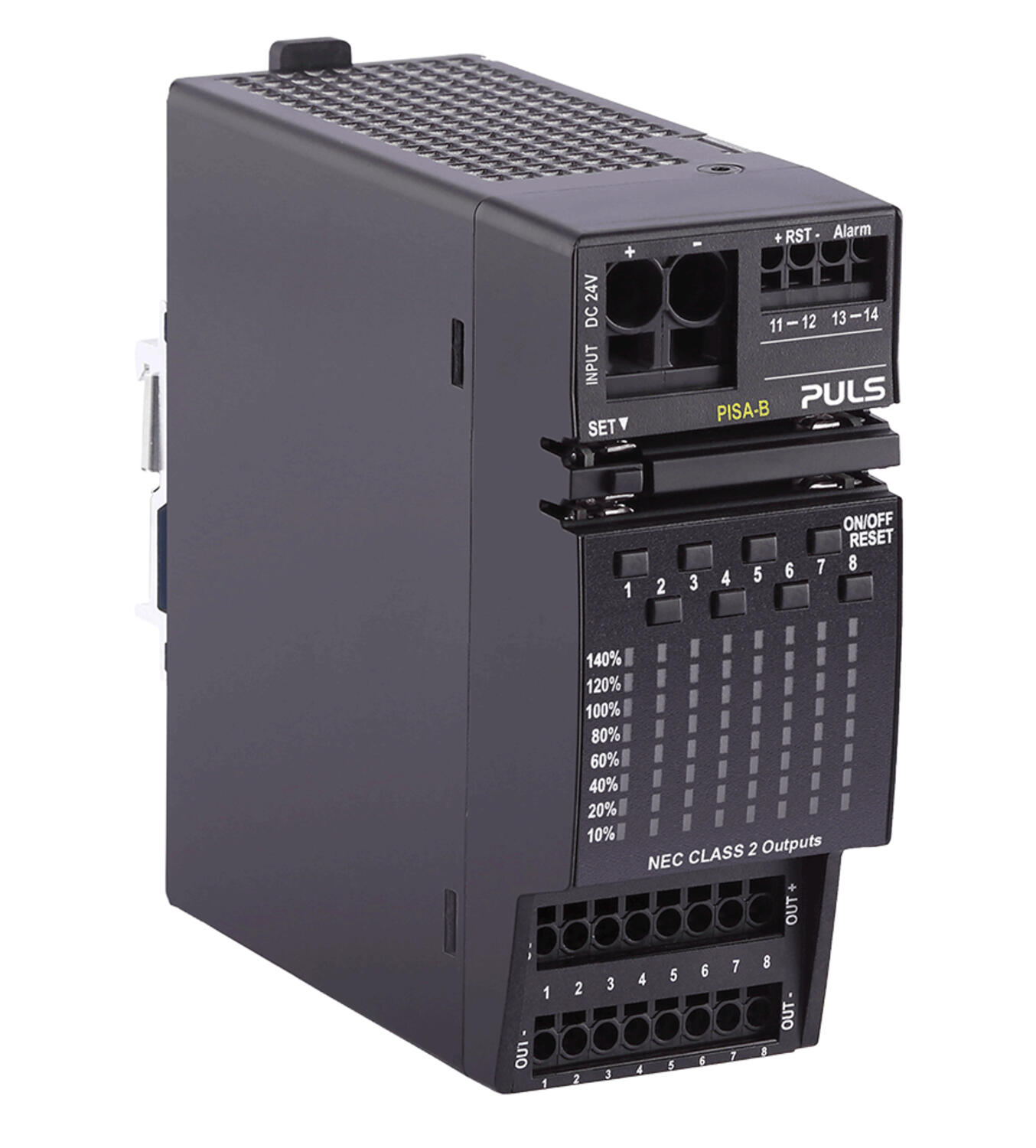

8 channels, NEC CLASS2, 3,75A comm.alarm
Art:
PISA-B-8CL2-B1
Copied
|
|
130 mm
|
52 mm
|
124 mm
|
IP20
|
CB, CE, cULus, NEC Class 2
|
0,37 kg
|
24 V DC
|
3,7 A @ 24 V DC
|
Push in
|
30 V DC
|
19,2 V DC
|
| ||
8 channels, NEC CLASS2, 3,75A digi.alarm
Art:
PISA-B-8CL2-B4
Copied
|
|
130 mm
|
52 mm
|
124 mm
|
IP20
|
CB, CE, cULus, NEC Class 2
|
0,37 kg
|
24 V DC
|
3,7 A @ 24 V DC
|
Push in
|
30 V DC
|
19,2 V DC
|
| ||

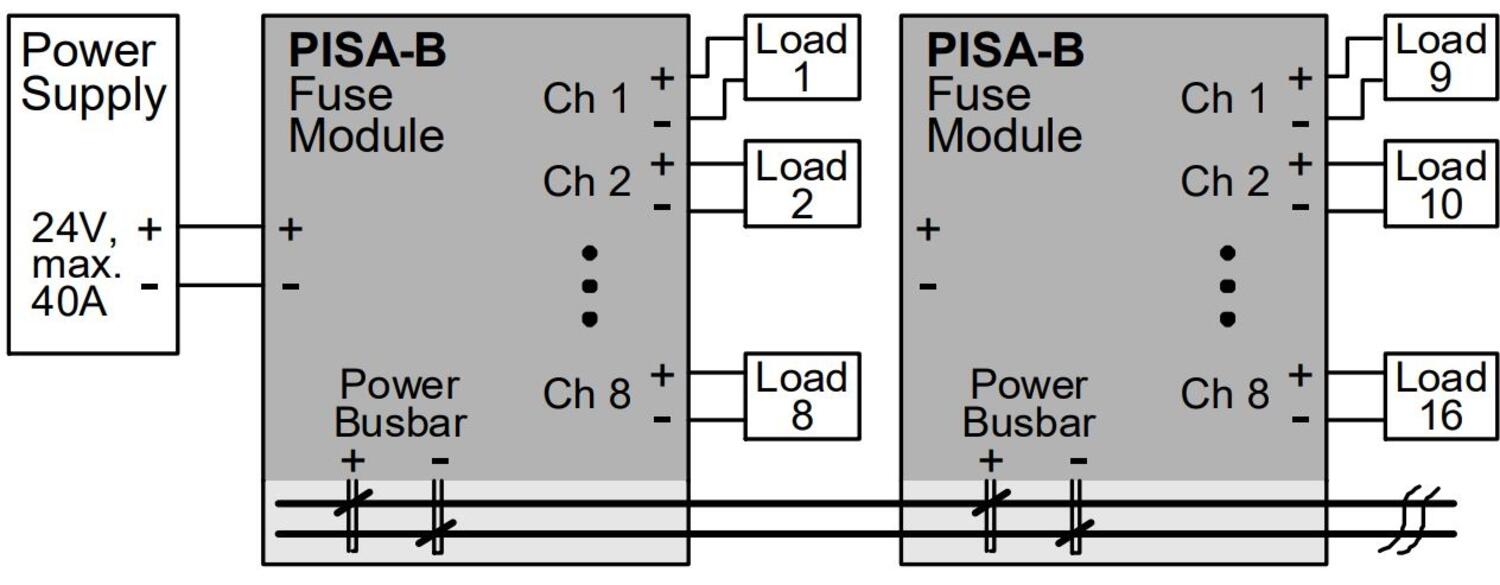

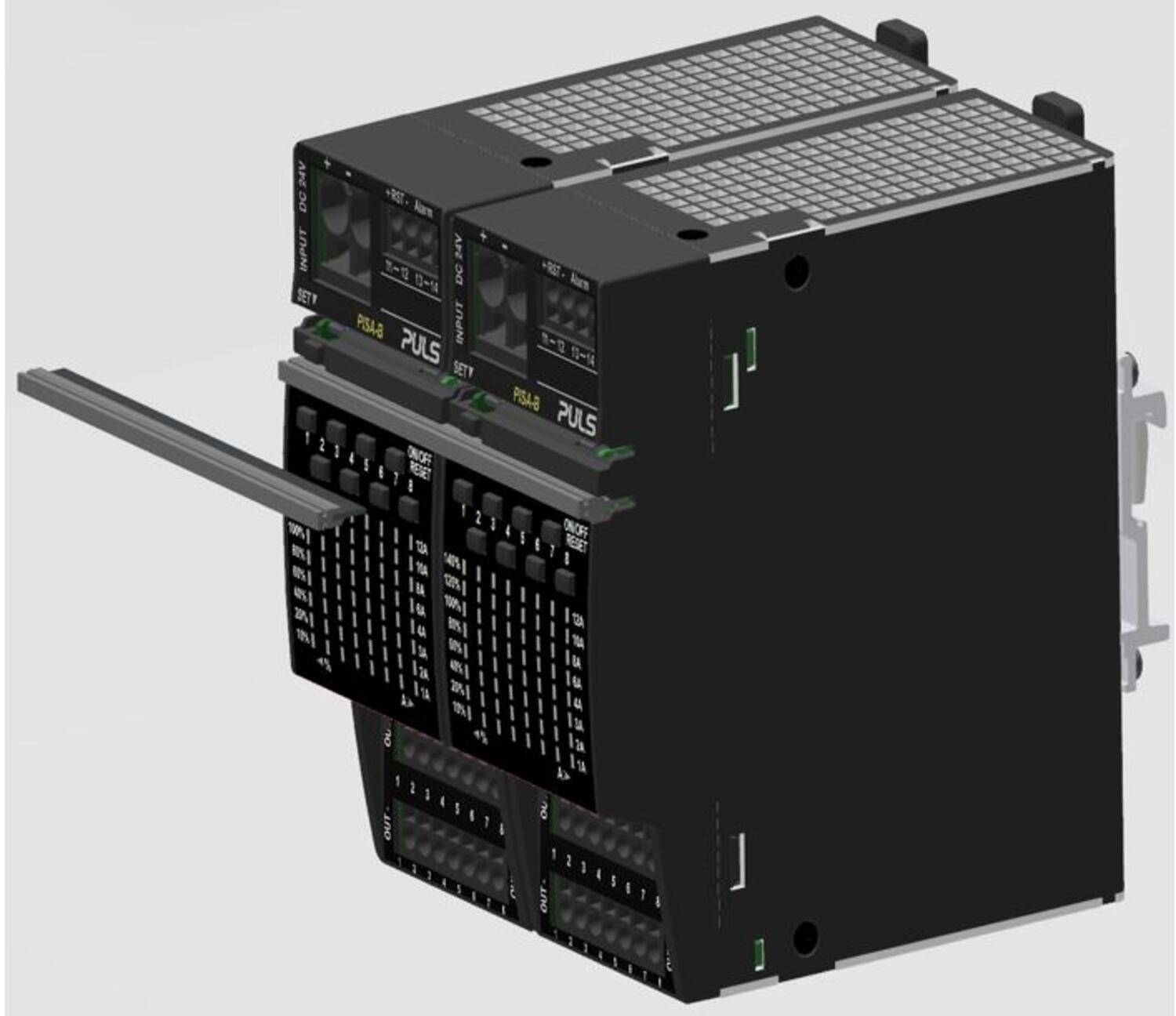

Busbar for 2 PISA modules
Art:
BUS-BAR1-L102
Copied
|
|
102 mm
|
3,3 mm
|
11,4 mm
|
|
|
|
|
|
|
|
|
| ||
|
Busbar for 3 PISA modules
Art:
BUS-BAR1-L155
Copied
|
|
155 mm
|
3,3 mm
|
11,4 mm
|
|
|
|
|
|
|
|
|
| ||
|
Busbar f/8 PISA modules 0,5m (2pcs need)
Art:
BUS-BAR1-L500
Copied
|
|
500 mm
|
3,3 mm
|
11,4 mm
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
