CONTA-CLIP

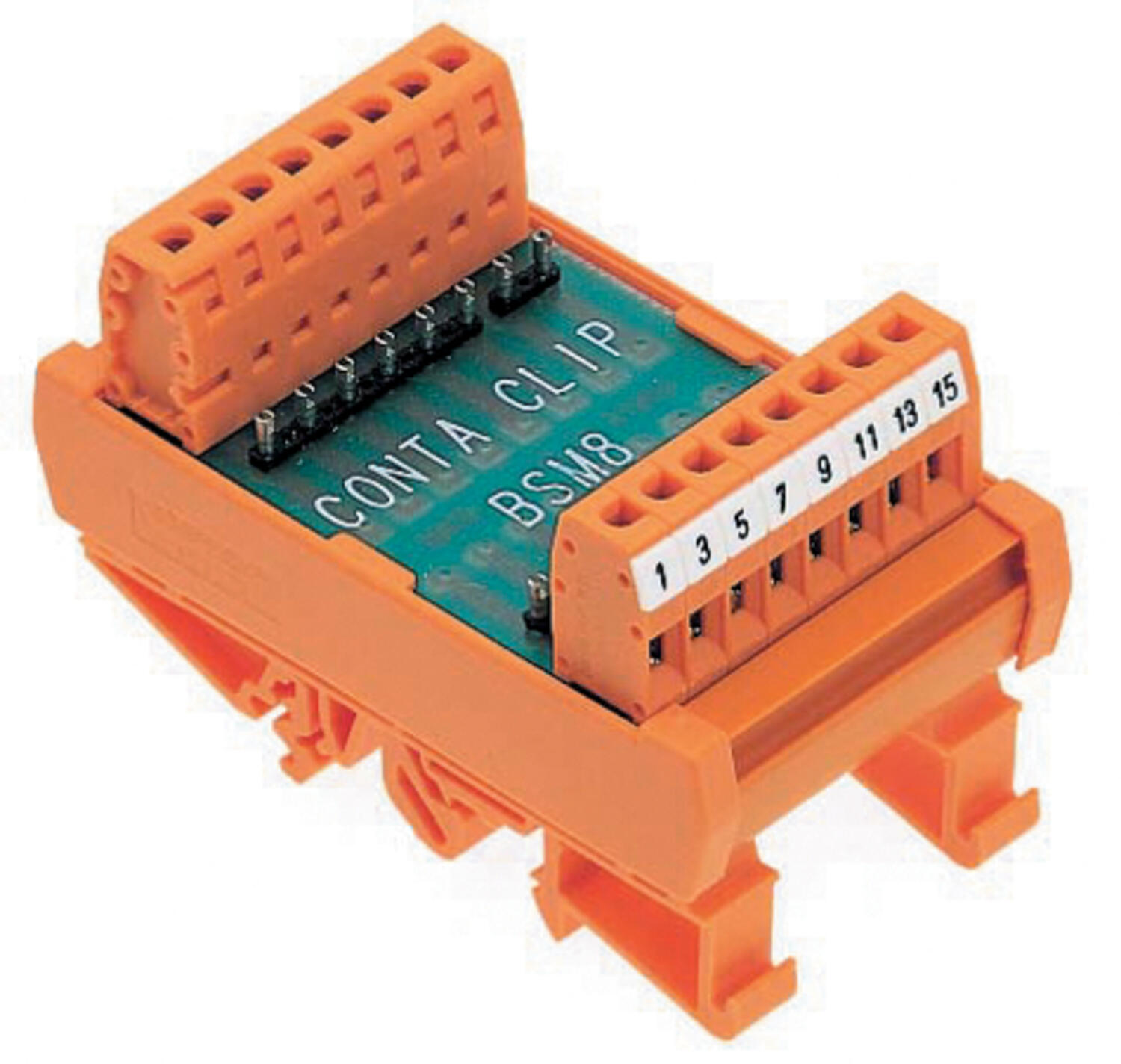

The BSM component module features two rows of solder pins, attached parallel to the PCB.
Â
They are connected via circuit tracks, with screw PCB terminals.
Â
The area on the opposite side to the solder pins may be used for soldering on a variety of user selectable components, such as resistors, diodes, capacitors or varistors.
Â
*The .../AD modules must be used when the operating voltage exceeds 30 V AC/60 V DC. Designs with other diode types are available upon request.
Â
Â
General Data |
|
|---|---|
| Cover | No |
| Number of channels | 4 |
Ratings |
|
| DIN-VDE Spec | DIN VDE 0110 / EN 50178 |
| Current carrying capacity per channel max | 5 A |
| Operating temperature from | -20 °C |
| Operating voltage ac/dc max | 250 V |
| Operating temperature to | 50 °C |
| Contamination degree | 2 |
| Overvoltage category | III |
Dimensions |
|
| Solder pins distance | 35 mm |
| Height TS 35/7.5 | 57 mm |
| Solder pins height | 5 mm |
| Length | 87 mm |
| Width | 27 mm |
Connection Data |
|
| Cross section stranded wire to | 2,5 mm² |
*Invisible Heading* |
|
|---|---|
| Cross section single wire from | 0,2 mm² |
| Cross section stranded wire from | 0,2 mm² |
| Cross section stranded with ferrule from | 0,2 mm² |
| Connection type | Screw |
| Cross section stranded with ferrule to | 2,5 mm² |
| Stripping length | 7 mm |
| Pitch | 5,08 mm |
| Cross section single wire to | 2,5 mm² |
| Torque | 0,6 Nm |
Additional Data |
|
| Pack size | 1 Â |
| Country of origin | EEC |
| Tariff code | 85369095 |
| Weight | 42,2 g |
The BSM component module features two rows of solder pins, attached parallel to the PCB.
Â
They are connected via circuit tracks, with screw PCB terminals.
Â
The area on the opposite side to the solder pins may be used for soldering on a variety of user selectable components, such as resistors, diodes, capacitors or varistors.
Â
*The .../AD modules must be used when the operating voltage exceeds 30 V AC/60 V DC. Designs with other diode types are available upon request.
Â
Â
