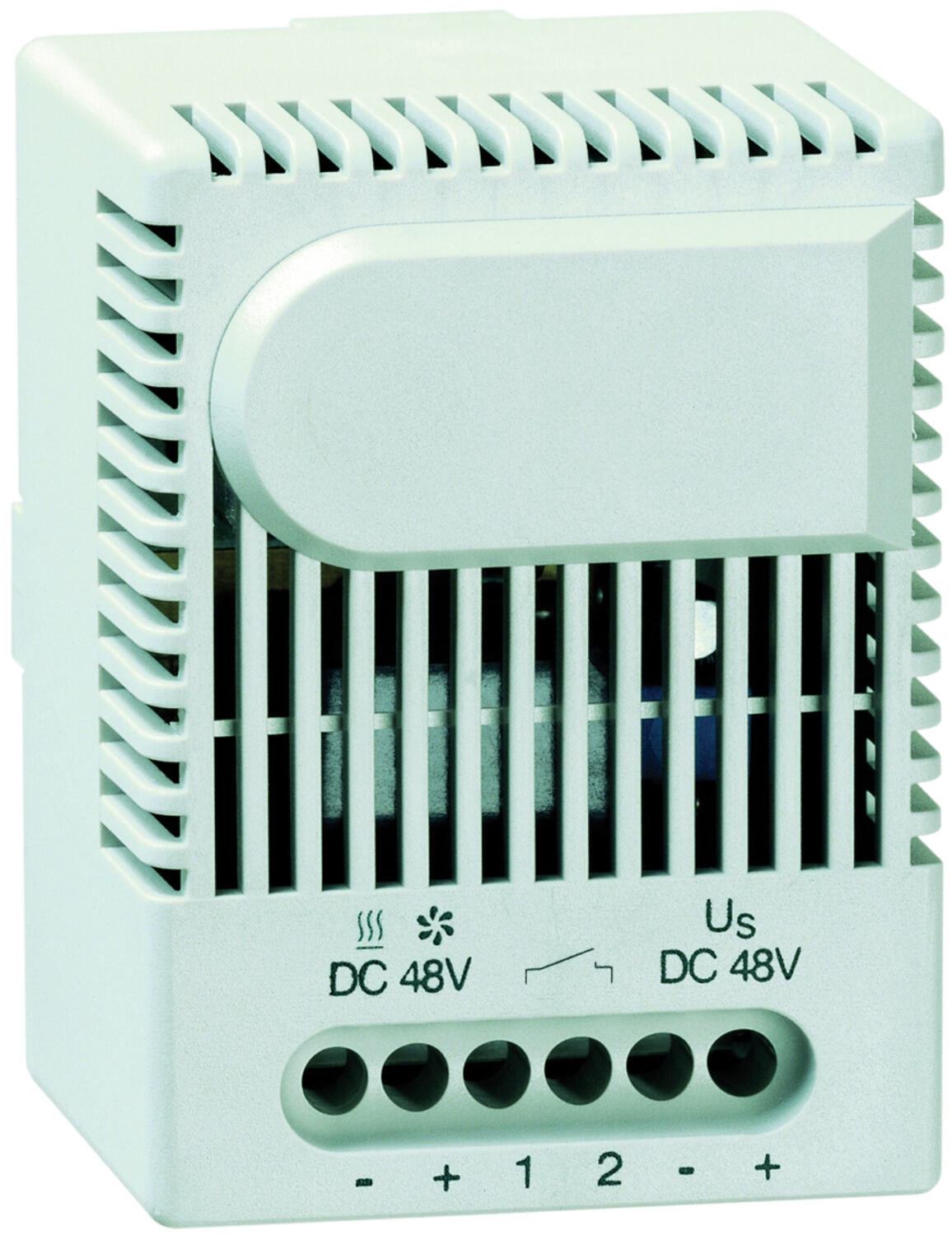

STEGO

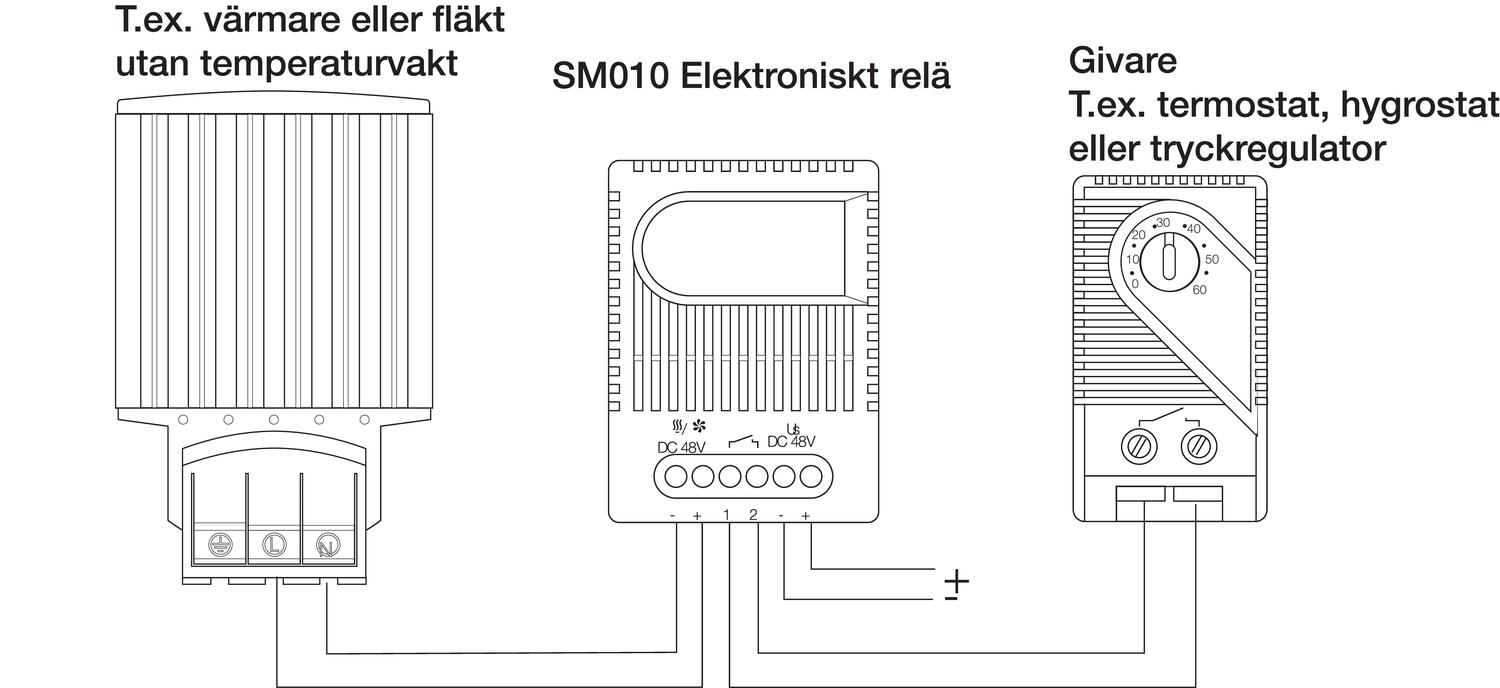

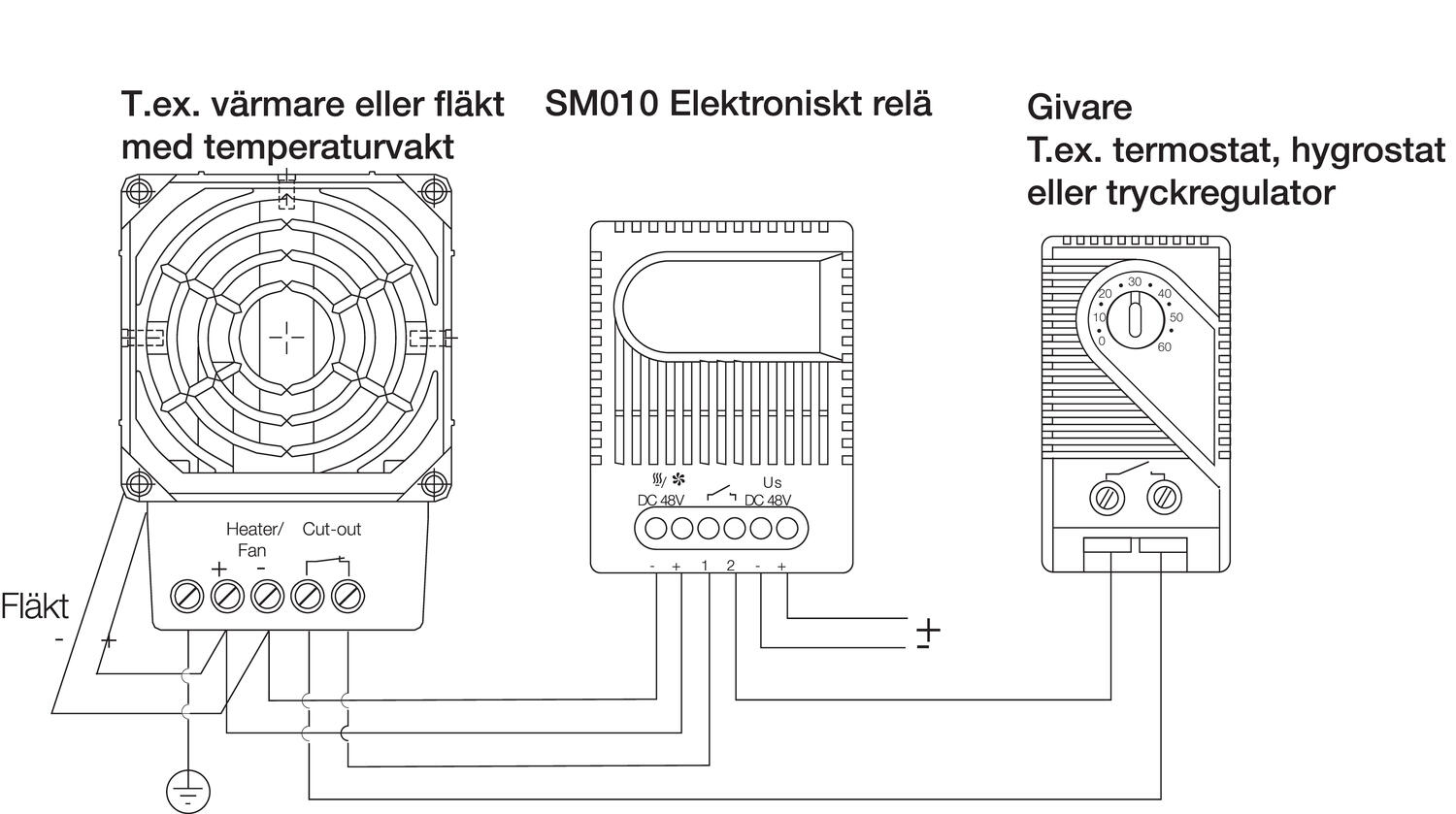

Electronic relay for control of applications with DC voltage when high breaking capacity is required. A separate contact for connection of hygrostat or thermostat.
General Data |
|
|---|---|
| Contact type | 1 x N/O |
| Inrush max | 16 A |
| Voltage max | 28 V ac |
| Voltage min | 20 V dc |
| Contact resistance | <10 mΩ |
| Breaking capacity | Max. 28 VDC 16 A |

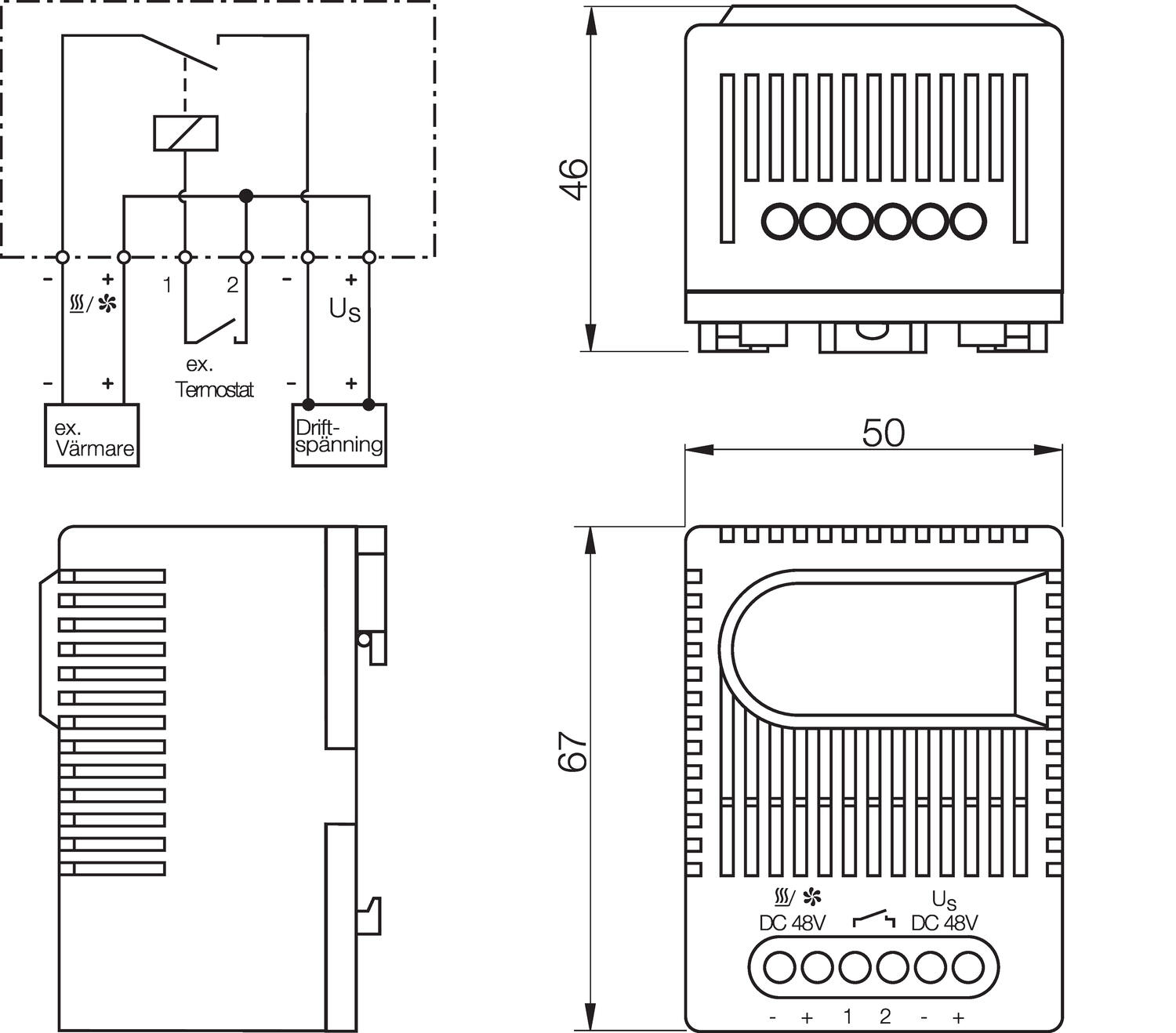

Dimensions |
|
| Weight | 0,09 kg |
| Depth | 46 mm |
| Width | 50 mm |
| Height | 67 mm |
Material |
|
| Flammability class | UL94-V0 |
*Invisible Heading* |
|
|---|---|
| Material plastic housing | Plastic |
| Colour | Light grey |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Life span | >100 000 cycles |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| EMC | EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Safety and Approvals |
|
| IP class | IP20 |
| Approvals | CE, EAC, RoHS, VDE |
Electronic relay for control of applications with DC voltage when high breaking capacity is required. A separate contact for connection of hygrostat or thermostat.
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Voltage max | Voltage min | Breaking capacity | Price | ||
|---|---|---|---|---|---|---|
SM 010 Relay interface, 24V dc, 16 A
Art:
01001.0-00
Copied
|
28 V ac
|
20 V dc
|
Max. 28 VDC 16 A
|
| ||
|
SM 010 Relay interface, 48V dc, 16 A
Art:
01000.0-00
Copied
|
56 V dc
|
38 V dc
|
Max. 56 VDC 16 A
|
|
Select a variant in the list
