STEGO
The innovative and ventilated cable connector DAK 284 allows for safe insertion of cables and wires into a housing with IP66 / IP67 enclosure, while providing pressure relief in the enclosure / cabinet.
Â
Thanks to a waterproof filter in the front screw, dirt and water are prevented from entering the enclosure at the same time
which can cause pressure equalization in the enclosure / cabinet.
Â
Condensation is formed by pressure changes and temperature changes inside and outside the cabinet. This happens, for example, by the temperature difference of day and night. Problems with dust may also occur if negative pressure is created in connection with pressure changes. The negative pressure causes dust to creep into the cabinet through door jumps etc.
Â
Installation instructions
Make a hole in the enclosure and install the ventilation cable lining with the lock nut. Make sure that the gasket is placed on the outside of the enclosure and that the holes are free from degrees.
Â
(Air capacity according to technical data applies at pressure differential of 70 mbar)
General Data |
|
|---|---|
| Air capacity | 0,025 m³/h |

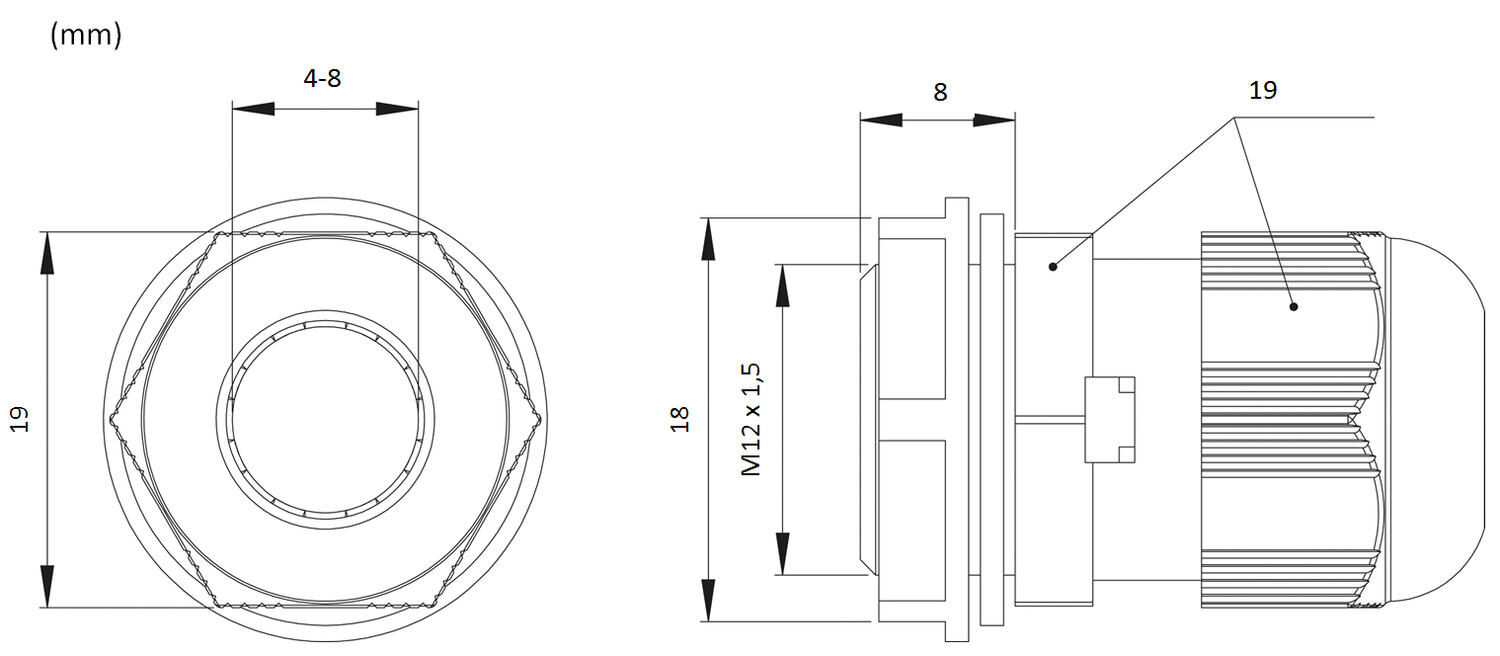

Dimensions |
|
| Weight | 0,007 kg |
Material |
|
| Material plastic housing | Plastic |
| Colour | Light grey |
| Material of body | Plastic |
Rated Operating Conditions |
|
| Operational temperature | -20°C ... +80°C |
*Invisible Heading* |
|
|---|---|
| Storage temperature | -20°C ... +80°C |
| Tightening torque max | 2 Nm |
Safety and Approvals |
|
| IP class | IP66, IP67 |
| Approvals | cULus, EAC, RoHS, UL, VDE |
The innovative and ventilated cable connector DAK 284 allows for safe insertion of cables and wires into a housing with IP66 / IP67 enclosure, while providing pressure relief in the enclosure / cabinet.
Â
Thanks to a waterproof filter in the front screw, dirt and water are prevented from entering the enclosure at the same time
which can cause pressure equalization in the enclosure / cabinet.
Â
Condensation is formed by pressure changes and temperature changes inside and outside the cabinet. This happens, for example, by the temperature difference of day and night. Problems with dust may also occur if negative pressure is created in connection with pressure changes. The negative pressure causes dust to creep into the cabinet through door jumps etc.
Â
Installation instructions
Make a hole in the enclosure and install the ventilation cable lining with the lock nut. Make sure that the gasket is placed on the outside of the enclosure and that the holes are free from degrees.
Â
(Air capacity according to technical data applies at pressure differential of 70 mbar)
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Air capacity | Weight | Tightening torque max | Price | ||
|---|---|---|---|---|---|---|
Art:
28410.0-00
Copied
|
0,025 m³/h
|
0,007 kg
|
2 Nm
|
| ||
|
Art:
28411.0-00
Copied
|
0,025 m³/h
|
0,008 kg
|
2 Nm
|
| ||
|
Art:
28412.0-00
Copied
|
0,04 m³/h
|
0,013 kg
|
5 Nm
|
|
Select a variant in the list
