STEGO

Heater 10-20W - CSK 060

CSK

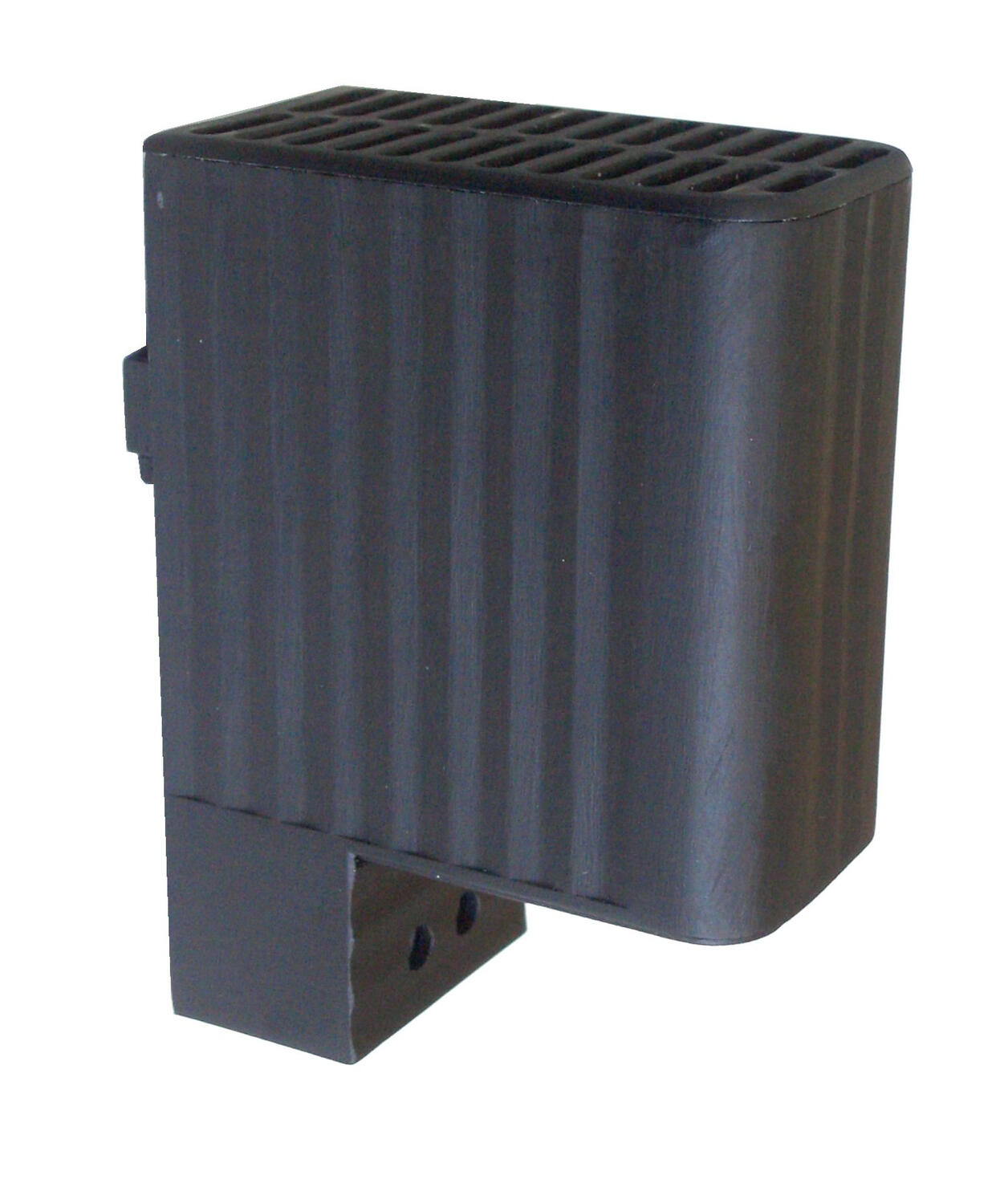

A small, powerful 20 W heater. It is easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.



Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 85 °C, so the heater can be mounted relatively close to other components in the same installation, and there is no risk for fire damage.

The dual isolation also means that the heater does not need to be earthed.



The heat source consists of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation.





Read more
  • Dual isolated (does not require earthing)
  • Innovative design and small size
  • Low element surface temperature
  • Quick installation, bracket for DIN rail

Selected variant

Available in several variants

Selected variant

Technical data

General Data

Heat source Self-regulating PTC-element
Nominal voltage 120-240 V AC/DC
Connection type 2-pole terminal 2.5mm²
Recommended fuse (slow blow) 2 A
Starting current max 1 A
Heat output 10 W
Mounting DIN-rail 35mm
Heater body Plastic

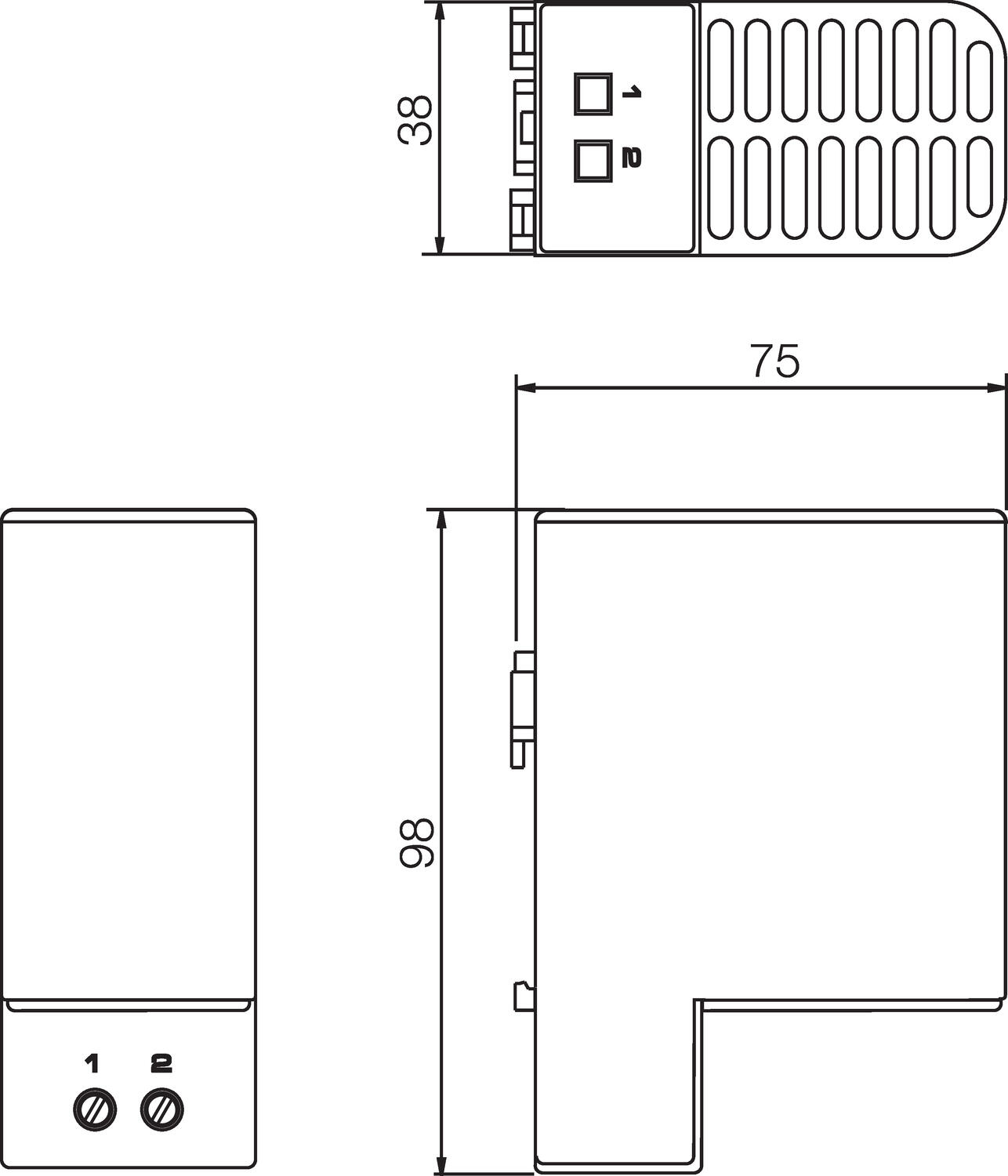

Dimensions

Weight 0,2 kg
Depth 75 mm
Width 38 mm
Height 98 mm

Safety & Approvals

IP class IP20
Protection class II (double insulated)
Approvals CE, EAC, Gost R, RoHS, UL E150057, VDE

Rated Operating Conditions

Operational temperature -45°C ... +70°C
Storage temperature -45°C ... +70°C
Humidity storage <90% RH
Operating humidity < 90% RH
Voltage min 110 V ac/dc
Voltage max 265 V ac/dc
Housing Plastic enclosure, UL94 V-0

Product description

A small, powerful 20 W heater. It is easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.



Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 85 °C, so the heater can be mounted relatively close to other components in the same installation, and there is no risk for fire damage.

The dual isolation also means that the heater does not need to be earthed.



The heat source consists of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation.





Accessories

Related

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts Heat source Nominal voltage Connection type Recommended fuse (slow blow) Starting current max Heat output Mounting Heater body Weight Depth Width Height IP class Protection class Approvals Operational temperature Storage temperature Humidity storage Operating humidity Voltage min Voltage max Housing Price
Self-regulating PTC-element
120-240 V AC/DC
2-pole terminal 2.5mm²
2 A
1 A
10 W
DIN-rail 35mm
Plastic
0,2 kg
75 mm
38 mm
98 mm
IP20
II (double insulated)
CE, EAC, Gost R, RoHS, UL E150057, VDE
-45°C ... +70°C
-45°C ... +70°C
<90% RH
< 90% RH
110 V ac/dc
265 V ac/dc
Plastic enclosure, UL94 V-0
Self-regulating PTC-element
120-240 V AC/DC
2-pole terminal 2.5mm²
4 A
2,5 A
20 W
DIN-rail 35mm
Plastic
0,3 kg
75 mm
38 mm
98 mm
IP20
II (double insulated)
CE, EAC, Gost R, RoHS, UL E150057, VDE
-45°C ... +70°C
-45°C ... +70°C
<90% RH
< 90% RH
110 V ac/dc
265 V ac/dc
Plastic enclosure, UL94 V-0
