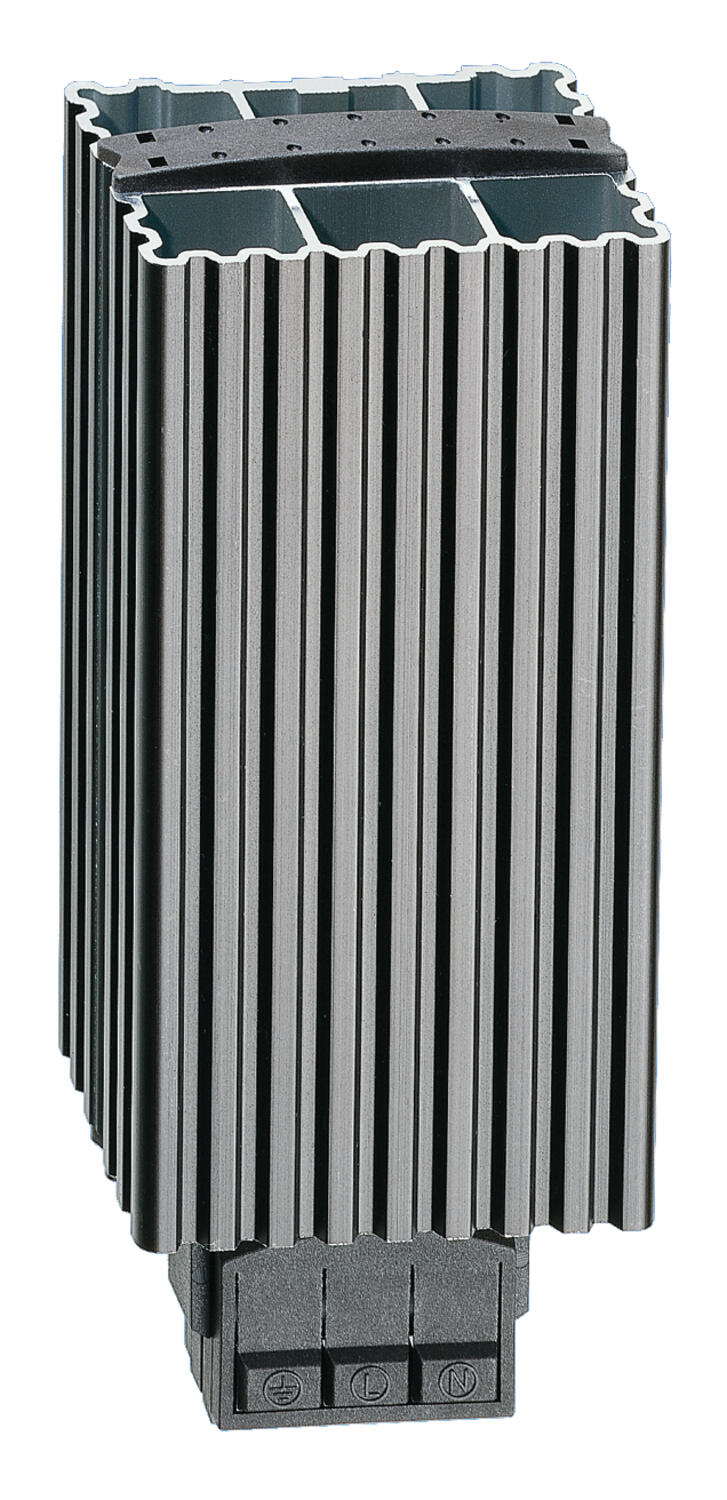

The heat source in the element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately. The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
Â
 Thanks to the chimney effect, meaning that the cold air is drawn into the element's bottom and blows out at the top, good self-circulation is achieved for the heated air.
Â

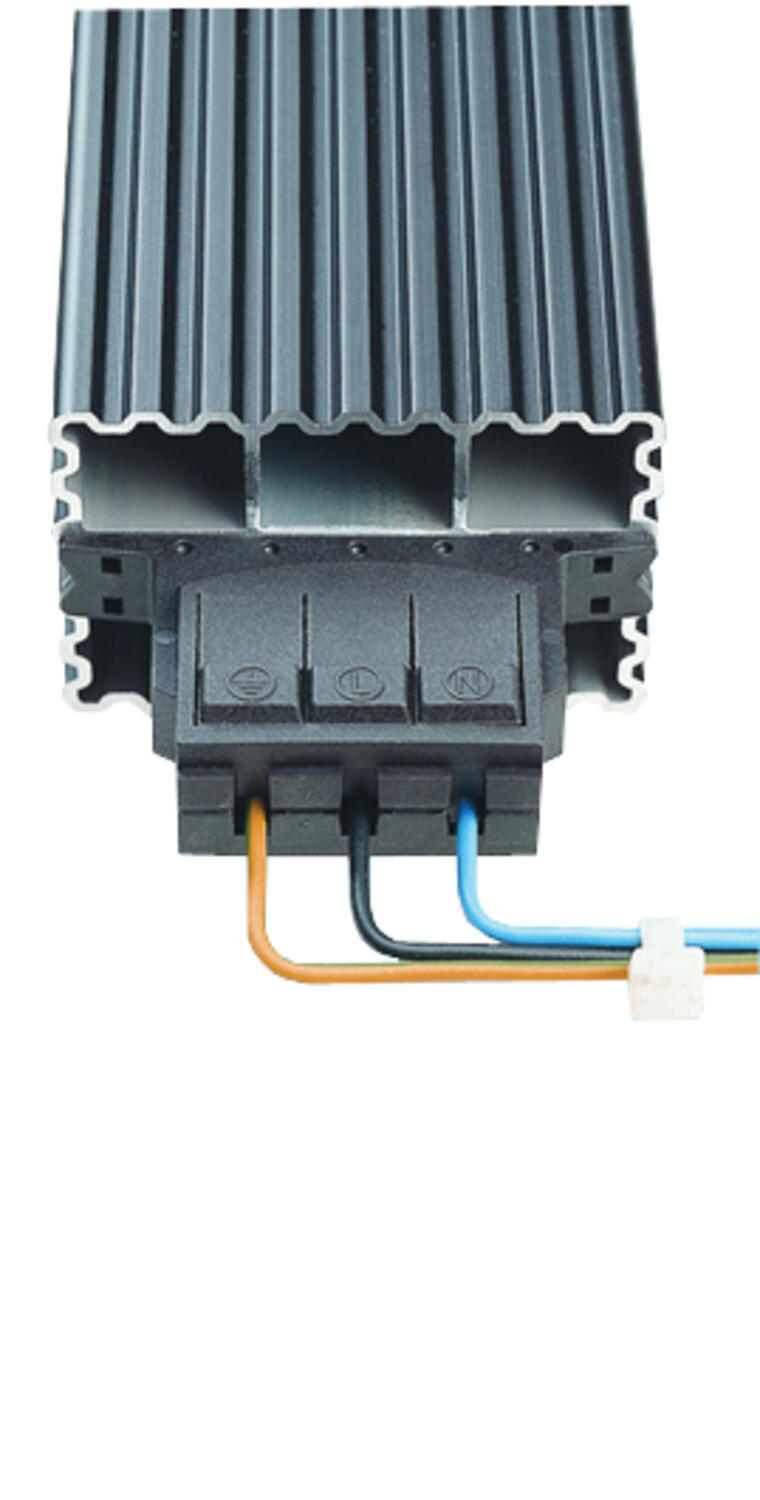

The addition of Pressure Clamp terminals saves time and simplifies the installation.
General Data |
|
|---|---|
| Heat source | Self-regulating PTC-element |
| Nominal voltage | 120-240 V AC/DC |
| Connection type | 3 pressure clamps for stranded wire 0.5-1.5mm² and rigid wire 0.5- 2.5mm² |
| Recommended fuse (slow blow) | 10 A |
| Starting current max | 9 A |
| Heat output | 150 W |
| Mounting | DIN-rail |
| Heater body | Anodized aluminum |

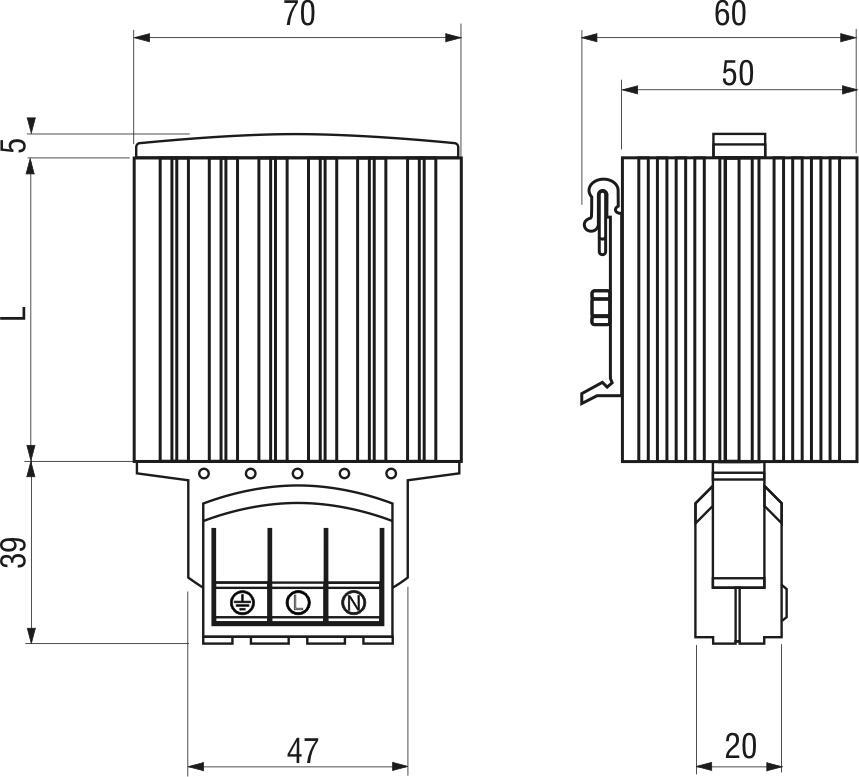

Dimensions |
|
| Weight | 0,7 kg |
| Depth | 60 mm |
| Width | 70 mm |
| Height | 259 mm |
Safety & Approvals |
|
|---|---|
| IP class | IP20 |
| Protection class | I (earthed) |
| Approvals | CE, EAC, Gost R, RoHS, UL E150057, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 110 V ac/dc |
| Voltage max | 265 V ac/dc |
| Housing | Anodized aluminium |
The heat source in the element consists of a PTC element – a semi-conductor that adapts its output to the ambient temperature.
The PTC element has a high starting current and provides full output almost immediately. The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element.
Â
 Thanks to the chimney effect, meaning that the cold air is drawn into the element's bottom and blows out at the top, good self-circulation is achieved for the heated air.
Â
The addition of Pressure Clamp terminals saves time and simplifies the installation.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Nominal voltage | Recommended fuse (slow blow) | Starting current max | Heat output | Weight | Height | Approvals | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
HG 140 150W Heater, 110-250V ac/dc
Art:
14008.0-00
Copied
|
120-240 V AC/DC
|
10 A
|
9 A
|
150 W
|
0,7 kg
|
259 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
HG 140 15W Heater, 12-36V ac/dc
Art:
14010.0-00
Copied
|
24 V AC/DC
|
|
9 A
|
15 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 30W Heater, 12-36V ac/dc
Art:
14011.0-00
Copied
|
24 V AC/DC
|
|
14 A
|
30 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 45W Heater, 12-36V ac/dc
Art:
14012.0-00
Copied
|
24 V AC/DC
|
|
8 A
|
45 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 60W Heater, 12-36V ac/dc
Art:
14013.0-00
Copied
|
24 V AC/DC
|
|
10 A
|
60 W
|
0,4 kg
|
179 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 75W Heater, 12-36V ac/dc
Art:
14014.0-00
Copied
|
24 V AC/DC
|
|
12 A
|
75 W
|
0,5 kg
|
179 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 100W Heater, 12-36V ac/dc
Art:
14015.0-00
Copied
|
24 V AC/DC
|
|
16 A
|
100 W
|
0,5 kg
|
179 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 150W Heater, 12-36V ac/dc
Art:
14016.0-00
Copied
|
24 V AC/DC
|
|
23 A
|
150 W
|
0,7 kg
|
259 mm
|
CE, EAC, Gost R, RoHS, VDE
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
HG 140 15W Heater, 110-250V ac/dc
Art:
14000.0-00
Copied
|
120-240 V AC/DC
|
2 A
|
1,5 A
|
15 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
HG 140 30W Heater, 110-250V ac/dc
Art:
14001.0-00
Copied
|
120-240 V AC/DC
|
4 A
|
3 A
|
30 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
HG 140 45W Heater, 110-250V ac/dc
Art:
14003.0-00
Copied
|
120-240 V AC/DC
|
4 A
|
3,5 A
|
45 W
|
0,3 kg
|
104 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
HG 140 60W Heater, 110-250V ac/dc
Art:
14005.0-00
Copied
|
120-240 V AC/DC
|
4 A
|
2,5 A
|
60 W
|
0,4 kg
|
140 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
HG 140 75W Heater, 110-250V ac/dc
Art:
14006.0-00
Copied
|
120-240 V AC/DC
|
6,3 A
|
4 A
|
75 W
|
0,5 kg
|
179 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
HG 140 100W Heater, 110-250V ac/dc
Art:
14007.0-00
Copied
|
120-240 V AC/DC
|
8 A
|
4,5 A
|
100 W
|
0,5 kg
|
179 mm
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
110 V ac/dc
|
265 V ac/dc
|
|
