STEGO

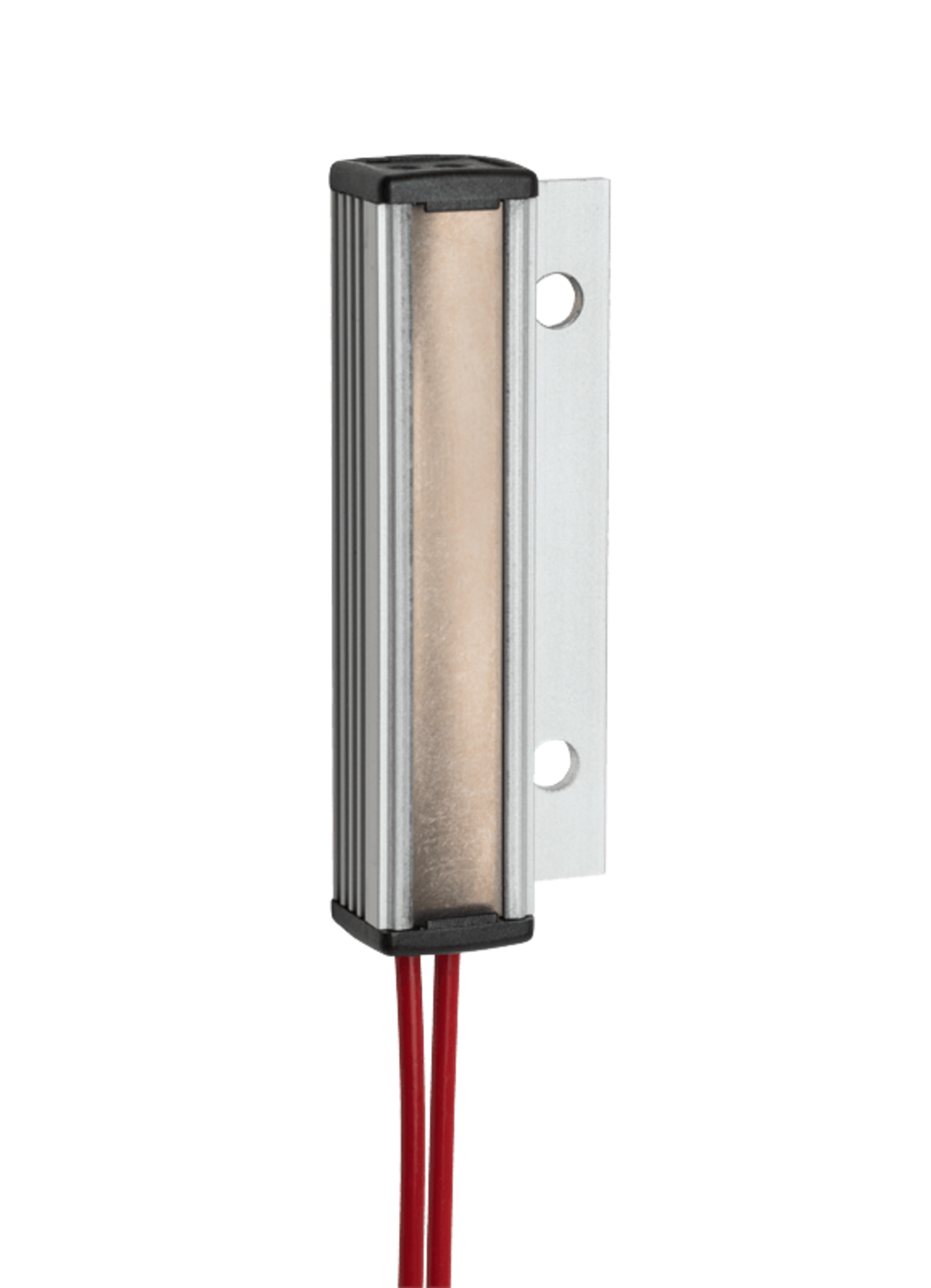

The RC 016 range of Stego heaters use a semiconductor PTC element that adapts its output to the ambient temperature and are designed for continuous operation.
Â
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element. These can be used with a thermostat if better control is required.
Â
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These are ideal for applications such as CCTV cameras to prevent fogging of lenses.
The new versions have improved design with higher resistance to vibration and better heat transfer.
Â
General Data |
|
|---|---|
| Heat source | Self-regulating PTC-element |
| Nominal voltage | 120-240 V AC/DC |
| Recommended fuse (slow blow) | 1 A |
| Starting current max | 2 A |
| Heat output | 3 W |
| Heater body | Anodized aluminum |
Dimensions |
|
| Weight | 0,02 kg |
| Depth | 12,5 mm |
| Cable length | 500 mm |
| Width | 25 mm |
| Height | 30 mm |
Safety & Approvals |
|
|---|---|
| IP class | IP54 |
| Protection class | II (double insulated) |
| Approvals | CE, EAC, Gost R, RoHS, UL E150057, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90 % RH |
| Operating humidity | < 90% RH |
| Voltage min | 110 V ac/dc |
| Voltage max | 265 V ac/dc |
The RC 016 range of Stego heaters use a semiconductor PTC element that adapts its output to the ambient temperature and are designed for continuous operation.
Â
The PTC element has a high starting current and provides full output almost immediately.
The current then falls quickly and the element is thereafter self-regulating, meaning that the warmer the surroundings, the less output produced by the element. These can be used with a thermostat if better control is required.
Â
The heating element is best installed in small enclosures so as avoid condensation or that the temperature falls beneath the minimum. These are ideal for applications such as CCTV cameras to prevent fogging of lenses.
The new versions have improved design with higher resistance to vibration and better heat transfer.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Nominal voltage | Recommended fuse (slow blow) | Starting current max | Heat output | Weight | Depth | Cable length | Height | IP class | Approvals | Surface temperature | Voltage min | Voltage max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RC 016 3W Heater, 75°C, 110-250V ac/dc, 500mm cable
Art:
01602.0-04
Copied
|
120-240 V AC/DC
|
1 A
|
2 A
|
3 W
|
0,02 kg
|
12,5 mm
|
500 mm
|
30 mm
|
IP54
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
RC 016 8W Heater, 150°C, 12-36V ac/dc
Art:
01602.0-03
Copied
|
24 V AC/DC
|
2 A
|
4 A
|
8 W
|
0,02 kg
|
12,5 mm
|
300 mm
|
30 mm
|
IP54
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
RC 016 13W Heater, 170°C, 12-36V ac/dc
Art:
01610.0-01
Copied
|
24 V AC/DC
|
4 A
|
11 A
|
13 W
|
0,04 kg
|
12,5 mm
|
340 mm
|
60 mm
|
IP54
|
CE, EAC, Gost R, RoHS, VDE
|
|
12 V ac/dc
|
36 V ac/dc
|
| ||
|
RC 016 8W Heater, 150°C, 110-250V ac/dc
Art:
01602.0-00
Copied
|
120-240 V AC/DC
|
2 A
|
2 A
|
8 W
|
0,02 kg
|
12,5 mm
|
300 mm
|
30 mm
|
IP54
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
RC 016 10W Heater, 155°C, 110-250V ac/dc
Art:
01609.0-00
Copied
|
120-240 V AC/DC
|
4 A
|
2,5 A
|
10 W
|
0,03 kg
|
12,5 mm
|
340 mm
|
50 mm
|
IP54
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
RC 016 13W Heater, 170°C, 110-250V ac/dc
Art:
01610.0-00
Copied
|
120-240 V AC/DC
|
4 A
|
3 A
|
13 W
|
0,04 kg
|
12,5 mm
|
340 mm
|
60 mm
|
IP54
|
CE, EAC, Gost R, RoHS, UL E150057, VDE
|
|
110 V ac/dc
|
265 V ac/dc
|
| ||
RC 016 8W Heater, 300mm cable, 110-265V ac/dc - Improved robust design
Art:
01651.0-00
Copied
|
120-240 V AC/DC
|
2 A
|
2 A
|
8 W
|
0,02 kg
|
14 mm
|
300 mm
|
35 mm
|
IP40
|
CE, UKCA, cULus, EAC, UL E150057, VDE, RoHS 3
|
<180°C
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
RC 016 10W Heater, 300mm cable, 110-265V ac/dc - Improved robust design
Art:
01662.0-00
Copied
|
120-240 V AC/DC
|
2 A
|
2,5 A
|
10 W
|
0,03 kg
|
14 mm
|
300 mm
|
55 mm
|
IP40
|
CE, UKCA, cULus, EAC, UL E150057, VDE, RoHS 3
|
<180°C
|
110 V ac/dc
|
265 V ac/dc
|
| ||
|
RC 016 13W Heater, 300mm cable, 110-265V ac/dc - Improved robust design
Art:
01673.0-00
Copied
|
120-240 V AC/DC
|
2 A
|
3 A
|
13 W
|
0,04 kg
|
14 mm
|
300 mm
|
65 mm
|
IP40
|
CE, UKCA, cULus, EAC, UL E150057, VDE, RoHS 3
|
<180°C
|
110 V ac/dc
|
265 V ac/dc
|
|
Select a variant in the list
