STEGO
This series of powerful and compact heaters has several benefits, both during installation and in operation. The heaters are available in the following outputs: 50, 100 and 150 W.
Â
They are easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.
Â

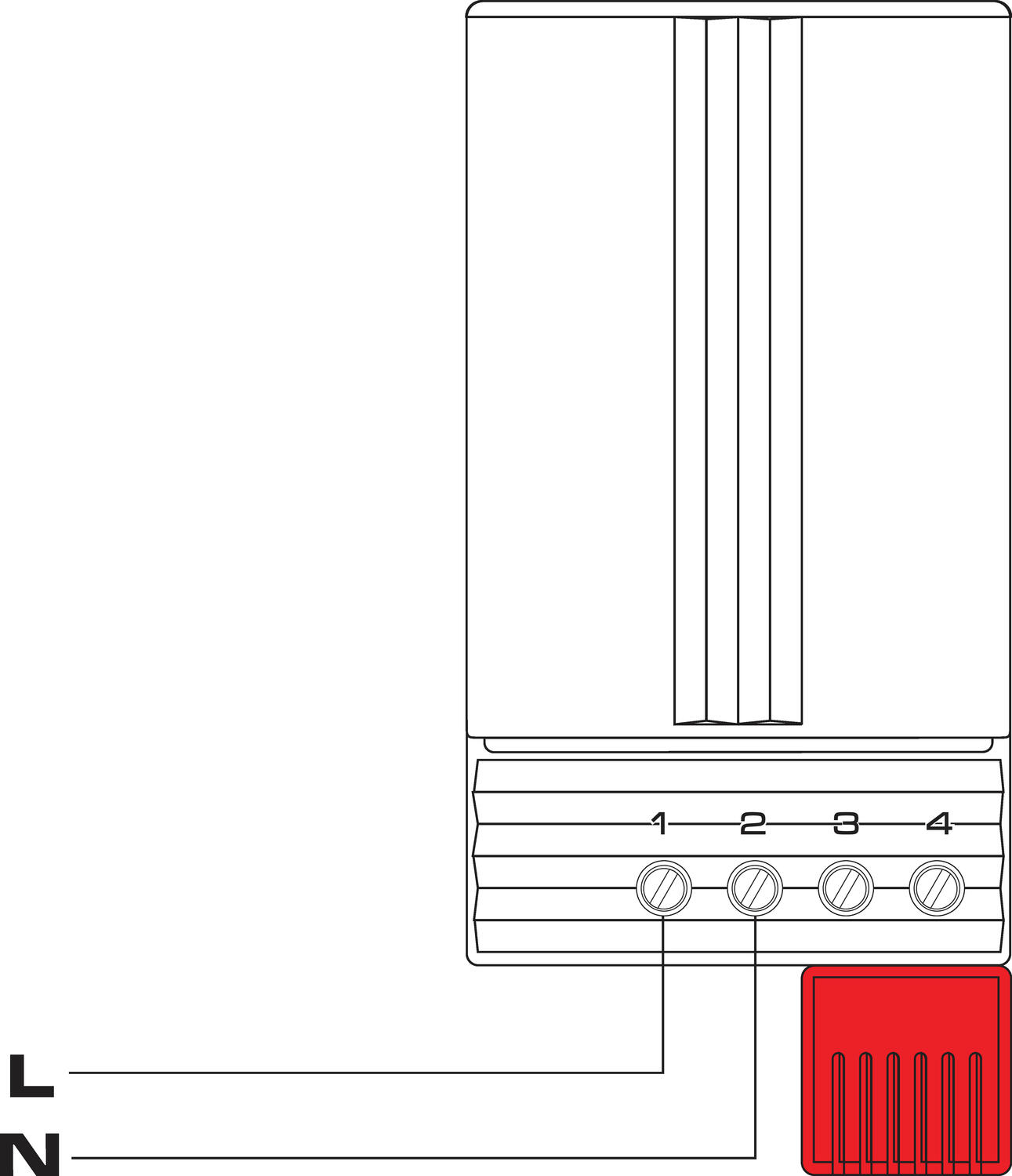

This model is supplied with a plug in tamper-proof preset thermostat, so does not require any additional components or wiring, only two cables for power need to be connected and the heater is ready for use.
Â
Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 80 °C. The heater can thus be mounted relatively close to other components in the same installation, and there is no risk for fire damage.
Â
The dual isolation also means that the heater does not need to be earthed. The heat source consist of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation. This type of heater is also available without a thermostat. For this model, see CS060.Â
Â
General Data |
|
|---|---|
| Colour | Black |
| Heat source | Self-regulating PTC-element |
| Nominal voltage | 120-240 V AC/DC |
| Connection type | 4-pole terminal AWG 14 max |
| Recommended fuse (slow blow) | 4 A |
| Starting current max | 2,5 A |
| Heat output | 50 W |
| Mounting | DIN-rail 35mm |
| Heater body | Plastic |

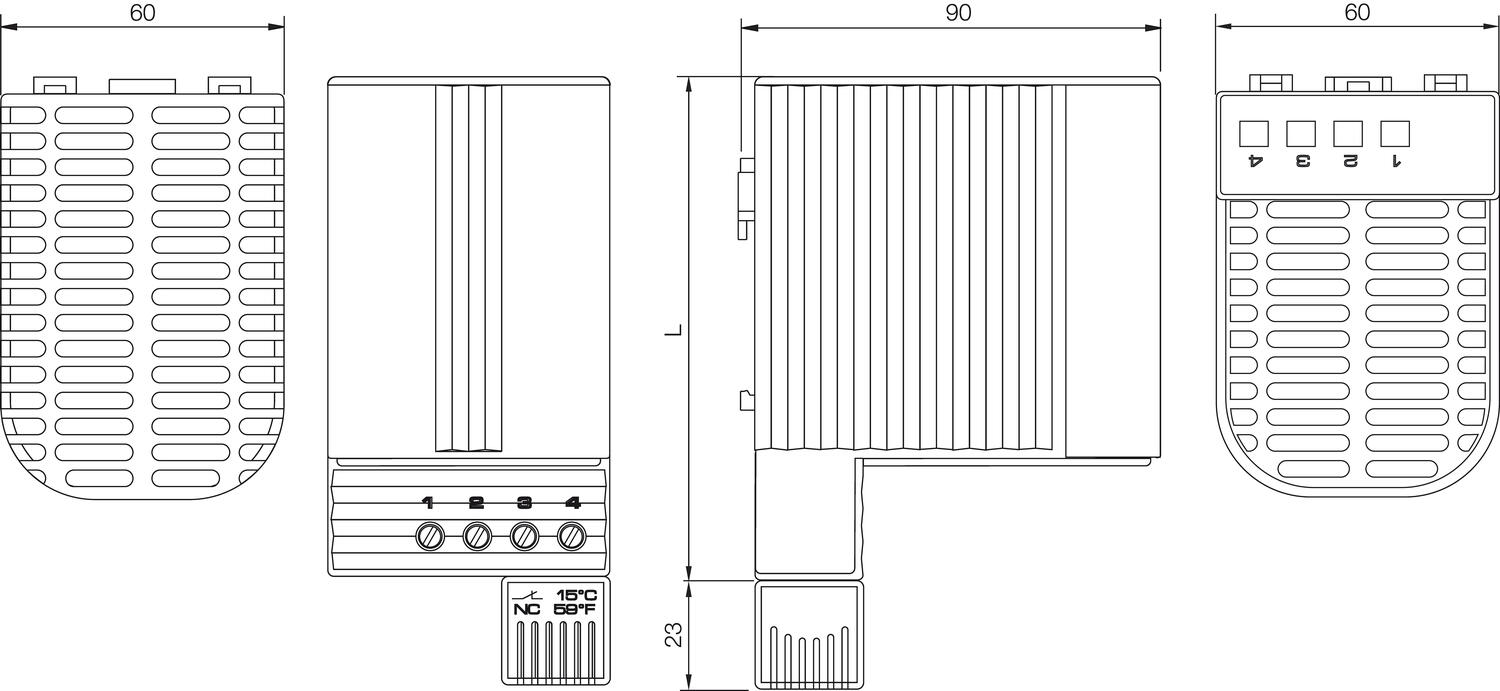

Dimensions |
|
| Weight | 0,3 kg |
| Depth | 90 mm |
| Width | 60 mm |
| Height | 110 mm |
Safety & Approvals |
|
| IP class | IP20 |
*Invisible Heading* |
|
|---|---|
| Protection class | II (double insulated) |
| Approvals | CE, EAC, Gost R, RoHS, UL E150057, VDE |
Thermostat |
|
| Switch off temperature | 15 °C |
| Switch on temperature | 5 °C |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Temperature 50 mm above the heater | +86 °C (+186,8 °F) |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 110 V ac |
| Voltage max | 265 V ac |
| Housing | Plastic enclosure, UL94 V-0 |
This series of powerful and compact heaters has several benefits, both during installation and in operation. The heaters are available in the following outputs: 50, 100 and 150 W.
Â
They are easily installed thanks to the mounting clips for DIN rails that are fitted on the back of the heaters.
Â
This model is supplied with a plug in tamper-proof preset thermostat, so does not require any additional components or wiring, only two cables for power need to be connected and the heater is ready for use.
Â
Because the heater is dual isolated with a plastic casing, the side surfaces' temperature never exceeds 80 °C. The heater can thus be mounted relatively close to other components in the same installation, and there is no risk for fire damage.
Â
The dual isolation also means that the heater does not need to be earthed. The heat source consist of a PTC element, which provides a long and reliable lifetime even if the heater is in constant operation. This type of heater is also available without a thermostat. For this model, see CS060.Â
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Recommended fuse (slow blow) | Starting current max | Heat output | Weight | Height | Switch off temperature | Switch on temperature | Temperature 50 mm above the heater | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
CSF 060 50W Touch-safe heater inc stat, 120-240V ac, 15°C
Art:
06001.0-00
Copied
|
4 A
|
2,5 A
|
50 W
|
0,3 kg
|
110 mm
|
15 °C
|
5 °C
|
+86 °C (+186,8 °F)
|
| ||
|
CSF 060 50W Touch-safe heater inc stat, 120-240V ac, 25°C
Art:
06002.0-00
Copied
|
4 A
|
2,5 A
|
50 W
|
0,3 kg
|
110 mm
|
25 °C
|
15 °C
|
+86 °C (+186,8 °F)
|
| ||
|
STEGO CSF060 100W 15/5ºC 120-240 VAC
Art:
06011.0-00
Copied
|
8 A
|
4,5 A
|
100 W
|
0,3 kg
|
110 mm
|
15 °C
|
5 °C
|
+120 °C (+248 °F)
|
| ||
|
CSF 060 100W Touch-safe heater inc stat, 120-240V ac, 25°C
Art:
06012.0-00
Copied
|
8 A
|
4,5 A
|
100 W
|
0,3 kg
|
110 mm
|
25 °C
|
15 °C
|
+120 °C (+248 °F)
|
| ||
|
CSF 060 150W Touch-safe heater inc stat, 120-240V ac, 15°C
Art:
06021.0-00
Copied
|
10 A
|
8 A
|
150 W
|
0,5 kg
|
150 mm
|
15 °C
|
5 °C
|
+145 °C (+293 °F)
|
| ||
|
CSF 060 150W Touch-safe heater inc stat, 120-240V ac, 25°C
Art:
06022.0-00
Copied
|
10 A
|
8 A
|
150 W
|
0,5 kg
|
150 mm
|
25 °C
|
15 °C
|
+145 °C (+293 °F)
|
|
