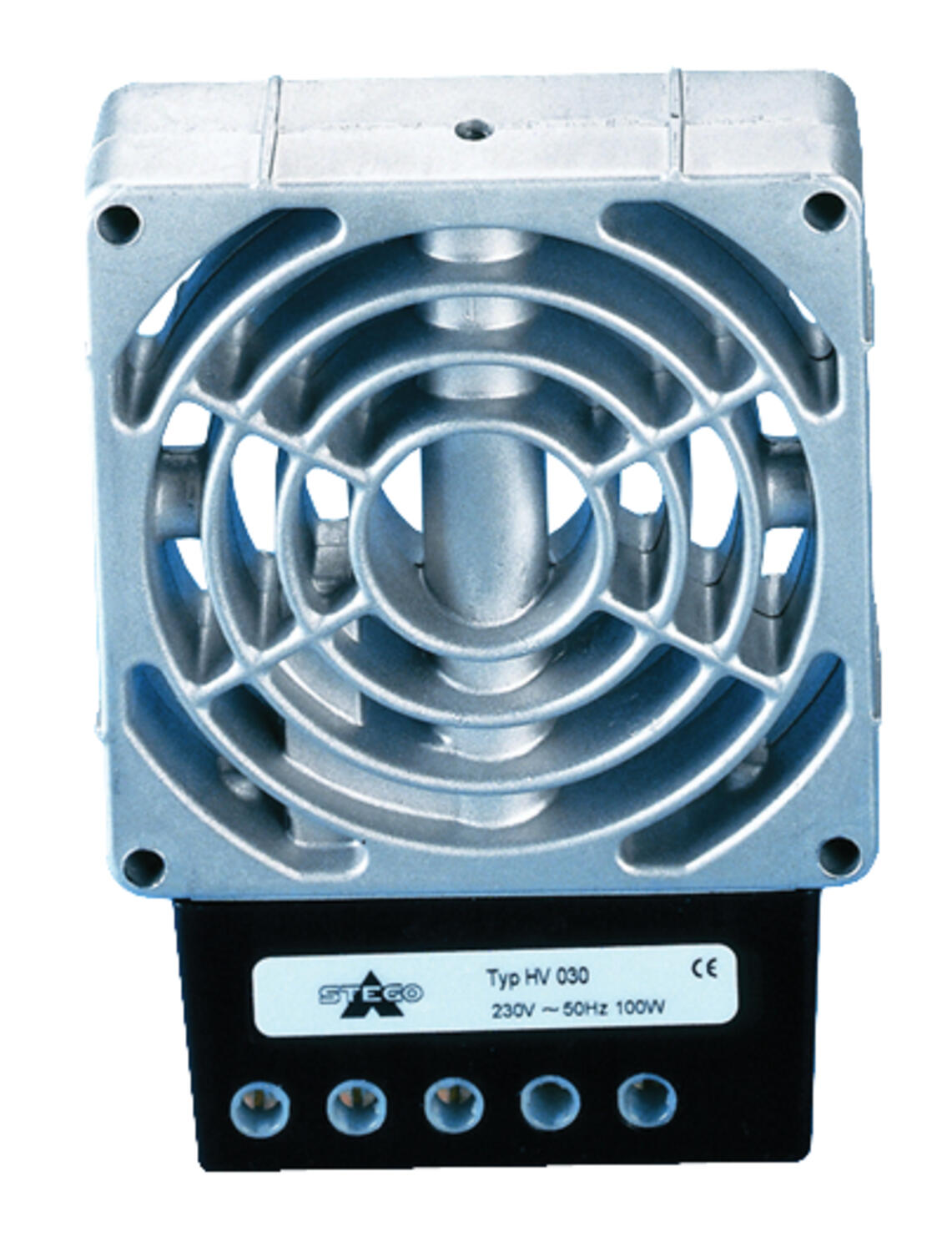

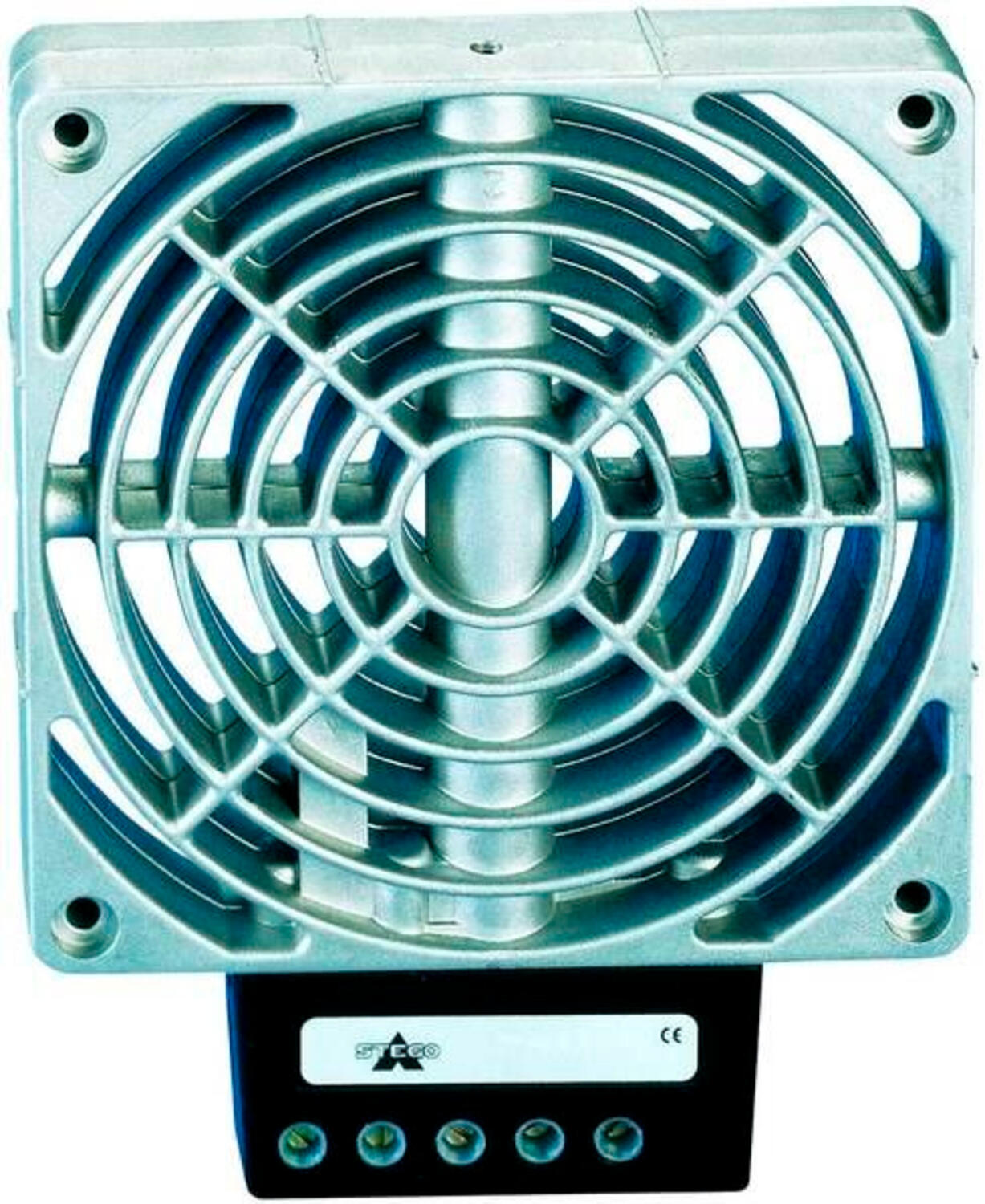

The heating source in this fan is a high-power resistor element.
Â
Thanks to the fan, good air circulation is obtained, while at the same time high upward dispersal is achieved. The fan is therefore appropriate for installation in enclosures outdoors to maintain an even temperature and thus avoid condensation, but it can also be used to assure that the temperature is kept above the lowest permitted level.
Â
The fan can even be run separately to increase the air circulation during the summer, for example.
General Data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Life span | 50 000 h @ +25 °C |
| Heat source | Resistor element |
| Nominal voltage | 230 V AC |
| Connection type | 3-pole spring terminal for 2.5 mm² cable (1.5 mm² with end sleeve). Fan connected to screw terminal L2 / N2. |
| Recommended fuse (slow blow) | 1 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 100 W |
| Air capacity | 35 m³/h |
| Material of body | Die cast aluminium |
| Heater body | Aluminium, Plastic |

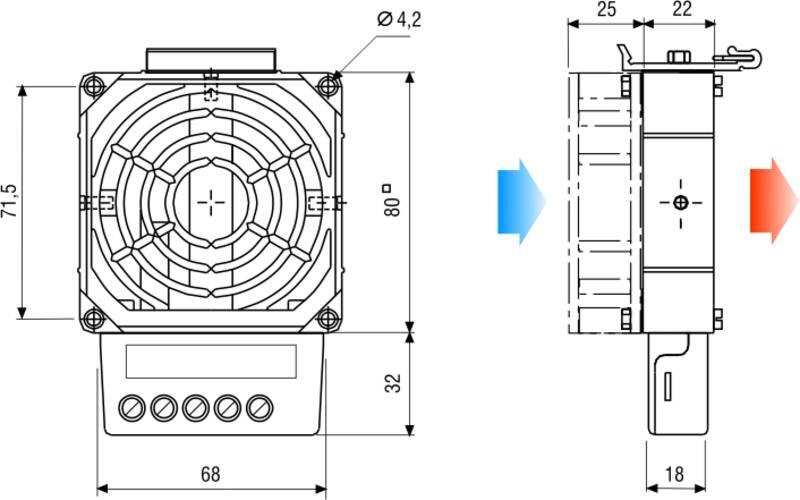

Dimensions |
|
| Weight | 0,6 kg |
| Depth | 112 mm |
| Width | 80 mm |
| Height | 47 mm |
Safety & Approvals |
|
|---|---|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | In case of fan failure and overheating |
| Protection class | I (earthed) |
| Approvals | CE, cULus, EAC, RoHS, UL, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Temperature 50 mm above the heater | +75 °C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 230 V ac |
| Plastic cover | Black, UL94 V-0 |
| Voltage max | 230 V ac |
| Material plastic housing | Plastic |
The heating source in this fan is a high-power resistor element.
Â
Thanks to the fan, good air circulation is obtained, while at the same time high upward dispersal is achieved. The fan is therefore appropriate for installation in enclosures outdoors to maintain an even temperature and thus avoid condensation, but it can also be used to assure that the temperature is kept above the lowest permitted level.
Â
The fan can even be run separately to increase the air circulation during the summer, for example.
