STEGO

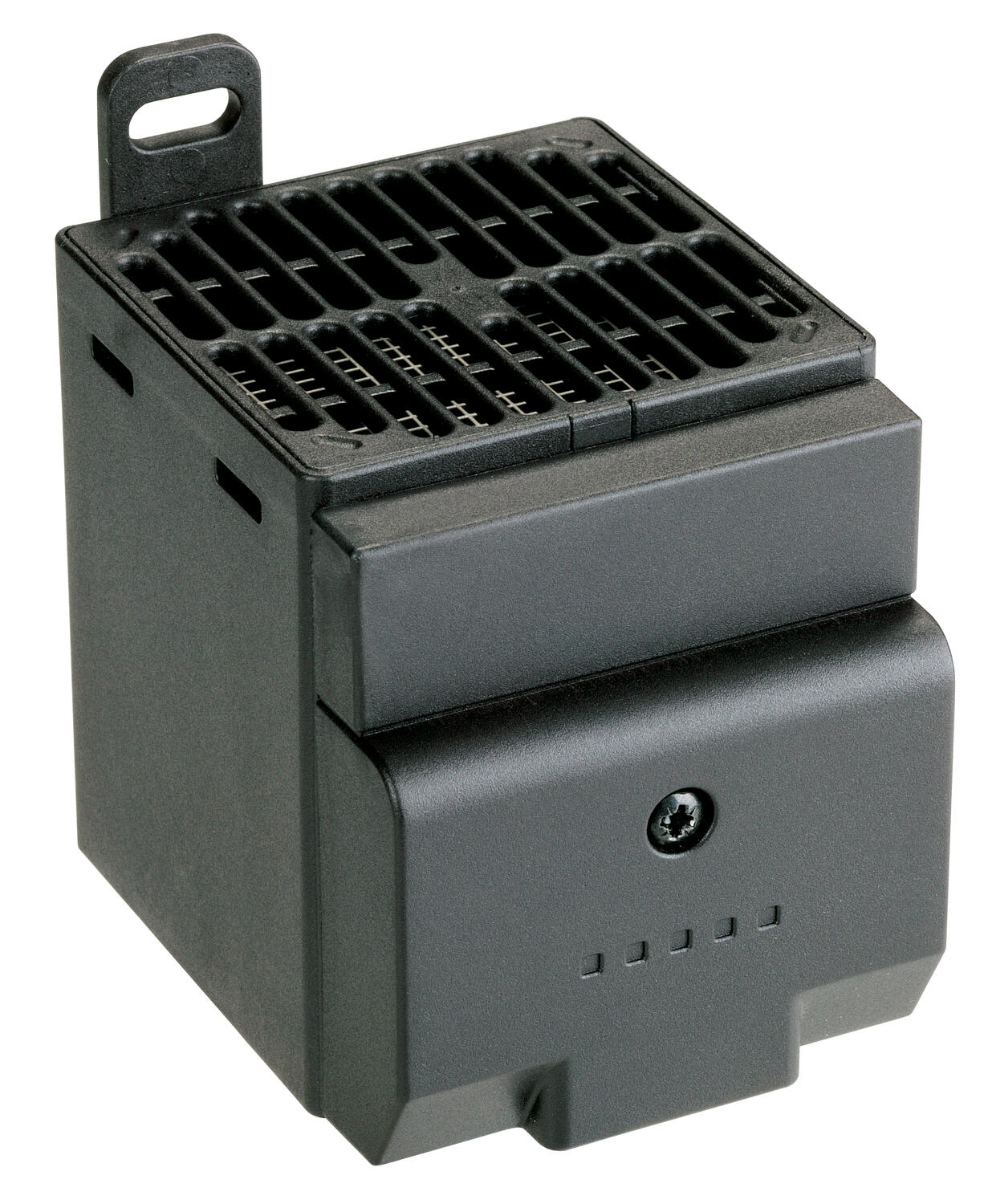

CS028/CSL028 range is a high performance PTC fan heater; it prevents the formation of condensation and provides an even temperature within the enclosure.
Â
In has a very compact design and is well-suited for use in cabinets and enclosures where space is at a premium.
Â
Because the heater is dual isolated with a plastic casing, the surface temperature never exceeds 50 °C on the 150/250W and 65 °C on the 400 W unit.
This means the heater can be mounted relatively close to other components in the same installation, and there is no risk for heat damage.
Â
You can choose between brackets for DIN rails or screw assembly.
Â
General Data |
|
|---|---|
| Mounting | Clip on, DIN rail |
| Life span | 40 000 h @ +40 °C (+104 °F) |
| Colour | Black |
| Heat source | Self-regulating PTC-element |
| Nominal voltage | 230 V AC |
| Connection type | 2-pole terminal for 2.5 mm² cable |
| Recommended fuse (slow blow) | 10 A |
| Starting current max | 12 A |
| Number of fans | 1 |
| Frequency | 50/60 Hz |
| Heat output | 150 W |
| Air capacity | 13,8 m³/h |
| Material of body | Plastic |
| Heater body | Plastic |

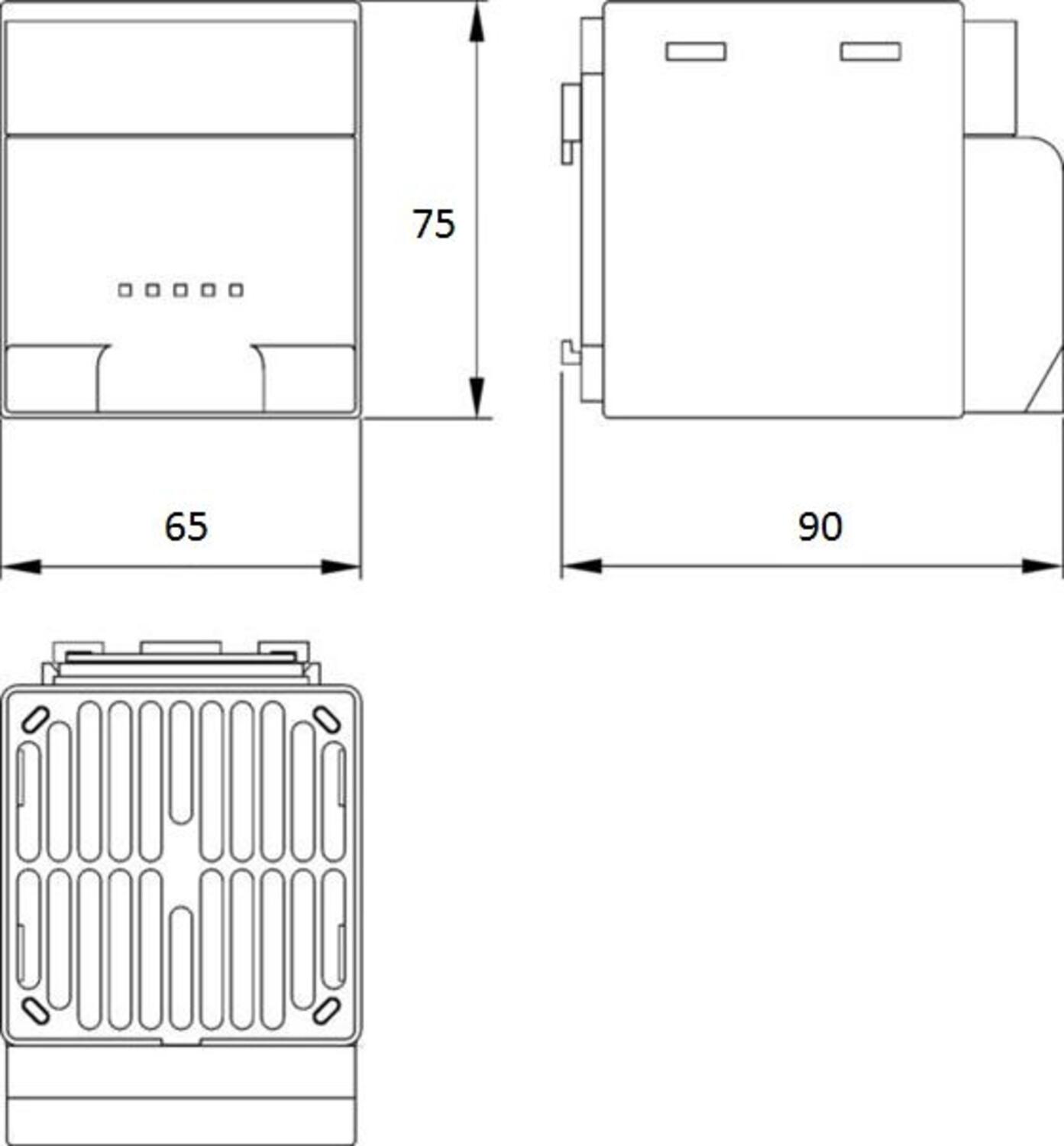

Dimensions |
|
| Weight | 0,3 kg |
| Depth | 90 mm |
| Tightening torque for cable | 0,8 Nm |
*Invisible Heading* |
|
|---|---|
| Width | 65 mm |
| Height | 75 mm |
Safety & Approvals |
|
| Flammability class | UL94-V0 |
| IP class | IP20 |
| Overheating protection | PTC temperature limiting |
| Protection class | II (double insulated) |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E150057, VDE |
Rated Operating Conditions |
|
| Operational temperature | -45°C ... +70°C |
| Storage temperature | -45°C ... +70°C |
| Humidity storage | <90% RH |
| Operating humidity | < 90% RH |
| Voltage min | 230 V ac |
| Voltage max | 230 V ac |
| Country of origin | Germany |
| Fan | Axial fan, ball bearing |
| Housing | Plastic enclosure, UL94 V-0 |
CS028/CSL028 range is a high performance PTC fan heater; it prevents the formation of condensation and provides an even temperature within the enclosure.
Â
In has a very compact design and is well-suited for use in cabinets and enclosures where space is at a premium.
Â
Because the heater is dual isolated with a plastic casing, the surface temperature never exceeds 50 °C on the 150/250W and 65 °C on the 400 W unit.
This means the heater can be mounted relatively close to other components in the same installation, and there is no risk for heat damage.
Â
You can choose between brackets for DIN rails or screw assembly.
Â
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Mounting | Life span | Colour | Heat source | Nominal voltage | Connection type | Recommended fuse (slow blow) | Starting current max | Number of fans | Frequency | Heat output | Air capacity | Material of body | Heater body | Weight | Depth | Tightening torque for cable | Width | Height | Flammability class | IP class | Overheating protection | Protection class | Approvals | Operational temperature | Storage temperature | Humidity storage | Operating humidity | Voltage min | Voltage max | Country of origin | Fan | Housing | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS 028 150W Fan heater, 230V ac, clip fixing
Art:
02800.0-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable
|
10 A
|
12 A
|
1
|
50/60 Hz
|
150 W
|
13,8 m³/h
|
Plastic
|
Plastic
|
0,3 kg
|
90 mm
|
0,8 Nm
|
65 mm
|
75 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
CS 028 150W Fan heater, 230V ac, screw fixing
Art:
02800.0-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable
|
10 A
|
12 A
|
1
|
50/60 Hz
|
150 W
|
13,8 m³/h
|
Plastic
|
Plastic
|
0,3 kg
|
90 mm
|
0,8 Nm
|
65 mm
|
75 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 250W Fan heater, 230V ac, clip fixing
Art:
02811.0-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
9 A
|
1
|
50/60 Hz
|
250 W
|
45 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 250W Fan heater, 230V ac, screw fixing
Art:
02811.0-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
9 A
|
1
|
50/60 Hz
|
250 W
|
45 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
STEGO CSL028 PTC HEATER 400W 230V DIN
Art:
02810.0-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
16 A
|
15 A
|
1
|
50/60 Hz
|
400 W
|
45 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 400W Fan heater, 230V ac, screw fixing
Art:
02810.0-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
230 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
16 A
|
15 A
|
1
|
50/60 Hz
|
400 W
|
45 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057, VDE
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
230 V ac
|
230 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CS 028 150W Fan heater, 120V ac, clip fixing
Art:
02800.9-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
|
120 V AC
|
2-pole terminal for 2.5 mm² cable
|
10 A
|
6 A
|
1
|
50/60 Hz
|
150 W
|
13,8 m³/h
|
Plastic
|
Plastic
|
0,3 kg
|
90 mm
|
0,8 Nm
|
65 mm
|
75 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
|
|
|
| ||
|
CS 028 150W Fan heater, 120V ac, screw fixing
Art:
02800.9-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
120 V AC
|
2-pole terminal for 2.5 mm² cable
|
10 A
|
6 A
|
1
|
50/60 Hz
|
150 W
|
13,8 m³/h
|
Plastic
|
Plastic
|
0,3 kg
|
90 mm
|
0,8 Nm
|
65 mm
|
75 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 250W Fan heater, 120V ac, clip fixing
Art:
02811.9-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
120 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
6 A
|
1
|
50/60 Hz
|
250 W
|
54 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 250W Fan heater, 120V ac, screw fixing
Art:
02811.9-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
120 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
6 A
|
1
|
50/60 Hz
|
250 W
|
54 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 400W Fan heater, 120V ac, clip fixing
Art:
02810.9-00
Copied
|
Clip on, DIN rail
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
120 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
9 A
|
1
|
50/60 Hz
|
400 W
|
54 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CSL 028 400W Fan heater, 120V ac, screw fixing
Art:
02810.9-01
Copied
|
Screw fixing
|
40 000 h @ +40 °C (+104 °F)
|
Black
|
Self-regulating PTC-element
|
120 V AC
|
2-pole terminal for 2.5 mm² cable (with strain relief)
|
10 A
|
9 A
|
1
|
50/60 Hz
|
400 W
|
54 m³/h
|
Plastic
|
Plastic
|
0,5 kg
|
111 mm
|
0,8 Nm
|
85 mm
|
90 mm
|
UL94-V0
|
IP20
|
PTC temperature limiting
|
II (double insulated)
|
CE, cULus, EAC, RoHS, UL, UL E150057
|
-45°C ... +70°C
|
-45°C ... +70°C
|
<90% RH
|
< 90% RH
|
120 V ac
|
120 V ac
|
Germany
|
Axial fan, ball bearing
|
Plastic enclosure, UL94 V-0
|
| ||
|
CS 028 200W Fan heater, 24V dc, screw fixing
Art:
02801.1-01
Copied
|
|
|
|
|
|
|
|
|
|
|
200 W
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24
|
|
|
|
|
|
Select a variant in the list
